EisSound KBSOUND STAR User manual

KBSOUND
DAB
ESRADIO
95.8
Master
Aux
Settings
Bass
FM
Scan level
1234 KBSOUND STAR
Ideal
FM MONO
App
control
USER MANUAL EN USER MANUAL EN

Electrónica Integral de Sonido, S.A. reserves the right to make changes without prior notice. Electrónica Integral de Sonido, S.A. is not responsible for any errors or omissions
that may appear in this manual.
CC-1212ENG-01
66460137
Install easily
Download
free App
KBSOUND
Living Room Fm
BluetoothAudio Streaming
Step
VampireWeekend · Modern Vampires of the City
Music Player
D
2:34
Modern Vampiresof the City
VampireWeekend
4:14
City
4:14
Pair & Play
your music
USER MANUAL EN USER MANUAL EN

5
EN
KBSOUND®STAR User Manual
FCC ID: 2AB6X52791
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
FCC Caution:
Changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.
FCC Statement:
“This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.”
RSS-Gen & RSS-210 statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
RSS-102 Statement:
This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment.
Cet équipement est conforme à l’exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé.
1. Basic Components & Features
2. KBSOUND STAR App Installation
2.1 iOS Devices
2.2 ANDROID Devices
3. Bluetooth Low Energy Connection (BLE)
4. Listen FM
5. Listen DAB
6. Listen Bluetooth Audio Streaming
7. Settings
7.1 Auto power on
7.2 Ideal mode
7.3 Dab
7.4 Audio Channels
6
7
7
7
8
10
11
12
19
20
21
22
23
26
29
30
30
31
32
33
34
36
8. Multi-Room: Bluetooth ID
9. Multi-User
10. Operating Mode
10.1 Volume
10.2 Notifications and phone calls
while operating
10.3 Reset to factory defaults

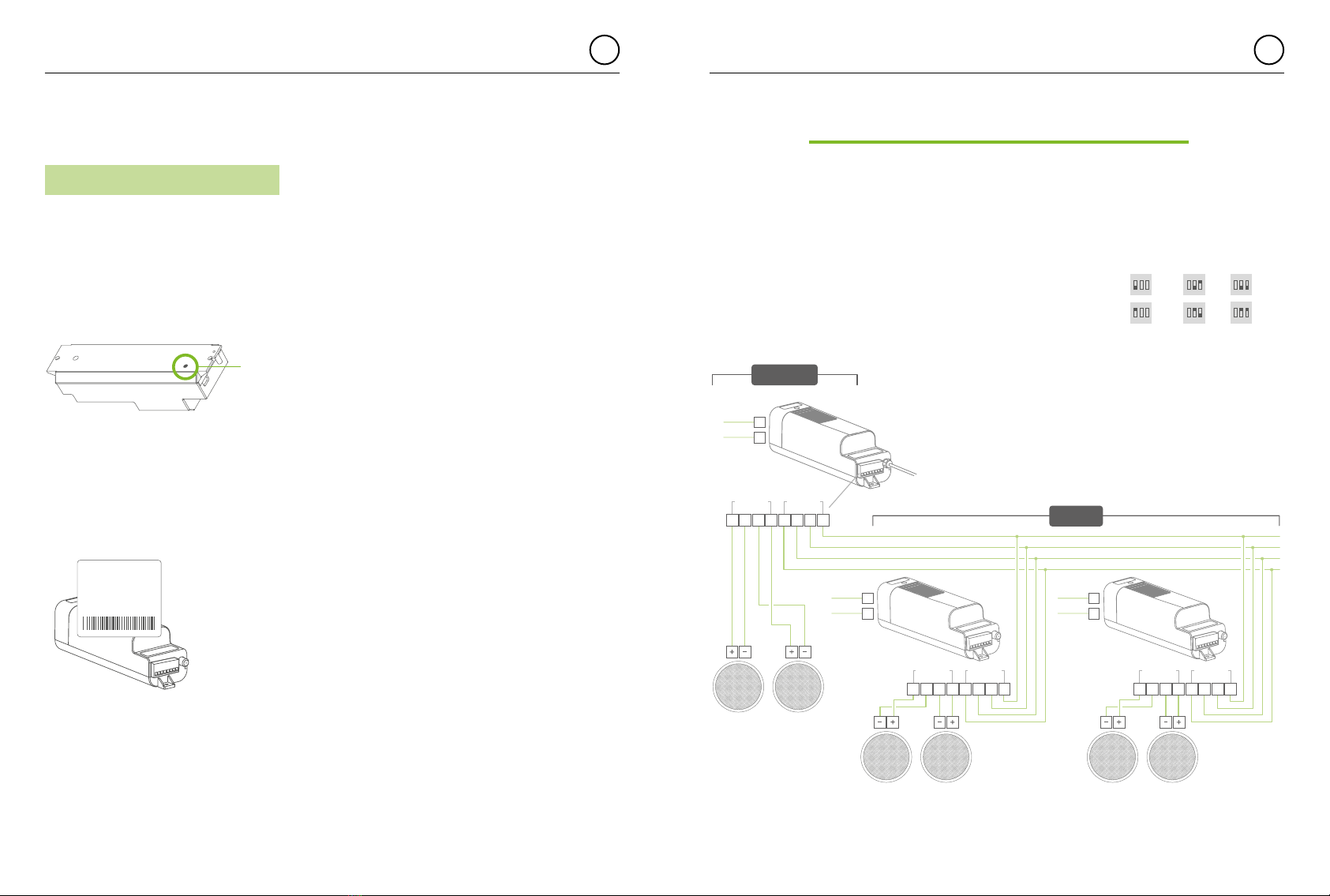

11. Auxiliary Amplifier
12. Remote Control Accessory
13. FAQ’s
7.5 Speaker output (master)
7.6 Line output (aux)
7.7 Bluetooth
7.8 Remote Control Accessory
23
24
24
25

6 7
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
5
4
2
13
6
7
EQ

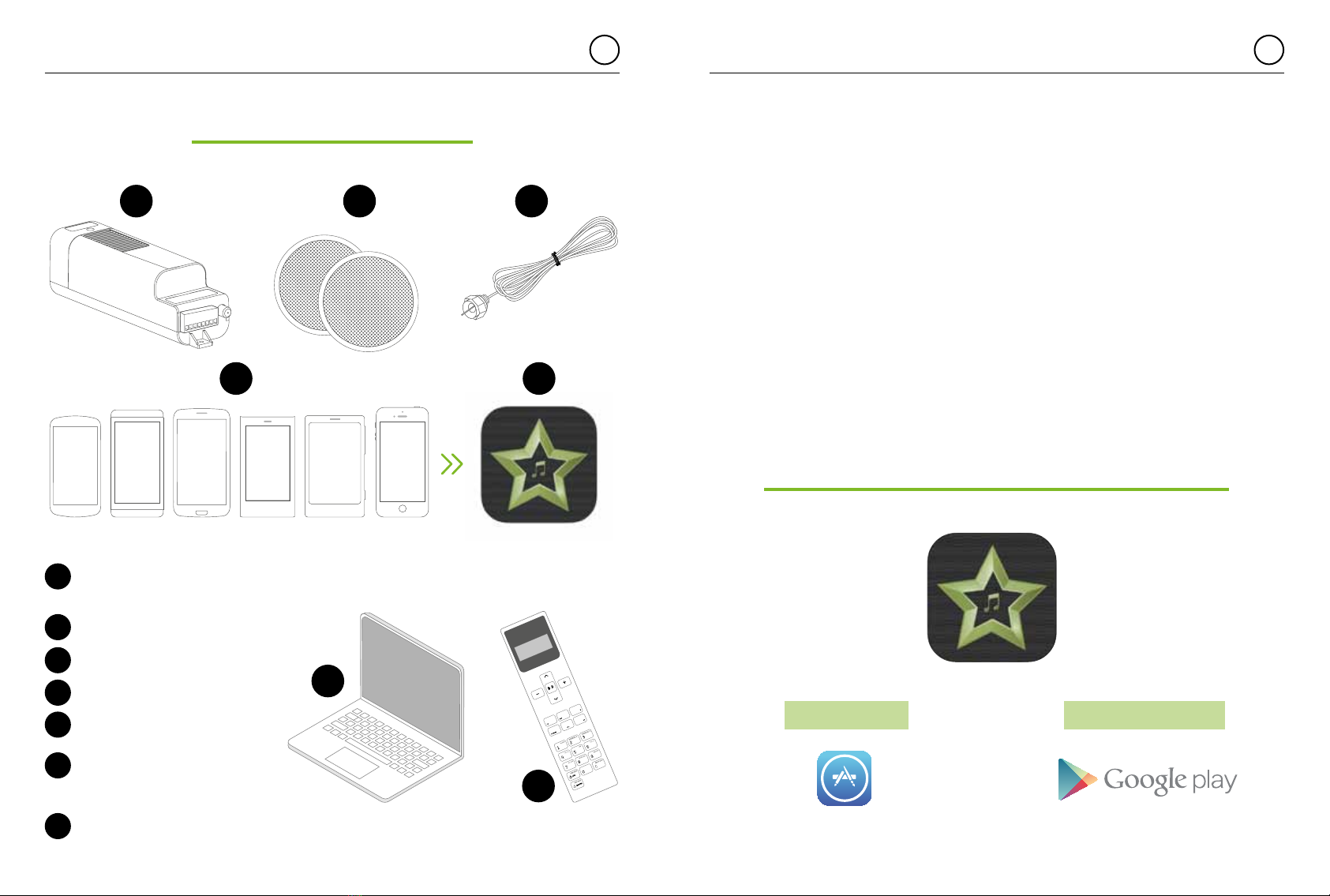

1. Basic Components
Bluetooth Audio
Receiver+FM Radio+DAB
(MASTER)
Speakers
FM/DAB Antenna
iOS/Android Device
KBSOUND STAR App
External Bluetooth devices
(Computer, Amazon Alexa
devices, etc.)
Remote Control Accessory
(If purchased as an
accessory)
2
4
5
6
7
3
1
The Master (1) is an electronic module installed in the ceiling that
allows you to enjoy three music channels: Bluetooth audio streaming,
FM Radio and DAB Radio.
The Device (4) is any smartphone or tablet based on iOS or ANDROID
with Bluetooth Low Energy (BLE) and the following Bluetooth profiles:
A2DP, AVRCP (for sending audio).
The KBSOUND STAR App (5) is the App for managing the Master
(1). It can be downloaded from Apple App Store (for iOS Devices) or
Google Play Store (for ANDROID Devices). The KBSOUND STAR App
is compatible with iOS 7 and higher and ANDROID 4.2 and higher.
The external device (6) is any Bluetooth device (A2DP, AVRCP profiles)
from which you wish to stream Audio.
Warning: The KBSOUND STAR
App runs on different releases
from different operating systems,
using different devices from
different brands.
As a result, its functioning
may present some differences
between devices.
2. KBSOUND STAR App Installation
2.1 iOS DEVICES 2.2 ANDROID DEVICES
Tap the Apple App Store on the iOS Device to
download the KBSOUND STAR App.
Tap the Google Play Store on the ANDROID
Device to download the KBSOUND STAR App.

8 9
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
3. Bluetooth Low Energy Connection (BLE)

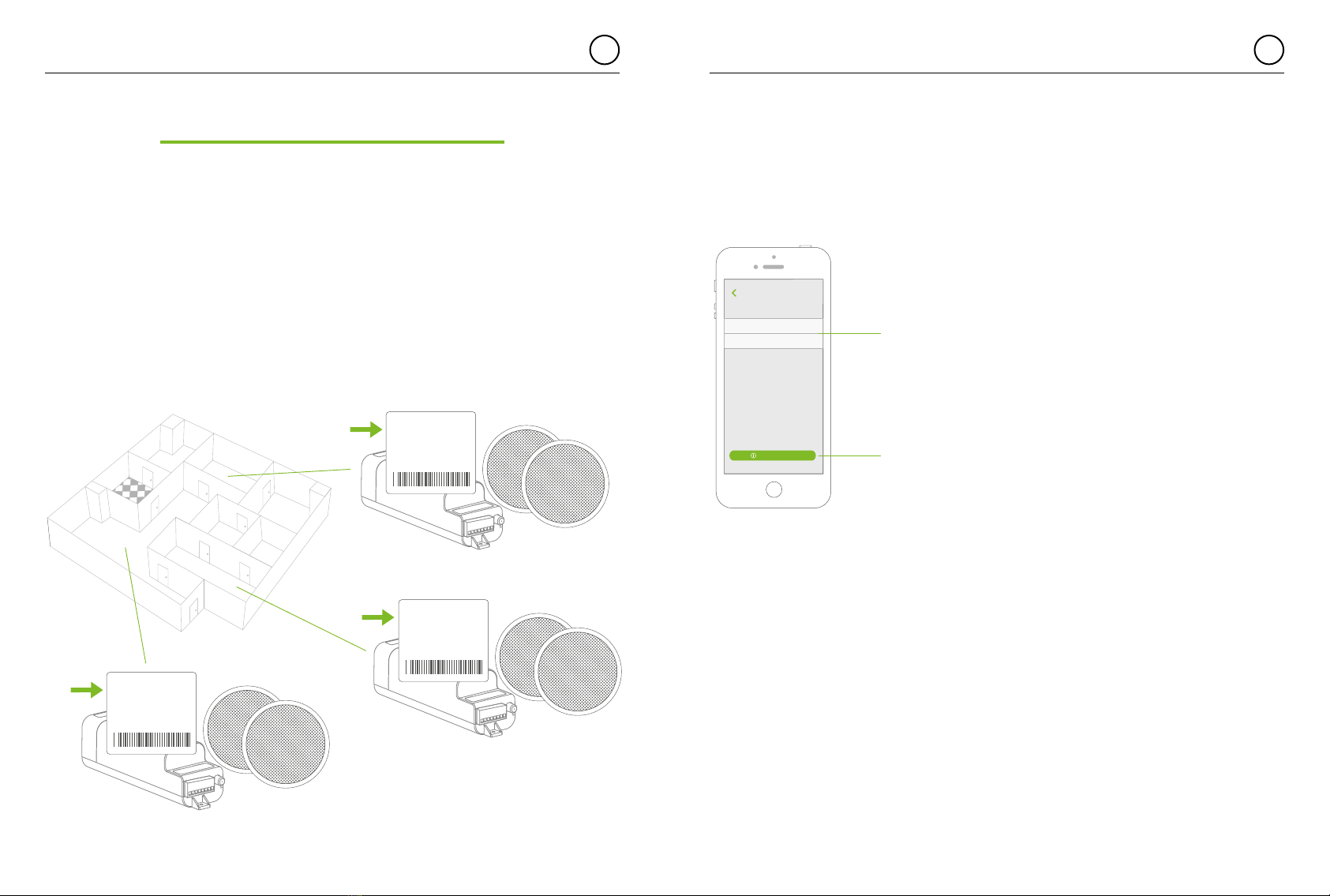

1. The first time the APP is launched the list of devices is empty. Tap the “Pair a new device”
button to search the available MASTERS within range.
2. All the MASTERS within range will appear in the screen. Select the MASTER with which
you want to connect.
3. The first time the Device is going to be paired with the Master,
the KBSOUND STAR Bluetooth identifier and password will be the factory defaults.
This data can be found on the label of the Master. Each Master has a UNIQUE KBSOUND STAR
Bluetooth identifier and password, please check that you have a copy of the label with the
KBSOUND STAR Bluetooth identifier and password provided on the “Quick reference guide”.
4. Introduce the password
5. Now the device has been added to the list of paired devices. Select it to connect.
6. Tap the Master ( ) button to switch ON/OFF the system.
7. For adding new devices, press the name of the MASTER at the bottom of the screen and follow
the same process from the beginning.
Note: only one smartphone can be connected to
a MASTER at any time. If a second smartphone
wants to connect to the same MASTER,
disconnect the first one closing the APP and then
connect the second one. Be aware that the first
APP is not running in the background.
Note: KBSOUND STAR Bluetooth identifier and password
can be changed by the user (see chapter 8).
For recovering factory defaults (see chapter 10.6).
KBSOUND
Select a previously paired devide
Pair a new device
PASSWORD
1234 KBSOUND STAR
Enter PASSWORD
Cancel
Pair
0
1
GHI
PQRS
4
7
2
ABC
JKL
TUV
5
8
MNO
WXYZ
3
6
9
DEF
KBSOUND
Select a previously paired devide
Re-scan
0012 KBSOUND STAR
1234 KBSOUND STAR Pair
Pair
Pair
0519 KBSOUND STAR
Pair
2805 KBSOUND STAR
KBSOUND
Select a previously paired devide
Pair a new device
1234 KBSOUND STAR Forget
KBSOUND
Select a previously paired devide
Pair a new device
PASSWORD
1234 KBSOUND STAR
Enter PASSWORD
Cancel
Pair
0
1
GHI
PQRS
4
7
2
ABC
JKL
TUV
5
8
MNO
WXYZ
3
6
9
DEF
KBSOUND
Select a previously paired devide
Re-scan
0012 KBSOUND STAR
1234 KBSOUND STAR Pair
Pair
Pair
0519 KBSOUND STAR
Pair
2805 KBSOUND STAR
KBSOUND
Select a previously paired devide
Pair a new device
1234 KBSOUND STAR Forget
KBSOUND
1234 KBSOUND STAR
KBSOUND
1234 KBSOUND STAR
MasterAux
Master
BLUETOOTH ID:
0001 KBSOUND STAR
PASSWORD:
4582
MAC address:
00 : 00 : 00 : 00 : 00 : 00
To clear the pairing between the Device and
the Master, open the iOS/ANDROID Bluetooth
Settings Menu. Take care that to pair again,
you will need the password, so before clearing
the pairing, take note of the password.
Warning: some ANDROID’s, after clearing
the pairing, does not clear all of their internal
data and to pair again will requiere resetting
the Master to factory defaults (see chapter 10.6),
which means that all the Devices paired will be
deleted and they will have to be paired again.
Tested with:
GOOGLE NEXUS 5 / ANDROID 5.0.1
AMSUNG GALAXY ALPHA / ANDROID 4.4.4
