EK COLLIDER FC User manual

ＵＳＥＲ ＭＡＮＵＡＬ

CONTENTS
SAFETY
DIMENSIONS
DESCRIPTION
INTRODUCTION
PHOTOMETRICS
TECHNICAL SPECIFICATION
MENU
01
02
02
03
06
05
06
07
DMX CHANNELS
TROUBLE SHOOTING
08
DMX CONNECTION
POWER CONNECTION
04
ETHERNET CONNECTION
04
15

01
WARNING!Before carrying out any operations with the unit,carefully read this instruction
manual and keep it with care for future reference,It contains important information about
the installation,user and maintenance of the unit.
SAFETY
General instruction
-The products referred to in this manual conform to the European Community Directives and are therefore
marked wihth CE.
-The unit is supplied with hazardous network voltage (230V~) .Leave serving to skilled personnel only.
Never make any modications on the unit not described in this instruction manual,otherwise you will risk
an electric shock.
-Connection must be made to power supply system tted with ecient earthing (Class I appliance acc-
ording to standard EN60598-1) .It is moreover,recommended to protect the supply lines of the units from
indirect contact and/or shorting to earth by using appropriately sized residual current devices.
-The connection to the main network of electric distribution must be carried out by a qualied electrical
installer.Check that the main frequency and voltage correspond to those for which the unit is designed as
given on the electrical data lable.
-This unit is not for home use,only professional applications.
-Never use the xture under the following conditions:
• in places subject to vibrations or bumps;
• in places with a temperature of over 40℃.
-Make certain that no inammable liquids,water ot metal objects enter the xture,
-Do not dismantle or modify the xture.
-All work must always be carried out by qualied technical personnel.Contact the nearest sales point for
an inspection or contact the manufacturer directly.
-If the unit is to be put out of operation denitively,take it to a local recyling
plant for a dosposal which is not harmful to the environment.
Warnings and installation precautions
-If this device will be operated in any way dierent to the one described in this manual,it may suer
damage and the guarantee becomes void.Furthermore,any operation may lead to dangers like short
circuit,burns,electric shock,etc.
-Before starting any maintenance work or cleaning the xture,cut o power from the main supply.
-Always additionally secure the xture with the safety rope.When carrying out any work,always comply
scrupulously with all the regulations (particularly regarding safety) currently in force in the country in
which the xture’s being used.
-Install the xture in a well ventilated place.
-Keep any inammable materials at a safe distance from the xture.
-Shields,lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
-The lamp (LED) shall be changed if it has become damaged or thermally deformed.
-Never look directly at the light beam.Please note that fast changes in lighting,e.g. ashing light,may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
-Do not touch the product’s housing when operating because it may be very hot.

02
DESCRIPTION
The most powerful White pixel-mappable LED strobe ever built.
Harness the stunning kinetic energy of accelerated particles of
pure blinding light.
IP65-rated tour-grade construction.
DMX and Artnet control.
179
468
468
89
191
268
168
179
TECHNICAL DRAWING

03
Display Function Navigation
MODE
MENU
UP
DOWN
ENTER
DESCRRIPTION
MENU OPTION
UP
DOWN
CONFIRM
EFFECT
ENTER THE MENU
SCROLL UP
SCROLL DOWN
CONFIRM
ILLUSTRATION
MENU OPERATION
INCREASE THE NUMERIC VALUE
DECREASE THE NUMERIC VALUE
SAVE THE FUCTION
1 2 9
48
34567810 11 12
37
36
24
13
25
1 2 3 4 5 6 7 8
48 individually controllable segments

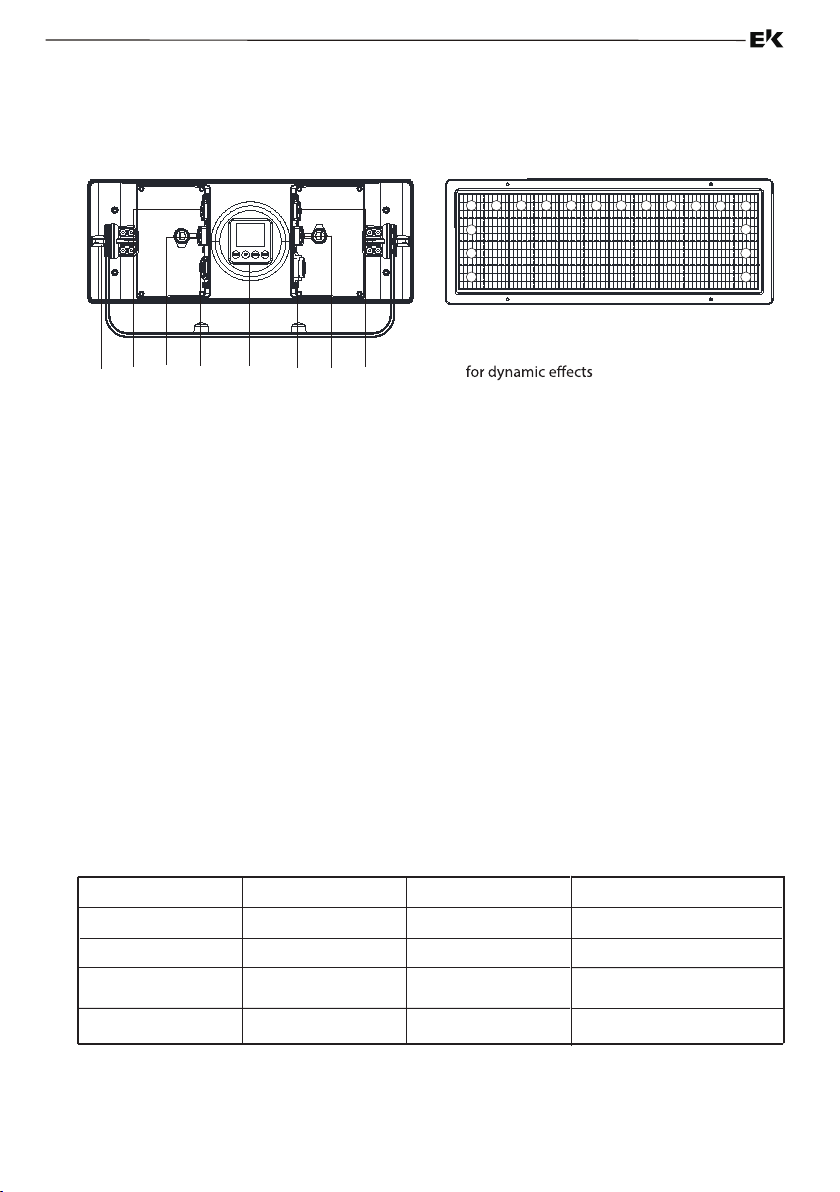

INTRODUCTION
1. HANGING BRACKET KNOB
2. DMX IN
3. ART-NET IN
4. POWER IN
5. DISPLAY
6. POWER OUT
7. ART-NET OUT
8. DMX OUT

04
Beam Angle: 98°
luminance(lux)
Project Distance(m)
FULL on
1m 3m 5m 7m
1282
10m
356032040 653 320
TECHNICAL SPECIFICATION
Light Source:1728 RGBW LED
Beam Angle:98°
Field Angle:156°
Output 5m@1282 lx
Lumen 180000 lm
Mains 100 -240V 50/60HZ
Consumption 1500W(peak)/590W(full on)
Power Connection Powercon In/Out,up to 2 units
Ingress rating: IP65
Dimensions 468x179x268mm
Weight:15Kg
DMX Channels
BASIC,PIXELS,ADVANCED
Strobe 0-30HZ
Dimming 4 selectable dimming curves
Protocol DMX512, RDM,Artnet

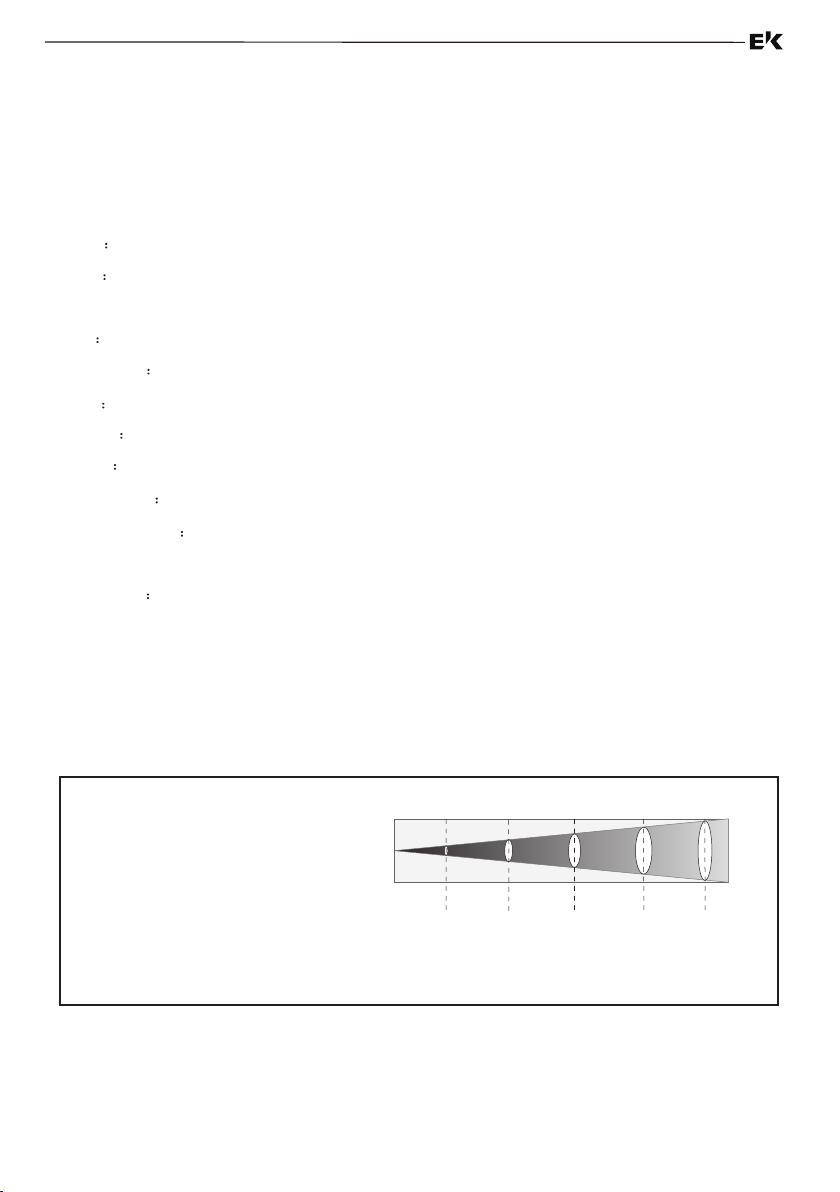

PHOTOMETRICS
Full On
1147688
230 1605 2294 Diameter/cm

05
Main Menu
Menu level 2
Menu level 3
Menu level ...
Remark
1 CONNECT
DMX Address
1-512
Default: 1
DMX Mode
BASIC
STATIC
Default:
BASIC
RGBW STROBE
STROBE
R=0~255
TO CHOOSE THE
COLOR OF THE
STROBE, NOT
SELECTABLE
WITH DMX
G=0~255
B=0~255
W=0~255
PIXELS
RGBW STROBE
PIXELS
1PX
Default:
48PX
2PX
3PX
12PX
48PX
ADVANCED
ADVANCED 1
Default:
ADVANCED 3
ADVANCED 2
ADVANCED 3
ADVANCED 4
Ethernet
Protocol
Default:Only Art-net
Only Art-Net
ArtNet+DMX （PIXELS(1/2/4/8/16/64PX) /
ADVANCE(2/4)）
Subnet
0-15
Default: 0
Universe
0-15
Default: 0
Start Channel
1-512
Default:1
IP Address
2/10.***.***.***
Ethernet To DMX
NO
Yes
Default: No
RDM ID
030F********
2 SETUP
Temperature unit
°C
Default: °C
°F
Screen
Back Light
On
Default: 10S
10S
20S
30S
Flip Display
No
Default: No
Yes
Key Lock
No
Default: No
Yes
Fixture
White Balance
Off
Default: Off,
RGBW
Manual
Red
<125-255>
Green
<125-255>
Blue
<125-255>
White
<125-255>
Dimmer Mode
Off
Default: Off
Dimmer 1
Dimmer 2
Dimmer 3
Fan mode
Auto
Default: Yes
High
3 ADVANCED
Factory Reload
No
Yes
Mapping Rotation
No
Default: No
Yes
4 INFORMATION
Fixture Time
0-9999
Default: 0
Temperature
58 °C
Fans Speed
**%
Software Version
DISP-V1.0
CTR1-NET-V1.0
CTR2-LED-V1.0
5 STAND ALONE
Master/Slave
Master
Default: Slave
Slave
Sequence
Show 1
Show 2
Show 3
……
……
Show 16
Show 17
Show 18
Show 19
Show 20
Show 21
Show 22
Show 23
Speed
1-100
Default: Show 23
Speed:100
Foreground = R
Background = Black
Foreground
Black
R
G
B
W
GB
RB
RG
RGB
RW
GW
BW
RGW
RBW
GBW
RGBW
Background
Black
R
G
Menu

06
Warning
Power In Power out
Ethernet Switch
PC
ETHERNET CONNECTION
Network Cable
Network Cable
POWER CONNECTION
2
2

Relation between DMX and Address
Follow above method for subsequent fixture,calculating starting address as indicated.
07
ADVANCED 1
ADVANCED 2
ADVANCED 3
ADVANCED 4
001 -015 001 016 031
001 -215 001 216 433
001 -203 001 204 407
001 -027 001 028 055
DMX512 Controller
Subsequent
DMX512 Controller
DMX INPUT
1
3
2
1
3
2
COMMON
DMX
DMX
DMX OUTPUT
1
3
2
DMX CONNECTION
MODE ALLOCATION DMX ADDRESS
1ST FIXTURE
DMX ADDRESS
2ND FIXTURE
DMX ADDRESS
3RD FIXTURE
Depending on the length of the DMX cable run, or other factors, it may be advisable to install a
terminator at the last xture in the run.
The illustration below shows the correct placement of a 120Ω 0.25W resistor in a terminator, as
well as the standard DMX signal pin-outs.

08
ADVANCED - ADVANCED 1
Channel
Function
Value
Percent/Setting
Remark
1
FLASH DIMMER
000-255
Strobe dimmer
2 FLASH STROBE
000-030 No flash/Closed
031-100
Strobe slow to fast
101-130
Open
131-200 Random strobe slow to fast
201-255 Open
3 FLASH RED 000-255 Red intensity
4 FLASH GREEN 000-255 Green intensity
5
FLASH BLUE
000-255
Blue intensity
6
FLASH WHITE
000-255
White intensity
7 BG DIMMER 000-255 Strobe Dimmer
8 BG STROBE
000-030
No flash/Closed
031-100
Strobe slow to fast
101-130
Open
131-200 Random strobe slow to fast
201-255 Open
9 BG RED 000-255 Red intensity
10 BG GREEN 000-255 Green intensity
11 BG BLUE 000-255 Blue intensity
12
BG WHITE
000-255
White intensity
13 AUTO FX
000-010
No Function
011-015
FX 1
016-020 FX 2
021-025 FX 3
026-030
FX 4
031-035
FX 5
036-040 FX 6
041-045 FX 7
046-050 FX 8
051-055 FX 9
056-060
FX 10
061-065 FX 11
066-070
FX 12
071-075
FX 13
076-080
FX 14
081-085 FX 15
086-090
FX 16
091-095 FX 17
096-100 FX 18
101-105 FX 19
106-110 FX 20
111-115
FX 21
116-120
FX 22
121-125 FX 23
126-205 RESERVED(TBD)
206-255
Random pixel(with density)
From 1 to 10 pixel, 1 more pixel every 5 steps
14 FX SPEED
000-050
Static indexing
051-255
From slow to fast
15 DIMMER MODE
000-051 From MENU
052-101 Mode OFF
102-152 Mode 1
153-203
Mode 2
204-255 Mode 3
Channel

09
ADVANCED - ADVANCED 2
DMX
Art-net+DMX
Function Value Percent/Setting Remark
Artnet
Artnet
DMX
1
/
1
FLASH DIMMER
000-255
0-100%
2 / 2 FLASH STROBE
000-030 No flash/Closed
031-100 Strobe slow to fast
101-130 Open
131-200 Random strobe slow to fast
201-255 Open
3 / 3 BG DIMMER 000-255 Strobe Dimmer
4 / 4 BG STROBE
000-030
No flash/Closed
031-100
Strobe slow to fast
101-130
Open
131-200 Random strobe slow to fast
201-255 Open
5 / 5 BG RED 000-255 Red intensity
6 / 6 BG GREEN 000-255 Green intensity
7
/
7
BG BLUE
000-255
Blue intensity
8 / 8 BG WHITE 000-255 White intensity
9 / 9 AUTO FX
000-010 No Function
011-015 FX 1
016-020 FX 2
021-025
FX 3
026-030
FX 4
031-035 FX 5
036-040 FX 6
041-045
FX 7
046-050
FX 8
051-055 FX 9
056-060 FX 10
061-065 FX 11
066-070
FX 12
071-075
FX 13
076-080 FX 14
081-085 FX 15
086-090
FX 16
091-095
FX 17
096-100 FX 18
101-105 FX 19
106-110 FX 20
111-115 FX 21
116-120
FX 22
121-125
FX 23
126-205 RESERVED(TBD)
206-255 Random pixel(with density) From 1 to 10 pixel, 1 more pixel every 5
steps
10 / 10 FX SPEED 000-050 Static indexing
051-255
From slow to fast
11 / 11 DIMMER MODE
000-051
From MENU
052-101
Mode OFF
102-152 Mode 1
153-203 Mode 2
204-255 Mode 3
12
1
/
PIXEL 1 RED
000-255
Red intensity
Channel

10
13
2
/
PIXEL 1 GREEN
000-255
Green intensity
14 3 / PIXEL 1 BLUE 000-255 Blue intensity
15 4 / PIXEL 1 WHITE 000-255 White intensity
...
...
/
...
...
...
200
189
/
PIXEL 48 RED
000-255
Red intensity
201 190 / PIXEL 48 GREEN 000-255 Green intensity
202 191 / PIXEL 48 BLUE 000-255 Blue intensity
203
192
/
PIXEL 48 WHITE
000-255
White intensity
ADVANCED - ADVANCED 3
Channel BASIC FUNCTION FUNCTION WITH L2
FX
Value Setting WITH FX Remark
1 FLASH DIMMER LAYER2 DIMMER 000-255 0-100% Layer 2
dimmer
2 FLASH STROBE LAYER2 STROBE
000-030
No flash/Closed
- Same -
No output - Single flash with ch 1
031-100 Strobe slow to fast - Same -
101-130 Open - Same -
131-200 Random strobe
slow to fast
- Same -
201-255 Open - Same -
3 FLASH RED LAYER2 RED 000-255 Red intensity Layer 2 Red
4 FLASH GREEN LAYER2 GREEN 000-255 Green intensity Layer 2
Green
5 FLASH BLUE LAYER2 BLUE 000-255 Blue intensity Layer 2 Blue
6 FLASH WHITE LAYER2 WHITE 000-255 White intensity Layer 2
White
7 BG DIMMER 000-255 Strobe Dimmer
8 BG STROBE
000-030 No flash/Closed
031-100 Strobe slow to fast
101-130 Open
131-200 Random strobe slow to fast
201-255
Open
9
BG RED
000-255
Red intensity
10 BG GREEN 000-255 Green intensity
11 BG BLUE 000-255 Blue intensity
12 BG WHITE 000-255 White intensity
13 LAYER1 DIMMER 000-255 Strobe Dimmer
14 LAYER1 STROBE
000-030 No flash/Closed
031-100 Strobe slow to fast
101-130 Open
131-200
Random strobe slow to fast
201-255
Open
15 LAYER1 RED 000-255 Red intensity
16 LAYER1 GREEN 000-255 Green intensity
17
LAYER1 BLUE
000-255
Blue intensity
18 LAYER1 WHITE 000-255 White intensity
000-010 No Function
011-015 FX 1
016-020 FX 2
021-025
FX 3
026-030
FX 4
031-035 FX 5
036-040 FX 6
Channel

11
19
LAYER1 FX
041-045 FX 7
046-050 FX 8
051-055 FX 9
056-060
FX 10
061-065
FX 11
066-070 FX 12
071-075 FX 13
076-080 FX 14
081-085 FX 15
086-090 FX 16
091-095 FX 17
096-100 FX 18
101-105
FX 19
106-110
FX 20
111-115 FX 21
116-120 FX 22
121-125 FX 23
126-205 RESERVED(TBD)
206-255 Random pixel(with density) From 1 to 10 pixel, 1 more pixel every 5 steps
20 LAYER1 FX SPEED 000-050 Static indexing
051-255 From slow to fast
21 LAYER1 FX OFFSET
000 -
200 Continuous start selection Choose the step of start
201 -
255 Random distribution
Enables an internal distribution of the macro
between a multitude of lights on a specific DMX
line basing on their DMX starting address.
22
LAYER2 FX
(Colors and strobe are controlled by FLASH
channels.
If no FX is selected, the FLASH channels will
works as basic function.)
000-010 No Function
011-015 FX 1
016-020 FX 2
021-025 FX 3
026-030 FX 4
031-035
FX 5
036-040
FX 6
041-045 FX 7
046-050 FX 8
051-055 FX 9
056-060 FX 10
061-065 FX 11
066-070 FX 12
071-075 FX 13
076-080
FX 14
081-085
FX 15
086-090 FX 16
091-095 FX 17
096-100 FX 18
101-105 FX 19
106-110 FX 20
111-115 FX 21
116-120 FX 22
121-125 FX 23
126-205
RESERVED(TBD)
206-255 Random pixel(with density) From 1 to 10 pixel, 1 more pixel every 5 steps
23 LAYER2 FX SPEED 000-050 Static indexing
051-255 From slow to fast
LAYER1 FX
19
Channel

12
24
LAYER2 FX OFFSET
000 -
200
Continuous start selection Choose the step of start
201 -
255 Random distribution
Enables an internal distribution of the macro
between a multitude of lights on a specific DMX
line basing on their DMX starting address.
25 EMPTY - TBD
26 EMPTY - TBD
27 DIMMER MODE
000-051
From MENU
052-101
Mode OFF
102-152 Mode 1
153-203 Mode 2
204-255 Mode 3
ADVANCED - ADVANCED 4
Artnet
Artnet+DMX
BASIC
Function WITH L2 FX Value Setting WITH FX Remark
DMX Artnet DMX
1 / 1 FLASH
DIMMER
LAYER2 DIMMER 000-255 0-100% Layer 2
dimmer
2 / 2
FLASH
STROBE
LAYER2 STROBE
000-030
No flash/Closed
- Same -
031-100 Strobe slow to fast - Same -
101-130 Open - Same -
131-200 Random strobe slow to
fast
- Same -
201-255 Open - Same -
3 1 FLASH 1 RED LAYER2 1 RED 000-255 Red intensity Layer 2 Red
4 2 FLASH 1
GREEN
LAYER2 1 GREEN 000-255 Green intensity Layer 2 Green
5 3 FLASH 1 BLUE LAYER2 1 BLUE 000-255 Blue intensity Layer 2 Blue
6 4 FLASH 1
WHITE
LAYER2 1 WHITE 000-255 White intensity Layer 2 White
.. .. ... ... ... ...
191 189 FLASH 48
RED
LAYER2 48 RED 000-255 Red intensity Layer 2 Red
192 190 FLASH 48
GREEN
LAYER2 48
GREEN 000-255 Green intensity Layer 2 Green
193 191 FLASH 48
BLUE
LAYER2 48 BLUE 000-255 Blue intensity Layer 2 Blue
194 192 FLASH 48
WHITE
LAYER2 48
WHITE
000-255 White intensity Layer 2 White
195
/
3
BG DIMMER
000-255
Strobe Dimmer
196 / 4
BG STROBE 000-030 No flash/Closed
031-100 Strobe slow to fast
101-130
Open
131-200 Random strobe slow to fast
201-255 Open
197 / 5 BG RED 000-255 Red intensity
198 / 6 BG GREEN 000-255 Green intensity
199
/
7
BG BLUE
000-255
Blue intensity
200
8
BG WHITE
000-255
White intensity
201 / 9 LAYER1
DIMMER
000-255 Strobe Dimmer
Channel

13
202 / 10
LAYER1
STROBE
000-030 No flash/Closed
031-100 Strobe slow to fast
101-130 Open
131-200
Random strobe slow to fast
201-255
Open
203 / 11 LAYER1 RED 000-255 Red intensity
204 / 12 LAYER1
GREEN
000-255 Green intensity
205 / 13 LAYER1 BLUE 000-255 Blue intensity
206 / 14 LAYER1
WHITE
000-255 White intensity
207 / 15
LAYER1 FX 000-010 No Function
011-015 FX 1
016-020 FX 2
021-025 FX 3
026-030 FX 4
031-035 FX 5
036-040 FX 6
041-045
FX 7
046-050
FX 8
051-055
FX 9
056-060 FX 10
061-065 FX 11
066-070 FX 12
071-075 FX 13
076-080 FX 14
081-085 FX 15
086-090 FX 16
091-095
FX 17
096-100
FX 18
101-105 FX 19
106-110 FX 20
111-115 FX 21
116-120 FX 22
121-125 FX 23
126-205 RESERVED(TBD)
206-255 Random pixel(with density) From 1 to 10 pixel, 1 more
pixel every 5 steps
208 / 16 LAYER1 FX SPEED 000-050 Static indexing
051-255 From slow to fast
209 / 17
LAYER1 FX OFFSET
000-200
Continuous start selection
Choose the step of start
201-255 Random distribution
Enables an internal
distribution of the macro
between a multitude of lights
on a specific DMX line basing
on their DMX starting
address.
LAYER2 FX
(Colors and strobe are controlled
by FLASH channels.
If no FX is selected, the FLASH
channels will works as basic
function.)
000-010
No Function
011-015 FX 1
016-020 FX 2
021-025 FX 3
026-030 FX 4
031-035 FX 5
036-040 FX 6
Channel

14
210
/
18
041-045 FX 7
046-050
FX 8
051-055
FX 9
056-060 FX 10
061-065 FX 11
066-070 FX 12
071-075 FX 13
076-080 FX 14
081-085 FX 15
086-090 FX 16
091-095 FX 17
096-100
FX 18
101-105 FX 19
106-110 FX 20
111-115 FX 21
116-120 FX 22
121-125 FX 23
126-205 RESERVED(TBD)
206-255 Random pixel(with density) From 1 to 10 pixel, 1 more
pixel every 5 steps
211 /
/
19
18
LAYER2 FX SPEED 000-050 Static indexing
051-255 From slow to fast
212 / 20 LAYER2 FX OFFSET
000 -200 Continuous start selection Choose the step of start
201 -255 Random distribution
Enables an internal
distribution of the macro
between a multitude of lights
on a specific DMX line basing
on their DMX starting
address.
213 / 21 EMPTY - TBD
214 / 22 EMPTY - TBD
215 / 23 DIMMER MODE
000-051 From MENU
052-101 Mode OFF
102-152
Mode 1
153-203
Mode 2
204-255 Mode 3
210
Channel

15

Guangdong Yiri Lighting Technology Co., Ltd.
No. 55, Zhongzhun Road, Cuiheng New District,
Zhongshan City, Guangdong, China
Tel [phone]
www.eklights. com
