EK bandpix 8H User manual

High output RGBAW+UV LED batten
and 8 x 1 pixel mappable matrix

2
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make
risk an electric shock.
•
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
- in places subject to vibrations or bumps;
- in places with a temperature of over 40 °C.
an inspection or contact the manufacturer directly.
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Always additionally secure the projector with the safety rope.When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
19
3.15 WHITE CALIBRATION
• Press the button MENU so many times until shows [WHITE BALANCE], and press the button ENTER to con-
• Select red, green or blue (R - G - B), through the buttons UP/DOWN.
• Set the value (125-255), through the buttons UP/DOWN.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu automati-
cally.
MODE FUNCTION DMX
Value
13 Ch
1RED H 552-000%001~0
3GREEN H 552-000 %001~0
5BLUE H 552-000%001~0
7AMBER H 552-000%001~0
9WHITE H 552-000%001~0
11 UV H 552-000%001~0
13
DIMMER SPEED
Preset dimmer speed from display menu
Dimmer speed mode1 (fast speed)
Dimmer speed mode2 (middle speed)
Dimmer speed mode3 (slow speed)
000 - 051
052 - 101
102 - 152
153 - 203
204 - 255
RED L 552-000%001~0
GREEN L 552-000 %001~0
BLUE L 552-000%001~0
AMBER L 552-000%001~0
WHITE L 552-000%001~0
UV L 552-000%001~0
2
4
6
8
10
12
MODE FUNCTION DMX
Value
96 Ch
1RED H 552-000%001~0
3GREEN H 552-000 %001~0
5BLUE H 552-000%001~0
7AMBER H 552-000%001~0
9WHITE H 552-000%001~0
11 UV H 552-000%001~0
RED L 552-000%001~0
GREEN L 552-000 %001~0
BLUE L 552-000%001~0
AMBER L 552-000%001~0
WHITE L 552-000%001~0
UV L 552-000%001~0
2
4
6
8
10
12
85 RED H 552-000%001~0
87 GREEN H 552-000 %001~0
89 BLUE H 552-000%001~0
91 AMBER H 552-000%001~0
93 WHITE H 552-000%001~0
95 UV H 552-000%001~0
RED L 552-000%001~0
GREEN L 552-000 %001~0
BLUE L 552-000%001~0
AMBER L 552-000%001~0
WHITE L 552-000%001~0
UV L 552-000%001~0
86
88
90
92
94
96
... ... ...
3.16 13-CHANNEL & 96-CHANNEL DMX CHART

3
Packing content BANDPIX 8H
• Mounting bracket (2 pcs.)
• Power cable
• User manual
TABLE OF CONTENTS Safety
General instructions
Warnings and installation precautions
General information
1 Introduction
1. 1 Description and Technical specications
1. 3 Operating elements and connections
2 Installation
2. 1 Mounting
1.2 Maintenance
Cleaning the unit
Fuse replacement
Trouble shooting
3 Functions and settings
3. 1 Operation
3. 2 Basic
3. 3 Menu structure
3. 4 Auto show
3. 5 Static mode
3. 6 Master/Slave mode
3. 7 Linking
3. 8 DMX conguration
3. 9 DMX addressing
3. 10 Connection of the DMX line
3. 11 Construction of the DMX termination
3. 12 DMX control
3. 13 Fixture settings
3. 14 Fixture information
3. 15 White calibration
3. 16 13-Channel & 96-channel DMX charts
18
3.13 FIXTURE SETTINGS
It is possible to change the parameter value in the following way:
Dimmer
•
until shows [DIM MODE]
• Press the button UP/DOWN to select [
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
BackLite
• To activate Backlight display press the button MENU so many times until shows [BACKLITE], and press
• Press the button UP/DOWN to select [On - 10S - 20S - 30S].
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu auto-
matically.
3.14 FIXTURE INFORMATION
Auto Test
Allow checking the proper functioning of the unit. Start the automatic test in the following way:
• Press the button MENU so many times until shows [INFO]
• Using the button UP/DOWN to select [AUTO TEST].
FixHours
• Press the button MENU so many times until shows [INFO].
• Using the button UP/DOWN to select [FIXHOURS],
• Then the display will show the working hours.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu auto-
matically
Version
• Press the button MENU so many times until shows [INFO]
• Select through the button UP/DOWN the [VERSION] menu voice.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu automatically.
Temp
Show the temperature unit.
• Press the button MENU so many times until shows [TEMP]

4
INTRODUCTION
The BANDPIX 8H is a high-output RGBAW+UV LED batten and 8 x 1 pixel mappable matrix.
FEATURES
- 8 x 12W RGBAW+UV 6-in-1 LEDs
- Doubles as linear wash or pixel mappable eect
- Vibrant saturated colors
- Flicker-free output with selectable PWM frequencies for worry-free video
- Silent operation suitable for studio use
- White color temperature presets from 3200K to 10000K
- Manual color selection, dimming and strobe control via onboard menu
- White balance adjustment
- Ultra-linear dimming technology with 4 selectable dimming curves
- Mounting brackets allow xture to be own or oor-mounted
- Power linking (PowerCon In/Out)
- 3-pin and 5-pin DMX In/Out
- Master/Slave mode
- HSV and HSI 3-channel modes
- Auto shows
- Slim prole
SPECIFICATIONS
Light Source: 8 x 12W RGBAW+UV 6-in-1 LEDs
Beam Angle: 23°
Field Angle: 50°
Output: 437 lux @ 5 meters
Strobe: 0-30 Hz
Dimming: 4 dimming curve modes
Control: DMX
DMX Channels: 6 / 8 / 12 / 13 / 48 / 53 / 96 / HSI / HSV
Display: LCD function menu with 4 touch buttons
Mains: 100V-240V. 50/60 Hz (auto-ranging)
Consumption: 85W
Power connections: Neutrik PowerCon In/Out
Data connections: 3-pin and 5-pin XLR In/Out for DMX
Housing Material: Aluminum
Finish: Matte black
IP rating: IP20
Cooling: Silent fan
Dimensions: 582 x 80 x 183 mm
Weight: 3.2 KG
17
3.12 DMX CONTROL
MODE FUNCTION DMX
Value
53 Ch
1RED1 000 - 255
2GREEN1 000 - 255
3BLUE1 000 - 255
4AMBER1 000 - 255
5WHITE1 000 - 255
6UV1 000 - 255
... ... ...
43 RED8 000 - 255
44 GREEN8 000 - 255
45 BLUE8 000 - 255
46 AMBER8 000 - 255
47 WHITE8 000 - 255
48 UV8 000 - 255
49
AUTO PROGRAMS
No Function
Auto program 1
Auto programs 2
Auto programs 3
Auto programs 4
Auto programs 5
Auto programs 6
Auto programs 7
Auto programs 8
Auto programs 9
Auto programs 10
Auto programs 11
Auto programs 12
Fade programs
Auto programs 0 (Auto 1-12)
000 - 010
011 - 027
028 - 044
045 - 061
062 - 078
079 - 095
096 - 112
113 - 129
130 - 146
147 - 163
164 - 180
181 - 197
198 - 214
215 - 231
232 - 255
MODE FUNCTION DMX
Value
53 Ch
50 AUTO SPEED
Auto speed slow to fast 000 - 255
51 DIMMER
552-000%001~0
52
STROBE
No function
Strobe Slow to Fast
000 - 010
011 - 255
53
DIMMER SPEED
Preset dimmer speed from display menu
Dimmer speed mode1 (fast speed)
Dimmer speed mode2 (middle speed)
Dimmer speed mode3 (slow speed)
000 - 051
052 - 101
102 - 152
153 - 203
204 - 255
MODE FUNCTION DMX
Value
3 Ch
1HUE 000 - 255
2SATURATION 000 - 255
3VALUE (BRIGHTNESS) 000 - 255
MODE FUNCTION DMX
Value
3 Ch
1HUE 000 - 255
2SATURATION 000 - 255
3INTENSITY 000 - 255

5
- 1.2 - MAINTENANCE
MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
FUSE REPLACEMENT
1. Disconnect this product from the power outlet.
2. Using a screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a good fuse of the same type and rat-
ing (250V/T2A).
4. Screw the fuse holder cap back in place and reconnect power.
TROUBLESHOOTING
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• All color faders set to 0
• Faulty LED
• Faulty LED board
• Check the power supply voltage
• Increase the value of the dimmer channels
• Increase the value of the color channels
• Replace the LED board
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
•
• Install lens assembly properly
Fixture does not power up
• No power
• Loose or damaged power cord
• Faulty internal power supply
• Check for power on power outlet
• Check power cord
• Replace internal power supply
Fixture does not respond to DMX
• Wrong DMX addressing
• Damaged DMX cables
• Bouncing signals
• Check control panel and unit addressing
• Check DMX cables
• Install terminator as suggested
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.
16
3.12 DMX CONTROL
MODE FUNCTION DMX
Value
12 Ch
10
Auto programs 2
Auto programs 3
Auto programs 4
Auto programs 5
Auto programs 6
Auto programs 7
Auto programs 8
Auto programs 9
Auto programs 10
Auto programs 11
Auto programs 12
Fade programs
Auto programs 0 (Auto 1-12)
028 - 044
045 - 061
062 - 078
079 - 095
096 - 112
113 - 129
130 - 146
147 - 163
164 - 180
181 - 197
198 - 214
215 - 231
232 - 255
11 AUTO SPEED
Auto speed slow to fast 000 - 255
12
DIMMER SPEED
Preset dimmer speed from display menu
Dimmer speed mode1 (fast speed)
Dimmer speed mode2 (middle speed)
Dimmer speed mode3 (slow speed)
000 - 051
052 - 101
102 - 152
153 - 203
204 - 255
MODE FUNCTION DMX
Value
48 Ch
1RED1 000 - 255
2GREEN1 000 - 255
3BLUE1 000 - 255
4AMBER1 000 - 255
5WHITE1 000 - 255
6UV1 000 - 255
7RED2 000 - 255
8GREEN2 000 - 255
9BLUE2 000 - 255
10 AMBER2 000 - 255
11 WHITE2 000 - 255
12 UV2 000 - 255
... ... ...
... ... ...
... ... ...
43 RED8 000 - 255
44 GREEN8 000 - 255
45 BLUE8 000 - 255
46 AMBER8 000 - 255
47 WHITE8 000 - 255
48 UV8 000 - 255

6

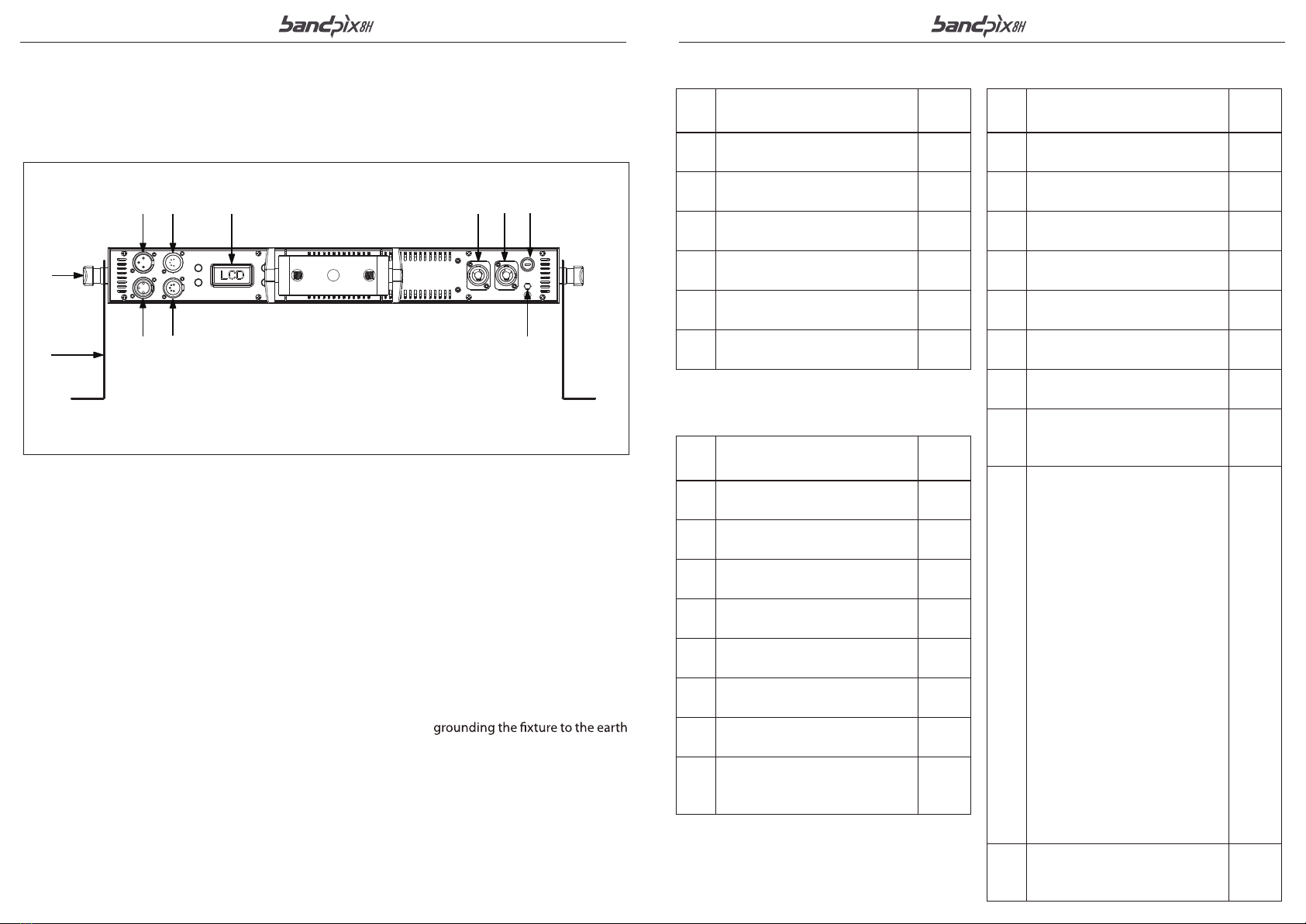

1.3 OPERATING ELEMENTS AND CONNECTIONS
1. MOUNTING BRACKET
2. LOCKING KNOB for the mounting bracket
3. DMX IN (5-pole XLR):
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C
4. DMX OUT (5-pole XLR):
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C
5. DMX IN (3-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +
6. DMX OUT (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +
7. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
8. POWER IN (PowerCON IN): for connection to a
socket (100-240V~/50-60Hz) via the supplied
mains cable.
9. POWER OUT (PowerCON OUT): connect to
supply power to the next unit
10. FUSE HOLDER in the event of breakage, always
replace the fuse with the same type and
rating (T2A-250V).
11. GND POINT
1
2
3578910
11
46
Rear panel
15
3.12 DMX CONTROL
MODE FUNCTION DMX
Value
6 Ch
1RED
552-000%001~0
2GREEN
552-000%001~0
3BLUE
552-000%001~0
4AMBER
552-000%001~0
5WHITE
552-000%001~0
6UV
552-000%001~0
MODE FUNCTION DMX
Value
8 Ch
1DIMMER
552-000%001~0
2RED
552-000%001~0
3GREEN
552-000%001~0
4BLUE
552-000%001~0
5AMBER
552-000%001~0
6WHITE
552-000%001~0
7UV
552-000%001~0
8
STROBE
No function
Strobe Slow to Fast
000 - 010
011 - 255
MODE FUNCTION DMX
Value
12 Ch
1DIMMER
552-000%001~0
2RED
552-000%001~0
3GREEN
552-000%001~0
4BLUE
552-000%001~0
5AMBER
552-000%001~0
6WHITE
552-000%001~0
7UV
552-000%001~0
8
STROBE
No function
Strobe Slow to Fast
000 - 010
011 - 255
9
COLOR MACRO + WHITE BALANCE
No Function
R: 100% / G: 0-100% / B: 0%
R: 100-0% / G: 100% / B: 0%
R: 0% / G: 100% / B: 0-100%
R: 0% / G: 100-0% / B: 100%
R: 0-100% / G: 0% / B: 100%
R: 100% / G: 0% / B: 100-0%
R: 100% / G: 0-100% / B: 0-100%
R: 100-0% / G: 100-0% / B: 100%
R: 100% / G: 100% / B: 100% / W: 100%
Color temperature 1
Color temperature 2
Color temperature 3
Color temperature 4
Color temperature 5
Color temperature 6
Color temperature 7
Color temperature 8
Color temperature 9
Color temperature 10
Color temperature 11
000 - 010
011 - 030
031 - 050
051 - 070
071 - 090
091 - 110
111 - 130
131 - 150
151 - 170
171 - 200
201 - 205
206 - 210
211 - 215
216 - 220
221 - 225
226 - 230
231 - 235
236 - 240
241 - 245
246 - 250
251 - 255
10
AUTO PROGRAMS
No Function
Auto program 1
000 - 010
011 - 027

7
- 2 - INSTALLATION
2.1 MOUNTING
BANDPIX 8H may be set up on a solid and even surface. The unit can also be mounted upside down to a
and be able to support a weight of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
• Install the projector at a suitable location by means of the mounting bracket (1).
• Always additionally secure the projector with the safety rope from falling down. For this purpose, fas-
ten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm.
• Adjust the projector and use the knob to slightly release or tighten the locking mechanism of the
bracket as necessary (2).
1
2
1
2
14
Fig.7
3.10 CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ωimped-
ance and low capacity.
The following diagram shows the connection mode:
ATTENTION
The screened parts of the cable (sleeve) must never be connected to the system’s earth, as this would
For those connections the use of balanced microphone cable is not recommended because it cannot
transmit control DMX data reliably.
• Connect the DMX output to the DMX input of the following unit. Connect again the output to the input
of the following unit until all the units are connected in chain.
• When the signal cable has to run longer distance is recommended to insert a DMX termination on the
last unit.
3.11 CONSTRUCTION OF THE DMX TERMINATION
es the end of the line: under certain conditions and with certain cable lengths, this could cause them to
cancel the original signals.
The termination is prepared by soldering a 120Ω1/4 W resistor between pins 2 and 3 of the 5-pin male XLR
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive
Pin4 : N/C
Pin5 : N/C
Example:
3 pin XLR connector

8
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
Connect the supplied main cable to a socket (100-240V~/50-60Hz). Then the unit is ready for operation
and can be operated via a DMX controller or it independently performs its show program in succession.

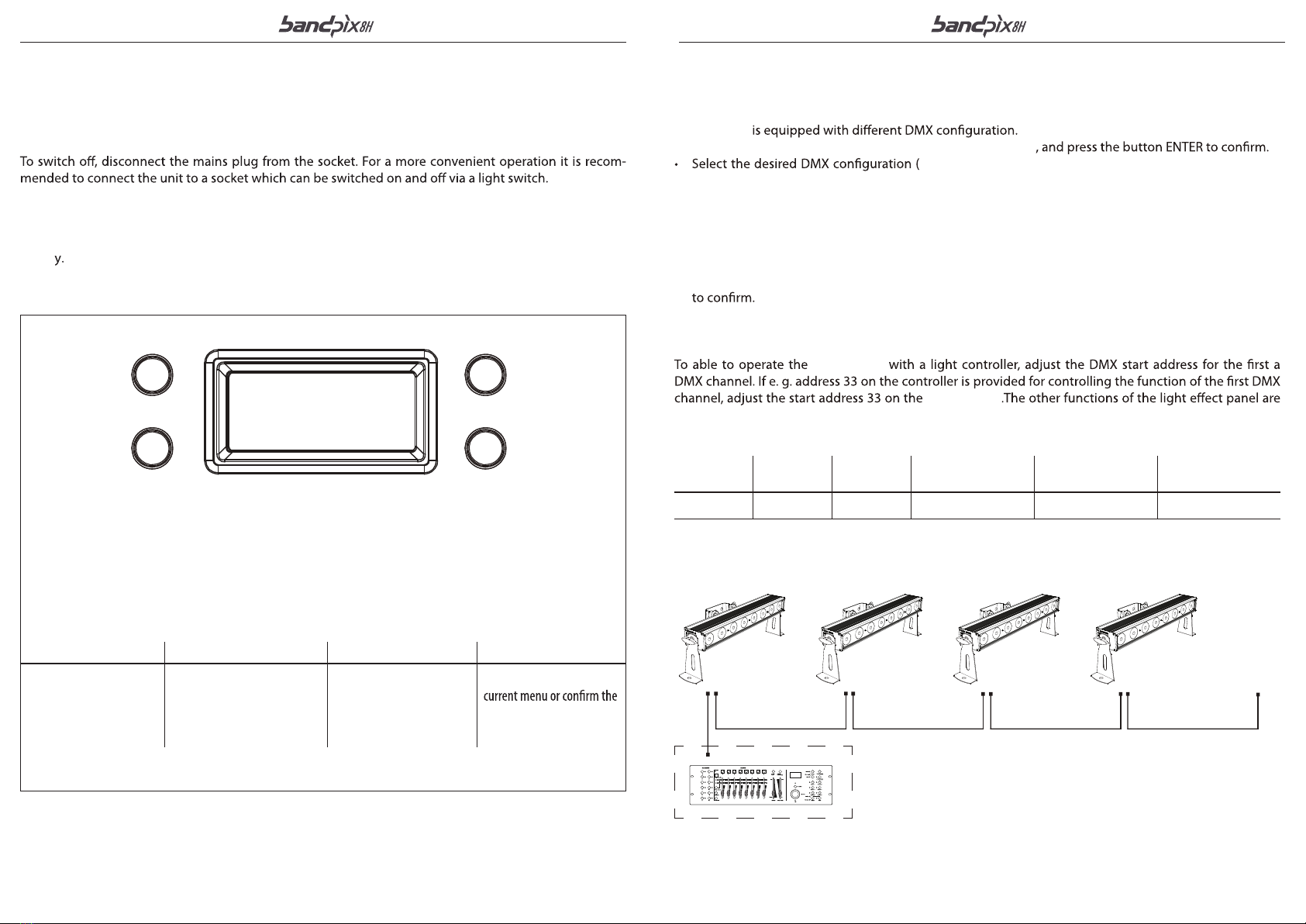

3.2 BASIC
Access control panel functions using the four panel buttons located directly underneath the LCD
displa
MENU UP DOWN ENTER
Used to access the menu or
to return a previous menu
option
Navigates downwards through
the menu list and increases
the numeric value when in a
function
Navigates upwards through
the menu list and decreases
the numeric value when in
a function
Used to select and store the
current function value or
option within a menu
UP
ENTER
MENU
DOWN
13
3.8 DMX CONFIGURATION
• Press the button MENU so many times until shows [CHANNEL]
6CH - 8CH - 12CH - 13CH - 48CH - 53CH - 96CH - HSV - HSI ) using the
UP/DOWN buttons.
The tables on page 15 indicate the operating mode and DMX value. The BANDPIX 8H is equipped with
3/5-pole XLR connections.
3.9 DMX MODE
• Press the button MENU so many times until the display shows [ADDRESS], and press the button ENTER
• Press UP/DOWN button to select the desired value (001-512). Press and hold to scroll quickly.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
then automatically assigned to the following addresses.
An example with the start address 33 is shown below:
Number of
DMX channels
Start address
(example)
DMX Address
occupied
Next possible start
address for unit No. 1
Next possible start
address for unit No. 2
Next possible start
address for unit No. 3
8 33 33-40 41 49 57
DMX512 Controller
DMX Address: 33 DMX Address: 57DMX Address: 41 DMX Address: 49
............
Example 8 DMX channels configuration
BANDPIX 8H
BANDPIX 8H
BANDPIX 8H

9
3.3 MENU STRUCTURE
MENU (LEVEL 1) (LEVEL 2) (LEVEL 3) REMARK
1 Auto Auto Speed
< Auto 0 > < Auto 0 > < 100 >
< Auto 1 > < 100 >
< Auto 2 > < 100 >
< Auto 3 > < 100 >
... ...
< Auto 11 > < 100 >
< Auto 12 > < 100 >
< Fade > < 100 >
2 Static Static Fix C
< Fix C > <RGBAWP> C1: R
<RGBAWP> C2: G
<RGBAWP> C3: B
<RGBAWP> C4: A
<RGBAWP> C5: W
<RGBAWP> C6: P
<RGBAWP> C7: RG
<RGBAWP> C8: RB
<RGBAWP> C9: RA
<RGBAWP> C10: RW
<RGBAWP> C11: RP
<RGBAWP> C12: GB
<RGBAWP> C13: GA
<RGBAWP> C14: GW
<RGBAWP> C15: GP
<RGBAWP> C16: BA
<RGBAWP> C17: BW
<RGBAWP> C18: BP
<RGBAWP> C19: AW
<RGBAWP> C20: AP
<RGBAWP> C21: WP
<RGBAWP> C22: RGP
<RGBAWP> C23: RGA
<RGBAWP> C24: RGW
<RGBAWP> C25: RGP
<RGBAWP> C26: RBA
<RGBAWP> C27: RBW
<RGBAWP> C28: RBP
<RG BAWP> C29: RAW
<RG BAWP> C30: RAP
12
3.4 AUTO SHOW MODE
If no DMX control signal is present at the DMX INPUT, the unit independently runs through its show pro-
• Press the button MENU so many times until the display shows [AUTO], then press the button ENTER.
• Press the button UP/DOWN to switch between the show (AUTO 0 - AUTO 12). The unit will operate in show
mode.
• Using the button UP/DOWN to select the desired run speed slow-fast [0-100]
• Press the button ENTER to save the setting.
IMPORTANT: Programs AUTO 0 - AUTO 12 are fully pre-programmed and will not be altered by changes. In-
stead, MANU C mode allows to combine the colors RGBWAP.
• Press the button MENU so many times until the display shows [STATIC], then press the button ENTER.
• Through the button UP/DOWN select [MANU C], then press the button ENTER.
• Select the color [R-G-B-A-W-P] through the buttons UP/DOWN.
• Set the value (000 - 255), through the buttons UP/DOWN.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
3.5 STATIC MODE
• To enable the static mode, press MENU repeatedly until [STATIC] shows on the display.
• Press the button ENTER.
• Through the button UP/DOWN select [FIXT C], then press the button ENTER.
• Select the desired preset color [R - G - B - A- W - P - RB - RG etc.] using the button UP/DOWN.
• Press the button ENTER to save the setting.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
3.6 MASTER/SLAVE MODE
This mode will allow you to link up the units together without a controller. Choose a unit to function as the
• Press the button MENU so many times until the display shows [M & S] and press the button ENTER.
• Press UP/DOWN to set the unit as master or slave (MASTER, SLAVE).
• Select the desired program (see section 3.4).
• Use standard DMX cables to daisy chain your units together via the DMX connector on the rear of the
3.7 LINKING
master unit.
are connected in a chain.

10
3.3 MENU STRUCTURE
<RG BAWP> C31: RWP
<RG BAWP> C32: GBA
<RG BAWP> C33: GBW
<RG BAWP> C34: GBP
<RG BAWP> C35: BAW
<RG BAWP> C36: BAP
<RG BAWP> C37: AWP
<RG BAWP> C38: BWP
<RG BAWP> C39: GAW
<RG BAWP> C40: GAP
<RG BAWP> C41: GWP
<RG BAWP> C42: RGBA
<RG BAWP> C43: RGBW
<RG BAWP> C44: RGBP
<RG BAWP> C45: RGAW
<RG BAWP> C46: RGAP
<RG BAWP> C47: RGWP
<RGBAWP> C48: RBAW
<RGBAWP> C49: RBAP
<RGBAWP> C50: RBWP
<RG BAWP> C51: RAWP
<RG BAWP> C52: GBAW
<RG BAWP> C53: GBAP
<RG BAWP> C54: GBWP
<RG BAWP> C55: GAWP
<RG BAWP> C56: BAWP
<RG BAWP> C57: RGBAW
<RG BAWP> C58: RGBAP
<RG BAWP> C59: RGBWP
<RG BAWP> C60: RGAWP
<RGBAWP> C61: RBAWP
<RG BAWP> C62: GBAWP
<RG BAWP> C60: RGBAWP
< Manu C > Manual C Value
< R=255> < R=255>
< G=255> < G=255>
< B=255> < B=255>
< A=255> < A=255>
< W=255> < W=255>
< P=255> < P=255>
3 Dim Mode Dim Mode
11
3.3 MENU STRUCTURE
< DIM 1 >
< DIM 2 >
< DIM 3 >
4 Back Lite Back Lite
< On > < On >
< 10 s >
< 20 s >
< 30 s >
5 Info Auto
Test
Fix Hours
< 0 H >
Version
< V1.0 >
6 Address Address
< 001 > < 512 >
7 Channel Channel
< 12Ch > < 6Ch >
< 8Ch >
< 12Ch >
< 13Ch >
< 48Ch >
< HSV >
< HSI >
8 M & S Mode M & S Mode
< Master > < Master >
< Slave >
9 White Balance Value
Balance < R=255> < R=255>
< G=255> < G=255>
< B=255> < B=255>
10 Temp
< 35 C >
< 53Ch >
< 96Ch >
