Lactate Scout 4 instruction manual
Manufacturer:
SensLab GmbH
Bautzner Str. 67, 04347 Leipzig
Germany
Sales and service:
EKF-diagnostic GmbH
Ebendorfer Chaussee 3, 39179 Barleben
Germany
Service: [phone]
Email: [email protected]
www.ekfdiagnostics.com

Contents
0Intended use, safety instructions and required accessories 4
1First steps 6
1.1 Lactate Scout 4 measuring device 6
1.2 Lactate Scout sensor 6
1.3 Inserting the batteries 7
1.4 Switching the device on and o 8
1.5 Display 8
1.6 Code setting for the sensors 9
2Performing a test 10
2.1 Preparing for a test 10
2.2 Blood collection and test 11
2.3 Checking the code setting 13
2.4 Checking the ambient temperature 13
3Settings, functions and displays 14
3.1 Device settings 15
3.1.1 Volume control 15
3.1.2 Date and time settings 17

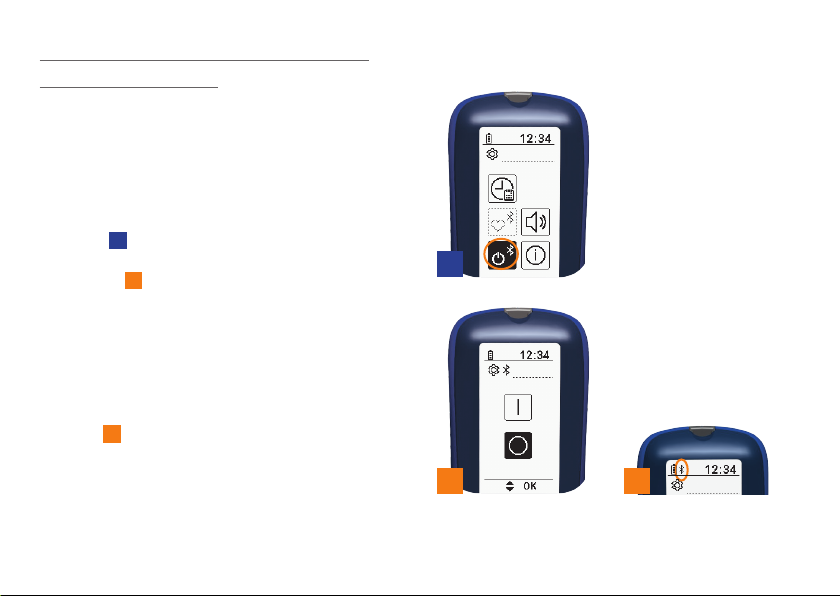

3.1.3 Switching the Bluetooth® wireless technology function on and o 18

Contents
0Intended use, safety instructions and required accessories 4
1First steps 6
1.1 Lactate Scout 4 measuring device 6
1.2 Lactate Scout sensor 6
1.3 Inserting the batteries 7
1.4 Switching the device on and o 8
1.5 Display 8
1.6 Code setting for the sensors 9
2Performing a test 10
2.1 Preparing for a test 10
2.2 Blood collection and test 11
2.3 Checking the code setting 13
2.4 Checking the ambient temperature 13
3Settings, functions and displays 14
3.1 Device settings 15
3.1.1 Volume control 15
3.1.2 Date and time settings 17
3.1.3 Switching the Bluetooth® wireless technology function on and o 18
3.1.4 Connecting to a heart rate monitor 19
3.1.5 Displaying information about the device 20
3.2 Heart rate 21
3.3 Functionality test 23
3.4 Stopwatch 26
3.5 Displaying stored values 27
3.6 Battery level indicator 28
4Performing a step test 29
4.1 Step test mode 29
4.2 Heart rate during step tests 31
4.3 Displaying the post-exertion period 31
5Data transfer 32
6Storage, cleaning and disposal 33
7Error messages and warning indicators 34
8Technical specifications 40
9Symbols 42
10 Consumables and accessories 44

4
• The Lactate Scout 4 measuring system is
designed to measure lactate concentration
in capillary blood in order to assess physical
performance and conditioning in the
field of sport.
• The Lactate Scout 4 measuring system is
not designed for taking quantitative lactate
measurements to support clinical diagnoses
in medical applications.
• The Lactate Scout 4 measuring system is
designed to be used exclusively outside of
the body (in vitro diagnostic medical device).
• The Lactate Scout 4 measuring system is
designed for self-testing.
• The Lactate Scout 4 measuring device can
only be used with Lactate Scout sensors.
• Lactate Scout sensors are designed for
single use.
Safety instructions
PLEASE READ THE INSTRUCTION MANUAL
BEFORE USE AND KEEP IT IN ASAFE PLACE!
Failure to comply with any text marked as
a “WARNING” can result in serious damage
to health.
Failure to comply with any text marked
“ATTENTION” can lead to incorrect tests or
damage to the device.
Please ensure you observe the separate warn-
ing and safety instructions specified on the
labels of the batteries and lancets that you
are using.
WARNING
There is a risk of small parts being ingested,
such as batteries, sensors, screw caps or drop
dispensers on test solution bottles.
The Lactate Scout 4 measuring device and all
related accessories must be kept out of the
reach of children.
Intended use
0 Intended use, safety instructions and required accessories

5
WARNING
The method for obtaining blood samples
for lactate tests involves a risk of infection.
Sensors, lancets, cellulose cloths and
measuring devices contaminated with blood
carry a risk of infection.
Safety gloves must be worn when performing
tests for third parties.
Please make sure that lancets and sensors are
intact and unused before use.
Make sure you dispose of any used sensors,
lancets and cellulose cloths safely in the
household waste.
Make sure you only use the Lactate Scout 4
measuring system for the purpose specified in
the instruction manual.
ATTENTION
Make sure you only use accessories that
have been provided or recommended by the
manufacturer.
The measuring device must not be used
if it is not functioning correctly or has
been damaged.
Your guarantee will be voided and all liability
claims will be excluded if the housing of the
device is forcefully opened.
Required accessories
To carry out lactate measuring the following
accessories are needed:
- Lactate Scout 4 measuring device
- Lactate Scout Sensors
- Sterile lancets
- Cellulose cloths (paper tissues)
- Clean water
Please note that sterile lancets (we recom-
mend safety lancets), cellulose cloth, and
water are not included in the scope of delivery
and need to be provided separately.
To carry out functionality tests Lactate Scout
test solutions are needed additionally, which
are available in dierent concentrations (see
section 10).

6
1 First steps
1.1 Lactate Scout 4 measuring device 1
Opening (1A) for inserting the sensor
Display (1B) for displaying when the device
is ready to take a measurement, blood lactate
levels, warning messages, configuration options
and status information
Keypad for operating the measuring device
• Arrow keys (1C):
- for moving between menus, sub-menus and
menu items
- for adjusting values
• OK button (1D):
- for enabling menus, sub-menus and
menu items
- for confirming choices
- for activating and deactivating
configuration mode
• Back button (1E):
for undoing the last step/cancelling
• Temperature sensor (1F):
for reading the ambient temperature
1.2 Lactate Scout sensor 2
The sensor has an opening for the blood
sample (2A). This opening is connected to
the measuring chamber. The contacts (2B)
connect the sensor to the measuring device.
1A
1B
2B
1E 1C 1D
2A
21
1F

7

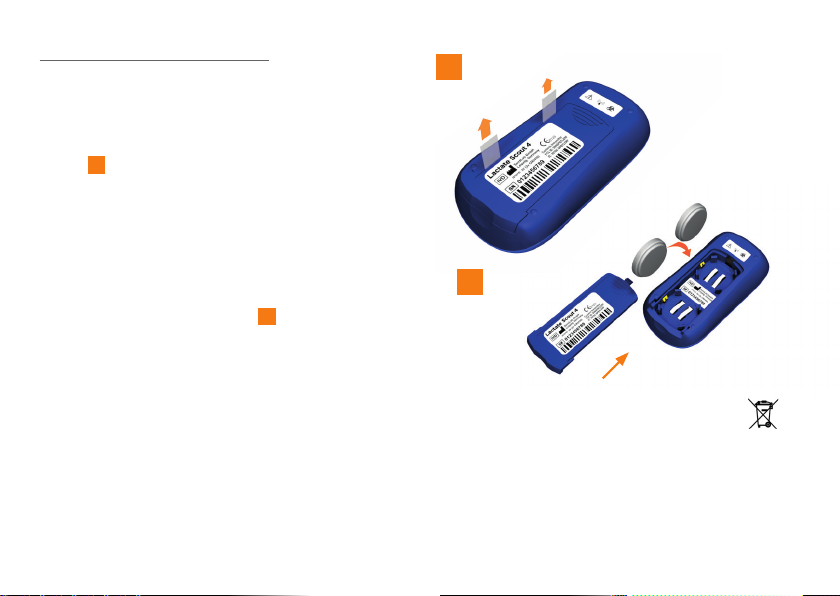

1.3 Inserting the batteries
The Lactate Scout 4 requires two CR2450 (3V
lithium button cell) batteries.
The device is supplied with batteries included.
Firstly, remove both of the battery insulating
strips 3.
The measuring device must be turned o to
replace the batteries. Gently push the battery
cover on the back outwards. Remove the
discharged batteries. When inserting the new
batteries, ensure that the polarity is correct.
Push the battery cover back in until it
completely locks into place 4.
If the time to replace the batteries exceeds
30seconds, the date and time setting will be
lost and must be re-entered. However, any
stored data and settings will be retained.
3
4
PLEASE NOTE
Used batteries must not be disposed of
with household waste. End users have
a statutory obligation to ensure used batteries
are returned for recycling. Used batteries can be
returned free of charge to retailers or collection
points.

8
1.4 Switching the device on and o
The Lactate Scout 4 has a configuration/
display mode and a measuring mode,
both of which can be switched on and o
independently.
The configuration and display mode can be
switched on or o by holding down the OK
button for two seconds.
The measuring mode is switched on or o
when the sensor is inserted into the measuring
device, even if the measuring device was
previously switched o or is in configuration
and display mode. Removing the sensor
from the device will switch the measuring
device o.
The measuring device can be switched o by
holding down the OK button for two seconds.
The device will switch itself o if it is not used
for two minutes in configuration and display
mode or if the device is not used for two
minutes while the sensor is inserted in the
measuring device.

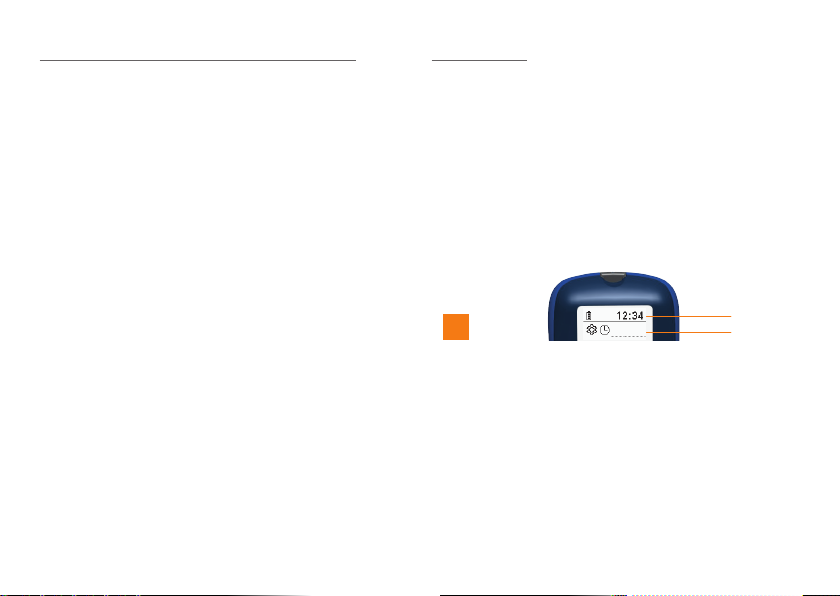

1.5 Display
An information line will be displayed in both
modes at the top of the display when the device
is switched on. This line provides information
about the battery level, the current time and the
active functions of the measuring device (5A).
In configuration and display mode, a symbol line
will also be displayed beneath the info line (5B).
This line uses corresponding symbols to indicate
the configuration and display mode menu/sub-
menu that the measuring device is in.
If symbols or numbers have a black background,
this means they can be selected and confirmed.
If symbols or numbers have a grey background,
this means they cannot be selected and
confirmed. The associated function needs to be
activated in the main menu (Chap. 3).
5A
5B
5

9

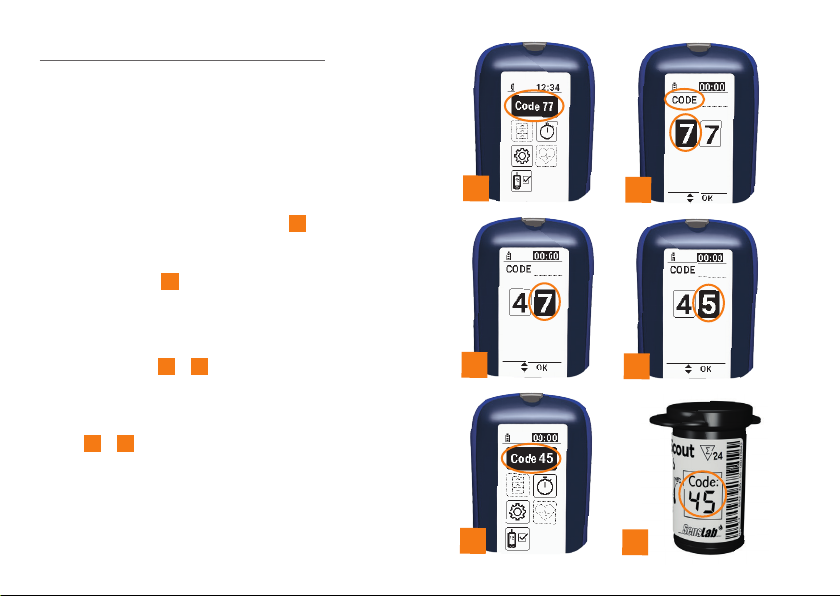

1.6 Code setting for the sensors
A two-digit code must be entered when
setting up the measuring device or when
using sensors from a new sensor container;
this code is printed on the label of the sensor
container.
Firstly, switch the configuration and display
mode on. You can do this by holding down
the OK button for two seconds 6. Then press
the OK button again. The code setting menu
will open. The symbol line will display the
“Code” symbol 7.
Enter the two digits of the code, starting from
the left. Enter the digits of the code using
the two arrow keys and confirm by pressing
the OK button 7- 9. You will then hear a
signal tone to confirm that the code has been
set. The measuring device is now ready to
take measurements using sensors with this
code 10 - 11 .
You can now either insert a sensor or switch
o the device.
6
8
10 11
9
7

10
2 Performing a test
2.1 Preparing for a test

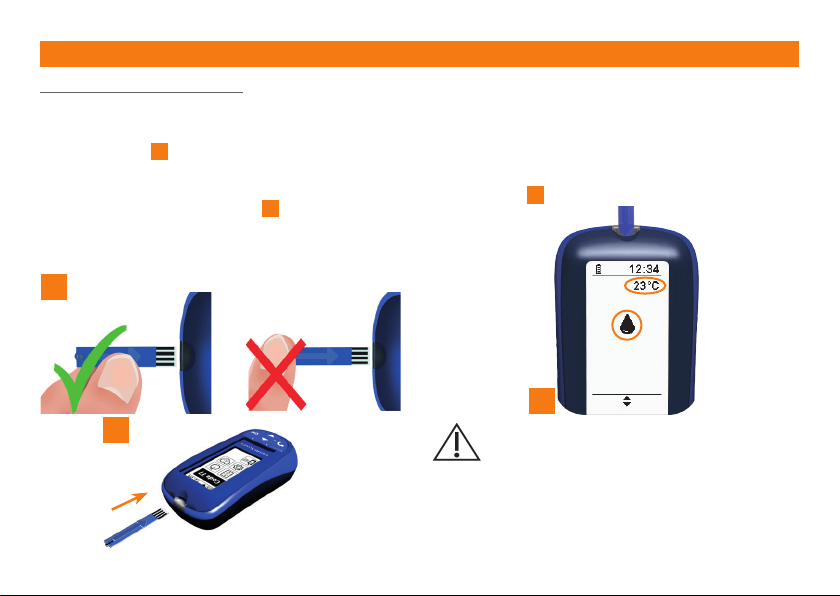

Remove a sensor from the container. Make
sure you do not touch the opening for the
blood sample 1. As soon as you have taken
it out, insert the sensor into the measuring
device opening in the direction of the arrow
until you can feel resistance 2. The contacts
must be facing up.
3

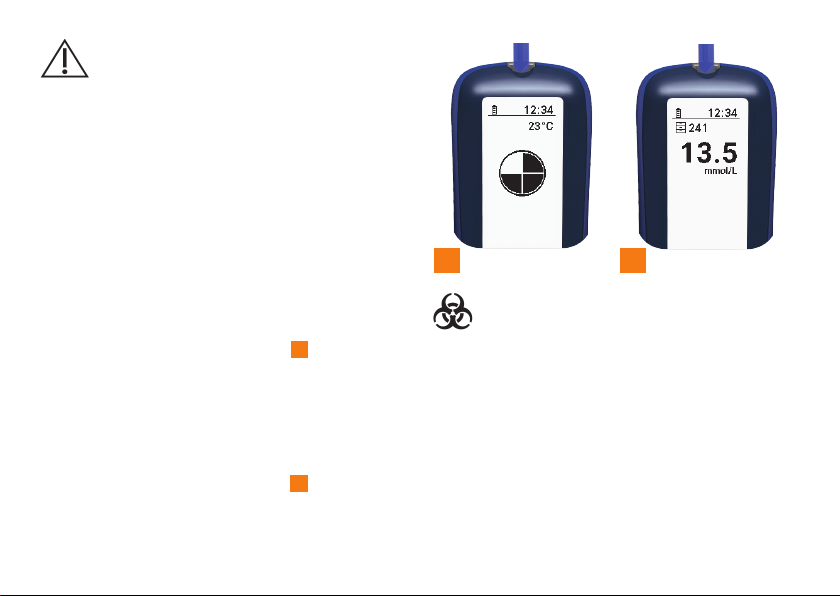

The display will briefly show the code which
is currently configured. A blinking drop
symbol will then be displayed to indicate
that the measuring device is ready to take a
measurement. The ambient temperature of the
measuring device will be displayed beneath
the info line 3.
ATTENTION
Before you use a sensor from a new sensor
container, you must check that the code on the
label is the same as the code currently configured
in the device. If the code does not match, then it
must be configured again in the device.
2
1

11
ATTENTION
The sensor and the measuring device must
be at the same temperature when performing
a test. If you take the sensor container out
of the fridge, you must wait for at least
20minutes until the sensor container has
reached the ambient temperature before you
open the container. If you take the sensor
container out of the freezer, you must wait
for at least 2 hours until the sensor container
has reached the ambient temperature. Only
remove sensors to be used immediately
for testing purposes. Reseal the container
immediately after removing the sensor. Never
leave the container open.
2.2 Blood collection and test
Wash your fingers or earlobes with clean
water at the puncture site. You can use the
spray bottle supplied with the accessories for
this purpose. Dry the puncture site. In order
to take a capillary blood sample, puncture the
site using a suitable lancet.
Wipe away the first droplet of blood. Apply
gentle pressure to the puncture site. The
second droplet must be large enough to fill
the measurement chamber of the sensor
in one go.
WARNING
Avoid pressing on the puncture site too
heavily as sweat and/or tissue fluid can merge
with the droplet of blood and falsify the test
result.
The droplet of blood must not run. Bring the
fingertip with the droplet of blood close to
thetip of the sensor that has been inserted in
the measuring device. The sensor now draws
blood into the measuring chamber 4.
4

12
ATTENTION
The sensor must draw the blood in one go.
The puncture site must therefore be kept
steady when taking the sample. Failure to do
so results in the risk of insucient filling of
the sensor.
If performing lactate tests on third parties,
move the measuring device with its inserted
sensor to the droplet of blood on the
fingertip or earlobe of the subject. Once
themeasurement chamber on the sensor tip is
completely filled, an acoustic signal will sound
and the test will begin. A circular symbol with
a progress bar will be displayed 5. After ten
seconds, a second acoustic signal will sound
and the test result will be displayed in the
measurement unit “mmol/L”. The allocated
memory space number will be displayed
next to the memory symbol. The test result is
stored along with the date and time of the test
and the memory space number 6. Information
regarding interpretation of the lactate value
can be found at:
www.lactatescout.com
5 6
WARNING
Lancets and sensors may only be used once.
Used lancets and sensors carry a risk
of infection. Ensure any used lancets
and sensors are disposed of safely
in the domestic waste along with
contaminated cellulose/paper wipes.

13
8
7
9
2.4 Checking the ambient temperature
To ensure that equally reliable test results are
achieved under dierent climatic conditions,
the measuring device is equipped with a
temperature sensor. The temperature sensor
is located underneath the opening for the
sensors 9.
2.3 Checking the code setting
The code is displayed briefly when you
switch measuring mode on 7. If more than
25 tests are performed with the same code, a
reminder to check the code will be displayed
for three seconds 8. Pressing the OK button
within three seconds will take you to the code
configuration menu.
WARNING
Make sure you do not touch or cover the
temperature sensor with your hand. Failure to
do so results in the risk that the temperature
sensor will read the ambient temperature
incorrectly and the measuring device may
record incorrect test results.

14
Briefly press one of the two arrows to select
a symbol. The selected symbol is displayed
with a black background. Pressing the OK
button takes you to the sub-menu. Once you
have completed your configuration in the sub-
menu and confirmed your selection with the
OK button, you will be taken back to the main
menu. Pressing the Back button will also take
you back to the main menu. The last stage will
be cancelled and you will be returned to the
previous status.

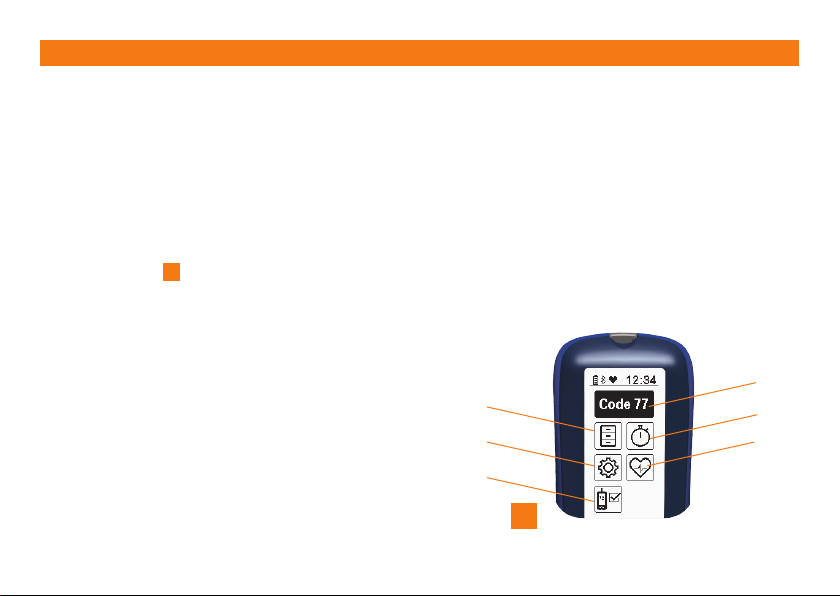

3 Settings, functions and displays
Settings can be changed in configuration and
display mode. In order to go to configuration
and display mode, there must not be a
sensor inserted in the measuring device.
The configuration and display mode can be
switched on or o by holding down the OK
button for two seconds. An acoustic signal will
sound, and the main menu will be displayed
along with its symbols. The symbols display
the sub-menus 1:
• Stored test results (1A)
• Device settings (1B)
• Functionality test (1C)
• Sensor code configuration (1D)
• Stopwatch function (1E)
• Heart rate (1F)
1D
1E
1F
1A
1B
1C
1
Choose a symbol to move to the associated
sub-menu.

15
3.1 Device settings
If you choose the “Device settings” symbol 1B
in the main menu and confirm your selection
by pressing the OK button, you will be taken
to the device settings 2. The following set-
tings are available:
• Date and time settings (2A)
• Search for heart rate monitor and
connect (2B)
• Activating/deactivating the Bluetooth®
function (2C)
• Volume control for acoustic signals (2D)
• Device information (2E)
1B 2
2A
2B
2C
2D
2E
2D
3A
3B
3C
3
3.1.1 Volume control
If you choose the “Loudspeaker” symbol 2D in
the “Device settings” menu and confirm your
selection by pressing the OK button, you will
be taken to the volume control settings 3.
The following settings are available:
• mute (3A)
• medium volume (3B)
• loud (3C)
Set the volume using one of the two arrow
keys and confirm your selection by pressing
the OK button. Once you have confirmed your
selection, you will be taken directly back to
the “Device settings” menu.

16
3.1.2 Date and time settings
If you choose the “Date and time settings”
symbol in the “Device settings” menu 2A
and confirm your selection by pressing the
OK button, you will then have the option to
set the year. A calendar will appear in the
symbol line 4. Set the year using one of
thetwo arrow keys and confirm your selection
by pressing the OK button. Once you have
confirmed your selection, you will then have
the option to set the day and month. Two
calendar symbols for the day and month will
appear in the symbol line 5-6. Set the day
and month using one of the two arrow keys
and confirm your selection by pressing the
OK button. Once you have confirmed your
selection, you will then have the option to set
the time. A clock will appear in the symbol
line. Firstly, choose a time display format.
Thefollowing settings are available 7:
• 24-hour clock
• 12-hour clock
Once you have confirmed your selection, you
will then have the option to set the time. Set
the hours and minutes using one of the two
arrow keys 8and confirm your selection
by pressing the OK button. Once you have
confirmed your selection, you will be taken
back to the “Device settings” menu.
If the date and time are not (re)set when
the device is configured or reset, the time
will be displayed in the info line with a black
background.

17
2A 4 5 6
7 8

18
3.1.3 Activating and deactivating the
Bluetooth®function
You need to activate the Bluetooth® wireless
technology function if you want to connect
the Lactate Scout 4 to a heart rate monitor
or if you want to transfer data to a PC, a
tablet ora smartphone. When in the “Device
settings” menu, select the symbol for
activating and deactivating the Bluetooth®
function 2C. Confirm your selection by
pressing the OK button. The sub-menu will
then open 9. To activate the Bluetooth®
function, use one of the two arrow keys to
select the “Activation” symbol (check box with
vertical stroke) and confirm your selection
by pressing the OK button. The Bluetooth®
symbol will now be displayed in the info line.
The function requires additional power and
should therefore only be activated when it is
needed 10.
To deactivate the Bluetooth® function, use
one of the two arrow keys to select the
“Deactivation” symbol (check box with circle)
and confirm your selection by pressing the
OK button.
2C
9 10
