ekwb EK-FB MSI X299M GAMING PRO CARBON RGB... User manual

All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use. Revision 1.0. Published on February 21st 2018
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no
liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates.
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual thoroughly before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard’s circuit board (PCB).
3. The EK-HFB and EK-ACF type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4. The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.
STEP 1: GENERAL INFORMATION Sample photo of MSI X299M Gaming Pro Carbon motherboard
BAG CONTENT: Bag content is universal for all water blocks, you may not need all screws.
STEP 1: PREPARING YOUR MOTHERBOARD
STEP 2: PREPARING YOUR MOTHERBOARD
REMOVING STOCK COOLER. Remove all encircled screws. There are 2 screws on the
back of the motherboard that need to be removed in order to remove the factory
installed MOSFET heat pipe cooling solution. Please store away the factory backplate
as it will be reused.
1. APPLYING THERMAL COMPOUND. Apply thermal compound on CPU heat spreader
(IHS) - see sample photo on right with enclosed EK-TIM Ectotherm thermal grease.
The quantity of about two rice grains is just about right. There is no need to cover
the whole IHS. Applying too much thermal grease will have negative impact on the
cooling performance!
2. CUTTING THERMAL PADS. Your block comes with thermal pads which needs to be trimmed in order to fit the voltage regulation area (MOSFET) on the motherboard’s
circuit board. WARNING: DIMENSIONS ON PICTURES BELOW ARE SCALED.
Replacement thermal pads @ EKWB web shop:
Thermal PAD G 1mm - (120x24mm) [EAN: 3830046996770]
Installation manual for EK-FB MSI X299M GAMING PRO CARBON RGB Monoblock water block
Mosfets
CPU socket
X299M PCH
(SB)
1. Thermal pad G–1.0mm
(for mosfets and inductor coils):

All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use. Revision 1.0. Published on February 21st 2018

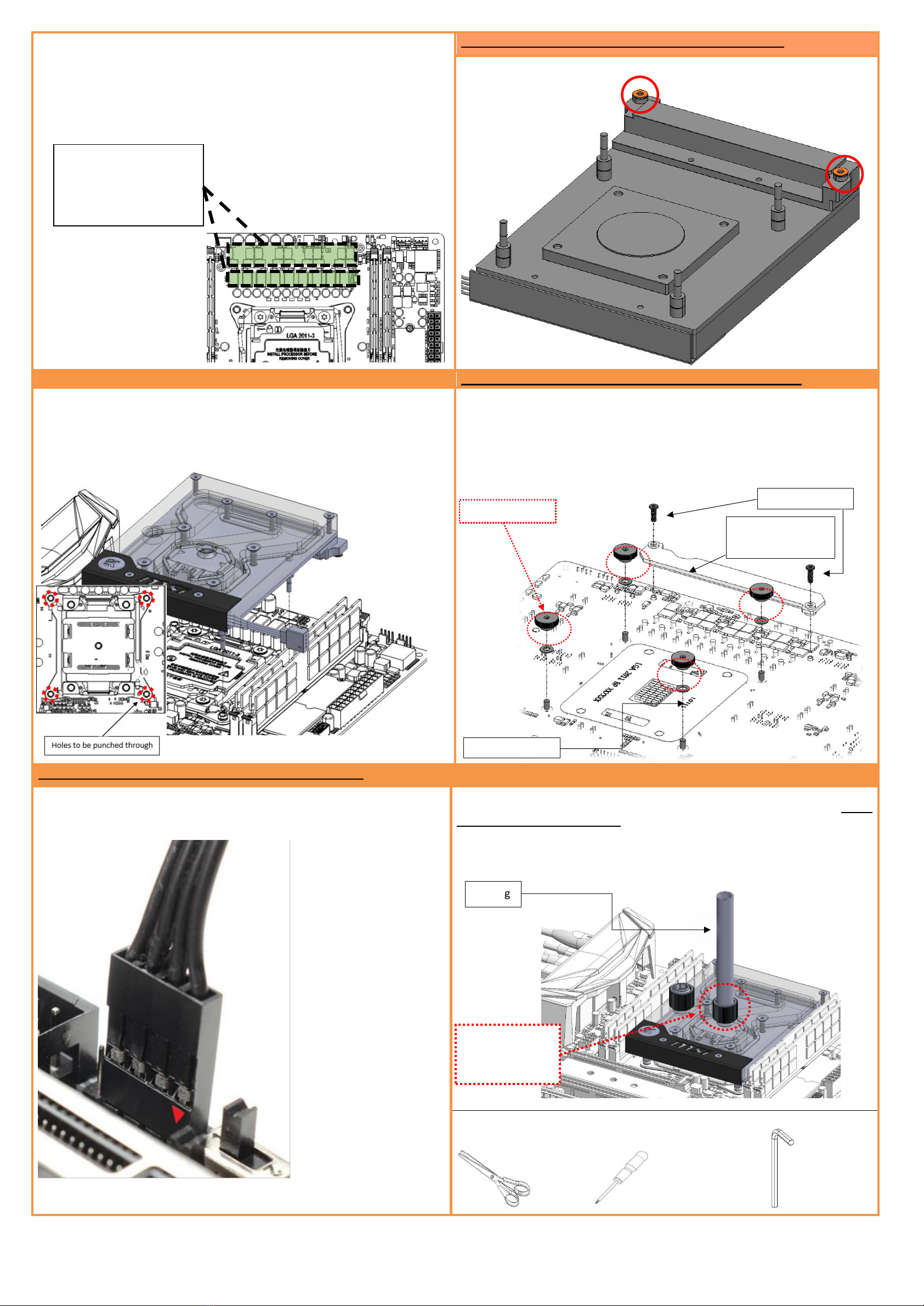

STEP 3: PLACING THE BLOCK ON TO MOTHERBOARD
Install two (2) M2.5 self-adhesive PVC washers under marked standoffs as shown on
the picture below.
STEP 4: ATTACHING BLOCK ON TO THE MOTHERBOARD
PLACING THE BLOCK ON THE MOTHERBOARD. Place the EK-FB MSI X299M GAMING
PRO CARBON RGB Monoblock series water block gently to the motherboard or vice
versa (as shown on photo below). Make sure that gned.) Make sure that mounting
holes are aligned.
Prior to fastening the screws please make sure the mounting holes on the
motherboard’s circuit board are aligned with the water block.
A) Mosfet part: Use two M2,5x8 AX1 screws and use original backplate with
thermal pad. Tighten the screws evenly. Do not use excessive force when tightening
the screws!
B) CPU part: Use four thumb nuts with screws and washers. Tighten
the thumb nuts.
Use the enclosed screws and washers as shown in picture below:
STEP 5: CONNECTING THE RGB LED STRIP (optional)
Plug the 4-pin connector from Monoblock RGB LED strip to the motherboard. Please
ensure that the arrow indicated on the connector is plugged into the 12v line as
indicated on your motherboard. Failure to do so will damage your motherboard or
LED strip.
For the EK-FB MSI X299M GAMING PRO CARBON RGB Monoblock series water block
to operate properly the G1/4 port nearest to the right edge of the water block MUST
BE USED AS THE INLET PORT. EK recommends the use of EK-ACF fittings. When
using fittings other than EK-ACF series please use hose clamps or appropriate
substitute to secure the tubing to the barb. The use of biocide containing and corrosion
inhibiting coolant is always recommended for any liquid cooling system.
REQUIRED TOOLS AND MOUNTING SCREWS:
scissors philips screwdriver Allen key
Place 1mm thermal pads in
larger strips over both
marked area and make sure
all mosfet chips and
inductor coils are covered.
M3 PVC Washer
M2.5x8 screws
M3 thumb nut
Tubing
IMPORTANT: USE
THIS OPENING AS
AN INLET PORT!
3. PLACING THERMAL PADS ON MOTHERBOARD. Place thermal pads on
PCB as shown on the picture
PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE
THERMAL PADS PRIOR TO INSTALLATION!
Original Backplate
with Thermalpad
