ekwb Classic D-RGB S240 User manual

INSTALLATION MANUAL
Starter Liquid Cooling Kit
Classic D-RGB S240 S360 P240 P360
For EK-KIT Classic series units | 1st revision, jun 2nd 2020

/ 1 /
EK Water Blocks bears the name of its founder Edvard König, who
started experimenting with liquid cooling in 1999. From the humble
beginnings in the early years of the previous decade, the company
grew steadily to become a global premium liquid cooling gear
manufacturer. Today, EKWB offers a complete range of products
for liquid cooling, from a renowned Supremacy line of CPU water
blocks, wide range of inhouse developed CoolStream radiators and
Vardar High pressure fans to Phoenix all-in-one (AIO) Modular Liquid
Cooling (MLC) solution, providing overclocking enthusiasts and PC
builders with the best of what the market can offer. EK-KIT Classic
the cooling solution is the next step to bring extreme liquid cooling
performance in the hands of dedicated gamers and PC enthusiasts
around the world.
Safety precautions
1. Keep and store the product away from the reach of children.
2. Check the component list and condition of the product before
installation. If there is any problem, contact the shop where you
have purchased the product to get a replacement or refund.
3. EKWB d.o.o. is not responsible for any damages due to external
causes, including but not limited to, improper use, problems
with electrical power, accident, neglect, alteration, repair,
improper installation, and improper testing.
4. CPU and motherboard are subject to damage if the product is
incorrectly installed.
5. This product is a CPU liquid cooling solution kit, comprising of
individual original EKWB parts. Combining this liquid cooling
unit with parts, other than EK Water Blocks products, may
lead to warranty loss.
6. The product warranty period is 24 months.

QUICK INSTALLATION GUIDE
/ 2 /
RADIATOR SPACE CONSTRAINT REQUIREMENTS 5
DOZEN GOOD ADVICES FOR THE NEWCOMERS 6
LIQUID COOLING SYSTEM 6
GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY 7
INSTALLING THE WATER BLOCK 8
WHAT IS ENCLOSED 8
LGA20113 SOCKET MOTHERBOARDS 9
LG A115xSOCKET MOTHERBOARDS 11
AMD® SOCKET MOTHERBOARDS 15
INSTALLING THE RADIATOR AND FANS 19
INSTALLING THE RADIATOR AND FANS 19
INSTALLING THE RADIATOR AND FANS IN ONE GO 20
INSTALLING THE PUMP-RESERVOIR UNIT 22
WHAT IS ENCLOSED 22
INSTALLING THE PUMPRESERVOIR UNIT ON THE CHASSIS BOTTOM 23
CONNECTING THE TUBING 25
CONNECTING THE PUMPRESERVOIR UNIT 27
ELECTRICAL CONNECTIONS 27
RECOMMENDED FILLING AND LEAK TESTING PROCEDURE 28
CONNECTING THE FANS, PUMP, AND CPU DRGB LIGHTS 29
FILLING THE SYSTEM FOR THE FIRST TIME 30
DRAINING OF THE LOOP 32
POSSIBILITIES OF THE SYSTEM EXPANSION 33
MAINTENANCE 34
FREQUENTLY ASKED QUESTIONS 35
TROUBLESHOOTING 36
IN CASE OF CPU OVERHEATING 36
THE COOLER IS TOO LOUD 37
GENERAL LIQUID COOLING PARTS CLEANING GUIDE 38
PREVENTIVE STEPS 39
SUPPORT AND SERVICE 42
SOCIAL MEDIA 42
SCOPE OF DELIVERY 3
REQUIRED TOOLS 4
TABLE OF CONTENT

/ 3 /
SCOPE OF DELIVERY
AMD Mounting Kit
Classic (1x)
D-RGB splitter Cable (1x) Angled Fitting (2x) Soft Tube Cutter (1x)
Radiator with Screws Coolant – concentrate
100mL
Tube ATX Bridging Plug
CPU Water Block
with Accessories
Compression Fittings
Pump-Reservoir Combo
with Accessories
D-RGB Fans

/ 4 /
REQUIRED TOOLS
Pair of Scissors 1L Bottle of distilled Water
H20
Fan Cable Y-splitter Installation Manual
Phillips-head Screwdriver Mixing Bottle
EK-RES X3 Holder (1x) Multi Allen Key (1x) Filling bottle 500ml (1x) Pump Cable Extension
500mm (1x)
UNI Bracket EK-Cable Pump testing
adapter (1x)

/ 5 /
RADIATOR SPACE CONSTRAINT REQUIREMENTS
400 mm (15,75 in)
280 mm (11,02 in)
130 mm (5,12 in)
130 mm (5,12 in) 46 mm (1,8 in) 28 mm (1,10 in)
400 mm (15,75 in)
280 mm (11,02 in)
130 mm (5,12 in)
130 mm (5,12 in)
46 mm (1,8 in) 28 mm (1,10 in)
P240 P360 S240 S360

/ 6 /
DOZEN GOOD ADVICES FOR THE NEWCOMERS
1. In order to lower shipping costs, we have decided to enclose only
the coolant concentrate for liquid cooling. Therefore you need
to provide 1 liter (1L) of distilled water. You can get it at every gas
station or supermarket.
2. Never run this system on tap water and always use the
enclosed cooling concentrate in the correct ratio.
3. Never use alcohol, alcohol derivatives or alcohol based solvents
in the system. Using alcohol might result in permanent damage
to water cooling KIT components, especially acrylic parts of
the system.
4. The Reservoir must be positioned above the height level of the
water pump in order for the liquid to flood the pump which is
crucial for the first start-up.
5. Generally, for optimal performance, the Reservoir must be
positioned before the pump in the water loop.
6. It is best practice to do a proper leak test before using your computer.
7. If you spot any leaks, turn off the power immediately!
8. Optimize tubing length in order to prevent excessive bending
and kinking of the tubing.
9. Never let your pump run dry. If this is happening for a prolonged
period of time you may risk destroying the water pump’s bearing,
rendering the pump useless.
10. You are encouraged to periodically clean the radiator assembly
as it will collect dust over time. This is best done with a soft
wide tip brush and vacuum cleaner. See chapter ‘General liquid
cooling parts cleaning guide.’

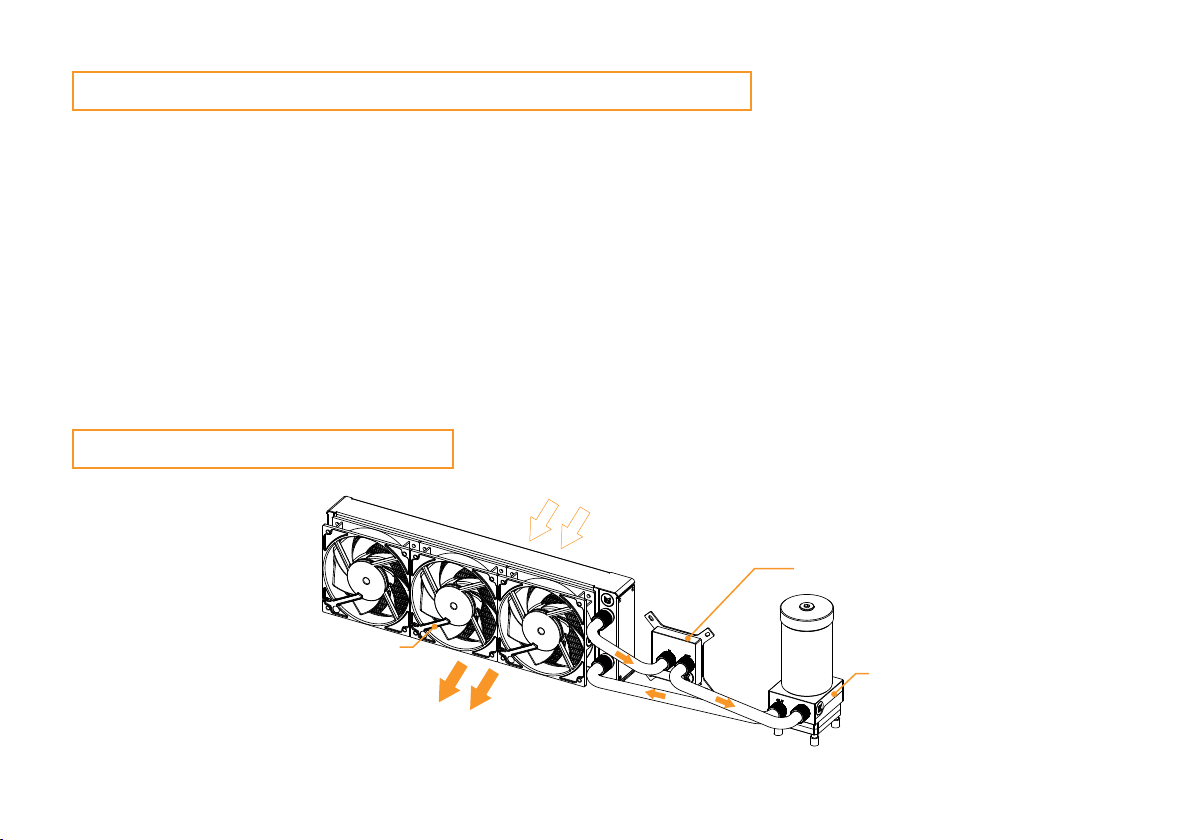

LIQUID COOLING SYSTEM
CPU Water Block
Radiator with Fans
COLD AIR
HOT AIR
Reservoir-Water Pump
Combo

/ 7 /

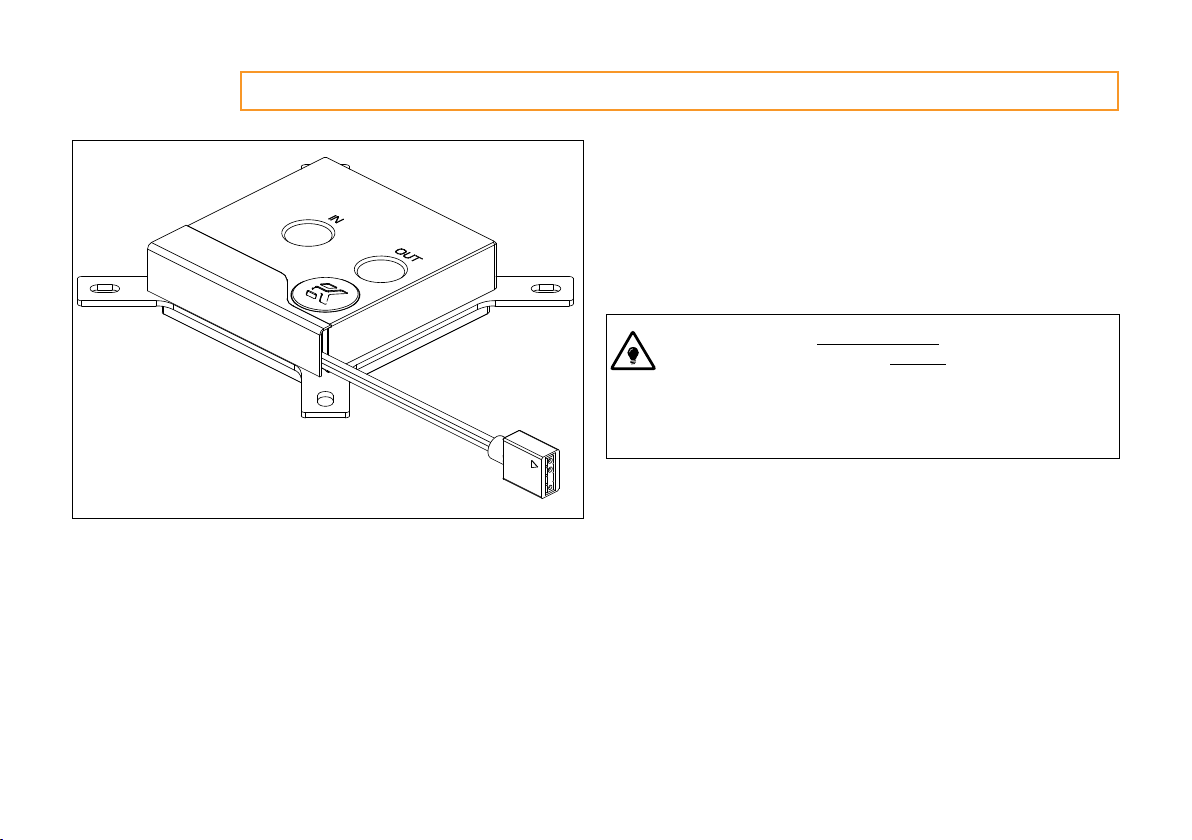

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY
This CPU liquid cooling unit is pre-assembled for use with modern
Intel desktop socket type motherboards. By default (out of the box)
this water block supports the following CPU sockets:
- Intel® Socket LGA-115x / LGA-1200
- Intel® Socket LGA-2066/LGA-2011(-3)
- AMD® Socket AM4*
*requires replacing Intel® mounting plate with AMD® one.
This product is also fully compatible with AMD® AMx/FMx
sockets but requires a user to replace factory installed Intel
mounting plate with AMD® one. The following sockets are
then compatible:
- AMD® Socket AMx
- AMD® Socket FMx
AMD Mounting kit with mounting plate is already enclosed inside
this Kit!

/ 8 /

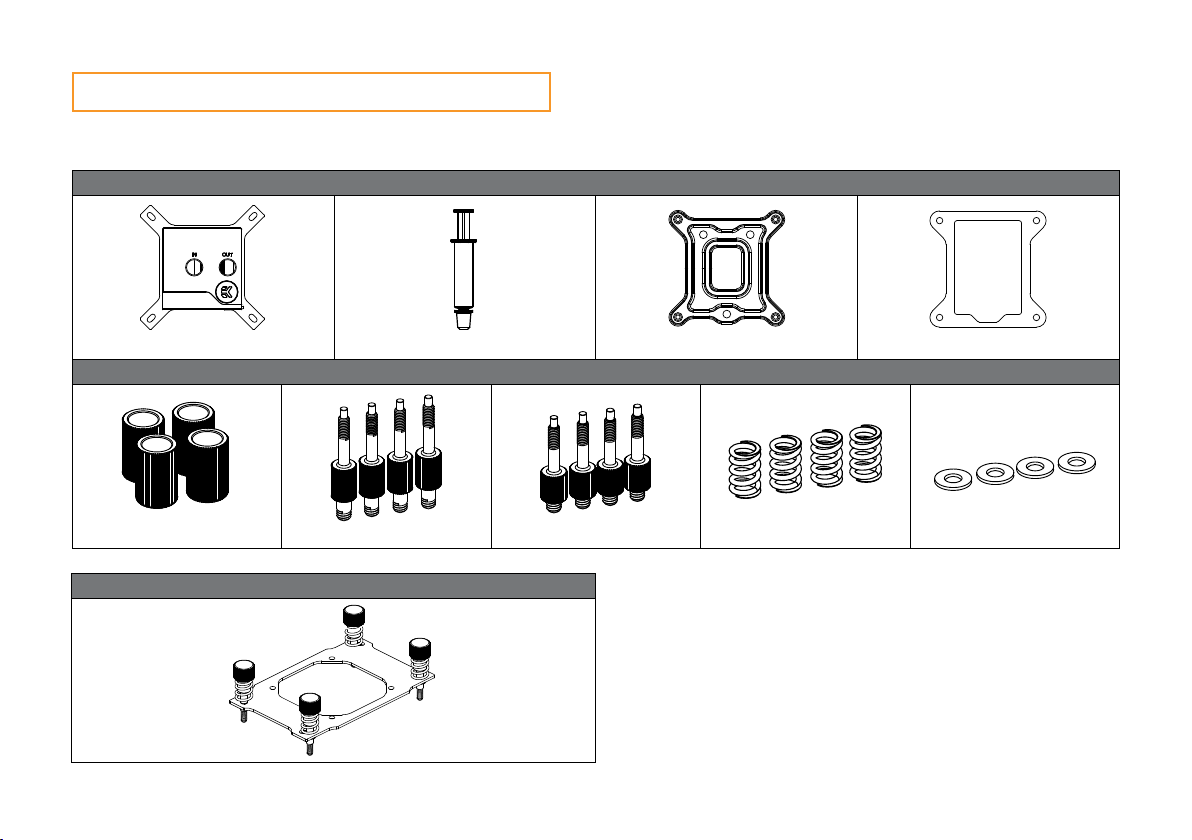

INSTALLING THE WATER BLOCK
CPU Water Block Thermal Grease Steel Backplate - LGA 115x Rubber Backplate Distancer - LGA 115x
CPU WATER BLOCK WITH ACCESSORIES
MOUNTING KIT FOR INTEL SOCKET MOTHERBOARDS
Thumb Nut Mounting Screw - LGA 115x Mounting Screw - LGA 20xx Mounting Spring - Intel Washer M4 x 0.8 mm
WHAT IS ENCLOSED
MOUNTING KIT FOR AMD SOCKET MOTHERBOARDS

/ 9 /
STEP 2
Cleaning the CPU: Wipe the CPU’s contact surface (by using non–
abrasive cloth or Q-tip, as shown on the sample photo).
Applying thermal compound: EK recommends blob or line
method of applying the enclosed thermal compound to the CPU
heat spreader (IHS) - see sample photo on the right.
The quantity of about two rice grains is just about right.
There is no need to cover the whole IHS. Applying too much
thermal grease will have negative impact on the cooling
performance!
LGA20113 SOCKET MOTHERBOARDS
STEP 1
Prepare the foil bag with mounting mechanism, which is enclosed
with the CPU water block delivery.
Install four (4) specific LGA-2011 M3 thumb screws into four threaded
stubs on the LGA-2011 socket’s integrated latch mechanism (ILM).
The screws are to be installed using no tools (i.e. pliers).
It is recommended to remove the motherboard form the
PC chassis before proceeding with installation of the CPU
water block because of the space constraint limitations of
various computer cases.
Non-abrasive
Cloth
IHS
LGA-2011 M3
Thumb Screw
LGA-2011 M3
Thumb Screw
STEP 1
STEP 2

/ 10 /
STEP 3
Take the waterblock and remove the sticker from the cold plate.
Align the water block over the mounting screws on the LGA-2011(-3)
motherboard with pre-installed CPU.
Before proceeding with the installation it is mandatory to
remove the protective foil from the backside of the water block.
Place an enclosed compression spring and thumb nut over each M3
thumb screw. Start fastening two thumb nuts at a time, preferably
in a cross pattern and do not tighten them fully until all of them are
partially screwed in. Then - using your fingers only - screw in all four
thumb nuts until you reach the end of the thread.
Thumb Nut
Coiled Spring
Fitting Ring
Fitting Barb
Inlet Port
Outlet Port

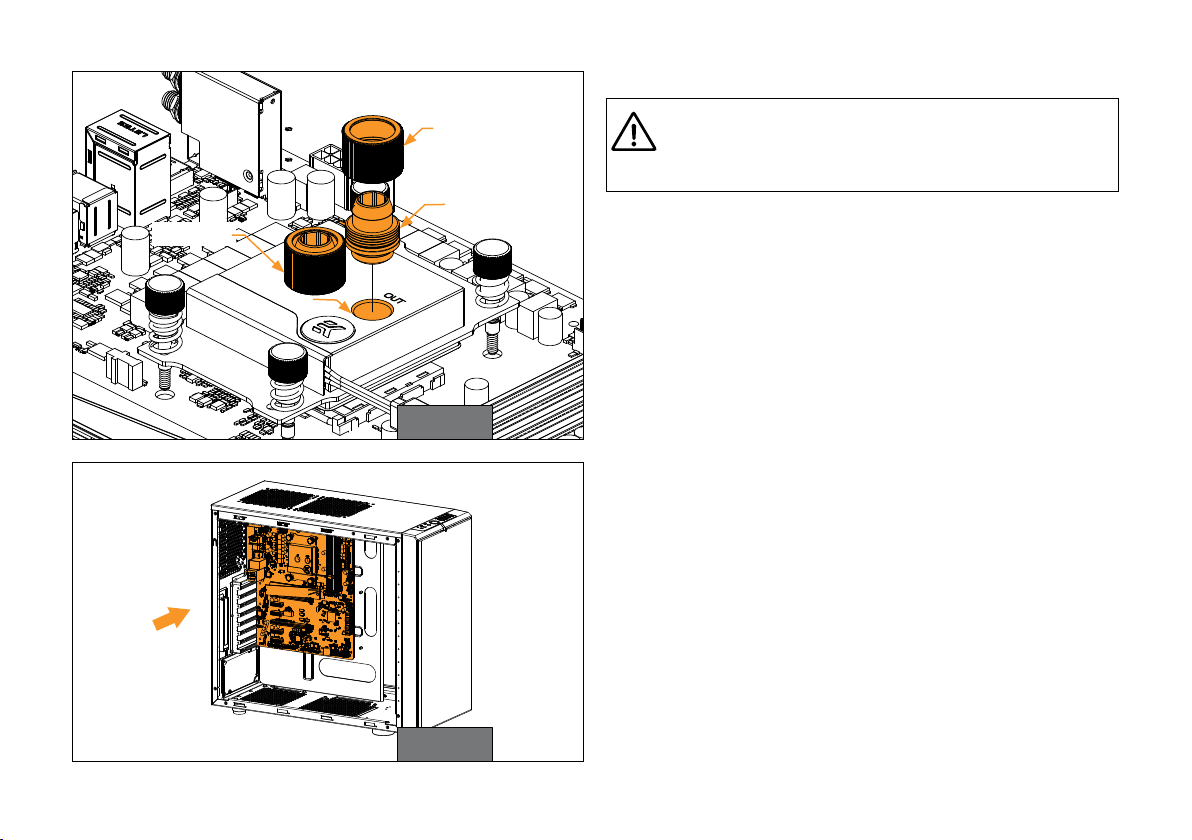

STEP 4
Tighten the fitting barbs in clockwise direction until the gasket
underneath is compressed.
The installation of the CPU water block is now complete.
With EK-Supremacy Classic series water blocks it is
mandatory to use the port that is nearest to the center of
the water block as INLET port. Mixing the ports may result
in less than ideal thermal performance of the water block.
STEP 3
STEP 4

/ 11 /
LGA115x SOCKET MOTHERBOARDS
STEP 1
If already installed, please remove the motherboard from your
computer and place it on an even surface with the front facing down.
STEP 2
Preparing backplate rubber gasket
The enclosed rubber gasket is an essential part of the backplate and
mounting system and must be used every time you install this water
block on your motherboard.
STEP 3
Install backplate rubber gasket and place metal backplate for Intel®
LGA-115x socket to the back of your motherboard RIBBED SIDE
UP! (Facing away from the motherboard) Align the holes on the
motherboard with holes on rubber gasket and backplate.
Make sure to orientate the rubber gasket to fit past the
CPU socket ILM backplate. On certain ITX form factor
motherboards, the rubber gasket may need to be trimmed
using household scissors.
Carefully rotate motherboard assembly with front side facing up
with one hand while holding the backplate and rubber in place with
the other hand.
STEP 1
STEP 2

/ 12 /
M3 Thumb
Screw
PVC Washer
STEP 4
STEP 4
Install four (4) M3 thumb screws onto your motherboard. It is mandatory
to put 0.7mm plastic washer underneath each of the M3 thumb screws.
Tighten the screws to the metal backplate until you reach the end of the
thread. Using tools (such as pliers) is not recommended.
LGA-115x M3
Thumb Screw
Rubber
gasket
Motherboard
Metal
Backplate
STEP 3
STEP 3
Install backplate rubber gasket and place metal backplate for Intel®
LGA-115x / LGA-1200 socket to the back of your motherboard
RIBBED SIDE UP! (Facing away from the motherboard) Align the
holes on the motherboard with holes on rubber gasket and backplate.
Make sure to orientate the rubber gasket to fit past the
CPU socket ILM backplate. On certain ITX form factor
motherboards, the rubber gasket may need to be trimmed
using household scissors.
Carefully rotate motherboard assembly with front side facing up
with one hand while holding the backplate and rubber in place with
the other hand.

/ 13 /

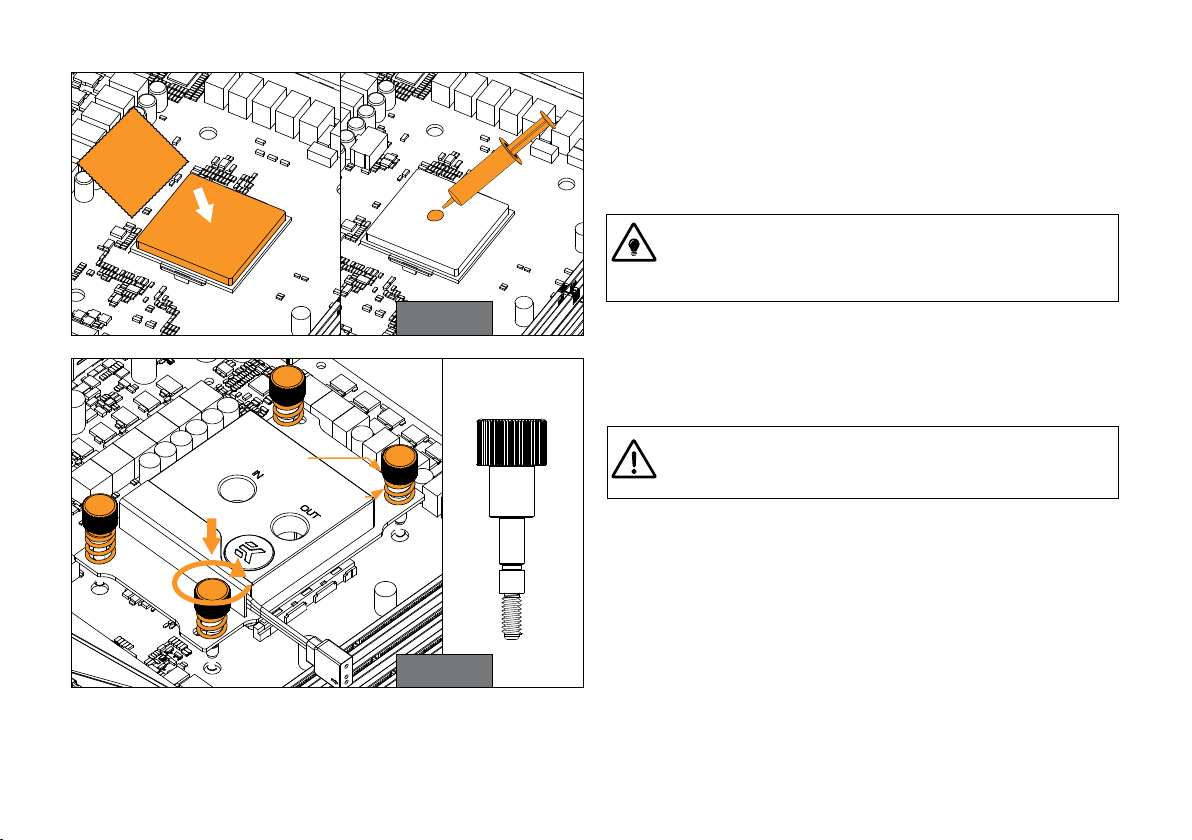

STEP 6
Align the water block over the mounting screws on the LGA-115x
motherboard with pre-installed CPU.
Before proceeding with the installation it is mandatory
to remove the protective foil from the backside of the
water block.
Place an enclosed coiled spring and thumb nut over each of the M4
thumb screws.. Start fastening two thumb nuts at a time, preferably
in a cross pattern and do not tighten them fully until all of them are
partially screwed in. Then – using your fingers only - screw in all four
thumb nuts until you reach the end of the thread.
Thumb Nut
Coiled Spring
STEP 6
STEP 5
Cleaning the CPU: Wipe the CPU’s contact surface (by using non–
abrasive cloth or Q-tip, as shown on the sample photo).
Applying thermal compound: EK recommends blob or line
method of applying the enclosed thermal compound to the CPU
heat spreader (IHS) - see sample photo on the right.
The quantity of about two rice grains is just about right.
There is no need to cover the whole IHS. Applying too
much thermal grease will have a negative impact on the
cooling performance!
Non-abrasive
Cloth
IHS
STEP 5

/ 14 /
STEP 8
Install the CPU water block along with the motherboard back into the
computer chassis.
The installation of the CPU water block is now complete.
STEP 8
STEP 7
With EK-Supremacy Classic series water blocks it is
mandatory to use the port that is nearest to the center of
the water block as INLET port. Mixing the ports may result in
poor thermal performance of the water block.
Tighten the fitting barbs in clockwise direction until the gasket
underneath is compressed.
Fitting Barb
Fitting Ring
Outlet Port
Inlet Port
STEP 7

/ 15 /
STEP 1
STEP 2
Intel® Socket
Mounting Plate
AMD® Socket
Mounting Plate
M4x14
Screws
Orientation of the
Copper Base
STEP 2
Replace the Intel® factory installed mounting plate with AMD® one.
You will feel the mounting plate locking into the position when placed
correctly onto the top.
Reseat the O-ring gasket (57x2,2mm) into the gap between the
mounting plate and the water block top.
Be careful that the orientation of the copper base is as
shown on the picture
Reinstall the M4x14 screws and tighten them using 2,5mm Allen key
to screw them in the clockwise direction.
AMD® SOCKET MOTHERBOARDS
STEP 1
Replacing the mounting plate:
Place the water block on an even surface and remove the four M4x14
DIN 7991 screws attaching the copper base to the top using 2,5mm
Allen key in counter-clockwise direction.

/ 16 /
STEP 3
If already installed, please remove the motherboard from your
computer and place it on an even surface with the front facing up.
STEP 4
Removal of the original plastic hold-down clamps:
Using Philips-head screwdriver remove the four UNC 6-32 screws
securing the original plastic hold-down clamps around the socket as
shown on the sketch. You can use factory backplate for mounting
the EK-Supremacy Classic.
AMD® factory
Backplate
UNC 6-32
Screws
Hold-down
Clamps
STEP 3
STEP 4

/ 17 /
STEP 5
Cleaning the CPU: Wipe the CPU’s contact surface (by using non–
abrasive cloth or Q-tip, as shown on the sample photo).
Applying thermal compound: EK recommends blob or line method
of applying the enclosed thermal compound to the CPU heat spreader
(IHS) - see sample photo on the right.
The quantity of about two rice grains is just about right.
There is no need to cover the whole IHS. Applying too much
thermal grease will have negative impact on the cooling
performance!
STEP 6
Align the water block with the preinstalled mounting screws on the
AMD® socket motherboard.
Before proceeding with the installation it is mandatory to
remove the protective foil from the backside of the water
block.
Start fastening two thumb nuts at a time, preferably in a cross pattern
and do not tighten them fully until all of them are partially screwed in.
Then – using your fingers only - screw in all four thumb nuts until you
reach the end of the thread.
Thumb Screw
Thumb Screw
Coiled Spring
Non-abrasive
Cloth
IHS
STEP 6
STEP 5

/ 18 /
STEP 7
With EK-Supremacy Classic series water blocks it is
mandatory to use the port that is nearest to the center of the
water block as INLET port. Mixing the ports may result in
poor thermal performance of the water block.
Tighten the fitting barbs in clockwise direction until the gasket
underneath is compressed.
STEP 8
Install the CPU water block along with the motherboard back into the
computer chassis.
The installation of the CPU water block is now complete.
Fitting Ring
Fitting Barb
Inlet Port
Outlet Port
STEP 7
STEP 8
