EL-CELL PAT-Stand-1 U User manual

© 2023 EL-Cell GmbH
User Manual
Release 1.6
PAT-Stand-1
Docking station for PAT series test cells

Page 2 of 14
User Manual PAT-Stand-1
Release 1.6
Disclaimer
EL-Cell GmbH makes no assurances or warranties with respect to this manual and, to the
extent permitted by law, limits its liability for violation of any implied warranty to the
substitution of this manual for another. In addition, EL-Cell GmbH reserves the right to revise
this publication at any time without notice to anyone.
The information provided in this documentation includes general descriptions and/or
technical characteristics regarding the performance of the equipment described herein. This
documentation cannot serve as a proper evaluation of the suitability or reliability of the
equipment for any specific application by any user and should not be relied upon as a
substitute for such evaluation. It is the responsibility of each such user or installer to conduct
an appropriate and complete risk assessment, evaluation and testing of the equipment with
respect to their specific application. EL-Cell GmbH cannot be held responsible or liable for any
misuse of the information contained herein.
All relevant state, regional and local safety regulations must always be complied with when
installing and using this device. For safety reasons and to ensure compliance with the
documented system data, only the manufacturer is authorized to perform repair s on
components.
Disregarding this information may result in injury or damage to the equipment.
All rights reserved. No part of this publication may be reproduced, processed, or transmitted
in any form, including photocopying, recording, or any other electronic or mechanical process,
without the written permission of the publisher. Requests for permission must be made in
writing to the publisher at the address written below.

Page 3 of 14
User Manual PAT-Stand-1
Release 1.6
Manufacturer and customer service
EL-Cell GmbH
Tempowerkring 8
21079 Hamburg – Germany
Telephone: [phone]
Telefax: [phone]
Email: [e-mail]
Website: el-cell.com
Technical support
Telephone: [phone]
Email: [e-mail]
Website: el-cell.com/support/technical-support/
Please always quote the serial number on the nameplate when making customer service
inquiries.
Shipping address for repairs
EL-Cell GmbH
Tempowerkring 8
21079 Hamburg - Germany
Please be sure to contact our customer service department before making a return. We will
not open or process shipments without a completed decontamination report or RMA.

Page 4 of 14
User Manual PAT-Stand-1
Release 1.6
Content
1Preamble .............................................................................................................................................. 5
1.1 Purpose and target audience...................................................................................................... 5
1.2 Storage instructions...................................................................................................................... 5
1.3 Obtaining documents and information .................................................................................... 6
2Product description ........................................................................................................................... 7
3Technical data..................................................................................................................................... 7
4Connections ........................................................................................................................................ 8
4.1 Pin-Out of Sub-D “Cell” at PAT-Stand-1 .................................................................................. 8
4.2 Pin-Out of Sub-D “Aux In” at PAT-Stand-1 ............................................................................. 9
5Installation........................................................................................................................................... 9
6Operation modes ............................................................................................................................. 10
7Cable colors and naming conventions........................................................................................ 11
8Unpacking.......................................................................................................................................... 12
9Spare parts ........................................................................................................................................ 12
10 Storage and disposal ...................................................................................................................... 13
10.1 Storage........................................................................................................................................... 13
10.2 Disposal ......................................................................................................................................... 13
11 Warranty ............................................................................................................................................ 14

Page 5 of 14
User Manual PAT-Stand-1
Release 1.6
1Preamble
1.1 Purpose and target audience
This manual covers the structure, function, operation and maintenance of the device
described. It is intended for the end users of the device. An end user can be described as any
person who interacts directly with the device. The term "end user" usually includes laboratory
personnel who have been specifically trained to operate this instrument and are familiar with
all the precautions required to work in the laboratory.
Only an authorized and properly qualified and experienced person 18 years of age or older
may use the device described, who:
•has read and understood these installation and operating instructions
•is familiar with the installation and operation of this or a similar device
•is aware of all possible dangers and acts accordingly
1.2 Storage instructions
Make sure you have read and understood the complete instructions and all safety information
before using this product. Failure to follow these instructions may result in minor or serious
injury.
Follow all instructions. This will prevent accidents that could result in property damage or
injury. Keep all safety information and instructions for future reference and pass them on to
subsequent users of the product.
The manufacturer is not liable for property damage or injuries resulting from incorrect
handling or failure to comply with the safety instructions. In such cases, the warranty becomes
void.

Page 6 of 14
User Manual PAT-Stand-1
Release 1.6
1.3 Obtaining documents and information
A current version of the documentation is available on the following website :
https://el-cell.com/support/manuals/
Alternatively, you can scan this QR code,
to access the website:

Page 7 of 14
User Manual PAT-Stand-1
Release 1.6

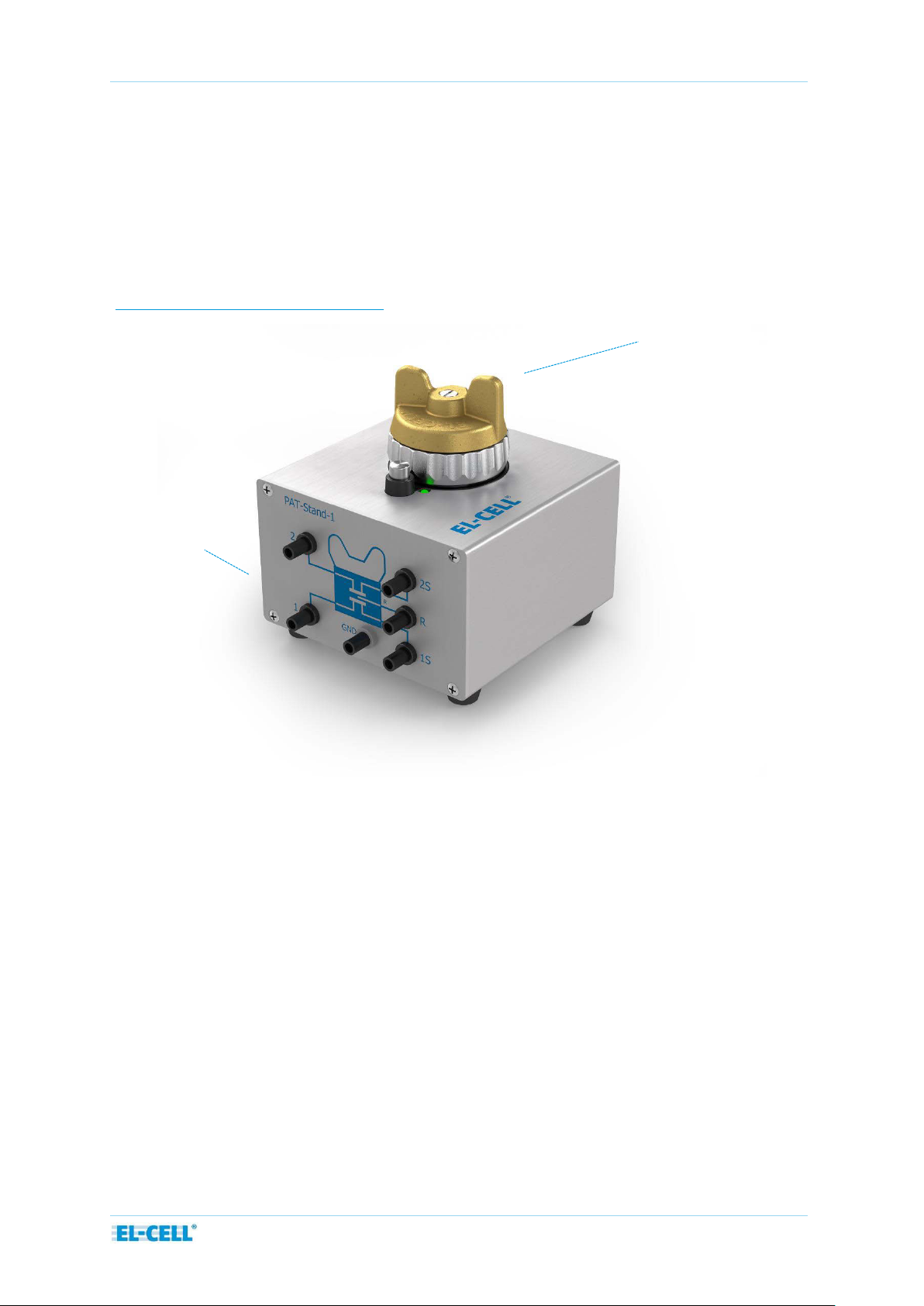

2Product description
The PAT-Stand-1 is a docking station for a single PAT series test cell. When docked into the
PAT-Stand-1, the test cell may be tested by any potentiostat or battery tester.
The compatible test cells are covered in detail by other manuals:
(https://el-cell.com/support/manuals).
3Technical data
▪Operating temperature: -20 to +70°C
▪Humidity: non condensing
▪Dimensions: 105 mm (width) x 113 mm (depth) x 80/110 mm (height without/ with PAT-Cell)
▪Weight: 0.56/0.96 kg (without/with test cell)
▪Protection Class: IP20 according to EN 60529
PAT-Stand-1
PAT-Cell

Page 8 of 14
User Manual PAT-Stand-1
Release 1.6

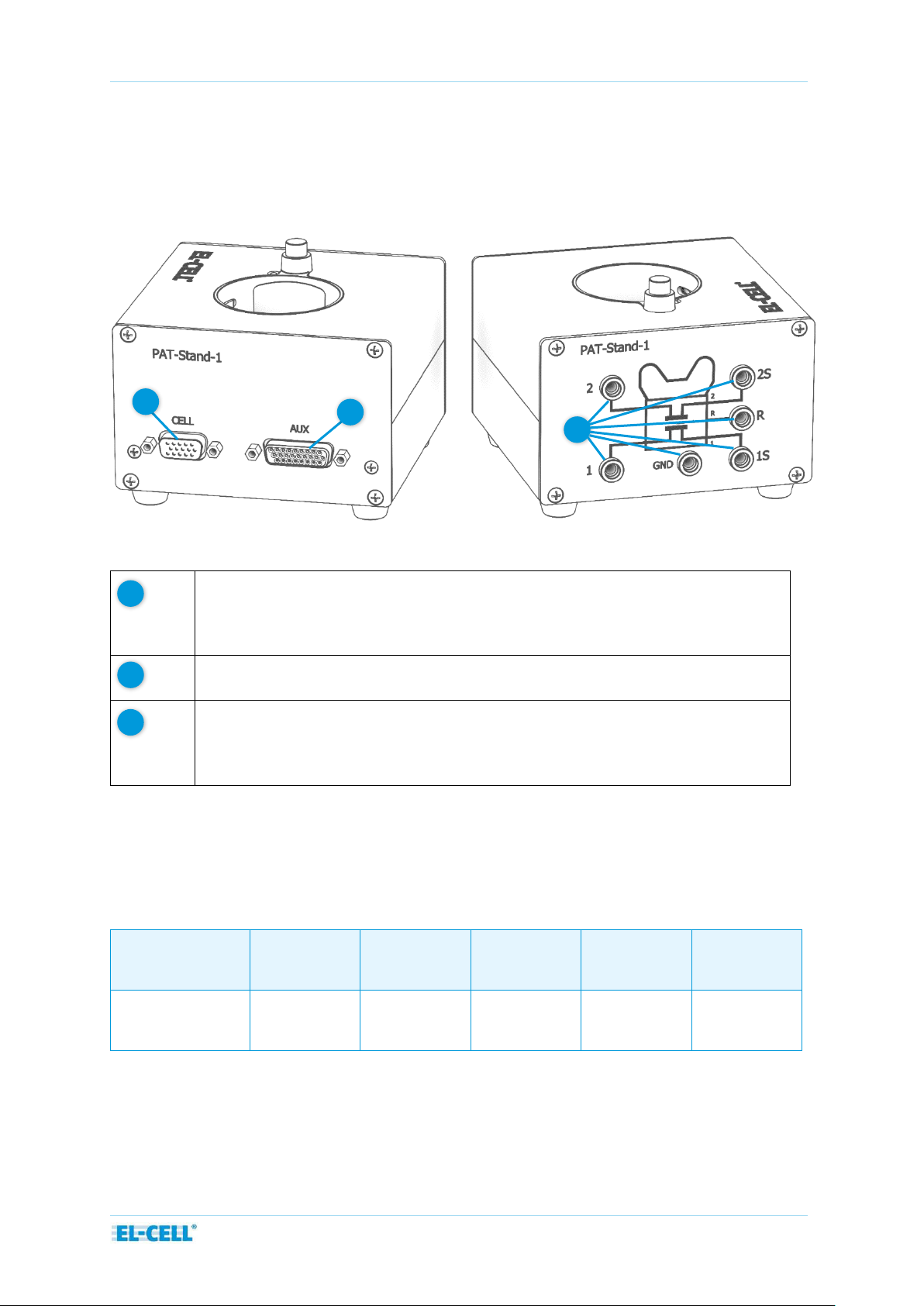

4Connections
4.1 Pin-Out of Sub-D “Cell” at PAT-Stand-1
Sub-D Connector „Cell“: Used for transmitting cell signals from the PAT-Stand-1 to a potentiostat
(instead of connecting to the banana sockets at the front).
Sub-D Connector „Aux“: Used for incoming external signal sources, like dilatometry signal data.
4 mm banana sockets : Used for transmitting cell signals from the PAT-Stand-1 to a potentiostat.
Adapters for connection of 2 mm banana plugs are included.
Sub-D F15 Pin #
1
2
4
5
10
Signal
1S
2S
R
2
1
1
3
1
2
2
3

Page 9 of 14
User Manual PAT-Stand-1
Release 1.6
4.2 Pin-Out of Sub-D “Aux In” at PAT-Stand-1
5Installation
1. Place the PAT-Stand-1 on a flat, dry, clean surface. This can be, for example, on a bench
top, inside a temperature chamber or glove box.
2. Then connect the cell cable of your potentiostat or battery tester channel to the banana sockets
or Sub-D connector of the PAT-Stand-1.
Sub-D HD15F Pin #
3
4
13
21
22
Signal
SDA
SUP
AOUT
SCL
GND

Page 10 of 14
User Manual PAT-Stand-1
Release 1.6
6Operation modes
Connect the cell cable of your potentiostat or battery tester channel to the banana sockets at the front
of the PAT-Stand-1. For the different operation modes, see the table below.
Operation mode 1: Cell voltage control (1 vs 2)
PAT-Stand-1
1
1S
2
2S
R
Potentiostat
WE
WE-Sense
CE
RE
(CE-Sense)
Battery tester
Plus
Plus-Sense
Minus
Minus-Sense
-
Operation mode 2: Half cell voltage control (1 vs R)
PAT-Stand-1
1
1S
2
2S
R
Potentiostat
WE
WE-Sense
CE
(CE-Sense)
RE
Battery tester
Plus
Plus-Sense
Minus
-
Minus-Sense
Operation mode 3: Half cell voltage control (2 vs R)
PAT-Stand-1
1
1S
2
2S
R
Potentiostat
CE
(CE-Sense)
WE
WE-Sense
RE
Battery tester
Minus
-
Plus
Plus-Sense
Minus-Sense

Page 11 of 14
User Manual PAT-Stand-1
Release 1.6
7Cable colors and naming conventions
The naming convention and color codes of the potentiostat´s cell cable leads are not
standardized between manufacturers. The table below is an incomplete list of some popular
instruments.
Important note: The application of our test cells is not limited to the potentiostats listed
below. Our test cells can be used with all other potentiostats as well.
Exemplary
potentiostat
WE
WE-Sense
CE
CE-Sense
RE
BioLogic
SP, VMP, VSP, MPG
WE
Red cable
Ref1
Red cable
CE
Blue cable
Ref3
Blue cable
Ref2
White cable
Gamry Instruments
Reference 600TM and 3000TM,
Interface 5000
Green cable
Blue cable
Red cable
Orange cable
White cable
Ivium Technologies
IviumStat, Ivium-n-Stat,
CompactStat, Vertex
W
Red cable
S
White cable
C
Black cable
Not available
R
Blue cable
Metrohm Autolab
PGSTAT Series
WE
Red cable
S
Red cable
CE
Black cable
Not available
RE
Blue cable
Princeton Applied Research
PARSTAT 2273
WKNG
Green cable
SENSE
Grey cable
CNTR
Red cable
Not available
REF
White cable
WonATech
ZIVE SERIES
WE
Green cable
WS
Blue cable
CE
Red cable
Not available
RE
White cable

Page 12 of 14
User Manual PAT-Stand-1
Release 1.6
8Unpacking
Check the contents of the packages against the list given below to verify that you have
received all of the required components. Contact EL-CELL if anything is missing or damaged.
NOTE: Damaged shipments must remain within the original packaging for freight company
inspection.
List of Components
▪PAT-Stand-1
▪6 x adapter male 4 mm to female 2 mm ELT9081
9Spare parts
Adapter male 4 mm to female 2 mm ELT9081

Page 13 of 14
User Manual PAT-Stand-1
Release 1.6
10 Storage and disposal
10.1 Storage
The device may only be stored under the following conditions:
•dry and in a closed, dust-free room
•frost-free
10.2Disposal
The device must not be disposed of in normal household waste. Observe the applicable legal
regulations. Please contact your dealer or the manufacturer for disposal.

Page 14 of 14
User Manual PAT-Stand-1
Release 1.6
11 Warranty
For a period of one year from the date of shipment, EL-Cell GmbH (hereinafter Seller) warrants
the goods to be free from defects in material and workmanship to the original purchaser.
During the warranty period, Seller agrees to repair or replace defective and/or nonconforming
goods or parts without charge for material or labor or, at the Seller’s option, demand return of
the goods and tender repayment of the price. The buyer’s exclusive remedy is repair or
replacement of defective and nonconforming goods or, at the Seller’s option, the refund of
the price.
Seller excludes and disclaims any liability for lost profits, personal injury, interruption of
service, or for consequential incidental or special damages arising out of, resulting from, or
relating in any manner to these goods.
This Limited Warranty does not cover defects, damage, or nonconformity resulting from
abuse, misuse, neglect, lack of reasonable care, modification, or the attachment of improper
devices to the goods. This Limited Warranty does not cover expendable items. This warranty is
void when repairs are performed by a non-authorized person or service center. At the Seller’s
option, repairs or replacements will be made on-site or at the factory. If repairs or
replacements are to be made at the factory, the Buyer shall return the goods prepaid and bear
all the risks of loss until delivered to the factory. If Seller returns the goods, they will be
delivered prepaid, and Seller will bear all risks of loss until delivery to Buyer. Buyer and Seller
agree that this Limited Warranty shall be governed by and construed in accordance with the
laws of Germany.
The warranties contained in this agreement are instead of all other warranties expressed or
implied, including the warranties of merchantability and fitness for a particular purpose.
This Limited Warranty supersedes all prior proposals or representations, oral or written, and
constitutes the entire understanding regarding the warranties made by Seller to Buyer. This
Limited Warranty may not be expanded or modified except in writing, signed by the parties
hereto.
