User Manual
Release 2.02
Electrochemical Test Cell
ECC-PAT-Core
November 2016

Page 2 of 17
User Manual ECC-PAT-Core –Release 2.02
The information in this manual has been carefully checked and believed to be accurate;
however, no responsibility is assumed for inaccuracies.
EL-CELL GmbH maintains the right to make changes without further notice to products
described in this manual to improve reliability, function, or design. EL -CELL GmbH does
not assume any liability arising from the use or application of this product.
EL-CELL GmbH
Tempowerkring 8
21079 Hamburg - Germany
phone: [phone]
fax: [phone]
e-mail: [e-mail]
web: www.el-cell.com

Page 3 of 17
User Manual ECC-PAT-Core –Release 2.02
Content
1 Product Description ............................................................................................ 4
2 Features ........................................................................................................... 6
3 Safety Precautions ............................................................................................. 6
4 Unpacking ......................................................................................................... 6
5 Cell Assembly .................................................................................................... 8
6 Different Test Cases ..........................................................................................10
7 PAT-Core Components .......................................................................................11
9 Disassembly and Cleaning ..................................................................................14
10 Consumables ...................................................................................................14
11 Spare Parts .....................................................................................................15
12 Technical Support ............................................................................................16
13 Warranty ........................................................................................................17

Page 4 of 17
User Manual ECC-PAT-Core –Release 2.02
12
12,2
12,4
12,6
12,8
13
13,2
13,4
13,6
13,8
14
0200 400 600 800 1000
SPRING FORCE APPLIED ON CELL STACK / N
THICKNESS OF UPPER ELECTRODE / MICRONS
1Product Description
The ECC-PAT-Core is the latest test cell of the ECC series, which allows the application
of the novel PAT-Core. The PAT-Core is comprised of three components:
1. Insulation sleeve: The polypropylene insulation sleeve with a ring-shaped
reference electrode and a separator, both pre-installed at the factory, sealed and
ready for use in the glovebox. Several other versions are available for special
purposes. The insulation sleeve is also available in the disassembled state, so that
the customer can use his own separator or reference.
2. Lower plunger: The lower plunger serves as the positive current collector.
Different gap sizes are available to match electrodes and separators with different
thicknesses. When using the proper gap size, the lower electrode can have a
maximum thickness of 800 µm.
3. Upper plunger: The upper plunger serves as the negative current collector. The
maximum thickness of the upper electrode is 800 µm. Note that the spring force
applied on the cell stack will depend slightly on the thickness of the upper
electrode.
4.
Spring force in relation to the thickness of the upper electrode:
Compression spring
FED9015

Page 5 of 17
User Manual ECC-PAT-Core –Release 2.02
The insulation sleeve is a single-use component, which has to be disposed after use. In
contrast, the plungers are available as both single-use components (made of battery
grade copper and aluminium) and as reusable components (made of stainless steel
316 L/ 1.4404).

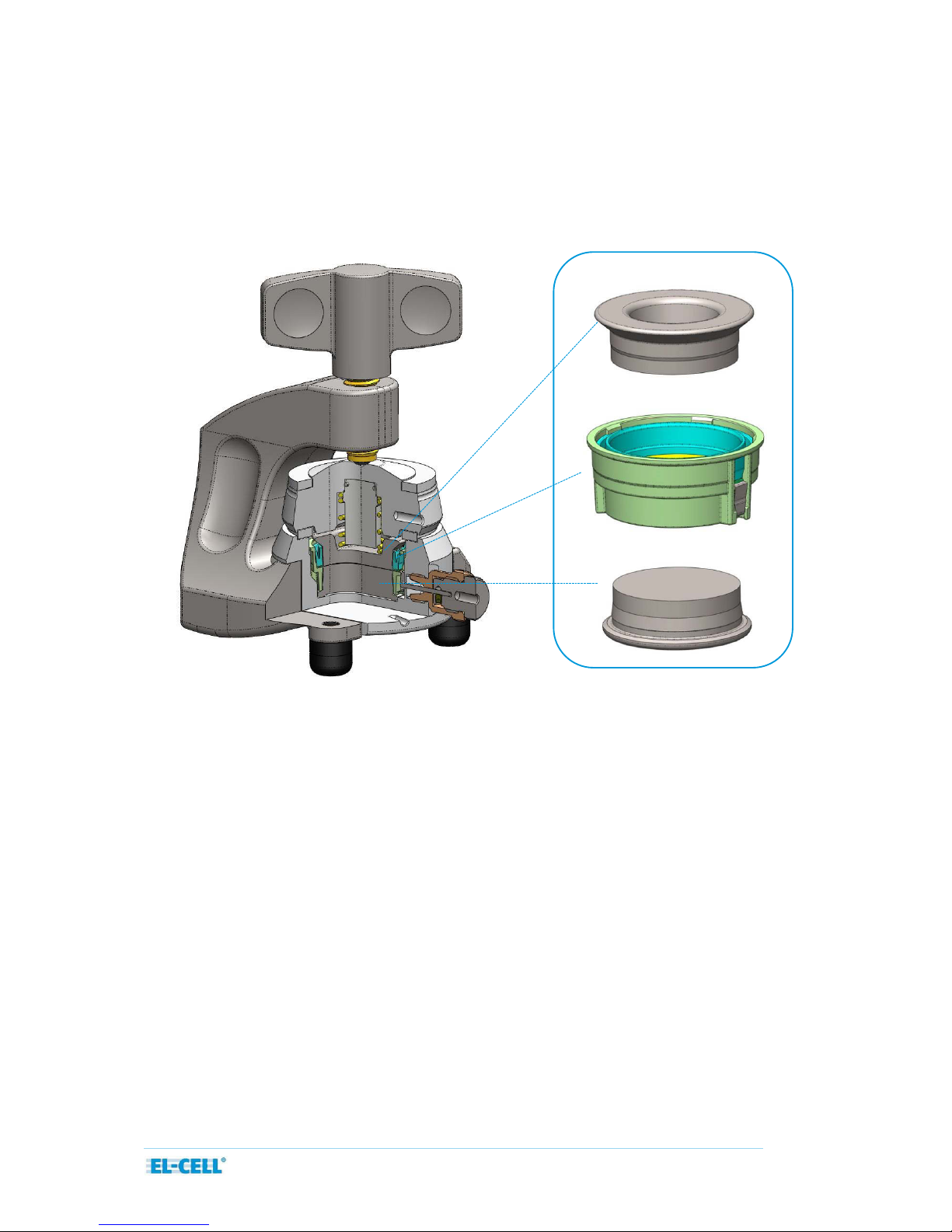

Insulation sleeve
Upper plunger
Lower plunger
PAT-Core
ECC-PAT-Core

Page 6 of 17
User Manual ECC-PAT-Core –Release 2.02
2 Features
The ECC-PAT-Core is a test cell to accurately characterize aprotic lithium-ion battery
materials over long periods of times. The standard PAT-Core is composed if a lithium
metal ring and a a separator (either glass fiber or a nonwoven polyester pasted with
Al2O3). Both the reference and the separator are pre-installed in a single-use insulation
sleeve. This concept has got several advantages:
Ability for conducting long-term measurements with a reliable reference electrode
over more than one thousand hours of battery operation.
Ability for measuring half cell impedance spectra throughout the battery’s life
time.
Less mistakes that may result from corrosion or cross-contamination.
Increase of testing productivity by single -use concept.
No need for cleaning or drying cell components.
Fast assembly and dismantling lowers lead times of experiments.
Easy and reliable electrolyte filling upon assembly (defined electrolyte volume
down to 0.05 cm³).
Reliable leakage-proof sealing with PE-Seal and double cutting ring.
Reproducible and homogeneous mechanical pressure on electrodes .
High precision 18 mm diameter sandwich geometry with a concentricity better
than 0.1 mm (electrode and separator dimensions are compatible with other test
cells of the ECC series).
The ECC-PAT-Core is designed for use in the temperature range from -20 to +70°C.
3 Safety Precautions
Use proper safety precautions when using hazardous electrode materials and
electrolytes. Wear protective glasses and gloves to protect you against electrolyte
that may accidentally spill out during disassembly. Upon cell disassembly, dispose all
materials properly. Metallic lithium and some insertion compounds may decompose
heavily in contact with water and other solvents, and can cause fire.
4 Unpacking
Check the contents of the packages against the list given below to verify that you
have received all of the required components. Contact EL-CELL, if anything is missing
or damaged. NOTE: Damaged shipments must remain within the original packaging for
freight company inspection.

Page 7 of 17
User Manual ECC-PAT-Core –Release 2.02
List of Components:
ECC-PAT-Core test cell without PAT-Core
Note: The components of the PAT-Core (insulation sleeves and plungers) must be
purchased separately.
Lid
PE-Seal
Cell Base
Feed wire assy
Bracket

Page 8 of 17
User Manual ECC-PAT-Core –Release 2.02
5 Cell Assembly
This section describes, how the ECC-PAT-Core has to be assembled in order to
conduct proper battery tests. Please note that the assembly has to take place under
the protective atmosphere in a glove box.
1. Put the insulation sleeve (5) onto the worktop with the smaller side pointing
upwards. Different insulation sleeves are available for different test purposes, see
chapters 6 and 7.
2. Insert the lower electrode (6) into the sleeve with the active layer facing
downwards.
3. Attach the lower plunger (7). The lower plunger is available in different gap
sizes in order to account for the thickness of the electrodes and separator used,
see chapters 6 and 7.
4. Turn the assembly upside down.
5. Align the contact spring of the sleeve with the horizontal contact pin inside the
cell base (9). Then insert the assembly into the cell base.
6. Evenly dispense 100 µL of electrolyte (4) on top of the separator with a pipette.
Note: The optimum amount of electrolyte will depend on the thickness and porosity of
the separator and the electrodes used.
7. Insert the upper electrode (3) into the insulation sleeve with the active layer
facing downwards.
8. Attach the upper plunger (2).
9. Mount the PE-Seal (8) on the cell.
10. Put the lid (1) (with integrated spring) on top.
11. Hold the lid down and push the cell into the bracket (11).
12. Turn the wing nut (10) to close the cell.
A video showing the assembly of the ECC-PAT-Core in detail, can be found here.

Page 9 of 17
User Manual ECC-PAT-Core –Release 2.02

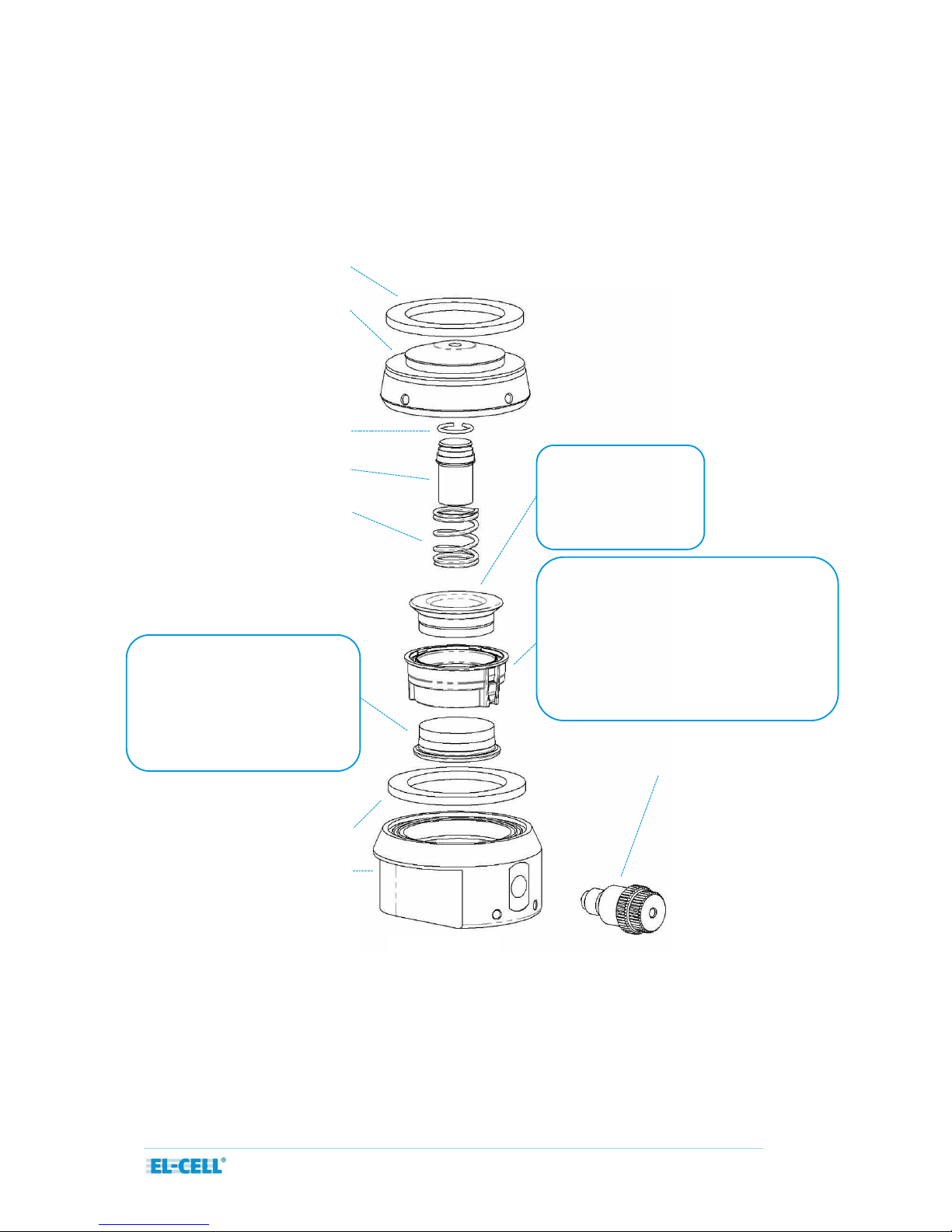

Lid
Upper plunger
Upper electrode
Electrolyte
Insulation sleeve
Lower electrode
Lower plunger
PE-Seal
Cell base
Bracket
Wing nut
Further recommended tools for working with the ECC-PAT-Core:
ECC1-02-0005-A ECC-LiPunch 18 mm
ECS1-00-0100-A EL-Cut Cutting Pliers 18 mm
1
3
4
5
6
7
8
9
10
11
2

Page 10 of 17
User Manual ECC-PAT-Core –Release 2.02
6Different Test Cases
The PAT-Core may be used for many different battery and capacitor types. The table
below summarizes some of the most common test cases. In general, we recommend
sleeves with built-in glass fiber separator rather then thin technical separators (such as
Viledon or Celgard) when lithium metal is used as the negative electrode, and when
measuring half cell impedances.
Battery
Type
Lower electrode
(+)
Upper electrode
(-)
Lower plunger
single-use/re-use
Upper plunger
single-use/re-use
Separator
Li-metal
LCO, NCA, NCM or
LFP
Li
Al/SS
Cu/SS
GF
Li-metal
Graphite or silicon
Li
Cu/SS
Cu/SS
GF
Li-metal
LTO
Li
Al or Cu/SS
Cu/SS
GF
Li-ion
LCO, NCA, NCM,
or LFP
Graphite
Al/SS
Cu/SS
GF or thin
Li-ion
LFP
LTO
Al/SS
Al or Cu/SS
GF or thin
EDLC
AC
AC
Al/SS
Al/SS
GF or thin
Li-ion cap
AC
Lithiated graphite
Al/SS
Cu/SS
GF or thin
The lower electrode can have a thickness of up to 800 µm provided that the proper gap
size of the lower plunger is chosen. The maximum thickness of the upper electrode is
800 µm.
Upper plunger
Ring-shaped reference electrode
Insulation sleeve
Lower plunger

Page 11 of 17
User Manual ECC-PAT-Core –Release 2.02
7 PAT-Core Components
Lower Plunger:
The lower plunger is available in different materials (SS 1.4404, Al 99.5%, Cu 99.9%)
and with different gap sizes. The different gaps are necessary in order to account for
the different thicknesses of the lower electrode and the separator used. The term ‘ gap’
refers to the distance between the lower face of the built-in separator (thought of as
having zero thickness) and the upper face of the lower plunger when attached to the
insulation sleeve, see sketch below.
If you use a wrong plunger gap, you may get trouble with your battery test. The below figures
illustrate this point.
Good case: No bending of
built-in separator; reference
ring is in plane with
separator.
Gap
Gap too large: Excessive
downward bending of built-in
separator; reference ring is out
of plane with separator.

Page 12 of 17
User Manual ECC-PAT-Core –Release 2.02
Available lower plungers:
The lower plunger is available with gap sizes between 50 and 800 in steps of 50 µm. For
ordering, just append the step size to the article code, see table below.
For lower electrodes having a thickness of around 100 µm, we recommend a gap size of 100
when using thin separators such as Viledon or Celgard, and a gap size of 200 when using our
standard glass fiber separator. In general, for glass fiber, the gap size must be approx. 100 µm
larger than the electrode thickness because of the compression of the built-in separator.
Gap of
lower plunger
(in µm)
50
100
150
200
..
800
Article code
lower plunger
(SS)
ECC1-01-
0027-C_50
ECC1-01-
0027-C_100
ECC1-01-
0027-C_150
ECC1-01-
0027-C_200
ECC1-01-
0027-C_800
Article code
lower plunger
(Al)
ECC1-01-
0027-A_50
ECC1-01-
0027-A_100
ECC1-01-
0027-A_150
ECC1-01-
0027-A_200
ECC1-01-
0027-A_800
Article code
lower plunger
(Cu)
ECC1-01-
0027-B_50
ECC1-01-
0027-B_100
ECC1-01-
0027-B_150
ECC1-01-
0027-B_500
ECC1-01-
0027-B_800
Gap too small: Excessive
upward bending of built-in
separator; reference ring is
out of plane with separator.

Page 13 of 17
User Manual ECC-PAT-Core –Release 2.02
Upper Plunger:
The upper plunger is available in different materials: Stainless steel 1.4404, Al 99.5% and Cu
99.9%. Other materials on request.
type of utilization
(single-use vs. reusable)
Art-No. upper plunger
copper
Cu 99.9
(E-CU 58)
single-use
ECC1-01-0026-A
aluminium
Al 99.5
(EN-AW- 1050)
single-use
ECC1-01-0026-B
stainless steel
316L
(1.4404)
reusable
ECC1-01-0026-C
Insulation sleeve:
The insulation sleeve is available with and without a ring-shaped lithium metal reference ring,
and with two different types of separator: borosilicate glass fiber separator (Whatman GF/A)
having a thickness of 260 µm, and nonwoven polyester pasted with Al2O3(Freudenberg Viledon
FS 3005-25) having a thickness of 25 µm. Other separators and customized solutions are
available on request. Furthermore, the sleeve is available in the disassembled state, either with
or without the lithium reference ring. The table below comprises the four standard versions
only.
Art-No.
type of testing
(2 or 3 electrodes)
Insulation sleeve
with lithium metal ring reference,
with glass fiber separator (260 µm)
ECC1-00-0210-O/x
3 electrodes
Insulation sleeve
with lithium metal ring reference,
with Viledon separator (25 µm)
ECC1-00-0210-A/x
Insulation sleeve
with glass fiber separator (260 µm)
ECC1-00-0210-P/x
2 electrodes
Insulation sleeve
with Viledon separator (25 µm)
ECC1-00-0210-B/x

Page 14 of 17
User Manual ECC-PAT-Core –Release 2.02
9Disassembly and Cleaning
After disassembly, dispose all single-use components and electrodes properly. If the
cell base has got contaminated with electrolyte, clean it with plenty of water and dry with
compressed air. Use less electrolyte for subsequent tests. Plungers made of stainless
steel have to be cleaned with plenty of water. If necessary, remove persistent dirt with
aqueous nitric acid (20%, 2 hours at room temperature). All other cell components are
for immediate re-use without cleaning.
10 Consumables
Plunger (single-use):
Upper plunger (Al) ECC1-01-0026-B
Upper plunger (Cu) ECC1-01-0026-A
Lower plunger (Al), gap x = 50 to 800 ECC1-01-0027-A_x
Lower plunger (Cu), gap x = 50 to 800 ECC1-01-0027-B_x
Insulation sleeves (single-use):
Insulation sleeve with Li-reference ring and Viledon separator
ECC1-00-0210-A/x
Insulation sleeve with Viledon separator only
ECC1-00-0210-B/x
Insulation sleeve with Li-reference ring and glass fiber separator
ECC1-00-0210-O/x
Insulation sleeve with glass fiber separator only
ECC1-00-0210-P/x
Seals (single-use):
Ferrule 1.0 ECC1-00-0029-B
PE-Seal (lid)* ECC1-00-0053-A
* We recommend replacement of the PE-Seal after every use.

Page 15 of 17
User Manual ECC-PAT-Core –Release 2.02
11 Spare Parts
Components:
PE-Seal
ECC1-00-0053-A
Lid (ECC-PAT-Core)
ECC1-00-0057-M
Shaft ring
FED9029
Dead volume adapter (ECC-PAT-Core)
ECC1-00-0224-A
Compression spring (Au)
FED9015
Lower plunger (SS)
ECC1-01-0027-C_x
or Lower plunger (Al)
ECC1-01-0027-A_x
more versions see chapter 7
PE-Seal
ECC1-00-0053-A
Cell base
ECC1-00-0056-M
Upper plunger (SS)*
ECC1-01-0026-C
or Upper plunger (Cu)*
ECC1-01-0026-A
Insulation sleeve with built-in GF
separator and with Li-reference ring
ECC1-00-0210-O/x
or Insulation sleeve with built-in GF
separator (no reference)
ECC1-00-0210-P/x
more versions see chapter 7
Feed wire assy (ECC-PAT-Core)
ECC1-00-0010-M

Page 16 of 17
User Manual ECC-PAT-Core –Release 2.02
Plunger (reusable):
Upper plunger (SS)
ECC1-01-0026-C
Lower plunger (SS), ), gap x = 50 to 800 (steps of 50)
ECC1-01-0027-C_x
12 Technical Support
Technical support for this product is exclusively provided by EL-CELL GmbH.
EL-CELL GmbH
Tempowerkring 8
21079 Hamburg - Germany
phone: [phone]
fax: [phone]
e-mail: [e-mail]
web: www.el-cell.com

Page 17 of 17
User Manual ECC-PAT-Core –Release 2.02
13 Warranty
For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller)
warrants the goods to be free from defect in material and workmanship to the original
purchaser. During the warranty period, Seller agrees to repair or replace defective
and/or nonconforming goods or parts without charge for material or labor, or, at the
Seller’s option, demand return of the goods and tender repayment of the price. Buyer’s
exclusive remedy is repair or replacement of defective and nonconforming goods, or, at
Seller’s option, the repayment of the price.
Seller excludes and disclaims any liability for lost profits, personal injury, interruption of
service, or for consequential incidental or special damages arising out of, resulting
from, or relating in any manner to these goods.
This Limited Warranty does not cover defects, damage, or nonconformity resulting from
abuse, misuse, neglect, lack of reasonable care, modification, or the attachment of
improper devices to the goods. This Limited Warranty does not cover expendable items.
This warranty is void when repairs are performed by a non-authorized person or service
center. At Seller’s option, repairs or replacements will be made on site or at the factory.
If repairs or replacements are to be made at the factory, Buyer shall return the goods
prepaid and bear all the risks of loss until delivered to the factory. If Seller returns the
goods, they will be delivered prepaid and Seller will bear all risks of loss until delivery
to Buyer. Buyer and Seller agree that this Limited Warranty shall be governed by and
construed in accordance with the laws of Germany.
The warranties contained in this agreement are in lieu of all other warranties expressed
or implied, including the warranties of merchantability and fitness for a particular
purpose.
This Limited Warranty supersedes all prior proposals or representations oral or written
and constitutes the entire understanding regarding the warranties made by Seller to
Buyer. This Limited Warranty may not be expanded or modified except in writing sig ned
by the parties hereto.
