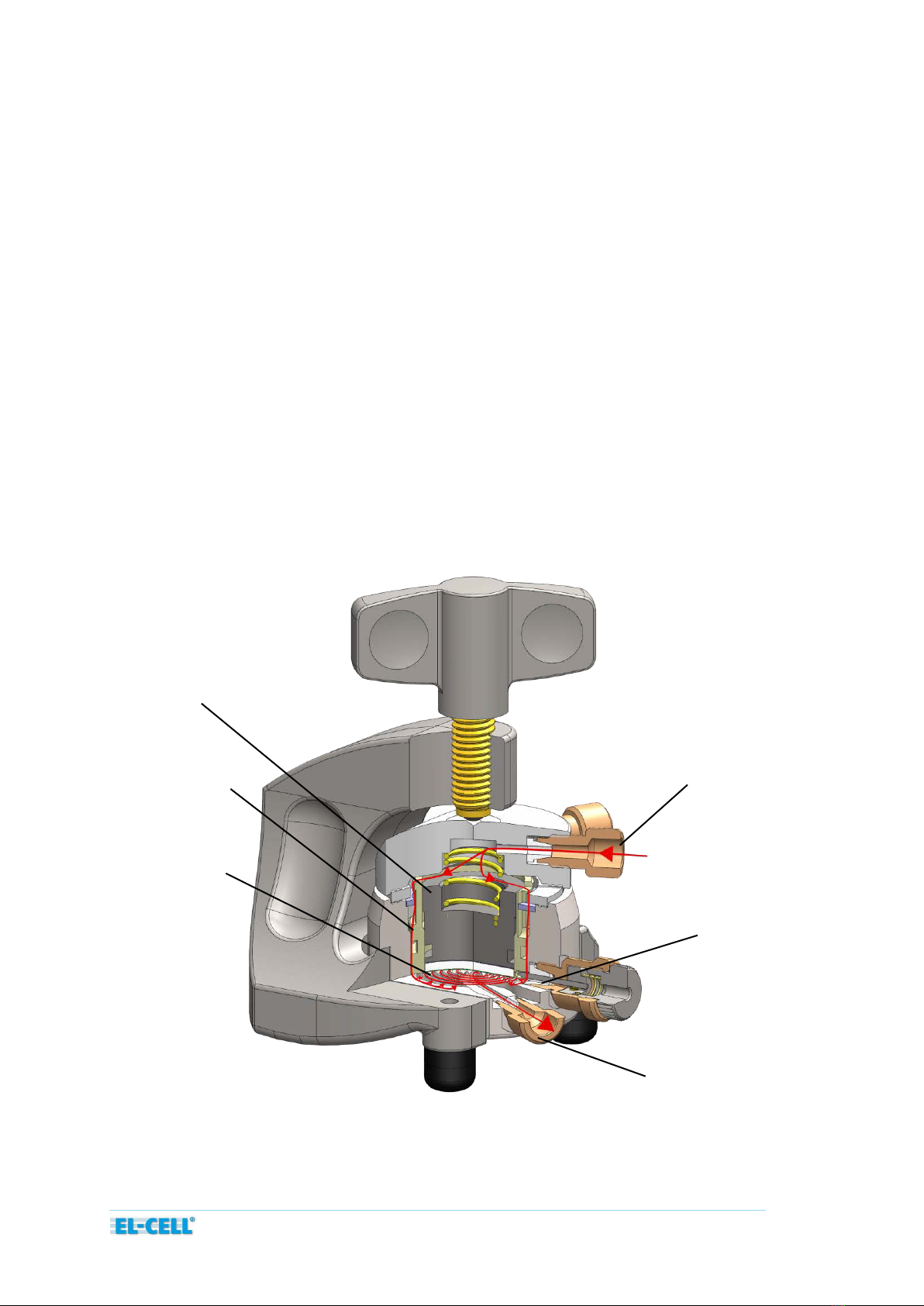

1 Product Description
The ECC-DEMS is another member of the modular ECC series dedicated to the time-resolved analysis
of the gases evolved during the charge/discharge of aprotic electrolyte based battery chemistries
including lithium-ion and lithium-air.
The ECC-DEMS cell design is based on recent work on lithium-air batteries (Z. Peng, S.A. Freunberger,
Y. Chen, P.G. Bruce, Science, Vol. 337 no. 6094 pp. 563-566). We especially thank Stefan Freunberger
for his help to realize this test cell as another member of our ECC test cell series.
Basically, the test cell accommodates the cell stack with the working electrode placed at the cell
bottom on a spiral-type flow field. The working electrode may be a gas diffusion electrode (like with
lithium-air) or a standard lithium-ion electrode on a perforated (gas permeable) current collector foil.
Lithium metal may be used for both the counter and reference electrode, and glass fiber as the
separator material.
During charge/discharge, a gentle mass-controlled stream of a gas (or gas mixture) is to be purged
through the spiral-type flow field below the working electrode. The gas composition at the gas outlet
may be analysed e.g. by a mass spectrometer. The gas comes in through the cell lid, passes along the
perimeter of the PEEK sleeve and then enters into a plug-flow along the spiral-type flow field at the
bottom of the cell base.
Gas outlet

Page 5 of 11
User Manual ECC-DEMS –Release 1.42
2 Features
Test cell dedicated to the time-resolved analysis of the gases evolved during the
charge/discharge of aprotic electrolyte based chemistries such as lithium-ion and lithium-
air.
Gases evolved or consumed at the working electrode may be analysed through the
composition change of the gas stream that is to be passed along the spiral -type flow field
below the working electrode.
Pressure gradient between cell headroom and spiral-type flow field effectively prevents
back-mixing and ensures best possible time resolution
Operation with our without reference electrode
High precision 18 mm diameter sandwich geometry with <0.1 mm electrode concentricity
Reliable low leakage sealing with PE seals
Temperature operation range -20 to +70 °C
Easy and reliable electrolyte filling upon assembly
Fast assembly and dismantling, and easy cleaning of cell components
Electrodes are easily accessible for post-mortem analysis
Reusable cell components except for PE seal

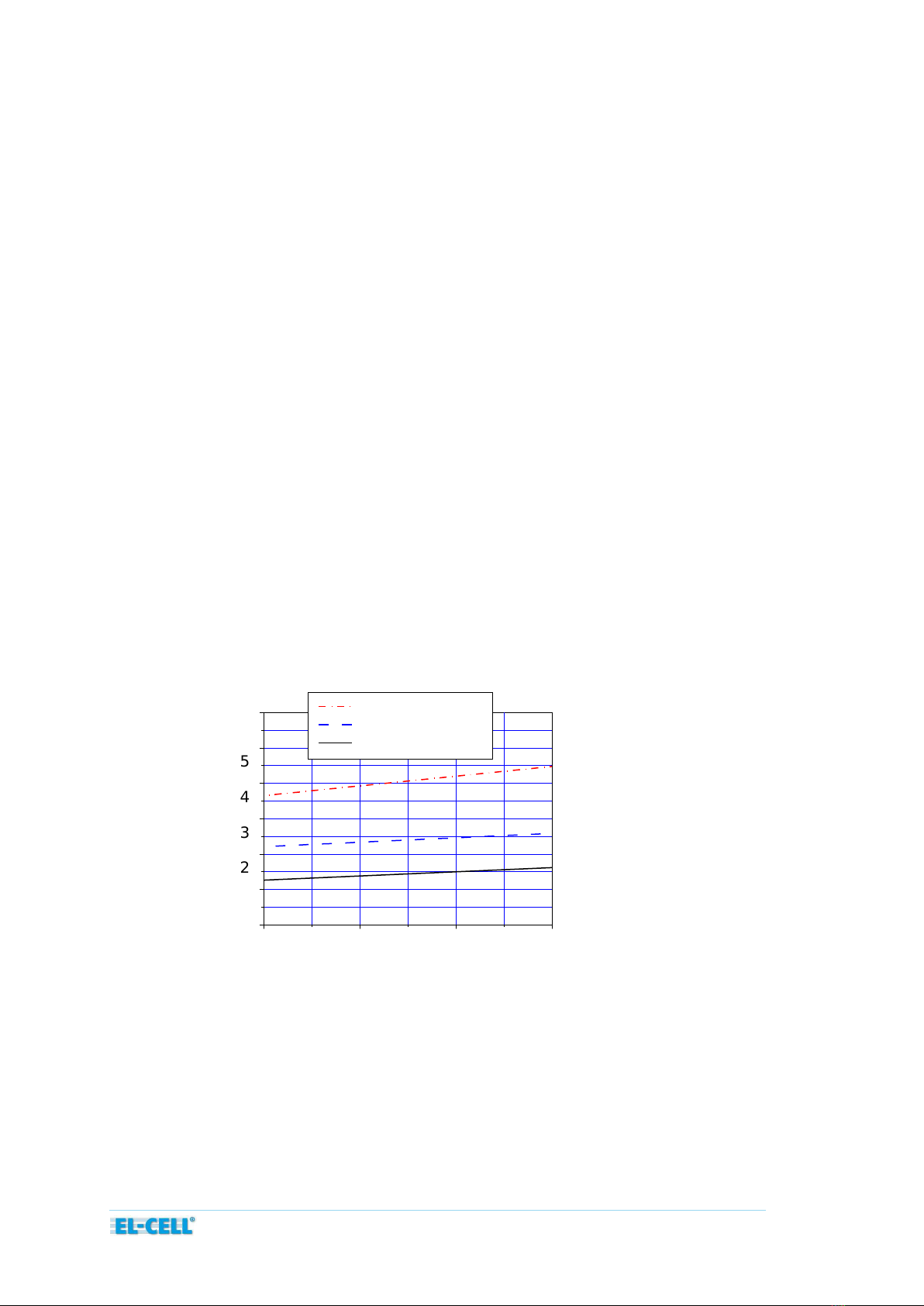

Adjustable, reproducible and homogeneous mechanical pressure on electrodes
Spring load on stack vs. stack
thickness for different springs.
Standard is FED9015.
Materials in media contact are stainless steel 1.4404 and PEEK (other materials on
request)
Size (including bracket):
90 mm x 54 mm x 70 mm (height x width x depth)
Weight: 650 g
0.0 0.5 1.0 1.5
0
10
20
30
40
50
60
FED9021
FED9020
FED9015
(Std)
Spring Load / N
Stack Thickness / mm

Page 6 of 11
User Manual ECC-DEMS –Release 1.42
3 Safety Precautions
Use proper safety precautions when using hazardous electrolyte and electrode materials. Wear
safety glasses and gloves to protect you against electrolyte that may accidentally spill out of the
instrument during filling, operation, and disassembly.
4 Unpacking
Check the contents of the packages against the list given below to verify that you have received all of
the components. Contact the factory if anything is missing or damaged. NOTE: Damaged shipments
must remain with the original packaging for freight company inspection.

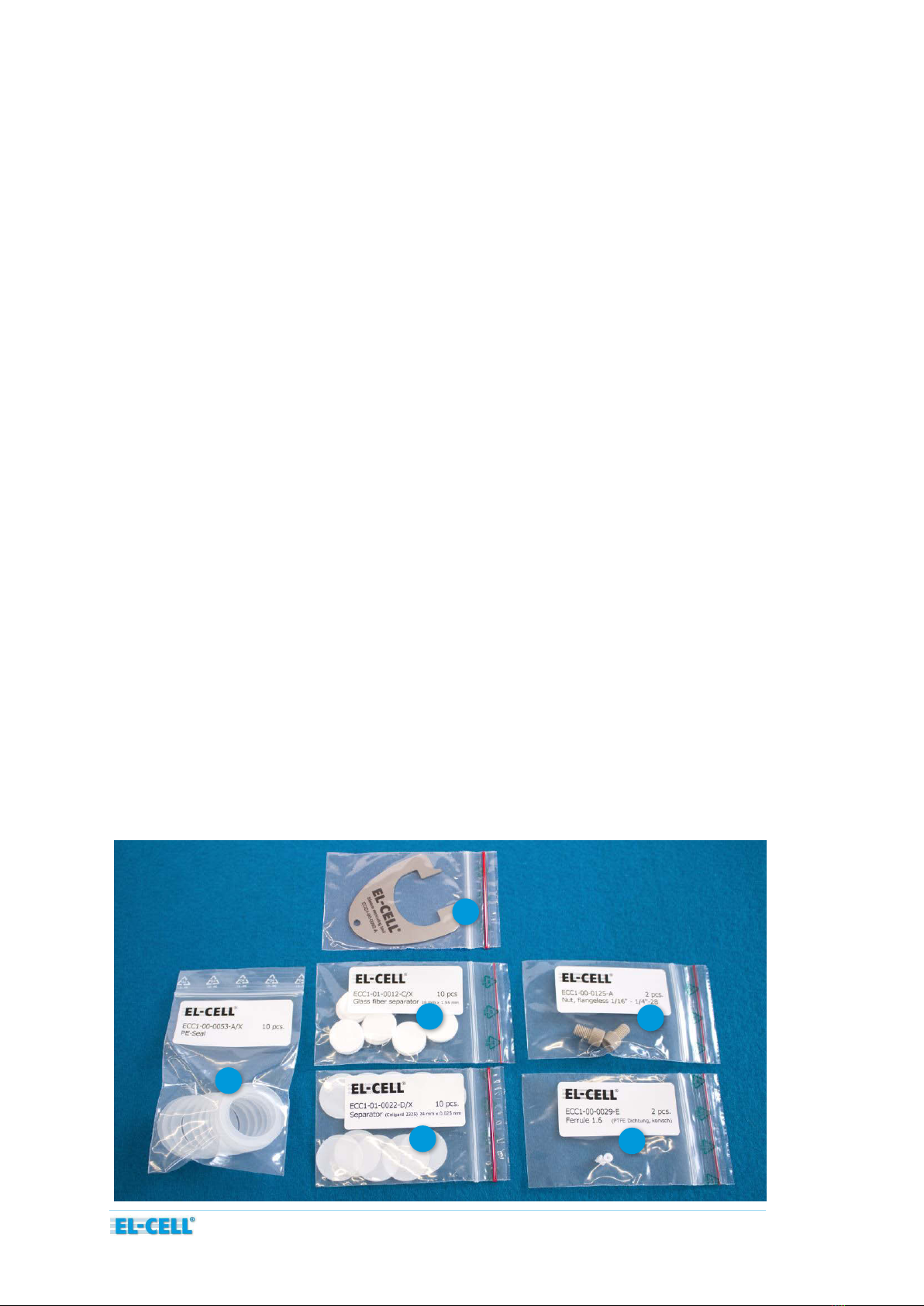

List of Components
ECC-DEMS test cell with bracket, fully equipped for operation with and without
reference
Accessories Kit
1. PE seals (10 pcs) ECC1-00-0053-A/X
2. Glass fiber separator 18 mm diameter, 1.55 mm thick (10 pcs) ECC1-01-0012-C/X
3. Separator (Celgard 2325) 24 mm diameter, 0.025 mm thick (10 pcs) ECC1-01-0022-D/X
4. Nut (2 pcs) ECC1-00-0125-A
5. Ferrule 1.6 (2pcs) ECC1-00-0029-E
6. Sleeve removing tool ECC1-00-0092-A
1
6
4
3 5
2

Page 7 of 11
User Manual ECC-DEMS –Release 1.42
5 Cell Assembly
The test cell can either be operated in 2-electrode or 3-electrode (reference) configuration. In the
following, the cell assembly is described for operation with a lithium metal reference and a lithium
metal counter electrode. For more details please refer to the separate manuals of the ECC-REF and
the ECC-STD test cell.
Generally, all assembly steps are to be carried out in inert glove box atmosphere. All components
used are to be dried upfront in a vacuum oven at 80°C for at least 12 hours.
Assembly:
i) Load the feed-through hole of the REF sleeve with a small amount of lithium metal with the
aid of a metal wire. Take care that the narrow part of the feed-through hole is COMPLETELY
filled with lithium, so that the lithium filling gets into direct contact with the separator inside
the sleeve and with the REF pin from outside. A dedicated tool, the ECC-RefLoad, is optionally
available to ease the procedure (
ii) Insert the REF sleeve into the cell base.
iii) Mount the locking washer, thereby aligning the side opening of the cell base with the feed-
through hole of the REF sleeve.
iv) Attach the reference pin assembly to the cell base.
v) Place the working electrode into the sleeve on the spiral-type flow field.
vi) Put the glass fibre separator on top of the working electrode.
vii) Dispense a defined amount of electrolyte, approx. 0.5 cm3, onto the separator
viii) Place a lithium metal disc (18 mm diameter) on top of the separator inside the sleeve.
ix) Insert the plunger, the spring, and the PE seal.
x) Attach the cell lid, insert the cell into the bracket, and tighten the wing nut.
xi) Connect the cell to the gas supply and to the instrumentation used for gas analysis. The
provided fittings are compatible with 1/16 inch outer diameter tubing. We recommend the
use of stainless steel or PEEKsil™capillary tubing.
NOTE: Make sure not to short circuit cell lid and base through electrically conducting tube.
Consider using a floating mode potentiostat when grounding either the cell lid or base by
using metal tubing.

Page 8 of 11
User Manual ECC-DEMS –Release 1.42
6 Disassembly and Cleaning
Right after use, disassemble the cell in the reverse order of assembly. Note that the reference pin
MUST be detached before the REF sleeve can be removed.
All chemicals used have to be disposed properly. The cell parts including the lid and the spring are to
be cleaned in an ultrasonic bath with detergent wash. Persistent dirt on the cell base and plunger
may be removed by treating these parts with aqueous nitric acid (20%, 2 hours at room
temperature). Afterwards, the parts are to be rinsed with water, and to be dried at 80°C. PE seals and
PTFE ferrules are to be replaced.
NOTE: Leaving cell parts in contact with ambient atmosphere while still being wetted with electrolyte
may result in severe corrosion.

Page 9 of 11
User Manual ECC-DEMS –Release 1.42
7 Accessories and Spare Parts
ECC-DEMS Test Cell

Page 10 of 11
User Manual ECC-DEMS –Release 1.42
8 Technical Support
Technical support for this product is exclusively handled by EL-CELL GmbH. The following procedure
must be followed when the ECC-DEMS or any part of it is returned to EL-CELL GmbH for repair:
