EL-CELL PAT-Tester-x-8 User manual

© 2023 EL-Cell GmbH
User Manual
Release 1.1
PAT-Tester-x-8
Modular battery test system with up to 8 test channels

Page 2 of 6
User Manual PAT-Tester-x-8
Release 1.1
The information in this manual has been carefully checked and believed to be accurate;
however, no responsibility is assumed for inaccuracies.
EL-Cell GmbH maintains the right to make changes without further notice to products
described in this manual to improve reliability, function, or design. EL-Cell GmbH does not
assume any liability arising from the use or application of this product.
EL-Cell GmbH
Tempowerkring 8
21079 Hamburg - Germany
phone: [phone]
fax: [phone]
e-mail: [e-mail]
web: el-cell.com

Page 3 of 6
User Manual PAT-Tester-x-8
Release 1.1
Content
1 Product description ................................................................................................................................... 4
Included component manuals
PAT-Controller-8 ……………………………………………………………………………………………………………………………..
PAT-Channel-1 …....……………….………………………………………………………………………………………………………..
PAT-Terminal-1 ……………………………………………………………………………………………………………………………….

Page 4 of 6
User Manual PAT-Tester-x-8
Release 1.1
1 Product description
The PAT-Tester-x-8 is suited for small scale and special purpose testing. It is a modular
battery tester designed for small test series and special measuring cells. The PAT-Tester-x
consists of two main components, the PAT-Controller-8 and up to 8 test channels.
The individual test channels (PAT-Channel-1 or PAT-Terminal-1) are separate devices that can
be connected as required. Each PAT-Channel-1 is a fully featured, single channel potentiostat
/ galvanostat/ impedance analyzer and contains a PAT docking socket for a PAT series test
cell. However, it is also possible to connect other types of small battery cell or a separate PAT
docking station to the PAT-Channel-1. The latter is useful for tests performed in a climatic
chamber.
All channels are connected to the PAT-Controller-8, which manages the connected test
channels and enables data traffic to the EL-Software server. Any number of users can access
the test channels connected to the controller via LAN.

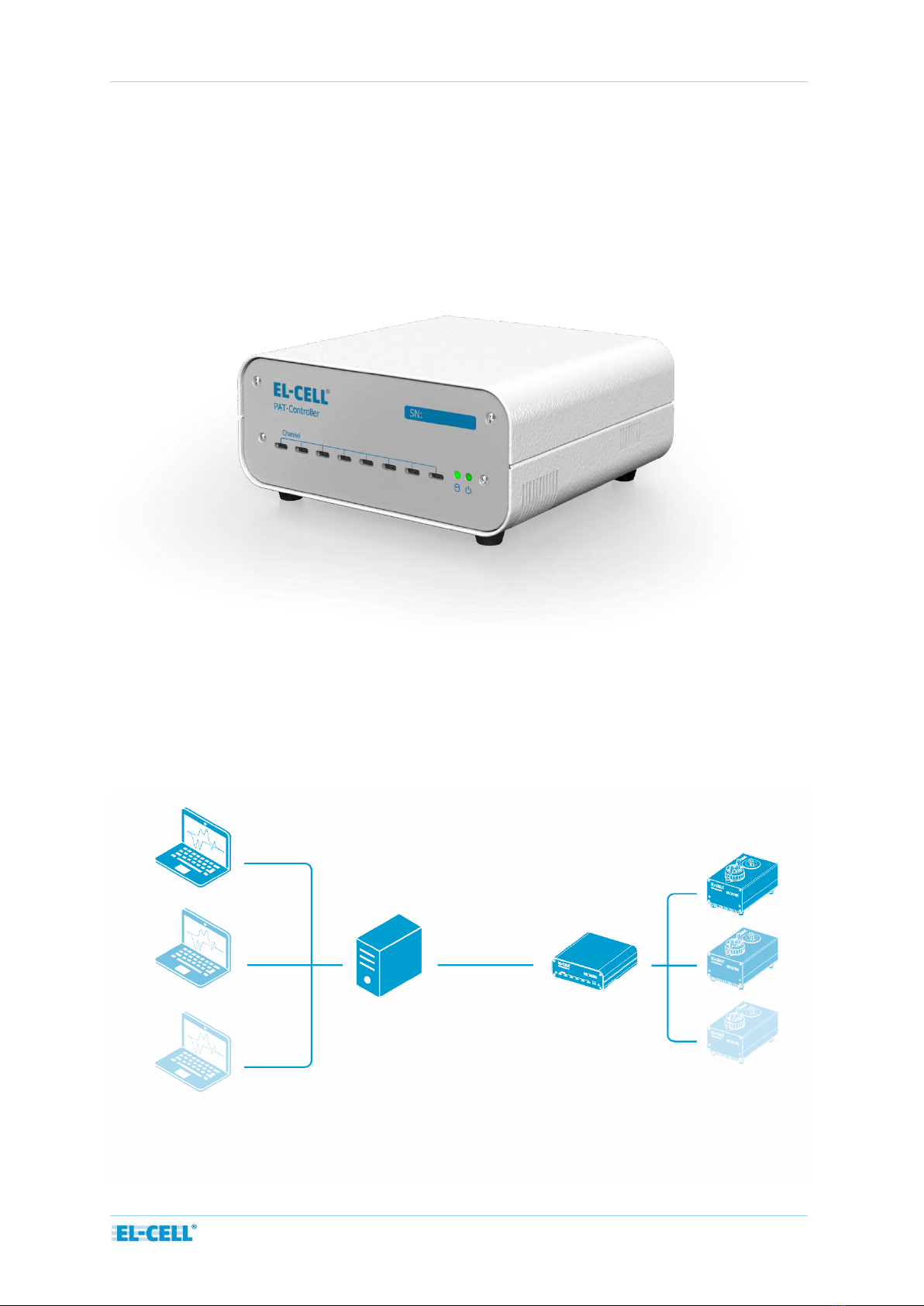

PAT-Controller-8
PAT-Channel-1

Page 5 of 6
User Manual PAT-Tester-x-8
Release 1.1

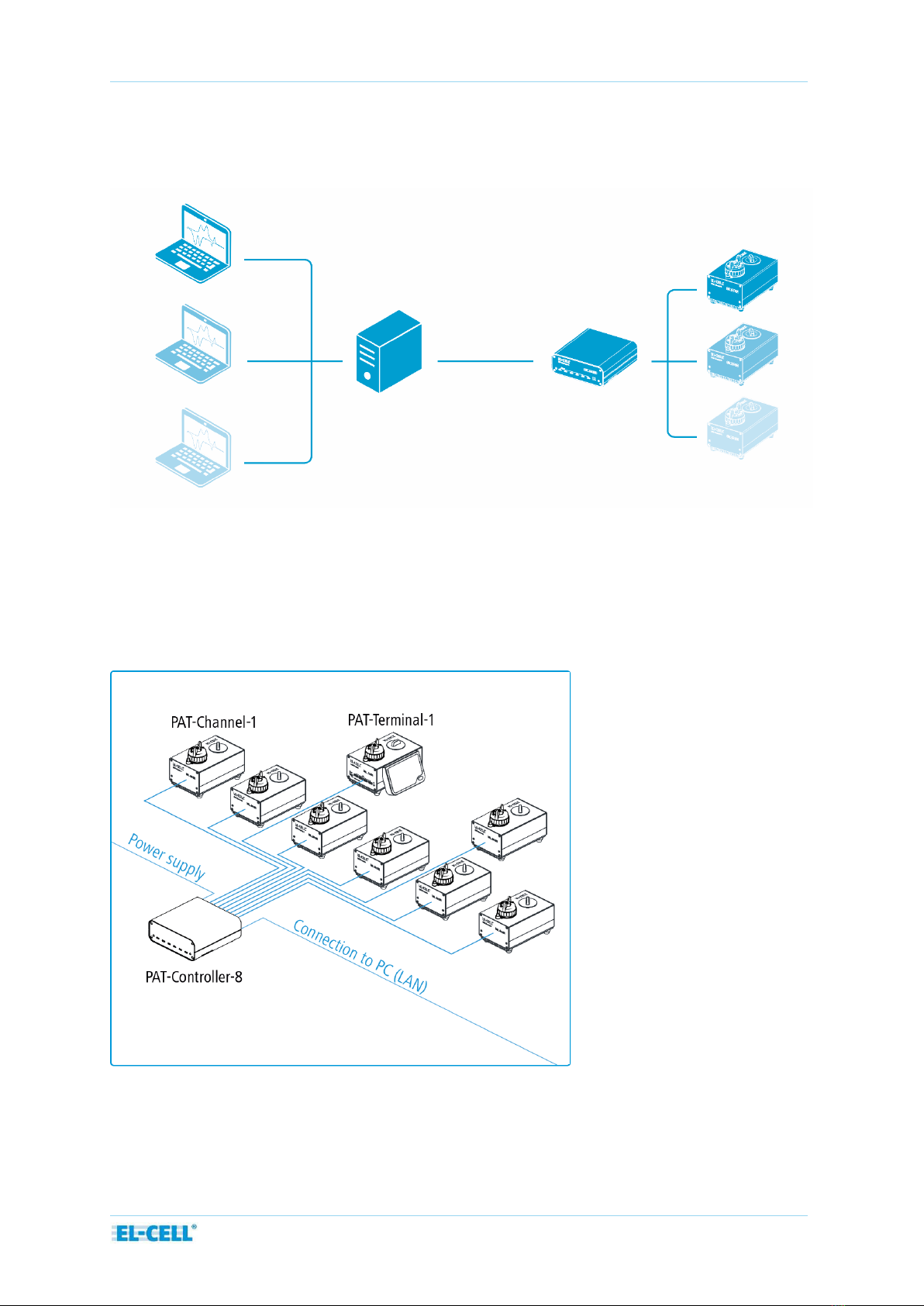

1.1 Hardware setup example
1.2 Testing setup examples
PAT-Tester-x-8 setup with connected PAT-Channel-1 and PAT-Terminal-1 running PAT-
Cells
PAT-Controller-8
PAT-Channel-1
with battery test cell
EL-Software Server
EL-Software Client

Page 6 of 6
User Manual PAT-Tester-x-8
Release 1.1
PAT-Tester-x-8 setup with a connected external PAT-Heater-4 docking station running
PAT-Cell-HT test cells.
PAT-Tester-x-8 setup for running an ECD-4-nano dilatometer inside a temperature
chamber

© 2023 EL-CELL GmbH
User Manual
Release 1.2
PAT-Controller-8
Control box for up to 8 test channels

Page 2 of 13
User Manual PAT-Controller-8
Release 1.2
The information in this manual has been carefully checked and believed to be accurate;
however, no responsibility is assumed for inaccuracies.
EL-Cell GmbH maintains the right to make changes without further notice to products
described in this manual to improve reliability, function, or design. EL-Cell GmbH does not
assume any liability arising from the use or application of this product.
EL-Cell GmbH
Tempowerkring 8
21079 Hamburg - Germany
phone: [phone]
fax: [phone]
e-mail: [e-mail]
web: el-cell.com

Page 3 of 13
User Manual PAT-Controller-8
Release 1.2
Content
1 Product description ................................................................................................................................... 4
2 Features........................................................................................................................................................ 5
3 Technical data............................................................................................................................................. 5
4 Connections and display .......................................................................................................................... 6
5 Safety precautions ..................................................................................................................................... 7
6 Installation................................................................................................................................................... 8
7 Cleaning ....................................................................................................................................................... 9
8 Unpacking.................................................................................................................................................... 9
9 EC declaration of conformity ................................................................................................................ 10
10 Technical support .................................................................................................................................. 13
11 Warranty .................................................................................................................................................. 13

Page 4 of 13
User Manual PAT-Controller-8
Release 1.2
1 Product description
The PAT-Controller-8 is a core component of each PAT-Tester-x. It is used to manage the
connected test channels and enables data traffic to the EL-Software server.
The PAT-Controller features a network port for server communication and USB ports for
connection to up to 8 PAT-Channel-1 or PAT-Terminal-1 devices.
Hardware setup example
PAT-Controller-8
PAT-Channel-1
with battery test cell
EL-Software Server
EL-Software Client

Page 5 of 13
User Manual PAT-Controller-8
Release 1.2
2 Features
▪LAN Port (RJ45) for server connectivity
▪8 USB 2.0 Hi-Speed, type C ports for connecting PAT-Channel-1 or PAT-Terminal-1
3Technical data
▪Height: 78 mm
▪Length: 168 mm
▪Width: 170 mm
▪Weight: 1.7 kg
▪Temperature operation range 0 to +40 °C
▪Humidity: non-condensing
3.1 Designation (nameplate)
The nameplate provides information about the appliance model, manufacturer and technical
data. It is attached to the back of the appliance.
1
2
5
3
6
1
3
2
Type designation
Operating voltage,
Connection / power ratings
Protection class
Address of manufacturer
CE conformity
Serial number
Date built
MAC address
4
6
5
4
7
7
8
8

Page 6 of 13
User Manual PAT-Controller-8
Release 1.2
4Connections and display
Front:
Back:
USB 2.0 Hi-Speed, type C ports for PAT-Channel-1 connection
HDD-LED (yellow): Indicates hard drive (SSD) access.
Power-LED (green): Indicates deivce is powered on.
Power-LED (red): ): Indicates a fan fault or over-temperature fault.
After powering up the PAT-Controller, the red LED lights up for 1 second. This is the intended
behaviour. If the red light stays on, this indicates a fan failure.
In case the red light comes on during operation, then this indicates an overtemperature
condition, which can be the consequence of a fan fault.
1
1
2
3
2
3
1
LAN Port
1
3
2
HDMI Port (for maintenance only)
2
Power Input
3
1

Page 7 of 13
User Manual PAT-Controller-8
Release 1.2
5Safety precautions
WARNING: A WARNING indicates a potential for property damage, personal injury, or
death.
Do not operate the device with any cover removed.
Do not use the device in a wet environment. Protect equipment from liquid intrusion.
Do not push any objects into the air vents or openings of the device. Doing so can
cause fire.
Do not operate the device beyond the allowed temperature range stated in the
chapter Technical Data.
Do not attempt to service your equipment yourself. In case of technical failure contact
our technical support as stated at the end of this manual.
Risk of fire or electric shock when using a mains plug adapter that is not specified. Use
only the EL-Cell provided power supply approved for use with this device.

Page 8 of 13
User Manual PAT-Controller-8
Release 1.2
6 Installation
Note: To operate the PAT-Controller-8 you need access to an Ethernet Local Area Network
(LAN). EL-Software Server (the server application of EL software) must be installed on the LAN
server and EL-Software Client (the client component of EL software) on at least one client PC.
The installation instructions for EL-Software can be found in the corresponding manual.
1. Place the PAT-Controller on a flat, dry and clean surface. Make sure that the fans are not
covered to avoid overheating. The PAT-Controller-8 should not be operated in a glovebox.
2. Connect the provided power supply (brick) to the AC mains supply. Then plug the DC
output of the power supply into the DC input of the PAT-Controller. The instrument will
immediately power up once connected.
3. Connect the PAT-Controller to the network via LAN cable.
4. Follow the necessary steps to add the PAT-Controller as a new device in EL-Software (see
EL-Software manual for details).
5. You can now connect PAT-Channel-1 or PAT-Terminal-1 devices by plugging them into the
front panel of the PAT-Controller via USB cable.
Note: Please note that the USB ports on the PAT-Controller are only for connection to PAT-
Channel-1 or PAT-Terminal-1 devices. Use only the special USB cables provided with these
devices.

Page 9 of 13
User Manual PAT-Controller-8
Release 1.2
7Cleaning
Wipe the PAT-Controller-8 with a moist tissue. Do not use aggressive chemicals for cleaning.
Protect the device from dust and moisture.
8Unpacking
Check the contents of the packages against the list given below to verify that you have
received all of the required components. Contact EL-CELL, if anything is missing or damaged.
NOTE: Damaged shipments must remain within the original packaging for freight company
inspection.
List of components:
▪PAT-Controller-8, ECE1-00-0280-A
▪Power supply GST120A20-R78, ELT9807
▪Power cord IEC 60320 C14EURO L sw 1.5m, ELT9222

Page 10 of 13
User Manual PAT-Controller-8
Release 1.2
9EC declaration of conformity

Page 11 of 13
User Manual PAT-Controller-8
Release 1.2
The products described are in conformity with the following harmonized standards:
EN 61010-1:2010
Sicherheitsbestimmungen für elektrische Mess-, Steuer-,
Regel- und Laborgeräte –Teil 1: Allgemeine Anforderungen
(DIN EN 61010-1, VDE 0411-1:2011-07)
Safety requirements for electrical equipment for
measurement, control and laboratory use - Part 1: General
requirements
(IEC 61010-1:2010 + Cor. :2011)
EN 61010-2-201:2014
Sicherheitsbestimmungen für elektrische Mess-, Steuer-,
Regel- und Laborgeräte - Teil 2-201: Besondere
Anforderungen für Steuer- und Regelgeräte
(DIN EN 61010-2-201:2014, VDE 0411-2-201:2014-01)
Safety requirements for electrical equipment for
measurement, control and laboratory use - Part 2-201:
Particular requirements for control equipment
(IEC 61010-2-201:2013)
EN 61010-2-010:2015-05
Sicherheitsbestimmungen für elektrische Mess-, Steuer-,
Regel- und Laborgeräte - Teil 2-010: Besondere
Anforderungen an Laborgeräte für das Erhitzen von Stoffen
(DIN EN 61010-2-010:2014; VDE 0411-2-010:2015-05)
Safety requirements for electrical equipment for
measurement, control and laboratory use - Part 2-201:
Particular requirements for control equipment
(IEC 61010-2-201:2013)
EN 61326-1:2013
Elektrische Mess-, Steuer-, Regel- und Laborgeräte - EMV-
Anforderungen - Teil 1: Allgemeine Anforderungen
(DIN EN 61326-1:2013-07, VDE 0843-20-1:2013-07)
EMC requirements - Part 2-3: Particular requirements - Test
configuration, operational conditions and performance criteria
for transducers with integrated or remote signal conditioning
(IEC 61326-2-3:2012)

Page 12 of 13
User Manual PAT-Controller-8
Release 1.2
EN 61326-2-3:2013-07
Elektrische Mess-, Steuer-, Regel- und Laborgeräte - EMV-
Anforderungen - Teil 2-3: Besondere Anforderungen -
Prüfanordnung, Betriebsbedingungen und Leistungsmerkmale
für Messgrößenumformer mit integrierter oder abgesetzter
Signalaufbereitung
(DIN EN 61326-2-3:2013-07, VDE 0843-20-2-3:2013-07)
Electrical equipment for measurement, control and laboratory
use - EMC requirements - Part 2-3: Particular requirements -
Test configuration, operational conditions and performance
criteria for transducers with integrated or remote signal
conditioning
(IEC 61326-2-3:2012)
EN 50581: 2013-02
Technische Dokumentation zur Beurteilung von Elektro- und
Elektronikgeräten hinsichtlich der Beschränkung gefährlicher
Stoffe
(DIN EN 50581; VDE 0042-12:2013-02)
Technical documentation for the assessment of electrical and
electronic products with respect to the restriction of
hazardous substances

Page 13 of 13
User Manual PAT-Controller-8
Release 1.2
10 Technical support
Technical support for this product is exclusively provided by EL-Cell GmbH.
EL-Cell GmbH
Tempowerkring 8
21079 Hamburg - Germany
phone: [phone]
fax: [phone]
e-mail: [e-mail]
web: el-cell.com
11 Warranty
For a period of one year from the date of shipment, EL-Cell GmbH (hereinafter Seller) warrants
the goods to be free from defect in material and workmanship to the original purchaser.
During the warranty period, Seller agrees to repair or replace defective and/or nonconforming
goods or parts without charge for material or labor, or, at the Seller’s option, demand return
of the goods and tender repayment of the price. Buyer’s exclusive remedy is repair or
replacement of defective and nonconforming goods, or, at Seller’s option, the repayment of
the price.
Seller excludes and disclaims any liability for lost profits, personal injury, interruption of
service, or for consequential incidental or special damages arising out of, resulting from, or
relating in any manner to these goods.
This Limited Warranty does not cover defects, damage, or nonconformity resulting from
abuse, misuse, neglect, lack of reasonable care, modification, or the attachment of improper
devices to the goods. This Limited Warranty does not cover expendable items. This warranty is
void when repairs are performed by a non-authorized person or service center. At Seller’s
option, repairs or replacements will be made on site or at the factory. If repairs or
replacements are to be made at the factory, Buyer shall return the goods prepaid and bear all
the risks of loss until delivered to the factory. If Seller returns the goods, they will be delivered
prepaid and Seller will bear all risks of loss until delivery to Buyer. Buyer and Seller agree that
this Limited Warranty shall be governed by and construed in accordance with the laws of
Germany.
The warranties contained in this agreement are in lieu of all other warranties expressed or
implied, including the warranties of merchantability and fitness for a particular purpose.
This Limited Warranty supersedes all prior proposals or representations oral or written and
constitutes the entire understanding regarding the warranties made by Seller to Buyer. This
Limited Warranty may not be expanded or modified except in writing signed by the parties
hereto.

© 2023 EL-CELL GmbH
User Manual
Release 1.03
PAT-Channel-1
Single channel station for one test cell
