EL-CELL ECC-PRESS User manual

© 2010 - 2017
EL-CELL GmbH
Electrochemical Test Cell
ECC-PRESS (-DL)
User Manual
Release: 3.6
2017-06-12

Page 2 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
The information in this manual has been carefully checked and believed to be
accurate; however, no responsibility is assumed for inaccuracies.
EL-CELL GmbH maintains the right to make changes without further notice to
products described in this manual to improve reliability, function, or design. EL-CELL
GmbH does not assume any liability arising from the use or application of this
product.
Contents
1 Product Description.......................................................................................... 3
2 Features and Specification .............................................................................. 3
3 Safety Precautions........................................................................................... 7
4 Unpacking........................................................................................................ 7
5 Assembly and Connection ............................................................................... 8
6 Sample Valve with Septum Port .................................................................... 10
7 Software Installation (DL option).................................................................... 11
8 Recording the Pressure Signal with an External Potentiostat........................ 12
9 Disassembly and Cleaning ............................................................................ 13
10 Accessories and Spare Parts......................................................................... 14
11 Cables and Connectors ................................................................................. 15
12 Technical Support.......................................................................................... 17
13 Warranty........................................................................................................ 18
EL-CELL GmbH
Tempowerkring 8
D-21079 Hamburg - Germany
phone:[phone]
fax: [phone]
[e-mail]
www.el-cell.com

Page 3 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
1 Product Description
The ECC-Press test cell is dedicated to the measurement of the pressure build-up
during the electrochemical cycle. The low-dead-volume sampling port/valve serves to
draw gas samples from the cell’s headspace. The cell hardware is based on the
ECC-Std and ECC-Ref test cells and can be used with or without a reference
electrode.
The ECC-Press comes with a controller box for easy interfacing with an external
potentiostat. Analog outputs for both pressure and temperature are provided for
seamless integration with external instruments. As an option, all relevant signals of
the experiment –cell pressure, temperature, cell potentials and current –may be
recorded with an integrated USB data logger (DL option).
This manual covers only the special features of the ECC-Press and ECC-Press-DL. It
is assumed that the reader is already familiar with the assembly and operation of
both the ECC-Ref and the ECC-Std test cell.

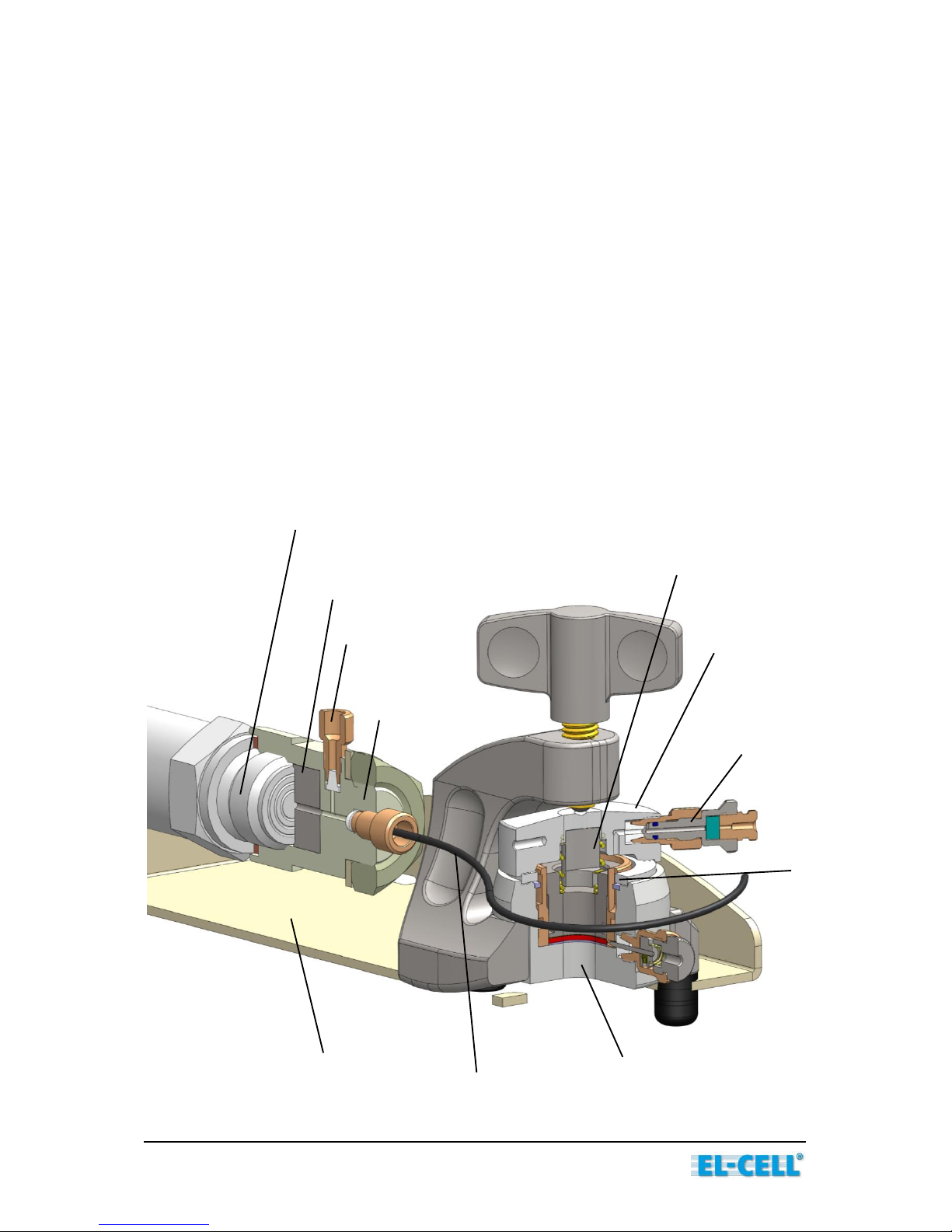

Pressure sensor 0 to 2.5 bar abs.
Sensor dead volume spacer
(2.424 cm3)
Stand
(Wall mountable)
Bypass port with
PTFE plug
Transfer line
Dead volume spacer cell
(0.723 cm3)
Lid with two ports
(1/4“-28) and
2mm banana jacks
Sampling valve with
septum port
Cell base with reference pin
assembly
Sensor socket
Lid seal

Page 4 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
2 Features and Specification
Precise pressure sensor attached to the electrochemical cell for monitoring
pressure changes during charge / discharge
Sampling valve with septum port for drawing gas samples by means of a
syringe
Default pressure range of 0 to 2.5 bar (absolute)
Leakage tested; after 24h the pressure changes by less than 0.2 mbar/h
(tested with PEEK lid seal, air, 2 bar, 50°C, both spacers installed)
Conditioning electronics with analog outputs for pressure and temperature
Optional integrated USB data logger for recording of cell pressure,
temperature, cell potentials and current
Adjustable dead volume between 3.024 cm3and 6.172 cm3.
Dead volume in cm3
1. Both spacers installed*
3.024
2. Only ECC1-00-0202-A (sensor spacer) installed
3.747
3. No spacer installed**
6.172
4. Only ECC1-00-0103-B (cell spacer) installed**
5.449
* delivery condition
**Requires de-mounting of the sensor and must be done at factory.
Visualised dead volume (both spacers installed = delivery condition = 3.024 cm3)
Fully equipped for operation with and without a reference electrode (contains
all parts of ECC-Std and ECC-Ref test cells)

Page 5 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
High precision 18 mm diameter sandwich geometry with <0.1 mm electrode
concentricity
Operating temperature range -20 to +70°C (cell). We recommend using PEEK
lid seals above 50°C.
Easy and reliable electrolyte filling upon assembly
Fast assembly and dismantling, and easy cleaning of cell components
Electrodes are easily accessible for post-mortem analysis
Reusable cell components except for lid seals
Small and defined electrolyte volume down to 0.05 cm3
Adjustable, reproducible and homogeneous mechanical pressure on
electrodes
Materials in media contact are stainless steel 1.4404 and PEEK (other
materials on request)
Modular cell construction with many interchangeable components.
Size (including stand): 90 mm x 80 mm x 240 mm (height x width x depth)
Weight: 900 g
Dedicated tools available to ease cell assembly and operation
http://el-cell.com/products/accessories-tools

Page 6 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
Dimensions (Cell)
Electrical Specifications (Controller)
- Input: 24V (0.6A) supplied by PSA15R-240P mains adapter
- Analog output voltages: 0 to 10V (1 kOhm / 100 nF) for pressure and
temperature
- Resolution of pressure analog output: <0.05% of measurement range
- Error of pressure analog output: <0.5% of measurement range (comprising
non-linearity including hysteresis and non-reproducibility)
- Resolution of temperature analog output: <0.01°C
- Error of temperature output: < 1°C
- Optional USB data logger powered by host PC with galvanic isolation
- Operating temperature range (controller): 0 to 40°C

Page 7 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
3 Safety Precautions
Use proper safety precautions when using hazardous electrode materials and
electrolytes. Wear protective glasses and gloves to protect you against electrolyte
that may accidentally spill out during filling and disassembly. Upon cell disassembly,
dispose all materials properly. Metallic lithium and some insertion compounds may
decompose heavily in contact with water and other solvents, and can cause fire.
4 Unpacking
Check the contents of the packages against the list given below to verify that you
have received all of the components. Contact the factory if anything is missing or
damaged. NOTE: Damaged shipments must remain with the original packaging for
freight company inspection.
List of Components

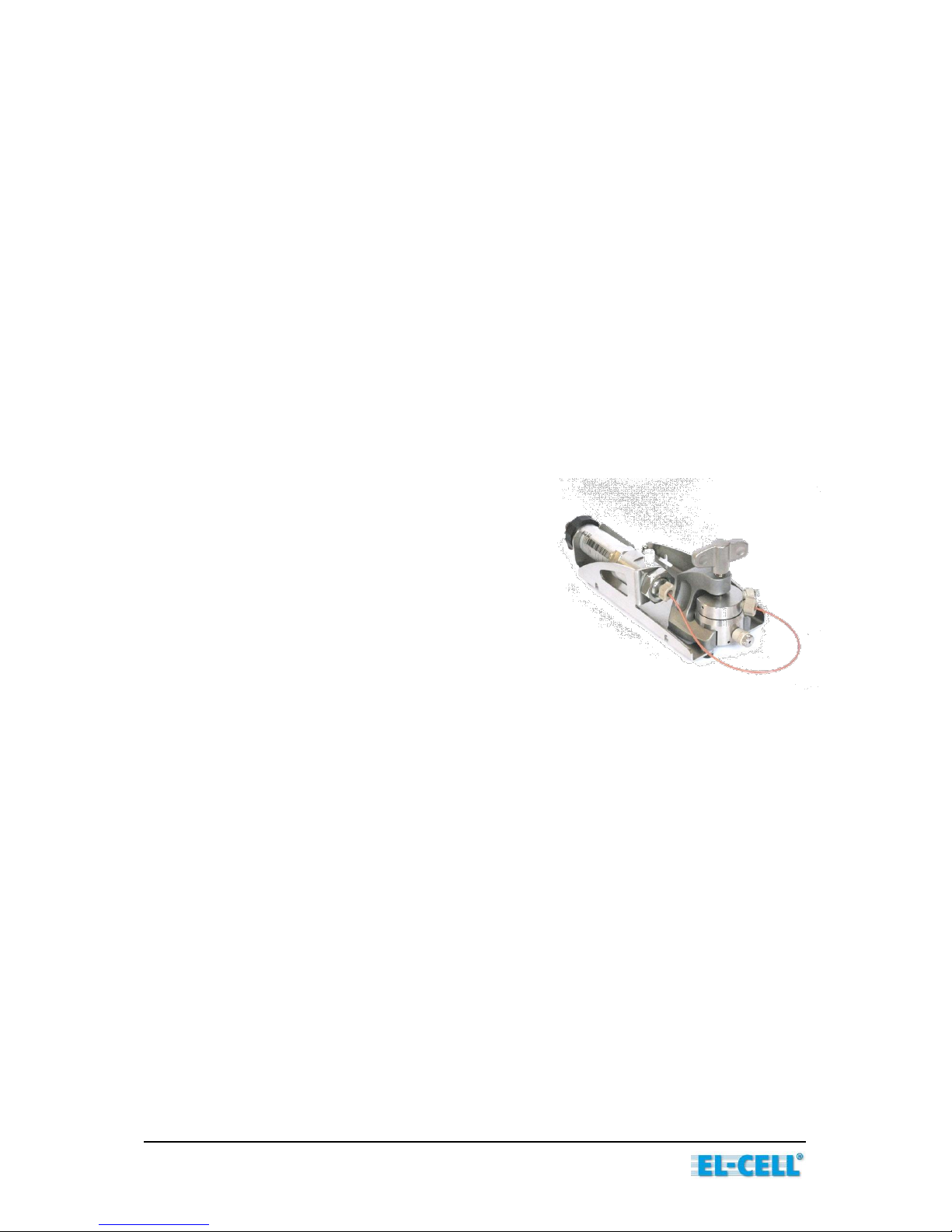

1. ECC-Press test cell with pressure
sensor, fully equipped for use in both
2-electrode and 3-electrode
(reference) configuration
2. Controller box with analog outputs for
pressure and temperature, 4 mm
banana sockets for connection to
potentiostat, and integrated USB data
logger (DL option)
3. USB data logger installation CD
(DL option)
4. USB cable (DL option)
5. Cell cable for connection between test cell and controller box
6. 24 V Power Supply
7. LDPE lid seals (10 pieces). For single-use. Part number ECC1-00-0053-A
8. PEEK lid seals (2 pieces) recommended for temperatures above 50°C and
lowest leakage rates. For single-use. Part number ECC1-00-0053-D
9. Septum (10 pieces). Part number ECC1-00-0097-B
10.Gas sample port with septum and valve. Part number ECC1-00-0155-A

Page 8 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017

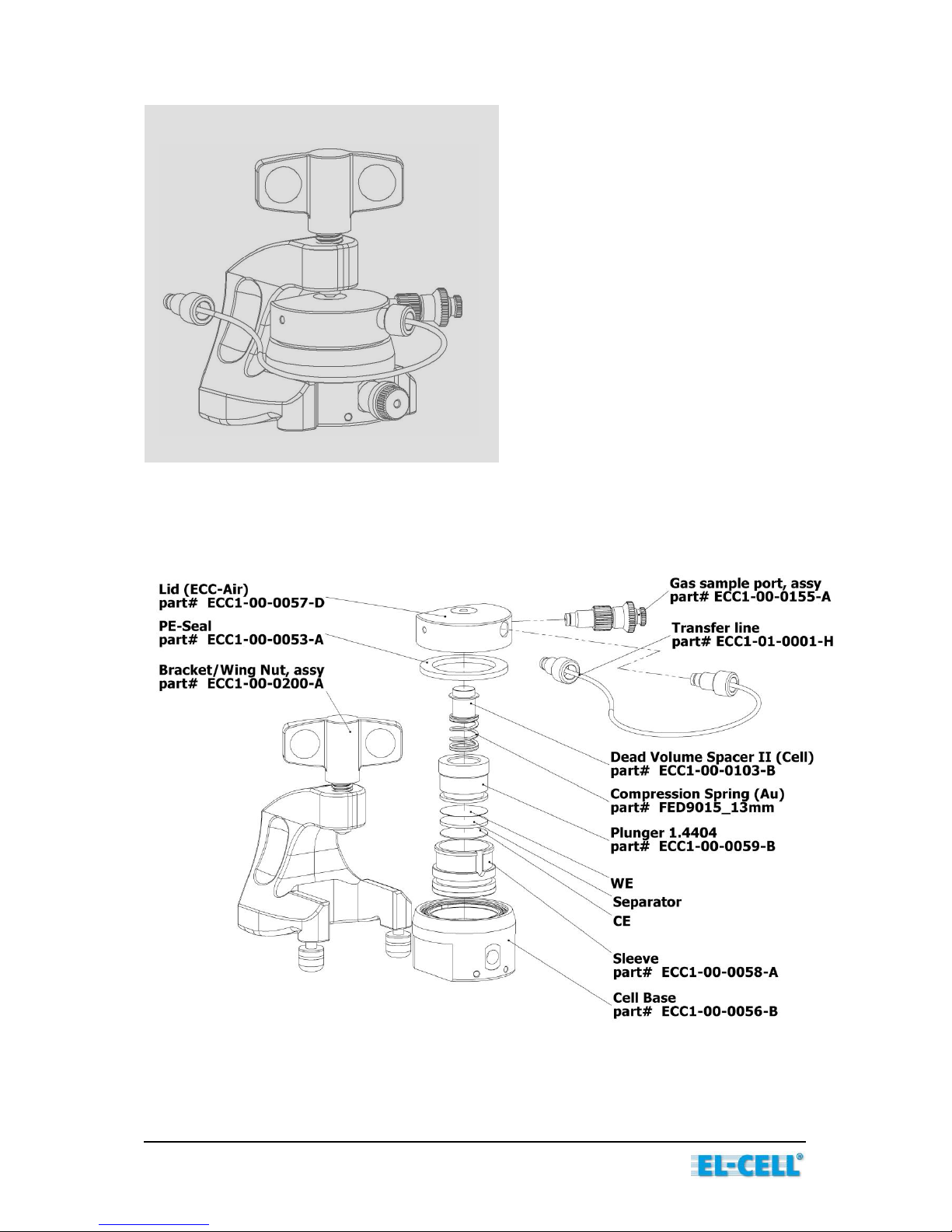

5 Assembly and Connection
The test cell can either be operated in 2-electrode or 3-electrode (reference)
configuration. In the following, the cell assembly is described for operation with a
lithium metal reference electrode. For more details, and for 2-electrode operation,
please refer to the separate manuals of the ECC-Ref and the ECC-Std test cell.
Generally, all assembly steps are to be carried out in inert glove box atmosphere,
and all components used are to be dried upfront in a vacuum oven at 80°C for at
least 12 hours. The pressure sensor together with the transfer line may remain
permanently attached to the stand.
Assembly:
i) Load the feed-through hole of the Ref sleeve with a small amount of lithium
metal with the aid of a metal wire. A dedicated tool is optionally available to
ease the procedure (https://el-cell.com/products/tools-accessories/ecc-
refload).
ii) Insert the Ref sleeve into the cell base.
iii) Mount the locking ring, thereby aligning the side opening of the cell base with
the feed-through hole of the Ref sleeve.
iv) Attach the reference pin assembly to the cell base.
v) Place the counter electrode (e.g. a lithium metal disc, 0.2 mm thick, 18 mm
diameter) into the sleeve
vi) Put the glass fibre separator on top.
vii) Dispense a defined amount of electrolyte onto the separator, and place the
working electrode, with its active layer downside, on top inside the sleeve.
viii) Insert the plunger, the lid seal and the spring. NOTE: Two types of lid seals
are provided made of LDPE and PEEK, respectively. The PEEK seals are
recommended for use at elevated temperatures and for lowest leakage rates.
Lid seals are single-use components. Re-use may result in increased leakage.
ix) Optionally, insert the dead volume spacer into the spring. NOTE: The smaller
the dead volume, the higher the pressure change p/V for a given amount of
gas.
x) Attach the cell lid, insert the cell into the bracket, and tighten the wing nut.
xi) Connect the cell towards the pressure sensor by attaching the transfer line to
the sensor port of the cell.

Page 9 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017

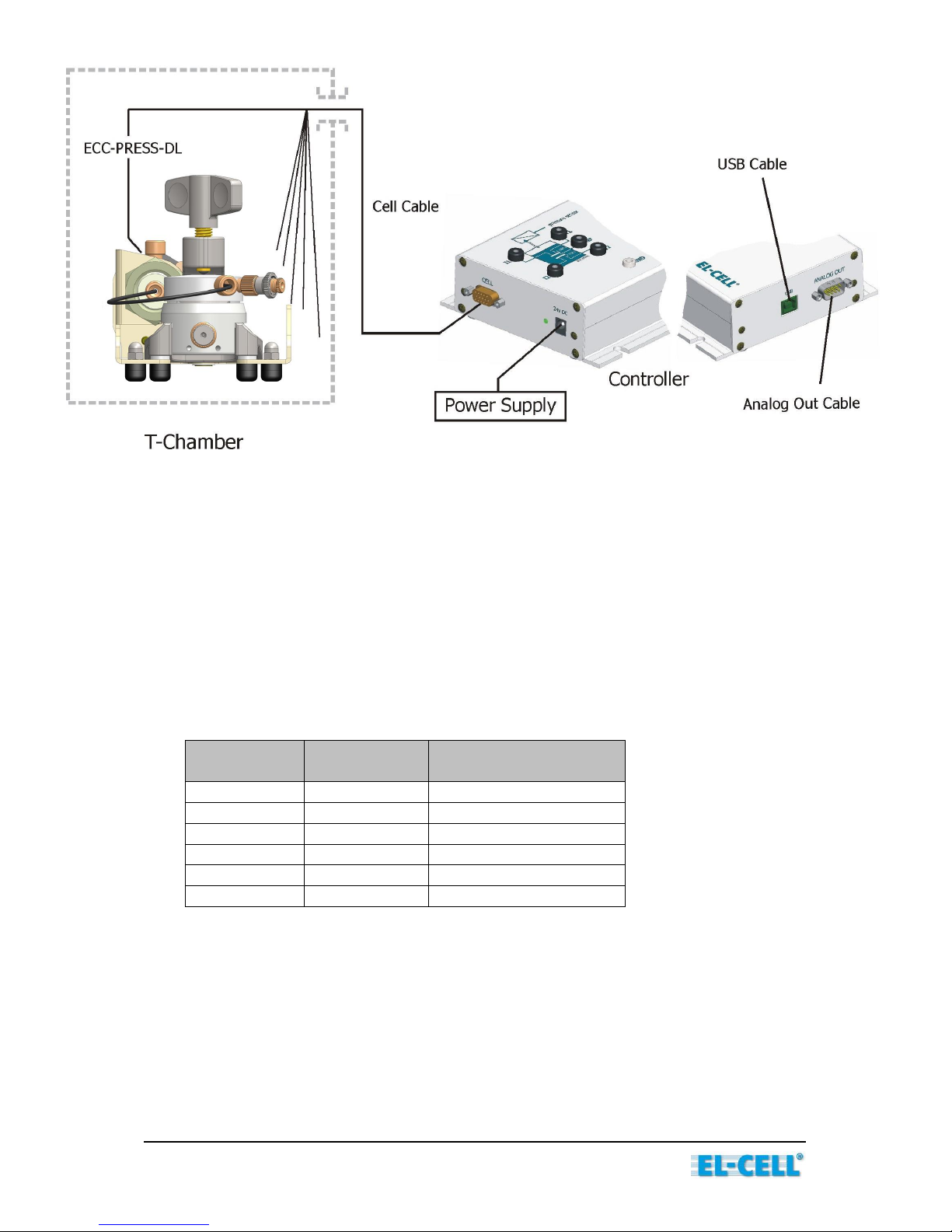

For best results, place the ECC-Press inside a temperature controlled chamber, at a
constant temperature between -20 to +70°C. The chamber needs to have a feed-
through for cable connection to the controller box outside the chamber.
Inside the chamber, attach the square sensor plug to the pressure sensor, and
connect the 2 mm banana plugs of the cell cable to the cell (red and green to the lid,
blue and yellow to the base, black to the reference).
Outside the chamber, connect your potentiostat to the 4 mm banana sockets on the
front panel of the controller box. The rightmost column in the table below refers to the
terminology used for the lead connections of Biologic potentiostats (MPG-2, SP, VSP
and VMP series).
Both the pressure and the temperature signals are available at the Analog Out
connector of the controller box. These signals can either be routed to the analog
inputs of the controlling potentiostat (if available), or to some other recording device.
The pressure is linearly related to the pressure sensor voltage according to
P(abs) = 0.25 bar/V * Voltage
Likewise, the temperature T (in units of °C) is related to the temperature sensor
voltage according to
Controller
Box
Potentiostat
Biologic Potentiostat
VSP, VMP3 etc.
I1
WE Current
WE
V1
WE Sense
Ref1
REF
Reference
Ref2
V2
-
Ref3
I2
CE
CE
GND
GND
GND

Page 10 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
T = 8°C/V * Voltage
6 Sample Valve with Septum Port
The gas sample valve serves to draw gas samples from the head space of the ECC
test cell. In the closed state, the valve spindle is seated on the PTFE ferrule and is
thus preventing any bleeding through the pierced septum. In order to draw a gas
sample, i) pierce the septum with the sample syringe, ii) open the valve by turning the
valve handle counter-clockwise, iii) charge the syringe, iv) close the valve by turning
the valve handle clockwise till finger tight, and remove the syringe.
Gas sample port
P/N ECC1-00-0155-A
Valve Body
PTFE Ferrule
Valve Handle
Septum Port
Septum
Valve Spindle

Page 11 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
7 Software Installation (DL option)
The ECC-Press-DL features an integrated USB data logger for recording cell
pressure, temperature, cell potentials and current. The software installation on a
Windows®PC is described below.
a. You must be logged into an account with Administrator privileges.
b. Save your work and close down all active programs.
c. On the installation CD, run X:\setup. This will install the EC-Link data
logger software. Follow any instructions that may appear on your screen.
d. Once installation is finished plug in the provided USB cable into both the
host PC and the ECC-Press-DL controller box.
e. Launch the data logger software if not already done.
f. After a few seconds, the data logger software should report a valid
connection and you are ready to start the measurement.
Additional information on the EC-LINK software can be found in the EC-LINK Quick
Start Guide.

Page 12 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
8 Recording the Pressure Signal
with an External Potentiostat
Many of today’s battery testers and potentiostats provide additional analog inputs
that may be used to record sensor signal along with cell current and potential.
In the following, the combination of the ECC-Press-DL with a Biologic potentiostat
(MPG-2, SP, VSP and VMP series) is described as an example. The Biologic
potentiostats feature two analog inputs that are used here to record both pressure
and temperature.
1. Connect the 9-pin Sub-D connector of the optional analog output cable to the
analog input of the respective Biologic VMP3 channel.
2. Launch the EC-Lab software.
3. From the ECC-Press documentation CD, load the EC-Lab setting file ECC-
Press.mps.
4. In the External Devices dialog, click on Record external devices to see the
settings applied to the analog inputs.

Page 13 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
9 Disassembly and Cleaning
Right after use, disassemble the cell in the reverse order of assembly. Note that the
reference pin MUST be detached before the Ref sleeve can be removed.
All chemicals used have to be disposed properly. All wetted parts are to be
cleaned with water and/or other appropriate solvents. Ultrasonic cleaning is
recommended. Persistent dirt on the cell base and plunger may be removed by
treating these components with aqueous nitric acid (20%, 2 hours at room
temperature). All parts are to be dried immediately after cleaning at 80°C.
It is recommended to leave the pressure sensor together with the transfer line
attached to the stand. Typically, these parts need not be disassembled or cleaned.
NOTE: Leaving cell parts in contact with ambient atmosphere while still being wetted
with electrolyte may result in severe corrosion.

Page 14 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
10 Accessories and Spare Parts

Page 15 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
ECC-PRESS
Test Cell

Page 16 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
11 Cables and Connectors
Cell Cable
6x2 twisted pairs; Sub-D M15 HD connector to box; 2 mm banana plugs and square
sensor plug M16 to ECC-PRESS test cell; shield connected to Sub-D connector
housing and to sensor housing; Pt100 sensor located inside sensor plug housing
Part No. ECE1-00-0032-B
Biologic Auxiliary Cable (2 x 2 x 0.14 mm2, TP, shielded)
Sub-D F9 connector to box; Sub-D M9 connector to auxiliary input connector of the
Biologic potentiostat. The cable shield is tied to both connector housings.
Part No. ECE1-00-0040-B
Pin #
Signal
Cable Color
Comments
1
V1
Red
Red plug
2
V2
Blue
Blue plug
3
4
REF
Grey
Grey plug
5
I2
Yellow
Yellow plug
6
7
8
9
10
I1
Green
Green plug
11
Pt100 (1)
Violet
Pt100 sensor inside
sensor plug housing
12
Pt100 (2)
Black
13
+24V
White (1)
Square sensor plug
14
Sensor-I
Brown (2)
15
Sub-D F9 to box
Sub-D M9 to Biologic AUX Input
Pin #
Signal
Cable Color
Pin #
Signal
Comments
1
2
T (VTEMP2)
Green
6
Analog In 2
0..10V; 8°C/V
3
4
5
P (VP2)
White
1
Analog In 1
0..10V; 0.25 bar/V
6
7
8
9
GND
Brown
7
GND

Page 17 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
12 Technical Support
Technical support for this product is exclusively handled by EL-CELL GmbH.
The following procedure must be followed when the ECC test cell or any part of it is
returned to EL-CELL GmbH for repair:
1. Send an e-mail to [e-mail] to obtain a return authorization number
and a decontamination report form.
2. Sign the decontamination report asserting that the instrument has been
decontaminated and is safe for technicians to work on it.
3. Describe in detail what is wrong.
4. Include a contact name, address, telephone number, and email address.
5. Return the equipment to
EL-CELL GmbH
Tempowerkring 8
D-21079 Hamburg
Germany
Email [email protected]

Page 18 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017
13 Warranty
For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter
Seller) warrants the goods to be free from defect in material and workmanship to the
original purchaser. During the warranty period, Seller agrees to repair or replace
defective and/or nonconforming goods or parts without charge for material or labour,
or, at the Seller’s option, demand return of the goods and tender repayment of the
price. Buyer’s exclusive remedy is repair or replacement of defective and
nonconforming goods, or, at Seller’s option, the repayment of the price.
Seller excludes and disclaims any liability for lost profits, personal injury, interruption
of service, or for consequential incidental or special damages arising out of, resulting
from, or relating in any manner to these goods.
This Limited Warranty does not cover defects, damage, or nonconformity resulting
from abuse, misuse, neglect, lack of reasonable care, modification, or the attachment
of improper devices to the goods. This Limited Warranty does not cover expendable
items. This warranty is void when repairs are performed by a non-authorized person
or service centre. At Seller’s option, repairs or replacements will be made on site or
at the factory. If repairs or replacements are to be made at the factory, Buyer shall
return the goods prepaid and bear all the risks of loss until delivered to the factory. If
Seller returns the goods, they will be delivered prepaid and Seller will bear all risks of
loss until delivery to Buyer. Buyer and Seller agree that this Limited Warranty shall be
governed by and construed in accordance with the laws of Germany.
The warranties contained in this agreement are in lieu of all other warranties
expressed or implied, including the warranties of merchantability and fitness for a
particular purpose.
This Limited Warranty supersedes all prior proposals or representations oral or
written and constitutes the entire understanding regarding the warranties made by
Seller to Buyer. This Limited Warranty may not be expanded or modified except in
writing signed by the parties hereto.
