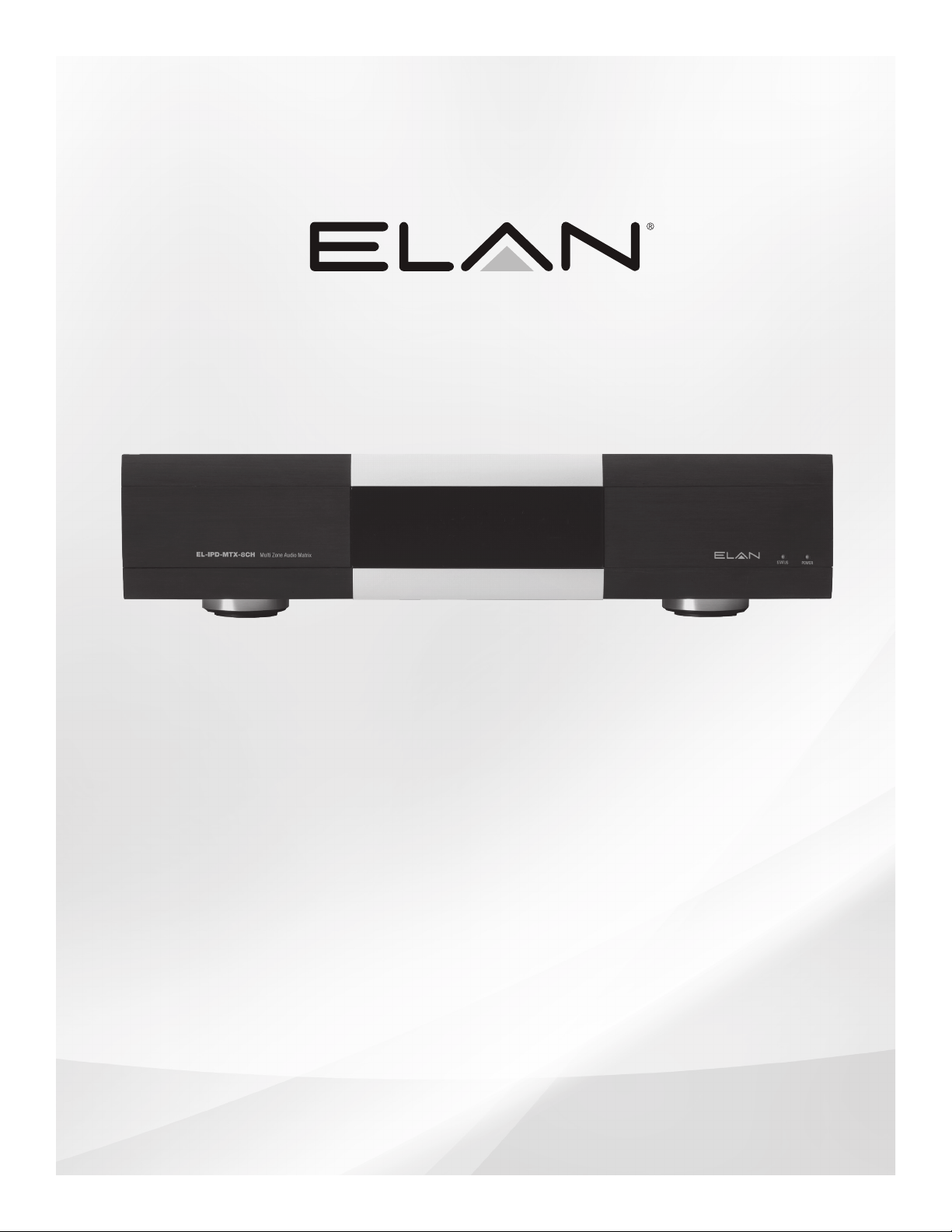

Elan EL-IPD-MTX-8CH User manual

EL-IPD-MTX-8CH
Multi Zone Audio Matrix
Quick Start Guide

IMPORTANT SAFETY INSTRUCTIONS:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-
type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on
or pinched, particularly at plugs, convenience
receptacles and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand,
tripod, bracket or table specified by
the manufacturer or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Do not expose this apparatus to dripping or
splashing and ensure that no objects filled with
liquids, such as vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the
AC Mains, disconnect the power supply cord plug
from the AC receptacle.
17. The power supply cord (sometimes referred to as
the “Mains Plug”) is used as the disconnect device
and shall remain accessible and operable at all
times.
18. Do not expose batteries to excessive heat such as
sunshine, fire or the like.
19. Open flame sources, such as lighted candles,
should NOT be placed on the apparatus.
20. Protective earthing terminal. The apparatus
should be connected to a mains socket
outlet with a protective earthing connection.
WARNING: To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or moisture.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended
to alert the user to the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
FCC REQUIRED TEXT:
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate, radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
2www.elanhomesystems.com
QUICK START GUIDE E L- I P D - M T X- 8 C H

FCC AND IC INFORMATION:
This Class B digital apparatus complies with Part 15 of the FCC rules and with Canadian ICES-003.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1. This device may not cause interference and
2. This device must accept any interference, including interference that may cause undesired operation
of the device.
Cet appareil numerique de c/asse B est conforme aux normes canadiennes ICES-003. Son fonctionnement est
soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interference et (2) cet appareil doit
accepter toute interference, notamment /es interferences qui peuvent affecter son fonctionnement.
3
contact [e-mail]
QUICK START GUIDE E L- I P D - M T X- 8 C H

OVERVIEW
The EL-IPD-MTX-8CH Multi Zone Audio Matrix can be used in a stand-alone configuration or with other amplifiers
and pre-amps within the ELAN IP audio distribution family of products by adding the optional Dante™ Audio
Networking Card.
ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by
delivering high quality audio over the existing network. Easily scaling from a single chassis solution to a decentralized
multi-chassis / multi-source implementation, ELAN IP audio distribution meets the needs for projects of any size.
WHAT’S INCLUDED
• EL-IPD-MTX-8CH Multi Zone Audio Matrix
• Rack Mount Hardware and Ears
• Quick Start Guide
• Power Cord, UK
• Power Cord, EU
• Power Cord AU/NZ
• Power Cord, USA/Canada
FUNCTIONS AND INDICATORS

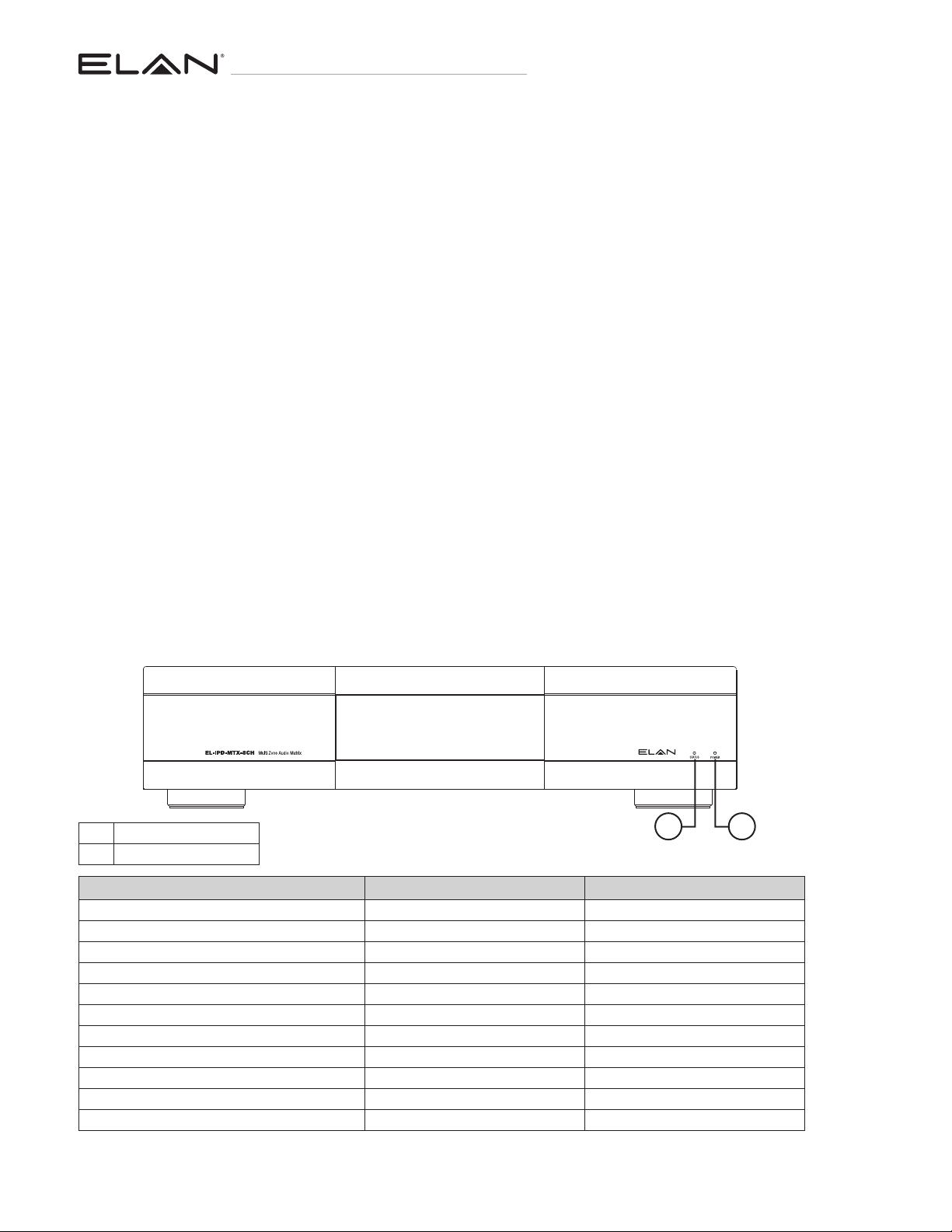

1Amplifier Status
2Power
Condition Amplifier Status Power/Network Status
Power On, Booting Off Flashing Blue
Power On, Connected to Network Off Solid Blue
Self-Check Failure Off Flashing Red
Boot Failure Solid Red Solid Red
No Network Found Off Solid Amber
Power Off Off Off
Chassis in Low Power Mode Solid Blue Solid Blue
Chassis in Sleep Mode Off Solid Red
Amplifier or Preamplifier Channel Clipping Solid Amber Solid Blue
Amplifier Channel in Protection Mode Solid Red Solid Blue
Chassis Identify Mode Flashing Amber Flashing Blue
FRONT VIEW
1 2
4www.elanhomesystems.com
QUICK START GUIDE E L- I P D - M T X- 8 C H

Item Description
1Network
• 1 RJ45 Jack 100/1000 Ethernet DHCP Enabled by Default
2
Digital Audio Inputs
• 2 Optical TOSLINK Inputs
• 2 Coaxial RCA Inputs
Stereo, PCM, 96kHz, 24-bit
3Doorbell Audio Input
• 3.5mm Stereo Input
Maximum input level: 2.0 VRMS
Input sensitivity: 0dbV (1.0 VRMS)
Input impedance 47k ᾨto 49k ᾨ
4
Line Level Audio Inputs
• 4 Stereo / 8 Mono Analog RCA Inputs
• Configurable to Left, Right, or Mono
Max input level 2.0 VRMS
Input Sensitivity: 0dbV (1.0 VRMS)
Input Impedance: 47k ᾨ-49k ᾨ
5Power AC 100-120 / 220-240 V~ 50/60Hz, 1000W
6Trigger Outputs
• 3.5mm Mono
Zone Trigger / System Trigger Outputs
Pinout: Tip = signal, Sleeve = ground
Output: +12Vdc, 100mA current limit
7
Line Level Audio Outputs
• 2 Stereo / 4 Mono Analog RCA Pre-amp Outputs
• Configurable to Left, Right, Mono, or Sub-woofer
Fixed or variable line level output Fixed: 0 dB nominal gain
Variable: -50 to +0dB at 0.5dB per step Unbalanced
Output impedance: 470 ᾨ
8
Amplifier Output
• 4 Stereo / 8 Mono Amplified Outputs
• Configurable to Left, Right, or Mono
Output Power: 80W at 8Ω
100W at 4Ω
THD: < 0.05% @ 1kHz
Frequency Response: 20Hz to 20kHz, +.5dB/-.5dB
Crosstalk: >60dB @ 1kHz/1W
Signal to Noise: >100dB
Lip Sync Delay
• Individual Lip Sync Delay for Each Zone
Delay Time: 0 - 400ms
Adjustable: 10ms increments
Tone Control
• Individual Tone Control for Each Speaker
and Preamp Zone
Five-band equalizer
Loudness on/off
High/Low pass
Adjustable Crossover Points
Temperature
Operating Temperature: +5° C – +45° C (+41°F - +113°F)
Operating Humidity: 0 – 90% non-condensing
Storage Temperature: 0° C – +60° C (32°F - +140°F)
Dimensions 17D X 17W X 4H in. / 431.8D X 431.8W X 101.6H mm (with feet)
17D X 17W X 3.5 in. / 431.8D X 431.8W X 88.9H mm (without feet)
Weight 21.9 lbs / 9.93 Kg
5
contact [e-mail]
QUICK START GUIDE E L- I P D - M T X- 8 C H
REAR VIEW 1
6 7 8
2 3 4 5

APPLICATIONS
The following applications are examples of how the EL-IPD-MTX-8CH Multi Zone Audio Matrix can be used. For more
detailed system design guidelines, see the ELAN IP Amplifier Design Guide from www.elanhomesystems.com.

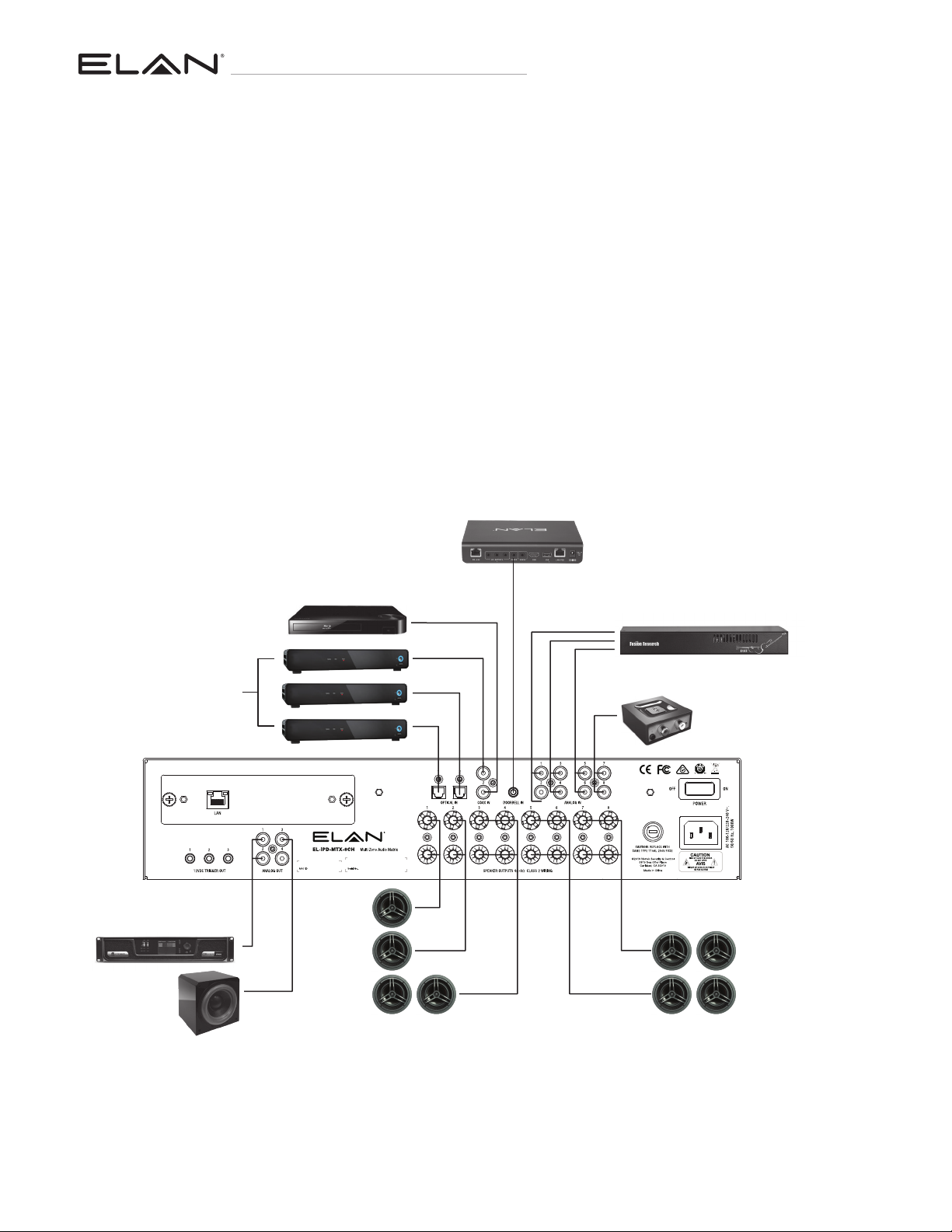

The EL-IPD-8CH-MTX can be used in stand alone mode to support up to 13 input sources (4 digital, 8 mono /
4 stereo analog RCA and 1 stereo 3.5mm typically used as the doorbell input from an ELAN System Controller).
Each RCA analog input can be configured with another as a L/R pair or individually as mono. 8 speaker channels
are available (up to 4 stereo zones or 8 mono zones). 4 line level outputs can be configured as 4 mono or 2 stereo
output zones or as sub-woofer out. Each can be configured as left, right, mono, or sub out.
6www.elanhomesystems.com
QUICK START GUIDE E L- I P D - M T X- 8 C H
ELAN EL-SC-100
System Controller
Set Top Box
Blu-ray Player
Bluetooth Receiver
ZONE 3
ZONE 4 ZONE 1
ZONE 5 ZONE 2
ZONE 6
Landscape Amplier
Subwoofer
Music Streamer

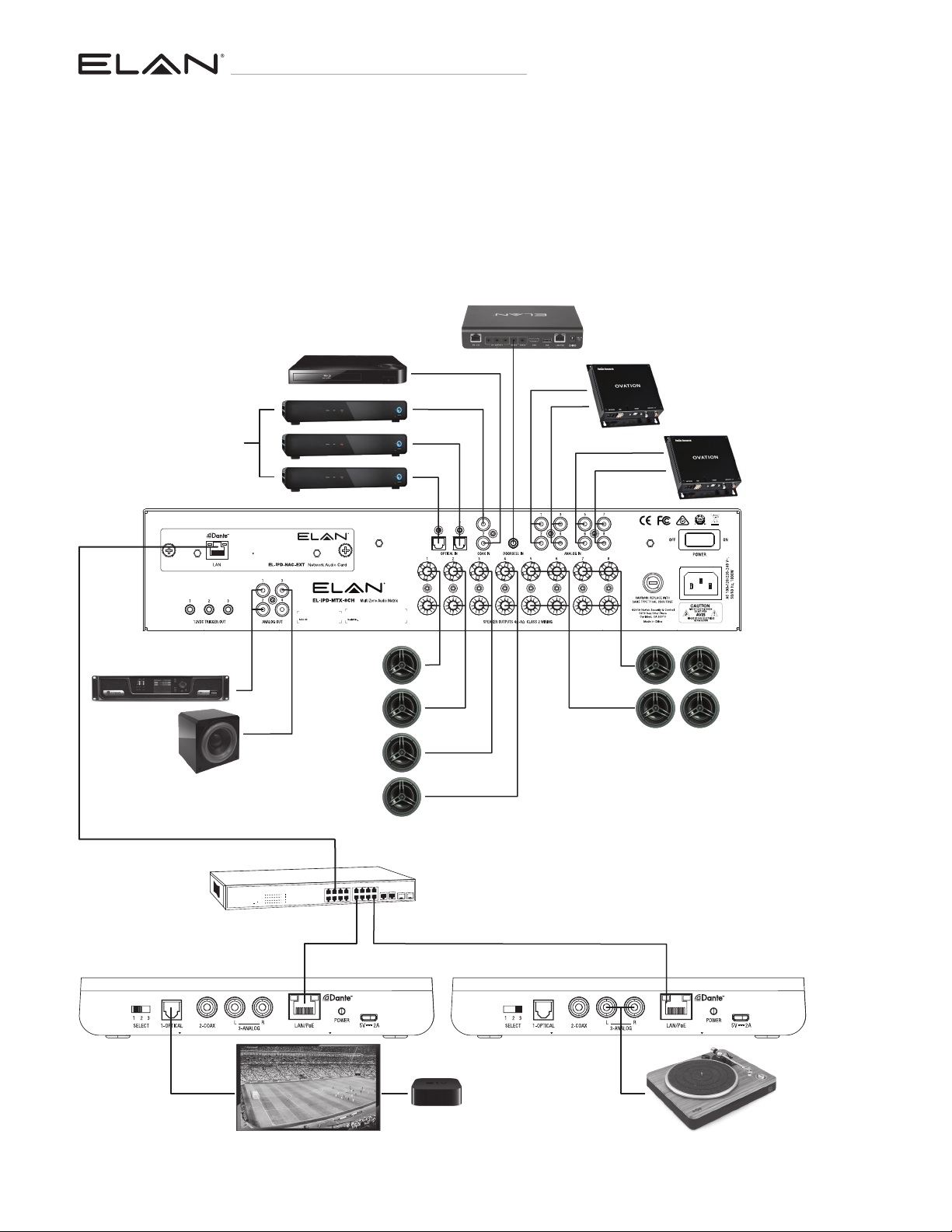

Adding the EL-IPD-NAC-EXT -Network Audio Card gives the ability to combine multiple chassis in to one system.
Combine the EL-IPD-MTX-8CH Multi Zone Audio Matrix with the EL-IPD-AMP-EXT Multi Zone Audio Extender to
add up to 8 more zones of audio. Using DanteTM Audio Networking, the two chassis can be linked using standard
networking equipment.
7
contact [e-mail]
QUICK START GUIDE E L- I P D - M T X- 8 C H
Streaming Media
Blu Ray Player
Set Top Box
ZONE 11
ZONE 12
ZONE 7
Audio/Video Receiver
Subwoofer
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ZONE 6
ZONE 8
Landscape Amplier
Subwoofer
ZONE 9
ZONE 10
Music
Streamer
1
Power
234
5678
910 11 12
13 14 15 16
NETWORK

8www.elanhomesystems.com
QUICK START GUIDE E L- I P D - M T X- 8 C H
ELAN EL-SC-100
System Controller
Blu-ray Player
Set Top Box
ZONE 5ZONE 1
ZONE 6ZONE 2
ZONE 7ZONE 3
ZONE 8ZONE 4
ZONE 9
Landscape Amplier
ELAN Video over
IP Transmitter
Subwoofer
ZONE 12
ZONE 13
ZONE 10
ZONE 11
Music Streamer
1
Power
234
5678
910 11 12
13 14 15 16
NETWORK

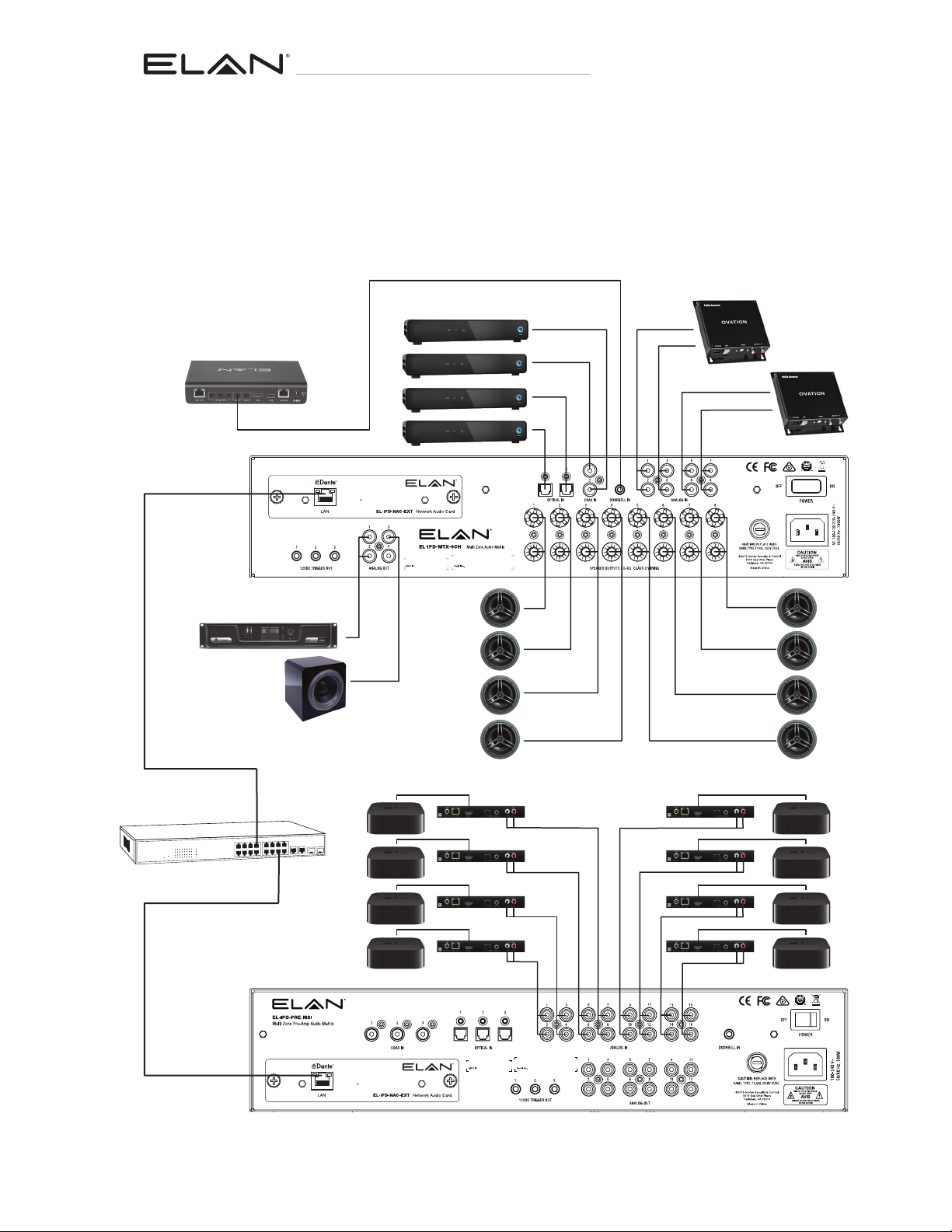

If more zones AND sources are needed beyond the capability of a single EL-IPD-MTX-8CH Multi Zone Audio Matrix,
a second can be added to double the number of inputs and zones. By adding the EL-IPD-NAC-EXT - Network
Audio Card to both EL-IPD-MTX-8CH Multi Zone Audio Matrix chassis, they can be connected to add up to 12 more
zones and 12 inputs. Using DanteTM Audio Networking, the two chassis can be linked using standard networking
equipment. All sources and zones are shared as one system.

9
contact [e-mail]
QUICK START GUIDE E L- I P D - M T X- 8 C H
1
Power
234
5678
910 11 12
13 14 15 16
ELAN EL-SC-100
System Controller
Set Top Box
Music Streamer
ZONE 5ZONE 1
ZONE 6ZONE 2
ZONE 7ZONE 3
ZONE 8ZONE 4
ZONE 9
Landscape Amplier
Subwoofer
NETWORK
If more sources are needed beyond the capability of a single EL-IPD-MTX-8CH Multi Zone Audio Matrix, the
EL-IPD-PRE-MSI can be added to increase the number of inputs available. By adding the EL-IPD-NAC-EXT - Network
Audio Card to both EL-IPD-MTX-8CH Multi Zone Audio Matrix and the EL-IPD-PRE-MSI Multi Zone Preamp Audio
Matrix, they can be connected to add up to 12 preamp zones and 22 inputs. Using DanteTM Audio Networking, the two
chassis can be linked using standard networking equipment. All sources and zones are shared as one system.
ELAN Video over
IP Transmitter

10 www.elanhomesystems.com
QUICK START GUIDE E L- I P D - M T X- 8 C H
1
Power
234
5678
910 11 12
13 14 15 16
ELAN EL-SC-100
System Controller
Set Top Box
ZONE 7
Landscape Amplier
Subwoofer
ZONE 1 ZONE 5
ZONE 2 ZONE 6
ZONE 3
ZONE 4
Music Streamer
Blu-ray Player
NETWORK
If remote sources are needed such as a TV’s audio output, the EL-IPD-PRE-SSI Local Audio Source input device
can be used to send audio over the network to the EL-IPD-MTX-8CH Multi Zone Audio Matrix. Using DanteTM
Audio Networking, the two devices can be linked using standard networking equipment. The EL-IPD-PRE-SSI is an
additional source added to the direct input sources on the EL-IPD-MTX-8CH.

11
contact [e-mail]
QUICK START GUIDE E L- I P D - M T X- 8 C H
THUMBSCREWS
3.5mm Mono Interconnect Cable
Pinout
Signal
Ground
INSTALLATION
Mount the EL-IPD-MTX-8CH Multi Zone Audio Matrix in a cabinet by setting it on a sturdy shelf. As with any
electronic device, the EL-IPD-MTX-8CH generates heat at all times, but considerably more when all zones are
playing. Ensure clear positive airflow within the cabinet by using fans. Locating the EL-IPD-MTX-8CH in a completely
enclosed cabinet is not recommended due to heat build up.
Use the included rack mount ears and hardware to mount into a standard equipment rack. Use only the included
screws to attach the ears to the EL-IPD-MTX-8CH. Ensure adequate ventilation for the EL-IPD-MTX-8CH by leaving
at least one blank rack space empty above and below. If the rack is completely closed, use positive ventilation to
dissipate heat build up.
ADDING THE NETWORK AUDIO CARD
If you are linking other ELAN Dante™ devices with the
EL-IPD-MTX-8CH Multi Zone Audio Matrix, you will need
to add the EL-IPD-NAC-EXT Dante™ Network Audio
Card. Loosen the two thumbscrews on the standard LAN
card and remove the card. Slide the EL-IPD-NAC-EXT
Dante™ Network Audio Card into the rails on the
chassis, press firmly and tighten the two thumbscrews.
TRIGGER OUTPUT CONNECTIONS
There are 3 trigger outputs available on the
EL-IPD-MTX-8CH Multi Zone Audio Matrix. The trigger
outputs can be configured using the event mapper.
For more information see the integration note. Use
3.5mm mono interconnect cables to connect the
EL-IPD-MTX-8CH Multi Zone Audio Matrix trigger
outputs to the device that needs to be turned on.

12 www.elanhomesystems.com
QUICK START GUIDE E L- I P D - M T X- 8 C H
LINE LEVEL AUDIO OUTPUTS
There are four line level audio outputs that can be configured as left, right, mono, or subwoofer out. Each output or
combination of outputs can be configured as separate zones. Each zone can have a lip sync delay applied of up to
400ms with intervals of 10ms.
AUDIO INPUTS
There are 2 optical and 2 coax stereo, 2 channel PCM digital inputs, and 8 line level analog audio inputs available
that can be configured as left, right, or mono. The line level analog audio inputs can be configured in pairs or
independently as sources available to any zone. The digital inputs are independent of the line level analog audio
inputs and are available as sources to any zone.
The doorbell input is used to route audio from
the ELAN control system - including paging via
the ELAN user interfaces and audio from video
doorbells.
SPEAKER OUTPUTS
CAUTION! ALL SPEAKER WIRE CONNECTIONS MUST BE MADE WITH THE CHASSIS POWER OFF
There are eight sets of speaker wire terminals. Each set can be configured as an individual zone or can sets be
grouped together as a zone. Each zone can have a lip sync delay applied of up to 400ms with intervals of 10ms.
Each speaker output can be configured as left, right, or mono. Multiple speakers can be connected to each set of
terminals. When connecting more than one speaker to a set of terminals, be sure to calculate the impedance values
and not exceed the rating for the amplifier.
When wiring speakers in parallel, do not use
more than two speakers per speaker wire
terminal.

13
contact [e-mail]
QUICK START GUIDE E L- I P D - M T X- 8 C H
POWERING THE SYSTEM
Plug in the EL-IPD-MTX-8CH Multi Zone Audio using the correct power cord for
your region and engage the Main Power switch on the rear.
CONFIGURATION
For detailed configuration information, download the ELAN integration note and
ELAN IP Amplifier Design Guide from www.elanhomesystems.com.
NETWORK SETUP FAQ’S FOR DANTETM
What type of Ethernet cable is recommended for DanteTM?
Cat5e or Cat6 cable is recommended. For purely 100Mbps networks, CAT5 may be used.
Does DanteTM work with Fiber Optic network cable?
Yes. Because DanteTM works with standards based networking technology, using fiber is simple. Use a switch
that supports fiber connections to send DanteTM data over a fiber optic cable.
Can DanteTM operate over a Wi-Fi network?
No. While possible in principle, the practical limitations of current wireless technology (802.11a/b/g/n).
Does DanteTM require any special network infrastructure?
No, special network infrastructure is not required. Since DanteTM is based upon universally accepted
networking standards, DanteTM-enabled devices can be connected using off-the-shelf Ethernet switches and
cabling.
Does DanteTM require a dedicated network infrastructure?
No, a dedicated network infrastructure is not required. DanteTM-enabled devices can happily coexist with
other equipment making use of the network.
Does DanteTM require special switches?
No. But we strongly recommend that Gigabit switches be used due to the clear advantages in performance
and scalability. If using a 100Mbps, see the design guide and ELAN integration note.

NOTES
Condition Amplifier Status Power/Network Status
Power On, Booting Off Flashing Blue
Power On, Connected to Network Off Solid Blue
Self-Check Failure Off Flashing Red
Boot Failure Solid Red Solid Red
No Network Found Off Solid Amber
Power Off Off Off
Chassis in Low Power Mode Solid Blue Solid Blue
Chassis in Sleep Mode Off Solid Red
Amplifier or Preamplifier Channel Clipping Solid Amber Solid Blue
Amplifier Channel in Protection Mode Solid Red Solid Blue
Chassis Identify Mode Flashing Amber Flashing Blue
14 www.elanhomesystems.com
QUICK START GUIDE E L- I P D - M T X- 8 C H
TROUBLESHOOTING
The two LEDs on the front face of the unit provide information regarding the status of the L-IPD-MTX-8CH Multi Zone
Audio Matrix
POWER INDICATOR

15
contact [e-mail]
QUICK START GUIDE E L- I P D - M T X- 8 C H
LIMITED WARRANTY
Nortek Security & Control ( ‘NSC’ ) warrants the EL-IPD-MTX-8CH to be free from defects in materials and workmanship for
the period of two years (2 years) from the date of purchase. If within the applicable warranty period above purchaser discovers
that such item was not as warranted above and promptly notifies ‘NSC’ in writing, ‘NSC’ shall repair or replace the item at the
company’s option. This warranty shall not apply (a) to equipment not manufactured by ‘NSC’, (b) to equipment which shall have
been installed by other than an ‘NSC’ authorized installer, (c) to installed equipment which is not installed to ‘NSC’s’ specifications,
(d) to equipment which shall have been repaired or altered by others than ‘NSC’, (e) to equipment which shall have been subjected
to negligence, accident, or damage by circumstances beyond ‘NSC’s’ control, including, but not limited to, lightning, flood, electrical
surge, tornado, earthquake, or other catastrophic events beyond
‘NSC’s’ control, or to improper operation, maintenance or storage, or to other than normal use of service. With respect to
equipment sold by, but not manufactured by ‘NSC’, the warranty obligations of ‘NSC’ shall in all respects conform to the warranty
actually extended to ‘NSC’ by its supplier. The foregoing warranties do not cover reimbursement for labor, transportation, removal,
installation or other expenses which may be incurred in connection with repair or replacement. Except as may be expressly provided
and authorized in writing by ‘NSC’, ‘NSC’ shall not be subject to any other obligations or liabilities whatsoever with respect to
equipment manufactured by ‘NSC’ or services rendered by ‘NSC’.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED WARRANTIES
EXCEPT WARRANTIES OF TITLE, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
ATTENTION: TO OUR VALUED CUSTOMERS
To ensure that customers obtain quality pre-sale and after-sale support and service, Nortek Security & Control products are sold
exclusively through authorized dealers. Nortek Security & Control products are not sold online.
The warranties on Nortek Security & Control products are NOT VALID if the products have been purchased from an unauthorized
dealer or an online E-tailer. To determine if your Nortek Security & Control reseller is authorized, please call Nortek Security & Control
at 800-622-3526.

10025259 Rev-C, 03/2020
main:
1 [phone] - US
1 [phone] - International
1 [phone] - Fax
tech support:
[email protected]
web:
elanhomesystems.com
©2020 Nortek Security & Control, LLC. All rights reserved.
ELAN is a registered trademark of Nortek Security & Control, LLC.
