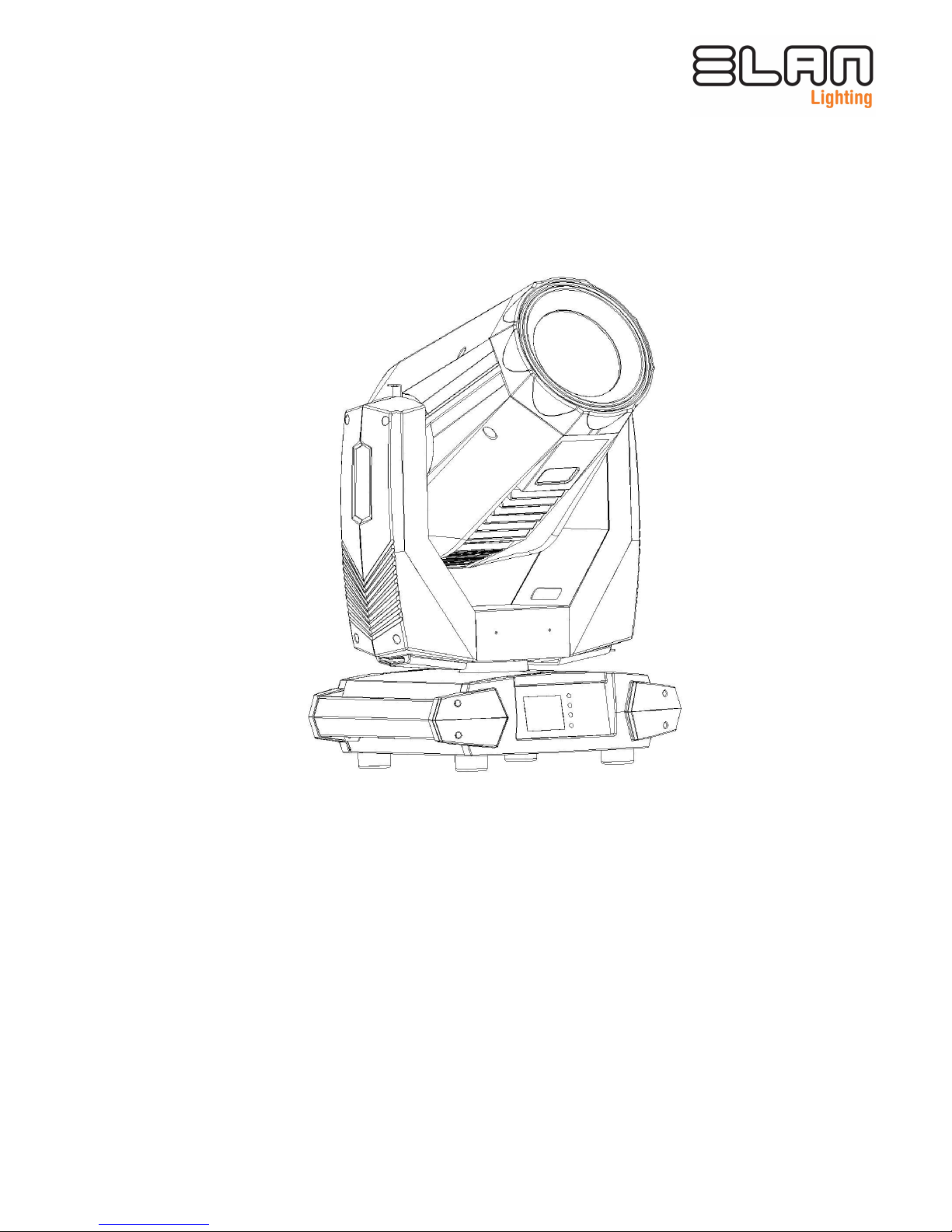

Elan CAB-330-MULTI User manual

User Manual
CAB-330-MULTI
Beam | Spot | Wash
Foreword
Thanks for choosing CAB-330-MULTI products, it is the result of the latest,
independent, research and development of high-grade quality. Compared
with other same power 15R Lights, it's more lightweight

and convenient, and with perfect combination of international advanced
electronic Control technology and excellent human chemical.330W beam is in
full Compliance with the CE standard supports the internationalDMX512
signal control mode.
PRODUCT CATALOG
1:SAFETY TIPS--------------------------------------------------------------3
2:TECHNICAL PARAMETERS----------------------------------------------4
3:SCHEMATIC LIGHTING COMPONENTS-----------------------------5-6
4:PACKING AND SHIPPING-----------------------------------------------7
5:SAFETY STANDARDS-------------------------------------------------8-11
6:CHANGE BULB-------------------------------------------------------12-13
7:FUNCTION DECLARATION-----------------------------------------14-15
8:DISPLAY SETTING(MENU CONTROL)-----------------------------16-17
CAB-330-MULTI uses imported Yodn 330W 16R lamp for more
brightness than 15R, strong light effect, clear pattern, fast and smooth
pan&tilt running, precise positioning and uniform pure color high
standards of color disc.
CAB-330-MULTI has a super high and super long distance range, also has
14 gobos with open circle copper gobo wheel +9 three-dimensional gobos +
white(changeable), a frost lens,13 color with white color wheel, and with a
prism effects of 8 facet prism + T shaped prism.
CAB-330-MULTI are widely used in TV stations, large gymnasiums, discos,
dance halls, nightclubs, large-scale performances and other professional
occasions.

9:CHANNEL--------------------------------------------------------------19-21
10:FAILURE ANALYSIS & RESOLUTION----------------------------20-21
11:CLEAN LAMP-----------------------------------------------------------22
1:SAFETY TIPS
◇Before using this product, please observe carefully the product is not unwrap or
damage during transportation.As a result of damage during transporting , please
do not use the lights, and contact with the dealer or manufacturer.
◇Before running products, to ensure that the voltage and Hertz in accordance
with the requirements of lights.
◇It’s very important, connecting ground wire to avoid the electric shock.
◇This product is for dry indoor environment.
◇This product must be installed on the sufficient space, adjacent to interface the
shortest distance of 100 cm,to ensure that the lights will not crash each other.
◇Before moving or repairing the product , please unplug the power.
◇When it working, ensure that no inflammable and explosive near objects.
◇When installing this product, please use the safety rope. When handling this
product, lift the armrest base,rather than the lamp body.
◇This product is suitable for a maximum temperature of 35 degrees Celsius, when
the surrounding environment is higher than 35 degrees Celsius, please do not use
this product.
◇Do not touch. When working, the product running very fast, to prevent bruising
Please read the guide book, the guide book that contains the
installation, use and maintenance of important information.

hands.
◇Problems happens when operating performances, should immediately stop
using the lights.Do not carry out maintenance, repair damage caused or likely to
cause other problems.Please contact the company's maintenance repair. During
the repair process, use the same type of accessories.
◇Please read the instructions carefully, especially regarding the installation, using,
maintenance parts.Important that the lighting in the transport process, must be
packed anti-shock protection carton or flight case.
2.TECHNICAL PARAMETERS
◇DMX Channel:30/19CHs
◇Control model:DMX512,Auto model etc
◇LED LCD touch screen + button control, Chinese/English mode, intelligent
display board flip function
◇Yodn 330w lamp
◇Super fast and ultra silence 3-phase step motors
◇Color temperature is 8000K,life span is 2000Hs.
◇13 Color with white,dual color effect.
◇14 fixed gobo with white
◇9 changeable rotating three-dimensional gobo with white.
◇Any two kinds of prism stack can combine dynamic effect, positive and ne
gative rotation switching effect.
◇Optical lens: High precision glued optical lens
◇Focus：Linear focus
◇Zoom:linear zoom
◇Dimmer：0-100% linear dimmer.

◇Beam angle：2.5-35 degree.
◇Strobe：two-pieces plate strobe(0.5-9FPS)
◇16pcs super silence motors,pan&tilt 3-phase step motors,16bit.
◇Housing：high temperature resistant alloy plastic+Die casting handle
When Remote control the bulbs, lamps automatically reduce the 60W power
◇IP rate：IP20
◇Weight: 18.6KG
◇Size: 361* 300.8* 601.8mm
Extended features:support disconnecting the power supply,the displ
ay panel set up address code (had to pre-equipped with batteries).

3：SCHEMATIC LIGHTING COMPONENTS 图

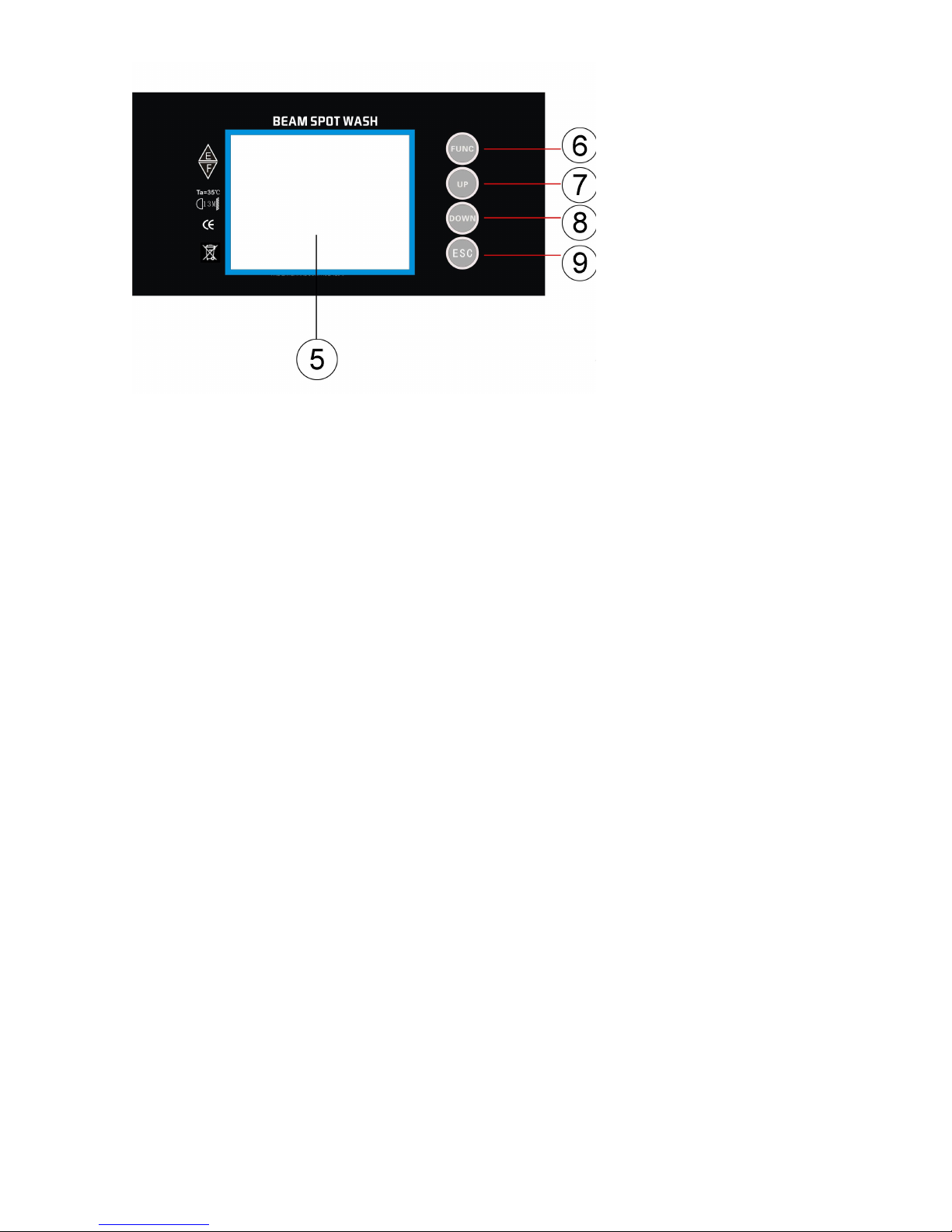

1: light head cover 2:top cover 3:arm cover 4:handle 5:Liquid crystal display
screen 6:menu 7:up 8:down 9:return
4:PACKING AND SHIPPING
4.1 Packing
Name
Quantity
Unit
User manual
1
piece
CAB-330-MULTI is packaged by carton or standard 2-in-1 flightcase
(selectable 1in1 or 4in1), Random accessories items shown below

Signal line
1
piece
Safety rope
1
piece
Clamp+bracket
2
piece
Power line
1
piece
4.2Transport protection locks
In order to transport it easy to protect the lamp body has two locks
(XY axes each a lock), X-axis has four lock position, Y-axis triple lock,
lock locked in the center position in the transport and light a vertical position with
the arm member.
4.3Packing
1.Disconnect the power supply so that the lamp to cool completely before
packaging equipment, at least 15 minutes or more.
2.Closing the light protect lock, when clean the surface of the light dust
3.Cover the light , seize the equipment both sides aluminum handles on to make it
upside down and gently placed in the box.
4.Add lighting accessories after placing the light in box.
5.Up to two crates stacked prohibited upside down.
4.4Unpacking

1.Open the box and bag
2.Seizing the equipment handles, lifting and carrying away the light from the
box .Or opening the flight case cover， placing lift boom close to the light base, then
equipping light hook on light base bottom.
tightening Quick Install locks. At last rising away boom to the top of the lamp from
flight case, put the flight case away.
3.Before turning on the light,should open the light protecting lock.
Note: Upon receipt of lamps, please check if there is damage to the fold closure
caused by transport,where there is transportation damage, please do not use this
fixture, and as soon as possible contact.
5:INSTALLATION
Users should ensure that light and installation materials are checked for regular
safety checks, Unprofessional incorrect installation can lead to dangerous, if the
lack of working conditions and professional standards, please operate the light by
professionals. Do not use the light if the working temperature isn't 0°-40° .When
the lighting installation, dismantling,moving, or servicing, do not stand directly
beneath the lamp. The operator must ensure that the fixtures are secure
connection, installing the light after professionals approving electrical parameters，
make sure that these installation must be checked at least once per year by
experts.
5.1 Installating rigging
CAB-330-MULTI can be placed on the stage or on a stand in any direction. Quick
lock system can quickly and easily remove or install a light hook.
Note: must use two clamps fixed equipment, and are 1/4 buckle fastening jig, only

fully rotated 90 degrees clockwise to lock fastener.
5.2Fixed equipment
1. Before installing fixtures,must verified rigging equipments are not damaged,and
can bear at least 10 times of light's weight. Check the building can be beared at
least 10 times of total weights of light, fixture, and cable accessories.
2.Insert the locked hook fastener into base mounting holes horizontally, grab the
handle clockwise 90 degrees fasteners, in the same way to install a second
fastener,make sure the fastener is fastened under the light base.
3.If truss can be lifted，the equipment can be directly clamped from flight case
and locked fixture base. Then hung on the light and using safety rope fixed it.
Before rising the light to right height, connect the power cord and signal cable.
Note: add a safety rope attached the light's base insurance shelf, do not connect
the device handle.

Note: Lights be placed vertically upward,the shortest distance between
working lights must be more than or equal 1000mm, lighting installation
layout as following.

5.3 Data cable
Data cable is DMX512 signal
Note: Signal line connections is X-type connector。
X-type connector-----If the external flexible cable or cord of this light is damaged,
please replace professional cable or cord from the manufacture or its agent.Lights'

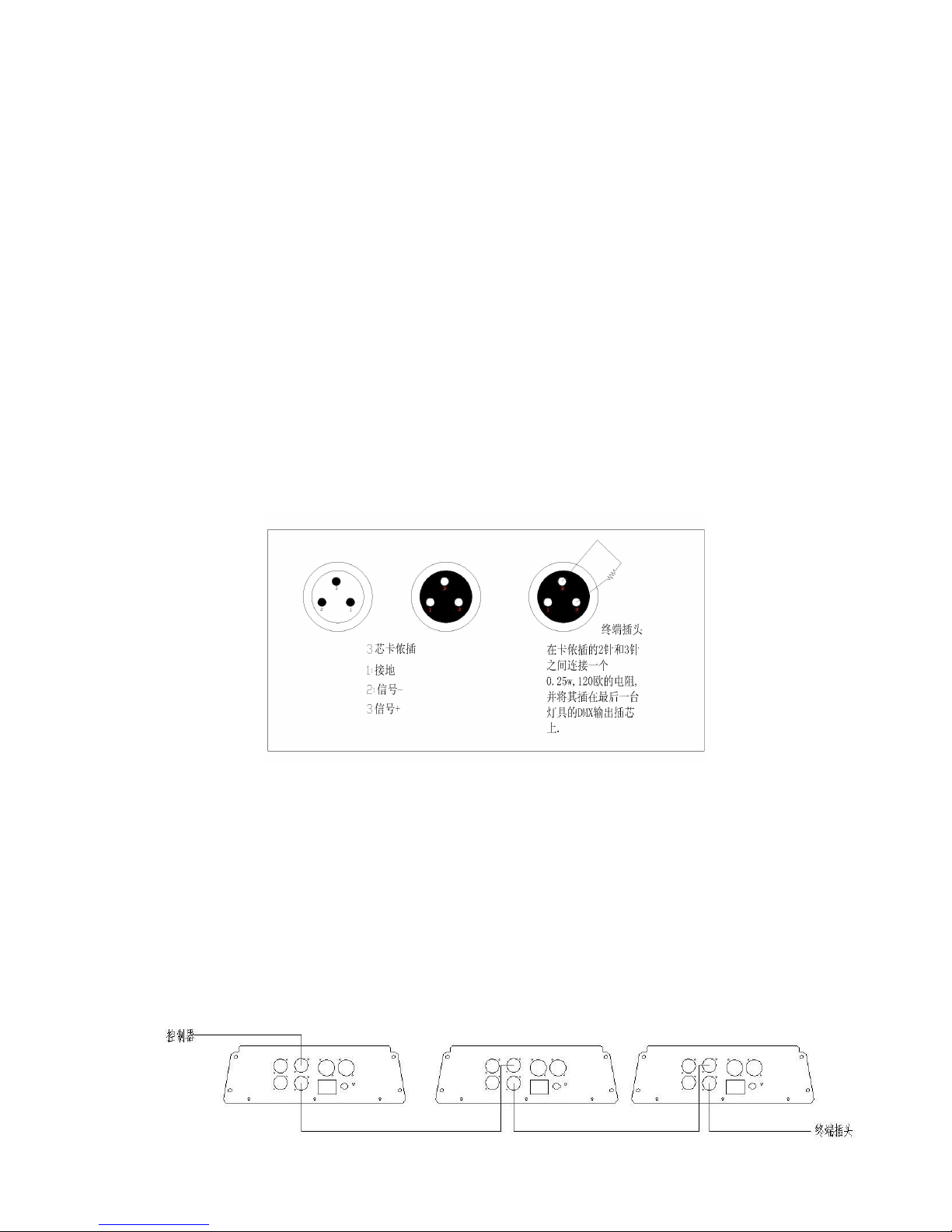

DMX input and output connects to a three-pin XLR and five-pin XLR insert, first pin
is grounded,then negative signal is second pin, third pin connects to the positive
polarity signal, fourth and fifth are empty.In order to prevent reception reflection
and interference control signal,a terminal plug must be installed on the first branch
of the connected device last 3-pin output jack.
controller is connects to the nearest input XLR 3-pin, then from the output of the
device connects to the input of the next device,continuous connection one by one,
the final output data cable terminal equipment plug one end into the
terminal.

If the signal transmission is long-distance , 512 signal amplifier must be added.
DMX512 signal controller connect to the input of the amplifier first, then connect to
the fixture from its output,couple with the terminal plug last.
1 Do not use two separate output connection, if connect the branch separating
consecutive DMX512 signal amplifier must be used to separate. 2 Please use the
shielded twisted-pair cable,standard microphone cable can not be reliably
controlled long-distance data.
6：AC POWER
6.1Fuse
power
fuse
100-240v~
8A 6*30 main fuse
6.2 Power Connection
If the external flexible cable or cord of this light is damaged, the line is up to the
manufacturer or its service agent or a similar qualified person to replace, in order
to avoid danger. Connect the power supply personnel must have the appropriate
qualifications before proceeding, you must make sure you are using the power
supply voltage matches the voltage identified and have overload or leakage
protection.
1.Directly connect the device to the power supply, do not connect to the silicon box
dimming system, otherwise damage to the equipment.
7:Lamp

7.1 lamp description
Note: 1.when replacing a light lamp does not touch the bulb with bare hands at the
ball, avoiding oil stained hands on the ball.
2.When you install and dismantle the lamp into the lamp gently put on, can not let
the bulb hit hard objects around it to prevent damage the bulbs.
CAB-330-MULTI is used with Yodn Single-ended lamp is short arc point light
source, and its color temperature is 8000K and very stable, CRI ＞90.Life span is
over2000 hours(according the using situation)
1.Attention
1. Do not install other similar lamps, and will cause safety hazards or equipment
damage.
2.To reduce the risk of damage to the lamp, replacing the lamp before the lamp life
over.
3. Do not use scratches and has damaged bulb
7.2Changing lamp
1. Disconnect the power, so that the lamp cooling, the arm of the lamp body lock
locked in a horizontal position.
2. split bulbs:Remove the 4PCS M3(ABCD)fixed screws
3.Please hand out buckles light bulb in the shell
Install bulbs are against the operation.

7.3Correction bulbs
(lamp has been corrected before selling, if the individual case happens when
changing the lamp, could following this way.)
1.The light is reseted by turning on the power,using the menu or console light bulb
to play a bunch of white beam.
1.Please use cross screwdriver to open the back cover of lamp(use flathead
screwdriver to adjust lamp fixed support,adjust A，when adjust A the light spot
could be left or right to adjust
（Note: screwdriver do not collision bulb input, please
professional operation)
8:Function
8.1 gobo wheel
A metal gobo wheel is composed by 15 gobos,customers could change all
kinds of customized gobo wheel and a glass gobo wheel with 9 rotational gobo +
white,and customers could replace all kinds of customized gobo wheel(the gobo
wheel is professional high temperature resistance glass gobo wheel with inner
diameter 12mm + outer diameter of 16.5mm)

Spot gobo wheel
8.2color wheel
Color wheel is made by 13 high standard fixed color, the user can easily select
their own favorite color, to create a perfect lighting effect.Use the gobo wheel at
same time is better.It can be easily transformed a colorful gobo effect. (According
to customer needs may change at any time own custom various color wheel).

8.3 Optical lens focusing
The super mute voice motors and belt are used to work together to adjust
optical lens to complete the pattern definition and achieve zoom enlarge system
from 2.5 to 36 degree of gobo.
8.4 Prism wheel and the prism enlarge
The prism wheel is equipped with a 8-facet prism and a T-facet prism can
clockwise and counterclockwise rotation, speed adjustable, with colors and
patterns, it can create a variety of colorful lighting effects.
The prism plate through zoom combination to adjust prism spot size then react the
dynamic effect of prism, and two prisms stack can combine endless dreams special
effects.
8.5 Dimmer and strobe
0-100% mechanical dimmer, you can instantly switch freely adjustable strobe
speed up to 12 times / sec, along with random strobe special features.
8.6Frost
Frost is a piece of atomizing lens, according to the actual control to complete
the frost effect as your want .
8.7 Horizontal and vertical scanning
Pan:540°，Tilt 270°，With 16BIT precise positioning capabilities.
Horizontal and vertical speed is adjustable.
8:Display setting

8.1Display panel
1.:DMX Address
it can be done of address choice by touch screen,press 6 button to save the
selectable address code.
2:Information item
Fixture times
power on times
power on number
lamp on times
lamp on number
3:Set up
(1).DMX presets 1.mode1 16CH 2.model 24CH
(2).Display Intensity Display brightness 0-255 can optionally from dark to light
(3).Display saver Delay 0-600 Screensaver time settings
(4).pan Reverse off/on
(5).tilt Reverse off/on
(6).Blackout pan/tilt off/on
(7).control mode DMX/AUTO/SOUND 512
(8).Default settings

4: Internal control
(1) Reset Total system Reset
pan/tilt reset
color system reset
gobo system reset
strobe reset
optics reset
(2) manual control
5: Auto mode1/2/3
6: Calibrations Fine tune the initial data of motor of lamp internal(please be
careful)
Access Code choose code:003 press ENTER button to set
Pan tilt color wheel fixed gobo wheel rotation gobo wheel auto
rotating gobo wheel
prism 1 prism 1 rotation
prism 2 prism 2 rotation
zoom
frost
focus
dimmer
1 lamp status on/off
2 setting lamp on power off on
8.2 Menu setting:
9.Channel
1:pan
0-255:pan 540 degree
2:pan fine
0-255:pan fine

3:Tilt
0-255:tilt 270 degree
4:tilt fine
0-255：tilt fine
5:pan/tilt
speed
0-255:pan & tilt speed
adjustment
6:function
130-139 lamp on
140-149 pan & tilt reset
150-159 color wheel reset
160-169 gobo wheel reset
170-179 strobe reset
180-189 zoom/focus/prism
reset
200~209complete reset
230-239 lamp off
7:color
wheel
0 white
9 dark red
18 dark blue
27 yellow
37 green
46 carmine
55 sky blue
64 red
73 dark green
82 amber
91 blue
101 orange
110 CTO
119 uv purple
128-129 white
130-134 dark red
135-138 dark blue
139-143 yellow
144-147 green
148-152 carmine
153-157 skyblue
158-161 red
162-166 dark green
167-171 amber
172-176 blue
177-180 orange
181-185 CTO
186-189uv purple
190-220 clockwise rainbow
effect from fast to slow
221-224 static
225-255 anticlockwise
rainbow effect from slow to
fast
8:color
wheel
（fine
0-255 color wheel fine

positionin
g)
9:
0-127
Prisms stack
anticlockwis
e rotating
128-255
Prisms stack
clockwise
rotating
10:static
gobo
wheel
0-3 white
4-9 gobo 1
10-15 gobo 2
16-21 gobo 3
22-27 gobo 4
28-33 gobo 5
34-39 gobo 6
40-45 gobo 7
46-51 gobo 8
52-57 gobo 9
58-63 gobo 10
64-69 white 1
70-75 white 2
76-81 white 3
82-87 white 4
88-95 gobo 1 shake
96-103 gobo 2 shake
104-111 gobo 3 shake
112-119 gobo 4 shake
120-127 gobo 5 shake
128-135 gobo 6 shake
136-143 gobo 7 shake
144-151 gobo 8 shake
152-159 gobo 9 shake
160-167 gobo 10 shake
168-175 white 1 shake
176-183 white 2 shake
184-191 white 3 shake
192-199 white 4 shake
200-201 white
202-227 clockwise from fast
to slow
228-229 static
230-255 anticlockwise from
slow to fast
11:rotatio
n gobo
wheel
0 white
1-4 the biggest fixed open
circle
5-7 spot gobo 1
8-10 spot gobo 2
11-13 spot gobo 3
14-16 spot gobo 4
