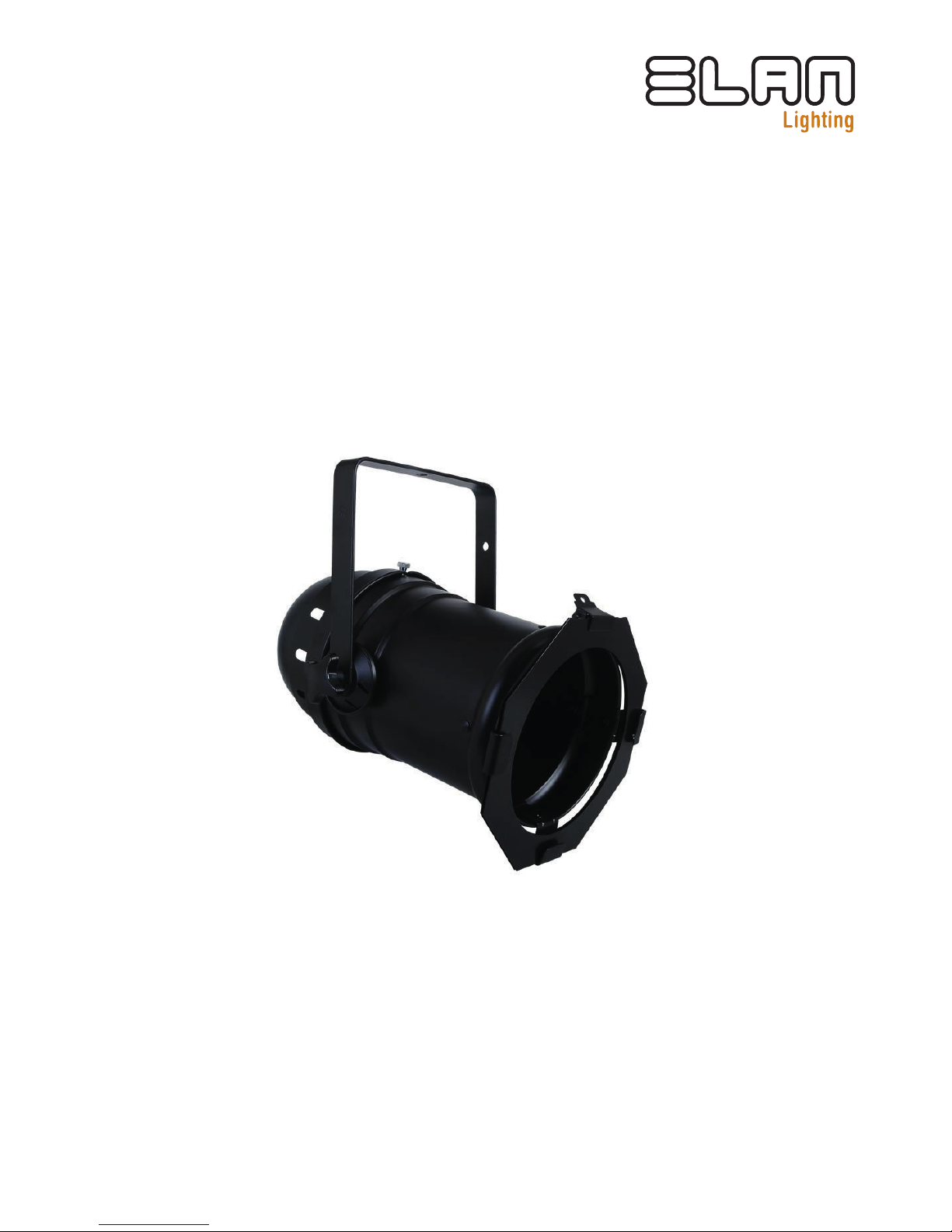

Elan PAR 64 LONG User manual

PAR 64 LONG
Thank you for purchasing the PAR 64 LONG Every suit has been thoroughly tested and
shipped in perfect condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for
any damage and be sure all accessories necessary to operate the unit has arrived intactly. In
the case damage has been found or parts are missing, please contact Acson Comercial for
further instructions. Do not return this unit without any warning.
USER’S MANUAL

2
Contents
FOR YOUR OWN SAFETY, PLEASE READ
THIS USER MANUAL CAREFULLY BEFORE
POWERING OR INSTALLING. SAVE IT FOR
FUTURE REFERENCE
1. Safety instructions ............................................................................................ 3
1.1. FOR SAFE AND EFFICIENT OPERATION ............................................ 3
2. Designated use ................................................................................................. 4
2.1. Overhead installation............................................................................... 5
3. Introdution.......................................................................................................... 6
3.1. Product overview .................................................................................... 6
4. Connections....................................................................................................... 6
4.1. Electrical connections ............................................................................ 6
5. Replacing the lamp............................................................................................ 7
6. Technical data .................................................................................................... 7

3
1. Safety instructions
• This device is suitable for indoor use (not outdoors) only.
• All modifications to the device will void the warranty.
• Repairs are to carry out by skilled personnel only.
• Use only fuses of the same type and original parts as spare parts.
• Protect the unit from rain and humidity to avoid fire and electric shocks.
• Make sure to unplug the power supply before opening the housing.
Be careful with heat and extreme temperature
• Avoid exposing it to direct rays of the sun or near
a heating appliance.
• Not put it in a temperature bellow 32°F /0°C, or
exceeding 104°F /40°C.
Keep away from humidity, water and dust
• Do not place the set in a location with high
humidity or lots of dust.
• Containers with water should not be placed on
the set.
Avoid placing on an unstable location
• Select a leveled and stable location to avoid
vibration.v
Do not use chemicals or volatile liquids for
cleaning
• Use a clean dry cloth to wipe off the dust, or a
wet soft cloth for stubborn dirt.
If not working, contact Acson Comercial
immediately
• If any troubles arose, remove the power plug
soon, and contact with an engineer for repairing,
• Do not open the cabinet by yourself, it might
result a danger of electric shock.
Take care of the power cable
• Never pull the power cable to remove the plug
from the receptacle, make sure to hold the plug.
When not using the device for an extended
period of time, make sure you disconnect the
plug from the receptacle.
!
1.1. FOR SAFE AND EFFICIENT OPERATION
Damages caused by the disregard of this user manual are not subject to
warranty. Acson Comercial will not accept liability for any resulting defects
or problems. Make sure the electrical connection is carried out by qualified
personnel. All electrical and mechanical connections have to be carried out
according to the European safety standards.
Important:

4
2. Designated use
This device was developed for professional use
on stages, in discos, theatres etc. The device is
only approved for a connection up to 230V 50/60 Hz
AC voltage and only for indoor use.
Regular breaks during operation increase the
lifetime of your device.
Avoid convulsions or any form of forceful im-
pact during the installation or the start-up of the
device.
Make sure that the device is not exposed exces-
sive heat, humidity or dust at the place of insta-
llation. Make sure that no cables are lying around.
You could endanger your own safety and also the
safety of a third party.
It is not allowed to operate or store the device
in an environment in which spray water, rain,
humidity or fog is expected. Humidity or very high
atmospheric humidity could reduce the isolation of
the device and could cause deathly electric shocks.
If you use fog devices the device has not be expo-
sed to a direct smoke jet. There has to be a safety
distance of at least 0,5m between this device and
the fog machine. Make sure that the saturation of the
fog has to enable a visibility of at least 10m.
Fire hazard!!
Make sure when installing the projector, that there
are no flammable materials within a distance of at
least 1m.
Do not operate the device during thunderstorms.
Surge voltages could destroy the device. Unplug the
power supply during thunderstorms.
Surrounding objects or surfaces should not be
in contact with the device.
Make sure that during the installation and re-
moval of the device the area below the place of
installation is basically cordoned off. This also
applies to implementation of service.
The device has been protected by a suitable
safety.
Make yourself familiar with the functions of the
device before start-up. People without the expe-
rience should not handle with the device. The most
cause of functional disorder is inappropriate hand-
ling.
Do not use chemicals or volatile liquids for clea-
ning. Use a clean dry cloth to wipe off the dust, or a
wet soft cloth for stubborn dirt.
For transport use the original packing or desig-
nated accessory to avoid damages during the
transport.
For safety reasons unauthorized changes are
forbidden.
A usage of the device which differs from usages
which are described in this manual can cause
damages of the device. In that case the warranty
expires. Additional you should notice that every di-
ffered usage is related with dangers and can cause
e.g. an electrical short, fire, electric shock or crash.

5
Life Risk
You have to observe the regulations of BGV C1 (formerly VBG 70) and
EN60598-2-17 Installations are to carry out by skilled personnel only.
!
2.1. Overhead installation
The suspension devices have to be build and me-
asured so they can withstand for an hour the tenfold
of the payload without suffering a permanent detri-
mental deformation.
Basic installation has to be made by using a se-
cond separate suspension. This can be e.g. asui-
table net. The second suspension must be designed
and attached so no part of the installation can fall
down in case of failure.
During construction, reconstruction and decons-
truction unnecessary stay in the range of movin
areas, on lightning bridges, under elevated work sta-
tions or any other danger zones is forbidden.
The operator is obliged to following safety-rela-
ted and mechanical facilities:
- Before the first start-up or after critical changes
before restarting it has to be checked by an expert.
- Review in the frame of the inspection test at
least all four years by an expert. .
- Review by a qualified person at least once a
year.
How to carry out the overhead installation:
In tidal fall you should install the device out of the
lounge area of people.
IMPORTANT!
Overhead installation requires a high level of experience. This includes knowledge of calculating the
payload, used installation material and safety inspections of the used material and the projector whe-
reas the required experience is not limited to this. Do not try to carry out installation yourself under any
circumstances if you are not qualified. Contact a professional installer. An inappropriate installation can
lead to injuries and/or damaged properties.
It is not allowed to install the device in the grip
area of people.
If the device may hang from the ceiling or from
high beams, the use of truss systems is mandatory.
The device may not be installed so it can swing freely
in the room.
Please note: Crashing down items can cause
serious injuries! Do not install the projector, if you
doubt the safety of a possible installation form!
Before installation make sure that the mounting sur-
face has the ability to carry the tenfold point load of
the own weight of the device.
Mount the device with the mounting-bracket to
your trussing system using an appropriate clamp.
During overhead installation the device must be
always secured by a safety rope which is desig-
ned to hold the twelvefold weight of device. Only
safety ropes with quick-release safety fastener ele-
ments may be used. Hang up the safety rope in the
hole of the mounting bracket. Direct the rope over the
truss or an appropriate fastening point. Hang up the
end in the fastening element and tie up the locking
knott. A safety rope once exposed to failing load or
damaged may not be used furthermore.
The maximum drop exceed must not exceed
20cm. A safety rope once exposed to failing load or
damaged may not be used furthermore.
Adjust the desired inclination angle via the moun-
ting bracket and tighten the screw.

6
3. Introduction
4. Connections

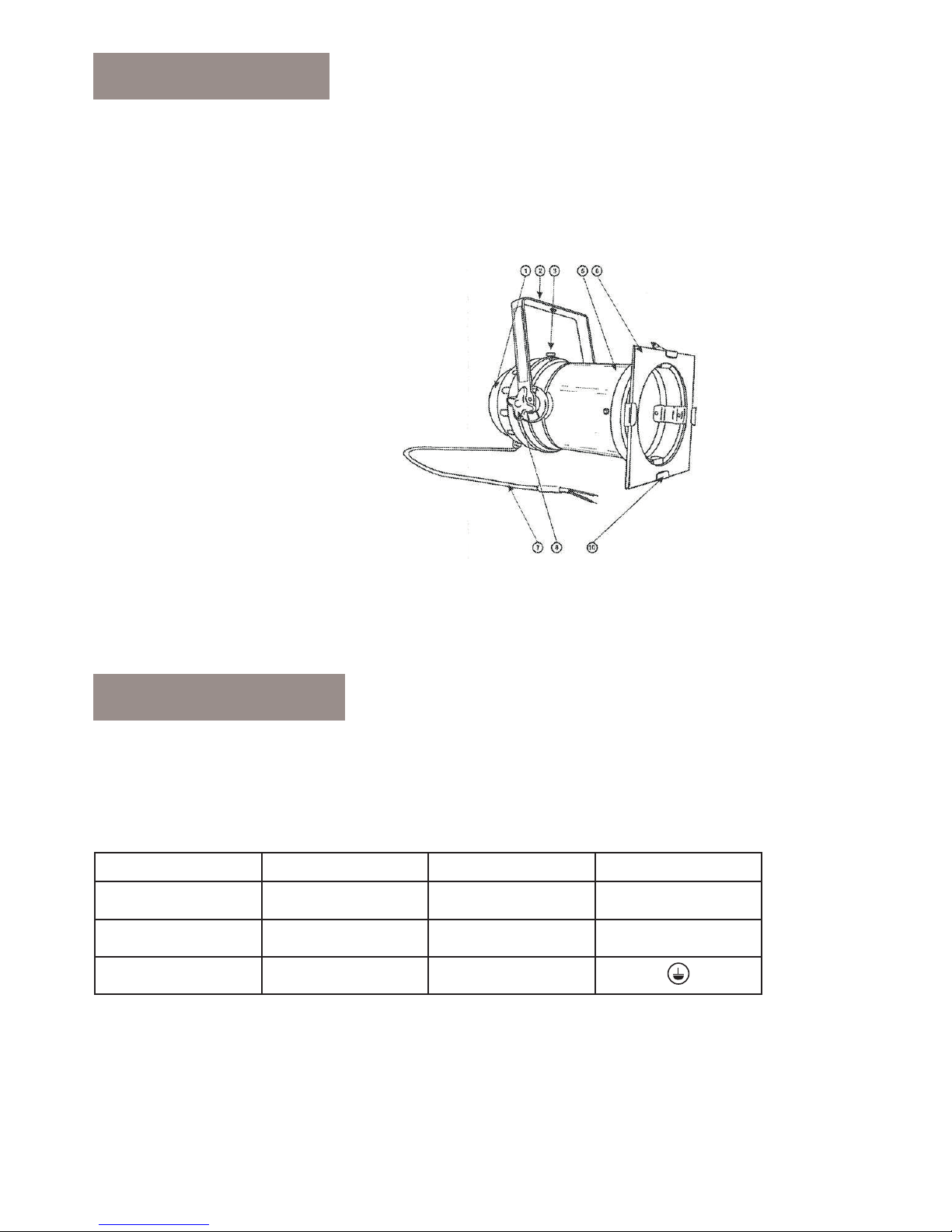

1. Housing cover
2. Mounting bracket
3. Locking bracket
4. Hole for safety
5. Cone
6. Filter frame
7. Extension lead
8. Locking screw
9. Hole for safety for filter frame
10. Retaining clips
Thank you for buying the PAR 64 long. It is a powerful device.
For a successful installation and operation, please read this manual carefully.
If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the mains
with the enclosed power cable and plug. The earth has to be connected.
3.1.Product overview
4.1. Electrical connections
Cable (EU) Cable (US) PIN International
Brown Black Live L
Blue White Neutral N
Yellow/Green Green Earth

7
5. Replacing the Lamp
6. Technical data
Life Risk!
Seat in the lamp only when
the power is off. Unplug the
power cord!
Attention!
If the lamp is damaged or
deformed by heat,it should be
replaced immediately.
Attention!
Do not turn on the device before you have not closed the housing cover!
!
!
Unplug the unit completely from the mains before you change a lamp. To do this, unplug the power
cord. Allow the lamp to cool before changing necessarily. This takes approximately 5 minutes.
Do not touch the glass body with your bare hands. Notes the lamp manufacturer should also be strictly
observed.
No lamps may be used with a higher power rating in the device. For lamps with higher performance arise
during operation higher temperatures, for which the equipment was not designed. Noncompliance will invali-
date the warranty.
This spotlight is optimal for 230 volt. Application up to max. 1000 W.
Power supply
Energy efficiency: A++ to F
Power consumption max.: 1000 W
Light source
LM type: Halogen
Socket: GX16D
Connections
Power-in: Schutzko
Hardware
Protection class: IP20
Suitability: Indoor
Dimension (L/W/H): 470 x 260 x 275 mm
Material: Aluminium
Weight: 1,60 kg

Note: All information is subject to change without prior notice.
IMPORTANT INFORMATION!
In order to optimize the recovery and recycling of the materials that old appliances contain
and reduce the impact on human health and the environment, ensure that this product is
recycled at the end of its life.
Importer:
ACSON COMERCIAL
C/Pallars, 405
08019 Barcelona
www.acson.com
[email protected]
