Elan EL-4KHDBT-RX-40-IR User manual

EL-4KHDBT-RX-40-IR
User Manual
HDMI Out
LINK POWER
IR RXIR TX12V
2A
EL-4KHDBT-RX-40-IR
HDBT In
LINK
HDMI Out
LINK POWER
IR RXIR TX12V
2A
EL-4KHDBT-RX-40-IR
HDBT In
LINK

EL-4KHDBT-RX-40-IR USER MANUAL
02 www.elanhomesystems.com
Surge protection device
recommended
This product contains sensitive electrical compo-
nents that may be damaged by electrical spikes,
surges, electric shock, lightning strikes, etc. Use
of surge protection systems is highly recom-
mended in order to protect and extend the life of
your equipment.
Safety And
Performance Notice
The transmission distances of HDMI over UTP
cables are measured using TE CONNECTIVITY
1427071-6
EIA/TIA-568-B termination (T568B) of cables is
recommended for optimal performance.
To minimize interference of the unshielded
twisted pairs in the CAT5e/6 cable do not run
the HDBaseT/Cat5e/6/6a cabling with or in close
parallel proximity to mains power cables.
Do not substitute or use any other power supply
other than the enclosed unit, or a ELAN approved
replacement.
Do not disassemble either the Transmitter or
Receiver units for any reason. Doing so will void
the manufacturer’s warranty.
Thank you for purchasing
this product.
For optimum performance and safety, please
read these instructions carefully before con-
necting, operating or adjusting this product.
Please keep this manual for future reference.
Contents
Introduction 03
Features 03
Panel Descriptions 04
Terminating HDBaseT CAT Cables 05
Understanding Receiver Status Lights 05
Infrared Distribuition 06
Application Diagram 07
Specifications 08
Package Contents 08
Maintenance 08
Certifications 09

03
contact [e-mail]
EL-4KHDBT-RX-40-IR USER MANUAL
The ELAN line of HDBaseT products offers market leading features at an
outstanding value. The EL-4KHDBT-RX-40-IR is an industry leading 4K
HDBaseT™ solution delivering HDMI with HDCP2.2 support, bi-directional IR and
PoH (PoE) up to lengths of 40m at 4K (70m at 1080p) over a single CAT cable.
Introduction
• Advanced HDBaseT technology offering uncompressed video and audio with zero latency
• Extends HDMI up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master
Audio transmission
• Bi-directional IR pass-through
• Supports bi-directional PoH (Power over HDBaseT™) to power Receiver from the Transmitter
• HDCP 2.2 compliant
Features:

EL-4KHDBT-RX-40-IR USER MANUAL
04 www.elanhomesystems.com
Panel Description EL-4KHDBT-RX-40-IR
1HDMI indicator
2HDMI output
3IR Receiver jack (Sensor input)
4IR Transmitter jack (Emitter output)
5Power indicator
6DC power input
7HDBaseT connection indicator
8HDBaseT input
HDMI Out
LINK POWER
IR RXIR TX12V
2A
EL-4KHDBT-RX-40-IR
HDBT In
LINK
HDMI Out
LINK POWER
IR RXIR TX12V
2A
EL-4KHDBT-RX-40-IR
HDBT In
LINK
1 2 3 4 5 6 7 8

05
EL-4KHDBT-RX-40-IR USER MANUAL
contact [e-mail]
Terminating HDBaseT CAT cable
It is important that the interconnecting CAT cable between the ELAN HDBaseT products is terminated using the correct RJ45 pin configuration. The
link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the T568B wiring standard as this format is less
prone to EMI (Electro-Magnetic Interference).
When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution products will only work if used
with CAT5e standard cable or above. ELAN recommends using a CAT6 cable for your installations, especially when running over longer distances,
in areas of high EMI, or for 4K signal distribution.
Understanding the Receiver signal status lights
The ELAN EL-4KHDBT-40-IR extender solution includes a status LED indicator on the Receiver product to show all connections are active and to
help diagnose possible problems.
Understanding the status lights:
Receiver:
• The HDMI signal link light will be off when there is no connection with a display/sink
• The HDMI link light will be on when there is an active connection with a display
• The HDBaseT link light will be off when there is no CAT cable/active HDBaseT connection on the RJ45 HDBaseT input
• The HDBaseT link light will blink if there is an unstable connection between the Transmitter/Matrix and Receiver
• The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter/Matrix and an active
connection is achieved with the Receiver.

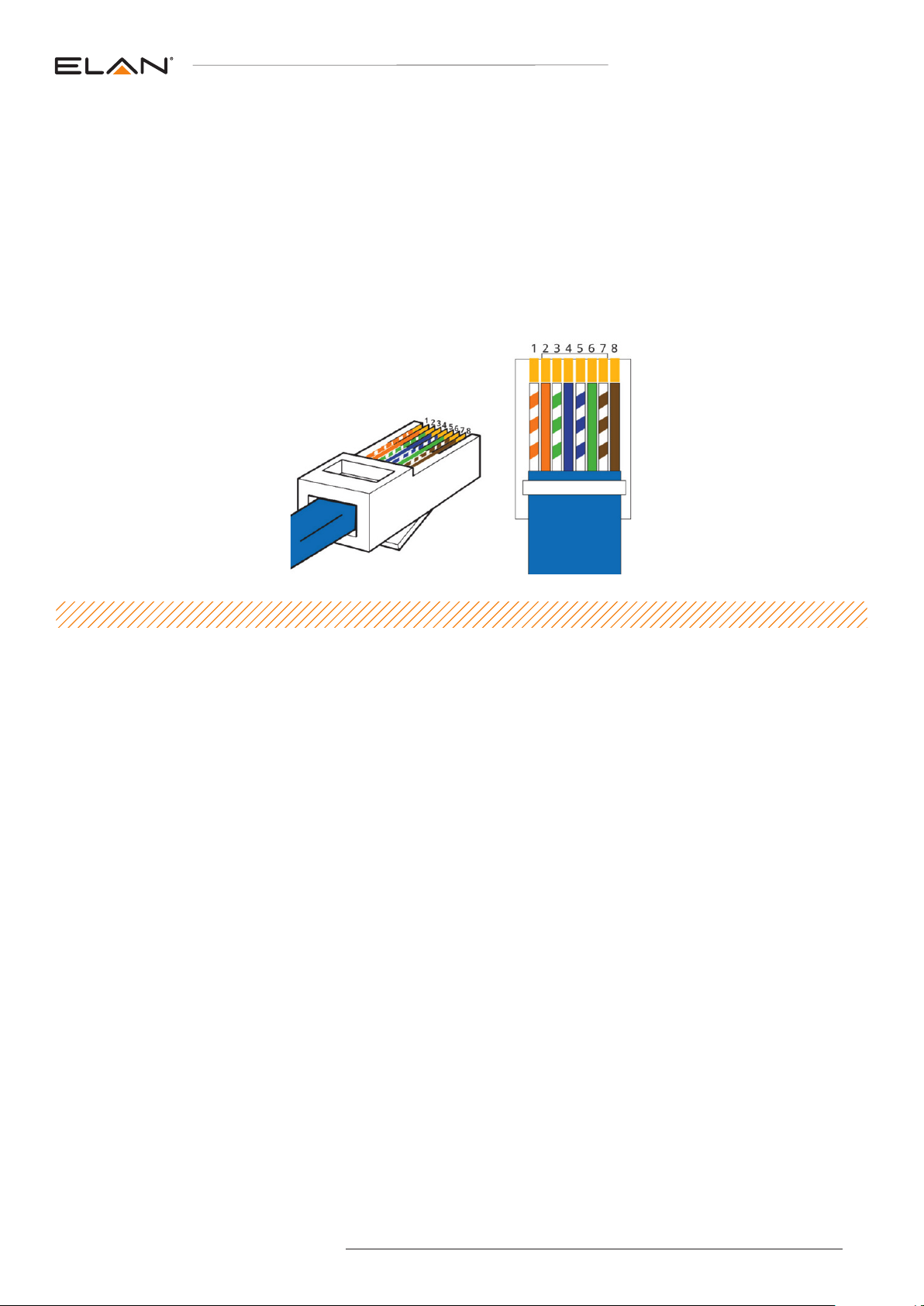

RJ45 Wiring -
T568B

EL-4KHDBT-RX-40-IR USER MANUAL
06 www.elanhomesystems.com
The ELAN range of HDBaseT products include multiple options for control and routing of IR.
IMPORTANT: The ELAN HDMI Platinum, Matrix, & HDBaseT product lines utilize a 5 volts to power an IR Receiver on the IR Input and
include an EL-4KACC-IR-CAB, 3.5mm Mono to 3.5mm Stereo 5v to 12v IR converter cable. This cable is required when using 12v IR
products from Xantech, Niles, and SpeakerCraft.
Each ELAN Matrix and HDBaseT extender kit is supplied with all necessary IR hardware required and includes:
Infrared Distribution
IR Control Cable - EL-4KACC-IR-CAB
ELAN IR Control cable 3.5mm Mono to 3.5mm Stereo for linking
third party IR Receivers to ELAN Platinum, Matrix, and HDBaseT
HDMI Series products.
Compatible with 12v IR third party products.
Note: Cable is directional as indicated
IR Receiver - Stereo 3.5mm
Signal
Power
Ground
Infrared 3.5mm Pin-Out
IR Emitter - Mono 3.5mm
Signal
Ground

07
contact [e-mail]
EL-4KHDBT-RX-40-IR USER MANUAL
Application Diagram EL-4KHDBT-TXRX-40-IR
70m max
1 SOURCE
DISPLAY
HDMI IR POH
A
B
C
A
C
B
EL-4KHDBT-TX-40-IR
Transmitter
EL-4KHDBT-RX-40-IR
Receiver
Cat 5/5e/6 HDMI IR Cable

EL-4KHDBT-RX-40-IR USER MANUAL
08 www.elanhomesystems.com
Specifications
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
EL-4KHDBT-RX-40-IR
Video input: 1x HDBaseT RJ45 connector
Video output: 1x HDMI Type A, female
IR input: 1x 3.5mm stereo jack
IR output: 1x 3.5mm mono jack
Mounting kit included
Dimensions excl connections (W x D x H): 110mm x 108mm x 27mm
Shipping weight (Kit): 0.4 kg
Power: 12V/2A DC, screw type connector
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Package Contents
EL-4KHDBT-RX-40-IR (when sold individually)
• 1 x EL-4KHDBT-RX-40-IR
• 1 x Mounting bracket set
• 1 x User manual

09
contact [e-mail]
EL-4KHDBT-RX-40-IR USER MANUAL
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION - changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
CANADA, AVIS D’INDUSTRY CANADA (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter
toute interférence, notamment les interférences qui peuvent affecter son fonctionnement.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and collection systems or contact the retailer where the
product was purchased. They can take this product for environmentally safe recycling.
Certifications

EL-4KHDBT-RX-40-IR USER MANUAL
10 www.elanhomesystems.com
Notes
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

11
contact [e-mail]
EL-4KHDBT-RX-40-IR USER MANUAL
Notes
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
