ElectrIQ IQ-Juicer PREMIUM User manual

1

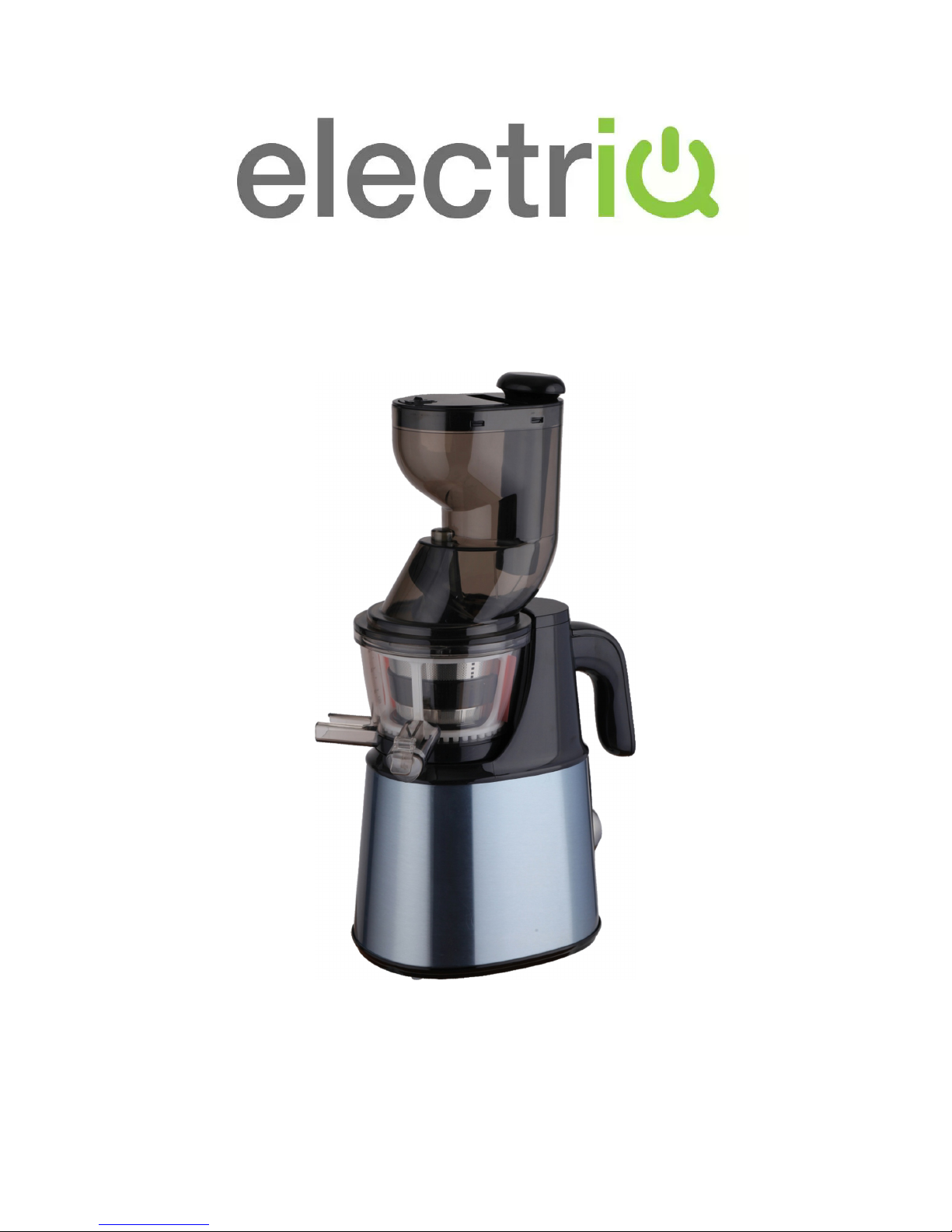

iQJuicer Premium Whole Fruit Slow Juicer
USER MANUAL
Thank you for choosing ElectriQ
Please read this user manual before using this slow juicer
and keep it safe for future reference.
isit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

2
Contents
Features 3
Safety Instructions 4
Package content and parts 5
Assembly and Operation 6
Fruits and egetables Nutrition Tables 13
Cleaning and Maintenance 16
Troubleshooting 19
Recipes 20

3
FEATURES
iQJuicer whole fruit slow juicer and smoothie maker
Whole fruits can be juiced without chopping
Cold press juicer with high juice extraction
Low gear speed at only 65 RPM
High juice yield and less waste
Fine and coarse juicing screens
Easy to clean with self-cleaning blade
Smart mixer system
Quiet and energy efficient
Easy to assemble and store
Healthier juice
Large juice and pulp containers
The iQJuicer extracts more juice, preserves nutrients, taste and colours while
producing healthier juice
ElectriQ slow masticating iQJuicer juices fruits, vegetables, grasses, leafy greens or
creates delicious nut milks with minimal effort.
Features a 150 watt energy powerful motor that spins at only 65 RPM ensuring
fruits and vegetables are mechanically pressed without adding friction heat,
preventing juice oxidation while retaining maximum nutrients.
ertical modern space saving design
Low noise due to slow pressing system
Includes as standard two juicing screens catering for smooth juice lovers or
pulp and fibre fanatics. Self-cleaning blade allows cleaning the unit between
juicing different ingredients without disassembly.
Smart juice mixer allowing to blend few fruits seamlessly
Super strong HD plastic auger and juicing screens
Crusher attachment squashes vegetables ready for soups or salads. Can also
create frozen desserts great as healthy alternative to ice cream
Note: Due to continuous product development, products may not exactly
correspond to the illustrations in this manual.

4
SAFETY INSTRUCTIONS
Important
• Carefully read the instructions before operating the unit
• This appliance is for indoor use only.
• Rating: This unit must be only connected to a 220-240 / 50 Hz earthed outlet. Always
check the rating label against your electrical supply.
• If you are in any doubt about the suitability of your electrical supply have it checked
and, if necessary, retested by a qualified electrician.
• This juicer has been tested and is safe to use. However, as with any electrical
appliances - use it with care.
• Disconnect the power plug from socket before dismantling, assembling or cleaning.
• Do not clean the unit by spraying it or immersing it in water.
• Never operate this appliance if the cord or plug is damaged. Ensure the power cord is
not stretched or exposed to sharp object/edges.
• Do not pull the mains cable to disconnect the mains plug from the mains.
• Do not use the appliance if any part or any accessory is damaged or defective.
• A damaged supply cord or plug should be replaced by the manufacturer or a qualified
electrician in order to avoid a hazard.
• Avoid touching any moving parts of the appliance.
• Never insert fingers, or any other objects apart from the food pusher though the
feeder
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities. It is also not intended for use by those with a lack of
experience and knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
• Do not leave children unsupervised with this appliance.
• Any service other than regular cleaning should be only performed by an authorized
service representative. Failure to comply could result in a voided warranty.
• Do not use the appliance for any other purposes than its intended use.
• Always place the unit on a dry and stable surface. Do not shake while is in use.
• Do not use the appliance in places with high humidity (>80%RH)
• Do not immerse the appliance in water or other liquids. If the appliance is immersed
in water or other liquids by mistake, do not touch the appliance with your hands. Immediately
remove the mains plug from the wall socket. If the appliance is immersed in water or other
liquids, discard it.
Unit Safety Protection an Performance Tips
• Make sure the unit is correctly assembled and the safety locks engaged
• Do not run the juicer empty
• When juicing take regular breaks to avoid motor overheating, do not run for more
than 20-25 minutes continuously
• Hard or fibrous fruits and vegetables must be sliced or chopped to prevent
overloading the motor.
• Always clean the juicer immediately after use.

5
PACKAGE CONTENTS
1x Cold Press Juicer with 2 juicing screens
1x User Manual
1x Juice Jug
1x Pulp Tank
1x Cleaning Brush
1 x Crusher attachment
Account for all parts before disposing packing. Safely dispose of all plastic bags and other
packaging components. They may be potentially dangerous to children.
Quick Reference Gui e
1. Feeding tube
2. Auger
3. Fine and coarse juicing screens
4. Self-cleaning blade
5. Juice collector
6. Juicer body
7. Pusher
8. Juice Jug
9. Pulp Collector
10. Cleaning brush
11. Crusher attachment
12. Pulp dispenser
13. Juice outlet
14. Smart juice mixer

6
Initial Use
Preparation
• Clean the appliance and accessories before first use
• Wash the juicing bowl, juicing screens, auger, pusher, juice cup and pulp cup
in warm soapy water with a soft cloth or nylon brush. Rinse and dry thoroughly.
Also refer to the section "Cleaning an maintenance"
Assembly an Operation
Before assembly or disassembly, switch off the appliance, remove the mains plug
from the wall socket and wait until the appliance has cooled down.
This appliance has a built-in safety lock; this feature ensures that you can only
switch on the appliance if you have assembled the juicer correctly on the motor
unit. When assembled correctly, the built-in safety lock will be unlocked.
Assembling the Juicer
Before you assemble the juicer, ensure that the power cord is unplugged.
1. Place the motor base on a flat dry surface such as a countertop.
2. Underneath the juice bowl is the pulp extraction silicon, which is used to
remove the pulp from the spout of the juicing bowl. Ensure that the silicon is
firmly inserted into the whole otherwise the juicer will not function properly.

7
1. While power is still disconnected place the juice collector
on the top of the motor base. Make sure the 3 holes at the
bottom of the collector are aligned than
rotate in a clockwise direction until it locks
into position
2. Install the smart mixer by clicking it on
the juice outlet
3. Select your favourite juicing screen and
insert it in the cleaning blade
4. Place the assembled parts into the juice
collector
5. Note that the triangle mark on the
juicing blade (strainer) needs to align with
the triangle mark on the juice
collector. Ensure that the strainer is
completely pushed down.
6. Place the Auger into the strainer.
Ensure that the Auger is in position
by pressing down on it, turning it and
feeling the auger clicks into place.
7. Place the assembled feeder/ body cover
onto the juice collector. Align the mark on the
cover with the mark on the juice collector
bowl and turn it clockwise to the locked
status. It should click into position as in the
pictures bellow.

8
8. Place the pulp cup so it fits in position on the left hand side
of the juicer’s main body. Place the juice jug under the juice
outlet. Slide the food pusher down the feeder. The pusher
can only fit one way. You are ready to juice now.
9. If using the unit as sala /soup/ essert maker assemble
the crusher as in the pictures on the right replacing the juice
collector with the crusher body. No juicing screen is used for
this.
IMPORTANT: If the Juice bowl and lid cover are not correctly
assembled, the juicer will not operate. This is a safety
feature. Please follow the step by step procedure above to
make sure the juicer operates correctly.
Using your Juicer
1. Clean fruit and vegetables thoroughly, ready for juicing.
2. If juicing fruit with stones or hard seeds, pit the fruit. Remove any
hard inedible skins, i.e. skin of melons, pineapples and mangoes prior to
juicing.
3. If citrus fruits are being used, remove the skin prior to juicing.
4. If pieces of fruit or vegetables are larger than the feeder mouth, chop
them to a size that will fit down the juicer’s feeder. Large carrots must be
cut in slim strips for best results.
5. Fibrous fruits or vegetables as pineapple, celery etc. must be cut in
small pieces. Remove pineapple core before juicing and mix with soft fruits
or apples.

9
6. Ensure the juicer is locked in position. Place the fruits or vegetables in
the feeder and close the top safety lid while juicing if you have children
around. Only allow children to place fruits or vegetables in the feeder if the
juicer is turn off from the mains.
7. Press the power switch to On (Forward) to
start juicing. OFF is middle position. Reverse (R)
needs to be continuously pressed to work.
8. Only use the pusher if needed and always
through the pusher hole and not via the large whole
fruit opening. Press the food pusher slowly down
until all fruit or vegetables have gone through the
juicer. Slim root vegetables, celery and leafs can be
fed via the pusher hole.
9. Do not press the food pusher rapidly as the juicer will not be as
effective.
10. The juice from the fruit and/or vegetables will flow
directly into the juice collector and the pulp will be
collected in the pulp bin.
11. Use the smart juice mixer to get the
best juice mixing results when using several
fruits. Do not forget to open the juicer mixer cap before the
juice collector bowl is almost full to avoid spillage.
12. If the juicer stops suddenly during the operation, return the button to
middle position, than after few seconds press reverse. This will detach and
push upwards the pulp trapped in-between auger and cleaning blade.
Repeat the operation 2-3 times until the juicer is working normal. Keep the
juicer top in place with your hand while doing this. If simple reverse does not
work, switch off from the power outlet, disassemble the unit and clean the
juice collecting bowl, strainer and cleaning blade and reassemble again as
per previous instructions.

10
13. When juicing is complete, ensure that the juicer’s control button is
set to the middle OFF position, the power is turned off at the outlet and the
juicer can be unplugged. It is now safe to disassemble the unit.
14. If the Juice collector is stuck and does not detach easily from the
base; plug in and press the reverse button “R” for 3-5 seconds. Repeat this
process 2-3 times. Then turn anti-clockwise gently and push the bowl
upward while turning.
15. This juicer is equipped with a self-cleaning blade that insures long
continuous juicing operation.
CAUTION: do not put your hand or any other object in
the feeder or pushing hole during operation or use.
Keep the safety lid closed if the device if plugged on
even not in use.
Disassemble your juicer
Ensure the juicer is turned off and the power cord is unplugged from the power
outlet. Reverse the assembly operation.
1. Remove the juice feeder by turning it to the open position
(anti-clockwise).
2. Feeder body will click out of the locked position and can be
displaced
3. Remove the assembled juicing screen and
self-cleaning blade from the juice collector
4. Turn the juice collector anti-clockwise (1)
5. Remove the juice collector (2)
Note:
The juice collector, auger, strainer (juicing screen) and
self-cleaning blade can be also all removed together.
Grip the juice bowl and turn it to the open position
(anti-clockwise) slightly, it will click out of position. The
juicing bowl and all the internals can now be lifted off
the motor base for cleaning. Disassemble as per figure.
