ElectrIQ eiQ-R900M User manual

1
eiQ-R900M Antibacterial
Vacuum Cleaner and Floor Mopping Robot
with self-charging home dock
USER MANUAL
Thank you for choosing ElectriQ
Please read this user manual before using this robotic vacuum cleaner
and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

2
CONTENTS
1. FEATURES 3
2. SAFETY INSTRUCTIONS 3
3. PARTS AND ASSEMBLY 5
4. FUNCTIONS 7
5. FEATURES AND CLEANING MODES 8
6. BATTERY INSTALLATION AND CHARGING 9
7. ZONE DIVIDER 11
8. CONTROL PANEL 13
9. SCHEDULING 16
10. CLEANING AND MAINTENANCE 17
11. MOP ASSEMBLY 19
12．TROUBLESHOOTING 21

3
FEATURES
ElectriQ brings you an easy to use robot vacuum cleaner that works both on hard
floor surfaces and carpets and also can be used for wet light mopping operations.
This is not just sweeper but a real vacuum cleaner with powerful suction and the
latest dual side brush system.
You can now enjoy your personal time while the robot will clean for you.
Slim profile at only 7.9 cm height and 33 cm diameter this time saving device will get
in hard to reach places, including under furniture where other robots or vacuum
cleaners will fail to operate.
Simple operation with touch controls and adjustable cleaning timer also features and
advanced remote control.
Easy to use due to automated cleaning pattern, your robot benefits from an
advanced cleaning algorithm that ensure that maximum effective cleaning is
achieved with minimum iterations. There are five advanced programs in operation
that will advance from spot cleaning, identifying the walls, pattern cleaning, around
the wall cleaning, systematic inline cleaning and even an under bed / sofa program.
According to the set timer the programs will be intelligently combined for maximum
cleaning efficiency.
Two extra-long side brushes around the outer edges ensure that dirt is gathered even
from corners and borders. The middle suction vacuum will ensure dirt and debris are
efficiently collected.
This robot features smart ultrasonic navigation sensors ensuring large 200 degrees
beam in front of the robot to avoid collision ensuring it stops before bumping into
objects. There are also cliff sensors that will stop the robot from failing of any steps.
Great on hard floor and low and medium pile carpet will transition most of the hard
floor / carpets setups. Easy to empty bagless side loading sealed dust container.
This antibacterial robot features an easy to clean HEPA filter and UV sterilisation that
will improve air quality in your household during the cleaning operation.
SAFETY INSTRUCTIONS
Important
•Carefully read the instructions before operating the unit. Please retain the
manual for future reference
•This appliance is for indoor use only.
•Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.
Always check the rating label against your electrical supply.
•If you are in any doubt about the suitability of your electrical supply have it
checked and, if necessary, retested by a qualified electrician.
•This robotic vacuum cleaner been tested and is safe to use. However, as with any
electrical appliances - use it with care.
•Disconnect the power plug from unit before dismantling, assembling or cleaning.
•Do not clean the unit by spraying it or immersing it in water.

4
•Never operate this appliance if the cord or power supply is damaged. Ensure the
power cord is not stretched or exposed to sharp object / edges.
•Do not use the appliance if any part or any accessory is damaged or defective.
•A damaged power supply should be replaced only with original parts from the
manufacturer.
•Avoid touching any moving parts of the appliance.
•Never insert fingers, or any other objects while machine is in operation.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities. It is also not intended for use by
those with a lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person
responsible for their safety.
•Do not leave children or animals unsupervised with this appliance.
•Only use original battery or charger from manufacturer, any third party
components may damage the unit.
•Any service other than regular cleaning should be only performed by an
authorized service representative. Failure to comply could result in a voided
warranty.
•Do not use the appliance for any other purposes than its intended use.
•Do not use the appliance in places with high humidity (>80%RH)
•Do not immerse the robot in water or other liquids. If the robot is immersed in
water or other liquids by mistake, do not touch it with your hands. If the appliance is
immersed in water or other liquids, discard it. Do not use if you spilled liquids on the
floor.
•Do not use to clean printer tonner spilled on the floor as this could cause fire.
•Before using the robot cleaner, remove any fragile objects from the floor e.g.
glasses, bottles, candles, lamps. Also removes any sharp metals, needles, nails, sharp
glass pieces or any other objects that could block or damage the roobt
•Do not place any object on the top of the robotic cleaner
•Do not leave any fragile objects on the side of the tables, cabinets etc where the
robot could bump into and cause them to fall.
Unit Safety Protection and Performance Tips
•Make sure unit is assembled correctly before use
•Charge for 24 hours before operating first time. If not using the robot for a long
time please fully charge and remove the battery
•Clean robot and brushes regularly. Empty and vacuum the dust container
•If the robot become entangled, remove brushes, clean the debris and
reassemble
•Do not look into the UV lamp or touch its bulb

5

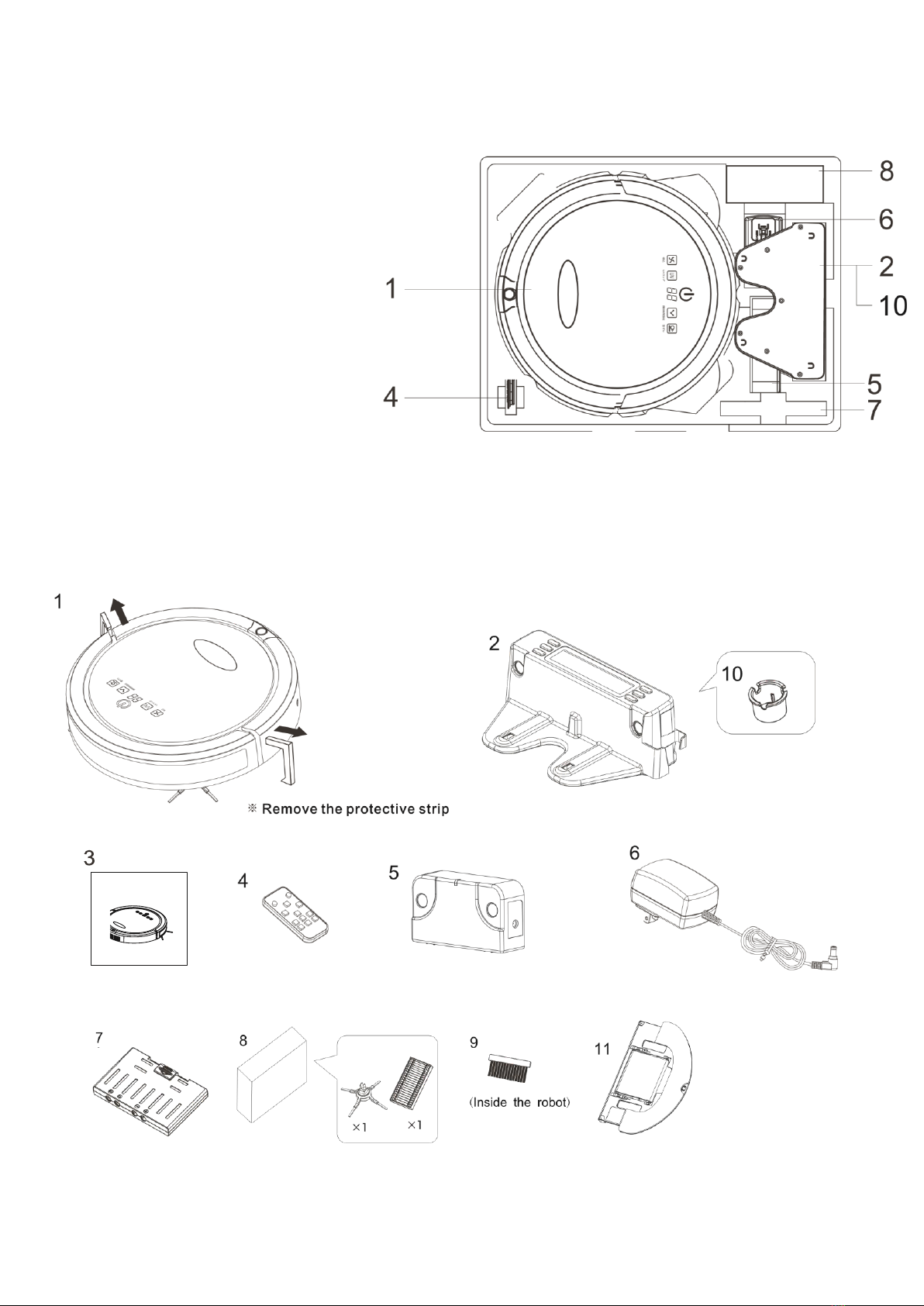

Parts
1.The Robot
2. Charging dock
3. User Manual
4. Remote Control
5. Zone divider
6.Power supply adaptor
7. Battery
8. Spare parts box
9. Cleaning brush
10. Hair Removal Tool (inside the dock)
11.Wet Mopping Base
Assembly

6
Functions

7
Features & Cleaning Modes
Robotic Features
1. Scheduler / Recharging Home Dock —Auto cleaning with scheduler &
auto recharge when low on battery.
2. Ultrasonic navigation with obstacle detection
3. Ultrasonic collision detection
4. Anti-falling cliff detection sensor
5. Ultrasonic dirt / dust sensors —when is dirty area is detected, the
robot will perform detail cleaning using spiral mode
6. Ultrasonic zone divider —can be use if needed to limit the access of
the robotic vacuum cleaner in certain areas.
7. Remote
Cleaning Features
1. Side brushes and powerful suction inlet —powerful suction and full
coverage of cleaning.
2. Floating Roller Brush —allows the roller brush and suction to stay
close to the ground, covers all the dead spot while having full suction
power.
3. Debris Filter & HEPA Filter —Debris filter holds normal debris and
extends HEPA filter life span. High efficiency particulate air filter traps
the fine particles which trigger allergy and asthma symptoms. Together
with the UV light improves the quality of indoor air

8
4. Mop Track —fully use every part of the mop instead of just the edge
of the mop
5. UV Light —sterilises the floor, exterminating bacteria and mites.
6. Wet Mopping Base —uses wet mop with mop track and reservoir first
then is finished using the dry mop
Cleaning Modes
1. Auto Mode
Once the robot is activated without specific cleaning instructions, it will
automatically execute the auto function by repeating the five different
modes. The combination of different cleaning patterns will ensure the
robot finishes the cleaning of any given space or area.
2. Manual Mode
Users can manually instruct the robot to perform any specific cleaning
patterns depending on different spaces to be cleaned.

9
Notes:
1. The robot is suitable for hard floor and low to medium pile carpet.
2. This robot is not suitable for very uneven surface. Do not use in long pile/tick
carpet. Fold carpet fringes under the carpet before starting operation
3. Please note that this robot will collect dust and small particles. It will not
clean paper, plastic bags and other large debris. It will get entangled in wires,
so please declutter floor surfaces before using
4. Do not leave bottles, lamps or other breakables on the floor
5. Do not use in tight spaces less than 38 cm wide as the robot may get blocked
6. Do not use on wet or greasy dust.
Battery installation and charging
The robot battery is user replaceable. If the battery stops keeping its hold please
re-order replacement from the manufacturer or service centre.

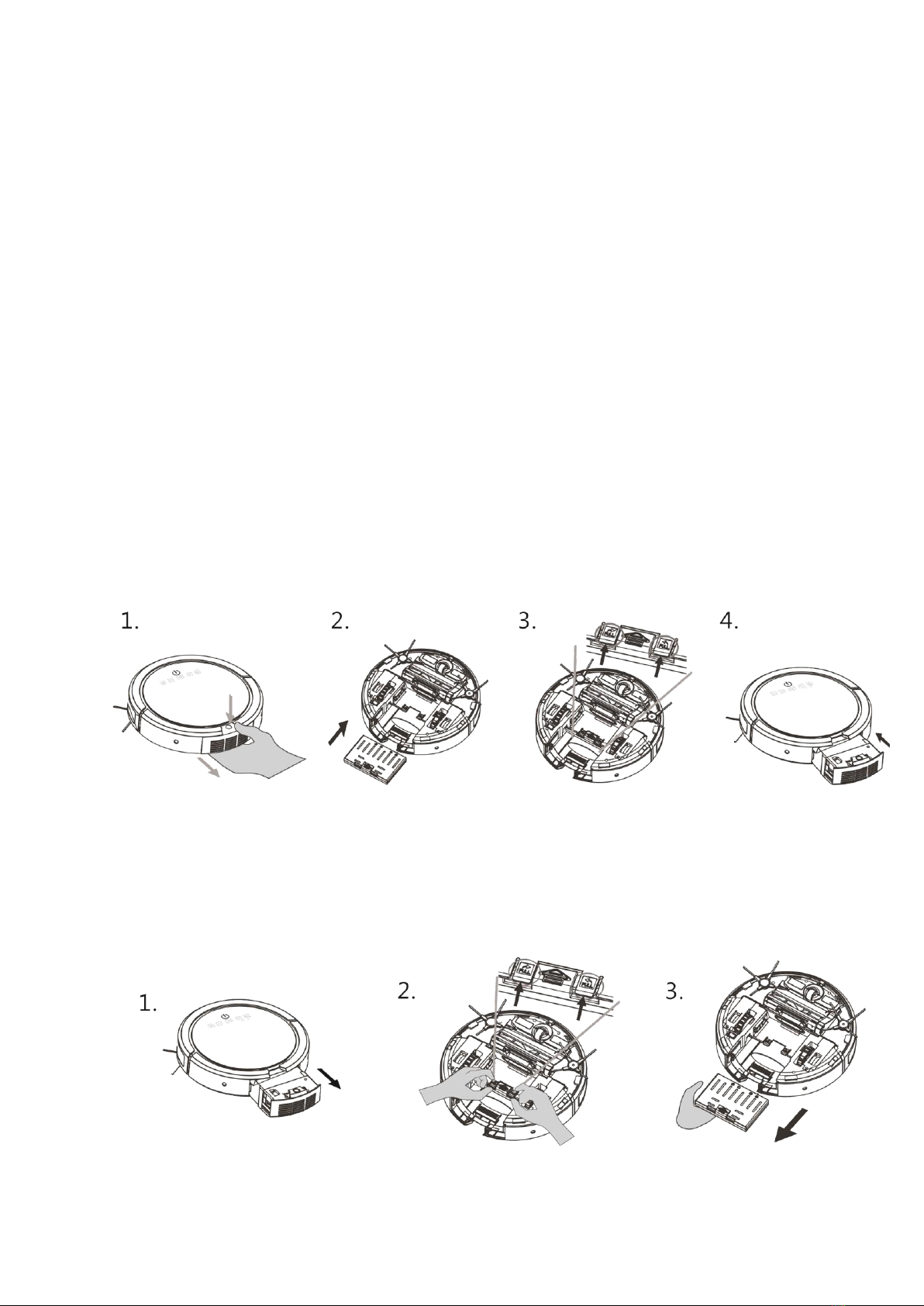

Battery Installation
1. When fully charged plug out the charger and power cord. An alarm sound will play.
2. Push the dust-bin release button and pull out the dust-bin. Flip the robot over, and
push the battery into the slot.
3. Push the battery until clicks in.
4. Flip the robot over again, and insert the dust bin back into the body if the robot.
Battery Removal
1. Remove the dust-bin first and flip the robot over.
2. Push the two battery hook buttons simultaneously. The battery will pop out
automatically.
3. Remove the battery

10
Charging
If the robot shuts down while working or the battery indicator flashes, please charge
the robot immediately. When the robot completes its cleaning cycle or the battery
level is low, the robot will return to its dock automatically if there is enough power
left to do this.
1. Plug the charger in the power outlet. Insert the power cable into the docking
station and place the robot to charge
2. The power plug can be inserted on the side of the robot. If the battery indicator
flashes, it means the robot is charging normally.
Dock
The charging dock must be positioned on an even floor
surface against a wall with at least a 60 cm (2 ft)
clearance around. Connect the AC adaptor to the
power socket on the rear side of the dock or robot.
Only use the AC adaptor provided by the
manufacturer.
The LCD display on the charging dock will turn on
when it is plugged in. Always keep the dock plugged in.
Docking Test
Leave the robot on the floor somewhere near the dock. Press the "Home" button on
the remote control. The robot will return to the dock automatically.
If the robot fails to dock, check the installation process to make the necessary
adjustments to the docking station until the robot can dock properly.
Robot Battery Recharge
When the Power Button on the robot blinks red, this indicates that the battery level
is low. The robot will shut down the vacuum engine and go back to the recharging
home dock. The AC adaptor can plug into the robot directly to recharge the battery.
When the battery is fully recharged, the Power Button will light up a solid blue.The
recharging process is about 3 hours.
Robot Battery Care
High capacity rechargeable batteries are used in this robot. The batteries can last for
hundreds of recharging cycles if it is properly cared for.
Recharge the battery as soon as the robot is used. Keep the robot charged when not
in use.
If the robot will not be used for a longer period of time, remove the battery from the
robot and store it in a cool and dry place.

11
Notes:
1. Charge the robot for at least 24 hours before the first use.
2. Each time the robot is fully depleted charge for at least 3 hours.
3. Never use the robot in temperatures less than 0℃or over 40℃ as this will
reduce the battery life and performance.
4. It is normal for the temperature of the charger to increase during the charging
process
Notes: All the settings are disabled while battery is charging. LCD screen will be on
and the timer and the battery icon is flashing and the charged percentage is showing.

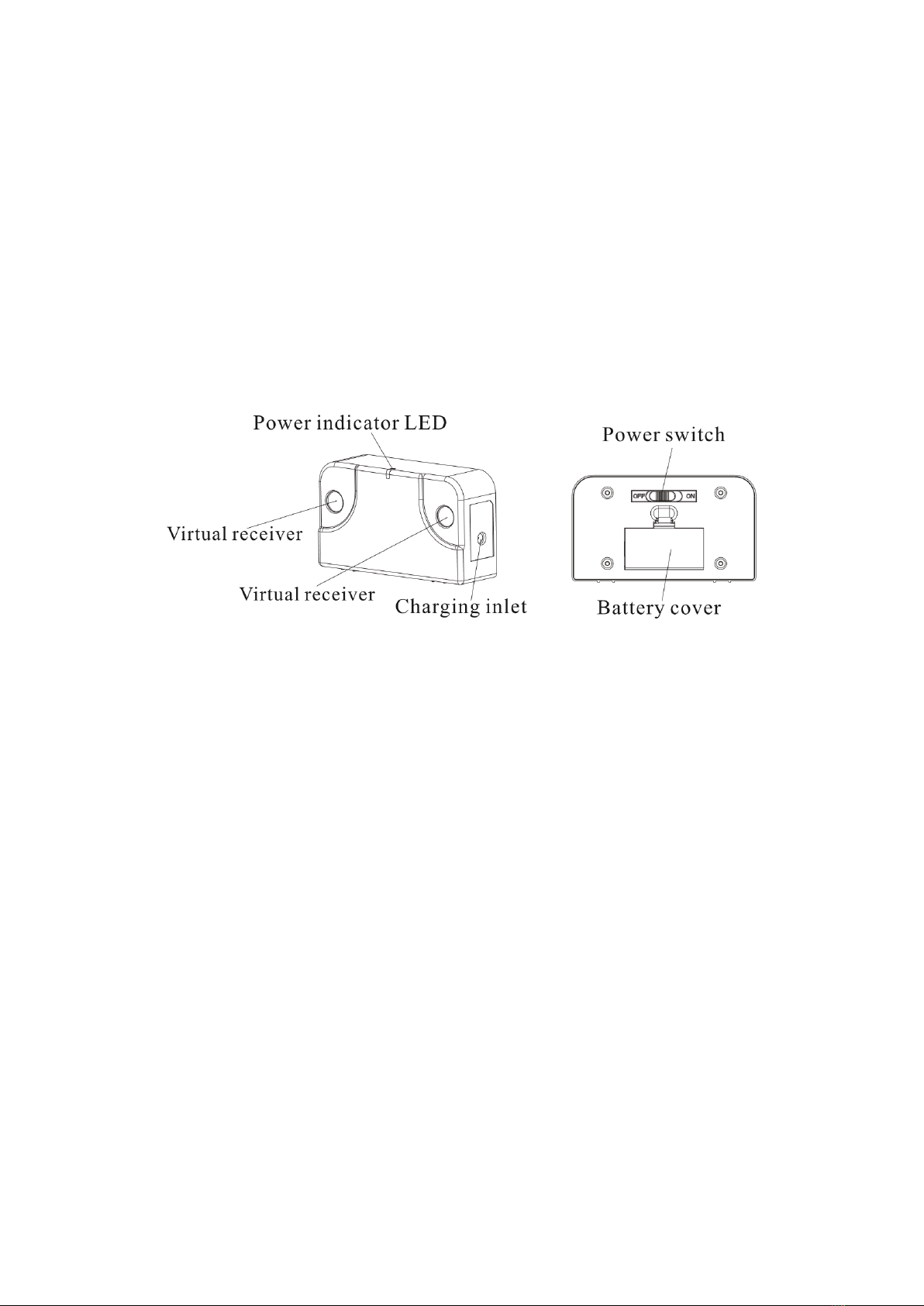

Zone divider
The zone divider creates an invisible ultrasonic barrier that eiq-R900M will not cross.
1. The zone divider is powered by 2 AA batteries. Make sure to install the AA
batteries with correct polarity.
2. To turn on the zone divider, slide the power switch to “ON” position.
3. When turned on, the blue LED light blinks for 70 seconds, then turns into
standby mode. When eiq-R900M starts working, the Virtual Wall will turn on and
shows blue LED light.
4. The best effective distance of Virtual Wall barrier is about 3M (10 ft).
5. The LED light will blink when the Virtual Wall is low on battery.

12
You can charge the zone divider battery by plugging the zone divider into charging
base, please see the figure above.
Step 1: The power switch of Virtual Wall must set to "ON" position. Step 2: Press and
slide out the DC Plug from charging dock.
Step 3: Plug the DC Plug into DC Inlet, the LED light will blink. Step 4: When recharge
is complete, LED will glow continuously.
6. When eiq-RM900M is cleaning, the zone divider must position at least 1m (3 ft)
away from charging dock and avoid facing towards it.
7. When the robot completes the cleaning cycle you can power off the zone divider
by sliding the power switch to "OFF" position. When the robot detects the invisible
barrier, it will turn around and move to another direction.

13
Spinning side brushes
Installation: Insert each side brush into the socket.
Press it firmly until it is properly locked.
Removal: Pull the side brush from the bottom.
Rolling Brush
Installation: Insert the rolling brush, then press
the “Push” button and close the cover.
Removal: Removal: Press the “Pull“ button, then
pull out the rolling brush.
Control Panel
Power Button:
Press the Power Button to activate the robot. The button will light up blue.
The power button light indicates the status of the robot and its system.
Power Button Light
System Status
Red led blinking
Battery Level is low
Blue led blinking
The battery is recharging
Solid Blue
The battery is fully recharged

14
1. Start/Stop Button:
Press this button and it will light up blue. The robot is activated to
perform the cleaning cycle. Press the button again to stop the cleaning
cycle.
2. Timer
Different cleaning time Settings options are available. Users may use their
remote control to enter specific cleaning time settings (e.g. 10 mins, 20
mins, 30 mins …80mins etc.) the selected setting will be shown on the
display. When the robot is activated the default cleaning time setting is
the last previous time set.
3. Display of Timer/Cleaning Mode
There areseveral patternsthatthe robot usesduringthecleaning process.
1. Spot Spiral
2. Special Bounce
3. Wall Following
4. Zig-zag
5. PolygonalSpiral
A. Automatic (thecombination of patterns 1-5)
The user may use their remote control to select a specific cleaning
pattern.The number or letter “A” will be shown on the display.
When the robot starts to return to the charging dock, the letter "H" will be
shown on the display.
Users may also interrupt the cleaning cycle by pressing the "Home" button on
the remote control. When the command is entered, the robot will stop
cleaning and go back to the dock.
4. Soft-touch
When this function is activated, the robot will slow down its moving speed in order
not to collide with any objects when cleaning. This function is ideal on cluttered
spaces.
5. Vacuum motor
The robot cannot perform the cleaning process without the activation of the vacuum
motor function.

15
6. UV Light
UV light can be activated to sterilize the floor surface.
REMOTE CONTROL
All function buttons on the robot's front panel are available on the remote control.
There are some additional unique buttons on the remote control shown below.
Power Button Press this button to activate or to shut down the robot.
Start/Stop Button Press this button to activate the robot to perform or to stop the
cleaning process.
Direction Buttons Left/ Right/ Reverse/ Forward buttons for users to control the
robot movement manually.
Timer Buttons set up the cleaning time.
Home Button this function interrupts the cleaning cycle and to commands the robot
to go back to the home dock
Mode Button manually sets up the cleaning mode of the robot. Each press will
command the robot to change its cleaning mode in the sequence of the following
patterns. Users may also find the current pattern code on the robot’s display panel.
1: Spot Spiral 2: Special Bounce 3: Wall Following 4: Zig-zag
5: Polygonal Spiral 6: Automatic (the combination of patterns 1-5)
UV Button press this button to activate or to shut down the UV light.
VAC Button press this button to activate or to shut down the vacuuming motor.
Soft-touch Button press this button to activate or to shut down the function.
1. Before the robot starts cleaning, it is suggested to clean up small items, like clothing,
power cords, cables, and loose fringes of rugs
2. Check if the dust-bin is full and empty it out before starting the cleaning cycle
3. Press the Power Button to activate the robot
4. Use the remote control to set up the preferred cleaning time or cleaning cycle. The
robot can clean a 6 to 8 square meters area in 10 minutes. However this ratio varies
depending on types of floors and the complexity of the space.
5. Users may interrupt the robot’s cleaning cycle at any time by pressing the Start/Stop
button either on the robot panel or the remote control. By pressing the button again,
the robot will resume the previous cleaning cycle.

16
Scheduling the robot
Users may program the robot to perform the cleaning cycle on any preferred day and
time. This scheduling function is built—into the dock with the LCD display and
several setting buttons. In order to perform this function, the docking station needs
to be plugged in at all times.
Setting your local time
1. Press the button “Time” first. The LCD display will show “Time Setting”.
2. Press the “Week” button to choose the correct weekday.
3. Once the chosen weekday appears on the display, press the button again.
4. Follow the previous steps to complete the settings of “Hour” and “Min”.
Scheduling the robot
1. Press the "Schedule" button first. The LCD display will show “Scheduler”.
2. Press the "Week" button. The LCD display will show "Mo" (Monday) blinking.
3. If Monday is the chosen day, press the "Week" button again. Then Monday will
be programmed in.
4. The setting function will automatically change to the next following weekday
every 8 seconds. Press "Week" when the chosen day appears on the LCD display to
complete the settings.
5. Follow the previous steps until you have finished all cleaning day settings.
6. Press the "Hour" button to complete the hour setting.
7. Press the "Min" button to complete the minute setting.
8. The schedule setting function will automatically quit if there is no input for more
than 60 seconds.
9. When all settings are finished, the selected cleaning date and time will be shown
on the LCD display.
10. After 10 seconds, the LCD display will go back to the clock display mode. Local
current time will be shown on the display.
11. The selected cleaning date will remain on the LCD display while the selected time
is NOT.

17
12. To check the programmed cleaning time, press and hold the “Schedule” button.
13. For changing or deleting the set schedule, repeat the previous setting process.
Auto Start
When the robot is docked and recharging.
1. Press the "Start" button. The LCD display will show "AUTO". The robot will start
one cleaning cycle as soon as the battery is fully charged.
2. Press the "Start" button and hold it for 3 seconds. The robot will stop its
recharging process and leave the dock immediately for one cleaning cycle
Cleaning and Maintenance
1. Make sure the unit is unplugged before performing any cleaning operation.
2. Before first use and continuing after each use, wipe off unit with a damp
cloth and dry thoroughly.
3. Clean all the brushes and empty the rubbish container. Vacuum or wipe with
a cleaning wipe the inside of the container.
4. DO NOT immerse the robot or the power supply in any liquid.
5. Reassemble the unit following the instructions and charge it before the next
use.
6. Store the robot in a cool and dry place.
Dust bin and filter cleaning
Basic Cleaning
1. Press the Dust Bin Release Button to remove the dust-bin.
2. Press the side button to release the dust compartment.
3. Remove the debris filter.
4. Empty all dust and shake off all debris.
5. Remove the dust filter.
6. Use the included brush to wipe out the dust filter and debris filter.

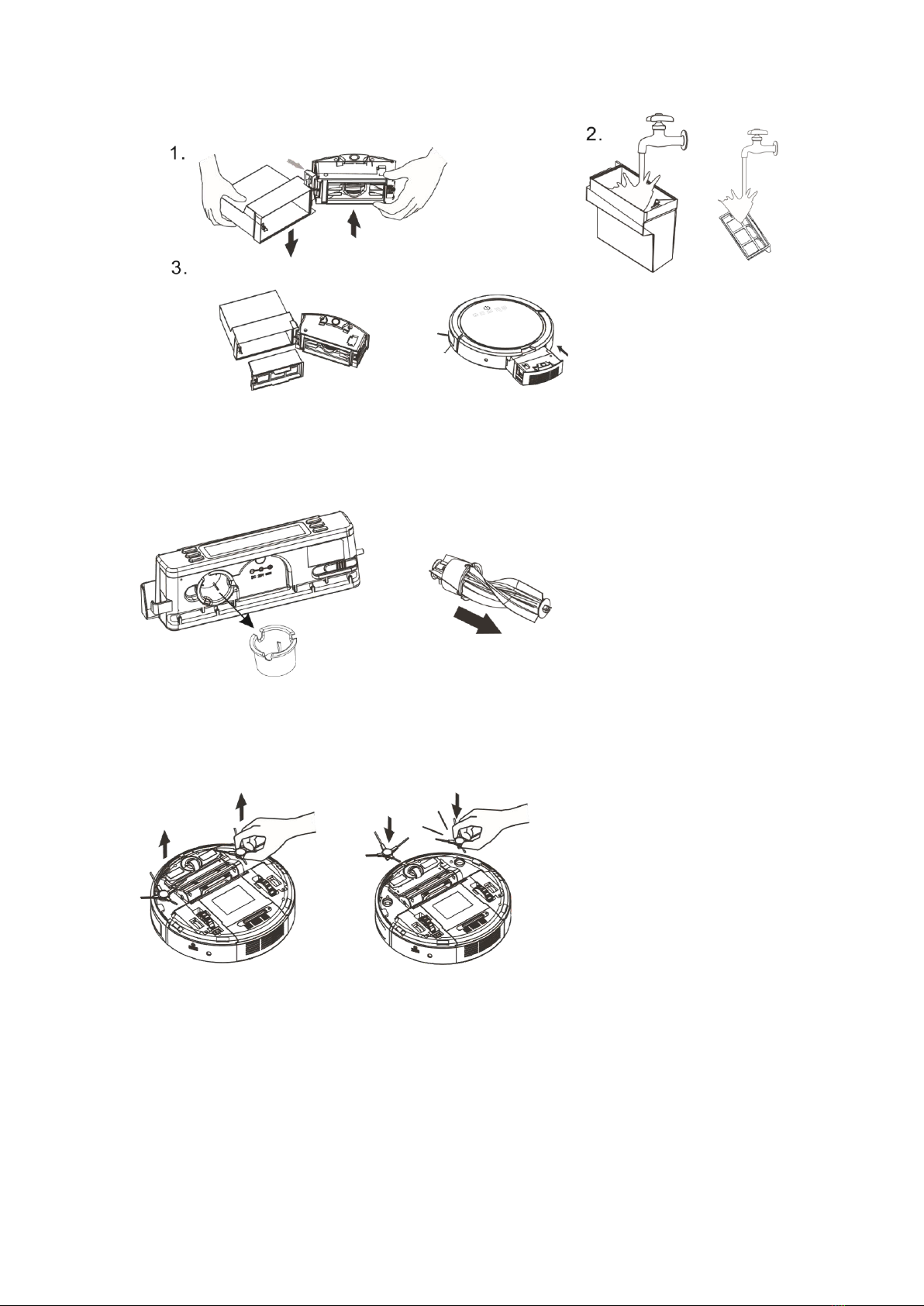

Deep Cleaning
1. Carefully separate the dust compartment from the robot body.
2. Gently wash the dust compartment and debris filter.
3. Wipe them thoroughly with a cloth and let it rest until completely dry

18
Rolling brush
1. Remove the Rolling Brush from its holder
2. Take out the cleaning tool included on the rear side of the dock
3. Slide the cleaning tool through the rolling brush
Side brushes
1. Remove the side brushes from their holders
2. Clean the side brush and install them back
Wheels and Sensor
1. Check and remove all debris and dirt
2. There are four ground sensors. Please clean them gently using a wet cloth or
tissue. Do not use any solvents as they may damage the sensors.
3. Please check the side brushes for damages and debris. If hair or other debris are
trapped please unclick the brushes and remove them. Please change the side brushes
if they are damaged. Only use the parts provided by the manufacturer.

19

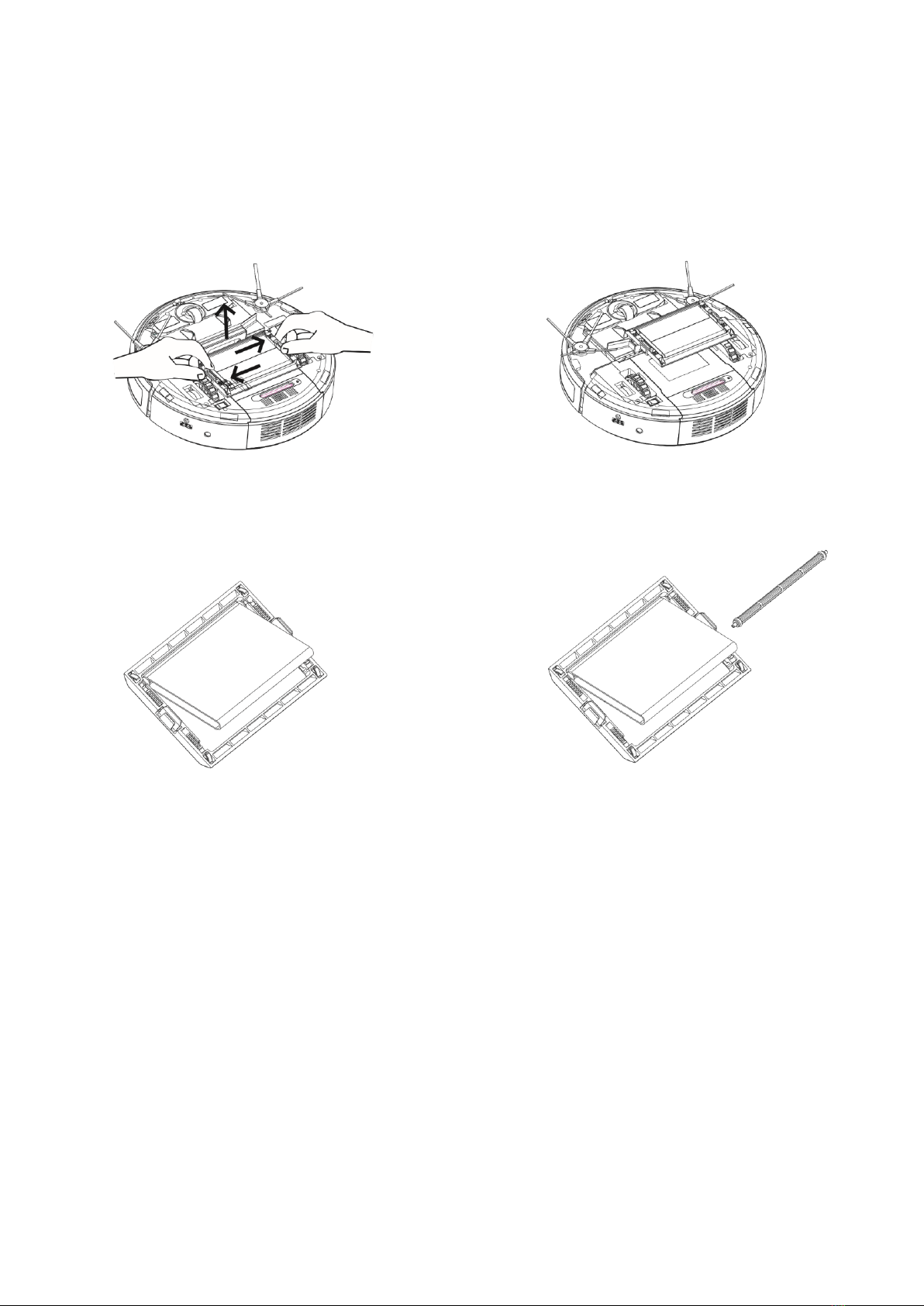

Mop assembly
Only use the mop on hard surfaces such a wooden, laminate or tiled floors. Remove
the mop attachment when cleaning carpets. Mop clothes are washable. Please wash
at 40⁰C and do not spin dry.
Using 2 hands push and lift in the same time.
Mop set has an arrow mark, follow its direction
REPLACE THE MOP
Remove the mop set
Push the two springs to take off the mop
Pull out the roller

20
