ElectrIQ iQLEAN-LR01 User manual

USER MANUAL
Robot Vacuum Cleaner
iQLEAN-LR01
Thank you for choosing your electriQ robot vacuum cleaner.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.

2
CONTENTS
SAFETY
3
PARTS LIST
5
PRODUCT OVERVIEW
6
INITIAL SETUP
8
OPERATION
11
APP CONTROL
13
CLEANING AND MAINTENANCE
18
TROUBLESHOOTING
22
TECHNICAL SPECIFICATIONS
23
SUPPORT
23

3
SAFETY PRECAUTIONS
IMPORTANT
•Carefully read the instructions before operating the unit. Please retain
the manual for future reference.
•This appliance is for indoor use only.
•Rating: This unit must be only connected to a 220-230 V earthed
outlet.
•Always check the rating label against your electrical supply.
•If you are in any doubt about the suitability of your electrical supply
have it checked and, if necessary, retested by a qualified electrician.
•This robotic vacuum cleaner been tested and is safe to use. However,
as with any electrical appliance - use it with care.
•Disconnect the power plug from unit before dismantling, assembling or
cleaning.
•Do not clean the unit by spraying it or immersing it in water.
•Never operate this appliance if the cord or power supply is damaged.
Ensure the power cord is not stretched or exposed to sharp objects /
edges.
•Do not use the appliance if any part or any accessory is damaged or
defective.
•A damaged power supply should be replaced only with original parts
from the manufacturer.
•Avoid touching any moving parts of the appliance.
•Never insert fingers, or any other objects while machine is in
operation.
•This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities. It is also not
intended for use by those with a lack of experience and knowledge,
unless they have been given supervision or instruction concerning the
use of the appliance by a person responsible for their safety.
•Do not leave children or animals unsupervised with this appliance.
•Only use the original battery or charger from the manufacturer, any
third-party components may damage the unit.
•Any service other than regular cleaning should only be performed by
an authorised service representative. Failure to comply could result in
a voided warranty.
•Do not use the appliance for any purpose other than its intended use.
•Do not use the appliance in places with high humidity (>80%RH).
•Do not immerse the robot in water or other liquids. If the robot is
immersed in water or other liquids by mistake, do not touch it with your
hands. If the appliance is immersed in water or other liquids, discard it.
•Do not use if you spilled liquids on the floor.

4
•Do not use in an environment where there is a risk of fire or explosion.
•Do not use to clean printer toner spilled on the floor as this could
cause fire.
•Before using the robot cleaner, remove any fragile objects from the
floor e.g. glasses, bottles, candles, lamps. Also removes any sharp
metals, needles, nails, sharp glass pieces or any other objects that
could block or damage the robot.
•Do not place any object on the top of the robotic cleaner.
•Do not leave any fragile objects on the side of the tables, cabinets etc
where the robot could bump into and cause them to fall.
•Before operating the robot, ensure that there are no obstructions
which could cause the robot to become trapped or jammed.
Unit Safety Protection and Performance Tips
•Make sure unit is assembled correctly before use.
•Charge for 24 hours before operating for the first time. If not using the
robot for a long time please fully charge and remove the battery.
•Always use the battery charger provided.
•Clean the robot and brushes regularly. Empty and vacuum the dust
container.
•If the robot become entangled, remove brushes, clean the debris and
reassemble.
•Do not look directly into the UV lamp or touch its bulb.
FEATURES OF YOUR ROBOT VACUUM CLEANER
•Four smart cleaning modes designed to suit your different cleaning needs. They
can be controlled by the remote control and through the app.
•Great cleaning efficiency and power saving.
•Charging base both recharges the vacuum’s battery and unloads the robot’s
dust into its own dust box for ease of emptying.
•User-friendly design –Press the Control Button to start cleaning, follow the
Voice Prompt to get the robot working for you.
•Dust box and pre-filter can simply be rinsed under the tap.

5
PARTS LIST
Please familiarise yourself with this list before commencing operation.
Host
Dust Box
Cover
Dust Box
Remote Control
Mains Adapter
Charging Base
Side brushes
HEPA Filter
Mop
Cleaning brush

6
PRODUCT OVERVIEW
Your robot vacuum cleaner is designed for cleaning homes, small offices and other small
rooms. It provides excellent cleaning for a variety of floor types including:
•Wooden floors
•Tiled floors
•Stone floors
•Short-pile carpets (less than 1.5cm deep)
Laser Head
Pressure Sensor
Laser
Ranging Sensor
Dust Box Release
Power Switch
Charging Socket
Go Home
Start/Pause
Wi-Fi Indicator
Bumper Sensor
sensor
Wall Sensor
TOP
Ground Sensor
Left Side Brush
Right Side Brush
Left Wheel
Right Wheel
Dust Box
BOTTOM
Charge
Terminals
Universal
Wheel
Battery
Roller Brush
Assembly

7
DUST BOX
CHARGING STATION
WATER TANK
HEPA Filter
Primary Filter
Filter retaining
clip
HEPA Filter Cover
Dust Box Side Cover
Electrical contacts
Signal Indicator
DC socket
Charging Contacts
Water Filler Cap
Mop

8
INITIAL SET UP

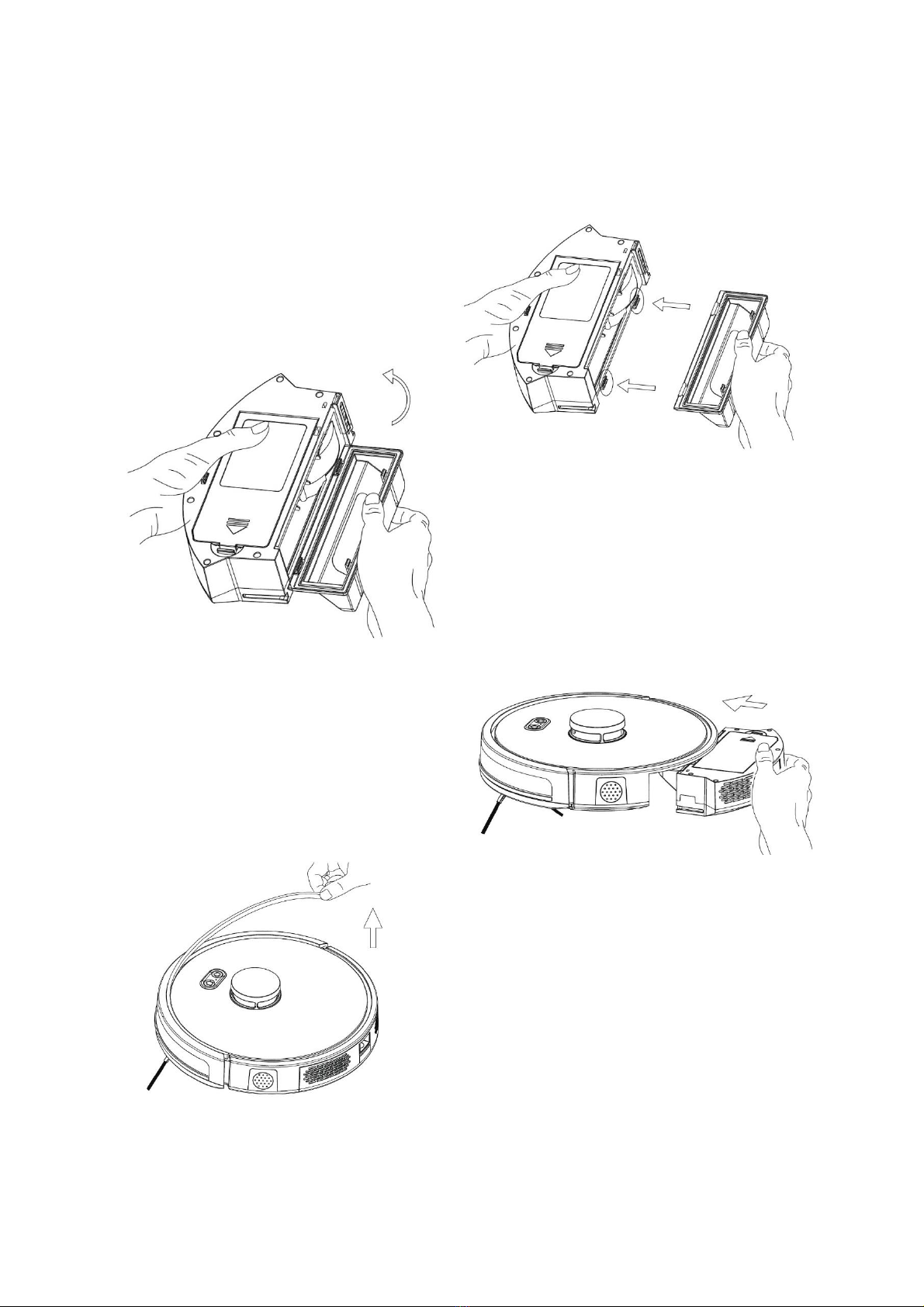

DUST BOX ASSEMBLY
1. Assemble the dust box side
cover. Press the side cover
firmly into position as shown
above.
2. Close the dust box side cover: pivot the
cover as shown by the arrow opposite.
3. Insert the dust box
Finally, remove the protective bumper strip.

9

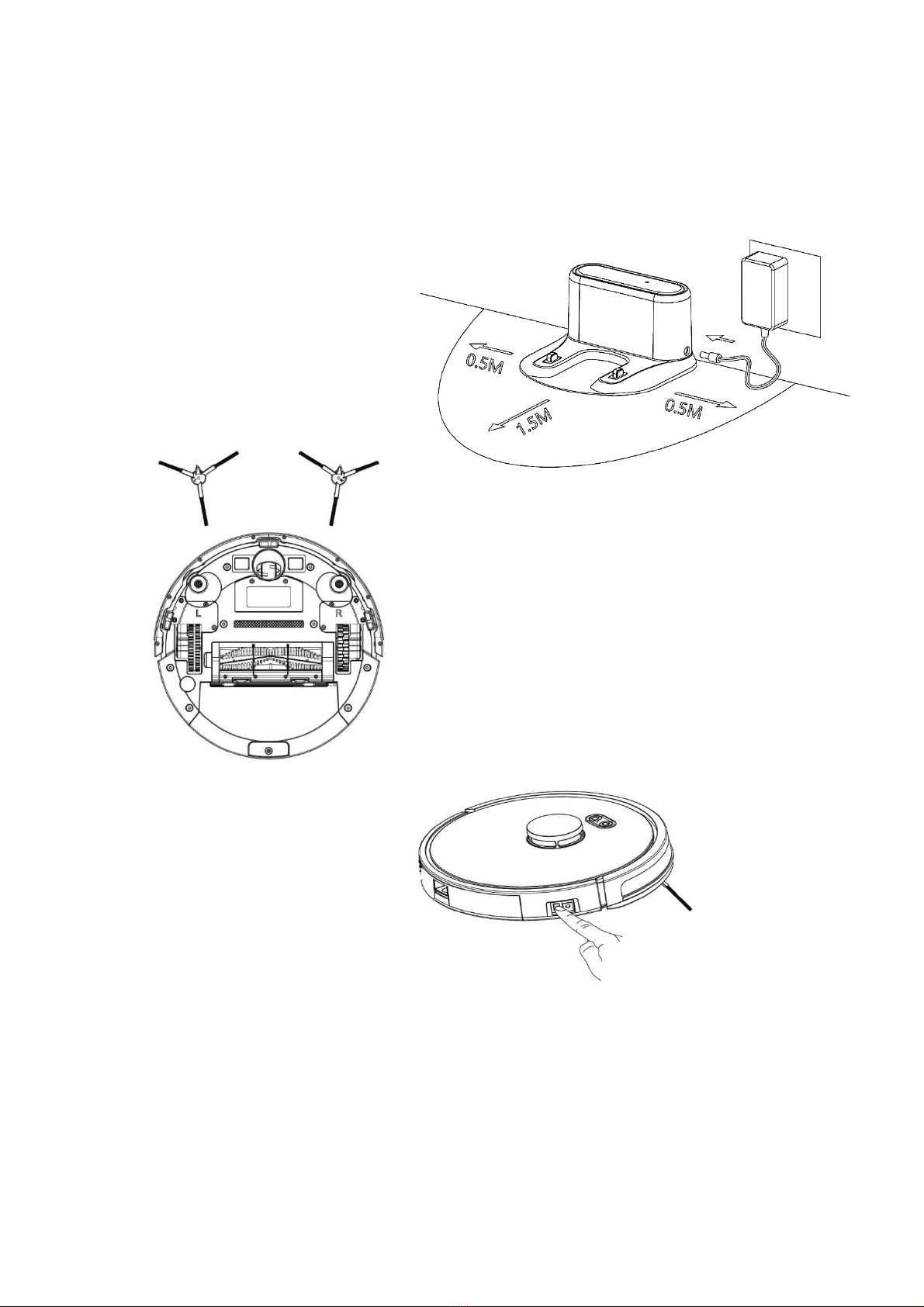

CHARGING YOUR ROBOT
1. Place the charging station against a wall on flat, level ground. Keep the charging
station free of obstructions 0.5m to the left and right and 1.5m in front.
1. Connect the power supply
2. Install the side brushes paying attention
to the ‘L’and ‘R’markings
3. Turn on Power Switch
4. Charge. There are two ways to charge the robot:
a. On the charging station
b. Charging directly from the power adapter
When charging, the indicator light flashes. When charging is complete the indicator turns
green.

10
During cleaning the robot monitors its own charge level and returns to the charging
station when required. You can also put the robot into recharging mode by pressing the
button on the remote control or on the app.
Please note:
•Do not operate the charging station in areas with strong reflections such as direct
sunlight or mirrors. If this is unavoidable please cover the reflective surfaces up to
7cm from the bottom.
•Please fully charge the robot before first use. Charging time is approximately 6
hours.
•For electrical safety and to prevent leaking to the floor, do not charge the robot
with the water tank fitted.
•During charging do not press any button other than
WATER TANK
1. To add water, open the filler cap
and pour in.
2. Attach mop. Close filler cap and fit
the mop.
3. Attach the water tank assembly.
4. Start mopping the floor.
Note:
•Do not use mopping function on carpets.
•After using the mopping function discard any unused water from the tank.
•The saturation level of the mop can be increased and decreased using the button
…… on the remote control or in the app.

11
OPERATION
The product has number of different cleaning modes to cater for different cleaning
needs. The cleaning mode can be chosen on the robot host, on the remote control or on
the app.
AUTOMATIC
CLEANING
The robot will scan the immediate environment and generate a
map. It will then partition the map and create a cleaning path, first
of all cleaning around the perimeter and then filling in the shape
with S-shape cleaning patterns. Each partition is then cleaned in
turn in a systematic, efficient manner.
To activate: with the host in standby mode, switch on the power.
After hearing the robot voice prompt, press the start button or
press “ ” on the remote control or in the app. The robot will then
start to clean.
PARTIAL
CLEANING
This mode is useful where there is cleaning required concentrated
on one area. With the robot on standby/suspend, press the partial
cleaning button and the robot will clean within a 1.5m square area
based on its starting position. After cleaning the robot will return
to the start position.
To activate: press the partial cleaning button in the app or on the
remote:
ZONED
CLEANING
Use the app to enter Zoned Cleaning mode. The robot will clean
zones as directed by input on your phone.
DESIGNATED
SPOT
Use the app to specify a target point on the map to clean. The
robot will go to the designated place automatically.
SUCTION
ADJUSTMENT
Press the button on the remote control or in the app to
adjust suction levels.
MANUAL
CONTROL
Press the direction buttons in the app or on the remote control to
control the robot’s movement forwards, backwards, left and right.
VIRTUAL
WALL
To activate: press Virtual Wall in the app to draw a virtual wall on
the map which the robot must not cross.
PAUSE
During operation of the host robot press the host “Start” button or
the pause button on the remote / app.
WAKE UP
After three minutes of inactivity, the robot goes into sleep mode
and all indicators turn off. You can use any buttons on the robot
or app to wake it up. If it has been inactive for more than 20
minutes, on the Start and Go Home buttons can wake it.
SHUT DOWN
After the robot has completed its task and come to rest, press the
main power switch at the side of the robot to shut down.
Note: it is recommended that after the robot has completed its
task, it is returned to the charging station to fully recharge the
battery. It not in use for a long time, then it can be shut down.

12
REMOTE CONTROL
Before using your robot vacuum cleaner:
oArrange your furniture so that your robot move around freely.
oBlock off hazards such as stairways and bannisters to prevent your robot from
danger.
oTake care to remove small objects from the floor, for example power leads, toys
etc as these may get tangled in the robot’s mechanism.
Do not use the mopping function on carpet and if you have any loose rugs, roll
them up to keep them away from the vacuum.
Automatic Cleaning
Forward
On/Off
Turn Left
Signal Indicator
Home
Start/Pause
Turn Right
Suction Power Adjustment
Back
Border Cleaning (Optional)
Please insert 2 x AAA
batteries, not included

13

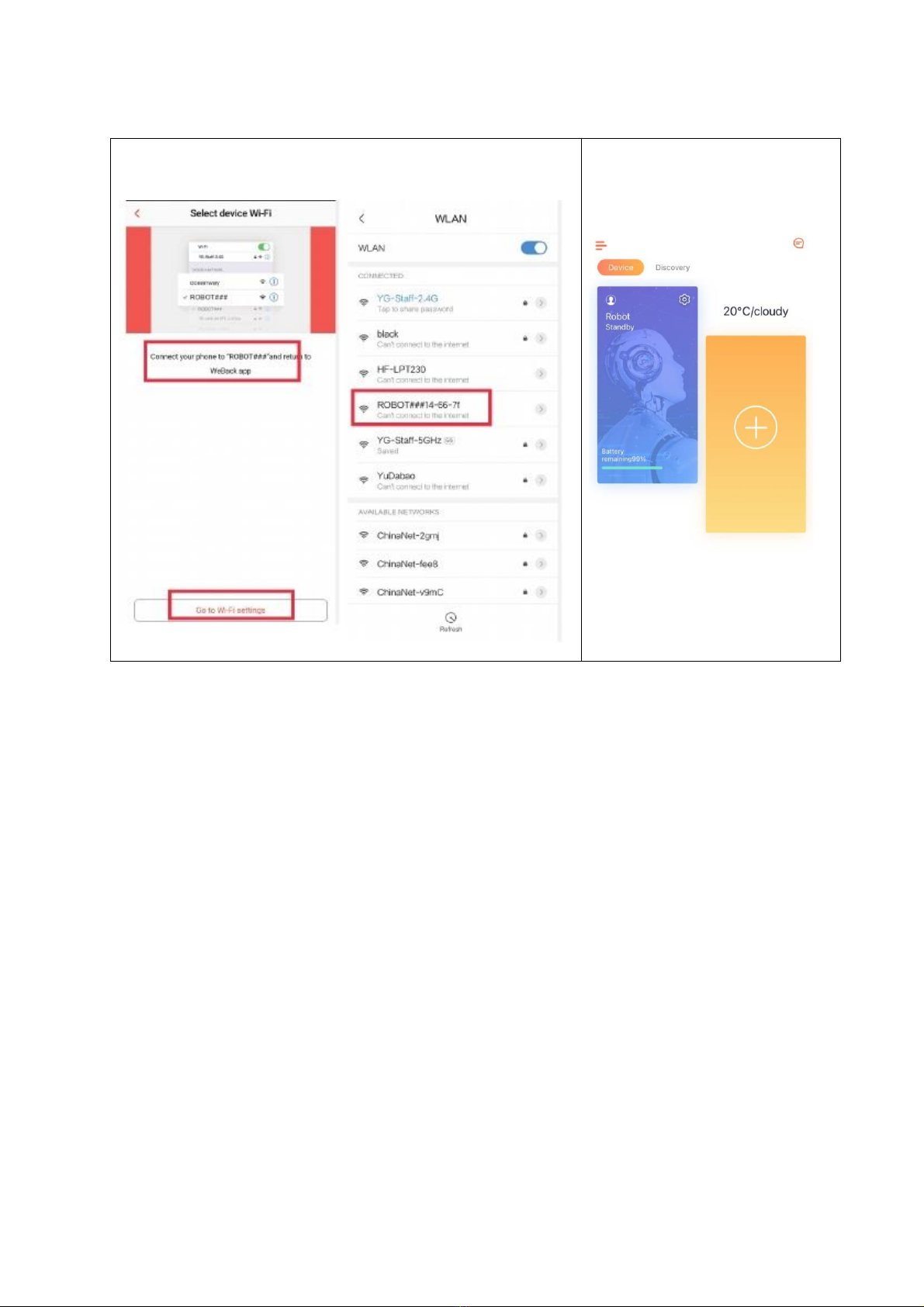

APP CONTROL
Before you start:
•Ensure your router provides a standard 2.4GHZ connection.
•If your router is dual band ensure that both networks have different network names (SSID). The
provider of your router / Internet service provider will be able to provide advice specific to your
router.
•Place the cleaning robot as close as possible to the router during setup.
•Once the app has been installed on your phone, turn off the data connection, and ensure your
phone is connected to your router via Wi-Fi.
DOWNLOAD THE APP TO YOUR PHONE
Download the WeBack app, from your chosen app store, using the QR codes below, or by
searching for the app in your chosen store.
Android
Android IOS
REGISTER / LOG IN
1. Select the ‘Register’ button
at the bottom of the screen.
2. Enter your details and the
verification code to register
the app.
3. If you have already
registered the software, log
in.

14

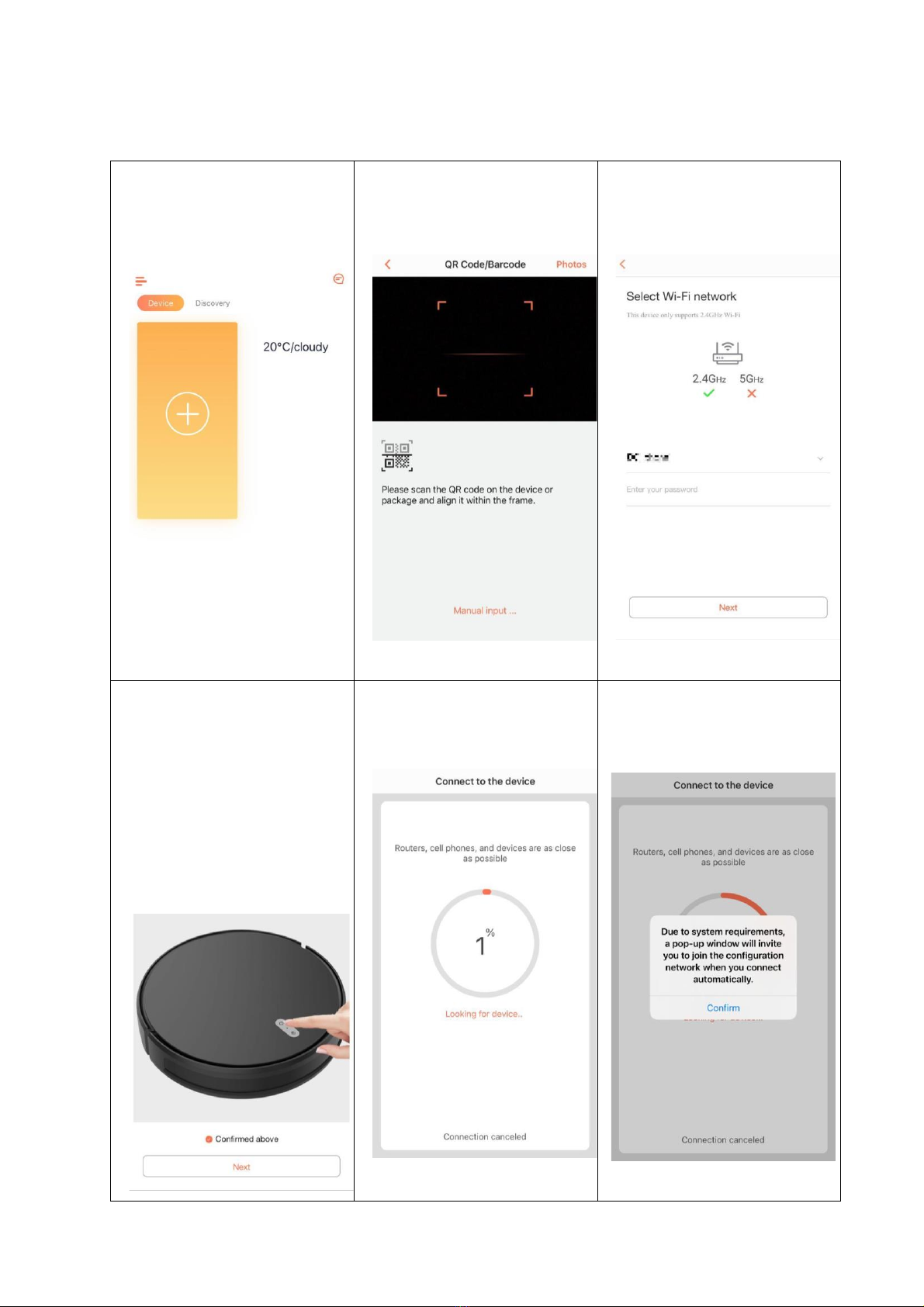

ADD DEVICE
4. At the Device screen select
the + symbol to add a
device.
5. You will now be prompted to
scan the QR code which is
located on the underside of
your robot.
6. Now select your Wi-Fi
network from the list and
enter your Wi-Fi password.
7. Reset the device by
pressing the power switch.
After restarting, press and
hold the device button3-5
seconds. The device will
make a confirmation tone.
Click next on your phone.
Note: do not attempt to
connect from the charging
base.Make sure that after
the long press a network
prompt tone is received.
8. Now the phone, robot and
router will build a connection
to each other.
9. Confirm the message below.

15
10. Follow the prompts, enter the mobile phone Wi-Fi settings,
connect the robot### hotspot, return to the app and wait for
connection.
11. The WeBack home screen
now lists your robot.

16
CONTROLLING YOUR DEVICE THROUGH THE APP
THE DEVICE SCREEN
The device screen is the main control screen for the cleaning robot, providing access to the
controls to amend the functions and settings
NOTE: Due to continuous development of the app, the layout and availability of
features are subject to change
Specified: choose one
spot and the robot will
focus cleaning on that
point.
Back: Returns to the
WeBack home screen.
Cleaning stats.
Cleaning modes:
Load the dust box and
‘Fan Mode’ activates
three suction speeds.
Load the water tank
for mopping and
‘Water Tank’ logo
activates with 3 water
speeds.
Constituency
cleaning: Choose a
specific room you want
the robot to clean.
Restricted area:
restrict robot’s access
to an area.
Partition editing:
divide the map of your
entire house into
smaller rooms and
rename them.
Clean Zone: choose a
specific area you want
the robot to clean.
Virtual Line: create a
boundary that the robot
should not cross.
Settings e.g. adjust
volume, set schedules,
set up Alexa / Google,
see following page.
Status: the robot’s
current activity.

17
THE SETTINGS SCREEN
This screen gives you the option to adjust the volume of
the robot’s voice and update some of the device’s basic
settings.
Clear current map –clear map to start a new room.
Crossing Obstacles –whether to allow robot to cross
1cm doorways and other obstacles.
Breakpoint Cleaning –permit robot to break off from a
cleaning job to recharge then continue the remaining
clean.
Voice Switch - adjust the volume of the robot’s voice.
Set Remark –change the name of the Robot.
Schedule –set a schedule for the robot to clean in the
future.
Cleaning Record –a log of the work your robot has
done.
Voice Pack –install a different voice.
Area unit –choose between ft² or m².
Check for update –update to the latest firmware.
Shared device - share access to the controls of your
cleaning robot with friends and family.
Model –this is the full model number.
Upload problem log –upload error file for support.
Third Party Control - this allows the unit to be integrated
with your favourite home automation hardware such as
Google Home and the Amazon Echo.
EDULING

18
CLEANING AND MAINTENANCE
DUST BOX AND FILTER CLEANING
Press the dust box release
button to remove the dust box
Open the dust box side cover
Open the dust box cover and
empty contents into waste bin
Open the filter cover and
remove the primary filter and
HEPA filter.
It is not recommended to wash
the HEPA filter in water. Please
tap gently to remove any dust

19
Wash the primary filter
Clean the dust box using a
brush or damp cloth. Do not
wash with running water as this
may damage the electronics.
Dry the dust box and filters.
The primary filter should be
washed every 15-30 days.
The maximum service life of the
HEPA filter is three months.
Do not expose HEPA filter to
direct sunlight
Once dry, reassemble filters and
close the dust box lid.
WATER TANK MAINTENANCE
Remove the water tank. Pour
out any remaining water
Remove the mop. Wash it
with running water and leave
to air dry.

20
Clean the inside of the water
tank.
Allow the tank to air dry for 24
hours.
CLEANING THE BRUSHES
Open the roller brush cover
assembly.
Take out the roller brush
Use the cleaning brush
provided to cut of the haoir
tangled on the roller brush.
