ELECTRO FREEZE COMPACT Series User manual

H. C. Duke & Son, LLC P/N 184592-01 - July 2017 Printed in U.S.A.
COMPACT SERIES
SHAKE FREEZER
Model CS705-M2
184592-01 - 7/17
OPERATOR’S MANUAL
with Illustrated Parts List

Operator’s Manual
for the
Electro Freeze Model CS705-M2
Compact Series
Soft Serve Freezer
All contents © Copyright 2016 H.C. Duke & Son, LLC, 2116 Eighth Avenue, East Moline, Illinois 61244
i

ELECTRO FREEZE Shake Model CS705-M2
184592-01ii
When you see this symbol on your freezer or in this
manual, be alert to the potential for personal injury. Follow
recommended precautions and safe operating practices.
WARNING
CAUTION
The signal words — DANGER, WARNING and CAUTION —
are used with the safety alert symbol (DANGER decals on
the freezer may or may not have the safety alert symbol, but
the message is the same). Decals with the words DANGER,
WARNING or CAUTION appear on the freezer. DANGER
identies the most serious hazard. Decals with the words
DANGER or WARNING are typically near specic hazards
on the freezer. General precautions are listed on CAUTION
safety decals.
In this manual, CAUTION messages with the safety
alert symbol call attention to safety messages.
SAFETY FIRST!
Follow these four steps to safety ....
DANGER
2. Understand Signal Words ....
1. Recognize Safety Information ....Look for this
safety alert symbol throughout this manual.
3. Follow Safety Instructions ....
Read and understand all safety messages in this manual.
Read and understand the decal safety messages on your
freezer. Take notice of the location of all decals on the
freezer and keep the safety decals in good condition. Check
them periodically and replace missing, damaged or illegible
safety decals. The safety decals must remain in place and
legible for the life of the freezer. If you need new decals, use
the information and illustrations on pages iv and v of this
manual to identify the decal and order replacement parts.
DO NOT attempt to operate the CS705-M2 freezer until you
read and understand all safety messages and the operating
instructions in this manual.

ELECTRO FREEZE Shake Model CS705-M2
184592-01 iii
SAFETY FIRST!
5. Operate Safely ....
DO NOT allow untrained personnel to maintain or service
this machine. Failure to follow this instruction may result in
severe personal injury. DO NOT operate the freezer unless
all service panels and access doors are secured with screws.
DO NOT attempt to maintain or repair the freezer until the
main power supply has been disconnected. Contact your
local Electro Freeze Distributor for authorized service.
6. Caution ....
• This Freezer is to be operated by trained persons. The Dispense
feature, if used by public in self-serve applications, shall be monitored
by trained persons able to assist people with physical, sensory or mental
impaired capabilities.
• Children should not be allowed to play around this equipment.
• Do not store explosive substances such as aerosol cans with a ammable propellant
in freezer.
• This appliance is not designed for outdoor weather conditions and shall not be
exposed to rain.
• Do not wash machine with power sprayer. Do not install machine next to a power
sprayer where splash of freezer can occur.
• Machine is designed for use in areas of normal atmosphere. It is not to be used in
areas subject to explosion-proof standards.
Trained person (or Operator): A person who has been trained in the basic operation of
the freezer. This person is knowledgeable in the operation of machine startup, stopping,
lling, and basic cleaning, disassembly, washing, and sanitation of the freezer.
Freezer Technician: A person who has been trained by a factory representative, or
an experienced and qualied service person, to perform more complicated operations
such as freezer installation, maintenance repairs, component replacement , is aware of
hazards associated with electricity, moving parts, and takes necessary steps to protect
against injury to themselves and other people.
4. Definitions ....
IMPORTANT: Store Managers,owners, and supervisors must be aware of staff
capabilities and that they do not perform freezer operations outside their level of
knowledge or responsibility.

ELECTRO FREEZE Shake Model CS705-M2
184592-01iv
Safety Decal Locations
Do not attempt to operate the freezer
until all safety precautions and operating
instructions in this manual are read and
understood.
Take notice of all warning, caution,
instruction and information decals (or
labels) on the freezer as shown in the
gure on the following page. The labels
have been put there to help maintain a
safe working environment.
The labels have been designed to
withstand washing and cleaning. All
labels must remain legible for the life of
the freezer. Check labels periodically
to be sure they can be recognized as
warning labels.
If it is necessary to replace any label,
please contact your local authorized
Electro Freeze Distributor or H. C. Duke &
Son. When ready to order you will need to
determine the (1) part number, (2) type of
label, (3) location of label, and (4) quantity
required, and include a return shipping
address.
You may contact your local authorized
Electro Freeze Distributor, as follows:
Name:
Address:
Phone:
or — for factory service assistance —
contact H. C. Duke & Son, LLC. Electro
Freeze Service Department by phone or
FAX:
Phone: [phone]
800-755-4545
FAX: [phone]
E-mail: [email protected]
(The decals on the next page are
numbered 1 and 2. Those numbers
correspond to the numbers in the table
below. The table provides the part
number, description, and quantity for each
decal.)

No. Part No. Description (Qty)
1 HC165126 Decal — Panel Removal Warning (3)
2 HC165025 Decal — Beater Warning (1)

ELECTRO FREEZE Shake Model CS705-M2
184592-01 v

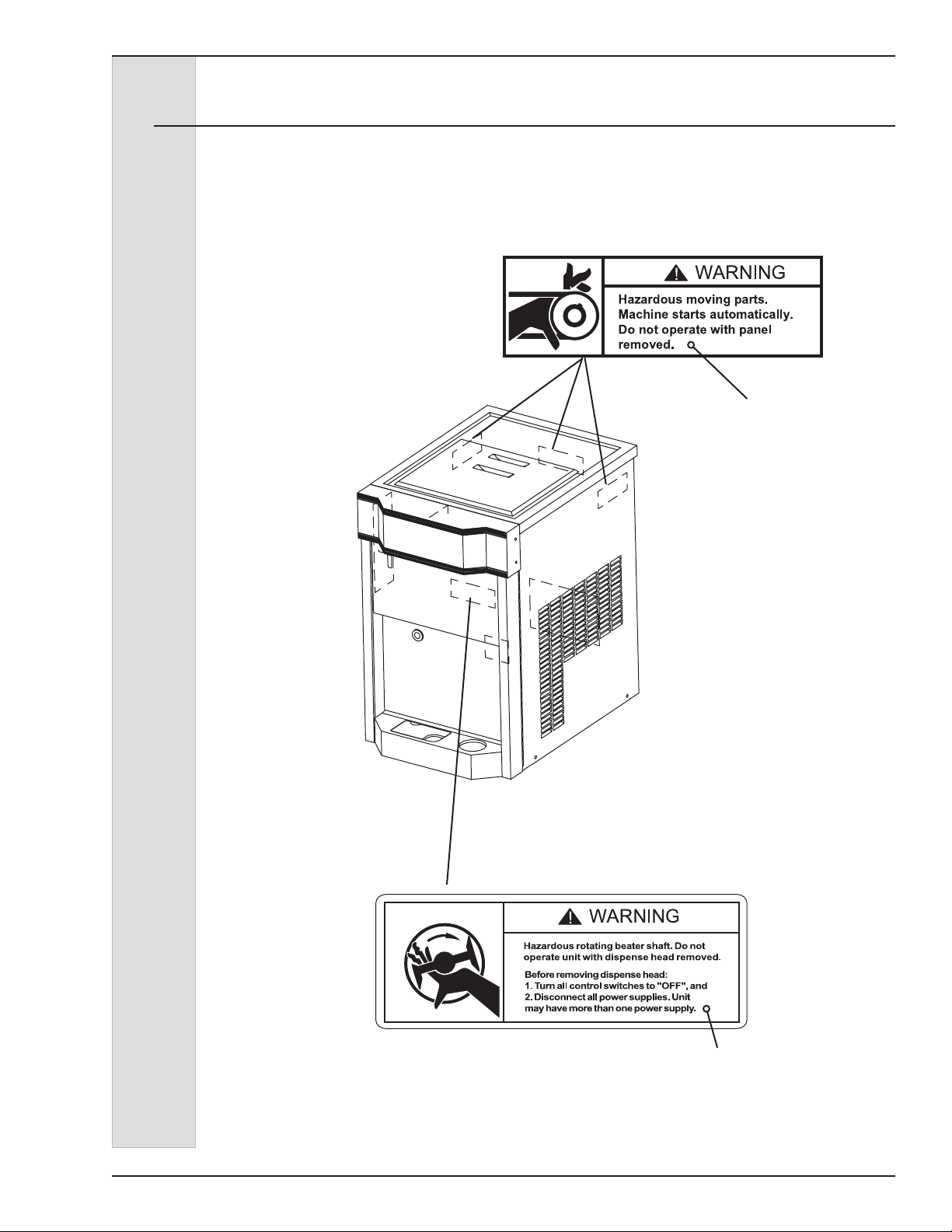

Safety Decal Locations
1 P/N HC165126
2 P/N HC165025
Hazardous moving parts.
Machine starts automatically.
Do not operate with panel
removed.
Hazardous rotating beater shaft. Do not
operate unit with dispense head removed.
Before removing dispense head:
1. Turn all control switched to “OFF”, and
2. Disconnect all power supplies. Unit
may have more than one power supply.

ELECTRO FREEZE Shake Model CS705-M2
184592-01vi
Table of Contents
SECTION DESCRIPTION PAGE
SAFETY ...........................................................................................ii
PART I
1. INTRODUCTION .............................................................................1
2. NOTE TO INSTALLER ...................................................................1
3. ELECTRICAL REQUIREMENTS ................................ 2
4. SPECIFICATIONS ...........................................................................2
4.1 Particulars.......................................................................................2
4.2 Data Plate........................................................................................3
4.3 Reference Information.....................................................................3
4.4 Installation Date ..............................................................................3
4.5 Dimensions......................................................................................4
5. PART NAMES AND FUNCTIONS .............................................5
6. OPERATOR CONTROLS & INDICATORS ................... 7
6.1 Selector Switch ...............................................................................7
6.2 Day-Night Switch.............................................................................7
6.3 “ADD MIX” Indicator Light................................................................7
6.4 Mix Float..........................................................................................8
6.5 Mix Feed Tube & Regulator ..............................................................8
7. DISASSEMBLY AND CLEANING .............................................9
7.1 Accessories ....................................................................................9
7.2 Disassembly Instructions...............................................................10
7.3 Cleaning Instructions ....................................................................11
8. ASSEMBLY .......................................................................................13
9. START-UP INSTRUCTIONS .....................................................15
9.1 Sanitizing ......................................................................................15
9.2 Priming ...........................................................16
vi

ELECTRO FREEZE Shake Model CS705-M2
184592-01 vii
Table of Contents - continued
SECTION DESCRIPTION PAGE
10. CLOSING PROCEDURES .............................................. 18
10.1 Night Switch Operation................................................................. 18
10.2 Draining Product From Freezer ..................................................... 19
11. SOFT SERVE INFORMATION ........................... 20
11.1 Overrun........................................................................................ 20
11.2 Rerun ............................................................................................20
12. ROUTINE MAINTENANCE ............................................ 21
13. TROUBLESHOOTING TABLE .......................... 24
PART II
MODEL CS705-M2 REPLACEMENT PARTS WITH ILLUSTRATIONS
*
* Refer to Part II Table of Contents for help with locating part numbers and illustrations.
vii

ELECTRO FREEZE Shake Model CS705-M2
184592-01 1
1 Introduction
The CS705-M2 Freezer is designed to
produce soft serve ice cream, ice milk,
yogurt, and similar frozen dairy products,
with a product serving temperature
range of 15° to 25ºF (-9° to -4°C). If such
products are prepared from powdered
concentrate, they should be precooled
to 40ºF (4°C) prior to introduction to
the freezer. Use of other products in
this machine is considered misuse (see
Warranty).
This manual has been prepared to assist
you in the proper operation and general
maintenance of the Electro Freeze Model
CS705-M2 freezer.
Make sure all personnel responsible for
equipment operation completely read and
understand this manual before operating
the freezer. When properly operated and
maintained the freezer will produce a
consistent quality product.
If you require technical assistance, please
contact your local authorized Electro
Freeze Distributor, as follows:
Name: ________________________
Address: ______________________
Phone: ________________________
For factory service
assistance — contact H.C. Duke & Son,
LLC, Electro Freeze Service Department
as follows.
Phone: [phone]
800-755-4545
FAX: [phone]
E-mail: [email protected]

2 Note to Installer
This freezer must be installed and
serviced by an Electro Freeze Distributor
or authorized service technician
in accordance with the installation
instructions in this manual.
Verify the weight of the freezer. Ensure
a counter or table of sufcient strength
is used to hold this weight and prevent
excessive vibration.
Air cooled models require a minimum of
3-inches (7.6 cm) air space on both sides
and back of the freezer for adequate
ventilation.
If this freezer is to be used in a self-
service application, it is recommended
that the machine be tted with a self-
service kit. Contact your Electro Freeze
Distributor or H. C. Duke & Son, LLC for
this kit.
Test the operation of the head safety
switch prior to placing the freezer
in service. See Section 12, Routine
Maintenance, Monthly.
After installation the warranty registration
card must be completed and returned to
validate the warranty.

ELECTRO FREEZE Shake Model CS705-M2
184592-012
2.1 Uncrating and Inspection
CAUTION
Be sure to properly support
the machine when removing
bolts and installing legs or
casters.
When the unit is received and while
the carrier is still present, inspect the
shipping carton for any damage that
may have occurred in transit. If the
SHOCKWATCH®label indicates red and/
or the carton is broken, torn, or punctured
note the damage on the carrier’s freight
bill and notify the carrier’s local agent
immediately. Also note on the freight bill.
1. Remove the carton from the pallet,
and move the machine as close as
possible to the permanent location.
2. Remove the shipping bolts on the
bottom of the freezer and remove the
freezer from the pallet.
2.2 Installation
3. A minimum 3-inch (7.6 cm) air space
is required on both sides and back of
the freezer for adequate ventilation.
4. Test the operation of the head and
ex shaft cover safety switches prior
to placing the freezer in service. See
Section 12, Routine Maintenance,
Monthly.
1. This freezer is designed for indoor use
and must be protected from outdoor
weather conditions.
2. This freezer requires a potable water
connection for the rinse line. The
water inlet is located at the back of
the freezer next to the power supply. A
3/8” MPT water inlet connector will be
needed.
CAUTION
All materials and connections
must conform to local
requirements and be in
compliance with the National
Electrical Code (NEC).
CAUTION
Use caution when moving the
freezer to avoid a tip hazard.
CAUTION
Tip Hazard. Front side of
freezer must remain positioned
on door side of cart. DO NOT
reverse position of freezer on
cart.

ELECTRO FREEZE Shake Model CS705-M2
184592-01 3
CAUTION
All materials and connections
must conform to local
requirements and be in
compliance with the National
Electric Code (NEC).
CAUTION
To prevent accidental electrical
shock, a receptacle with
a positive earth ground is
required.
1. Always verify electrical specications
on the data plate (gure 4-1) of
each individual freezer. Data plate
specications will always supersede
the information in this manual.
2. This freezer requires a protected 20
amp 230 volt circuit. Connect the
freezer to a circuit separate from any
other electrical equipment. The power
cord on this freezer connects to a
NEMA 6-20R receptacle. See Figure
3-1.
3. Supply voltage
must be within
±10% of voltage
indicated on
the nameplate.
Request your
local power
company
to correct
any voltage
problem.
4. The control transformer in the
electrical box is factory wired to 208
volts (red) wire tap for 208V nominal
power supply. If power supply is
between 230-240 volts use 240V
(orange) wire tap on transformer.
5. Beater Shaft Rotation - Freezers are
designed for clockwise rotation when
viewed from front of freezer. 1ph
machines are pre-wired for proper
rotation. On 3phase machines,
phase wires to freezer should be
connected to produce proper beater
rotation. This is to be done by a
freezer technician.
2.3 Electrical Requirements
3.1 Particulars
3 Specifications
Width (in/cm) 18.4/46.7
Height (in/cm) 58.9/149.7
Depth (in/cm) 28.1/71.4
Weight (lbs/kg) 250/113.4
Voltage* 208-230/60/1
Min. Circuit Ampacity 20.0
Compressor 1 HP/8000 (BTUH)
.75 kw (Motor)
2.3 kw (Cooling)
Beater Motor 1/2 HP/.37 kw
Refrigerant R-404a
Charge 32.0 oz/.91 kg
Cooling Air
Hopper 20 qts/18.8 liters
Cylinder 7 qts/7.1 liters
*Contact factory for other voltages.
Noise: The Steady acoustic pressure level, for both air cooled and
water cooled freezers, is less than 70dB(A).
Figure 2-1

ELECTRO FREEZE Shake Model CS705-M2
184592-014
3.2 Data Plate
The data plate provides important
information that the operator should
record and have available for parts
ordering, warranty inquiries and service
requests.
Figure 4-1
3.3 Reference Information
Fill in the following information as soon as
you receive the Electro Freeze CS705-M2.
(The item numbers — encircled, below —
correspond with the call-out numbers in
gure 4-1.)
1 Model Number: ________________
2 Serial Number:_________________
3 Electrical Spec: Voltage _______
Phase _______ Hertz ___________
4 Maximum Fuse Size: __________
5 Minimum Circuit Ampacity: ______
3.4 Installation Date
Write in Reference
Information HERE!

Fill in the date of installation, and the name, address, and phone number of the
installer in the space provided below. This information will be needed when ordering
parts or service for the CS705-M2 Freezer.
Date of installation: _____________________________________
Installed by: _____________________________________
Address: _____________________________________
_____________________________________
Phone: _____________________________________

ELECTRO FREEZE Shake Model CS705-M2
184592-01 5

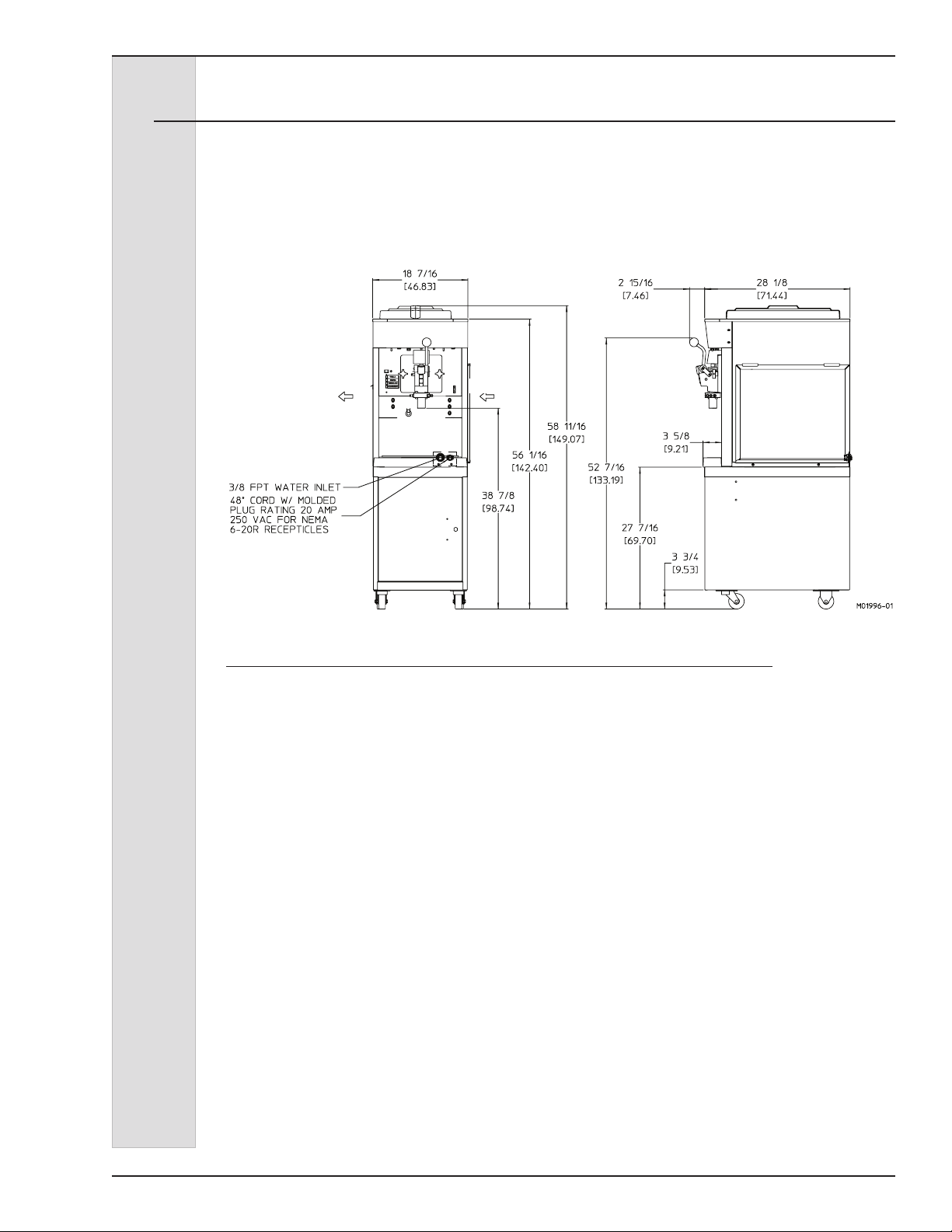

Figure 4-2 Electro Freeze Model CS705-M2 Dimensions
3.5 Dimensions
The dimensions of the CS705-M2
Freezer are provided in gure 4-2, below.
AIR IN
AIR OUT

ELECTRO FREEZE Shake Model CS705-M2
184592-016
4 Part Names and Functions

ELECTRO FREEZE Shake Model CS705-M2
184592-01 7
1.) COVER - ASSY FLEX SHAFT:
Protects from accidental contact with
rotating shaft. Must be in place to
operate.
2.) O-RING - HEAD:
Seals the head to the freezing cylinder.
Must be lubricated.
3.) BUSHING - BEATER BEARING:
Holds the beater in place at the front
of the cylinder. Must be inserted
into the head and lubricated
before assembly.
4.) KEEPER - ASSY SPINDLE:
Secures the handle to the head.
5.) HEAD - DISPENSE:
Encloses the freezing cylinder and
provides an opening for product to
be dispensed.
6.) QUICK CONNECT WITH SHUT
OFF:
Allows syrup line to be removed from
the mix chamber.
7.) O-RING - SYRUP LINE:
Prevents syrup from leaking.
8.) SHAFT - ASSY MIX:
Mixes avor into shake mix.
9.) CHAMBER - MIX:
Delivers syrup to the shake mix.
10.) O-RING - CHAMBER:
Prevents mix from leaking. Lightly
lubricate.
11.) HANDLE - ASSY COMPLETE:
Opens and closes the plunger to start
and stop the ow of product from the
freezer.
12.) O-RING - PIVOT POST:
Holds the pivot post in place. Lightly
lubricate.
13.) POST - PIVOT:
Holds the handle in place.
The following part names and descriptions refer to gure 4-1.
14.) PLUNGER - DISPENSING:
Seals the product opening in the head
when closed. Allows product to ow
when open.
15.) BUSHING - MIXER SHAFT:
Holds the mixing shaft in place.
Prevents wear on plunger.
16.) ROD - ACTUATOR:
Starts the freezer when dispensing.
Must be in place before product can
be dispensed.
17.) O-RING - PLUNGER-UPPER
18.) O-RING - PLUNGER-LOWER:
Seals the plunger in the head.
Must be lubricated to seal and slide
properly.
19.) SHAFT - FLEXIBLE W/CASING
16-1/2:
Spins the mix shaft.
20.) CONNECT - ASSY DRIVE:
Quick connector used to connect or
disconnect the exible shaft from the
mix shaft.
4 Part Names and Functions

ELECTRO FREEZE Shake Model CS705-M2
184592-018
4 Part Names and Functions
Figure 4-2 Beater Shaft Assembly
1.) SHAFT-BEATER:
Rotates in the freezing cylinder,
blending air and mix and ejecting
product.
2.) BLADE-SCRAPER:
Scrapes the frozen product from
the freezing cylinder wall.
3.) SEAL (CUP) - BEATER SHAFT:
Seals the opening between the
freezing cylinder and the beater.
DO NOT LUBRICATE.
4.) WASHER - SHAFT SEAL:
Holds the shaft seals together.
Must be lubricated.
The following part names and descriptions
refer to gure 4-2.

ELECTRO FREEZE Shake Model CS705-M2
184592-01 9
Figure 4-3 Mix Feed Tube
The following part names and descriptions refer to gure 4-3.
1.) TUBE-MIX FEED:
Meters the correct amount of mix
and air into the freezing cylinder from
the hopper.
2.) INSERT-ASSEMBLY MIX FEED
(Regulator):
Regulates mix ow. Open position for
day operation and closed position for
night.
3.) O-RING-INSERT ASSEMBLY:
Holds the insert in place in the mix
tube. Must be lubricated.
4.) O-RING-MIX FEED ASSEMBLY:
Seals the opening between the hopper
and mix feed tube. O-rings do not need
lubrication.
Tube-Mix Feed
O-Ring
O-Ring
Insert-Assy. Mix
Feed
TUBE-MIX FEED
O-RING
O-RING
INSERT - ASSY.
MIX FEED
4 Part Names and Functions - continued

ELECTRO FREEZE Shake Model CS705-M2
184592-0110
5 Operator Controls
The following paragraphs describe
the operator controls and indicators.
Refer to gure 5-1 for location of these
controls and indicators on the freezer.
NOTE: The head, actuator rod, and metal
cover must be in place before the beater
will operate.
—continued
5.1 Syrup Pump Switch (1)
This two-position switch controls the
operating mode of your freezer.
a. “ON” (right) — This position
operates the syrup motor. Always use
this mode when operating the syrup
system.
b. “OFF” (left) — In this position the
syrup motors do not run.
CAUTION
Test operation of the head switch
prior to placing the freezer in
service. See Section 12, Routine
Maintenance, Monthly.
Figure 5-1
