ELECTRO-OPTICS
ZULU®/CANYON™
BINOCULARS
OPERATOR’S MANUAL
ZULU10™ shown

2
TABLE OF CONTENTS
Introduction � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Package Contents � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Shared features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Product Identication � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
General operation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Setting the diopter adjustment� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Cleaning � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
SIG SAUER® Electro-Optics Innite Guarantee ®/Limited Lifetime Warranty � � � � � � � 14
Scan the QR code to visit sigsauer.com where you will nd additional information about SIG SAUER
products including all product specs, SIG SAUER Academy and the SIG Experience Center, Special
Programs, and additional support�

3
ELECTRO-OPTICS
INTRODUCTION
The ZULU® line of binoculars utilizes category-leading features like high quality glass, fully multi-
coated lenses and phase coated prisms to provide maximum brightness, contrast and optimal
resolution. The rugged design pairs well with the lightweight construction to o󰀨er a high level of
durability that is not reected in weight. Fully sealed barrels are nitrogen lled for waterproof and fog-
proof performance�
The ZULU line of binoculars are covered by the SIG SAUER Electro-Optics Innite Guarantee®�

4
PACKAGE CONTENTS
• Binocular
• Eyepiece and Objective Lens Covers
• Deluxe Neck/Shoulder Strap
• Lens Cloth
• Premium Padded Case
• Quick Start Guide
SHARED FEATURES
• HDX™ ED High Denition & HT High Transmittance glass
• SPECTRACOAT™ - Highly e󰀩cient, ultra-wide broadband, anti-reection lens coatings
• LENSARMOR™ Abrasion-resistant lens coatings
• LENSSHIELD™ Oleophobic coating that sheds water & oil.
• Nitrogen lled for waterproof and fog proof performance
(IPX-7 rated for complete water immersion up to 1 meter)
• Multi-position eye-cups

5
ELECTRO-OPTICS
ZULU10™
• Closed Bridge Design
• Phase coated Abbe Koenig prism
• HDX™ (ED High Denition & HT High Transmittance) glass
• SPECTRACOAT™ - Highly e󰀩cient, ultra-wide broadband, anti-reection lens coatings
• LENSARMOR™ Abrasion-resistant lens coatings
• LENSSHIELD™ Oleophobic coating that sheds water & oil.
• Locking diopter
• Magnesium housing
• Tripod mount compatible
ZULU8™
• Closed Bridge Design
• High reectance phase coated roof prism
• HDX™ (ED High Denition & HT High Transmittance) glass
• SPECTRACOAT™ - Highly e󰀩cient, ultra-wide broadband, anti-reection lens coatings
• LENSARMOR™ Abrasion-resistant lens coatings
• LENSSHIELD™ Oleophobic coating that sheds water & oil.
• Magnesium housing
• Tripod mount compatible

6
CANYON™ HD
• Phase coated Roof Prisms
• HD High Denition Glass
• Tripod mount compatible

7
ELECTRO-OPTICS
PRODUCT IDENTIFICATION
A� Eyepiece
B� Diopter Ring
C� Data Plate (model, magnication, FOV)
D� Strap Attachment
E� Focus Wheel
F. Objective Lens
G�Tripod Adapter Cover (select models)
A
B
C
D
F
G
D
E
ZULU10™shown

8
GENERAL OPERATION
SETTING THE DIOPTER ADJUSTMENT
Setting the diopter adjustment of your binocular properly is very important, as properly adjusted
binoculars will prevent eye strain and provide you with a crisp, sharp image.
To set the diopter adjustment:
1� View an object about 100 yards in the distance.
2� Close your right eye�
3� Adjust the center focus wheel (located between the two barrels) until the image presented to
your left eye is clear and sharp�

9
ELECTRO-OPTICS

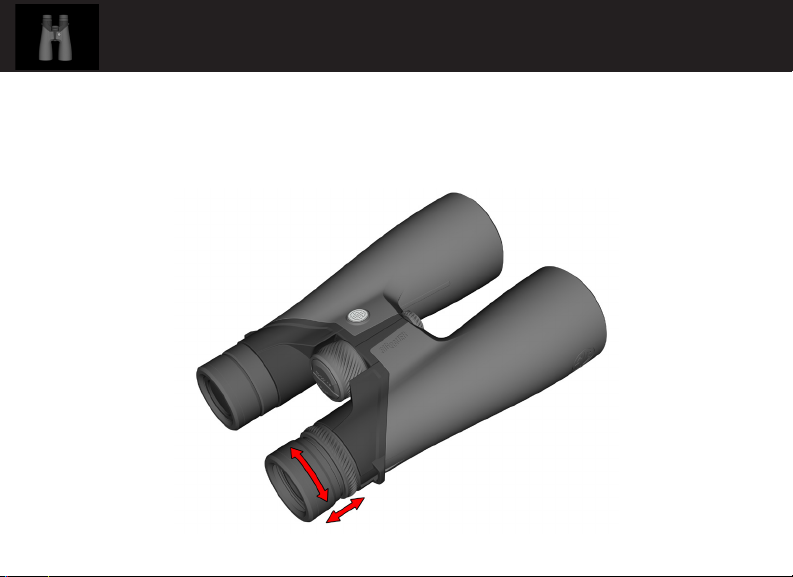

4� Close your left eye�
5� If your binocular has a locking diopter ring, pull the diopter ring out to adjust.
6� Adjust the diopter adjustment dial located around the right barrel, near the eyepiece, until the
image presented to your right eye is clear and sharp�
7� If your binocular has a locking diopter ring, push the diopter ring in to lock it in place
Your binocular is now focused for your eyesight. To make any adjustments in the eld, simply turn the
center focus dial while viewing through both barrels.

10

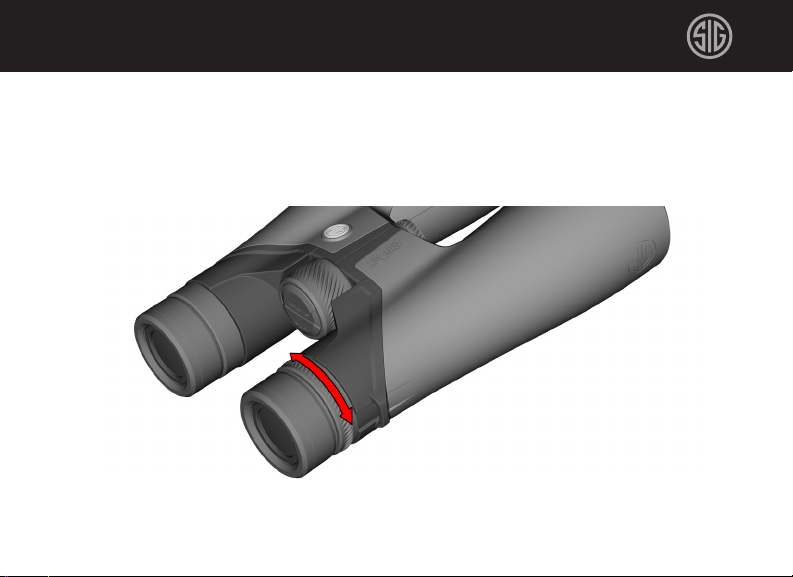

Twist-up Eyecups
SIG SAUER binoculars feature eyecups you can twist in and out to accommodate the eye relief
required when wearing eyeglasses.

11
ELECTRO-OPTICS
Interpupillary distance of binoculars
Interpupillary distance means the distance between the right and left eyes.
1� Set the distance between the center of the right and left ocular lenses of the binoculars to your
interpupillary distance�
2� Look at a distant object to make an adjustment while folding back the main body of the
binoculars.
3� Your interpupillary distance is correctly set when the eld of view can be seen by both eyes as
a single circle (see illustration)�
Interpupillary distance
is not correctly set
Shade
Interpupillary distance
is correctly set
Field of view

12
CLEANING
ALWAYS BLOW DUST OR DEBRIS FROM BINOCULAR LENSES PRIOR TO USING ANY
CLOTH OR LENS PEN. FAILURE TO DO THIS MAY RESULT IN SCRATCHING OF THE
BINOCULAR LENSES�
• You can clean the fully armored body by simply wiping o󰀨 any accumulated dirt or dust.
• Clean the lenses as you would a camera lens�
• Use a standard lens brush to remove dust.
CAUTION

ELECTRO-OPTICS
13
PAGE INTENTIONALLY LEFT BLANK

14
SIG SAUER®ELECTRO-OPTICS INFINITE GUARANTEE ®/LIMITED LIFETIME
WARRANTY
SIG SAUER® has manufactured the most rugged, dependable, high-performance rearms for
more than two centuries� Our heritage of design, engineering, and precision-manufactured
quality predates the existence of any other optics company worldwide. We understand the
importance of quality in the line of re, at the shooting range or on your next hunt. SIG SAUER
Electro-Optics had to earn the right to wear that badge and the Innite Guarantee has your back,
forever� Period�
We will repair or replace your SIG SAUER product in the event it becomes damaged or defective, at no charge to
you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better
physical condition�
SIG SAUER® Innite Guarantee®
• Unlimited Lifetime Guarantee
• Fully Transferable
• No Warranty Card Required
• No Receipt Required
• No Time Limit Applies
• No Charge
Please note that our Innite Guarantee excludes coverage for intentional damage, misuse, cosmetic damage that
does not a󰀨ect the performance of the optic, loss, theft, or unauthorized repair or modication. Excludes electronic
and Tritium components�
L
I
M
I
T
E
D
5
Y
E
A
R
W
A
R
R
A
N
T
Y
E
L
E
C
T
R
O
N
I
C
&
T
R
I
T
I
U
M

15
ELECTRO-OPTICS
Customers seeking warranty coverage must rst obtain a Return Merchandise Authorization (RMA) by contacting
SIG SAUER Customer Service, and return the product unloaded and freight prepaid�
ANY WARRANTIES IMPLIED BY LAW, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. REPAIR, ALTERATION, OR
REPLACEMENT AS PROVIDED HEREIN IS YOUR EXCLUSIVE REMEDY FOR ANY DEFECTIVE PRODUCT.
IN NO EVENT SHALL SIG SAUER OR ANY COMPANY AFFILIATED WITH SIG SAUER BE LIABLE FOR ANY
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND ARISING OUT OF THE PURCHASE
OR USE OF THIS PRODUCT, WHETHER BASED UPON CONTRACT, TORT, STATUTE, OR OTHERWISE. Some
states do not allow the exclusion or limitation of implied warranties, or the exclusion or limitation of incidental or
consequential damages, so some or all of the above limitations or exclusions may not apply to you. This warranty
gives you specic legal rights, and you may also have other rights which vary from State to State.
THIS WARRANTY APPLIES TO COMMERCIAL CUSTOMERS ONLY, AND DOES NOT APPLY TO GOVERNMENT,
MILITARY, LAW ENFORCEMENT, OR NON-US CUSTOMERS. NON-US COMMERCIAL CUSTOMERS MUST
PURCHASE PRODUCT THROUGH AN AUTHORIZED SIG SAUER DEALER WITHIN THEIR COUNTRY OF
RESIDENCE FOR THIS WARRANTY TO APPLY.
