102220 Rev D-2
Use & Care Guide
Built-In Coffee Maker
E24CM75GSS E24CM76GSS
Steamer
Coffee
Coffee
Single
Water
Hot
Espresso
Double
Latté
Double Decaf Large Cappuccino
Espresso
Single
Latté

2Finding Information
PLEASE READ AND SAVE THIS GUIDE
Thank you for choosing Electrolux, the new premium brand in home appliances.
This Use & Care Guide is part of our commitment to customer satisfaction and
product quality throughout the service life of your new coffee maker. We view
your purchase as the beginning of a relationship. To ensure our ability to continue
serving you, please use this page to record key product information.
Once you have your unit installed, we suggest you keep this manual in a safe
place for future reference. Should any problems occur, refer to the Solutions to
Common Problems section of this manual. This information will help you quickly
identify a problem and get it remedied. In the event you require assistance, please
contact the dealer where you purchased your unit.
MAKE A QUICK REFERENCE RECORD
Whenever you call to request information or service, you will need to know your
model number and serial number plate. You can find this information on the serial
plate located inside the brewing compartment. See page 13 for the location.
IMPORTANT
PLEASE READ all instructions completely before attempting to install or
operate the unit.
© 2007 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA

3
Finding Information
PRODUCT REGISTRATION CARD
The package containing this manual also includes your product registration
information. Warranty coverage begins at the time your Electrolux coffee maker
was purchased.
If you received a damaged product, immediately contact your dealer or builder. Do
not install or use a damaged appliance.
Please record the purchase date of your Electrolux unit and your dealer’s name,
address and telephone number.
______________________________________________________
Purchase Date
______________________________________________________
Electrolux Model Number
______________________________________________________
Electrolux Serial Number
______________________________________________________
Dealer Name
______________________________________________________
Dealer Address
______________________________________________________
Dealer Telephone
Keep this manual and the sales receipt together in a safe place for further
reference.
QUESTIONS?
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com
NOTE
Registering your product with Electrolux enhances our ability to serve
you. You can register online (at the Internet address below) or by dropping
your Product Registration Card in the mail. Complete and mail the Product
Registration Card as soon as possible to validate the registration date.

4
Finding Information ............................................... 2
Make a Quick Reference Record ......2
Product Registration Card ..................3
Safety........................................................................... 5
Important Safety Instructions...........5
Feature Overview .................................................... 9
Types of Drinks You Can Make..........9

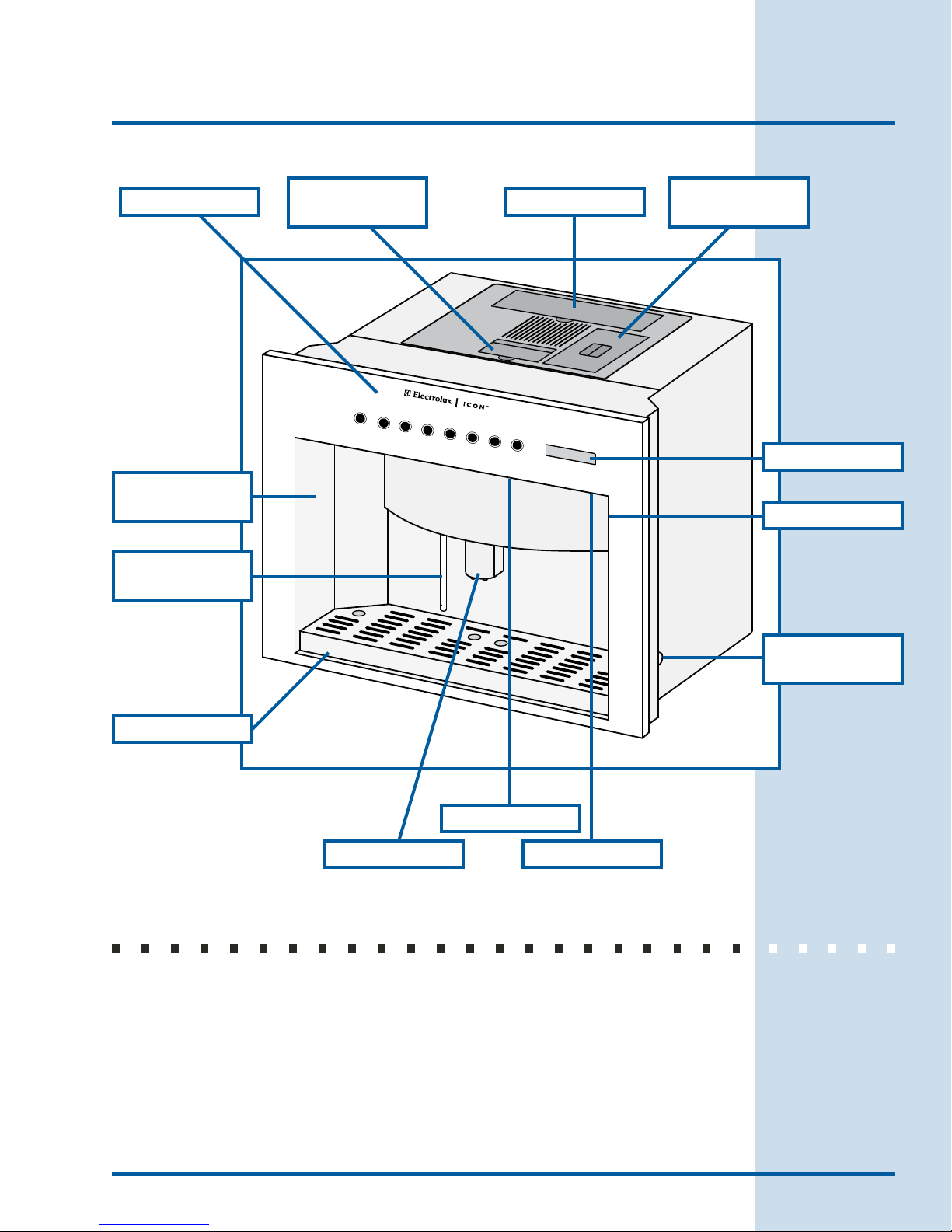

Exterior .................................................... 10
How Your Coffee Maker Works......11
Interior ..................................................... 12
Accessories And Parts........................ 12
Getting Started.......................................................14
Preparing For Installation ................. 14
Operating Instructions ........................................16
Before Using Your Coffee Maker... 16
Turning On Your Coffee Maker ...... 17
Turning On The Lights........................ 17
Loading Your Coffee Maker............. 18
Finding Information
Making Espresso .................................. 19
Making Cafe Latté...............................20
Making Regular Coffee...................... 21
Decaffeinated And Ground Coffee 22
Hot Water For Tea Or
Other Drinks...........................................23
Making A Cappuccino.........................24
Steaming Milk........................................25
Foaming Milk..........................................26
Opening The Front Panel ..................27
Care and Cleaning.................................................29
Adjusting The Coffee Grinder..........29
Cleaning Schedule................................30
Cleaning The Water Tank.................. 31
Routine Cleaning Instructions.........32
Cleaning The Outside Surfaces.......34
Decalcification Instructions.............34
Flushing Out The Coffee Maker.....39
Solutions to Common Problems......................40
Warranty Information ..........................................43
TABLE OF CONTENTS

5
Safety
IMPORTANT SAFETY INSTRUCTIONS
Safety Precautions
Do not attempt to install or operate this appliance until you read the safety
precautions in this guide. Safety items throughout this guide are labeled with a
WARNING or CAUTION based on the risk type.
Denitions
This symbol is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow it to avoid
possible injury or death.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol indicates a potentially
hazardous situation which, if not avoided, may result in property damage.
IMPORTANT
Indicates installation, operation or maintenance information which is
important but not hazard related.

6Safety
General Precautions
WARNING
To reduce the risk of fire, electrical shock, or injury when using your coffee
maker, follow basic precautions including the following:
Read all instructions before operating the coffee maker.
IMPORTANT: Before performing any type of service or installation, make sure
that electric power to the coffee maker is disconnected.
IMPORTANT: To avoid the possibility of explosion or fire, do not store or use
combustible, flammable or explosive liquids or vapors (such as gasoline) inside
or in the vicinity of this or any other appliance.

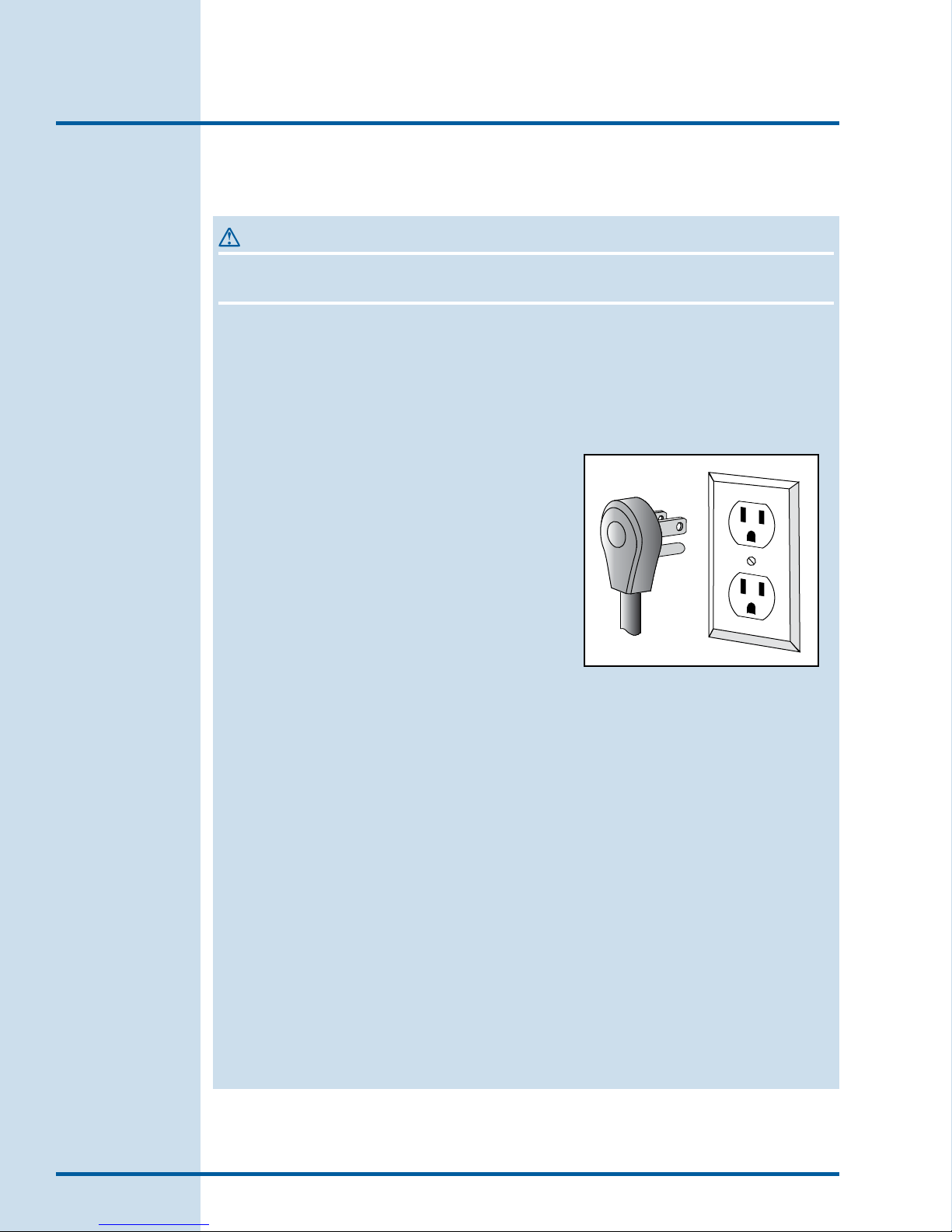

IMPORTANT: This appliance is equipped
with a three-prong grounding plug for your
protection against possible electric shock
hazards. It must be plugged into a dedicated,
grounded receptacle. Where a standard
two-prong wall receptacle is encountered, it
is the personal responsibility and obligation
of the customer to have it replaced with a
dedicated, properly grounded three-prong wall
receptacle. Do not under any circumstances,
cut or remove the third (ground) prong from
the power cord. Do not use an adapter plug. Do not use an extension cord.
Do not use a power cord that is frayed or damaged. The use of a ground fault
interrupter (GFI) is not recommended.
Do not install or use a damaged appliance. If you receive a damaged
appliance, immediately contact your dealer or builder.
Do not use the coffee maker until it has been properly installed by a
qualified installer according to the accompanying installation instructions.
Have the installer show you the location of the power plug so that you know
where and how to disconnect power to the coffee maker.
Do not install, repair or replace any part of the coffee maker unless
specifically recommended in the literature accompanying it. A qualified
service technician should perform all other service.
Keep packaging materials away from children. Plastic sheets and bags can
cause suffocation.
Use the coffee maker only for tasks expected of a home appliance as
outlined in this manual. This appliance is not intended for commercial use.
Save These Instructions for Future Reference
•
•
•
•
•

7
WARNING
DO NOT PUSH ANY BUTTONS ON THE CONTROL PANEL UNTIL
ALL BODY PARTS AND CLOTHING ARE CLEAR OF THE BREWING
COMPARTMENT. KEEP ALL BODY PARTS AWAY FROM THE
BREWING COMPARTMENT DURING OR IMMEDIATELY AFTER DRINK
DISPENSING. HOT LIQUIDS AND STEAM CAN CAUSE SEVERE
BURNS.
Make sure individuals who use the coffee maker are able to operate it
properly.
Never allow anyone, including children to sit, stand or climb on any part of
the coffee maker. Doing so may cause damage, serious injury or death.
Do not leave children alone or unattended in the area around the coffee
maker. Do not allow children to play with the controls, or touch other parts
of it.
Do not store items of interest to children on top of or above the coffee
maker. Children could be burned or injured while climbing on the appliance.
Do not tamper with the controls.
Clean the coffee maker thoroughly according to the Flushing Out the
Coffee Maker section on page 39 before operating it for the first time. This
process is strongly recommended before using the unit after installation.
Clean and maintain the coffee maker according to the maintenance
schedule on page 8. Clean it only in the manner indicated in the Care and
Cleaning section of this manual. Use only the cleaning agents specified.
Do not use a steam or pressure cleaner to clean the coffee maker or any
part of it. Damage caused by cleaning the unit in this manner could result in
electric shock, fire or explosion.
Allow the coffee maker to cool before cleaning.
On model E24CM75GSS: change the water in the tank daily to prevent
sickness due to bacteria growth.
When cleaning the mechanical parts of the coffee maker, exercise care with
hands and arms around the metal edges.
Many metal surfaces behind the front panel and inside the brewing
compartment are hot when power is on. Exercise care around metal
surfaces in these areas when the power switch is in the on position.
During normal operation, the person using the coffee maker must pull it out
from the cabinet to fill the coffee bins, etc. To prevent personal injury, when
pushing the coffee maker back into the cabinet, make sure body parts and
clothing are clear of the portion of the coffee maker behind the front panel.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety

8Safety
General Precautions (continued)
CAUTION
To prevent jamming of the grinding mechanism, use only the types of coffee
beans specified in this manual.
Remove the drip tray before closing the front panel door. Closing the front
panel door without the drip tray removed could damage parts of the coffee
maker.
To prevent clogging of the internal parts, use only filtered water as specified
below. Do not used distilled water.
Do not put any part of your coffee maker in a dishwasher. Many of the parts
are not dishwasher safe.
Keep the coffee maker keys in a safe place. Replacement keys are not
covered by the warranty.
Clean the coffee maker regularly according to the chart below. See the
Care and Cleaning section for complete instructions.
•
•
•
•
•
•
Coee Maker Cleaning Schedule
Water Tank
(E24CM75GSS)
Routine
Cleaning Decalcication Service Call
Daily X
Every 30 cycles
(or once a week) X
Monthly X
Every 2500 cycles
(Approx. 2 ½ years) X
IMPORTANT: For model E24CM76GSS, regardless of the water hardness
measured, Electrolux highly recommends installation of the Electrolux filter kit. The
coffee maker requires periodic decalcification. Decalcification will be much simpler
with the filter kit installed according to the installation instructions.
Before operating your coffee maker for the first time...
1) Make sure you are using the right type of water.
Call your local water company. Ask them for the water hardness level of the water
supplied to the building where your coffee maker will be installed.
If the water hardness level is above four grains per gallon (4 gpg):
For model E24CM76GSS, contact a water treatment specialist and have a water
treatment system installed to reduce the water hardness level to 4 gpg or less
according the installation instructions.
For model E24CM75GSS, pour only filtered water with a hardness level of 4 gpg or
less into the water tank. Do not use distilled water.
2) Flush the system to remove bacteria that may have accumulated during storage and
shipping (See page 39).
•
•
»
»

9
Feature Overview
TYPES OF DRINKS YOU CAN MAKE
Your coffee maker comes from the factory set up to make the types of drinks listed
below. See the Operating Instructions section for step by step instructions.
Espresso One “shot” of espresso is a little over one ounce of strong
coffee. The Single Espresso button brews one shot of
espresso. The Double Espresso button brews two shots.
Cafe Latté Cafe latte is a large espresso (about three ounces) with
six ounces of steamed milk. Use the cafe latte buttons and
Cappuccino Steamer to make a cafe latte.
Large Coee Coffee is less concentrated than espresso and larger in
volume.
Tea and Hot
Chocolate
Use the HotWater button to brew tea and other hot flavored
drinks.
Cappuccino Cappuccino is a coffee drink with about one ounce of
espresso and one ounce of foamed milk on top. Use the
espresso buttons and the Cappuccino Steamer to make a
cappuccino.
Steamed Milk Steamed milk is milk that is heated with few bubbles using the
Cappuccino Steamer.
Foamed Milk Foamed milk is hot milk with large bubbles. Use the
Cappuccino Steamer to created foamed milk.
Someing scial...
You can add “just a touch” of espresso, coffee or hot water to any drink.
Make your favorite drink according to the operating instructions.
Push the Single Espresso,Large Coffee or Hot Water button.
Push the Single Espresso,Large Coffee or Hot Water button again
to make the coffee maker stop so that only the amount you want is
dispensed.
You can experiment to come up with all sorts of drinks that suit your
personal preference!
•
•
•
•
•

10 Feature Overview
EXTERIOR
Front Panel The front panel has buttons across it that are used to
operate your coffee maker. It also has a display which
provides useful information. The front panel opens up
to allow cleaning, maintenance and programming*.
Display The display tells you valuable information about your
coffee maker when the power switch is turned on.
Brewing Compartment The brewing compartment is the area where drinks
and water are dispensed.
Coee Dispenser Coffee drinks are dispensed from the coffee dispenser.
You can adjust the nozzle on the dispenser up or
down.
Power Switch Use the power switch to turn your coffee system
on or off. It is located on the ceiling of the brewing
compartment, below the buttons.
Light Switch Use the light switch to turn the lights in the brewing
compartment on or off. It is located on the ceiling of the
brewing compartment, below the display.
Drip Tray The drip tray catches spills and water that the coffee
system purges during the process of making coffee.
Front Panel Lock The front panel of the coffee system is equipped with a
lock to keep it from being easily opened. Remove the
drip tray before opening the front panel.
Coee Bean Container The coffee system grinds the roasted coffee beans you
put in the coffee bean container.
Ground Coee Chute When making a cup of coffee using pre-ground coffee,
put the coffee grounds in the ground coffee chute. The
ground coffee feature is good for making decaffeinated
coffee or ground flavored coffee.
Water Tank Model E24CM75GSS only. The water tank holds the
filtered water used to make coffee. Use only water with
a hardness of four grains per gallon (gpg) or less.
Door Release Button The door release button is used to open the front panel
for cleaning, maintenance, and programming.
NOTE
* Your coee maker is pre-programed for best performance at the factory. It
is possible to reprogram the coee maker to change the water volume and
coee strength using our optional programming guide. Contact Electrolux
for details.

11
Feature Overview
Steamer
Coffee
Coffee
Single
Water
Hot
Espresso
Double
Latté
Double Decaf Large Cappuccino
Espresso
Single
Latté
Drip Tray
Front Panel
Brewing
Compartment
Steam/Hot Water
Wand
Coee Bean
Container
Ground Coee
Chute
Power Switch
Light Switch
Water Tank
Coee Dispenser
Door Release
Button
Lock
Display
HOW YOUR COFFEE MAKER WORKS
The coffee maker heats water from the water tank or water supply line (depending
on the model) to brew coffee drinks. It brews the coffee drinks using coffee beans
you put in the coffee bean container. It grinds the beans during the brewing
process.
The coffee maker can also brew coffee from pre-ground coffee, steam and froth
milk and dispense hot water for tea and other hot drinks.

12 Feature Overview
INTERIOR
Your coffee maker requires periodic cleaning and maintenance. See the Care and
Cleaning section for more information.
Brewing Unit Door Open the brewing unit door to clean the
inside of your coffee maker and make
certain types of adjustments.
Piston Assembly The piston assembly is used by the coffee
maker to help make coffee. It requires
occasional cleaning.
Grinder Adjustment Screw Use the grinder adjustment screw (with the
included tool) to make the coffee maker
grind the coffee beans more fine or course.
The finer the coffee beans are ground, the
stronger the brewed coffee will be.
Used Coee Ground Bin The used coffee ground bin catches the
used coffee grounds after coffee has
been made. It needs to be emptied out
occasionally.
ACCESSORIES AND PARTS
Coee Scoop Use the scoop to poor pre-ground coffee
into the ground coffee chute.
Cleaning Brush Use to clean the inside of the brewing unit.
Grinder Adjustment Wrench Use the coffee grinder adjustment wrench
toturnthecoffeegrinder adjustmentscrew.
Piston Assembly O-Ring (green) A spare piston assembly O-ring is provided
with the coffee maker should the grinder
assembly need service. Keep it in a safe
place in case it is needed at a later date.
Water Tank O-Ring Used on model E24CM75GSS only. A
spare water tank O-ring is provided should
the O-ring on the water tank wear out.
Keep it in a safe place in case it is needed
at a later date.

13
Feature Overview
CAUTION
To open the front panel see page 27 for directions.
To prevent damage to the door, do not close the front panel without
first removing the drip tray.
•
•
Brewing Unit
Door
Used Coee
Ground Bin
Front Panel
(open)
Serial Number
Label
Coee Grinder
Adjustment Screw
Piston
Assembly
Cleaning
Brush
Coee
Scoop
Adjustment
Wrench
Water Tank
O-Ring
Piston
Assembly
O-Rring

14 Getting Started
PREPARING FOR INSTALLATION
Before Installing Your Coffee Maker...
Call your local water company. Ask them for the water hardness level of the
water supplied to the building where your coffee maker will be installed.
If the water hardness level is above four grains per gallon (4 gpg):
Have a licensed electrician install a dedicated, grounded power receptacle
near the coffee maker, if one is not available.
Have a qualified installer install the coffee maker in the desired location
according to the accompanying installation instructions.
After Installing Your Coffee Maker...
Slide the coffee maker out and remove the keys taped to the side.
1.
2.
3.
4.
1.
If you are installing model E24CM76GSS (plumbed model), contact a water
treatment specialist and have a water treatment system installed to reduce
the water hardness level to 4 gpg or less.
If you are installing model E24CM75GSS (tank model), pour only filtered
water with a hardness level of 4 gpg or less into the water tank. DO NOT
use distilled water.
◊
◊
IMPORTANT
The warranty on your coee maker does
not cover lost keys. Put your keys in a
safe place.

15
Gently move the coffee dispenser up or down until it is at the desired height.
Turn on the power switch according to page 17, wait for the message
“Machine Ready” to appear on the display.
Flush the coffee maker according to the Flushing Out the Coffee Maker
section on page 39.
2.
3.
4.
Getting Started
WARNING
To avoid sickness, flush the coffee maker out before operating it for
the first time according to the Flushing Out the Coffee Maker section
on page 39. Doing so will remove any bacteria left in the unit during
shipping and storage.
Make sure the hardness of the water supplied to, or poured into your
coffee maker does not exceed the maximum stated above. Using
water harder than that specified will eventually damage the internal
parts and void your warranty.
•
•

16 Operating Instructions
BEFORE USING YOUR COFFEE MAKER
“Clean Group” will appear on the display when the coffee maker needs a
routine cleaning. The “Clean Group” message will disappear after you follow
the Routine Cleaning Instructions on page 32.
A small amount of dripping from the dispensers is normal after drinks are
dispensed.
This coffee maker is designed to make one (in some cases two) hot drink(s)
at a time.
Drink volume may vary due to coffee type, grind time, temperature, tamping
time and pre-brewing time.
For proper operation, clean your coffee maker regularly according to the
cleaning schedule on page 30.
When the coffee maker makes coffee, it dumps the used coffee grounds into
the used coffee ground bin. You must empty out the bin when it becomes
full. “Drawer Full” will appear on the display. See the Routine Cleaning
Instructions on page 32.
The coffee maker purges water into the drip tray to ensure that the water
used for drink making is hot. Empty out the drip tray when it starts to get full.
•
•
•
•
•
•
•
CAUTION
Use only ltered water with a hardness of 4 gpg or lower. See Before
Installing Your Coffee Maker on page 14.
WARNING
On model E24CM75GSS, clean the water tank daily to avoid sickness due to
bacteria growth.
WARNING
DO NOT PUSH ANY BUTTONS ON THE CONTROL PANEL UNTIL ALL BODY
PARTS AND CLOTHING ARE CLEAR OF THE BREWING COMPARTMENT.
KEEP ALL BODY PARTS AWAY FROM THE BREWING COMPARTMENT
DURING OR IMMEDIATELY AFTER DRINK DISPENSING. HOT LIQUIDS AND
STEAM CAN CAUSE SEVERE BURNS.

17
Operating Instructions
TURNING ON YOUR COFFEE MAKER
Turn on the power switch. It is located on the ceiling of the brewing compartment,
below the front panel. You will hear the brewing motor prepare to make drinks.
“Please Wait..Heating” will
appear on the display for a
few minutes until the unit
is ready to operate.
“Machine Ready” will appear
on the display when the unit is ready to make drinks.

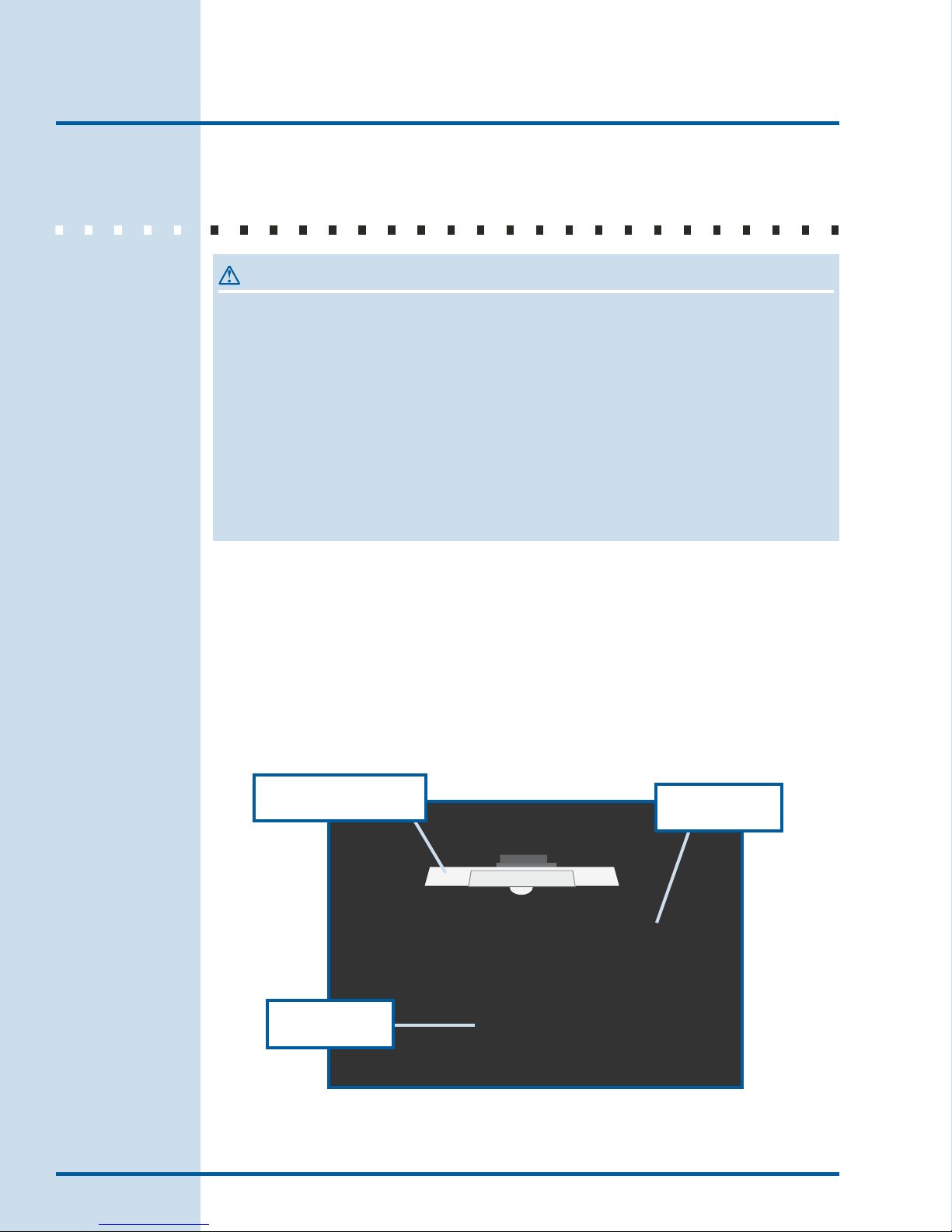

TURNING ON THE LIGHTS
The lights can be turned on or off at any time, even if the coffee maker power
switch is off. The light switch is located on the ceiling of the brewing compartment,
on the far right, below the display.
Push the light switch in to turn it on or off.
Light
Switch
Light
Power
Switch
Front Panel
Light
NOTE
Electrolux highly recommends turing off the main
power switch when the unit is not in use.

18 Operating Instructions
LOADING YOUR COFFEE MAKER
Grasp both sides of the front panel and slide the unit out.
On model E24CM75GSS, pour filtered water (with a water hardness of 4 gpg
or less) into the water tank. The tank holds 1 ¼ gallons of water (5 liters). Do
not use distilled water.
Open the coffee bean container lid. Fill it to ½” from the top with whole,
unflavored, roasted coffee beans. Do not over-fill!
Make sure the water tank, coffee bean container and ground coffee chute
lids are closed and push the coffee maker into the cabinet.
1.
2.
3.
4.
WARNING
To prevent personal injury, keep your hands out of the coffee bean
compartment and the ground coffee chute.
Some of the metal surfaces behind the front panel are hot when the
power switch is on. Avoid contact with these surfaces.
Do not pour flavored, un-roasted, partial coffee beans or ground
coffee into the coffee bean container. Doing so may cause the coffee
grinding mechanism to jam. If you want flavored coffee, pour flavored
coffee creamers into your coffee after your drink has been made.
You may also make flavored coffee using ground coffee poured into
the ground coffee chute. See the Decaffeinated and Ground Coffee
section on page 22 for directions.
•
•
•
Water Tank
Model E24CM75GSS
Ground Coee
Chute
Coee Bean
Container
Top of Coee Maker

19
Operating Instructions
MAKING ESPRESSO
Your coffee maker can make one or two cups of espresso at a time. One “shot” of
espresso is a little over one ounce of strong coffee.
For one cup of espresso, center a small cup under the coffee dispenser. For
two cups, put two cups side by side under the coffee dispenser.
Push the Single Espresso or Double Espresso button. If you push the
Single Espresso button, the coffee maker will pour one shot (about one
ounce) of espresso. If you push the Double Espresso button, the coffee
maker will pour two shots (about two ounces). You will hear the coffee
grinder grind and tamp down the coffee beans, and the water pump hum
as the espresso is made. Push the Single Espresso or Double Espresso
button again to make the coffee maker stop before the normal amount is
dispensed.
If you want more espresso dispensed, wait until the display reads “Machine
Ready”, then push one of the espresso buttons again.
When the display reads “Machine Ready”, carefully remove the cup from
under the dispenser.
1.
2.
3.
4.
NOTE
If you place two cups under the dispenser, the
amount of espresso dispensed will be shared
between the two cups. For example, if you press
the Single button, the coffee maker will dispense
about ½ ounce of espresso in each cup.
One Cup of Espresso Two Cups of Espresso
Steamer
Coffee
Coffee
Single
Water
Hot
Espresso
Double
Latté
Double Decaf Large Cappuccino
Espresso
Single
Latté
WARNING
BURN WARNING: HOT LIQUIDS CAN CAUSE SEVERE BURNS. KEEP ALL
BODY PARTS AND CLOTHING CLEAR OF THE BREWING COMPARTMENT
DURING OPERATION.

20 Operating Instructions
MAKING CAFE LATTÉ
Your coffee maker can make one or two cups of cafe latte at a time. Cafe latte is a
large espresso (about three ounces) with six ounces of steamed milk.
Steam a pitcher of milk, six ounces for a single cafe latte or 12 ounces for a
double. See page 25.
Pour the steamed milk into a cup large enough to contain 9 ounces of liquid.
For one cup of cafe latte, center the cup under the coffee dispenser. For two
cups, put two cups side by side under the coffee dispenser.
Push one of the cafe latte buttons (Single Latté or Double Latté). If you
push the Single Latté button, the coffee maker will pour one large serving
of espresso. If you push the Double Latté button, the coffee maker will pour
two large servings of espresso. You will hear the coffee grinder grind and
tamp down the coffee beans, and the water pump hum as the espresso is
made. Push the Single Latté or Double Latté button again to make the
coffee maker stop before the normal amount is dispensed.
If you want more espresso dispensed for your cafe latte,, wait until the
display reads “Machine Ready”, then push the Single Latté or Double
Latté button again.
When the display
reads “Machine Ready”,
carefully remove the
cup from under the
dispenser.
1.
2.
3.
4.
5. NOTE
If you place two cups under the dispenser, the
amount of cafe latte dispensed will be shared
between the two cups.
Steamer
Coffee
Coffee
Single
Water
Hot
Espresso
Double
Latté
Double Decaf Large Cappuccino
Espresso
Single
Latté
WARNING
BURN WARNING: HOT LIQUIDS CAN CAUSE SEVERE BURNS. KEEP ALL
BODY PARTS AND CLOTHING CLEAR OF THE BREWING COMPARTMENT
DURING OPERATION.
