Electrolux EK 5701 User manual

1
GB
Gas cookers
Mod. EK 5701
35673-8302
Please read this instruction booklet before using the appliance
INSTRUCTION BOOKLET
All manuals and user guides at all-guides.com
all-guides.com

2

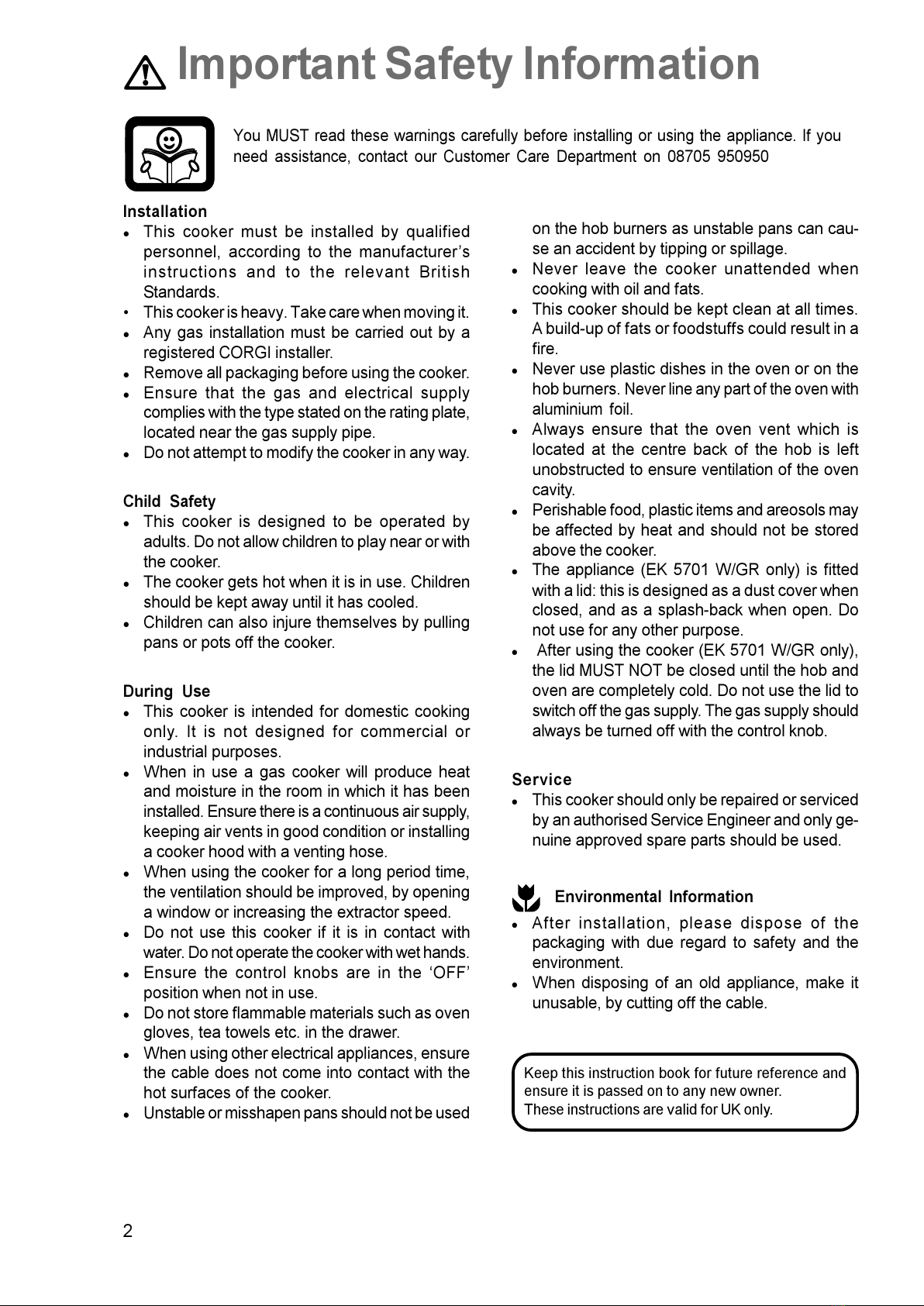

Important Safety Information
You MUST read these warnings carefully before installing or using the appliance. If you
need assistance, contact our Customer Care Department on 87 5 95 95
Installation
lThis cooker must be installed by qualified
personnel, according to the manufacturers
instructions and to the relevant British
Standards.
 This cooker is heavy. Take care when moving it.
lAny gas installation must be carried out by a
registered CORGI installer.
lRemove all packaging before using the cooker.
lEnsure that the gas and electrical supply
complies with the type stated on the rating plate,
located near the gas supply pipe.
lDo not attempt to modify the cooker in any way.
Child Safety
lThis cooker is designed to be operated by
adults. Do not allow children to play near or with
the cooker.
lThe cooker gets hot when it is in use. Children
should be kept away until it has cooled.
lChildren can also injure themselves by pulling
pans or pots off the cooker.
During Use
lThis cooker is intended for domestic cooking
only. It is not designed for commercial or
industrial purposes.
lWhen in use a gas cooker will produce heat
and moisture in the room in which it has been
installed. Ensure there is a continuous air supply,
keeping air vents in good condition or installing
a cooker hood with a venting hose.
lWhen using the cooker for a long period time,
the ventilation should be improved, by opening
a window or increasing the extractor speed.
lDo not use this cooker if it is in contact with
water. Do not operate the cooker with wet hands.
lEnsure the control knobs are in the OFF
position when not in use.
lDo not store flammable materials such as oven
gloves, tea towels etc. in the drawer.
lWhen using other electrical appliances, ensure
the cable does not come into contact with the
hot surfaces of the cooker.
lUnstable or misshapen pans should not be used
on the hob burners as unstable pans can cau-
se an accident by tipping or spillage.
lNever leave the cooker unattended when
cooking with oil and fats.
lThis cooker should be kept clean at all times.
A build-up of fats or foodstuffs could result in a
fire.
lNever use plastic dishes in the oven or on the
hob burners.
Never line any part of the oven with
aluminium foil.
lAlways ensure that the oven vent which is
located at the centre back of the hob is left
unobstructed to ensure ventilation of the oven
cavity.
lPerishable food, plastic items and areosols may
be affected by heat and should not be stored
above the cooker.
lThe appliance (EK 57 1 W/GR only) is fitted
with a lid: this is designed as a dust cover when
closed, and as a splash-back when open. Do
not use for any other purpose.
l After using the cooker (EK 57 1 W/GR only),
the lid MUST NOT be closed until the hob and
oven are completely cold. Do not use the lid to
switch off the gas supply. The gas supply should
always be turned off with the control knob.
Service
lThis cooker should only be repaired or serviced
by an authorised Service Engineer and only ge-
nuine approved spare parts should be used.
Environmental Information
lAfter installation, please dispose of the
packaging with due regard to safety and the
environment.
lWhen disposing of an old appliance, make it
unusable, by cutting off the cable.
Keep this instruction book for future reference and
ensure it is passed on to any new owner.
These instructions are valid for UK only.
All manuals and user guides at all-guides.com

3
This appliance is manufactured
according to the following EEC
directives:
73/23 EEC - 9 /683 EEC - 93/68 EEC -
89/336 EEC - 9 /396 EEC,
current edition.

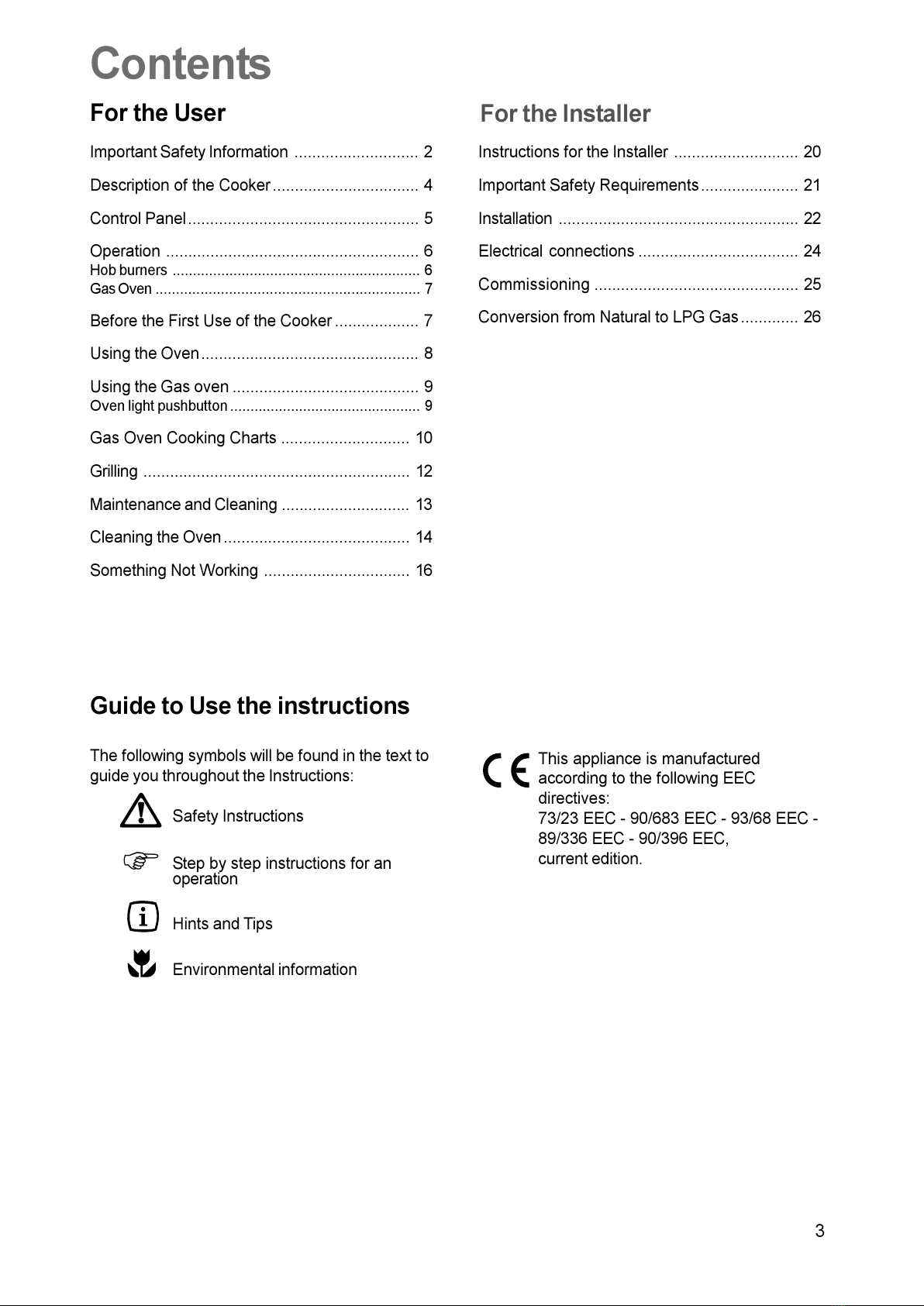

Contents
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
Environmental information
F
For the User For the Installer
Important Safety Information ............................ 2
Description of the Cooker ................................. 4
Control Panel .................................................... 5
Operation ......................................................... 6
Hob burners ............................................................. 6
Gas Oven ................................................................. 7
Before the First Use of the Cooker ................... 7
Using the Oven................................................. 8
Using the Gas oven .......................................... 9
Oven light pushbutton ...............................................

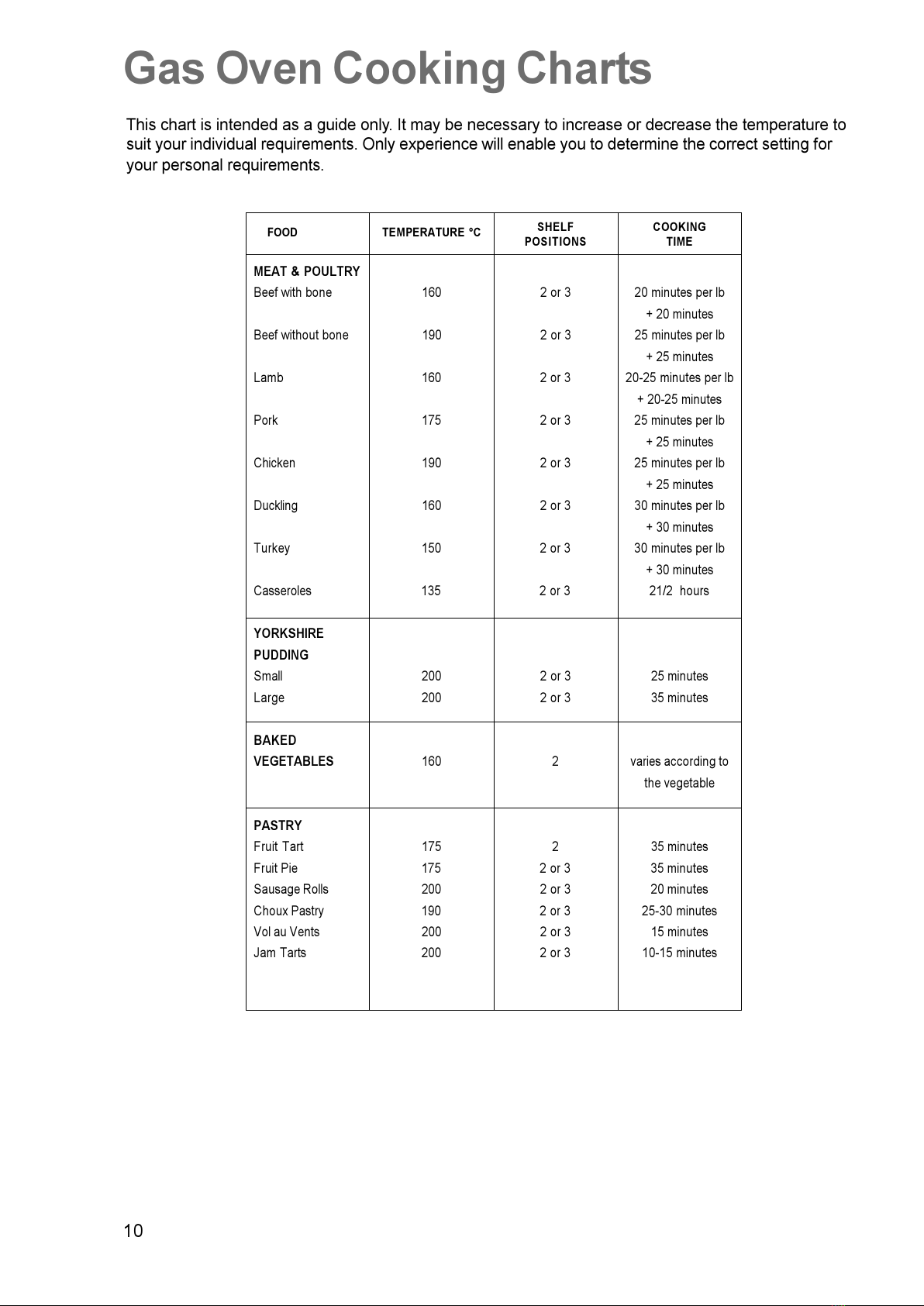

Gas Oven Cooking Charts ............................. 1
Grilling ............................................................ 12
Maintenance and Cleaning ............................. 13
Cleaning the Oven .......................................... 14

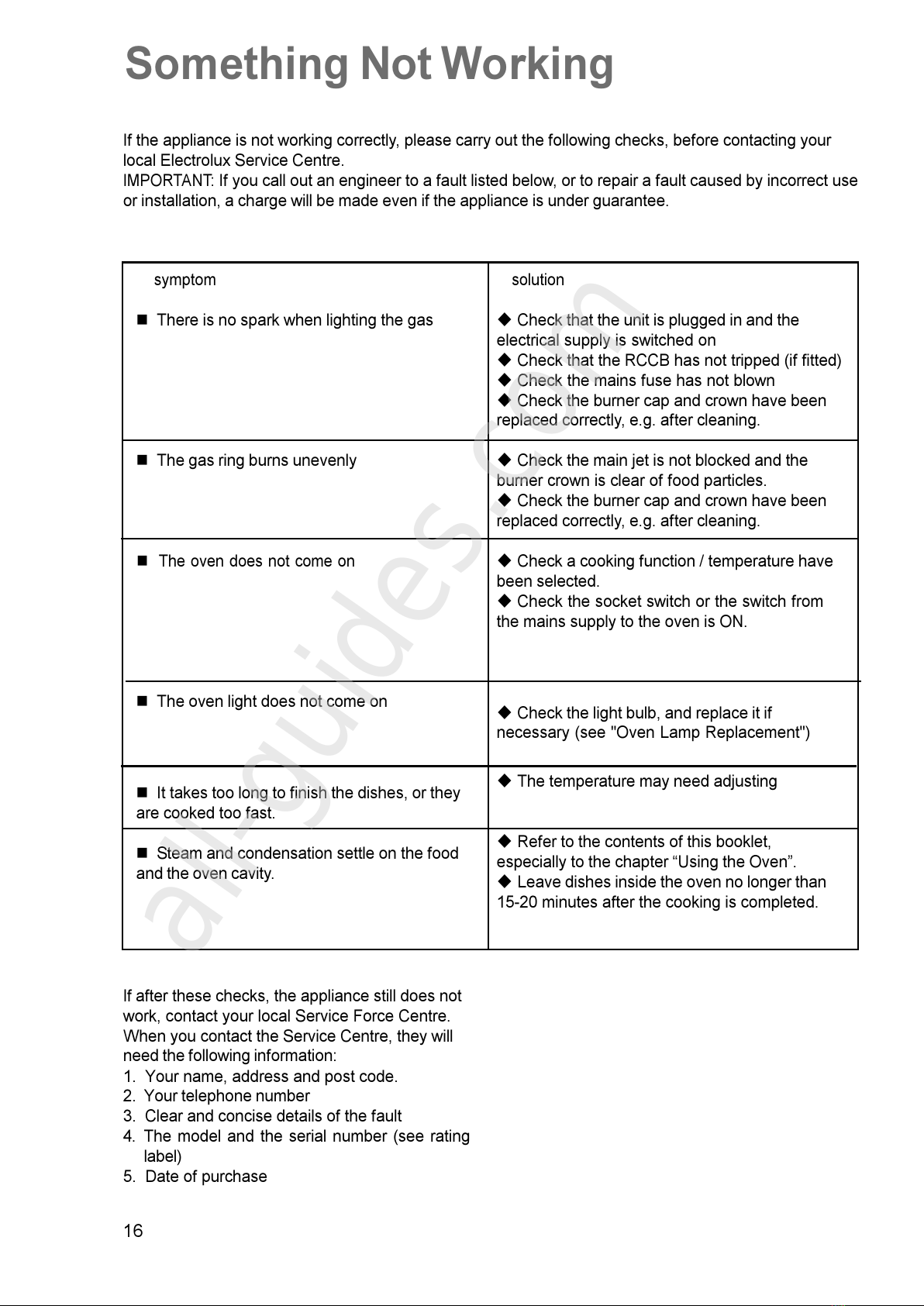

Something Not Working ................................. 16
Instructions for the Installer ............................ 2
Important Safety Requirements ...................... 21
Installation ...................................................... 22
Electrical connections .................................... 24
Commissioning .............................................. 25
Conversion from Natural to LPG Gas ............. 26
All manuals and user guides at all-guides.com

4
Premier
grill and oven
front left
back left back rightfront right
Description of the Cooker
Rapid burner
Semi-rapid burner
Control panel
Oven door
Semi-rapid
burner
Auxiliary burner
Storage
drawer
Cooker lid
(EK 5701 W/GR only)
All manuals and user guides at all-guides.com

5
Premier
grill and oven
front left
back left back rightfront right

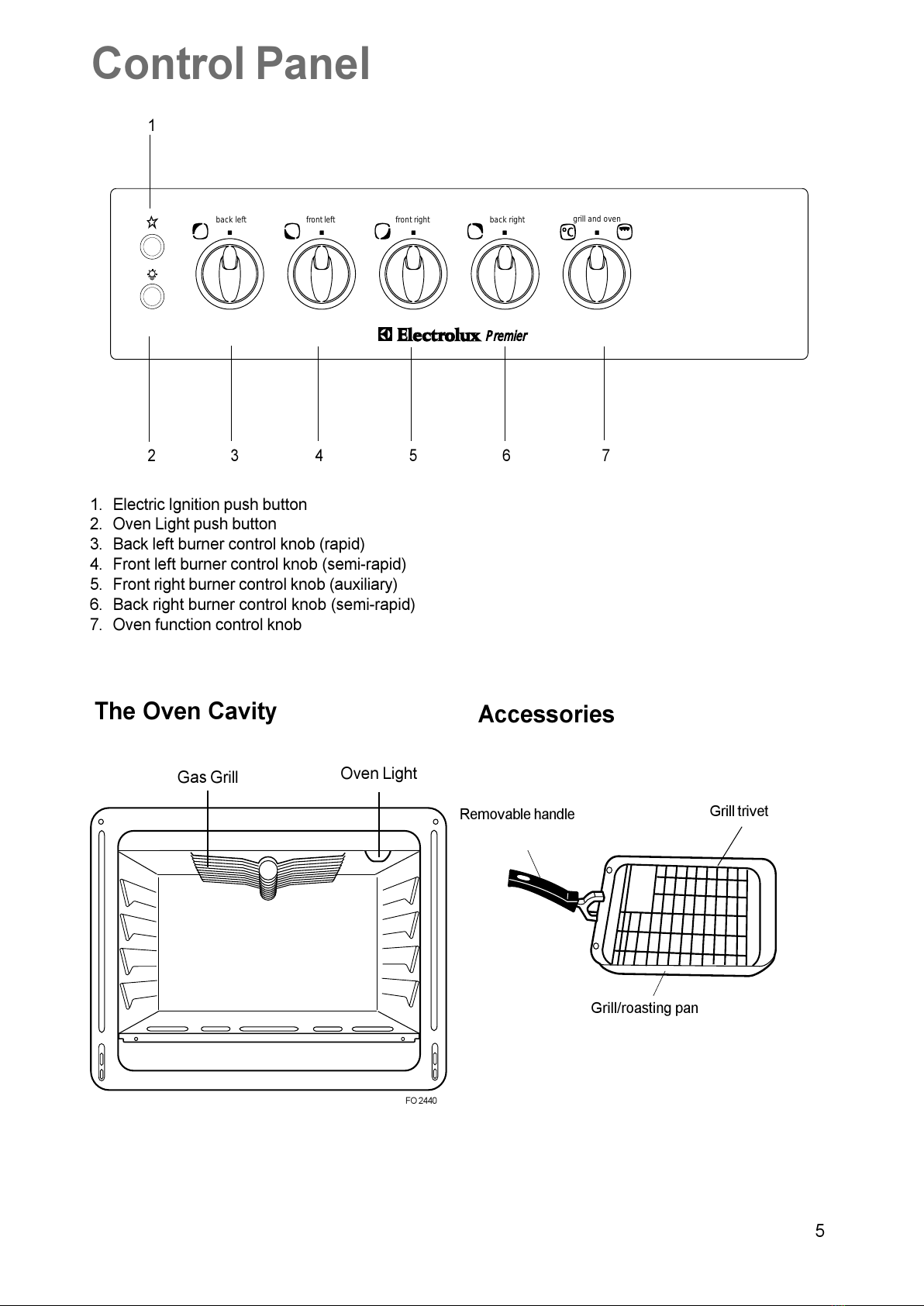

Control Panel
1. Electric Ignition push button
2. Oven Light push button
3. Back left burner control knob (rapid)
4. Front left burner control knob (semi-rapid)
5. Front right burner control knob (auxiliary)
6. Back right burner control knob (semi-rapid)
7. Oven function control knob
7654
1
3
The Oven Cavity
Gas Grill Oven Light
2
FO 2440
Accessories
P
Q
Grill trivet
Removable handle
Grill/roasting pan
All manuals and user guides at all-guides.com

6

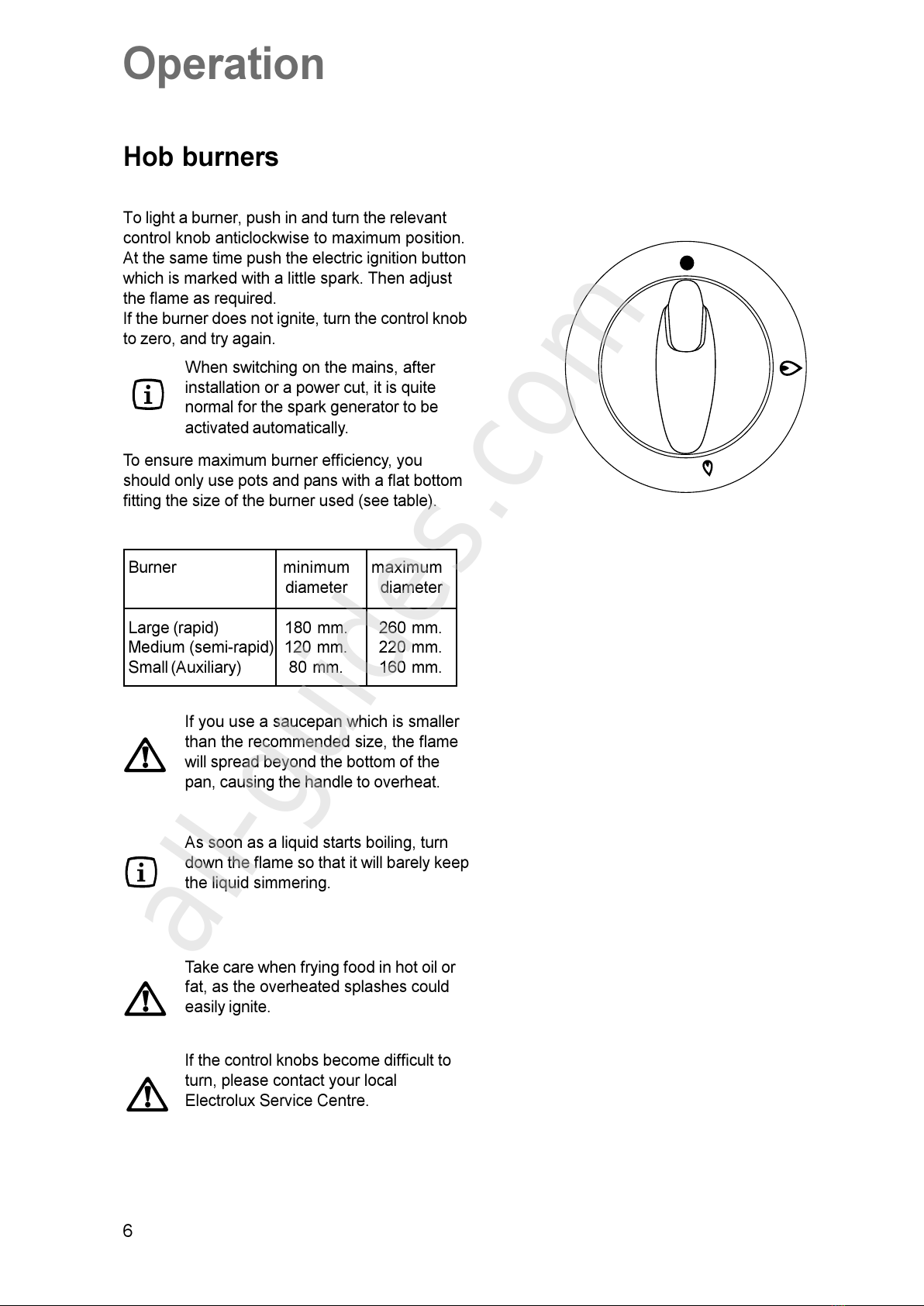

Operation
Hob burners
To light a burner, push in and turn the relevant
control knob anticlockwise to maximum position.
At the same time push the electric ignition button
which is marked with a little spark. Then adjust
the flame as required.
If the burner does not ignite, turn the control knob
to zero, and try again.
When switching on the mains, after
installation or a power cut, it is quite
normal for the spark generator to be
activated automatically.
To ensure maximum burner efficiency, you
should only use pots and pans with a flat bottom
fitting the size of the burner used (see table).
Burner minimum maximum
diameter diameter
Large (rapid) 18 mm. 26 mm.
Medium (semi-rapid) 12 mm. 22 mm.
Small (Auxiliary) 8 mm. 16 mm.
If you use a saucepan which is smaller
than the recommended size, the flame
will spread beyond the bottom of the
pan, causing the handle to overheat.
As soon as a liquid starts boiling, turn
down the flame so that it will barely keep
the liquid simmering.
Take care when frying food in hot oil or
fat, as the overheated splashes could
easily ignite.
If the control knobs become difficult to
turn, please contact your local
Electrolux Service Centre.
All manuals and user guides at all-guides.com
all-guides.com

7
4
10
6
10
0
20
4
20
max

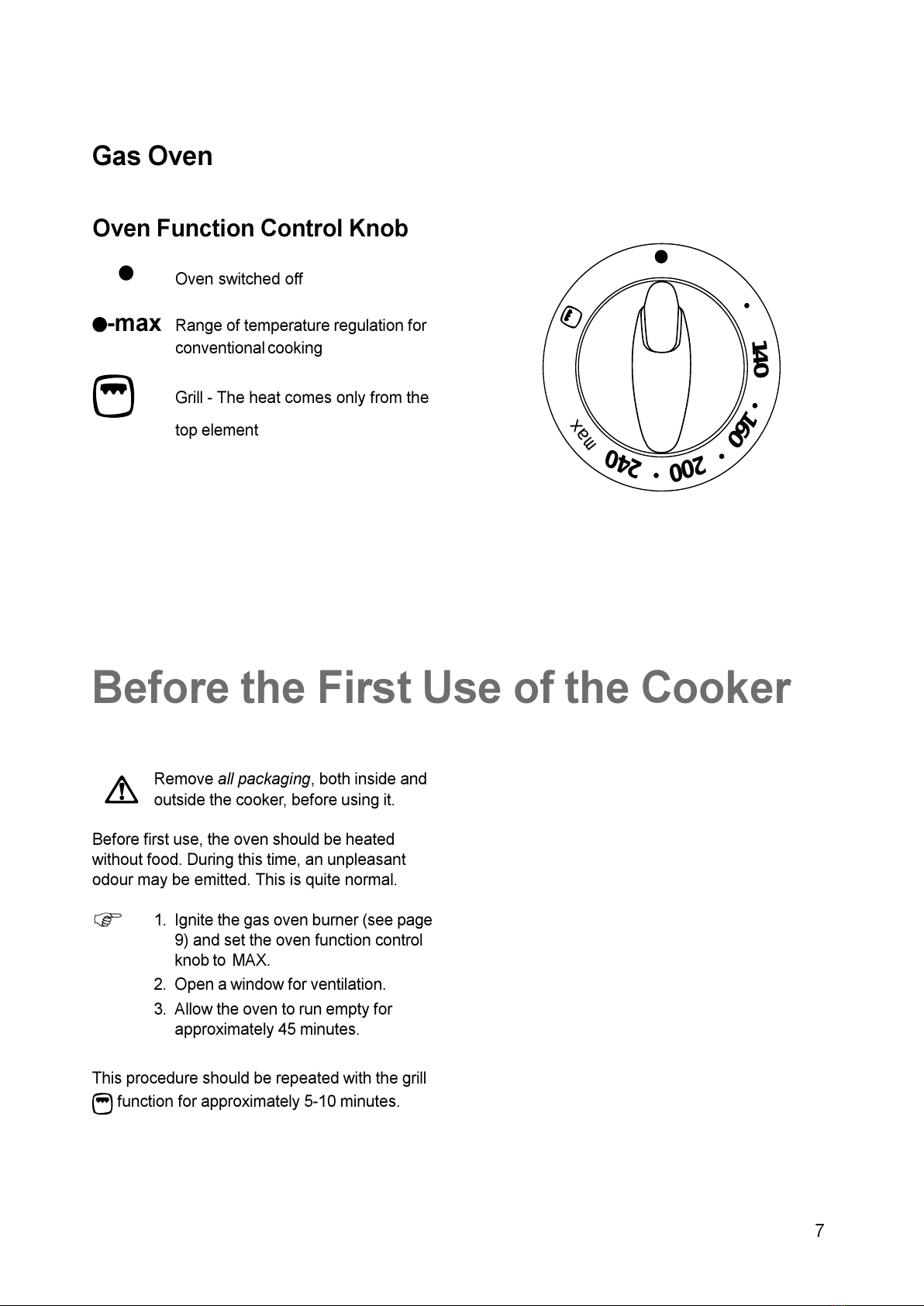

Gas Oven
Oven Function Control Knob
Oven switched off
-max Range of temperature regulation for
conventional cooking
Grill - The heat comes only from the
top element
Before the First Use of the Cooker
Remove all packaging, both inside and
outside the cooker, before using it.
Before first use, the oven should be heated
without food. During this time, an unpleasant
odour may be emitted. This is quite normal.
F1. Ignite the gas oven burner (see page
9) and set the oven function control
knob to MAX.
2. Open a window for ventilation.
3. Allow the oven to run empty for
approximately 45 minutes.
This procedure should be repeated with the grill
function for approximately 5-1 minutes.
All manuals and user guides at all-guides.com

8

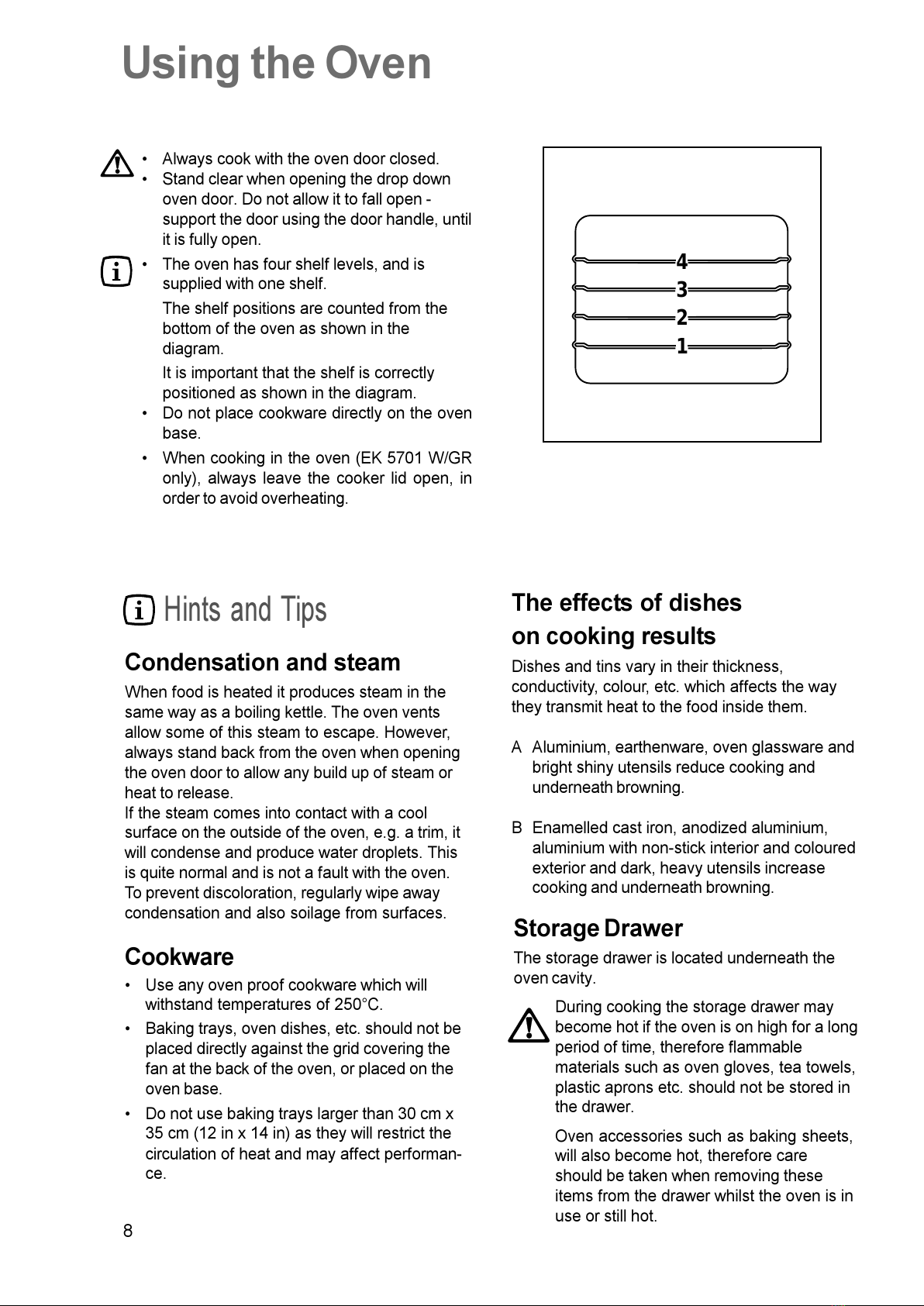

Using the Oven
 Always cook with the oven door closed.
 Stand clear when opening the drop down
oven door. Do not allow it to fall open -
support the door using the door handle, until
it is fully open.
 The oven has four shelf levels, and is
supplied with one shelf.
The shelf positions are counted from the
bottom of the oven as shown in the
diagram.
It is important that the shelf is correctly
positioned as shown in the diagram.
 Do not place cookware directly on the oven
base.
 When cooking in the oven (EK 57 1 W/GR
only), always leave the cooker lid open, in
order to avoid overheating.
The effects of dishes
on cookin results
Dishes and tins vary in their thickness,
conductivity, colour, etc. which affects the way
they transmit heat to the food inside them.
A Aluminium, earthenware, oven glassware and
bright shiny utensils reduce cooking and
underneath browning.
B Enamelled cast iron, anodized aluminium,
aluminium with non-stick interior and coloured
exterior and dark, heavy utensils increase
cooking and underneath browning.
Condensation and steam
When food is heated it produces steam in the
same way as a boiling kettle. The oven vents
allow some of this steam to escape. However,
always stand back from the oven when opening
the oven door to allow any build up of steam or
heat to release.
If the steam comes into contact with a cool
surface on the outside of the oven, e.g. a trim, it
will condense and produce water droplets. This
is quite normal and is not a fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.
Cookware
 Use any oven proof cookware which will
withstand temperatures of 25 °C.
 Baking trays, oven dishes, etc. should not be
placed directly against the grid covering the
fan at the back of the oven, or placed on the
oven base.
 Do not use baking trays larger than 3 cm x
35 cm (12 in x 14 in) as they will restrict the
circulation of heat and may affect performan-
ce.
Hints and Tips
Stora e Drawer
The storage drawer is located underneath the
oven cavity.
During cooking the storage drawer may
become hot if the oven is on high for a long
period of time, therefore flammable
materials such as oven gloves, tea towels,
plastic aprons etc. should not be stored in
the drawer.
Oven accessories such as baking sheets,
will also become hot, therefore care
should be taken when removing these
items from the drawer whilst the oven is in
use or still hot.
4
3
2
1
All manuals and user guides at all-guides.com

9
Before usin your oven
Switch the oven to MAX. and leave it to run
empty for about 3 minutes to remove any
unpleasant smell.
During cooking, the door should be opened as
little as possible to avoid heat loss, and
excessive fuel consumption.
FTo ignite the oven gas burner:
1. Open the oven door.
2. Hold a flame to the right-hand side hole
(see fig.)
3. Press the oven control knob and turn it
anti-clockwise until the maximum
temperature is reached.
4. Firmly press the oven control knob for
approximately 5 seconds, until the
safety valve automatically keeps the
oven burner lit.
5. Release the control knob and then
gently close the oven door. To adjust
the temperature, turn the knob to the
required setting after a few minutes.
Oven safety device
The cooker features a thermocouple; if for any
reason the flame should extinguish, the device
will stop the gas flow.
Oven light pushbutton
This button will turn the oven light on.
If the oven burner accidentally goes out,
turn the oven knob to "O" and wait at least
1 minute before trying to light the burner
again.
Using the Gas oven
Grill burner i nition
1. Open the oven door.
2. Hold a flame to the gas grill burner holes (see
fig.).
3. Press the oven control knob and turn it to .
4. Firmly press the oven control knob for
approximately 5 seconds, until the safety
valve automatically keeps the grill burner lit.
If the burner does not ignite, turn the control knob
to zero, and try again.
FO 0829
FO 1079 REV
All manuals and user guides at all-guides.com

10
Gas Oven Cooking Charts
SHELF COOKING
POSITIONS TIME
MEAT & POULTRY
Beef with bone 160 2 or 3 20 minutes per lb
+ 20 minutes
Beef without bone 190 2 or 3 25 minutes per lb
+ 25 minutes
Lamb 160 2 or 3 20-25 minutes per lb
+ 20-25 minutes
Por 175 2 or 3 25 minutes per lb
+ 25 minutes
Chic en 190 2 or 3 25 minutes per lb
+ 25 minutes
Duc ling 160 2 or 3 30 minutes per lb
+ 30 minutes
Tur ey 150 2 or 3 30 minutes per lb
+ 30 minutes
Casseroles 135 2 or 3 21/2 hours
YORKSHIRE
PUDDING
Small 200 2 or 3 25 minutes
Large 200 2 or 3 35 minutes
BAKED
VEGETABLES 160 2 varies according to
the vegetable
PASTRY
Fruit Tart 175 2 35 minutes
Fruit Pie 175 2 or 3 35 minutes
Sausage Rolls 200 2 or 3 20 minutes
Choux Pastry 190 2 or 3 25-30 minutes
Vol au Vents 200 2 or 3 15 minutes
Jam Tarts 200 2 or 3 10-15 minutes
TEMPERATURE °C FOOD
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to
suit your individual requirements. Only experience will enable you to determine the correct setting for
your personal requirements.
All manuals and user guides at all-guides.com

11
SHELF COOKING
POSITION TIME
PUDDINGS
Egg Custard in a
Bain Marie 135 2 or 3 1-1 1/4 hours
Pavlova 135 2 or 3 1 1/2 hours
Meringues 135 2 or 3 1 1/2 hours
CAKES
Rich Fruit 150 2 or 3 3 1/2-4 hours
Ca e 8" 150 2 or 3
Plain Fruit Ca e 160 2 or 3 2 1/2 hours
Victoria
Sandwich 175 2 or 3 25-35 minutes
Madeira Ca e 160 2 or 3 1 3/4-2 hours
Small Ca es 160 3 20-30 minutes
Ginger Bread 160 3 35-45 minutes
Flapjac 160 3 20-25 minutes
YEAST MIXTURES
Bread
1lb Loaves 200 2 or 3 30-40 minutes
Bread
2lb Loaves 200 2 or 3 40-50 minutes
Rolls and Buns 200 2 or 3 15-20 minutes
Tea Rings 190 2 or 3 25-35 minutes
Scones 200 2 or 3 15-20 minutes
Shortbread 160 25-35 minutes
TEMPERATURE °C FOOD
2 or 3 Change
trays over halfway
through the
coo ing time
Gas Oven Cooking Charts
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to
suit your individual requirements. Only experience will enable you to determine the correct setting for
your personal requirements.
All manuals and user guides at all-guides.com
all-guides.com

12
Grilling
Grilling must be carried out with the oven
door closed. The grill pan handle must
be removed from the pan.
FHow to Use the Grill
1. Ignite the grill burner as explained at page 9.
2. Adjust the grid and grill pan runner position to
allow for different thicknesses of food.
Position the food close to the element for
faster cooking and further away for more
gentle cooking.
Preheat the grill for a few minutes before
sealing steaks or toasting. Adjust the shelf level
as necessary, during cooking.
- Most foods should be placed on the grid in the
grill pan to allow maximum circulation of air to
lift the food out of the fats and juices. Food such
as fish, liver and kidneys may be placed directly
on the grill pan, if preferred.
- Food should be thoroughly dried before grilling
to minimise splashing. Brush lean meats and
fish lightly with a little oil or melted butter to keep
them moist during cooking.
- Accompaniments such as tomatoes and
mushrooms may be placed underneath the
grid when grilling meats
- When toasting bread, we suggest that the top
runner position is used.
- The food should be turned over during cooking,
as required.
- When grilling, we suggest that the dripping pan
is placed directly on the oven base. The
dripping pan prevents splashes of fat from
soiling the floor of the oven.
Hints and Tips
Bacon rashers 2-3 each side
Beefburgers 6-1 each side
Chicken joints 1 -15 each side
Chops: 7-1 each side
1 -15 each side
Fish: 8-12 each side
4-6 each side
Kebabs 1 -15 each side
Kidneys: 4-6 each side
Liver: 5-1 each side
Sausages 1 -15 turn as required
Steaks: 3-6 each side
6-8 each side
7-1 each side
Browning only 3-5
Food Grill
Time (Min)
lamb
por
whole trout/herring
fillets plaice/cod
lamb/pig
lamb/pig
rare
medium
well
OI
L
All manuals and user guides at all-guides.com

13
Before any maintenance or cleaning
can be carried out, you must
DISCONNECT the cooker from the
electricity supply.
The Hob Top
The hob is best cleaned whilst it is still warm, as
spillage can be removed more easily than if it is
left to cool.
Regularly wipe over the hob top using a soft cloth
well wrung out in warm water to which a little
wasing up liquid has been added. Avoid the use
of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick
saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a cleaning product such as
Hob Brite or Bar Keepers Friend is used.
Pan Supports
The pan supports are dishwasher proof. If
washing them by hand, take care when drying
them as the enamelling process occasionally
leaves rough edges. If necessary, remove
stubborn stains using a paste cleaner.
The Burners
The burner caps and crowns can be removed for
cleaning.
Wash the burners caps and crowns using hot
soapy water, and remove marks with a mild
paste cleaner. A well moistened soap
impregnated steel wool pad can be used with
caution, if the marks are particularly difficult to
remove.
After cleaning, be sure to wipe dry with a soft
cloth.
Maintenance and Cleaning
All manuals and user guides at all-guides.com

14
Oven Cavity
The enamelled oven cavity is best cleaned whilst
the oven is still warm.
Wipe the oven over with a soft cloth soaked in
warm soapy water after each use. From time to
time it will be necessary to do a more thorough
cleaning, using a proprietary oven cleaner.
FO 0424
Oven lamp replacement
Disconnect the appliance.
Unscrew the lamp and substitute it with another
suitable for higher temperature (3 °C) having
the following characteristics:
Voltage: 23 -24 V (5 Hz)
Power: 15W
Connection: E14
The oven should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Cleaning materials
Before using any cleaning materials on your
oven, check that they are suitable and that their
use is recommended by the manufacturer.
Cleaners that contain bleach should NOT be
used as they may dull the surface finishes.
Harsh abrasives should also be avoided.
External cleaning
Regularly wipe over the control panel, oven door
and door seal using a soft cloth well wrung out in
warm water to which a little washing up liquid
has been added.
To prevent damaging or weakening the door
glass panels avoid the use of the following:
 Household detergent and bleaches
 Impregnated pads unsuitable for
non-stick saucepans
 rillo/Ajax pads or steel wool pads
 Chemical oven pads or aerosols
 Rust removers
 ath/Sink stain removers
Clean the outer and inner door glass using warm
soapy water. Should the inner door glass
become heavily soiled it is recommended that a
cleaning product such as Hob Brite, or Bar
Keepers Friend is used.
DO NOT clean the oven door while the
glass panels are warm. If this
precaution is not observed the glass
panel may shatter.
If the door glass panel becomes
chipped or has deep scratches, the
glass will be weakened and must be
replaced to prevent the possibility of the
panel shattering. Contact your local
Service Centre who will be pleased to
advise further.
Oven Shelves
To clean the oven shelves, soak in warm soapy
water and remove stubborn marks with a well
wetted soap impregnated pad. Rinse well and
dry with a soft cloth.
Cleaning the Oven
Lid cleaning (E 5701 W/GR
only)
The cooker lid can be disassembled, to allow a
better cleaning(see fig.). After a proper cleaning,
carefully reposition the lid into its hinges.
FO 0418
All manuals and user guides at all-guides.com

15
Cleaning around the flame spreader
F- Remove the small flap.
- Slide forward the remainder of the lid.
- Lift from the back.
When cleaning around the flame spreader,
particles can fall into the drawer below. We
recommend placing some paper over the
contents of the drawer whilst cleaning.
Please ensure the paper is removed after
cleaning or it may ignite.
We advise using a stiff dry brush to remove
stubborn grease deposits around the base of the
unit (see Fig.).
Remove any remaining surface fat with a sponge
while the oven is still warm.
Place a brush or other suitable cleaning
implement into the aperture and brush around
the base of the unit with a suitable detergent.
UNDER NO CIRCUMSTANCES
SHOULD THE FLAME SPREADER BE
REMOVED.
After cleaning, replace the lid correctly.
FO 0176
FO 0177
All manuals and user guides at all-guides.com

16
Something ot Working
symptom
nThere is no spark when lighting the gas
nThe gas ring burns unevenly
n The oven does not come on
nThe oven light does not come on
nIt takes too long to finish the dishes, or they
are cooked too fast.
nSteam and condensation settle on the food
and the oven cavity.
solution
uCheck that the unit is plugged in and the
electrical supply is switched on
uCheck that the RCCB has not tripped (if fitted)
uCheck the mains fuse has not blown
uCheck the burner cap and crown have been
replaced correctly, e.g. after cleaning.
uCheck the main jet is not blocked and the
burner crown is clear of food particles.
uCheck the burner cap and crown have been
replaced correctly, e.g. after cleaning.
uCheck a cooking function / temperature have
been selected.
uCheck the socket switch or the switch from
the mains supply to the oven is ON.
uCheck the light bulb, and replace it if
necessary (see "Oven Lamp Replacement")
uThe temperature may need adjusting
uRefer to the contents of this booklet,
especially to the chapter Using the Oven.
uLeave dishes inside the oven no longer than
15-2 minutes after the cooking is completed.
If after these checks, the appliance still does not
work, contact your local Service Force Centre.
When you contact the Service Centre, they will
need the following information:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault
4. The model and the serial number (see rating
label)
5. Date of purchase
If the appliance is not working correctly, please carry out the following checks, before contacting your
local Electrolux Service Centre.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use
or installation, a charge will be made even if the appliance is under guarantee.
All manuals and user guides at all-guides.com
all-guides.com

17

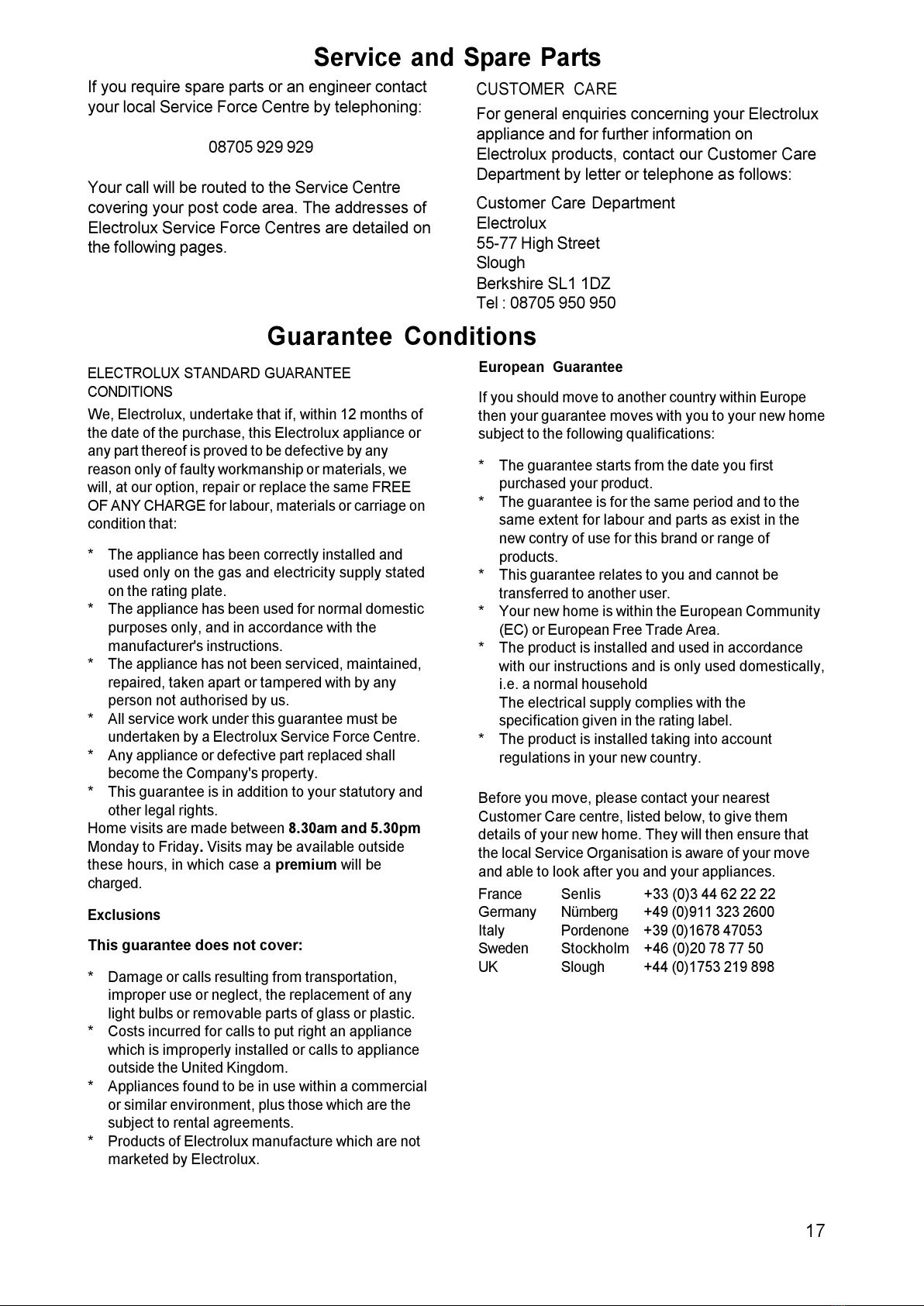

If you require spare parts or an engineer contact
your local Service Force Centre by telephoning:
87 5 929 929
Your call will be routed to the Service Centre
covering your post code area. The addresses of
Electrolux Service Force Centres are detailed on
the following pages.
CUSTOMER CARE
For general enquiries concerning your Electrolux
appliance and for further information on
Electrolux products, contact our Customer Care
Department by letter or telephone as follows:
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire SL1 1DZ
Tel : [phone]
Guarantee Conditions
Service and Spare Parts
ELECTROLUX STANDARD GUARANTEE
CONDITIONS
We, Electrolux, undertake that if, within 12 months of
the date of the purchase, this Electrolux appliance or
any part thereof is proved to be defective by any
reason only of faulty workmanship or materials, we
will, at our option, repair or replace the same FREE
OF ANY CHARGE for labour, materials or carriage on
condition that:
* The appliance has been correctly installed and
used only on the gas and electricity supply stated
on the rating plate.
* The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
* All service work under this guarantee must be
undertaken by a Electrolux Service Force Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours, in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside the United Kingdom.
* Appliances found to be in use within a commercial
or similar environment, plus those which are the
subject to rental agreements.
* Products of Electrolux manufacture which are not
marketed by Electrolux.
European Guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new home
subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the
same extent for labour and parts as exist in the
new contry of use for this brand or range of
products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European Community
(EC) or European Free Trade Area.
* The product is installed and used in accordance
with our instructions and is only used domestically,
i.e. a normal household
The electrical supply complies with the
specification given in the rating label.
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest
Customer Care centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]
All manuals and user guides at all-guides.com

18
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Force entre telephone [phone]
HANNEL ISLANDS
GUERNSEY Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands
ERSEY ersey Electricity
Company
PO Box 45
Queens Road
St Helier
ersey
Channel Islands
E4 8NY
S OTLAND
ABERDEEN 54 Claremont Street
(M05) Aberdeen
AB10 6RA
AUCHTERMUCHY 33A Burnside
(M03) Auchtermuchy
Fife
KY14 7A
BLANTYRE Unit 5
(M07) Block 2
Auchenraith Industrial
Estate
Rosendale Way
Blantyre
G72 0N
DUMFRIES 93 Irish Street
(M01) Dumfries
Scotland
DG1 2PQ
DUNOON Briar Hill
7 Hill Street
(M 67) Dunoon
Argyll
PA23 7AL
GLASGOW 20 Cunningham Road
(M04) Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
INVERNESS Unit 3B
(M06) Smithton Indust. Est.
Smithton
Inverness
IV1 2PD
ISLE OF ARRAN Arran Domestics
(OWN SALES) Unit 4 The Douglas
Centre
Brodick
Isle of Arran
KA27 8A
ISLE OF BARRA Zerfah
(OWN SALES) 244 Bruernish
Isle of Barra
Western Islands
HS9 5QY
ISLE OF BUTE Walker Engineering
(M66) Glenmhor
Upper Serpentine
Road
Rothesay
Isle of Bute
PA20 9EH
NORTH EAST
GATESHEAD Unit 356a
(M39) Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
GRIMSBY 15 Hainton Avenue
(M42) Grimsby
South Humberside
DN32 9AS
HULL Unit 1
(M41) Boulevard Industrial
Estate
Hull
HU3 4AY
LEEDS 64-66 Cross Gates
(M37) Road
Leeds
LS15 7NN
NEWTON AYCLIFFE Unit 16
(M45) Gurney Way
Aycliffe Ind Estate
Newton Aycliffe
DL5 6U
SHEFFIELD Pennine House
(M38) Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD 1 Kelvin Park
(M11) Dock Road
Birkenhead
L41 1LT
CARLISLE Unit 7
(M10) ames Street
Workshops
ames Street
Carlisle
Cumbria CA2 5AH
ISLE OF MAN South Quay Ind.
(M64) Estate
Douglas
Isle of Man IM1 5AT
LIVERPOOL Unit 1
(M15) Honeys Green
Precinct
Honeys Green Lane
Liverpool
L12 9 H
MANCHESTER Unit B
(M09) Central Industrial
Estate
St Marks Street
Bolton
BL3 6NR
PRESTON Unit 250
(M13) Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
STOCKPORT Unit 20 Haigh Park
(M16) Haigh Avenue
Stockport
SK4 1QR
ISLE OF LEWIS ND Macleod
(M69) 16 ames Street
Stornoway
Isle of Lewis
PA872QW
KELSO 2-8 Wood Market
(M08) Kelso
Borders TD5 7AX
ORKNEY Corsie Domestics
(M65) 7 King Street
Kirkwall
Orkney KW15 1RE
PERTH Hydro Electrical
Inveralmond House
Ruthervenfield Road
Perth PH1 3AQ
PERTH Graham Begg Unit 4
(OWN SALES) Airport Ind Estate
Wick KW1 4QS
SHETLAND Tait Electronic
(OWN SALES) Systems Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 0PW
SHETLAND Bolts Shetland Ltd
(OWN SALES) 26 North Road
Lerwick
Shetland ZE1 0PE
WHALSAY Leask Electrical
Harlsdale
Symbister, Whalsay
(OWN SALES) Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST Owenmore House
(M27) Kilwee Industrial
Estate
Upper Dunmury Lane
Belfast
BT17 0HD
WALES
CARDIFF Guardian Industrial
(M28) Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
CLYWD Unit 6-7 Coed - Parc
(M14) Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
OSWESTRY Plas Funnon
Warehouse
(M17) Middleton Road
Oswestry
SY11 2PP
HAVERFORDWEST Cromlech Lodge
(M75) Ambleston
Haverfordwest
Pembrokeshire
SA62 5DS
DYFED Maes Y Coed
(M77) High Mead
Llanybydder
Carmarthenshire
SA40 9UL
All manuals and user guides at all-guides.com

19
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Force entre telephone [phone]
MIDLANDS
BIRMINGHAM 66 Birch Road East,
(M18) Wyrley Road
Industrial
Estate
Witton
Birmingham
B67DB
BOURNE Manning Road Ind
(M44) Estate
Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH 65 St.Marys Street
(M72) Bridgnorth
Shropshire
WV16 4DR
GLOUCESTER 101 Rycroft Street
(M23) Gloucester
GL1 4NB
HEREFORD Unit 3
(M31) Bank Buildings
Cattle Market
Hereford
HE4 9HX
HIGHAM FERRERS 30 High Street
(M51) Higham Ferrers
Northants
NN10 8BB
ILKESTON Unit 2
(M43) Furnace Road
Ilkeston
DE7 5EP
LEICESTER Unit 7
(M22) Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE0 5GF
LINCOLN Unit 8 Stonefield Park
(M40) Clifton Street
Lincoln
LN5 8AA
NEWCASTLE 18-21 Croft Road
UNDER LYME Brampton Industrial
(M12) Estate
Newcastle under
Lyme
Staffordshire
ST5 0TW
REDDITCH 13 Thornhill Road
(M20) North Moons Moat
Redditch
Worcestershire
B98 9ND
TAMWORTH Unit 3
(M19) Sterling Park
Claymore
Tamworth
B77 5DO
WORCESTER Unit 1&2
(M73) Northbrook Close
Gregorys Mill Ind
Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM 11a Gardener Ind
(M79) Estate
Kent House Lane
Beckenham
Kent BR3 1QZ
CHELMSFORD Hanbury Road
(M47) Widford Ind Estate
Chelmsford
Essex
CM12 3AE
COLINDALE Unit 14
(M53) Capital Park
Capital Way
Colindale
London NW9 0EQ
ELTHAM 194 Court Road
(M78) Mottingham - Eltham
London SE9 4EW
ENFIELD 284 Alma Road
(M49) Enfield
London
EN3 7BB
GRAVESEND Unit B4,
(M57) Imperial Business
Estate
Gravesend
Kent
DA11 0DL
HARPENDEN Unit 4
(M46) Riverside Estate
Coldharbour Lane
Harpenden
AL5 4UN
LETCHWORTH 16-17 Woodsite Ind
(M50) Est.
Works Road
Letchworth
Herts
SG6 1LA
LONDON 2/4 Royal Lane
(M76) Yiewsley
West Drayton
Middlesex
UB7 8DL
MAIDENHEAD Reform Road
(M60) Maidenhead -
Berkshire
SL6 8BY
MOLESEY 10 Island Farm
(M61) Avenue
West Molesey
Surrey
KT8 2UZ
NEWBURY 9 Pipers Court
(M24) Berkshire Drive
Thatcham
Berkshire
RG19 4ER
IPSWICH Unit 6C
(M48) Elton Park Business
Centre
Hadleigh Road
Ipswich
IP2 0DD
NORWICH 2b Trafalgar Street
(M52) Norwich
NR1 3HN
SUNBURY Unit 1a
(M63) The Summit
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
SOUTH EAST
ASHFORD Unit 2
(M58) Bridge Road
Business
Estate
Bridge Road
Ashford
Kent
TN2 1BB
FLEET Unit 1
(M59) Redfields Industrial
Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
HAYWARDS HEATH 21-25 Bridge Road
(M55) Haywards Heath
Sussex
RH16 1UA
SOUTH WEST
BARNSTAPLE Main Road
(M30) Fremington
Barnstaple
North Devon
EX31 2NT
BOURNEMOUTH 63-65 Curzon Road
(M26) Bournemouth
Dorset
BH1 4PW
BRIDGEWATER 6 Hamp Industrial
(M35) Estate
Bridgewater
Somerset
BRISTOL 11 Eldon Way
(M25) Eldonwall Trading
Bristol
Avon
BS4 3QQ
EMSWORTH 266 Main Road
(M33) Southboure
Emsworth
PO10 8 L
ISLE OF WIGHT Unit 8
(M34) Enterprise Court
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
NEWTON ABBOT Unit 2
(M29) Zealley Industrial
Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
PLYMOUTH 16 Faraday Mill
(M32) Cattledown
Plymouth
PL4 0ST
REDRUTH Unit 7D Pool Industrial
(M36) Estate
Wilson Way, Redruth,
Cornwall
TR15 3QW
All manuals and user guides at all-guides.com

20
Model Number: EK 57 1
Appliance Class 2 sub class 1 and Class 1
Appliance category
:II 2H3+
APPLIANCE GAS SUPPLY: Natural gas G2 2 mbar
Technical Data
BURNER RAPID SEMI-RAPID AUXILIARY OVEN
(large (medium (small
POSITION MAX MIN MAX MIN MAX MIN MAX MIN
NOMINAL THERMAL
POWER kW 3.0 0.65 2.0 0.45 1.0 0.33 3.0 1.0
NOMINAL FLOW
RATE m
3
/h 0.286 0.057 0.190 0.038 0.095 0.028 0.286 0.095
NOZZLE REFERENCE 11 9 Adjust. 96 Adjust. 70 Adjust. 116 Adjust.
NOMINAL THERMAL
POWER kW 2.8 0.65 2.0 0.45 1.0 0.33 3.0 1.0
NOMINAL FLOW
RATE g/h 202 43.5 144 29 72 21,5 216 72
NOZZLE REFERENCE 8 6 4 0 7 1 3 2 5 0 2 8 8 2 5 2
NATURAL GAS
20 mbar
TYPE OF
GAS
CHARACTERISTICS
LPG GAS
28-30/37 mbar
1/100 mm
1/100 mm
VALUE = 49.92 M /Kg
VALUE = 37.78 M /m
3
Ws - 50.7 M / m
3
Instructions for the Installer
Oven
Gas Grill 2,1 W
Oven burner 3, W
Oven light 15 W
Supply voltage (5 Hz) 23 -24 V
Total cooker rating 11, W
Dimensions
Height 9 mm
Depth 6 mm
Width 497 mm
Oven Capacity 1.7 Cu. ft
Hob
Rear left burner (rapid) 3, W
Front left burner (semi-rapid) 2, W
Rear right burner (semi-rapid) 2, W
Front right burner (auxiliary) 1, W
GRILL
2.1
0.199
99
2.1
153
71
All manuals and user guides at all-guides.com
