Electrolux E36EC75ESS User manual

E36EC75ESS designer series
E36EC75ESS 06/06 © 2006 Electrolux Major Appliances, NA Printed in the U.S.A.

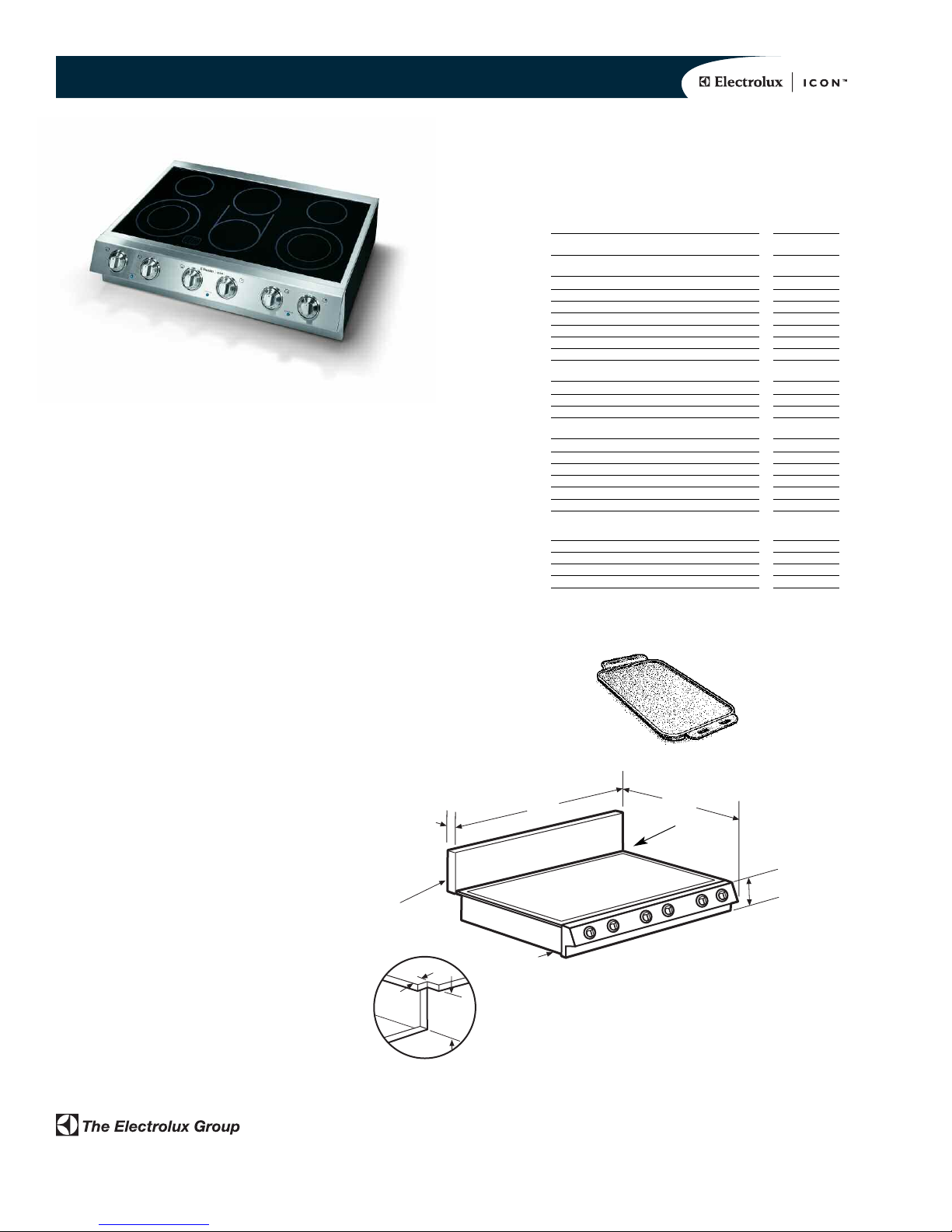

36" Electric Slide-In Cooktop Specifications
•Product Weight – 68 Lbs.
•Single phase 3- or 4-wire cable, 120/240 or
120 /208 Volt, 60 Hertz, fused on both sides of
line with ground.
•Connected Load (kW Rating) –
240 /208 Volts = 11.8 /8.8 kW
•Amps @ 240 /208 Volts = 49.2 /42.6 Amps
•Always consult local and /or national electric codes.
•Respect critical dimensions as noted for proper
installation of cooktop.
•Allow 2" space below armoured cable opening to
clear electrical cable and allow space for installation
of junction box on wall at back of cooktop.
•Overhead cabinetry should not exceed a 13"
maximum depth.
•Allow 30" minimum clearance between top of
cooktop and bottom of unprotected wood or metal
overhead cabinetry.
•The absolute minimum horizontal distance between
overhead cabinets installed to either side of the
appliance must be no less than the maximum width
of the appliance.
•Allow 24" minimum clearance when bottom of wood
or metal overhead cabinet is protected by not less
than 1/8" flame-retardant millboard covered with not
less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•Allow 1" minimum clearance between rear edge
of cutout and nearest combustible surface above
countertop.
•Allow 7-1/2" minimum clearance from edge of
cooktop to nearest combustible wall on either
side of unit.
•It is recommended that drawers not be used
beneath cooktop.
• To reduce risk of fire when using overhead
cabinetry, install range hood that projects
horizontally a recommended minimum of 7"
beyond bottom of cabinets.
•When replacing an existing cooktop with
countertop cutout deeper than 7-1/4" and less
than 8-1/2", order free Depth Adjustment Filler Kit
(903051-9010).
NOTE: Refer to Product Installation Guide for detailed
instructions on the web at electroluxusa.com.
Expandable, Flexible
Six Element Configuration
Concentric rings and bridge elements
are clearly marked on the surface.
Combinations allow the user to cook with
a variety of pan shapes and sizes at up to
4400 watts.
Ceramic Smoothtop Glass
Glass cooktop is flat, smooth and easy
to clean and maintain.
Beveled Front Controls
Ergonomically designed for visibility and
comfort. Large, professional-style knobs
are clearly scaled to eliminate guesswork
while cooking. Optional black knobs
available.
Included Accessories
Versatile Griddle Plate
No cooktop is complete without this
specially designed griddle. Coated with a
nonstick surface, it is quick to clean and
extremely durable. Ideal for breakfast,
lunch and dinner.
36" ELECTRIC SLIDE-IN COOKTOP
Configuration 6 Electric
Elements
FEATURES
Black Ceramic Smoothtop Glass Surface Yes
Large Professional Skirted Knobs with Bezel 6
6" Element – 1200 W 2
6" to 9" Expandable Element – 1000 W / 2500 W 2
7" /Bridge /7" Elements – 1800 W / 800 W / 1800W 1
Hot Surface Indicator Light 6 Positions
Spill Control Cooktop Yes
ACCESSORIES
Griddle Included
9" Stainless Steel Backsplash - 903048-9010 Optional
Black Control Knob Kit - 903049-9010 Optional
SPECIFICATIONS
Cutout Dimensions –
Height 7-1/2"
Width 35-3/16"
Depth 23-1/8"
Power Supply Location Right Rear
Connected Load Rating - 240 /208 Volts 11.8 /8.8 kW
Electrical – Single phase 3- or 4- wire cable,
120 /240 V or 120 /208 V, 60 Hz, fused on both Required
sides of line with ground.
Armored Electrical Cable Included
Product Weight 68 Lbs.
Shipping Weight 72 Lbs.
UPC (0-57112-) 08909-6
NOTE: Always consult local and /or national electric codes. Refer to Product
Installation Guide for detailed installation instructions on the web at
electroluxusa.com.
USA •250 Bobby Jones Expressway •Augusta, GA 30907
1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4
1-800-668-4606 •
electroluxca.com
3/4"*
71/4"*
*Both cutout dimensions are critical to proper cooktop
installation. Due to variations in countertop materials
it is recommended to undercut finished dimension
(35-15/16") and adjust upon installation of cooktop.
25 3/4"
35 7/8"
Side inset 3/8"
2"
73/4"
Optional 9" stainless
steel backsplash
Griddle
High standards of quality at Electrolux Major Appliances mean we are constantly working to improve
our products. We reserve the right to change specifications or discontinue models without notice.
Power
supply
location
