Electrolux EW36EC55G S User manual

Flex-2-Fit™System
Premium smoothtop cooking with
triple-ring expandable, double-ring
expandable and single-ring elements
fits all pots and pans.
Glide-2-Set™Controls
Glide-2-Set™electronic controls
have precise settings and blue LED
for repeatable results. Arc-designed
graphics are intuitive to use.
Ceramic Glass Smoothtop
Flat, smooth and easy to clean.
Kitchen Timer
Easy to read at a glance and
conveniently located near your
cooktop controls so you use it
more often.
Electric Drop-In Cooktops
EW36EC55G S, EW36EC55G W, EW36EC55G B
36" ELECTRIC TOUCH-CONTROL DROP-IN COOKTOPS
Sabbath Mode (Star-K®Certified)
Features
Glide-2-Set™Electronic Touch Controls
Ceramic Smoothtop Glass Surface
6" to 9" to 12" Triple Expandable Element –
1000W/2000W/2700W
6" to 9" Dual Expandable Element – 1600W/3000W
5" to 7" Dual Expandable Element – 750W/1800W
6" Electric Element – 1200W
Hot-Surface Indicator Lights
Sealed Spill Control Cooktop
Accessories
Cleaning Sponge
Specifications
Overall Exterior Dimensions –
Height (Extreme Bottom to Underside of Cooktop)
(Extreme Bottom to Topside of Cooktop)
Width
Depth (to Front Corner)
(to Center of Arc)
Power Supply Connection Location
Connected Load (kW Rating) @ 240/208 Volts
Amps@240/208 Volts
Minimum Circuit Required (Amps)
Electrical – Single phase 4-wire cable,
120/ 240 Volts or 120/208 Volts, 60 Hz,
fused on both sides of line with ground.
Armored Electrical Cable
Approved for Single Oven Combination Installation*
Product Weight
Shipping Weight
NOTE: Always consult local and/or national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
Yes
Yes
Yes
1
1
1
2
Yes
Yes
Included
6-3/4"
7-1/2"
36-3/4"
21-1/2"
21-3/4"
Right Center Rear
10.2/7.7
42.5/37.0
40
Required
Included
Yes
58 Lbs.
66 Lbs.
*Approved to be used over any Electrolux Single Wall Oven.
electroluxappliances.com
Wall OvensWarmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsDishwashersRefrigerators
FreezersUnder Counter

Electric Drop-In Cooktops
EW36EC55G S, EW36EC55G W, EW36EC55G B
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EW36EC55G 01/08 © 2008 Electrolux Major Appliances, NA Printed in the U.S.A.
345/8"
191/4"
63/4"
3/4"
C
LOverall depth
at center of
arc – 213/4"
363/4"211/2"
23/4"
61/2" min.
25"min.
36"
13"
max.
cabinet
depth
18"
min.
30" min.
for
unprotected
cabinet
24" min.
for
protected
surface
71/2" min. to nearest
combustible wall
(either side of unit)
24"
10"
12"
2" min. recommended
distance between rear
edge of cutout and
nearest combustible
surface above countertop
21/2" min. from
edge of cutout to front
edge of countertop
203/8" min.
205/8" max.
Approximate location
of junction box
353/4" min.
36" max.
4"x 8" opening to
route armoured cable

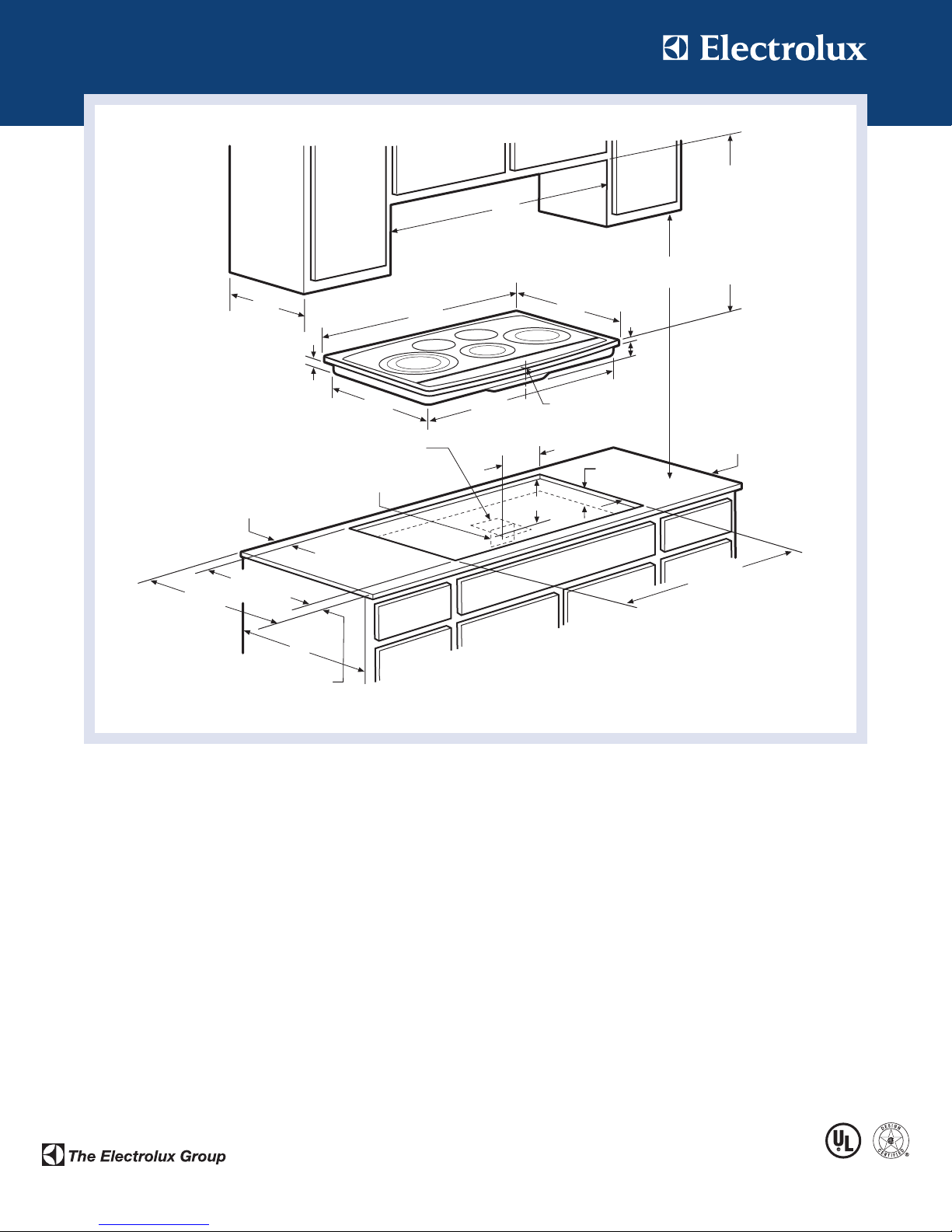

36" Electric Touch-Control Drop-In Cooktop Specifications
•
Product Weight – 58 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 10.2/7.7kW
•
Amps @ 240/208 Volts = 42.5/37.0 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and/or national electric codes.
•
Allow 2"space below armoured cable opening to clear electrical cable
and allow space for installation of junction box on wall at back of cooktop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface above countertop.
•
Allow 7-1/2" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•
It is recommended that drawers not be used beneath cooktop.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Touch-Control Drop-In Cooktop model EW36EC55G is approved to
be used over any Electrolux Single Wall Oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
