SAFETY PRECAUTIONS
This USER MANUAL provides specific operating
instructions for your model.
Use the room dehumidifier only as instructed
in this USER MANUAL. These instructions are
not meant to cover every possible condition
and situation that may occur. Common sense
and caution must be practiced when installing,
operating, and maintaining any appliance.
Warning!
• Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
• Do not, under any circumstances, cut,
remove, or bypass the grounding prong.
For your safety
Warning!
• Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this or any other appliance.
• Read product labels for flammability and
other warnings.
Warning!
• Discard water from bucket. Water is not
potable and cannot be used for drinking.
Child safety precautions
Warning!
• Destroy the carton, plastic bags, and any
packing materials immediately after the
dehumidifier is unpacked.
• Children should never use these items for
play.
Warning!
• Do not leave children unattended in an area
where the appliance is operating.
Warning!
• Do not allow them to sit or stand on the
appliance.
Electrical information
Warning!

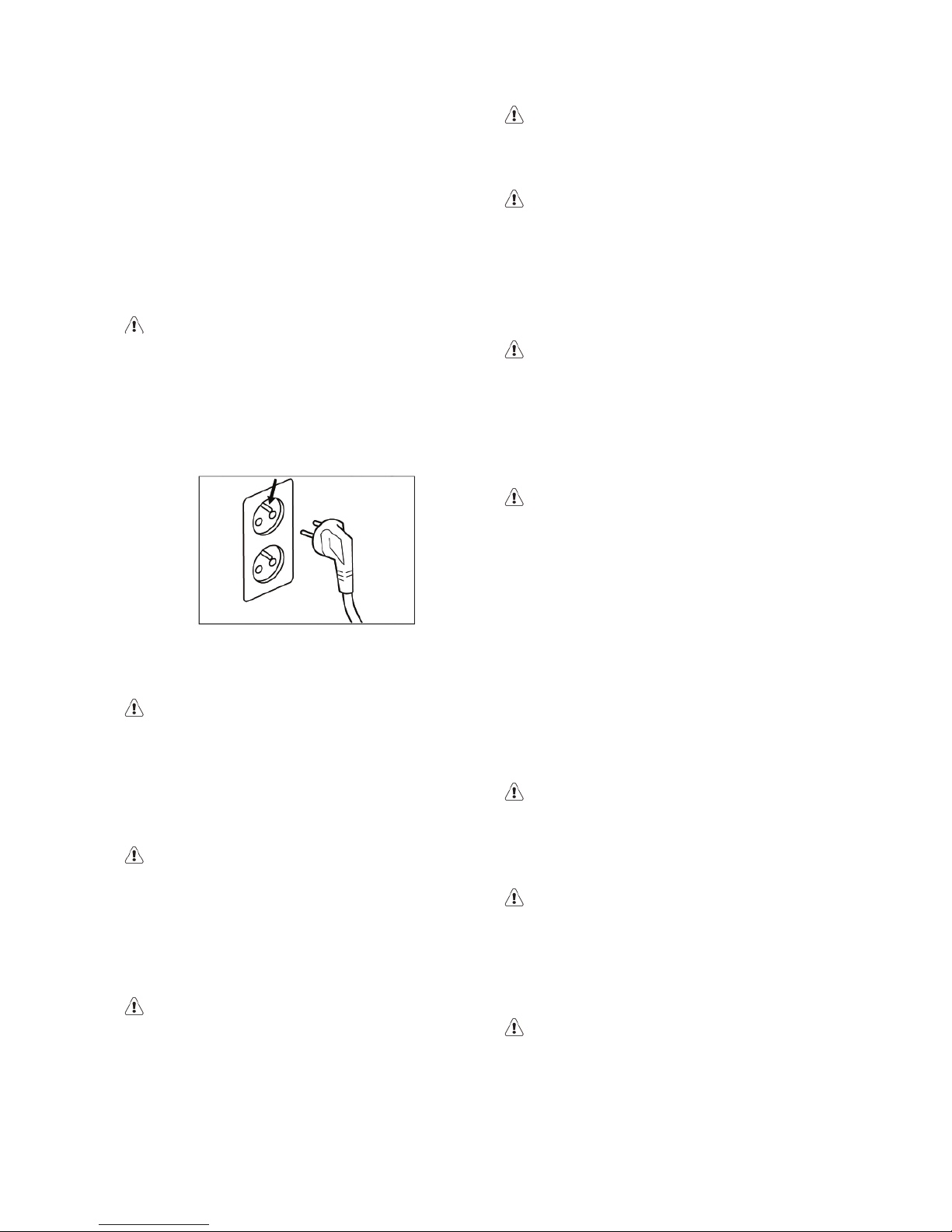

• For your safety and protection, this
dehumidifier is equipped with a three-prong
grounding plug on the power cord. Do not,
under any circumstances, cut or remove the
round ground prong from the plug.
Warning!
• Your dehumidifier must be plugged directly
into a properly grounded and polarized
three-prong receptacle. lf the wall receptacle
you intend to use will not accept a three-
prong plug, or if you are not sure the outlet
is adequately grounded or protected by a
time delay fuse or circuit breaker, have a
qualified electrician install the proper outlet
according to the National Electrical Code
and applicable local codes and ordinances.
Do not use an extension cord or an adapter
plug.
Warning!
• Never unplug the dehumidifier by pulling on
the power cord. Always grip the plug firmly
and pull straight out from the receptacle.
Warning!
• Do not pinch, bend, or knot the power cord.
Safety precautions
Caution!
Avoid Serious Injury or Death.
• This dehumidifier contains no user-
serviceable parts. Always call an authorized
Electrolux servicer for repairs.
• Do not insert or place fingers or objects into

4 www.electroluxaircomfort.com
the air discharge area or front grill of the unit.
• Do not start or stop the dehumidifier by
unplugging the power cord or turning off the
power at the electrical box.
• Do not cut or damage the power cord. If the
power cord is damaged, it should only be
replaced by an authorized Electrolux servicer.
• In the event of a malfunction (sparks, burning
smell, etc.), immediately stop the operation,
disconnect the power cord, and call an
authorized Electrolux servicer.
• Do not operate the dehumidifier with wet
hands.
• Do not pull on the power cord.
• Do not drink any water from the dehumidifier.
Caution!
Avoid Injury or damage to the unit or other
property
• Do not direct airflow at fireplaces or other
heat related sources as this could cause flare
ups.
• Do not climb on or place objects on the unit.
• Do not hang objects off the unit.
• Do not place containers with liquids on the
unit.
• Turn off the dehumidifier at the power source
when it will not be used for an extended
period of time.
• Operate the unit with air filter in place.
• Do not block or cover the intake grill,
discharge area and outlet ports.
• Ensure that any electrical/electronic
equipment is one yard away from the unit.
• Do not use or store flammable gases near
the unit.
BEFORE FIRST USE
Selecting a location
Important!
1. Dehumidifier must be operated in an
enclosed area to be most effective. Close all
doors, windows, and other outside openings
to the room. The effectiveness of the
dehumidifier depends on the rate at which
new moisture-laden air enters the room.
2. Place dehumidifier in a location that does not
restrict airflow through the front of the unit or
out of the louvres on the left side of cabinet.
3. A dehumidifier operating in a basement will
have little or no effect in drying an adjacent
enclosed storage area, such as a closet,
unless there is adequate circulation of air in
and out of the area. lt may be necessary to
install a second dehumidifier in the enclosed
area for satisfactory drying.
4. The dehumidifier must be installed on a level
floor that will support it with a full bucket of
water.
5. There should be a minimum of 12 inches
clearance around the dehumidifier.
How it works
When the unit is started, the fan begins to pull
moisture-laden air across the dehumidifying
coils. The coils condense or draw moisture
from the air, and air flows through the side
louvres into the room as dry, warm air. Moisture
removed from air is collected in a bucket on the
front of the dehumidifier.
The unit is designed to operate between
5°C (41°F) and 35°C (96°F). The unit will not
work properly if the temperature is out of this
temperature range, or the performance of the
unit will fall greatly.
The “Compressor” circuit has an automatic 3
minute time delayed start if the unit is turned off
and on quickly.
This prevents overheating of the compressor
and possible circuit breaker tripping. Make sure
the tank is fitted correctly otherwise unit will not
turn on.

www.electroluxaircomfort.com 5
OPERATING INSTRUCTIONS
Allow the unit to reach room temperature before
operating. To begin operating the dehumidifier,
follow these steps:
Unit must be upright for one hour prior to
operating.
1. Plug the power cord into a properly
grounded 220 V AC outlet. If the BUCKET
FULL light is on, remove the bucket and re-
install to reset the float switch.

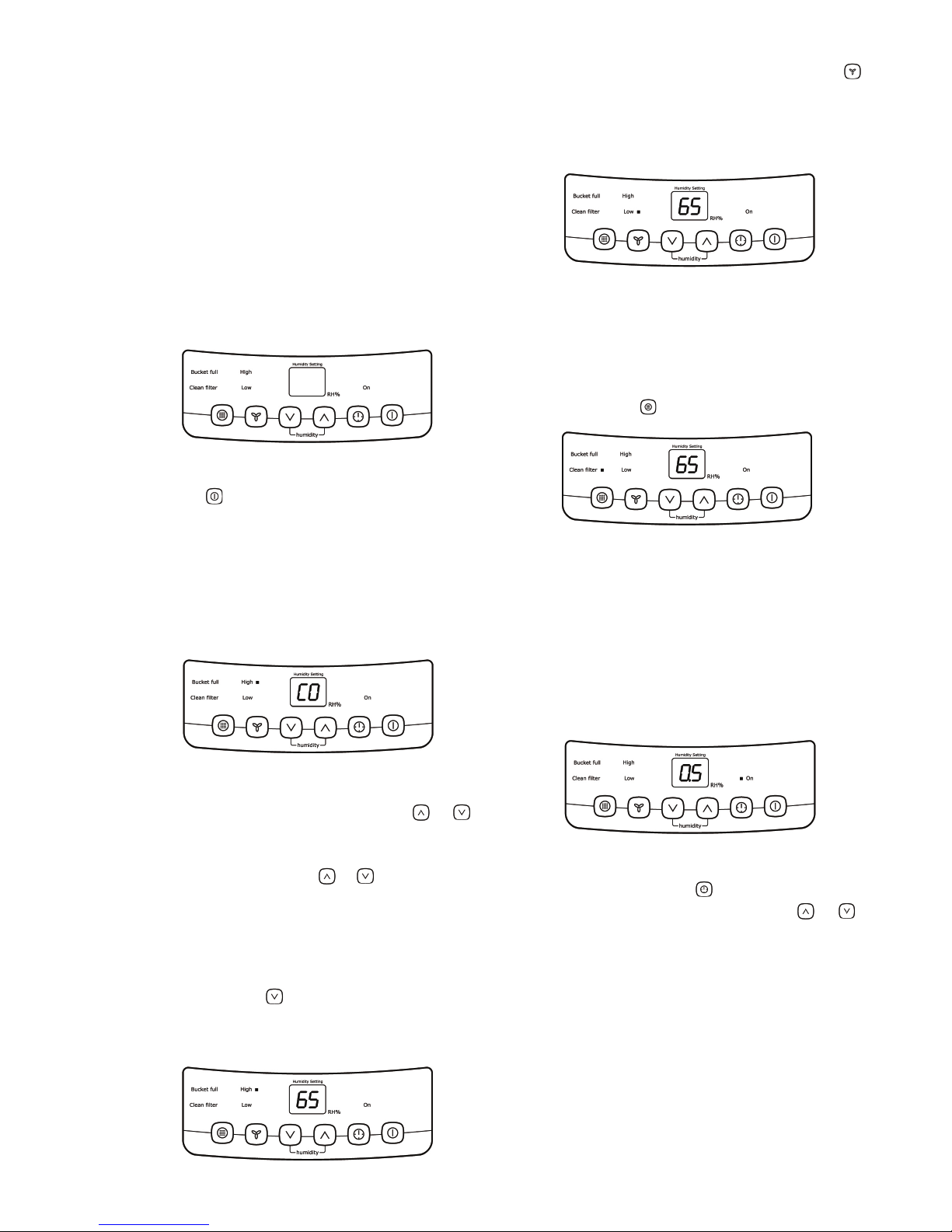

2. To turn the unit on, press the ON/ OFF
button . The unit will run in the factory
setting of CONTINUOUS and high fan
speed. In the CONTINUOUS mode, the
unit will only display CO and not the room
humidity. It is recommended you leave the
unit running in the CONTINUOUS setting for
the first three or four days until the sweating
and dampness odours have stopped.
3. After a few days when the Relative Humidity
has declined, press the HUMIDITY or
buttons to choose a value between 35% to
85%, so the room is kept at a comfortable
humidity. Pressing the or buttons
will change the humidity selection in 5%
increments. After you have set the desired
humidity, the readout will display the actual
room humidity. If at any time you want to
return to the CONTINUOUS Mode, pressing
the HUMIDITY button will lower the
Relative Humidity through the 5% increments
until the display reads CO.
4. You can also use the FAN SPEED button
to change the fan speed to HIGH or LOW.
The indicator light will show the setting you
have selected. A higher fan speed will result
in quicker moisture removal.
5. The CLEAN FILTER light will illuminate after
250 hours of operation. At this time refer
to the care and cleaning section to remove
and clean the filter. Once the filter has been
cleaned and replaced, simply press the
FILTER button to extinguish the light.
6. The TIMER function enables you to either
Delay Start or Delay Stop the unit in the
choice from 0.5 hour to 24 hours. If the unit
is running, then selecting Timer will turn the
unit off in the hours that will be set (Delay
Stop). If the unit is off, then selecting Timer
will turn the unit on in the hours that will be
set (Delay Start).
TIMER setting:
First press TIMER button , then adjust
timer setting, by tapping or holding the or
button to change the delay timer at 0.5 hour
increments, up to 10 hours, then by 1 hour
increments up to 24 hours. The control will
count down the time remaining (8, 7.5, 7, etc.)
until the unit either starts or stops.

6 www.electroluxaircomfort.com
For the Delay Start, the fan speed and humidity
maintained will be the same as previous setting.
After TIMER setting finishes, pressing TIMER
button again at any time will stop the TIMER
function. The Delay Start/Stop Feature will work
until the unit either starts or stops. Once that
happens the above steps have to be repeated.
• Before entering TIMER setting, make sure
power is being supplied to the unit.
• Before entering TIMER setting, make sure
pressing HUMIDITY or button sets one
desired room humidity first.
7. To shut the unit down, press the ON/ OFF
button .
Fault codes
If the display reads “AS” or “ES” , a sensor has
failed. Contact your Authorized Service Center.
Removing collected water
Emptying the Bucket:
1. When the bucket is full, the unit will shut
down and the BUCKET FULL indicator will
illuminate.
2. Do not move the unit at this time otherwise
water may spill on the floor.
3. Press sides of bucket gently to unclip the
bucket from the unit.

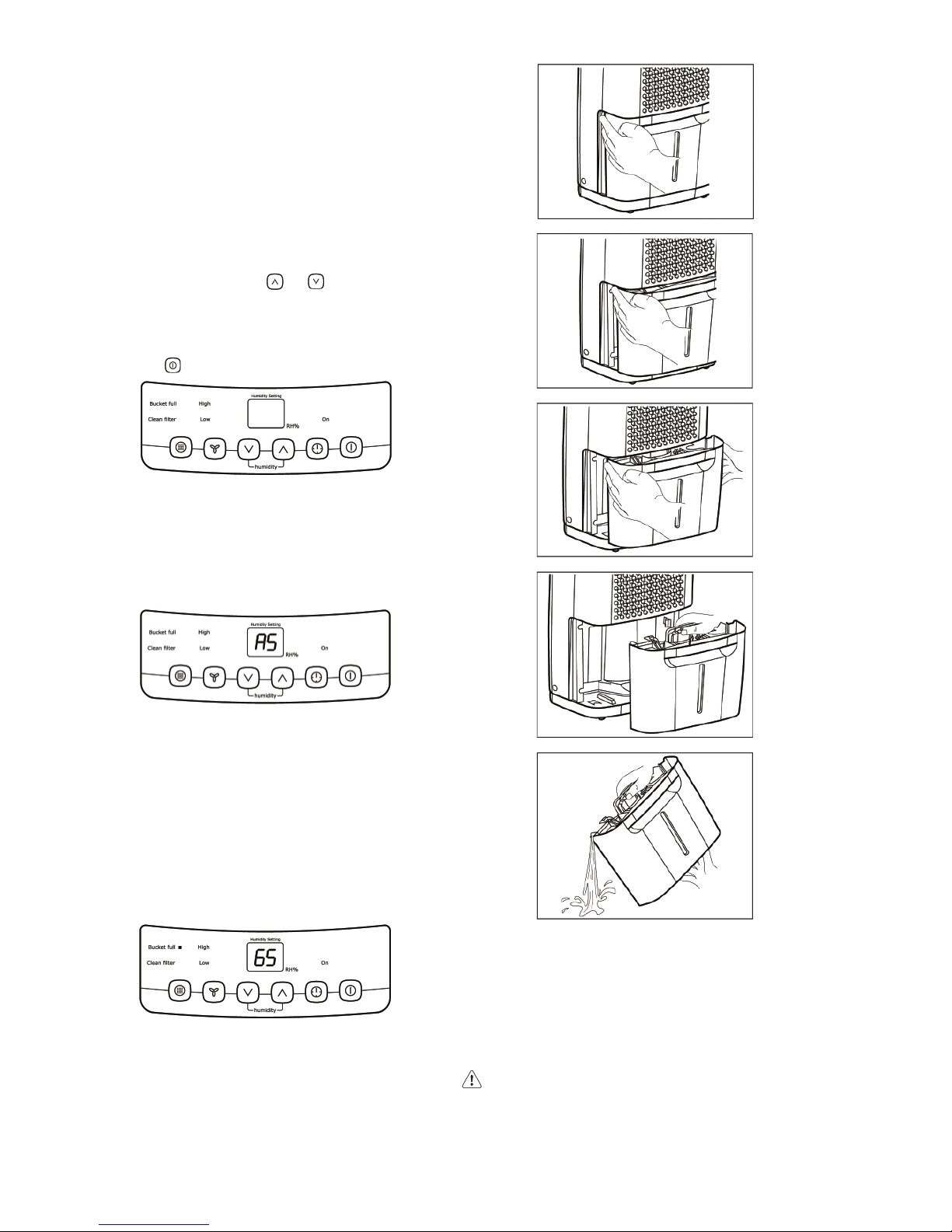

4. Remove the bucket as shown in the figures
below and empty the bucket.
5. Replace the empty bucket back into the unit
and once seated correctly, the unit will start
up again.
6. You should hear a click when the bucket is in
the correct position
Warning!
Discard water from bucket. Water is not potable
and cannot be used for drinking.

www.electroluxaircomfort.com 7
7. If the BUCKET FULL light does not
extinguish, check that the float is correctly
snapped in place as indicated by the
diagram.
Continuous drain operation
For continuous drainage operation, you will need
a garden hose and a drain nearby to discharge
the water
1. Unscrew the drain cap on the back side of
the unit. (fig.1)
2. Insert the female threaded end of the hose
onto the drain connector of the unit (fig. 2).
3. Screw the garden hose onto the threaded
portion of the connector. (fig. 3)
4. Make sure all the connection is secure and
there are no leaks.
5. Direct the hose toward the drain, making
sure that there are no kinks that will stop the
water flowing.
6. Place the end of the hose into the drain. (fig.
4)
7. Select the desired humidity setting and fan
speed on the unit for continuous draining to
start.
Important!
1. Check the seal between the hose and the
drain connector. If there is a small leak then
replace the hose gasket and re-tighten the
hose.
2. If the mode of continuous drainage is not
chosen, the drain cap must be screwed
securely to prevent leakage.

8 www.electroluxaircomfort.com
CARE AND CLEANING
1. Filter – Remove the filter every two weeks
based on normal operating conditions. To
remove the filter, remove Bucket then pull
filter downwards. Wash the filter with clean
water then dry. Re-install the filter, then
replace Bucket.
2. Cabinet – Dust cabinet with an oil-free cloth,
or using a damp cloth. Vacuum grill using
brush attachment.
3. Water Bucket – Clean bucket with warm
water and detergent.
Storage
When unit is not in use, unplug and use the cord
wrap shown for your model type.

www.electroluxaircomfort.com 9
PROBLEM SOLUTION
DEHUMIDIFIER DOES NOT OPERATE Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time
delay type or reset circuit breaker.
The dryness level you selected has been reached. Dehumidifier
automatically shuts off when selected amount of moisture has been
removed from the air. If you want to remove more moisture, Select
CONTINUOUS by using the humidity button or knob. After the
dehumidifier starts, reset the control to the desired setting.
Bucket not installed properly. See “Removing Collected Water”.
Water in the bucket has reached its preset level. Dehumidifier
automatically turns off when this occurs. Empty bucket and return
bucket to position.
Dehumidifier is not turned on. Turn unit on.
BUCKET FULL light is on. Remove bucket, empty water and re-
install correctly.
DEHUMIDIFIER RUNS TOO MUCH Windows or doors near dehumidifier are open to outdoors. Close all
windows or doors to outside.
Area to be dehumidified is too large. Check with your dealer to see if
capacity is adequate.
Air movement through dehumidifier is blocked. Grill may be dirty.
Use brush attachment of vacuum cleaner to clean grill. See “Care
and Cleaning“. Dehumidifier must be placed in a space that does
not restrict air flowing into the rear coil or out of the front grill.
Dehumidifier has been installed or restarted recently. The higher the
moisture in the room, the longer the dehumidifier will operate.
Dehumidifier is in the CONTINUOUS mode and will remain on in this
mode, use the humidity button or knob to set a RH% higher level.
DEHUMIDIFIER IS OPERATING, BUT ROOM
IS NOT DRY ENOUGH
Humidity setting is too high. Press the HUMIDITY button or rotate
knob to a lower setting or choose CONTINUOUS for maximum
dryness.
Dehumidifier has been installed or restarted recently. The higher
the moisture in the room air, the longer it takes for the room air to
become dry.
Dehumidifier does not have sufficient clearance to operate. Air flow
to front grill is blocked. See “Selecting a Location“.
Room temperature is too low. Unit will not operate satisfactorily if the
room temperature is below 5°C (41°F). See “Operating Conditions“.
Refer to causes under DEHUMIDIFIER RUNS TOO MUCH.
FROST APPEARS ON COILS ABOVE
BUCKET
Dehumidifier has been turned on recently. This is normal due to
refrigerant rushing through the coil. Frost will usually disappear
within 60 minutes.
Room Temperature is too low. All models will operate satisfactorily at
temperatures greater than 5°C (41°F).
FAN NOISE Air is moving through the dehumidifier. This is a normal sound.
TROUBLESHOOTING
Before calling for service, review this list. It may save you time and expense. This list includes
common occurrences that are not the result of defective workmanship or materials in this
appliance.

10 www.electroluxaircomfort.com
ENVIRONMENTAL CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead it
should be taken to the appropriate collection
point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed
of correctly, you will help prevent potential
negative consequences for the environment and
human health, which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed information about recycling of
this product, please contact your local council,
your household waste disposal service or the
shop where you purchased the product.
Warning!
THIS PRODUCT CONTAINS ECOLOGICAL
REFRIGERANT GAS R 134A WITH O.D.P. = 0
(OZONE DEPLETION POTENTIAL). AT THE END
OF ITS SERVICE LIFE IT MUST BE DELIVERED
TO THE SPECIAL COLLECTION
CENTRES. ASK FOR INFORMATION FROM
YOUR MUNICIPAL WASTE DISPOSAL
SERVICE. Do not vent R-134A into atmosphere:
R-134A is a fluorinated greenhouse gas,
covered by Kyoto Protocol, with a Global
Warming Potential (GWP) = 1300.
