Electrolux Built-InTrim Kits Guide Technical manual

Project
Planning
Guide
Built-In Trim Kits

2
A true built-in kitchen design
can be accomplished by using
the Electrolux Built-In Trim Kits for
refrigeration and freezer products
in new construction, remodeling
or replacement of existing units.
Electrolux and Electrolux ICON®
All Freezer and All Refrigerator can
be installed as a pair or individually
for the ultimate in built-in styling
and convenience.
The French Door and Side-by-Side
Counter-Depth Refrigerators can
also achieve built-in styling with a
Louvered or Collar Trim Kit. The
distinctive, streamlined Electrolux
collection will enhance the beauty
and versatility of your kitchen.
Achieve Your Vision
Photo Above: Electrolux ICON® All Freezer model E32AF75JPS and All Refrigerator
model E32AR75JPS shown built in with Single Louvered Trim Kit (TRIMKITSS1).

Refrigeration Trim Kits Contents
Refrigeration Trim Kits Contents
Signature Styling
All Freezer & All Refrigerator (EI32AF65JS & EI32AR65JS) 4 - 5
All Freezer & All Refrigerator (E32AF75JPS & E32AR75JPS) 6 - 7
Planning Information
Trim Kit Compatibility 8
All Freezer & All Refrigerator Trim Kits:
Louvered Trim Kits (ECP8436SS & ECP8472SS) 9
UÊ
Collar Trim Kits (ECP7236SS & ECP7272SS) 10UÊ
Louvered / Collar Trim Kits (TRIMKITSS1 & TRIMKITSS2) 11UÊ
Counter-Depth French Door Refrigerator Trim Kits:
Louvered Trim Kit (241723001) 12UÊ
Collar Kit (ECK23CDS) 13UÊ
Counter-Depth Side-by-Side Refrigerator Trim Kits:
Louvered Trim Kit (4480) 14UÊ
Collar Kit (ECK23CDS) 15UÊ
General Installation Guidelines:
For All Freezer & All Refrigerator 16UÊ
For Counter-Depth French Door Refrigerator 17UÊ
For Counter-Depth Side-by-Side Refrigerator 18UÊ
Planning Sketches & Notes 19

4Sub-Zero®is a registered trademark of Sub-Zero, Inc.
Stainless Steel
Louvered Trim Kits
Designed for built-in
installation with All-Freezer
and All-Refrigerator models
EI32AF65JS and EI32AR65JS;
as a replacement option for
the Sub-Zero®brand 650
Series models and for new-
build installation.
Stainless Steel
Collar Trim Kits
Designed for built-in
installation with All-Freezer
and All-Refrigerator models
EI32AF65JS and EI32AR65JS;
as a replacement option for
the Sub-Zero®brand 601
Series models and for new-
build installation.
Louvered/
Collar Trim Kits
Designed for built-in
installation with All-Freezer
and All-Refrigerator models
EI32AF65JS and EI32AR65JS;
as a replacement option for
models E32AF75FPS and
E32AR75FPS and for new-
build installation.
The Trim Kits are designed for replacement installation of specified Sub-Zero® brand
units when installed with an Electrolux All Freezer and/or All Refrigerator, or for
a new-build installation.

5
Signature Styling All Freezer & All Refrigerator
electroluxappliances.com
All Freezer & All Refrigerator
Signature Styling (EI32AF65JS & EI32AR65JS)
Adjustable Full-Width
Glass Shelves
Full-width shelves
provide easy access for
large items like party
trays – up to 26" wide.
Luxury-Design® Lighting
Our ramp-up designer LED
lighting is as beautiful as
it is functional, keeping the
contents clearly visible.
Luxury-Glide® Full-Width
Freezer Drawers
Drawers glide out smoothly
and fully extend giving you
easy access to what’s inside.
Soft Freeze™ Bin
Perfect storage for things
like ice cream or anything
you want to keep frozen,
but still soft for serving. Luxury-Glide® Crisper Drawers
Drawers smoothly glide out and
keep produce fresh with adjustable
humidity control and minimal
temperature variation.
Perfect Bins™ Door Storage
Convenient door storage
bins tilt-out for easy access
and can even be removed
for even easier access.
Sabbath Mode
Star-K®Certified
Automatic Ice Maker
Ensures you’ll always
have extra ice on hand.
Sure-2-Fit® Capacity
Our most usable space
inside gives you plenty
of space for everything
from party platters
and beverages to kids’
snacks and juice boxes.
IQ-Touch™ Controls
For those who like to
have their options always
visible on the IQ-Touch™
control panel.
PureAdvantage®Air Filter
Filter replacement reset
button and indicator.
IQ-Touch™
Controls
Alarm System
Notifies you if there’s been a power failure, if a door stays open longer than
five minutes and if the interior temperature of the refrigerator rises above
56 degrees or if the freezer rises above 23 degrees for more than 60 minutes.
PureAdvantage® Air Filter
Keeps clean, filtered air circulated
throughout to prevent odor transfer.
38 Cu. Ft. Total Capacity
19 cu. ft. freezer capacity,
19 cu. ft. refrigerator capacity.
Luxury-Quiet™Design
Designed for consistently
quiet operation.
Optional Louvered Trim Kit
(TRIMKITSS2)
Perfect Organization System
Our organization system features Luxury-Glide® drawers with
removable / adjustable dividers and two mini baskets, Perfect
Bins™ door storage that tilts out for easy access and a condiment
shelf, so you can keep food organized and easily at hand.

6
Stainless Steel
Louvered Trim Kits
Designed for built-in
installation with All-Freezer
and All-Refrigerator models
E32AF75JPS and E32AR75JPS;
and as a replacement option
for the Sub-Zero®brand 650
Series models and for new-
build installation.
Stainless Steel
Collar Trim Kits
Designed for built-in
installation with All-Freezer
and All-Refrigerator models
E32AF75JPS and E32AR75JPS;
and as a replacement option
for the Sub-Zero®brand 601
Series models and for new-
build installation.
Louvered/
Collar Trim Kits
Designed for built-in
installation with All-Freezer
and All-Refrigerator models
E32AF75JPS and E32AR75JPS;
as a replacement option for
models E32AF75FPS and
E32AR75FPS and for new-
build installation.
The Trim Kits are designed for replacement installation of specified Sub-Zero® brand
units when installed with an Electrolux ICON
® All Freezer and/or All Refrigerator,
or for a new-build installation.
Sub-Zero®is a registered trademark of Sub-Zero, Inc.

7
Signature Styling All Freezer & All Refrigerator
electroluxicon.com
All Freezer & All Refrigerator
Signature Styling (E32AF75JPS & E32AR75JPS)
Custom-Design™
Adjustable Glass Shelves
Extra-wide glass shelves
provide enough space
for large platters.
Theatre Lighting
Transition LED lighting
gradually illuminates the
interior with soft but ample
light as you open the door.
Smooth-Glide®
Freezer Drawers
Full-width drawers glide
out smoothly and fully
extend giving you easy
access to what's inside.
Soft Freeze™ Bin
Perfect storage for things
like ice cream or anything
you want to keep frozen,
but still soft for serving. Smooth-Glide® Crisper Drawers
Crisper Drawers smoothly glide
out and keep even the most
delicate fruits and vegetables fresh
with adjustable humidity control
and minimal temperature variation.
Perfect Bins™ Door Storage
Convenient door storage
bins tilt-out for easy access
and can even be removed
for even easier access.
Sabbath Mode
Star-K®Certified
Custom-Fit™ Capacity
More space inside
to store whatever you
need including large
platters.
Optional Louvered Trim Kit
(TRIMKITSS2)
Automatic Ice Maker
Ensures you’ll always
have extra ice on hand.
Custom-Set™ Controls
Offer more precise
temperature control.
PureAdvantage®Air Filter
Filter replacement reset
button and indicator.
Custom-Set™
Controls
Alarm System
Notifies you if there’s been a power failure, if a door stays open longer than
five minutes and if the interior temperature of the refrigerator rises above
56 degrees or if the freezer rises above 23 degrees for more than 60 minutes.
PureAdvantage® Air Filter
Keeps clean, filtered air circulated
throughout to prevent odor transfer.
38 Cu. Ft. Total Capacity
19 cu. ft. freezer capacity,
19 cu. ft. refrigerator capacity.
Luxury-Quiet™Design
Designed for consistently
quiet operation.
Custom-Design™ Organization System
The ultimate organization system features Smooth-Glide®
drawers with removable/adjustable dividers and two
mini baskets and Perfect Door Storage Bins.

8
Refrigeration Trim Kits
Planning Information Built-In Trim Kit Compatibility
Installation
Options
Trim-Kit
Compatible
Refrigeration
Models
Refrigeration Trim Kits
Single
Louvered
Trim Kit
(ECP8436SS)
Double
Louvered
Trim Kit
(ECP8472SS)
Single
Collar
Trim Kit
(ECP7236SS)
Double
Collar
Trim Kit
(ECP7272SS)
Single
79" Louvered /
75" Collar
Trim Kit
(TRIMKITSS1)
Double
79" Louvered /
75" Collar
Trim Kit
(TRIMKITSS2)
Louvered
Trim Kit
(241723001)
Louvered
Trim Kit
(4480)
Collar
Kit
(ECK23CDS)
All Freezers & All Refrigerators
New Build
for
EI32AF65JS /
EI32AR65JS òòòòò
(79" or 75")
ò
(79" or 75")
E32AF75JPS/
E32AR75JPS òòòòò (79" or 75")
ò
(79" or 75")
Replacement
of
E32AF75FPS /
E32AR75FPS
ò
(79")
ò
(79")
Replacement
of
Sub-Zero®
650 Series ò ò
Sub-Zero®
601 Series ò ò
Counter-Depth French Door Refrigerators
New Build
for
E23BC78IPS ò ò
E23BC78ISS ò ò
E23BC68JPS ò ò
E23BC68JSS ò ò
Counter-Depth Side-By-Side Refrigerators
New Build
for
E23CS78HPS ò ò
E23CS78HSS ò ò
All Freezers & All Refrigerators
Louvered Trim Kit
PN # ECP8436SS
Louvered Trim Kit
PN # ECP8472SS
Collar Trim Kit
PN # ECP7236SS
Collar Trim Kit
PN # ECP7272SS
Louvered Trim Kit (79")
PN # TRIMKITSS1
Louvered Trim Kit (79")
PN # TRIMKITSS2
Collar Trim Kit (75")
PN # TRIMKITSS1
Collar Trim Kit (75")
PN # TRIMKITSS2
Counter-Depth French Door Refrigerators Counter-Depth Side-by-Side Refrigerators
Louvered Trim Kit
PN # 241723001
Collar Kit
PN # ECK23CDS
Louvered Trim Kit
PN # 4480
Collar Kit
PN # ECK23CDS
òNew-Build Installation òReplacement Installation
Built-In Trim Kits
For specifications and installation information, refer to Trim Kits’ Planning Information.
Sub-Zero®is a registered trademark of Sub-Zero, Inc.

9
Planning Information Built-In Trim Kit Compatibility / All-Freezer & All-Refrigerator Trim Kits
Louvered Trim Kits
Planning Information (ECP8436SS & ECP8472SS)
For replacement installation of Sub-Zero®brand 650 Series models or for new-build installation – when installed
with All-Freezer models EI32AF65FS, E32AF75FPS and All-Refrigerator models EI32AR65FS, E32AR75FPS
Installation Specifications
New-Build Installation –
UÊ
Louvered Trim Kits (PN # ECP8436SS &
PN # ECP8472SS) are designed for built-in installation with All-Freezer
models EI32AF65JS, E32AF75JPS and All-Refrigerator models
EI32AR65JS, E32AR75JPS.
Replacement Installation –
UÊ
Louvered Trim Kits (PN # ECP8436SS
& PN # ECP8472SS) are designed as built-in replacement option for
Sub-Zero
®
brand 650 Series models when installed with All-Freezer models
EI32AF65JS, E32AF75JPS and All-Refrigerator models EI32AR65JS,
E32AR75JPS into pre-existing cutout opening(s).
To use Single Louvered Trim Kit (PN # ECP8436SS), an enclosure is
UÊ
required around All Freezer or All Refrigerator having an opening of 83-3/4" H
x 35-1/2" W with minimum cabinet side panels of 24" D x 3/4" W.
To use Double Louvered Trim Kit (PN # ECP8472SS), an enclosure
UÊ
is required around All Freezer and All Refrigerator having an opening of
83-3/4" H x 71-1/2" W with minimum cabinet side panels of 24" D x 3/4" W.
(Double Trim Kit includes hardware to secure side-by-side units together.)
Trim Kit attaches directly to unit(s) and can be secured to cutout opening.
UÊ
Minimum 24" depth requires recessed electrical outlet(s) and water line.
UÊ
Cabinet or soffit above unit must extend out to same depth as side panels.
UÊ
Clear, adequate floor space required for Trim Kit assembly.
UÊ
For detailed Trim Kit installation, refer to instructions packed with kit or on web.
UÊ
For detailed All Freezer and/or All Refrigerator installation, refer to
UÊ
model-specific product page and installation guide on web.
Note: For planning purposes only. Refer to product information on
the web at electroluxappliances.com or electroluxicon.com for detailed
installation instructions. Specifications subject to change.
Sub-Zero®is a registered trademark of Sub-Zero, Inc.

10

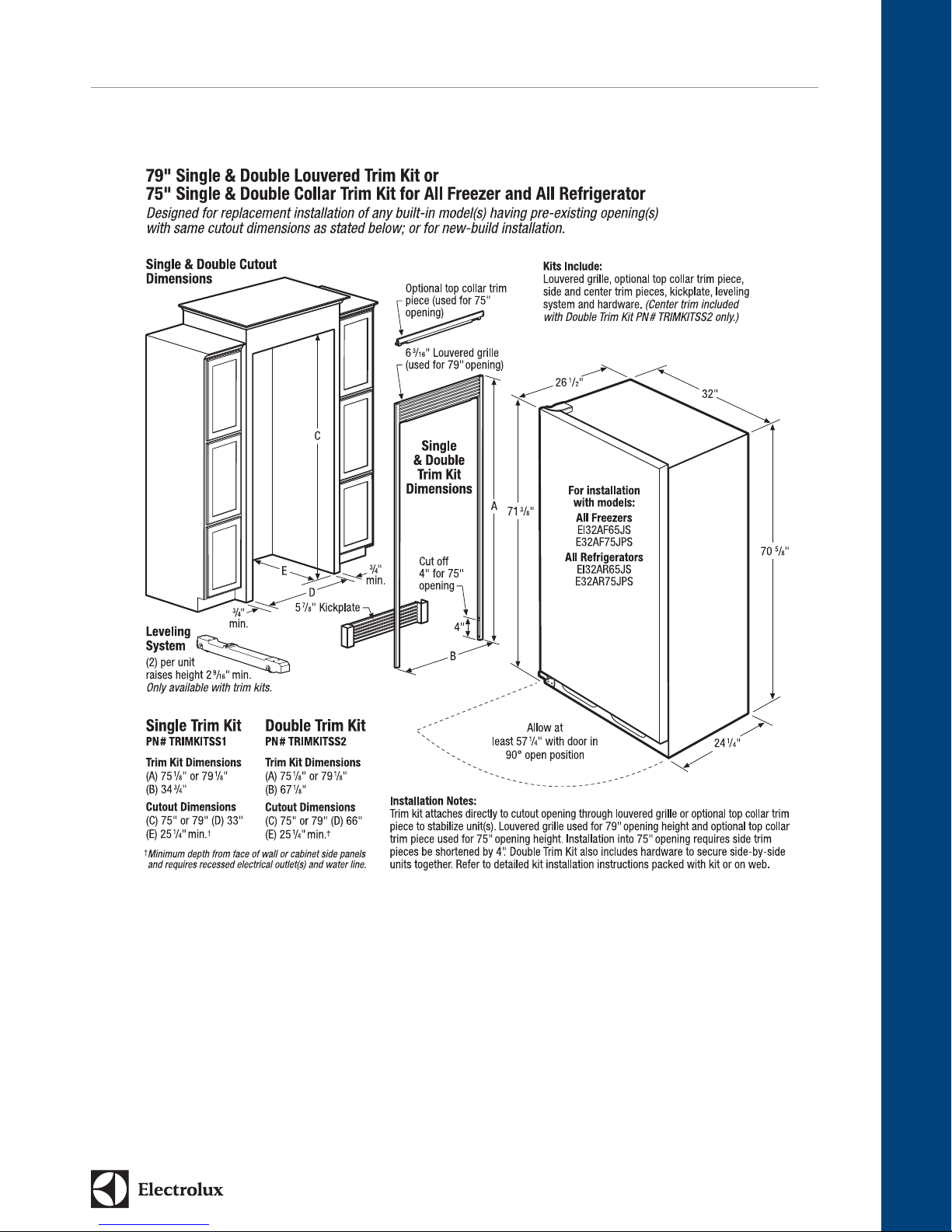

Refrigeration Trim Kits
Installation Specifications
New-Build Installation –
UÊ
Collar Trim Kits (PN # ECP7236SS &
PN # ECP7272SS) are designed for built-in installation with All-Freezer
models EI32AF65JS, E32AF75JPS and All-Refrigerator models
EI32AR65JS, E32AR75JPS.
Replacement Installation –
UÊ
Collar Trim Kits (PN # ECP7236SS
& PN # ECP7272SS) are designed as built-in replacement option for
Sub-Zero
®
brand 601 Series models when installed with All-Freezer models
EI32AF65JS, E32AF75JPS and All-Refrigerator models EI32AR65JS,
E32AR75JPS into pre-existing cutout opening(s).
To use Single Collar Trim Kit (PN # ECP7236SS), an enclosure is required
UÊ
around All Freezer or All Refrigerator having an opening of 72-3/4" H x
35-1/2" W with minimum cabinet side panels of 24" D x 3/4" W.
To use Double Collar Trim Kit (PN # ECP7272SS), an enclosure is required
UÊ
around All Freezer and All Refrigerator having an opening of 72-3/4" H x
71-1/2" W with minimum cabinet side panels of 24" D x 3/4" W.
(Double Trim Kit includes hardware to secure side-by-side units together.)
Trim Kit attaches directly to unit(s) and can be secured to cutout opening.
UÊ
Minimum 24" depth requires recessed electrical outlet(s) and water line.
UÊ
Cabinet or soffit above unit must extend out to same depth as side panels.
UÊ
Clear, adequate floor space required for Trim Kit assembly.
UÊ
For detailed Trim Kit installation, refer to instructions packed with kit or on web.
UÊ
For detailed All Freezer and/or All Refrigerator installation, refer to
UÊ
model-specific product page and installation guide on web.
Note: For planning purposes only. Refer to product information on
the web at electroluxappliances.com or electroluxicon.com for detailed
installation instructions. Specifications subject to change.
Collar Trim Kits
Planning Information (ECP7236SS & ECP7272SS)
For replacement installation of Sub-Zero® brand 601 Series models or for new-build installation – when installed
with All-Freezer models EI32AF65FS, E32AF75FPS and All-Refrigerator models EI32AR65FS, E32AR75FPS
Sub-Zero®is a registered trademark of Sub-Zero, Inc.
