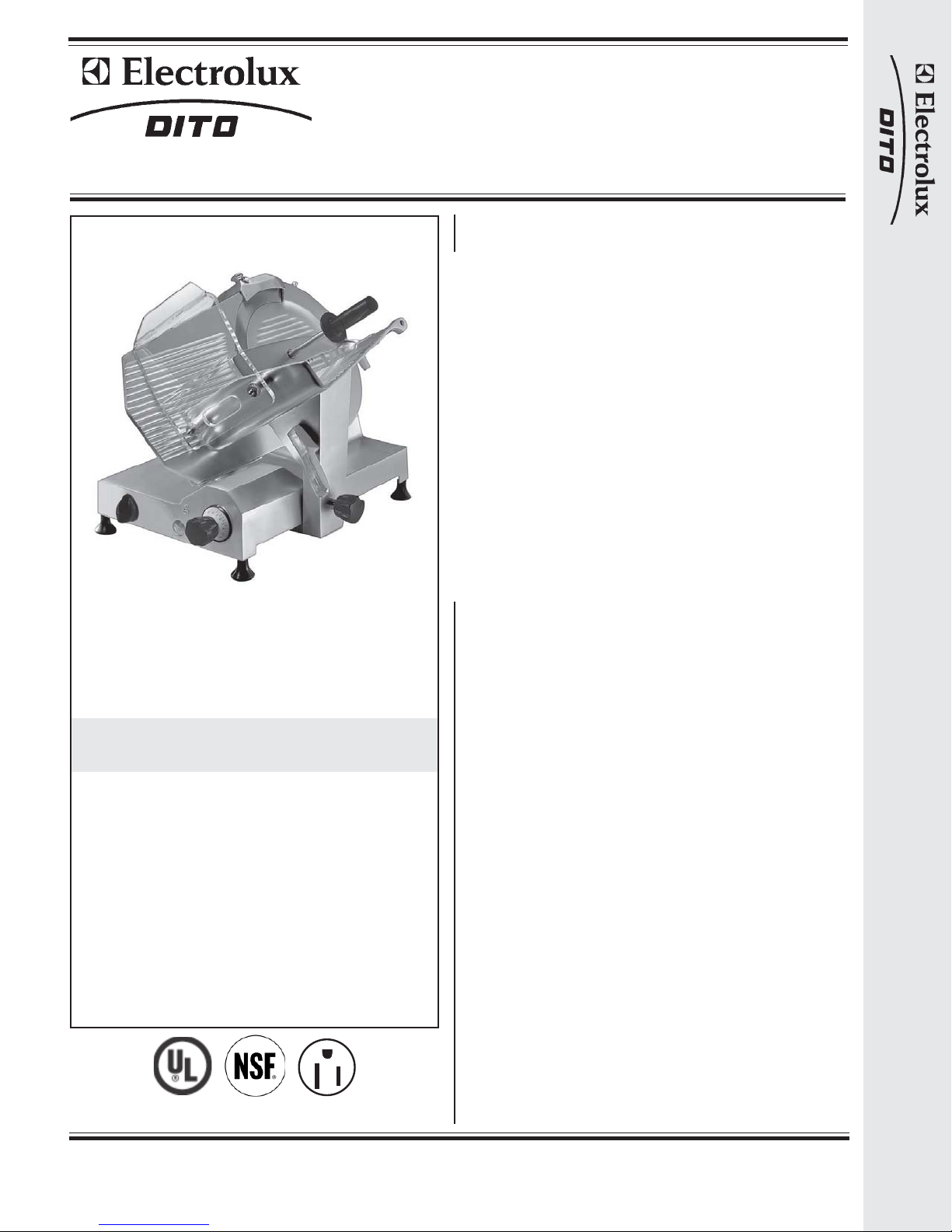

Electrolux Dito 601578 User manual

Approval: ___________________________________________
601578 (DSLHD12) 12″Heavy Duty Food Slicer
120 V/1p/60Hz
Item No. ___________________________________
Unit to be Electrolux Dito 12″Heavy Duty Food Slicer. Electrical
characteristics to be 120 V SINGLE-phase operation with
Adjustable speeds at 300 rpm. Especially designed to slice easily
sausages, hams, cooked meats, cheese, fish, tough meats, etc.
Large-sized hoppers mounted on noiseless sliding carriages
that run on self-lubricating bushes and ball bearings. Polished
hygienic rustproof casting of special anodized aluminum alloy.
Poly V belt drive. Powerful, noiseless single-phase motor.
Special chromium-plated steel blades are ground and hardened
for long service life. Built-in sharpening device with adjustable
emery grindstones. Cam control knob with various settings
adjusts cut thickness from 0 to 14 mm.
Short Form Specification
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Heavy Duty 12″Food Slicer
DSLHD Series
Main features
• Adjustable speed control knob.
• Cut thickness-adjusting knob (millimeter adjustment).
• Power: 1/2 HP – single phase.
• Motor speed: 300 rpm.
• 373 watts.
• Compact design.
• Highest degree of safety in functioning, cleaning and maintenance.
• Belt drive mechanics.
• Made of an aluminum alloy treated by anodic oxidation. This procedure
guarantees high hygienic standards of the parts interested by the cut and
resistance to acids, salts and oxidation processes.
• The blade is made of chromium plated steel 100Cr6; it is grinded and
hardened to guarantee an accurate and sharp cut of products also after it
has been re-sharpened.
• The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS
and stainless steel AISI 430 or 304.
• Dimensions: (H×L×W): 20″× 25.5″× 25″.
• Approximate shipping weight—73 lbs.
• UL electrical and NSF sanitation listed.
• NEMA # : 5-15P.
• 2 year parts warranty, 1 year labor.
Optional Accessories
• Blade 12″for Food Slicer (PNC 653647)
• Blade (Teflon Coated) 12″for Food Slicer (PNC 653651)
• Vegetable Cutter Adapter for 12″Slicer (PNC 653654)
Heavy Duty 12″Food Slicer
DSLHD Series
Heavy Duty 12″Food Slicer
DSLHD Series
5-15P

Heavy Duty 12″Food Slicer
DSLHD Series
Supply voltage:
601578 (DSLHD12) 120 V/1p/60Hz – 3.1A
Electric
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-30-09
Key Information
Heavy Duty 12″″
″″
″Food Slicer
DSLHD Series
The MECHANICAL SAFETY system includes:
- Blade guard
- Cover
- Meat pusher
- Hand cover on meat hopper
- Meat hopper + finger protection
The ELECTRICAL SAFETY system includes:
The slicer is equipped with: a micro-switch which stops the
slicer in case the tie rod for blade guard is removed; the micro-
switch prevents from restarting the slicer if the guard has not
been set in the switch-off position.
Front View
To p V i e w
Side View
