Electrolux EOB6631 User manual

EOB6631 STEAM OVEN
AURUAHI
EN
ET
USER MANUAL 2
KASUTUSJUHEND 36

CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 6
4. BEFORE FIRST USE............................................................................................7
5. DAILY USE.......................................................................................................... 7
6. CLOCK FUNCTIONS......................................................................................... 11
7. USING THE ACCESSORIES.............................................................................. 12
8. ADDITIONAL FUNCTIONS.................................................................................16
9. HINTS AND TIPS............................................................................................... 17
10. CARE AND CLEANING....................................................................................29
11. TROUBLESHOOTING......................................................................................32
12. INSTALLATION................................................................................................34
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Children of less than 3 years should be kept away
unless continuously supervised.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•Internally the appliance becomes hot when in operation.
Do not touch the heating elements that are in the
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
ENGLISH 3

•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite
sequence.
•Only use the core temperature sensor recommended
for this appliance.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables to come in
touch with the appliance door,
specially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
www.electrolux.com4

fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance. It is not a defect in the
sense of the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
2.4 Steam Cooking
WARNING!
Risk of burns and damage to
the appliance.
• Do not open the appliance door during
steam cooking. Steam can release.
2.5 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
ENGLISH 5

cleaning pads, solvents or metal
objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.6 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
3.1 General overview
8
5
6
14
13
11
12
10
5
4
1
2
3
32 41
9
7
1Control panel
2Knob for the oven functions
3Electronic programmer
4Knob for the temperature
5Water drawer
6Heating element
7Socket for the core temperature
sensor
8Lamp
9Fan
10 Shelf support, removable
11 Draining pipe
12 Water outlet valve
13 Shelf positions
14 Steam inlet
3.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
•Core temperature sensor
To measure how far the food is
cooked.
•Telescopic runners
For shelves and trays.
www.electrolux.com6

4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
1. Clean the appliance before first use.
2. Put the accessories and the
removable shelf supports back to their
initial position.
4.2 Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few seconds
the display shows the software version.
After the software version goes off, the
display shows and "12:00". "12"
flashes.
1. Press or to set the current hour.
2. Press to confirm. This is necessary
only when you set the time for the first
time. Later the new time will be saved
automatically after 5 seconds.
The display shows and the set
hour. "00" flashes.
3. Press or to set the current
minutes.
4. Press to confirm. This is necessary
only when you set the time for the first
time. Later the new time will be saved
automatically after 5 seconds.
The display shows the new time.
4.3 Changing the time
You can change the time of day only if the
oven is off.
Press .
The set time and symbol flash in the
display.
To set a new time, refer to "Setting the
time".
4.4 Preheating
Preheat the empty appliance to burn off
the remaining grease.
1. Set the function and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function and the maximum
temperature.
4. Let the appliance operate for 15
minutes.
Accessories can become hotter than
usual. The appliance can emit an odour
and smoke. This is normal. Make sure that
the airflow is sufficient.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
ENGLISH 7

5.2 Activating and deactivating
the appliance
It depends on the model if
your appliance has knob
symbols, indicators or
lamps:
• The indicator comes on
when the oven heats up.
• The lamp comes on when
the appliance operates.
• The symbol shows whether
the knob controls one of the
cooking zones, the oven
functions or the
temperature.
1. Turn the knob for the oven functions
to select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance turn the
knobs for the oven functions and
temperature to the off position.
5.3 Oven functions
Oven function Application
Fast Heat Up To decrease the heat-up time.
True Fan Cook-
ing
To bake on up to 3 shelf positions at the same time
and to dry food. Set the temperature 20 - 40 °C lower
than for Conventional Cooking.
Pizza Setting To bake food on 1 shelf position for a more intensive
browning and a crispy bottom. Set the temperature
20 - 40 °C lower than for Conventional Cooking.
Conventional
Cooking
To bake and roast food on 1 shelf position.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Defrost To defrost frozen food.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on 1
shelf position. Also to make gratins and to brown.
True Fan +
Steam
To steam dishes.
www.electrolux.com8

5.4 Fast heat up function
The fast heat up function decreases the
heat up time.
1. Set the fast heat up function. Refer to
the Oven functions table.
2. Turn the knob for the temperature to
set the temperature.
An acoustic signal sounds when the
appliance is at the set temperature.
The fast heat up function does
not deactivate after the
acoustic signal. You must
deactivate the function
manually.
3. Set an oven function.
5.5 Display
A B C
D
EFG
A) Timer
B) Heat-up and residual heat indicator
C) Water drawer (selected models only)
D) Core temperature sensor (selected
models only)
E) Door lock (selected models only)
F) Hours / minutes
G) Clock functions
5.6 Buttons
Button Function Description
CLOCK To set a clock function.
MINUS To set the time.
MINUTE MINDER To set the MINUTE MINDER. Hold the
button for more than 3 seconds to acti-
vate or deactivate the oven lamp.
PLUS To set the time.
TEMPERATURE To check the oven temperature or the
temperature of the Core Temperature
Sensor (if applicable). Use only while an
oven function is in operation.
5.7 Heat-up indicator
When you activate an oven function, the
bars in the display come on one by
one. The bars show that the oven
temperature increases or decreases.
5.8 Steam Cooking
1. Set the function .
2. Press the cover of the water drawer to
open it. Fill the water drawer with
water until the Tank Full indicator
comes on.
The maximum capacity of the tank is 900
ml. It is sufficient for approximately 55 - 60
minutes of cooking.
ENGLISH 9

Use only water as the liquid.
Do not use filtered
(demineralised) or distilled
water. Do not use other liquids.
Do not put flammable or
alcoholic liquids (grappa,
whisky, cognac, etc.) into the
water drawer.
3. Push the water drawer into its initial
position.
4. Prepare the food in the correct
cookware.
5. Set the temperature between 130 °C
and 230 °C.
Steam cooking does not give good results
in temperatures above 230 °C.
WARNING!
Wait a minimum of 60 minutes
after each use of the steam
function in order to prevent hot
water from exiting the water
outlet valve.
Empty the water tank after the steam
cooking is completed.
5.9 Water Tank indicator
When the steam cooking operates, the
display shows water tank indicator. Water
tank indicator shows the level of the water
in the tank.
• - Water tank is full. An acoustic
signal sounds when the tank is full.
Press any button to stop the acoustic
signal.
• - Water tank is half full.
• - Water tank is empty. An acoustic
signal sounds when the tank must be
refilled.
If you put too much water into
the tank, the safety outlet
moves the excess water to the
bottom of the oven. Remove
the water with a sponge or a
cloth.
5.10 Emptying the water tank
CAUTION!
Make sure that the appliance is
cool before you start to empty
the water tank.
1. Prepare the draining pipe (C), included
in the same package with the user
manual. Put the connector (B) onto
one of the ends of the draining pipe.
2. Put the second end of the draining
pipe (C) into a container. Put it at a
lower position than the outlet valve (A).
B
C
A
3. Open the oven door and put the
connector (B) into the outlet valve (A).
4. Push the connector again and again
when you empty the water tank.
The water tank can have some water
when the display shows symbol.
Wait until the water flow from the water
outlet valve stops.
5. Remove the connector from the valve
when the water stops flowing.
Do not use the drained water
to fill the water tank again.
www.electrolux.com10

6. CLOCK FUNCTIONS
6.1 Clock functions table
Clock function Application
TIME OF DAY To set, change or check the time of day. Refer to
"Setting the time".
MINUTE MINDER Use to set a countdown time (maximum 23 h 59 min).
This function has no effect on the operation of the ap-
pliance. You can set the MINUTE MINDER at any
time, also if the appliance is off.
DURATION To set how long the appliance operates. Use only
when an oven function is set.
END To set when the appliance must deactivate. Use only
when an oven function is set. You can use Duration
and End at the same time (time delay), if the appliance
is to be activate and deactivate automatically later.
Press again and again to
switch between the clock
functions.
To confirm the settings of the
clock functions, press or
wait 5 seconds for an
automatic confirmation.
6.2 Setting the DURATION or
END
1. Press again and again until the
display shows or .
or flashes in the display.
2. Press or to the set the values
and press to confirm.
For Duration first you set the minutes
and then the hours, for End first you
set the hours and then the minutes.
An acoustic signal sounds for 2 minutes
after the time ends. or symbol and
time setting flash in the display. The oven
stops.
3. Press any button to stop the acoustic
signal.
If you press when you set
the hours for DURATION ,
the appliance goes to setting of
the END function.
6.3 Setting the MINUTE MINDER
1. Press .
and "00" flash in the display.
2. Press or to set the MINUTE
MINDER. At first, the time is calculated
in minutes and seconds. When the
time you set is longer than 60 minutes,
the symbol comes on in the
display.
The appliance now calculates the time in
hours and minutes.
3. The MINUTE MINDER starts
automatically after five seconds.
After 90% of the set time, an acoustic
signal sounds.
4. When the set time ends, an acoustic
signal sounds for two minutes.
"00:00" and flash in the display.
Press any button to stop the acoustic
signal.
ENGLISH 11

If you set the MINUTE MINDER
when the DURATION or END
function operates, the symbol
comes on in the display.
6.4 Count Up Timer
Use the Count Up Timer to monitor how
long the oven operates. It is on
immediately when the oven starts to heat.
To reset the Count Up Timer, press and
hold and . The timer starts to count
up again.
The Count Up Timer cannot be
used with the functions:
Duration , End , Core
Temperature Sensor.
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
7.1 Using the Core temperature
sensor
The core temperature sensor measures
the core temperature of the meat. When
the meat is at the set temperature, the
appliance deactivates.
There are two temperatures to be set:
• The oven temperature. Refer to the
table for roasting.
• The core temperature. Refer to the
table for the core temperature sensor.
CAUTION!
Only use the core temperature
sensor supplied with the
appliance, or genuine
replacement parts.
1. Set the oven function and the oven
temperature.
2. Put the point of the core temperature
sensor (with the symbol on the
handle) into the centre of the meat.
3. Put the plug of the core temperature
sensor into the socket on the top of
the cavity.
Make sure that the core temperature
sensor stays in the meat and in the socket
during the cooking.
When you use the core temperature
sensor for the first time, the default core
temperature is 60 °C. While flashes,
you can use the knob for the temperature
to change the default core temperature.
The display shows the symbol of the core
temperature sensor and the default core
temperature.
4. Press to save the new core
temperature, or wait 10 seconds for
the setting to be saved automatically.
The new default core temperature is
displayed during the next use of the core
temperature sensor.
When the meat is at the set core
temperature, the symbol for the core
temperature sensor and the default
core temperature flash. An acoustic signal
sounds for two minutes.
5. Press any button to stop the acoustic
signal.
www.electrolux.com12

6. Remove the plug of the core
temperature sensor from the socket.
Remove the meat from the appliance.
7. Deactivate the appliance.
WARNING!
Be careful when you remove
the tip and plug of the core
temperature sensor. The core
temperature sensor is hot.
There is a risk of burns.
Every time you put the core
temperature sensor in the
socket, you need to set the
duration and end time again.
When the appliance calculates
the provisional duration time for
the first time, the symbol
flashes in the display. When the
calculation ends, the display
shows the duration of the
cooking. Calculations run in the
background during the cooking
and the duration value in the
display is updated if necessary.
You can change the core temperature at
any time during the cooking:
1. Press: :
• One time - the display shows the
set core temperature which
changes every 10 seconds to the
current core temperature.
• Two times - the display shows the
current oven temperature which
changes every 10 seconds to the
set oven temperature.
• Three times - the display shows
the set oven temperature.
2. Use the knob for the temperature to
change the temperature.
7.2 Telescopic Runners
Keep the installation
instructions for the telescopic
runners for future use.
With telescopic runners you can put in
and remove the shelves more easily.
CAUTION!
Do not clean the telescopic
runners in the dishwasher. Do
not lubricate the telescopic
runners.
1. Pull out the right and left hand
telescopic runners.
°C
2. Put the wire shelf on the telescopic
runners and carefully push them into
the appliance.
°C
Make sure you push back the telescopic
runners fully in the appliance before you
close the oven door.
7.3 Accessories for steam
cooking
The steam kit accessories are
not supplied with the
appliance. For more
information, please contact
your local supplier.
The dietary baking dish for steam
cooking functions
ENGLISH 13

The dish consists of a glass bowl, a lid
with a hole for the injector tube (C) and a
steel grill to put at the bottom of the
baking dish.
Glass bowl (A)
Lid (B)
The injector and the injector tube
C
D
"C" is the injector tube for steam cooking,
"D" is the injector for direct steam
cooking.
Injector tube (C)
Injector for direct steam cooking (D)
Steel grill (E)

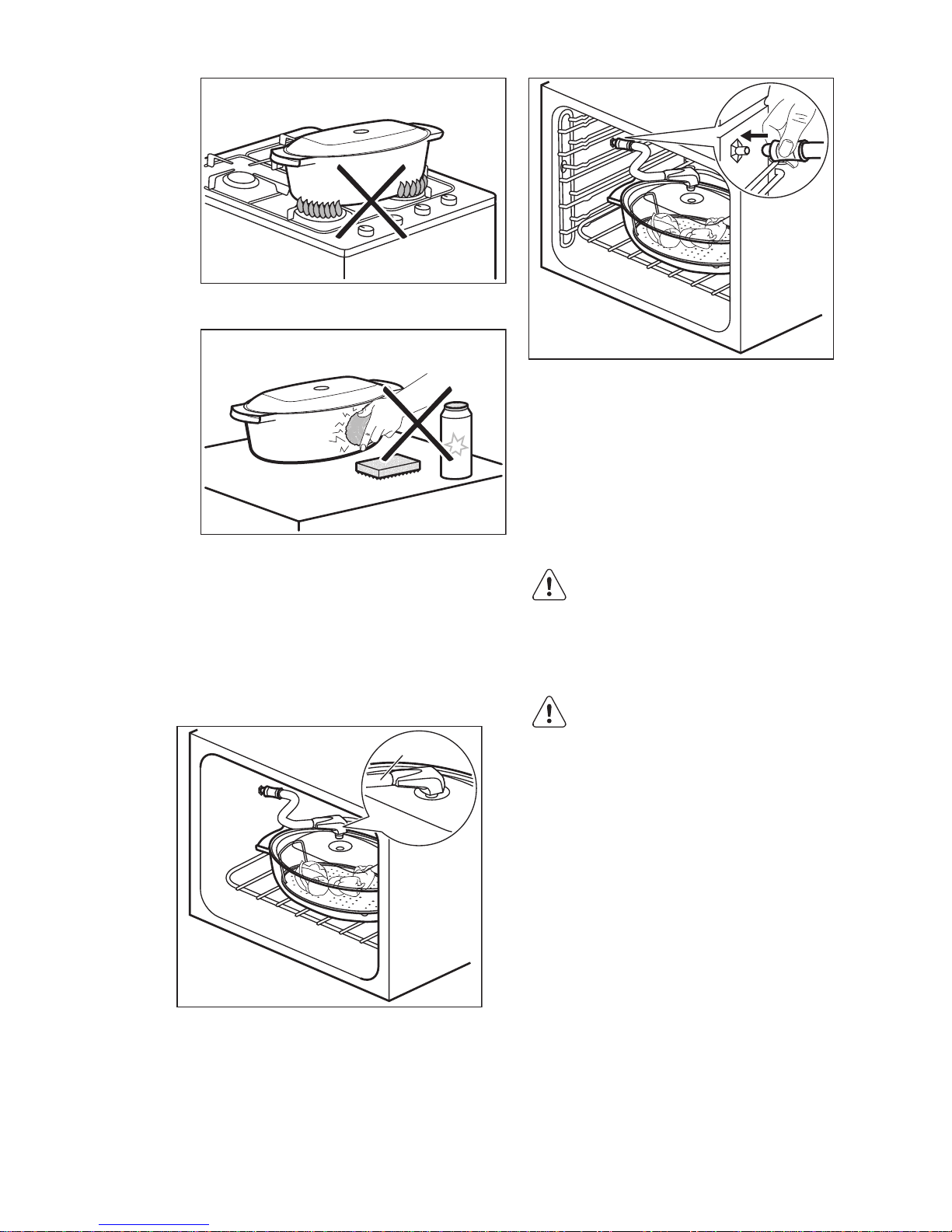

• Do not put the hot baking dish on
cold / wet surfaces.
• Do not put cold liquids in the baking
dish when it is hot.
• Do not use the baking dish on a hot
cooking surface.
www.electrolux.com14

• Do not clean the baking dish with
abrasives, scourers and powders.
7.4 Steam cooking in a dietary
baking dish
Put the food onto the steel grill in the
baking dish and put the lid on it.
1. Put the injector tube into the special
hole in the lid of the dietary baking
dish.
C
2. Put the baking dish onto the second
shelf position from the bottom.
3. Put the other end of the injector tube
into the steam inlet.
Make sure that you do not crush the
injector tube or let it touch a heating
element on the top of the oven.
4. Set the oven for the steam cooking
function.
7.5 Direct steam cooking
Put the food onto the steel grill in the
baking dish. Add some water.
CAUTION!
Do not use the lid of the dish.
The injector tube is specially made for
cooking and does not contain dangerous
materials.
WARNING!
Be careful when you use the injector when
the oven operates. Always use oven
gloves to touch the injector when the oven
is hot. Always remove the injector from the
oven when you do not use a steam
function.
1. Put the injector (D) into the injector
tube (C). Connect the other end into
the steam inlet.
ENGLISH 15

2. Put the baking dish onto the first or
second shelf position from the bottom.
Make sure that you do not crush the
injector tube or let it touch a heating
element on the top of the oven.
3. Set the oven for the steam cooking
function.
When you cook food such as chicken,
duck, turkey, kid or large fish, put the
injector (D) directly into the empty part of
the meat. Make sure that you do not
cause a blockage of the holes.
For more information about steam
cooking, refer to the cooking tables for
steam cooking in the chapter "Hints and
Tips".
8. ADDITIONAL FUNCTIONS
8.1 Using the Child Lock
The Child Lock prevents an accidental
operation of the appliance.
1. Do not set an oven function.
2. Press and hold and at the same
time for 2 seconds.
An acoustic signal sounds. SAFE comes
on in the display.
To deactivate the Child Lock, repeat step
2.
8.2 Using the Function Lock
You can activate the Function Lock
function only when the appliance
operates.
The Function Lock prevents an accidental
change of the temperature and time
settings of a running oven function.
1. Select an oven function and set it
according your preferences
2. Press and hold and at the same
time for 2 seconds.
An acoustic signal sounds. Loc comes on
in the display.
To deactivate the Function Lock, repeat
step 2.
Loc comes on in the display
when you turn the knob for the
temperature or press a button.
When you turn the knob for the
oven functions, the appliance
deactivates.
When you deactivate the
appliance while the Function
Lock is on, the Function Lock
switches automatically to the
Child Lock. Refer to "Using the
Child Lock".
8.3 Residual heat indicator
When you deactivate the appliance, the
display shows the residual heat indicator
if the temperature in the oven is more
than 40 °C. Turn the knob for the
temperature left or right to show the oven
temperature.
8.4 Automatic Switch-off
For safety reasons the appliance
deactivates automatically after some time
if an oven function operates and you do
not change any settings.
www.electrolux.com16

Temperature (°C) Switch-off time
(h)
30 - 115 12.5
120 - 195 8.5
200 - 245 5.5
250 - maximum 3
After an automatic switch-off, press a any
button to operate the appliance again.
The Automatic switch-off does
not work with the functions:
Core temperature sensor,
Light, Duration, End.
8.5 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
8.6 Safety thermostat
Incorrect operation of the appliance or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
activates again automatically when the
temperature drops.
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They depend
on the recipes and the quality
and quantity of the ingredients
used.
9.1 Inner side of the door
In some models, on the inner side of
the door you can find:
• the numbers of the shelf positions.
• information about the oven functions,
recommended shelf positions and
temperatures for typical dishes.
9.2 General information
• The appliance has five shelf positions.
Count the shelf positions from the
bottom of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system
you can cook in a steamy environment
and keep the food soft inside and
crusty outside. It decreases the
cooking time and energy consumption
to a minimum.
• Moisture can condense in the
appliance or on the door glass panels.
This is normal. Always stand back from
the appliance when you open the
appliance door while cooking. To
decrease the condensation, operate
the appliance for 10 minutes before
cooking.
• Clean the moisture after each use of
the appliance.
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components
when you cook. This can change the
baking results and cause damage to
the enamel.
9.3 Baking cakes
• Do not open the oven door before 3/4
of the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
9.4 Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can
be permanent.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the
oven during roasting, add some water
into the deep pan. To prevent the
ENGLISH 17

smoke condensation, add water each
time after it dries up.
9.5 Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
9.6 Baking and roasting table
Cakes
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Com-
ments
Tempera-
ture (°C)
Shelf po-
sition
Tempera-
ture (°C)
Shelf po-
sition
Whisked
recipes
170 2 160 3 (2 and 4) 45 - 60 In a cake
mould
Short-
bread
dough
170 2 160 3 (2 and 4) 20 - 30 In a cake
mould
Buttermilk
cheese-
cake
170 1 165 2 60 - 80 In a 26 cm
cake
mould
Apple
cake (Ap-
ple pie)1)
170 2 160 2 (left and
right)
80 - 100 In two 20
cm cake
moulds on
a wire shelf
Strudel 175 3 150 2 60 - 80 In a baking
tray
Jam-tart 170 2 165 2 (left and
right)
30 - 40 In a 26 cm
cake
mould
Sponge
cake
170 2 160 2 50 - 60 In a 26 cm
cake
mould
Christmas
cake /
Rich fruit
cake1)
160 2 150 2 90 - 120 In a 20 cm
cake
mould
Plum
cake1)
175 1 160 2 50 - 60 In a bread
tin
Small
cakes -
one level
170 3 140 - 150 3 20 - 30 In a baking
tray
www.electrolux.com18

Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Com-
ments
Tempera-
ture (°C)
Shelf po-
sition
Tempera-
ture (°C)
Shelf po-
sition
Small
cakes -
two levels
- - 140 - 150 2 and 4 25 - 35 In a baking
tray
Small
cakes -
three lev-
els
- - 140 - 150 1, 3 and 5 30 - 45 In a baking
tray
Biscuits /
pastry
stripes -
one level
140 3 140 - 150 3 30 - 35 In a baking
tray
Biscuits /
pastry
stripes -
two levels
- - 140 - 150 2 and 4 35 - 40 In a baking
tray
Biscuits /
pastry
stripes -
three lev-
els
- - 140 - 150 1, 3 and 5 35 - 45 In a baking
tray
Meringues
- one level
120 3 120 3 80 - 100 In a baking
tray
Merin-
gues- two
levels1)
- - 120 2 and 4 80 - 100 In a baking
tray
Buns1) 190 3 190 3 12 - 20 In a baking
tray
Eclairs -
one level
190 3 170 3 25 - 35 In a baking
tray
Eclairs -
two levels
- - 170 2 and 4 35 - 45 In a baking
tray
Plate tarts 180 2 170 2 45 - 70 In a 20 cm
cake
mould
Rich fruit
cake
160 1 150 2 110 - 120 In a 24 cm
cake
mould
ENGLISH 19

Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Com-
ments
Tempera-
ture (°C)
Shelf po-
sition
Tempera-
ture (°C)
Shelf po-
sition
Victoria
sandwich
170 1 160 2 50 - 60 In a 20 cm
cake
mould
1) Preheat for 10 minutes.
Bread and pizza
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Com-
ments
Tempera-
ture (°C)
Shelf po-
sition
Tempera-
ture (°C)
Shelf po-
sition
White
bread1)
190 1 190 1 60 - 70 1 - 2
pieces,
500 gr per
piece
Rye bread 190 1 180 1 30 - 45 In a bread
tin
Bread
rolls1)
190 2 180 2 (2 and 4) 25 - 40 6 - 8 rolls
in a baking
tray
Pizza1) 230 - 250 1 230 - 250 1 10 - 20 In a baking
tray or a
deep pan
Scones1) 200 3 190 3 10 - 20 In a baking
tray
1) Preheat for 10 minutes.
Flans
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Com-
ments
Tempera-
ture (°C)
Shelf po-
sition
Tempera-
ture (°C)
Shelf po-
sition
Pasta flan 200 2 180 2 40 - 50 In a mould
Vegetable
flan
200 2 175 2 45 - 60 In a mould
Quiches1) 180 1 180 1 50 - 60 In a mould
Lasagne1) 180 - 190 2 180 - 190 2 25 - 40 In a mould
www.electrolux.com20
