Electrolux ECVI4262AS User manual

ECVI4262AS
User Manual
Range Hood
EN 2

CONTENTS
1. SAFETY INSTRUCTIONS-------------------------------------------------------------------
2. ELECTRICAL REQUIREMENTS------------------------------------------------------------
3. PARTS SUPPLIED----------------------------------------------------------------------------
4. OPTIONAL ACCESSORIES---------------------------------------------------------------
5. INSTALLING THE HOOD ------------------------------------------------------------------
6. OPERATION-----------------------------------------------------------------------------------
7. SPECIAL FUNCTION-----------------------------------------------------------------------
8. CLEANING AND MAINTENANCE------------------------------------------------------
9. TECHNICAL DATA--------------------------------------------------------------------------
10.TROUBLE SHOOTING-------------------------------------------------------------------
11.ENVIRONMENTAL PROTECTION----------------------------------------------------
12.WARRANTY INFORMATION-----------------------------------------------------------
2
5
6
6
7
14
14
15
16
16
16
17
SAFETY INSTRUCTIONS
Do not attempt to install or operate this appliance until you
have read the safety instructions in this manual. Safety items
throughout this manual are labelled with a Danger, Warning,
or Caution based on the risk type.
DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury or
death.
DANGER:
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING:
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
2 ENGLISH

CAUTION：
CAUTION indicates a potentially hazardous situation which, if not avoided, could result
in minor or moderate injury.
CHILD SAFETY
Packing materials:
Packing cartons covered with rugs, bedspreads,plastic sheets, or stretch wrap may
become airtight chambers and can quickly cause suffocation.
Removetheprotectivefilm coveringtheappliance before putting it into operation.
Destroy or recycle the appliance's carton, plastic bags, and any other exterior
wrapping material immediately after the product is unpacked. Children should never
play with these items. Danger of suffocation!
IMPORTANT
CAREFULLY BEFORE INSTALLATION AND USE.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these instructions for the Local Electrical Inspector's
use.
INSTALLER: Please leave these instructions with this appliance for the
owner.
OWNER: Please retain these instructions for future reference.
DANGER:
Always switch off the electricity supply at the mains during installation
and maintenance.
WARNING:
To reduce the risk of fire, electric shock, or injury to persons, observe the following:
FOR RESIDENTIAL USE ONLY
Use this appliance only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
Installation work and electrical wiring must be done by qualified person(s )in
accordance With all applicable codes & standards, including fire-rated construction.
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the
heating equipment manufacturers guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities (e.g. gas pipes).
Ducted systems must always be vented to the outdoors. always be vented to the outdoors.
3 ENGLISH

WARNING:
Before servicing or cleaning the unit, switch power off at service panel and lock service
panel disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent
warning device, such as a tag,to the service panel.
4 ENGLISH
CAUTION:
For general ventilating use only. DO NOT use to exhaust hazardous or explosive
materials or vapors.
CAUTION:
To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent
exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages.
WARNING:
To reduce the risk of fire, use only metal duct work. Install this hood in accordance with
all requirements specified.
WARNING:
To reduce the risk of fire or electric shock, do not use this hood with any external solid
state speed control device.
WARNING:
Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
Always turn hood on when cooking over high heat
To reduce the risk of a cooker top grease fire:
WARNING:
Use proper pan size. Always use cookware appropriate for the size of the surface
element.
Do not use the range hood without the grease filters, or if the filters are excessively
greasy.

WARNING:
Smother flames with a close-fitting lid,cookie sheet, or other metal tray, then turn
off the gas burner or the electric element. Be careful to prevent burns. If the flames
do not go out immediately, evacuate and call the fire department.
Never pick up a flaming pan - you may be burned.
Do not use water, including wet dishcloths or towels - a violent steam explosion will result.
Use an extinguisher only if:
You know you have a class ABC extinguisher, and you already know how to operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You can fight the fire with your back to an exit.
To reduce the risk of injury to persons, in the event of a cooker top grease
fire, observe the following:
CAUTION:
Always leave safety grills and filters in place.
5 ENGLISH
ELECTRICAL REQUIREMENTS
IMPORTANT
It is the customer's responsibility:
to contact a qualified electrical installer.
to assure that the electrical installation is
adequate and in conformance with National
Electrical Code, ANSI/NFPA 70 - latest
edition*,or CSA Standards C22.1-94,
Canadian Electrical Code, Part 1 and C22.2
No.0-M91-latest edition**
and all local codes and ordinances.
If codes permit and a separate ground wire is
used, it is recommended that a qualified
electrician determines that the ground path is
adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not
sure range hood is properly grounded.
Do not have a fuse in the neutral or ground
circuit.
IMPORTANT
The range hood must be connected with
copper wire only.
The range hood should be connected directly
to the fused disconnect (or circuit breaker) box
through metal electrical conduit.
Wire sizes must conform to the requirements
of the National Electrical Code ANSI/NFPA
70 - latest edition”, or CSA Standards C22.1-
94, Canadian Electrical Code Part 1 and
C22.2 No.0-M91 - latest edition** and all local
codes and ordinances.
A U.L.- or C.S.A.-listed conduit connector
must be provided at each end of the power
supply conduit (at the range hood and at the
junction box).
Copies of the standards listed may be obtained
from:
* National Fire Protection Association Battery
march Park Quincy, Massachusetts 02269
* * CSA International 8501 East Pleasant Valley
Road Cleveland, Ohio 44131-5575
Power requirement:
120V-, 60Hz, 15 or 20A branch circuit.
Save installation instructions for electrical
inspector's use.
Observe all governing codes and
ordinances.
To Reduce The Risk Of Fire And Electric Shock,
Install This Rangehood Only With Integral Blowers
Manufactured by Chinabest Home Appliance Co.,
Ltd, Model CTH03-128D.

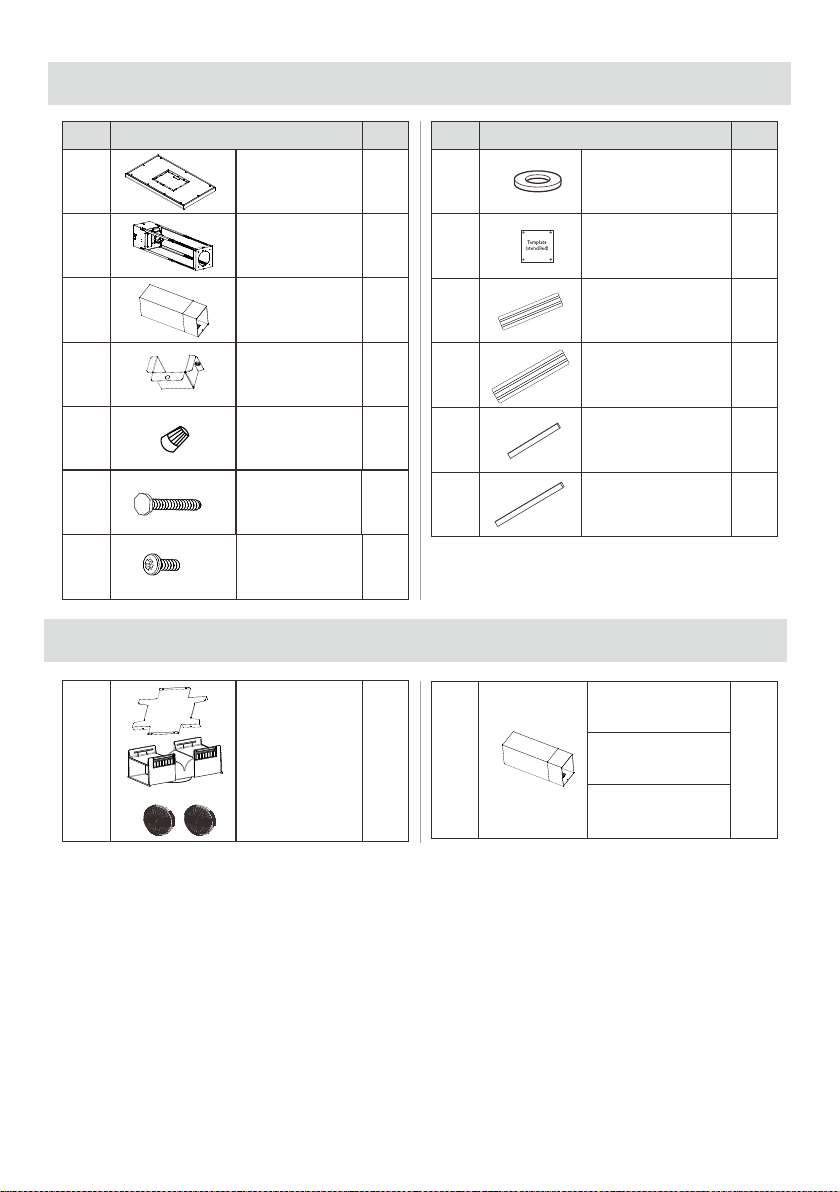

PARTS SUPPLIED
No. Part Qty.
1. Range hood 1
2.
Upper chimney
+
Lower chimney
3.1
+
3.2
3.
Truss part 1
4. Wire cover 1
1. 1
Long screws
ST6x704
6.
Recirculation kit
with screws
Elux PN:
EHRKT62AS
7. 5
Short screw
M4x10
6 ENGLISH
8.
2.
9.
Washer
8x16 4
1
1
Assembly
template
No. Part Qty.
8' extension chimney
Elux PN:EHI08X62AS
5. 3
Wire cap
OPTIONAL ACCESSORIES
10.
12.
11.
13.
Side supporting
bracket
Side sponge strip
2
2
2
2
Front and back
supporting bracket
Front and back
sponge strip
12' extension chimney
Elux PN:EHI12X62AS
14' extension chimney
Elux PN:EHI14X62AS

INSTALLING THE HOOD

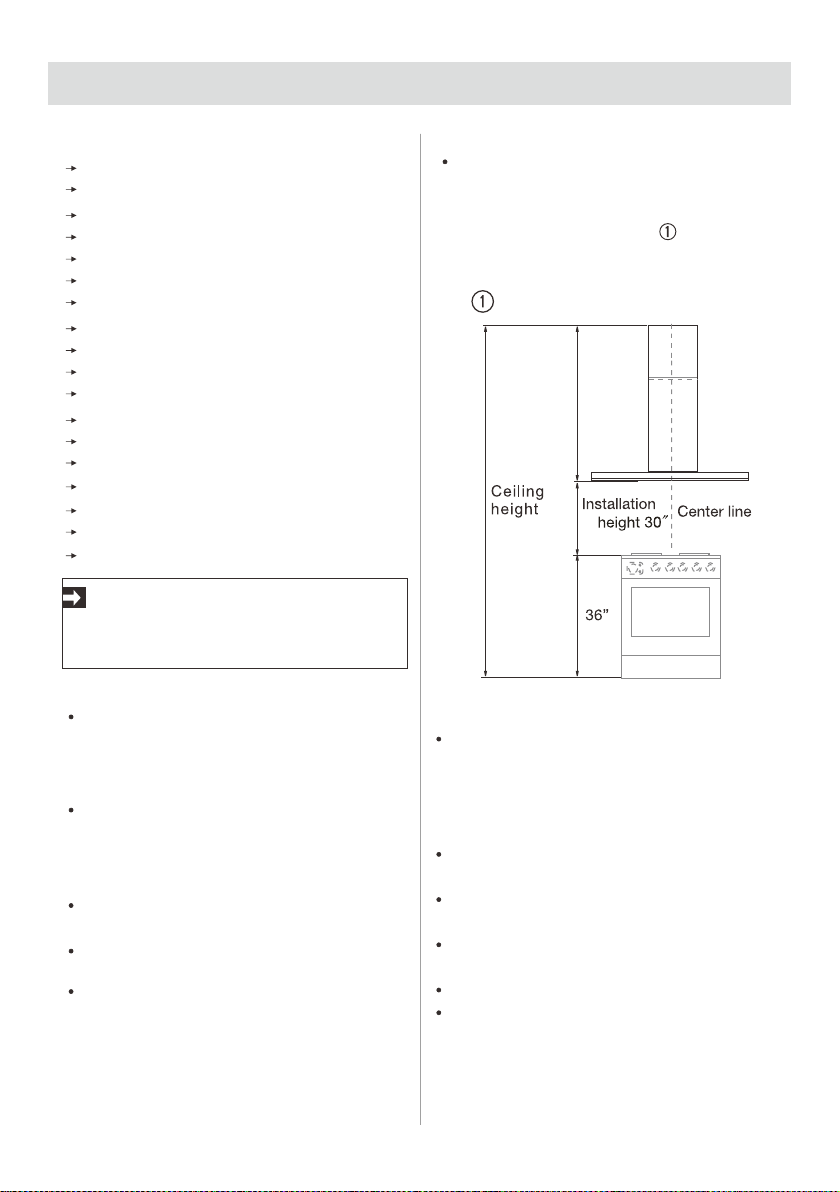

Tools/Materials required
Duct tape
Wire nuts
Tape to mount template
6" rounded metal duct, length to suit
installation
Measuring tape
Pliers
Gloves to protect against sharp edges
Knife
Safety glasses
Electric drill
Strain relief
Spirit level
Phillips (Pozidrive) # 2 screwdriver + torx # 2
Wire cutter/stripper
Masking tape
Hammer
Saw, jig saw or reciprocating saw
7 ENGLISH
IMPORTANT
We recommend that three people carry
out the installation.
Preparation
The vent hood should be on site before
final framing and wall finishing. This will
help to accurately locate the duct work and
electrical service.
Installation will be easier if the vent hood is
installed before the cooktop and
countertop are installed.
Ductwork and wiring locations:
Determine the exact location of the vent
hood.
Plan the route for venting exhaust to the
outdoors.
Use the shortest and straightest duct route
possible.For satisfactory performance
duct run should not exceed 100'
equivalent length for any duct
configurations.
Refer to “ Ductwork installation
guidelines” chart to compute the
maximum permissible length for duct
runs to the outdoors (fig. ).
Ducting installation guidelines
For safety reasons when ducting outdoors
(not using a recirculation kit),ducting must
vent directly outdoors (not into an attic,
underneath the house, into the garage or
into any enclosed space).
Keep duct runs as short and straight as
possible.
Duct fittings (elbows and transitions) reduce
air flow efficiency.
Back to back elbow and “S” turns give very
poor delivery and are not recommended.
Use a suitable 6” round duct.
Flexible metal round ducts should only be
used when no other duct fitting exists. limit
use to short lengths and do not crush when
making corners.
Fig.

CAUTION
Remove the carton carefully.
Wear gloves to protect against sharp edges.
WARNING
Remove the protective film covering the
product before putting into operation.
8 ENGLISH

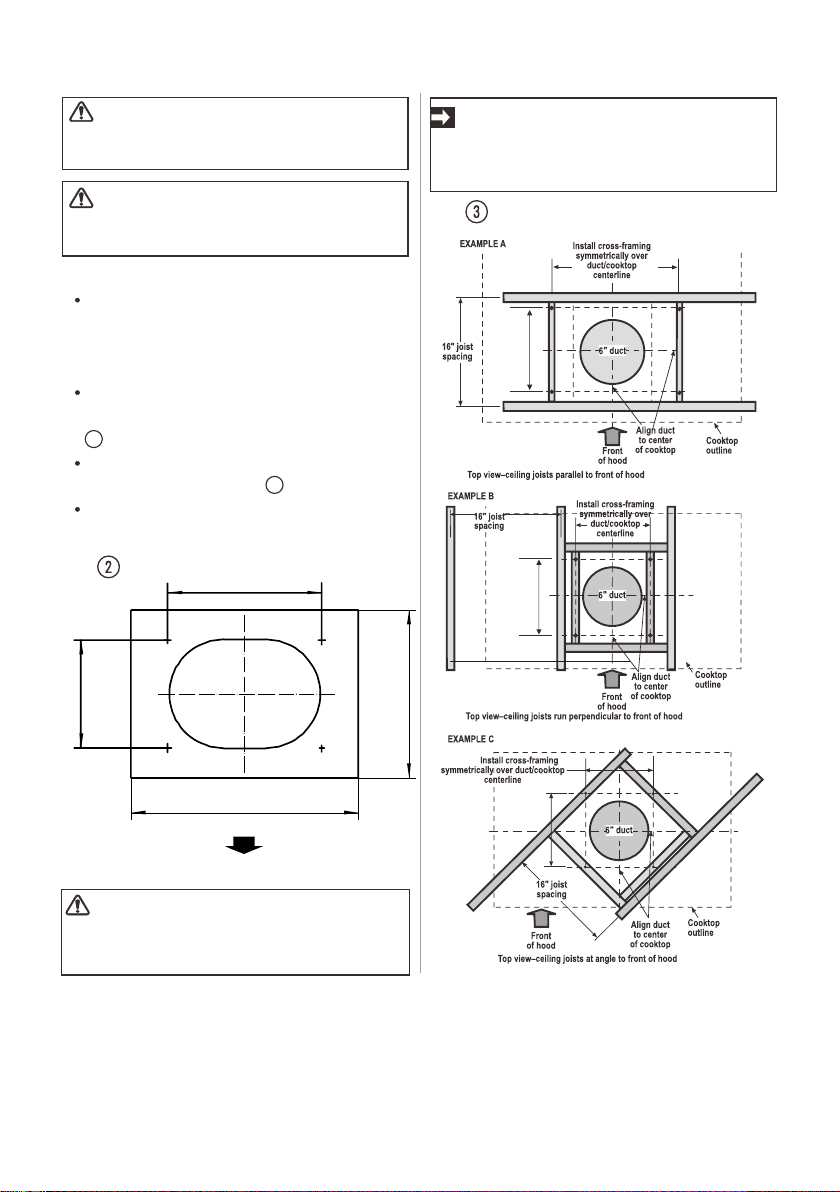

This vent hood is heavy. Adequate structure
and support must be provided in all types of
installations. Framing must support minimum
150 Ibs load.
At the hood location, adequate bracing is
required to support the weight of the hood (fig.
2 )
Arrange cross framing in the ceiling to suit
the existing structure (fig. 3 )
Your ceiling joists will be like one of the
following examples.
NOTE: Do not cut the duct opening
shown on the template for the
recirculating installation.
IMPORTANT
Framing must be capable of supporting
150 lbs.
Fig.
Fig.
Ceiling Support Structures
Removing the packaging
7 1/16"
10 1/16"
10 63/64"
14 27/32"
Front
10 1/16"
7 1/16"
10 1/16"
7 1/16"
10 1/16"
7 1/16"

9 ENGLISH
Examples of possible ducting or
air recirculation
IMPORTANT
This range hood is very heavy. Adequate
structure and support must be provided in
all types of installations.
Make sure that no cables or pipes will
become damaged (e.g. electric, gas, water;
test the areas in question with a cable
detector).
Using the template, mark and drill 4 holes
into the ceiling. Measure as displayed in
diagram (fig. ). The holes must be drilled
into a wood structure capable to support
150lbs load.
NOTE
1.The center of the template must match the
center of the cooktop and the edges must
be parallel to the sides of the cooktop.
2.Have a suitable ladder ready so that you
can easily reach up to the ceiling.

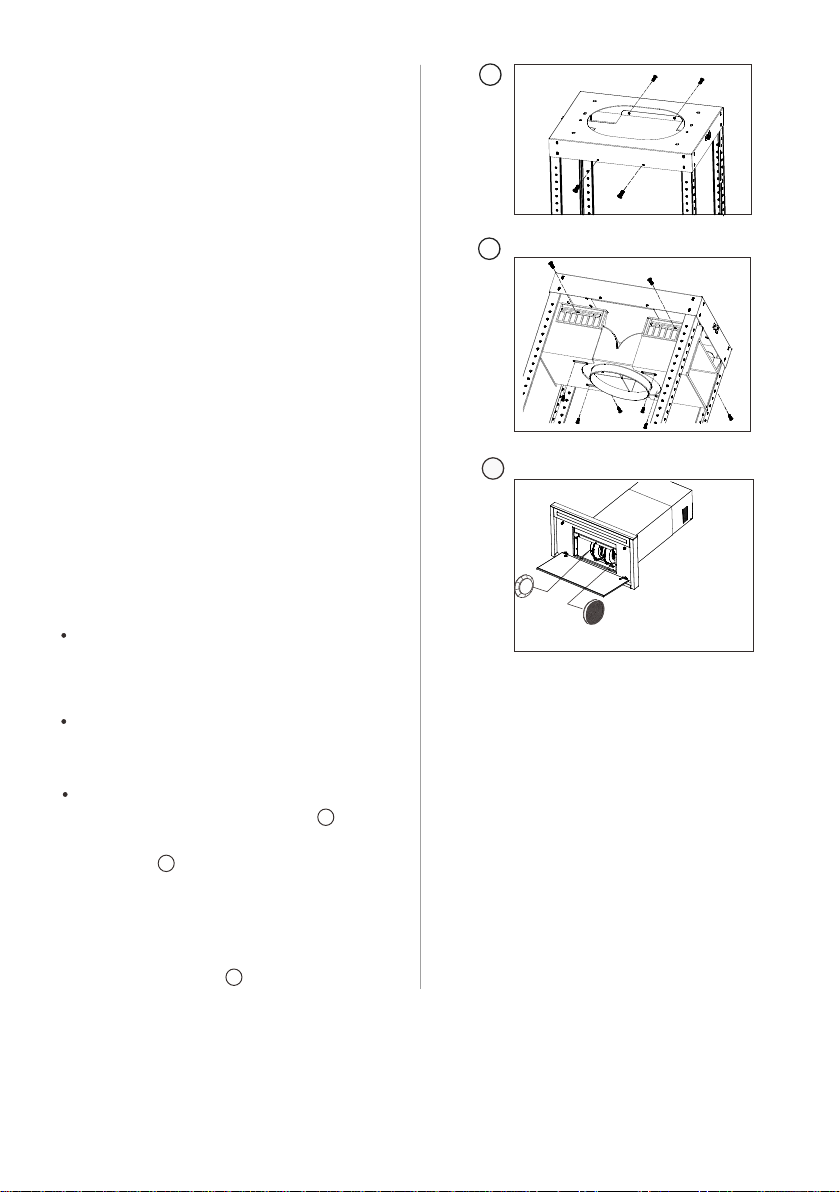

Unscrew 16 screws between the two sections
of the structure. Adjust extension of the hood
support structure (dimenssion A), as the final
height of the hood depends on this ,and
remember that with installation completed to
the hood must be at least 30" above the
cooktop.
1 With 8'/12'/14' extension chimney kit –
not supplied. Please call Electrolux at
1-800-944-9044 (USA) or 1-800-265-
8352 (Canada) to order this kit.
2 “ Dimension A” represents the height
from the top of upper bracket to the top
of lower bracket (fig. ).

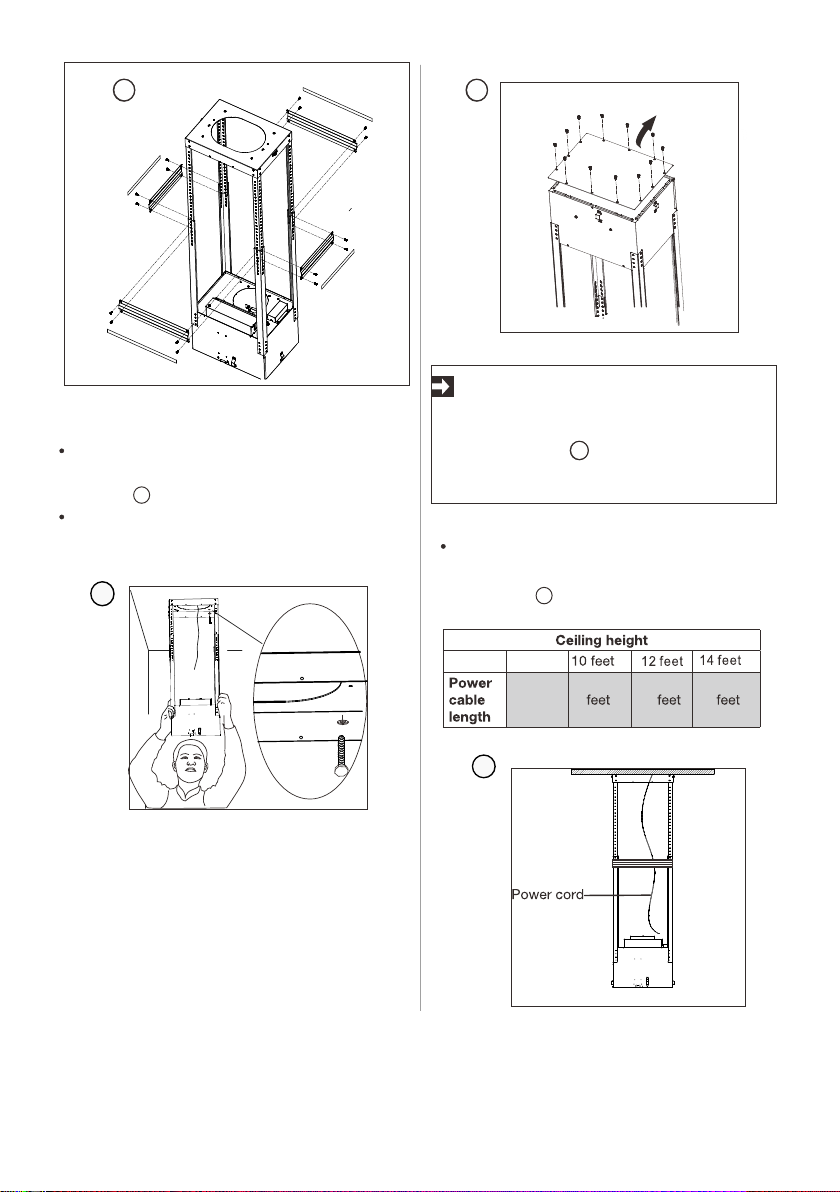

Step 2
Step 1
Step 3
Fix the two sections of the structure
using 16 screws.
Fig.
Fig.
Fig.
Recirculation kit shown
5
6
7
101/16"
101/16"
71/16"
71/16"
It is recommended to fix the supplied
4 supporting brackets (10,11) with
sponge strips(12,13)onto the lower
brackets to make sure two flue
covers fit closely(fig. ).
NOTE

Step 4
Mount the truss part (2) onto the ceiling
with 4 sets of long screws (6) and washers
(8) (fig. ).
Make sure the power cable for the range
hood is routed inside the bracket.
8
Step 5
Depending on the ceiling height ensure
required power cable length. See the
table (fig. ) below for reference.
Fig. 10
IMPORTANT
Before mounting the truss part onto the
ceiling, please remove the supporting
plate firstly (fig. ). Remember to keep
these screws which will be reused in
step 8
Fig. Fig.
5 7 9
8 feet
3 feet
Fig.
7
8
9
9
10
10 ENGLISH
