RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Ac-
cordingly, you may find descriptions of individual features that do not ap-
ply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor
hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating
plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees
adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum di-
ameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g.
gas burning appliances), a sufficient degree of aeration must be guaran-
teed in the room in order to prevent the backflow of exhaust gas. The
kitchen must have an opening communicating directly with the open air in
order to guarantee the entry of clean air.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has ben designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, mak-
ing sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil
can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying
out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.
650 mm min.

EN
8
8
CHARACTERISTICS

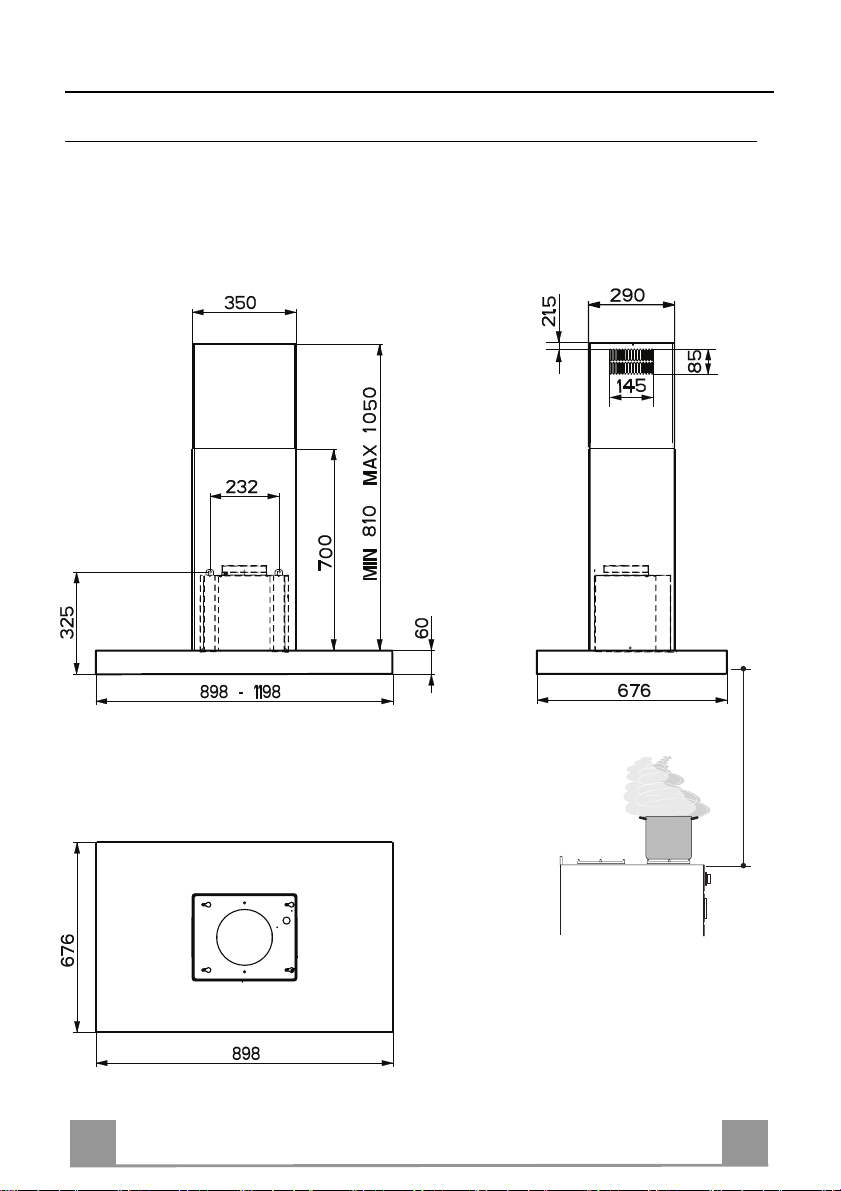

Dimensions
650 min.

EN
9
9
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
7.1 1 Telescopic frame complete with extractor, consisting of:
7.1a 1 Upper frame
7.1b 1 Lower frame
9 1 ReducerFlange ø 150-120 mm
10 1 Flange ø 150
10a 1 Dumper ø 150mm
15 1 Air Outlet Connection
24 1 Junctionbox
25 2 Pipe clamps
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12c 6 Screws 2,9 x6,5
12e 2 Screws 2,9 x9,5
12f 4 Screws M6 x10
12g 4 Screws M6 x 80
12h 4 Screws 5,2 x70
21 1 Drilling template
22 4 6.4 mm int. dia washers
23 4 M6 nuts
Q.ty Documentation
1 Instruction Manual
12c
7.1a
7.1
22
23
12h
7.1b
2
2.1
2.2
12c
11
21
12g
1
12f
24
12e
15
12c
25
10
9
10a

EN
1
0
10
INSTALLATION
Drilling the Ceiling/shelf and fixing the frame

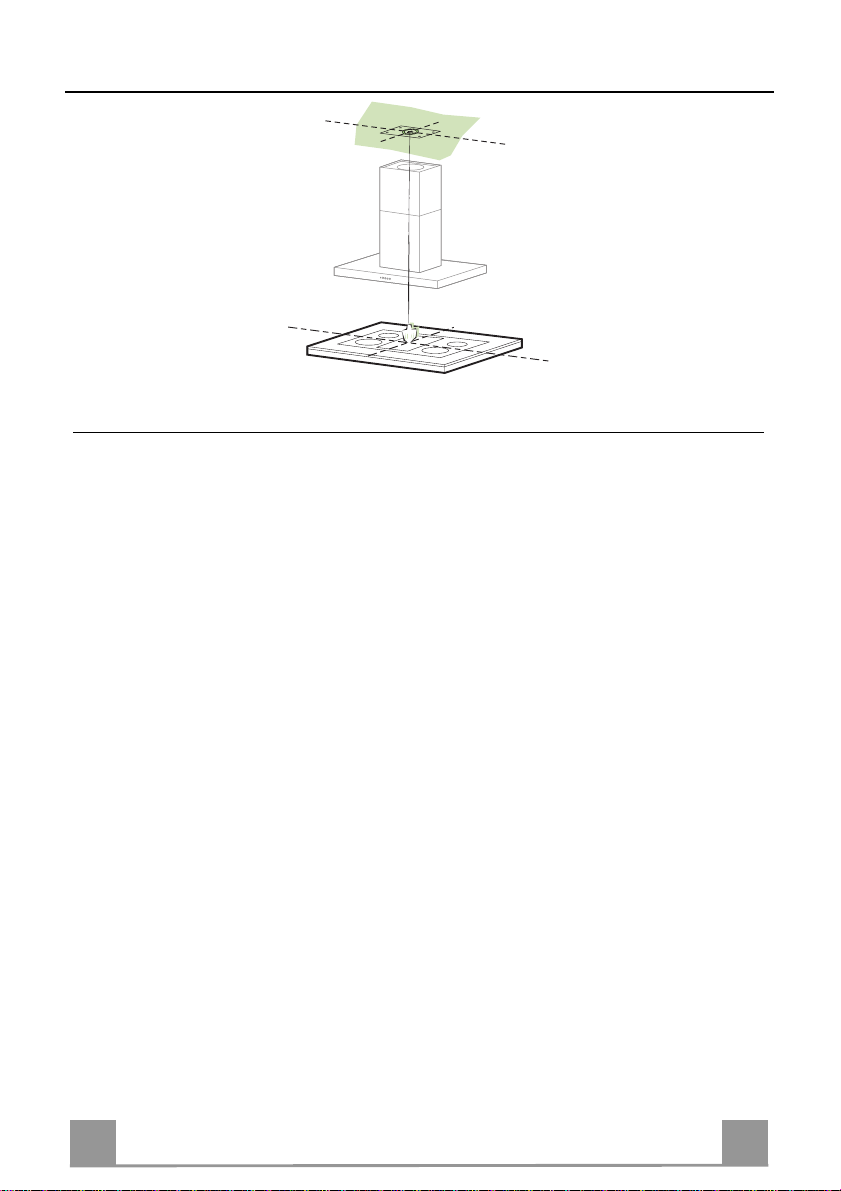

DRILLING THE CEILING/SHELF
• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the
template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert
the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-
haust duct connection.
• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,
supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

EN
1
1
11
Fixing the frame
• Loosen the two screws fastening the lower chimney and re-
move this from the lower frame.
• Loosen the two screws fastening the upper chimney and re-
move this from the upper frame.
If you wish to adjust the height of the frame, proceed as follows:
• Unfasten the eight metric screws joining the two columns, lo-
cated at the sides of the frame.
• Adjust the frame to the height required, then replace all the
screws removed as above.
• Insert the upper chimney stack from above, and leave it run-
ning free on the frame.
• Lift up the frame, fit the frame slots onto the screws up to the
slot end positions.
• Tighten the two screws and fasten the other two screws pro-
vided with the hood.
Before tightening the screws completely it is possible to adjust
the frame by turning it. Make sure that the screws do not come
out of their seats in the slotted holes.
• The frame mountings must be secure to withstand the weight
of the hood and any stresses caused by the occasional side
thrust applied to the device.
On completion, check that the base is stable, even if the frame
is subjected to bending.
• In all cases where the ceiling is not strong enough at the sus-
pension point, the installer must provide strengthening using
suitable plates and backing pieces anchored to the structurally
sound parts.
22
11

EN
1
2
12
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120mm, the
choice of which is left to the installer.
To install a ø 150
• To install the dumper 10a.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
To install a ø 120
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the dumper 10a.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
• Remove any activated charcoal filters.
ø 120
25
9
10a
10a
ø 150
25
Recirculation version air outlet
• Fix the connection 15 to the frame using the 4 screws pro-
vided.
• Fix the flange 10 to the lower opening of the connection 15.
• Connect the hood air outlet to the flange in the lower part of
the junction using a rigid or flexible ø 150 tube (by installer’s
choice).
15
10

EN
1
3
13
Flue assembly - Mounting the hood body
• Position the upper chimney section and fix the upper part to the
frame using the 2 screws 12c (2,9 x 6,5) provided.
• Similarly, position the lower chimney section and fix the
lower part to the frame using the 2 screws 12c (2,9 x 6,5) pro-
vided.
Before fixing the hood body to the frame:
• Remove the grease filters from the hood body.
• Remove any activated charcoal filters.

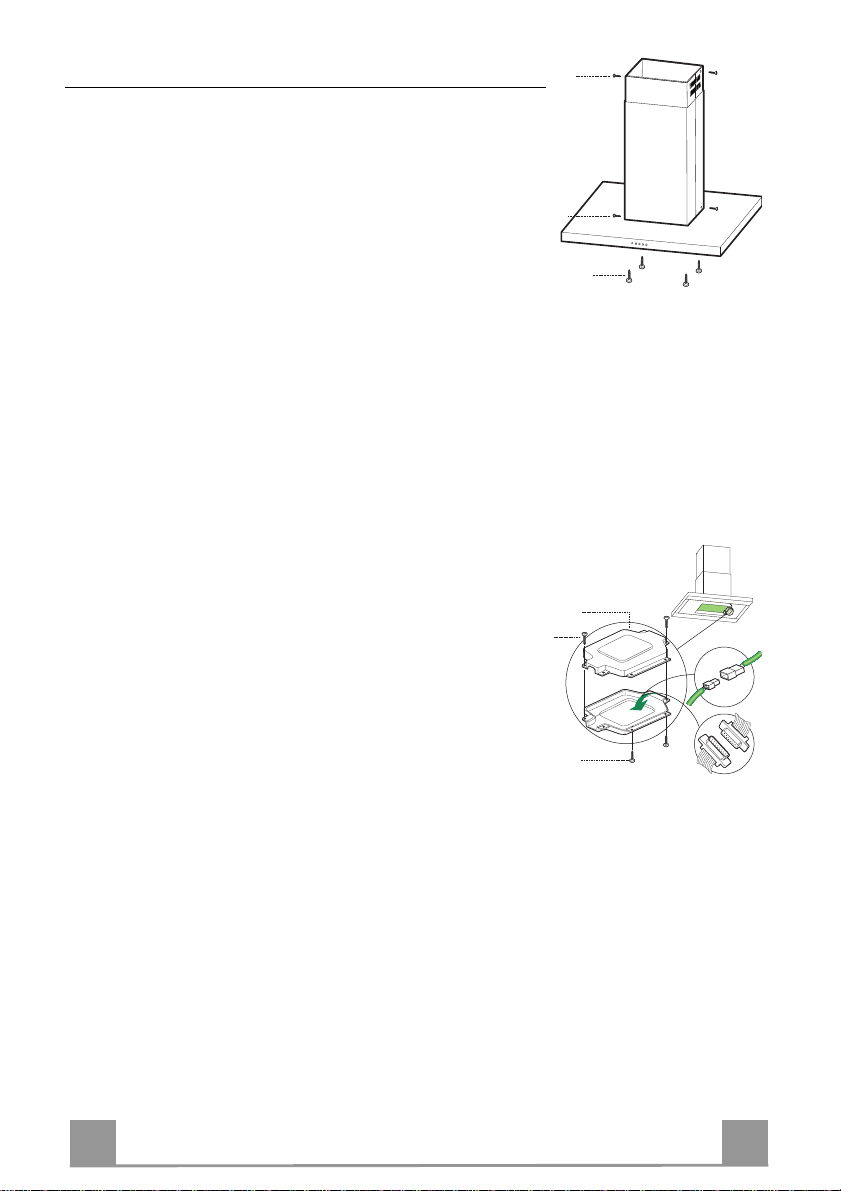

• From below, use the 4 screws 12f (M6 x 10)provided to fix the
hood body to the frame.
12f
12c
12c
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.
• Connect the control connector Cmd.
• Connect the lights connector Lux.
• Place the connectors in the junction box 24 and close it using
the 2 screws 12e (2,9 x 9,5) provided.
• Fix the junction box to the hood body using the 2 screws 12c
(2,9 x 6,5) provided.
• For the recirculation version, fit the activated carbon odour fil-
ter.
• Replace the grease filters.
24
12e
Cmd
12c
Lux

EN
1
4
14
USE
L T1 T2 T3 T4 T5 F
The hood can be switched on pushing directly onto the requested speed without firstly hav-
ing to select 0/1 button .
Basic functions
Touch
control
Dual Function
Indicator lights
When briefly pressed it switches the lighting system
on and off. Touch control unlit Lightsoff
Touch control lit Lights on
L
When pressed for 2 seconds it starts the lighting
system in “courtesy light” mode. The lamps are
fed at a reduced power of approximately 5W.
Such function can be stopped by pressing the
touch control for 2 seconds or just by pressing it
shortly in order to return to the normal lighting
mode. In courtesy light mode the touch control is
not lit.
Touch control unlit Courtesy light on
Touch control lit Motor on
T1 When pressed the motor is stopped, regardless of the
speed it is set to. Touch control unlit Motor off
T2 When pressed the motor is set to the first speed Touch control lit
By a brief pressing the motor is set to the second
speed. Touch control lit Second speedon
T3
By pressing the touch control for approximately 2
seconds the Delay function is enabled, i.e dela-
yed shutdown of the appliance ensuring a com-
plete elimination of the residual odours. This fun-
ction can be activated at OFF-position and at 1°,
2° and 3°speeds. It can be stopped in advance
by pressing any of the touch controls (T) with the
exception of T3. The Delay function works accor-
ding to the following scheme:
1°speed / OFF = 20 minuets
2°speed = 15 minutes
3°speed = 5 minutes
Flashing touch
control Delay function on
T4 When pressed the motor is set to the third speed Touch control lit

EN
1
5
15
Touch
control
Basic functions Indicator lights
T5 When pressed the motor is set to the intensive speed
timed to 5 minutes. At the end of 5 minutes of intensi-
ve speed the hood starts again at the speed it was set
to previously. In case the hood is set to the intensive
speed directly from OFF-state it will then start from
the first speed after 5 minutes of intensive speed.
Touch control lit
Touch control lit
Metal grease filters satu-
rationalarm. Metalgrease
filters need to be washed.
The alarm startsup after
100 working hours.
F When pressed for 4 seconds it resets the filter alarm
signal indicated by flashing of the touch control T1.
This procedure can be carried out only when the
motor is stopped.
Flashing touch
control Charcoal odour filter satu- rationalarm. Charcoal
filter has to be replaced
and metal grease filters
washed. The alarm starts
up after 200 working
hours. (Activation; check
the paragraph “Odour
filter”)

EN
1
6
16
MAINTENANCE
REMOTE CONTROL (OPTIONAL)

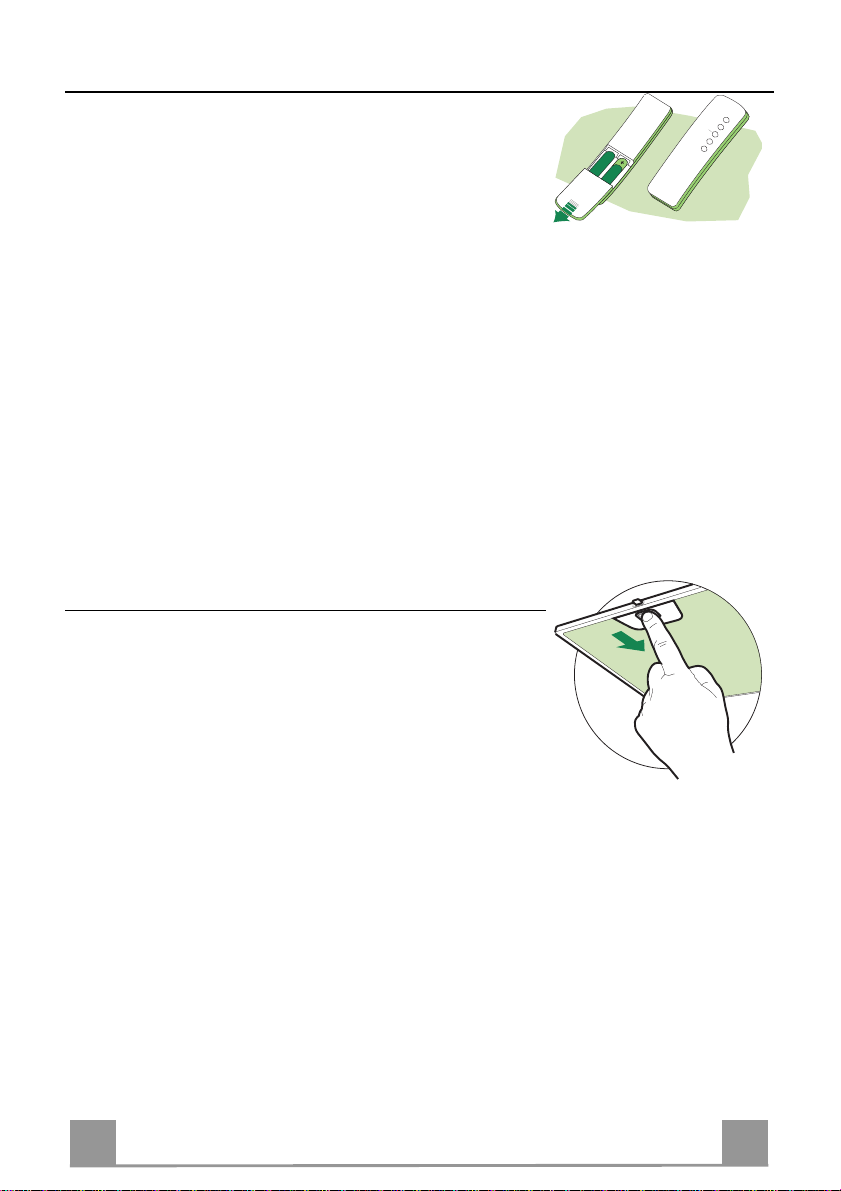

The appliance can be controlled using a remote control powered
by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-
AAA type.
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.
Grease filters
CLEANING OF THE METAL CASSETTE FILTERS
Alarm reset
• Stop the motor.
• Press the F-touch control for at least 4 seconds until the T1 -
touch control flashes.
Cleaning the filters
• Filters can be washed in the dish machine. They need to be
washed every 2 months or even more frequently in case of par-
ticularly intensive use of the hood.
• Remove the filters one by one pushing them towards the back
side of the unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when
washing them. Before fitting them again into the hood make
sure that they are completely dry.
• When fitting the filters into the hood pay attention that they are
mounted in correct position and that the handle faces outwards.

EN
1
7
17
Odour filter (Recirculation Version)
This filter cannot be washed or regenerated, and must be replaced when the Ftouch control starts
to flash, or at least once every 4 months. The alarm is only triggered when the motor is on.
Enabling/Disabling the alarm signal
• In Recirculation Version Hoods, the Filter saturation Alarm must be enabled at the time of
installation or later.
• Switch off the lights and the motor.
• Disconnect the mains power supply to the hood by removing the motor unit power supply
cable connector, switching off the power supply at the Mains or turning the Main switch off.
• Restore the connection, pressing and holding T2.
• Release the touch control, touch controls L, T2 and Fwill light up normally.
• Within 3 seconds press the touch control Funtil the key itself flashes to confirm as follows:
• 2 flashes – Charcoal odour Filter saturation Alarm ENABLED
• 1 flash - Charcoal odour Filter saturation Alarm DISABLED
REPLACING THE CHARCOAL ODOUR FILTER
Reset the alarm signal
• Stop the motor.
• Press the touch control F for at least 4 seconds, until the touch
control T1 flashes.
Replace the Filter
• Remove the metal grease filters.
• Remove the saturated charcoal filter, turning the fasteners pro-
vided.
• Fit the new filter and fasten it its correct position.
• Put the metal grease filters in their seats.

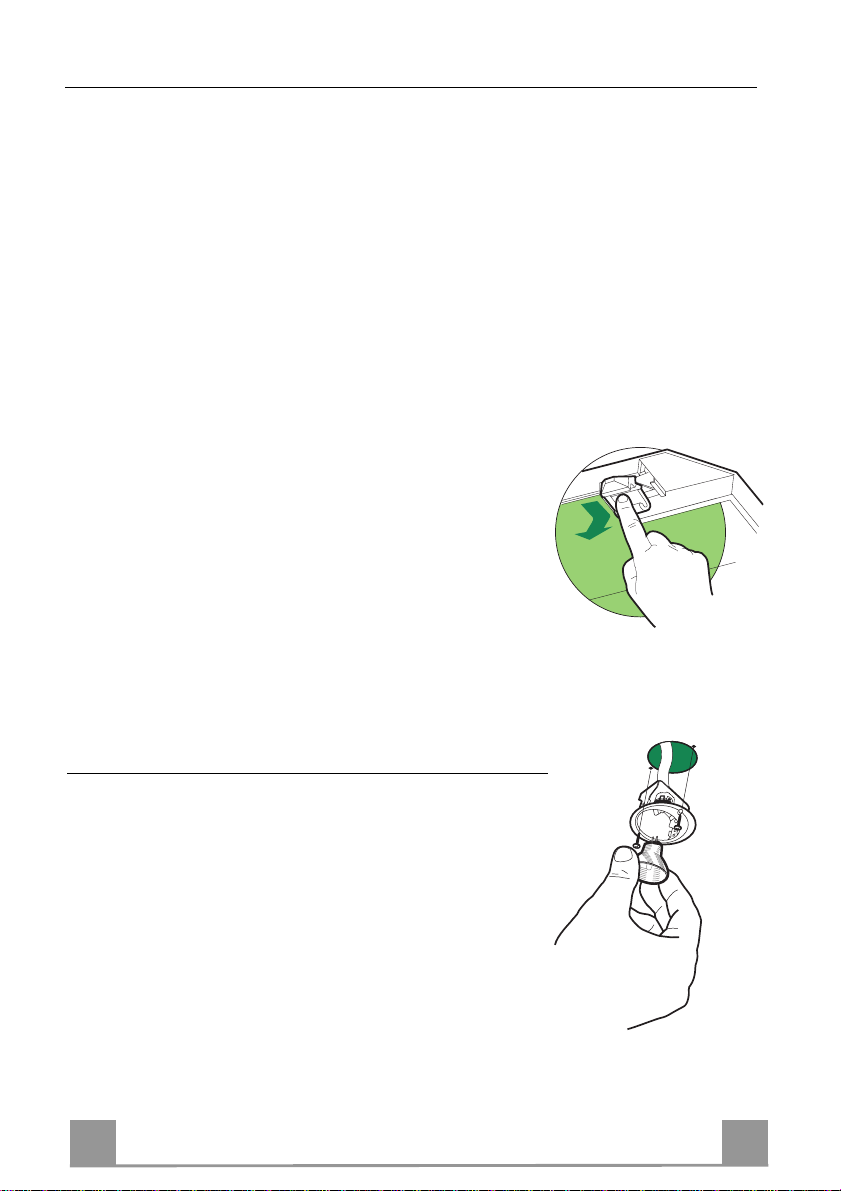

Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Remove the 2 screws fixing the Lighting support, and pull it
out of from the Hood.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure that the
two pins are properly inserted in the lamp holder socket holes.
• Replace the Support, fixing it in place with the two screws re-
moved as above.

FR
1
8
18
CONSEILS ET SUGGESTIONS
La présente notice d'emploi vaut pour plusieurs versions de l'appareil. Elle
peut contenir des descriptions d'accessoires ne figurant pas dans votre appa-
reil.
INSTALLATION
• Le fabricant décline toute responsabilité en cas de dommage dû à une installa-
tion non correcte ou non conformeaux règlesde l’art.
• La distance minimale de sécurité entre le plan de cuisson et la hotte doit être
de 650 mmau moins.
• Vérifier que la tension du secteur correspond à la valeur qui figure sur la pla-
quette apposée à l’intérieur de la hotte.
• Pour les Appareils appartenant à la Ière Classe, veiller à ce que la
mise à la terre de l’installation électrique domestique ait été effectuée confor-
mément auxnormes en vigueur.
• Connecter la hotte à la sortie d’air aspiré à l’aide d’une tuyauterie
d’un diamètre égal ou supérieur à120 mm. Leparcoursde la
tuyauterie doit être le plus court possible.
• Eviterde connecter lahotte à desconduitesd’évacuation de fumées
issues d’une combustion telque (Chaudière, cheminée, etc…).
• Si vous utilisez des appareils qui ne fonctionnent pas à l’électricité
dans la pièce ou est installée la hotte (parexemple: des appareils
fonctionnant au gaz), vous devez prévoir une aération suffisante du milieu. Si
la cuisine en est dépourvue, pratiquez une ouverture qui communique avec
l’extérieur pour garantir l’infiltration de l’air pur.
UTILISATION
• La hotte a été conçue exclusivement pour l’usage domestique, dans le but
d’éliminerles odeursde la cuisine.
• Ne jamais utiliser abusivement la hotte.
• Ne pas laisser les flammes libres à forte intensité quand la hotte est en ser-
vice.
• Toujours régler les flammes demanière à éviter toute sortie latérale
de ces dernièrespar rapport au fond desmarmites.
• Contrôler les friteuses lors de l’utilisation car l’huile surchauffée
pourrait s’enflammer.
• Ne pas préparer d’alimentsflambés sous la hotte de cuisine : risque d’incendie
• Cet appareil ne doit pas être utilisé par des personnes (y compris les enfants)
ayant des capacités psychiques, sensorielles ou mentales réduites, ni par des
personnes n’ayant pas l’expérience et la connaissance de ce type d’appareils,
à moins d'être sous le contrôle et la formation de personnes responsables de
leur sécurité.
• Les enfants doivent être surveillés pour s'assurer qu'ils ne jouent pas avec
l'appareil.
ENTRETIEN
• Avant de procéder à toute opération d’entretien, retirer la hotte en retirant la
fiche ou en actionnant l’interrupteur général.
• Effectuer un entretien scrupuleux et en temps dû des Filtres, à la cadence
conseillée.
• Pour le nettoyage des surfaces de la hotte, il suffit d’utiliser un chiffon humide
et détersif liquide neutre.
650 mm min.

FR
1
9
19
CARACTERISTIQUES
Encombrement
650 min.

FR
2
0
20
Composants
Réf. Q.té Composants de Produit
11 Corps Hotte équipé de: Comandes, Lumière, Filtres
21 Cheminée Télescopique formée de :
2.1 1 Cheminée Supérieure
2.2 1 Cheminée Inférieure
7.1 1 Treillis télescopique avec Aspirateur, formé par:
7.1a 1 Treillis supérieur
7.1b 1 Treillis inférieur
91 Flasque deRéduction ø 150-120 mm
10 1 Flasque ø 150
10a 1 Buse avec clapet ø 150
15 1 Raccord Sortie Air
24 1 Boîte connexions
25 2 Colliers de serrage serre-tube
Réf. Q.té Composants pour l’installation
11 4 Chevilles ø 10
12c 6 Vis 2,9 x6,5
12e 2 Vis 2,9 x9,5
12f 4 Vis M6 x 10
12g 4 Vis M6 x 80
12h 4 Vis 5,2 x70
21 1 Gabarit de perçage
22 4 Rondellesøi6,4
23 4 ÉcrousM6
Q.té Documentation
1 Manuel d’instructions
12c
7.1a
7.1
22
23
12h
7.1b
2
2.1
2.2
12c
11
21
12g
1
12f
24
12e
15
12c
25
10
9
10a
