Electrolux EFT 629 User manual

Gebrauchsanweisung, Manuel d'utilisation
EFT 629 / EFT 929
Gebruiksaanwijzing, User Manual
UK
FDNL

29
Contents
Safety instructions .............................................................................................................30
Description of the appliance ............................................................................................31
Standard accessories included: ........................................................................................................................... 31
Function ............................................................................................................................................................... 31
Exhausting ........................................................................................................................................................... 31
Recycling ............................................................................................................................................................. 31
Special accessories ...........................................................................................................32
Installation ...........................................................................................................................32
Unpacking............................................................................................................................................................ 32
Placement............................................................................................................................................................. 32
Electrical connection ........................................................................................................................................... 32
Mounting of hood on wall .................................................................................................................................. 32
Mounting under cupboard................................................................................................................................... 33
Exhausting mode ................................................................................................................................................. 33
Recirculation mode (with carbon filter)............................................................................................................. 33
Using the hood....................................................................................................................33
Speed regulation .................................................................................................................................................. 33
Work light ............................................................................................................................................................ 34
Correct ventilation ............................................................................................................................................... 34
Important to know ............................................................................................................................................... 34
Maintenance and cleaning ................................................................................................34
Grease filter ......................................................................................................................................................... 34
Carbon filter......................................................................................................................................................... 34
Attention .............................................................................................................................................................. 35
Cleaning ............................................................................................................................................................... 35
Changing the lighting elements .......................................................................................................................... 35
If the hood does not function...........................................................................................35
Before you make contact to service ................................................................................................................... 35
Service and spare parts........................................................................................................................................ 35
Technical data .....................................................................................................................36

30
Thank you for your choice of an Electrolux product. We are convinced that you will
have great use and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user
manual giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electric-
ity, it is important that the cooker hood is installed correctly and that you read the
safety instructions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
Congratulations to your new Cooker Hood
Safety instructions
At installation and service
●The cooker hood is made for normal house-
holds with normal cooking. If it is used for
other purposes there is a risk of damage which
is not covered by the warranty.
●All eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by a
person with enough knowledge. Installation
made otherwise could lead to loss of perform-
ance and even injuries and /or damage on
properties.
●The hood cannot be connected to flues of
other appliances that run on energy sources
other than electricity.
Please keep to the provisions of official
directives regarding the question of fumes
discharge.
●When the hood is used at the same time as
other appliances that run on energy sources
other than electricity, provision must be made
for an adequate supply of air.
●When installed, the hood must be not less than
60 cm. above electric burners or 70 cm. above
gas or mixed-fuel burners. (Fig. 4).
●The power cord should be drawn so that there
is no risk of damage. Hazard!
At use of cooker hood
●No food must be cooked flambé underneath
the hood.
●The use of an unprotected flame is dangerous
for the filters and could cause fires.
●Never leave the deep-frying or frying pan over
a cooker/hob. The oil contained in the pan
may spontaneously ignite through overheat-
ing.
●Observe the filter change or cleaning intervals.
Failure to observe these intervals may cause
the risk of fire through fat deposition.
Note! If a fire starts; Switch of the cooker hood
and the heating zone; Cover the fire , Never use
water.
At disposal
●Help to avoid damages even when the cooker
hood should be disposed. Disconnect the
power plug and cut the power cord at hood
inlet. Check with the authorities for informa-
tion of how to proceed for disposal.

31
Description of the appliance
1. Light switch
2. Motor speed switch
3. Work light
4. Suction grid with grease filter
Standard accessories included:
●Template for mounting on wall and under
cupboard
●Screws:
●Duct with no return valve
●Cover for unused outlet hole
Function
The hood may be used as follows:
- For air exhausting
- For air recycling
Exhausting
The appliance has two exhaust outlets; D and E
(Fig. 2).
Important! To use the back hole E, remove air
switch F from the top hole.
Connect the hood to the smoke exhaust hose by
using the connecting ring G with no return valve
(bayonet coupling).
Insert plug H in the unused exhaust hole (bayo-
net coupling).
Plug H is for closing the unused hole.
Attention! In the horizontal runs the duct must be
slightly slanted (about 10°) and directed upwards
to vent the air easily from the room to the out-
side.
The hood cannot be connected to
flues of other appliances that run on
energy sources other than electricity.
Please keep to the provisions of official directives
regarding the question of fumes discharge.
Recycling
The air is filtered through a carbon filter and
recirculated into the room through the front grid
(fig. 3).
This version is used when there is no exhaust
duct for venting outdoors or when it is impossi-
ble to install one.
0 I 0
Fig. 2
Fig. 3
Fig. 1
D
E
G
H
D
E
F
3
4
2
1

32
Special accessories
Active carbon filter
When the hood is used in recirculation mode an
active carbon filter should be used.
Order by the retailer
PNC 942 120 180
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the one responsible for the transport
Damages, faults and eventually missing details
should immediately be reported to the seller.
Take care of the packing material so that small
children cannot play with it.
Placement
The hood is to be mounted on the wall or under a
wall cupboard.
When installed, the hood must be not less than 60
cm. above electric burners or 70 cm. above gas or
mixed-fuel burners. (Fig. 4).
Electrical connection
The hood has a power cord with moulded plug
with earth connection to be connected to a wall
outlet of 230 V.
The power cord length is 1,2 m.
Mounting of hood on wall

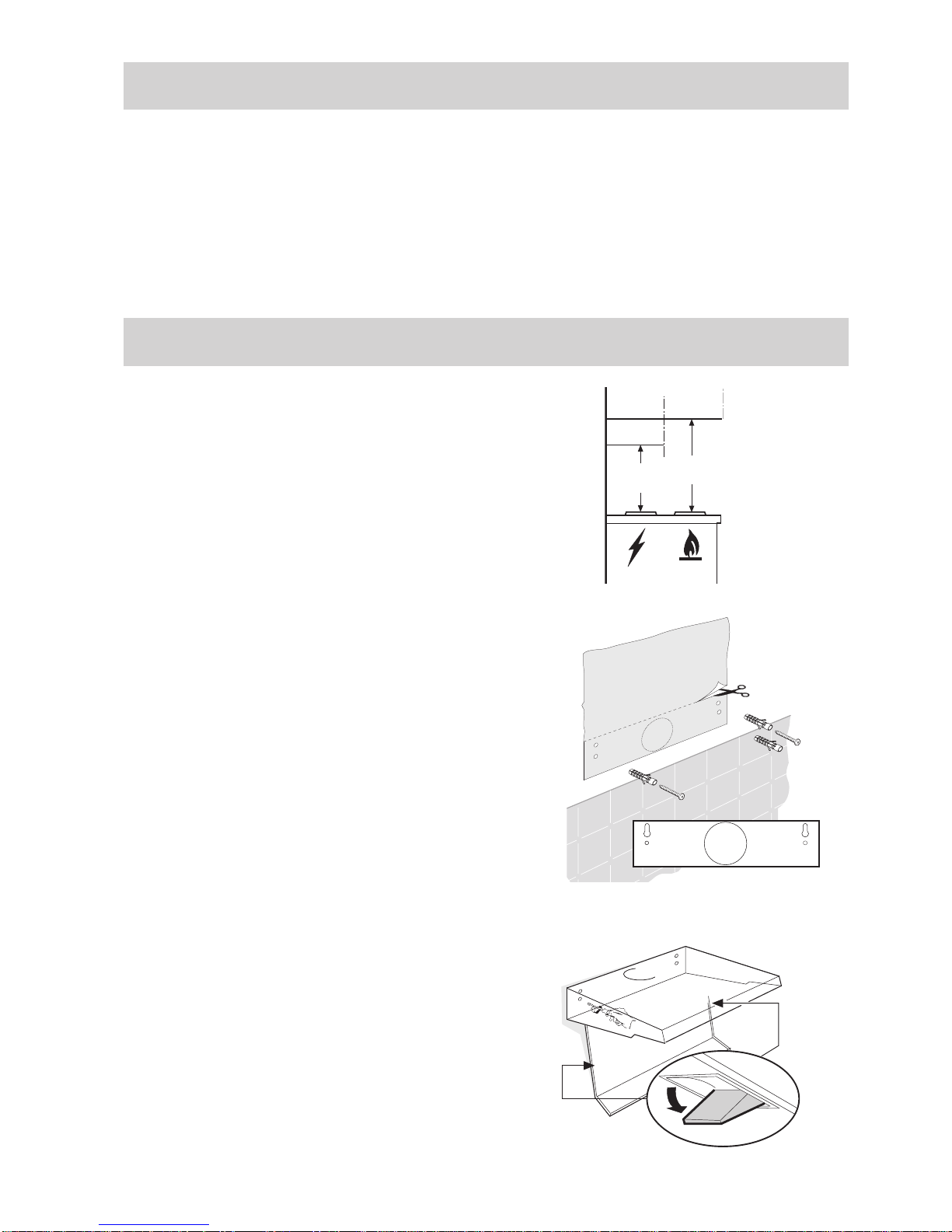

●Fix the drilling template to the wall (Fig. 5).
●Make 3 Ø 8 mm holes in the wall. 2 at points I,
1 as desired at points L.
●Insert the three Ø 8 mm expansion plugs into
the wall.
●Insert 2 5x45 screws at points I but do not
tighten them completely.
●Open the grid.
●Fit the hood into holes I, tighten the 2 screws.
●From inside the hood, insert the third 5x45
screw into hole L (Fig. 6).
Installation
Fig. 4
Fig. 5
Fig. 6
II
LL
I
I
L
I
I
L
L
Min
70 cm
Min
60 cm

33
Mounting under cupboard

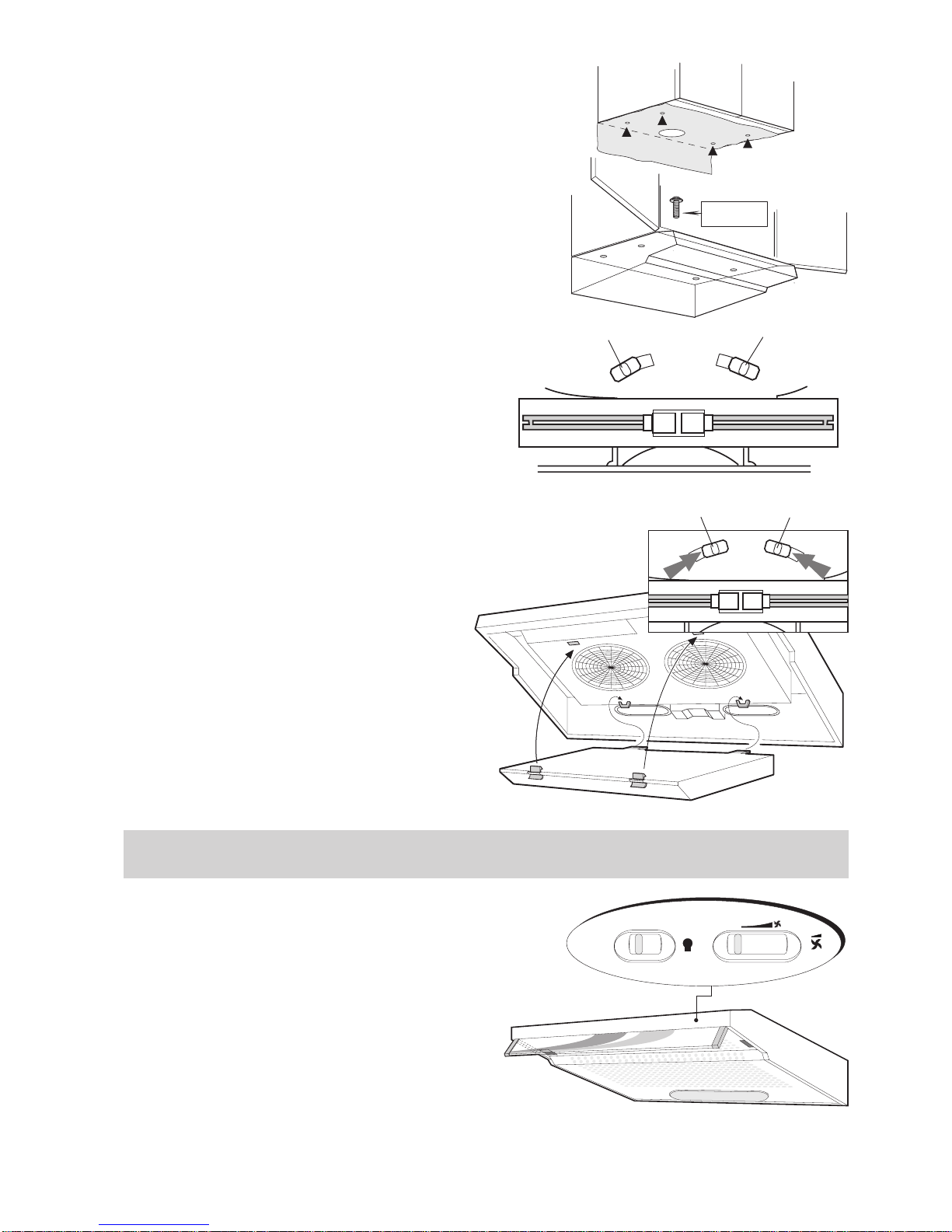

●Make the holes on the bottom of the cupboard,
using the drilling template (Fig. 7).
●From inside the cupboard, insert the 4 sup-
plied screws and tighten them in the appropri-
ate holes on the appliance.
Exhausting mode
●Connect the air outlet to the smoke exhaust
hose
●Open the suction grid (Fig. 12).
●Check that the selection levers dfor evacua-
tion/recycle is in the position A - external
evacuation. (Fig. 8).
●Refit the suction grid.
Recirculation mode (with carbon
filter)
The air outlets D (Fig. 2) must be shut.
●Open the suction grid (Fig. 12).
●Check that the selection lever for evacuation/
recycle is in the position : F - recycle (Fig. 9 -
Pull both selectors dtowards the centre of the
appliance).
●Fit carbon filter first rearwards on the proper
seats.
●Then fix frontwards the carbon filter using
hooks C (Fig. 9)
●Refit the suction grid.
Using the hood
Speed regulation
The hood is provided with two motors with
continues speed regulation plus a position for
intensive operation. For the best performance,
we recommend using the low speeds in normal
conditions and the high speeds or intensive in
particular cases of strong odour and vapour
concentration.
We recommend starting up the hood a few
minutes before cooking and keeping it running
until all the odours have been eliminated.
Fig. 7
213
4
213
4
4,2 x 35
Fig. 10
Fig. 9
Fig. 8
CC
F
d
d
A
A
dd
0 I 0

34
Maintenance and cleaning
Work light
The hood has two PL lamps 9 W.
Switch on and off with the left slide switch.
Correct ventilation
To have the cooker hood working correctly the
windows in the kitchen should be closed. In
stead a window in an adjacent room should be
open (Fig. 11).
Important to know
If the hood is run at the same time as a burner or
fireplace that depend on ambient air (for example
gas, Diesel, coal or wood heaters, water heaters,
etc.) be careful, because the hood, when it
exhausts the air, removes the ambient air re-
quired by the burner or fireplace for combustion.
Not valid if the cooker hood is used in
recirculation mode.
Before performing any maintenance
operation, disconnect the hood from
the electricity.
Grease filter
This serves to hold the grease particles in sus-
pension. The metal filter should be washed every
month with warm soapy water or, if possible, in
the dishwasher (60°C).
Remove the filter:
●Open the latch Aand rotate the grid down-
wards (Fig. 12).
●To remove, pull forward from the right hand
side and unhook.
●Release the clips F(Fig. 13).
Leave to dry before refitting it.
Grid must be cleaned as well as the grease filter.
Carbon filter
This filter dissolves cooking odours.
It should be changed every 6-8 months in normal
use. Ask the technical assistance service or
manufacturing company for a new one.
The carbon filter must never be washed.
To remove the carbon filter, push the hooks C
and pull the filter downwards (Fig. 9).
Fig. 11
A
Fig. 12
Fig. 13 F

35
Before you make contact to
service
Check that the power plug is connected to the
wall power outlet and that no fuse is blown. Do
not do any operations that can cause hazard or
damage to the product. If the problem remains
contact your dealer or an approved service
company
Remember to save the purchase recite and the
Warranty card (only used in some countries)
Service and spare parts
Service and spare parts you will get via your
dealer or service company.
When you order service or spare parts you
should be ready to give the product number and
model denomination. This information you will
find on the rating label.
Take away the grease filter and you will find
the rating label behind.
Model:
Product number:
Date of purchase:
If the hood does not function
Attention
Failure to observe the rules for cleaning the
appliance and changing and cleaning the filters
may cause fires. Therefore, we recommend
observing these instructions.
Cleaning
To clean the outside of the hood use a cloth
moistened with denatured alcohol or neutral
liquid detergents. Never use products containing
abrasives.
Fig. 14
Changing the lighting elements
●Disconnect the hood from the electricity.
●Open the grid (Fig. 12).
●Replace the damaged part with one of equal
rating.
Attention! When one of two Pl lamps is dam-
aged, the other goes out as well. Before replacing
the bulb determine which bulb is damaged.

36
Technical data
Model EFT 629 EFT 929
Capacity Intensive 340 m3/h x) 225 m3/h 340 m3/h x) 225 m3/h
Max 270 m3/h 270 m3/h
Min. 165 m3/h 165 m3/h
Dimension Height 130 mm 130 mm
Width 599 mm 899 mm
Depth 494 mm 494 mm
Light (PL lamps) 2 x 9 W 2 x 9 W
Grease filter 2 pcs 2 pcs
Mains Voltage 230 V 230 V
Electric safety class Class II Class II
Power rating total 270 W 270 W
x) Valid when the hood is used with carbon filter (recirculation)
599
120
27.3 42.7 61
98370
320 340.5 493.5
130
195
65
37
85
599-899

1007WW L 695 A Ed. 12/96
