Electrolux EFS 633 User manual

Gebrauchsanweisung, Manuel d'utilisation
EFS 633 / EFS 533
Istruzioni per l'uso, User Manual
FDIUK

29
Contents
Safety instructions............................................................................................................... 30
Description of the appliance ............................................................................................... 31
Function ...............................................................................................................................................................31
Opening the suction grid ......................................................................................................................................31
Fitting the removable drawer................................................................................................................................31
Special accessories .............................................................................................................32
Installation ............................................................................................................................ 32
Unpacking ............................................................................................................................................................32
Placement ............................................................................................................................................................32
Electrical connection ............................................................................................................................................32
Fastening the removable drawer..........................................................................................................................32
Mounting of hood to wall cabinet..........................................................................................................................32
Exhausting mode .................................................................................................................................................33
Recirculation mode (with carbon filter).................................................................................................................33
Using the hood ..................................................................................................................... 34
Speed regulation ..................................................................................................................................................34
Work light .............................................................................................................................................................34
Correct ventilation ................................................................................................................................................34
Maintenance ......................................................................................................................... 35
Grease filter..........................................................................................................................................................35
Carbon filter..........................................................................................................................................................35
Cleaning ...............................................................................................................................................................35
Changing the lamps .............................................................................................................................................35
If the hood does not function.............................................................................................. 36
Service and spare parts....................................................................................................... 36
Technical data ...................................................................................................................... 37

30
CongratulationstoyournewCookerHood
Thank you for your choice of an Electrolux product. We are convinced that you will have
great use and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user
manual giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it
is important that the cooker hood is installed correctly and that you read the safety instruc-
tions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
Safety instructions
At installation and service
●The cooker hood is made for normal households
with normal cooking. If it is used for other
purposes there is a risk of damage which is not
covered by the warranty.
●All eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by a
person with enough knowledge. Installation
made otherwise could lead to loss of perform-
ance and even injuries and /or damage on
properties.
●The hood cannot be connected to flues of other
appliances that run on energy sources other than
electricity.
Please, keep to the provisions of official direc-
tives regarding the question of fumes discharge.
●When the hood is used at the same time of other
appliances that run on energy sources other than
electricity, provision must be made for an
adequate supply of air.
●When installed, the hood must be not less than
75 cm. above electric burners or 65 cm. above
gas or mixed-fuel burners. (Fig. 3).
●The power cord should be drawn so that there is
no risk of damage. Hazard!
At use of cooker hood
●No food must be cooked flambee underneath the
hood.
●The use of an unprotected flame is dangerous
for the filters and could cause fires.
●Never leave the deep-frying or frying pan over a
cooker/hob. The oil contained in the pan may
spontaneously ignite through overheating.
●Observe the filter change or cleaning intervals.
Failure to observe these intervals may cause the
risk of fire through fat deposition.
Note! If a fire starts; Switch of the cooker hood
and the heating zone; Cover the fire , Never use
water.
At disposal
●Help to avoid damages even when the cooker
hood should be disposed. Disconnect the power
plug and cut the power cord at hood inlet. Check
with the authorities for information of how to
proceed for disposal.

31
1. Motor speed switch
2. Light switch
3. Removable drawer
4. Suction grid
5. Lamp cover
6. Operating light
Standard accessories included:
●Template for mounting
●Screws:
●Duct with no return valve
Function
The hood may be
used as follows:
- For air exhausting
- For air recycling
Opening the suction grid
●Move tabs Einwards (Fig. 2).
●Pull the grid slightly outwards and turn it
downwards.
To remove the grid, slide it out from the right hand
side until the grid is unhooked (Fig 3).
Removing the drawer-piece
●Pull outwards, as much as possible, the drawer,
puss one of the two side release button S and
partially extract the drawer from that same side.
To release completely the drawer act the same
on the other side (Fig.. 2).
Fitting the removable drawer
l Fit the door snugly into guides R(Fig. 4).
Description of the appliance
0 1 2 3 0 I
Fig. 1
Fig. 4
Fig. 2
Fig. 3
0 1 2 3 0 I
✐ ✑ ✒ ✓ ✐ ✩
S
SEE
S
E
0 1 2 3 0 I
12
3
4
5

32
Special accessories
Active carbon filter
When the hood is used in recirculation mode an
active carbon filter should be used.
Installation
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the one responsible for the transport
Damages, faults and eventually missing details
should immediately be reported to the seller.
Take care of the packing material so that small
children cannot play with it.

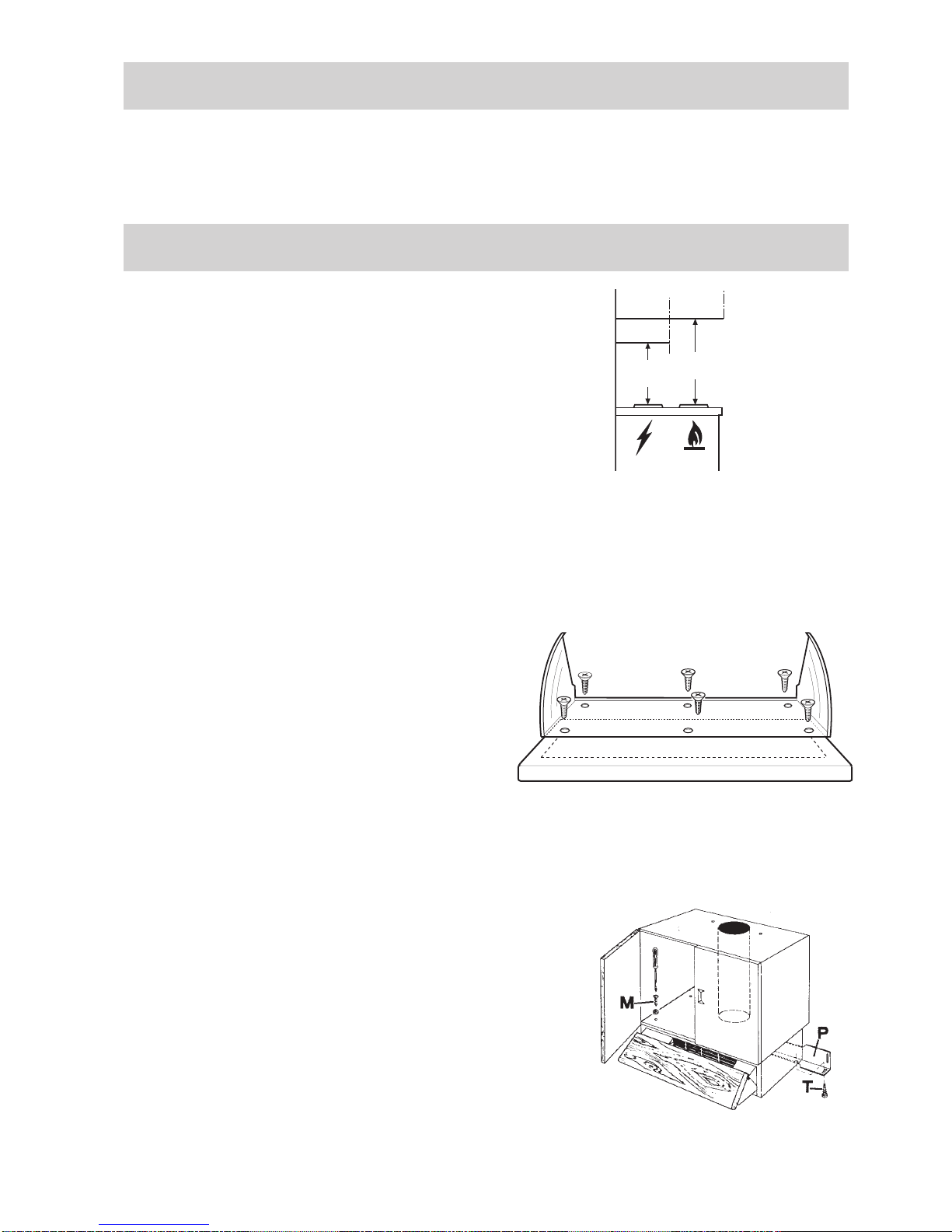

Placement
The hood is to be mounted to a wall cabinet.
When installed, the hood must be not less than 65
cm. above electric burners or 75 cm. above gas or
mixed-fuel burners. (Fig. 5).
Electrical connection
The hood has a power cord with moulded plug
with earth connection to be connected to a wall
outlet of 230 V.
The power cord length is 1,4 m.
Fastening the removable drawer
Fasten the removable drawer Nusing the six
2.9x16 screws Usupplied in the accessory kit
(Fig. 6).
Remove the door to simplify this operation.
Mounting of hood to wall cabinet
●Drill on the bottom of the cabinet as indicated
on the drilling scheme (Do not consider the
thickness of the front door of the cabinet when
positioning the scheme).
●In vented exhaust hoods, make a Ø130-135 mm
hole both on the bottom and top of the cupboard
for the discharge pipe.
●From inside the cupboard, insert the four 4.2x35
screws Msupplied in the accessory kit (Fig.7)
and screw them to the top of the hood.
●If the cupboard is deeper than the hood , fit the
spacer P and fix it on the back side of the hood
with two screws T and washers (Fig. 7)
The spacer is reversible to cover a gap of 1÷4 cm.
Order by the retailer
PNC 955 101 117
Min
65 cm
Min
75 cm
Fig. 5
Fig. 6
U
UU
UU
U
N
Fig. 7

33
Exhausting mode
●Fit the coupling flange with non-return smoke
valve so that point B of the flange matches up
with the small triangle A which is printed on the
body of the appliance (Fig. 8).
●Connect the air outlet to the smoke exhaust hose
●Check that lever G is positioned on setting “A”
(Fig. 9).
●Refit the suction grid.
Attention! In the horizontal runs the duct must be
slightly slanted (about 10°) and directed upwards
to vent the air easily from the room to the outside.
The hood cannot be connected toflues
of other appliances that run on
energysources other than electricity.
Please, keep to the provisions of official directives
regarding the question of fumes discharge.
Recirculation mode (with carbon
filter)
The air is filtered through a carbon filter and
recirculated into the room through the front grid.
●Open the suction grid
●Turn lever G to setting “F” (Fig. 9).
●Fit the carbon filter as a cover of the inlet grid
of the fan motor (the carbon filter has a side
"cutted", this side must match the external side
of the hood - see Fig. 10), to fix the carbon filter
turn clockwise the central handle E (Fig. 10 -
turn about 90°) .
●Refit the suction grid.
This version is used when there is no exhaust duct
for venting outdoors or when it is impossible to
install one.
F
A
90°
Fig. 10
G
G
F
A
F
A
Exhausting
Abluft
Evacuation
Aspirante
F
A
Recirculation
Umluft
Reciclage
Filtrante
G
G
G
Fig. 9
Fig. 8

34
Using the hood
Speed regulation
The hood has a three speed motor regulated with a
slide switch. For the best performance, we recom-
mend using the highest speed in particular cases of
strong odour and vapour concentration.
We recommend starting up the hood a few minutes
before cooking and keeping it running until all the
odours have been eliminated.
The hood is equipped with a micro switch that
activates the pre-selected fan speed when the door
is opened.
Work light
The hood has two lamps 40 W (E 14). Switch on
and off with the slide switch. Also the lamp will
when switched on work automatically with help of
the door micro switch.
Correct ventilation
To have the cooker hood working correctly the
windows in the kitchen should be closed. In stead
a window in an adjacent room should be open.
Important to know
If the hood is run at the same time as a burner or
fireplace that depend on ambient air (for example
gas, Diesel, coal or wood heaters, water heaters,
etc.) be careful, because the hood, when it exhausts
the air, removes the ambient air required by the
burner or fireplace for combustion.
Not valid if the cooker hood is used in
recirculation mode.
Fig. 11
0 1 2 3 0 I
Fig. 12

35
Maintenance
Before performing any maintenance
operation, disconnect the hood from
the electricity.
Grease filter
This serves to hold the grease particles in suspen-
sion. The metal filter should be washed every
month with warm soapy water or, if possible, in
the dishwasher (60°C).
Remove the filter:
●Move tabs E inwards (Fig. 2).
●Pull the grid slightly outwards and turn it
downwards.
●To remove the grid, slide it out from the right-
hand side until the grid is unhooked (Fig. 3).
●To remove filter M, open the grid, open tabs L
and pull out the filter (Fig. 13).
●Leave to dry before refitting it. Be sure that the
grease filter, once blocked with tabs L (Fig. 13)
cover completely the holes of the grid.
Whenever the grease filter is cleaned, the relative
grid should also be cleaned with non-abrasive
detergents.

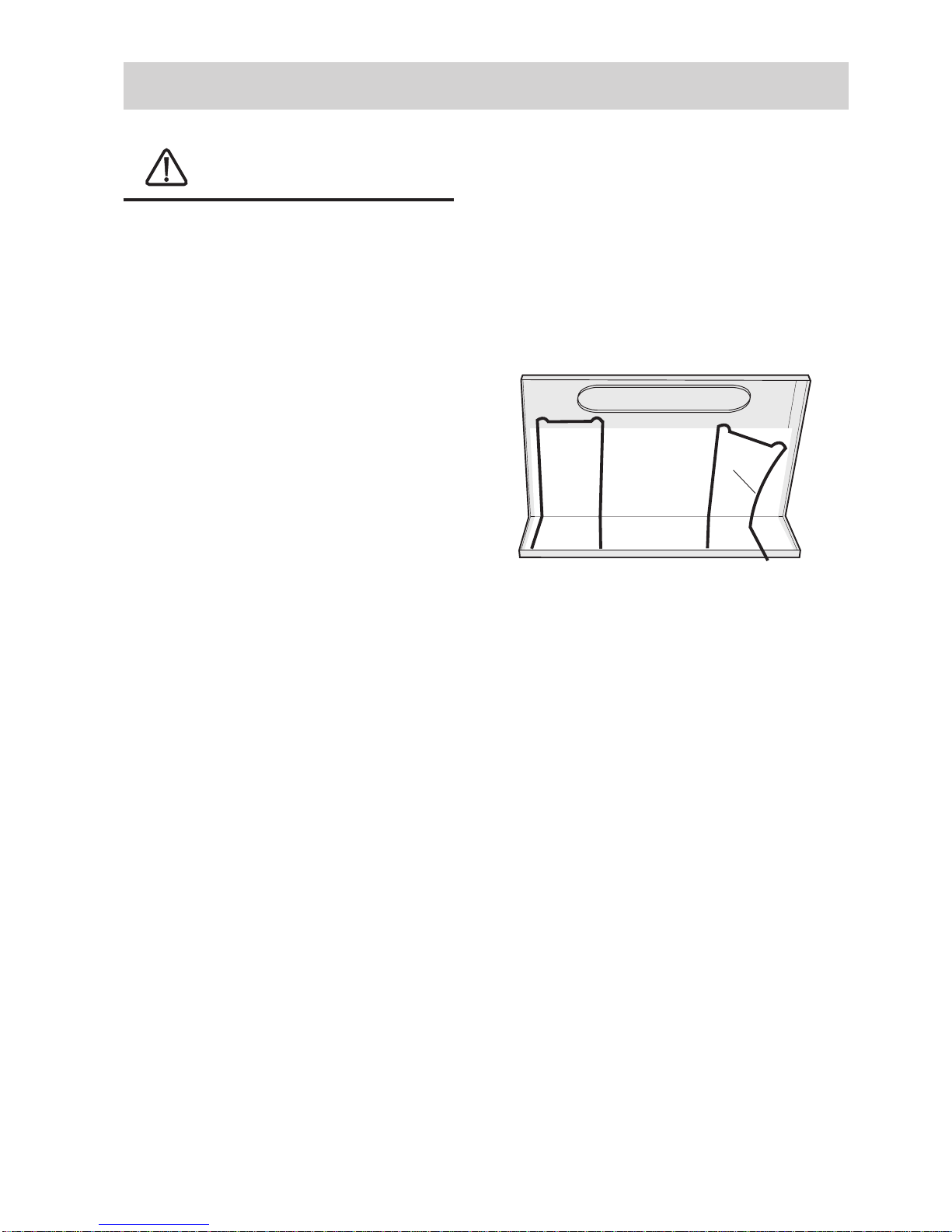

Carbon filter
This filter dissolves cooking odours.
It should be changed every 6-8 months in normal
use.
The carbon filter must never be washed.
To remove the filter, turn it anti-clockwise until it
becomes unhooked and free.
Attention
Failure to observe the rules for cleaning the appli-
ance and changing and cleaning the filters may
cause fires. Therefore, we recommend observing
these instructions.
Cleaning
To clean the outside of the hood use a cloth mois-
tened with denatured alcohol or neutral liquid
detergents. Never use products containing
abrasives.
Fig. 13
Changing the lamps
●Disconnect the hood from the electricity.
●Open the suction grid
●Replace the damaged part with one of equal
rating. (Max 40 W E 14.).
ML

36
If the hood does not function
Before you make contact to
service
Check that the power plug is connected to the wall
power outlet and that no fuse is blown. Do not do
any operations that can cause hazard or damage to
the product. If the problem remains contact your
dealer or an approved service company
Remember to save the purchase recite and the
Warranty card (only used in some countries)
Service and spare parts
Service and spare parts you will get via your dealer
or service company.
When you order service or spare parts you should
be ready to give the product number and model
denomination. This information you will find on
the rating label.
Take away the grease filter and you will find the
rating label behind.
Model:
Product number:
Date of purchase:

37
Technical data
Model EFS 633 EFS 533
Capacity Max 270 m3/h x)155 m3/h 270 m3/h x)155 m3/h
Min. 175 m3/h 175 m3/h
Dimension Height 150 mm 150 mm
Width 600 mm 550 mm
Depth 300 mm 300 mm
Light 2 x 40 W E 14 2 x 40 W E 14
Grease filter 1 pc 1 pc
Mains Voltage 230 V 230 V
Electric safety class Class 1 Class 1
Power rating total 190 W 190 W
x) Valid when the hood is used with carbon filter (recirculation)
550-600
150
119
85
30 224 195
==
36,5
145
300
0-50

1007 ACD L 575A Ed. 03/96
96-00161
