Electrolux Icon E36WC45FSS User manual

Use _ Care Guide
Installation Instructions
Vent Hood

Fin iinformation

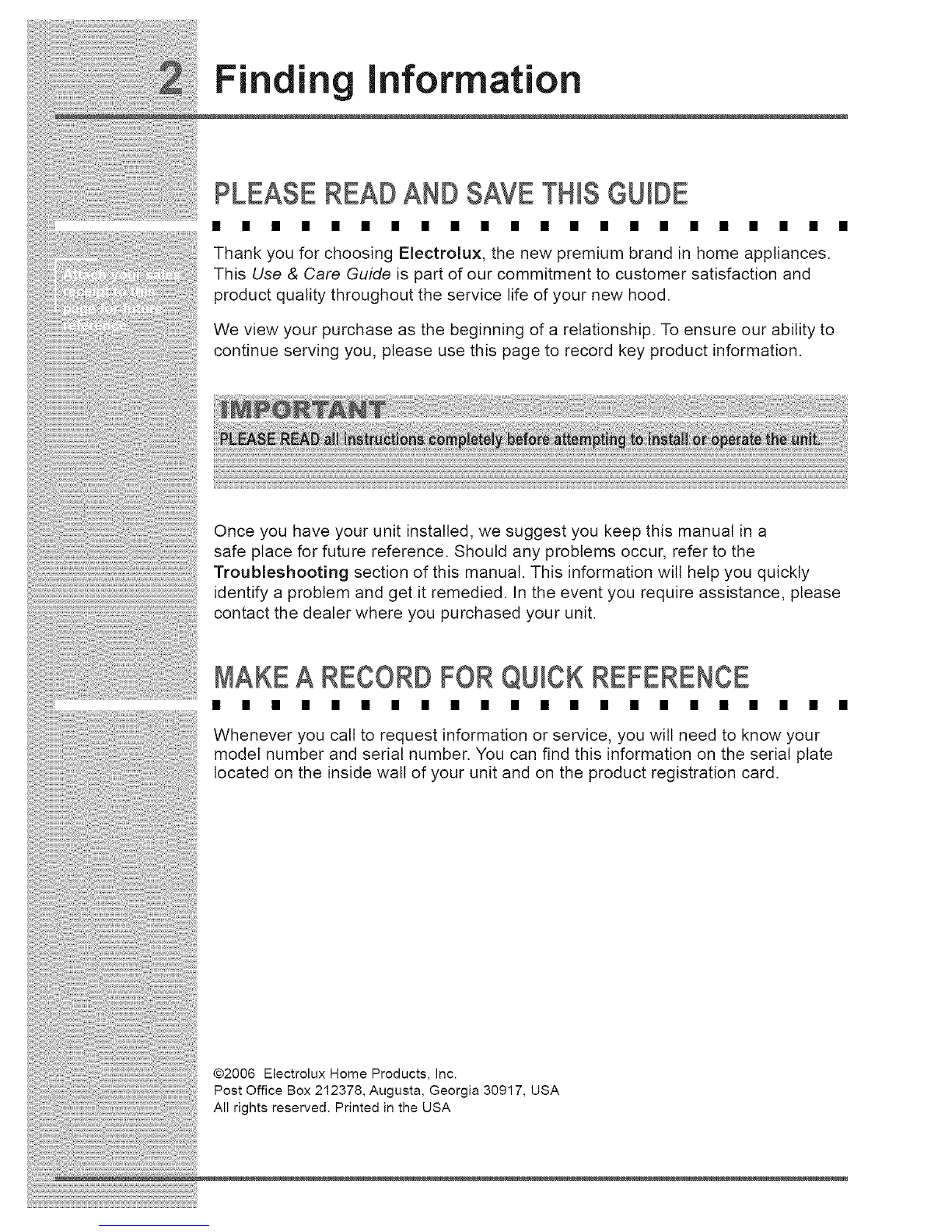

PLEASEREADANDSAVETHISGUIDE
•••••••••••••••••••••
Thank you for choosing Electrolux, the new premium brand in home appliances.
This Use & Care Guide is part of our commitment to customer satisfaction and
product quality throughout the service life of your new hood.
We view your purchase as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record key product information.
_iii_i!_!_i_i!_!_@_i!i_i_i_i_i_i!_!_i_i_!_!ii_ii_i!i_ii!i_!i!_!_!_!_!_i_ii_ii!i_i!!_i_i_i_i!i!_!_i!_i_i!ii_i_i_!ii!_!_i!_!_i_ii;ii_i_i!!i_!_!!i_i_i_ii!i!ii_i_ii!i!i!i_!i!i_!i!_!;!_ii!i!_!_i!_i_i!_i_i_!!_!_ii_i_!_!!_i!!!!iii_ii!i!i_i!i_i_ii!_i_ii_!_!iiii_i_!_i_i_ii!_!;!_!i!i_!_i_i!!!!i_i!!_i_!_i_i!_i!i_i_i_iii_i_!ii_i_ii!i_!i_3_!_i_i_!_iii!i!!_i_i_!ii;i_i!_i_i!iii_i!iii_i!iii_i!!i!!_!_i!;_!_!_!_i_i!_i_i!_ii!_i_i_i_!ii_ii_i_i_i_i_!iii_ii_i!_!;iii_!i!_!!!_!i_i_!i_i!i!i_!i_i_!i_!;i_!_;i_!!_i_!_i_i_i;_i_i_i_!!ii_i_i;i_!_!_ii!ii!_ii!_!_iiiii!iiiii!iiiii!iiiiiii_i!ii!ii!i!_i!_!_iii!_!i_i_!_i!_i_i!_!_!_!_!_ii!i_ii_ii_i_!i_i_i:i_i_!_;_!_i!_ii_i;i_iii_iii_i_ii_i!ii_ii_ii!_!i_ii_i_!_!i_!_!_!!_i_;_i_!!i_i_;_i_!!!!i_!_!_;_
ii iiiii! ii iii!ili!ii!!iii!iiiiii
Once you have your unit installed, we suggest you keep this manual in a
safe place for future reference. Should any problems occur, refer to the
Troubleshooting section of this manual. This information will help you quickly
identify a problem and get it remedied. In the event you require assistance, please
contact the dealer where you purchased your unit.
MAKE A RECORD FOR QUICK REFERENCE
•••••••••••••••••••••
Whenever you call to request information or service, you will need to know your
model number and serial number. You can find this information on the serial plate
located on the inside wall of your unit and on the product registration card.
@2006 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA

ing Information

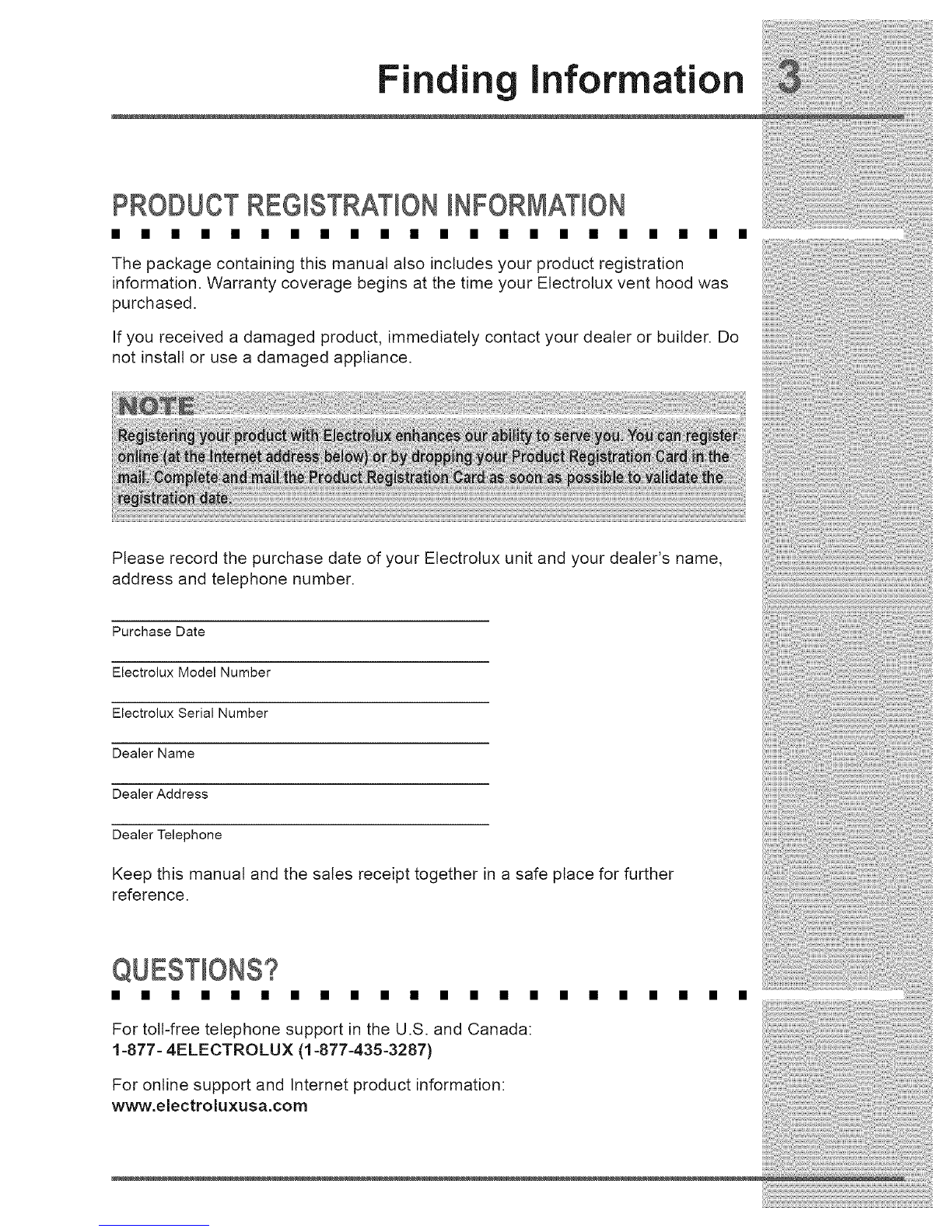

PRODUCT REGISTRATIONINFORMATION
• • • • • • • • • • • • • • • • • • • • • •
The package containing this manual also includes your product registration
information. Warranty coverage begins at the time your Electrolux vent hood was
purchased.
If you received a damaged product, immediately contact your dealer or builder. Do
not install or use a damaged appliance.
Please record the purchase date of your Electrotux unit and your dealer's name,
address and telephone number.
Purchase Date
Electrolux Model Number
Electrolux Serial Number
Dealer Name
Dealer Address
Dealer Telephone
Keep this manual and the sales receipt together in a safe place for further
reference.
• • • • • • • • • • • • • • • • • • • • • •
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com

Fin i Information
TABLEOFCONTENTS
••••••••••••••••••••••
Finding Information..............................................2
PleaseReadAndSaveThisGuide...................2
MakeA RecordForQuickReference................2
Questions...........................................................3
TableOfContents..............................................4
Safety.....................................................................5
ImportantSafetyInstructions.............................5
GeneralPrecautions..........................................6
GettingStarted......................................................!)
OperatingYourHood.........................................9
CareandCleaning...............................................1!
CleaningYourHood..........................................11
installation...........................................................12
CheckingContents..........................................12
InstallingtheDuctwork.....................................13
InstallingtheElectrical.....................................13
InstallingtheMountingBracket........................14
InstallingtheFlueMountingBracket................15
PreparingtheHood..........................................16
InstallingtheHood...........................................18
InstallingtheFilters..........................................20
Troubleshooting................................................21
IfServiceisRequired.......................................21
TroubleshootingGuide.....................................22
EnergySavingTips..........................................23
Warrantyinformation.........................................24

Safety
IMPORTANTSAFETYINSTRUCTIONS
• • • • • • • • • • • • • • • • • • • • • •
Safety Precautions
Do not attempt to install or operate your unit until you have read the safety
precautions in this manual. Safety items throughout this manual are labeled with a
Warning or Caution based on the risk type.
Definitions
_<_:>,This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.

Safety

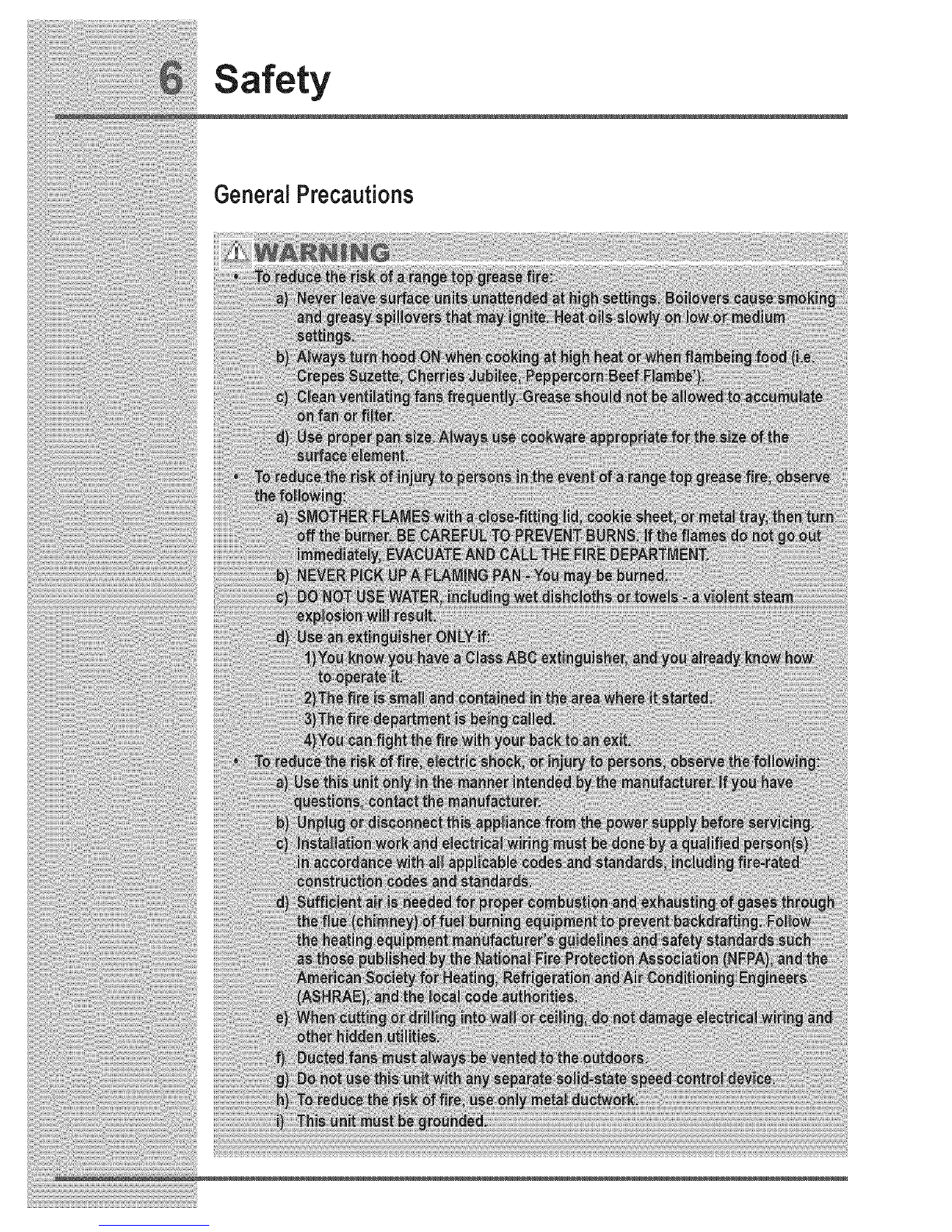

General Precautions

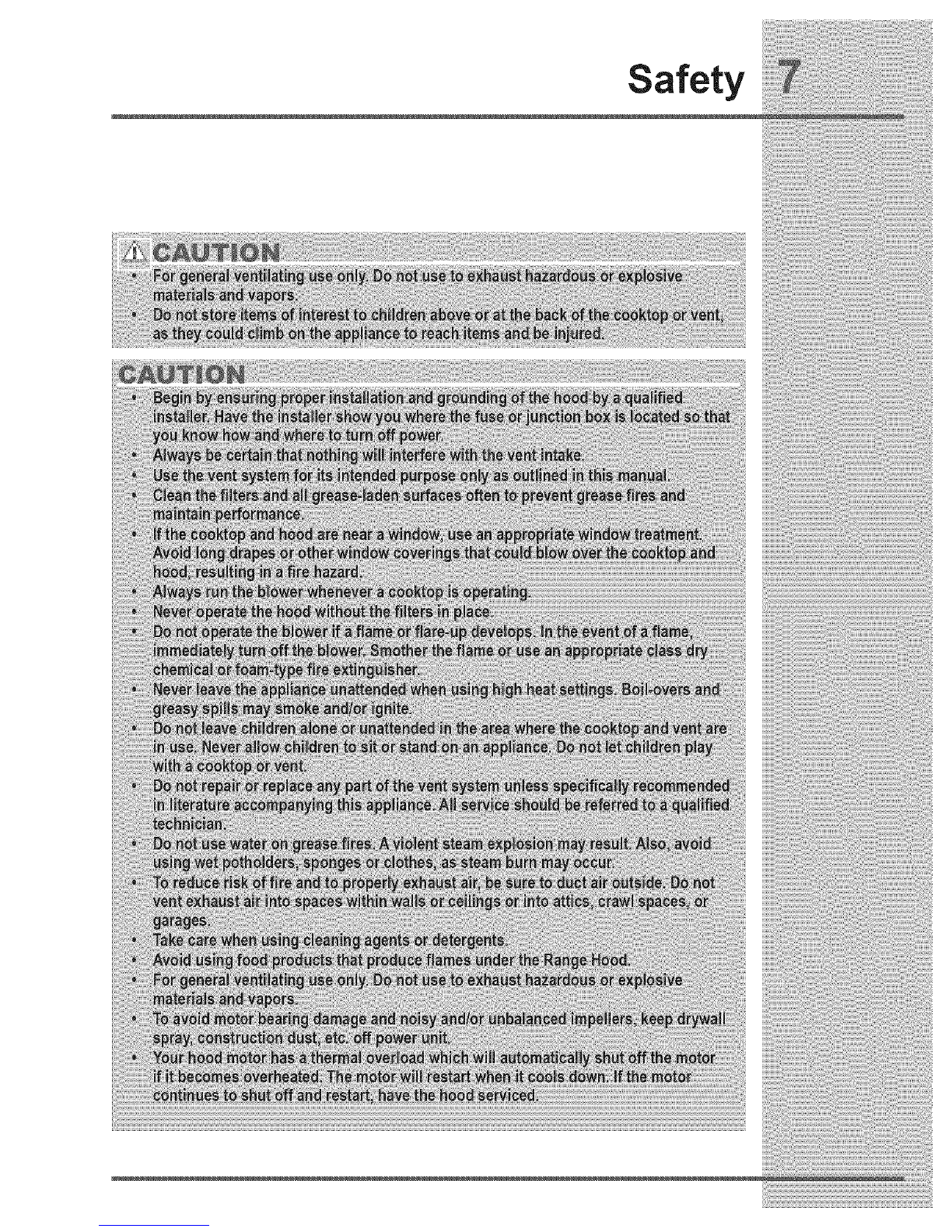

Safety

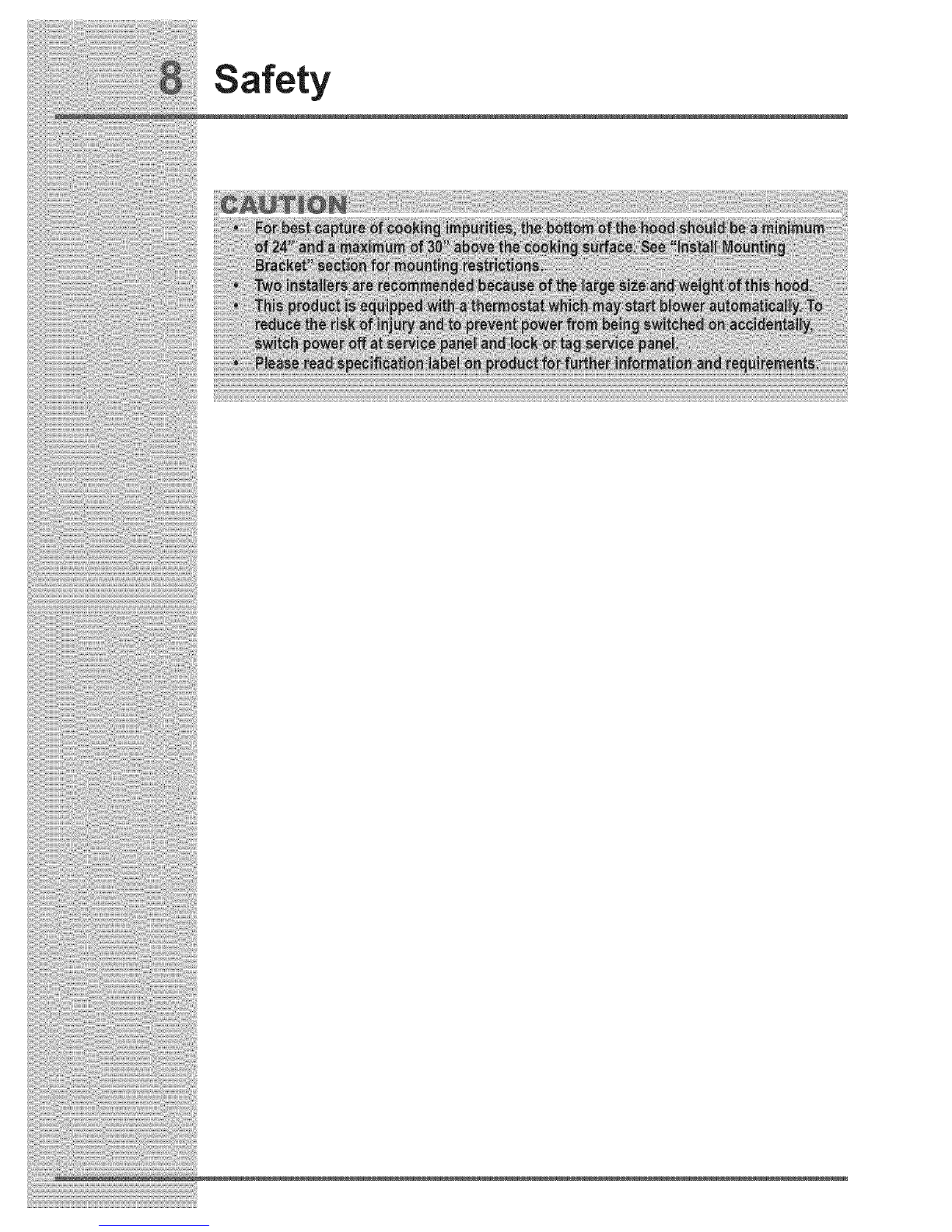

Safety

Gettin Started

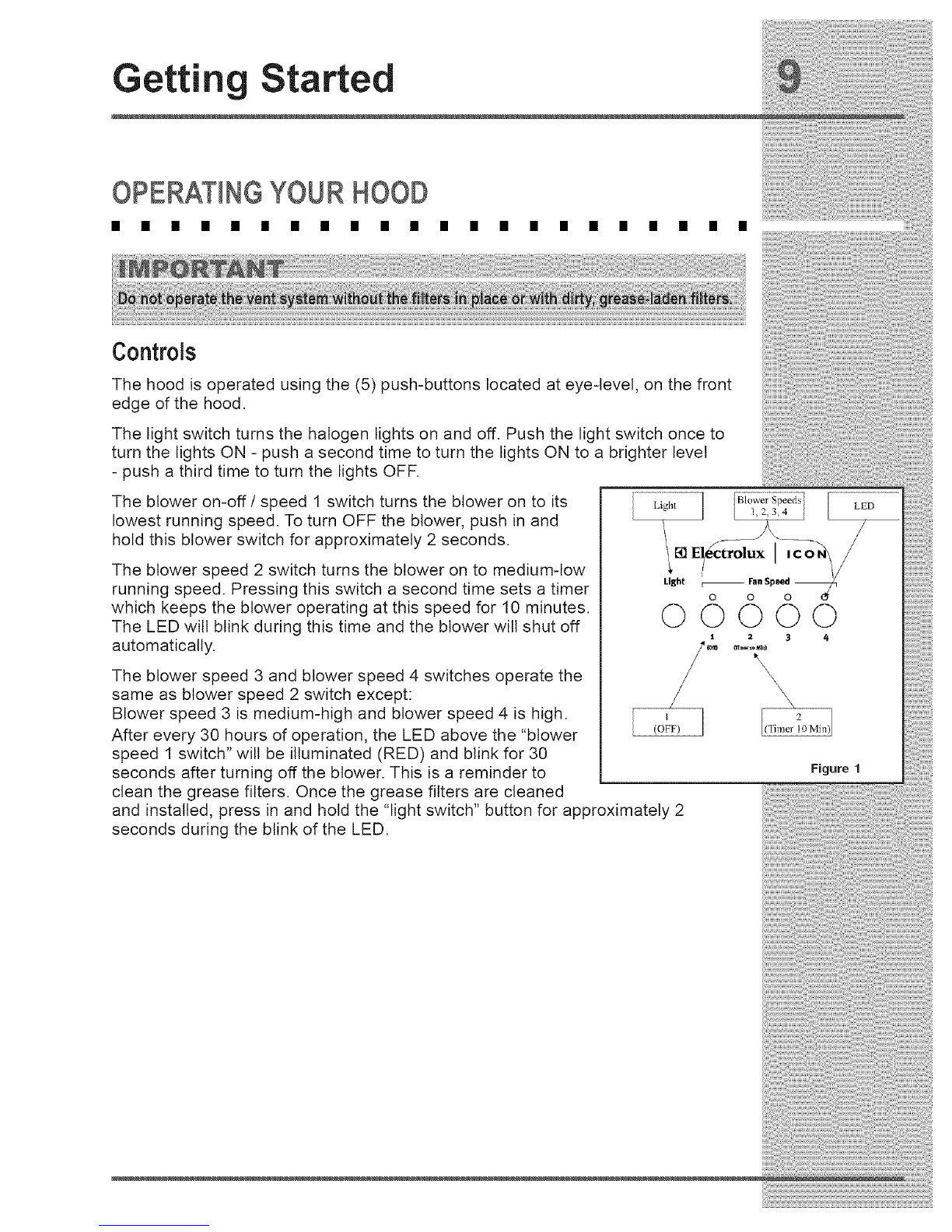

OPERATINGYOURHOOD
• • • • • • • • • • • • • • • • • • • • • •
Controls
The hood is operated using the (5) push-buttons located at eye-level, on the front
edge of the hood.
The light switch turns the halogen lights on and off. Push the light switch once to
turn the lights ON - push a second time to turn the lights ON to a brighter level
- push a third time to turn the lights OFF.
The blower on-off /speed 1 switch turns the blower on to its
lowest running speed. To turn OFF the blower, push in and
hold this blower switch for approximately 2 seconds.
The blower speed 2 switch turns the blower on to medium-low
running speed. Pressing this switch a second time sets a timer
which keeps the blower operating at this speed for 10 minutes.
The LED wilt blink during this time and the blower will shut off
automatically.
The blower speed 3 and blower speed 4 switches operate the
same as blower speed 2 switch except:
Blower speed 3 is medium-high and blower speed 4 is high.
After every 30 hours of operation, the LED above the "blower
speed 1 switch" will be illuminated (RED) and blink for 30
seconds after turning off the blower. This is a reminder to
clean the grease filters. Once the grease filters are cleaned
Light ] [[B'Io,-"vet S[he e_is]1,2,3,4 j [
1
IRI E_ctrolux I
Light t-
O
QO
1
(OFF)
Fan Speed --
o o
OOQ
a 3 4
\
\\
(Timer 10 Mhd
and installed, press in and hold the "light switch" button for approximately 2
seconds during the blink of the LED.
LED
Figure 1

Operation
HalogenBulbs
This range hood requires two halogen bulbs (Type JC, 12Volt, 20Watt Max, G-4 Base).
Figure 2
To change bulbs:
1 Open the cover by prying from the proper slots.
2 Remove the bulb by pulling sideways. (DO NOT ROTATE).
3 Replace with Type JC, 12Volt, 20 Watt Max, G-4 Base halogen bulb. Do not
touch replacement bulb with bare hands!
Fuse Placement
ELECTRICAL
BOX Figure 3
IF LIGHTS FAIL TO OPERATE, DISCONNECT POWERAT THE SERVICE
ENTRANCE. CHECK THE FUSE AND REPLACE IF NECESSARY.
1 Raise or remove the lower decorative flue. See Figure 3.
2 Remove the cover from the electrical box.
3 Unscrew the cap from the fuse holder and remove the fuse.
4 Replace the fuse with the same size and amperage (5 x 20mm, 4 amp,
125 volt).
5Reinstall the fuse holder cap, electrical box cover and flue.
6 Reconnect power at the service entrance.

Care and Cleanin
CARING FORYOUR RANGEHOOD
• • • • • • • • • • • • • • • • • • • • • •
Proper maintenance of the Range Hood will assure proper performance of the unit.
GreaseFilters
The grease filters should be cleaned frequently. Use a warm detergent solution.
Grease filters are dishwasher safe.
See "INSTALL FILTERS" section for removal and installation instructions.
Non-Ducted Recirculation Filter
The non-ducted recircutation filter should be changed every 6 months.
See "INSTALL FILTERS" section for removal and installation instructions.
HoodCleaning
Stainless steel is one of the easiest materials to keep clean. Occasional care will
help preserve its fine appearance.
Cleaning tips:
Hot water with soap or detergent is all that is usually needed.
Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to
avoid water marks.
For discolorations or deposits that persist, use a non-scratching household cleanser
or stainless steel polishing powder with a little water and a soft cloth.
For stubborn cases, use a plastic scouring pad or soft bristle brush together with
cleanser and water. Rub lightly in direction of polishing lines or "grain" of the stainless
finish. Avoid using too much pressure which may mar the surface.
DO NOT allow deposits to remain for long periods of time.
DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere
to the surface causing rust.
DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds
to remain in contact with stainless steel for extended periods. Many of these
compounds contain chemicals which may be harmful. Rinse with water after
exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.

Installation
CHECK CONTENTS
•••••••••••••
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag (B080810604) containing:
1 - Mounting Bracket
1 - Discharge Collar
1 - Flue Mounting Bracket
6 - Mounting Screws (4,8 x 38mm Pan Head)
7 - Mounting Screws (3,9 x 9,5mm Pan Head)
2 - Mounting Screws (3.9 x 6mm Flat Head)
6 - Drywall Anchors
1 - Installation Instructions
1 - Warranty Card
,/
/
DECORATIVE
FLUE
2 MOUNTING BRACKET
SCREWS
(3.9 x 6mm Flat Head)
FLUE MOUNTING
BRACKET
MOUNTING
BRACKET
DISCHARGE
COLLAR
(_ 7 MOUNTINGSCREWS
(3.9 x 9.Smm Pan
Head)
G DRYWALL
ANCHORS
l
GMOUNTING SCREWS
(4.8 x 38mm Pan Head)
Figure 4

installation
INSTALLTHE DUCTWORK
• • • • • • • • • • • • • • • • • • • • • •
1 Decide where the ductwork will run between the hood and the outside.
2A straight, short duct run wilt allow the hood to perform most efficiently.
3 Long duct runs, elbows, and transitions will reduce the performance
of the hood. Use as few of them as possible. Larger ducting may be
required for best performance with longer duct runs.
4 Install a roof or watt cap. Connect round metal ductwork to cap and
work back towards hood location. Use duct tape to seal the joints
between ductwork sections.
t'
24" TO 30" ABOVE
COOKING SURFACE
(See 'Install mounting
bracket" section for
mounting restrictions)
INSTALLTHEELECTRICAL
• • • • • • • • • • • • • • • • • • • • • •
1 Plan where the hood will be located above the cook top. Refer to the
"INSTALL MOUNTING BRACKET" section for hood mounting height
options.
2 Install a standard 2" x 4" wall outlet box and 3-blade 125 volt, 15Amp
grounded receptacle.
3 Mount the receptacle 18" to 22" above the bottom of the hood.
4 Locate the receptacle within boundary shown and off center of the
ductwork (to allow for power cord plug and flue clearance).

installation
INSTALLTHEMOUNTINGBRACKET
••••••••••••••••••••••
Ducted and Non-Ducted Hoods
1 Construct wood wall framing that is flush with interior surface of walt studs.
Make sure:
a the framing is centered over installation location.
b the height of the framing will allow the mounting bracket to be secured to the
framing within the dimensions shown.
2 After watt surface is installed, secure the mounting bracket to framing with (2)
4.8x38mm mounting screws. See chart below for mounting bracket location.
FRAMING
WOOD CROSS SUPPORT
BEHIND DRYWALL DRYWALL
Figure 7
CEILING DUCT
HEIGHT METHOD
8=FEET
9-FEET 37" 38" 39" 40" 41 42" 43"
1O=FEET 39" 40" 41" 42" 43"
NOTE :Minimum hood distance above cook top must not be less than 24" A maximum of 30" above
cook top is highly recommended for best capture of cooking impurities. Distances over 30" are at
the installer and user's discretion; and if ceiling height and flue lenght permit
DUCTED
NON-DUCTED
DUCTED OR
NON-DUCTED
DUCTED OR
NON-DUCTED
WITH EXWC45S
HOOD DISTANCE ABOVE 36" HIGH COOKTOP (SEE NOTE BELOW)
24" ! 2s" ! 26" ! 27" ! 2a" I as" ! as"
MOUNTING BRACKET LOCAT]ON ABOVE 3a" HIGH COOKTOP
37" 38" 39" 40" 41" j
37" 38" 39" 40"

installation

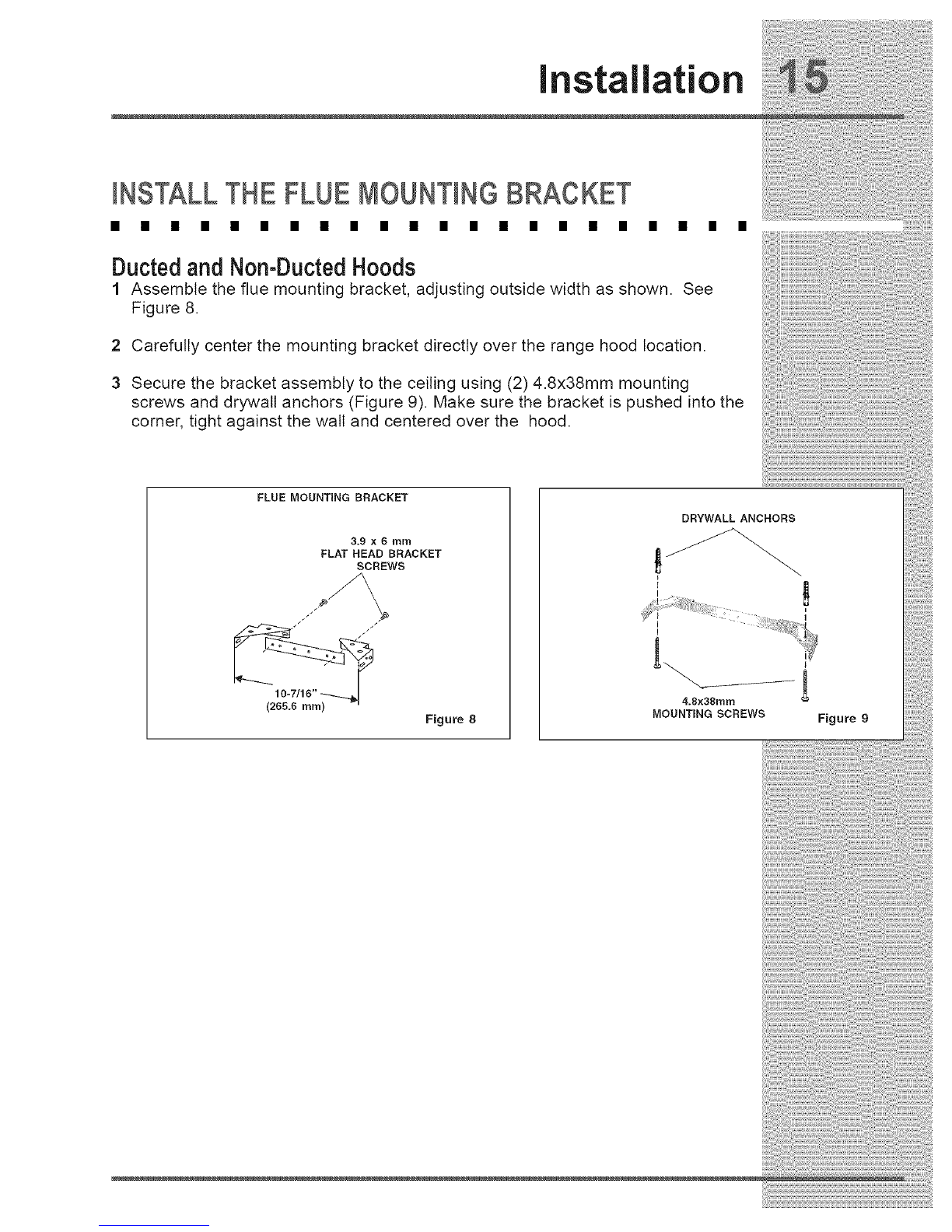

INSTALLTHE FLUEMOUNTINGBRACKET
••••••••••••••••••••••
Ductedand Non-Ducted Hoods
1 Assemble the flue mounting bracket, adjusting outside width as shown. See
Figure 8.
2Carefully center the mounting bracket directly over the range hood location.
3 Secure the bracket assembly to the ceiling using (2) 4.8x38mm mounting
screws and drywall anchors (Figure 9). Make sure the bracket is pushed into the
corner, tight against the watt and centered over the hood.
FLUE MOUNTING BRACKET
3.9 x 6 mm
FLAT HEAD BRACKET
SCREWS
(265.6 turn) Figure 8
DRYWALL ANCHORS
4.Sx38mrn
MOUNTING SCREWS Figure 9

Installation
PREPARETHE HOOD
••••••••••••••••••••••
Note: On stainless steel hoods, carefully remove the plastic protective film from all
exterior surfaces of the hood and decorative flues, prior to final installation,
DuctedHoods Only
1. Remove the tape on the electrical system plate; place the electrical system plate
on the hood (use a protection), Figure 10,
ELECTRICAL
SYSTEM
PLATE
\
PROTECTION
Figure 10
DISCHARGE
COLLAR _
DUCT i
CONNECTOR_
Figure 11

i!iiii!iii i !i!i iliiiiiii!i!iii!i!ii!iiiii!iiiii!iiiii!i!ii i!ii i;!i!
Installation

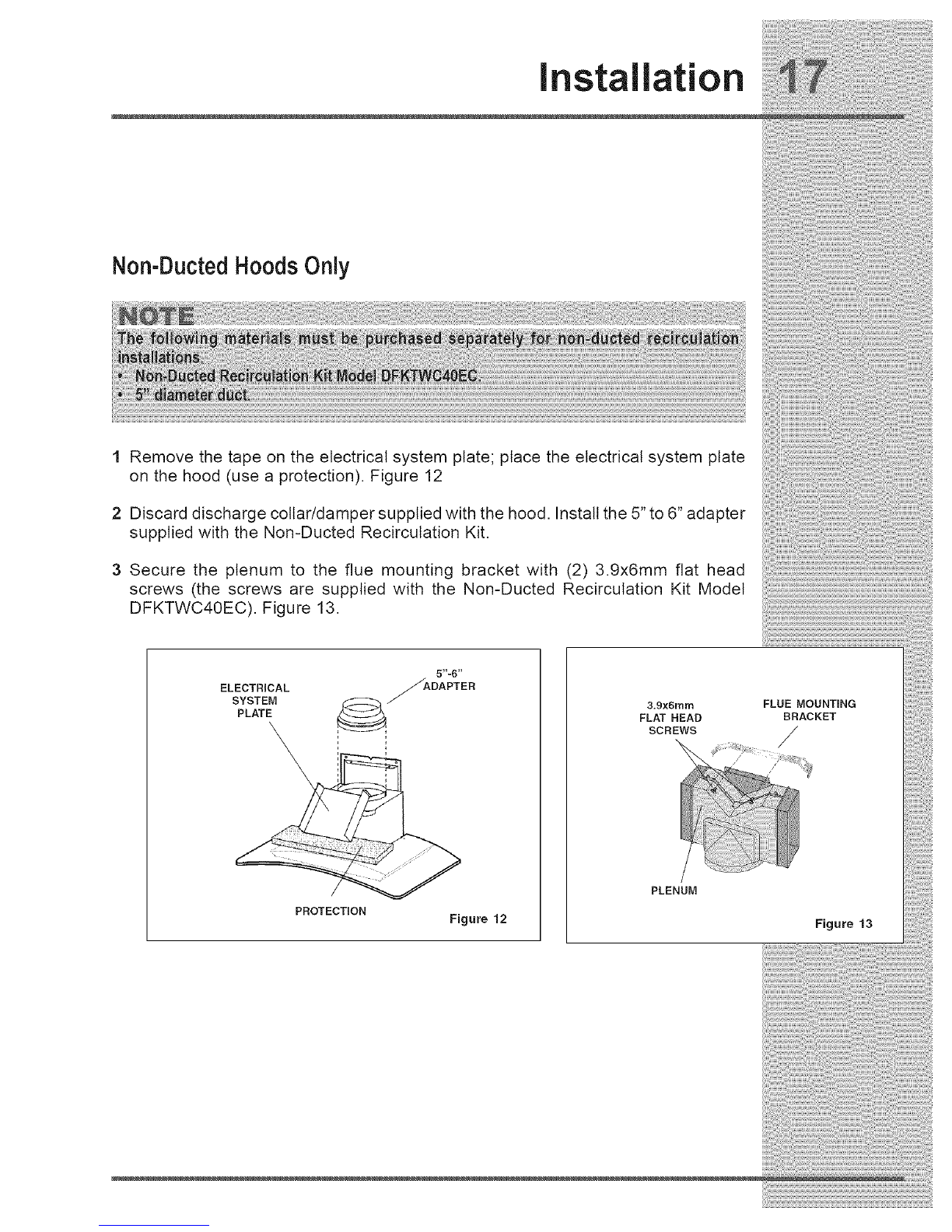

Non-DuctedHoodsOnly
ii
1 Remove the tape on the electrical system plate; place the electrical system plate
on the hood (use a protection). Figure 12 ....
2 Discard discharge collar/damper supplied with the hood. Install the 5 to 6 adapter
supplied with the Non-Uucted Recircutation Kit.
3 Secure the plenum to the flue mounting bracket with (2)3.9x6mm flat head
screws (the screws are supplied with the Non-Ducted Recircutation Kit Model
DFKTWC40EC). Figure 13.
5-=6-
ELECTRICAL _ADAPTER
SYSTEM
PLATE
PROTECTION Figure 12
3.gx6mm
FLAT HEAD
PLENUM
FLUE MOUNTING
BRACKET
Figure 13

Installation
INSTALLTHEHOOD
••••••••••••••••••••••
1 Raise the hood into its mounting position.
2 Align the rectangular opening on the back of the hood with the walt-mounting
bracket. Gently lower the hood until it securely engages the bracket. Figure 14.
3 Level the hood with (2) 3.9x9.5mm mounting screws and secure with (2) 4.8x38mm
mounting screws. Use drywall anchors provided if wall studs or framing are not
available. Figure 14.
4 Mount the electrical system plate attaching it with (3) 3.9x9.5mm mounting screws.
Figure 15.
5 On ducted hoods, attach 6" round metal duct between the hood's blower collar
and duct that leads to the outside location.
6 On non-ducted hoods, attach 5" round metal expandable duct between the 5"- 6"
adapter on the hood the connector on the plenum.
7 Tape all duct joints to make them secure and air tight.
8 Plug the power cord into the electric wall receptacle. Tuck excess cord behind the
flue.
MOUNTING
MOUNTING
SCREWS
(4.Sx38mm)
WALL
MOUNTING
BRACKET
RECTANGULAR
OPENING
Figure 14
MOUNTING
SCREWS
(3.9x9.Smm)
PLATE OF THE
, ELECTRICAL
SYSTEM
Figure 15

.i"1!i!!i!iiiilfiiiiliiii i iji i!i!!i!!iliiii!!!!!i
installation
9Carefullyplacethedecorativef_ueonthehood,Rgure_6,
- On ducted installation in rooms with 8-foot ceilings, the air vents are concealed.
Install the flue with the air vents down.
- On non-ducted installations in rooms with 8-foot ceilings, the air vents are
exposed. Install the flue with the air vents up.
- On ducted and non-ducted installations in rooms with g-foot ceilings, the vents
are exposed. Install the flue with air vents up.
Rooms with 10,-Foct Ceilings
Rooms with 10-foot ceilings require flue extension modet EXWC45S, available from
your local dealer.
10 Discard the upper flue supplied with the product. Replace it with the flue extension :::
EXWC45S. : :::
- On ducted and non-ducted installations in rooms with 10-foot ceilings, the
vents are exposed. Install the flue with air vents up.
11 Raise the upper flue until its holes align with holes in the flue mounting bracket
(located on ceiling). Figure 17.
12 Secure the flue with (2) 3.9x9.5mm mounting screws. Figure 17.
UPPER UPPER FLUE VENTS
FLUE_ _ /EXPOSED
LOWER
FLUE\I......_ _)
UPPER
FLUE \
UPPER FLUE VENTS
CONCEALED
LOWER
FLUE
Figure 16
3.gx9.5mm
MOUNTING SCREWS
Figure 17

Installation
INSTALLTHEFILTERS
••••••••••••••••••••••
Ducted and Non-Ducted Hoods
1 To remove the GREASE filter, push in on the metal latch tab and tilt filter downward
to remove.
2 To install the GREASE filter, align rear filter tabs with slots in the hood. Depress
the metal latch tab, push filter into position and release. Make sure filter is securely
engaged after installation.
Non-Ducted Hoods Only
1 To remove the CHARCOAL filter, push in on the front filter latch. Pull the filter down
to disengage the rear filter tabs.
2 To install the CHARCOAL filter, align the rear filter tabs with slots in the hood. Push
the filter up into place until the front latch snaps securely into the slot. Make sure
the filter is securely engaged after assembly.
3 Install GREASE filter after charcoal filter is installed.
Figure 18 NON-DUCTED
RECIRCULATION
FILTER
Figure 19
