Installation manual
Washer-Dryer
WD4130, WD4240
Type WN3...
Installation manual in original language

3
Contents
Contents
Safety precautions .....................................................................................5
Technical data............................................................................................7
Installation................................................................................................11
Transportation and unpacking ............................................................11
Siting and floor ....................................................................................12
Mechanical installation........................................................................13
Water connections ..............................................................................14
Drain connection .................................................................................16
Evacuation system...................................................................................17
Fresh-air ..............................................................................................17
Exhaust duct .......................................................................................18
Exhaust dimensioning .........................................................................20
Air volume control ...............................................................................21
Connection of external liquid supplies................................................25
Circuit diagram of function options for I/O module type 2..................29
Electrical installation ................................................................................37
Gas installation.........................................................................................41
Fasten the label...................................................................................42
Tables of pressure and adjustments WD4130....................................43
Conversion instructions WD4130........................................................44
Tables of pressure and adjustments WD4240....................................45
Conversion instructions WD4240........................................................46
Data label ............................................................................................48
Function checks.......................................................................................49
The manufacturer reserves the right to make changes to design and
component specifications.

5
Safety Precautions
The machine is only intended for water-wash use.
Do not dry unwashed items in the machine
The machine is not to be used if industrial chemicals have been used for cleaning.
Do not allow minors to use the machine.
Do not hose down the machine with water.
The machine's door lock must under no circumstances be bypassed.
Items that have been soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the
machine.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be
dried in the machine.
Fabric softeners or similar products should be used as specified by the fabric
softener instructions.
The machine may not be used to dry floor mops that contain polypropylene.
The final part of a drying cycle occurs without heat (cool down cycle) to ensure that
the items are left at a temperature that ensures that the items will not be damaged.
WARNING. Never stop the machine before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipiated.
Remove garments from the machine as soon as they are dried. This prevents them
from becoming creased and reduces the risk of spontaneous ignition.
If the machine develops a fault, this must be reported to the person in charge as soon
as possible. This is important both for your safety and that of others.
The machine must not be located where a door, sliding door, etc., can block the
machine's door
The machine is not intended to be used by people (including minors) with reduced
physical or mental capacity or lack of experience and knowledge. Such people must
be instructed in the use of the machine by a person who has responsibility fo their
safety. Minors must be supervised to ensure that they do not play with the machine.
Adequate ventilation has to be provided to avoid the back flow of gases into the room
for appliances burning other fuels, including open fires.
Gas heated:
If you can smell gas,
• Donotswitchonanyequipment
• Donotuseelectricalswitches
• Donotusetelephonesinthebuilding
• Evacuatetheroom,buildingorarea
• Contactthepersonresponsibleforthemachines
Safety Precautions
In order to prevent damage to the electronics (and other parts) that may occur as the
result of condensation, the machine should be placed in room temperature for 24 hours
before being used for the first time.

7
WD4130 WD4240
130 240
650 795
49 42
980 890
12.5 19.4
8 16
10 19
x x
350 350
382 555
70 78
WD4130 WD4240
DN20 DN20
3/4" 3/4"
200-600 200-600
50-1000 50-1000
20 60
75 75
170 170
125 200
340 580
1/2 1/2
Innerdrum
volume litres
diameter mm
Drum speed
wash
extraction
rpm
Heating
electricity, wash kW
electricity, drying kW
gas kW
hot water
G-factor
Weight, net kg
Sound pressure level
dB (A)
Connections
Water valves
connection
BSP
Rec. water pressure
kPa
Functioning limits
for water valve
kPa
Capacity
at 300 kPa
l/min
Drain valve
outer Ø mm
Draining capacity
l/min
Evacuation
ø mm
Air consumption
m3/h
Gas
ISO 7/1-R
Technical data
Technical data

8Technical data
 A B C D E F G H I K L M N O P Q
WD4130 910 1110 1330 435 1195 1055 90 1240 1095 105 275 385 410 535 585 450
WD4240 1020 1350 1450 500 1550 1170 95 1360 1215 105 265 440 430 650 710 535
1 Electrical connection
2 Cold water
3 Hot water
4 Cold or hot water
5 Drain
6 Gas connection
7 Liquid detergent supply
8 Control panel
9 Soap box
10 Door opening, WD4130: ø395, WD4240: ø435
11 Exhaust connection
12 Fan inverter (adjustable speed setting)
13 Air inlet (option) WD4130 ø125, WD4240 ø160
Front Rear side
Left view
3 4
2
7
I
H
P
6624 B
K
L
N5
F
O
M
1
6
G
13
Q
12
6625
A
C
D
10
98
B
E
6623
11
12

9
WD4130 WD4240
16.4 14.8
3.0±0.5 4.5±1.0
Frequency of the
dynamic force
Hz
Floor load at
max extraction
kN
Technical data

11
Installation
6681
2
6683
3
1
2
3
Installation

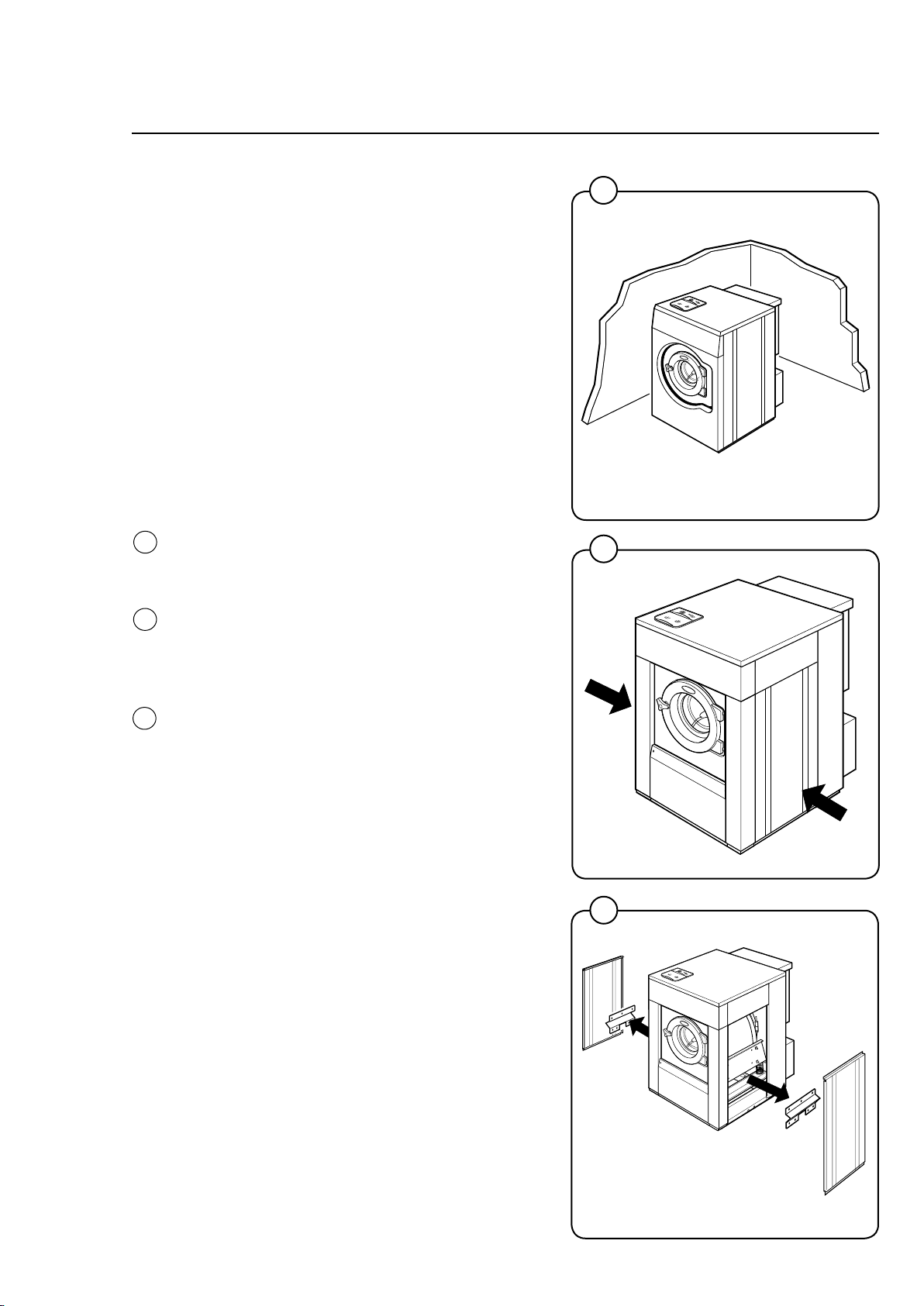

Transportation and unpacking,
WD4130, WD4240
The machine is delivered complete with expan-
sion bolts etc. packed inside the machine in the
drum.
The machine is delivered bolted onto the
transport pallet and packed in a crate or box.
• Removepackingfromthemachine.
• Removefrontandrearpanel.Removethe
bolts between the machine and pallet.
• Mountfrontandrearpanel.
• Mountthefeet.
• Placethemachineonitsnalposition.
• Levelthemachinewiththefeetofthe
machine.
The machine also comes with transport safety
devices (two plate angles between the support
and the drum).
In order to remove the safety devices:
• Removethetwosidepanels.
• Removethetwotransportsecurities.
• Themachinemaynotbemovedwiththe
transport securities removed. Save the trans-
port securities for future use.
6682
1

12 Installation
6684
4
4
Siting and floor
Install the machine close to a floor drain or open
drain.
In order to make installation and servicing the
machine easier the following clearances are
recommended:
• Atleast1000mmbetweenthemachineand
the wall behind
• andmin.50mmonbothsidesofthemachine
whether installed next to the wall or other
machines.

13
Installation
5358
5
A
C
E
B
D
G
F
H
Front
A B C D E F G H
WD4130 635 490 135 30 515 195 60 220
WD4240 790 615 115 30 650 185 60 220
5
= position of feet
= drilling points for expander bolts
• Themachineshallbeliftedinthebottom
frame.
• Placethemachineoverthetwodrilledholes.
• Screwhomethefeetasmuchaspossible
before starting to level the machine.
• Checkthatthemachineisplacedinlevel.
Adjust with the feet.
It is of utmost importance that the machine
is placed in level, from side to side as well
as front to rear. If the machine is not pro-
perly leveled, it may result in out-of-balance
without a real out of balance in the drum.
• Inserttheexpansionboltssuppliedinthe
holes drilled in the floor. Fit the washers and
nuts, and tighten well.
Mechanical installation
• Markanddrill2holes,ø10mmand50mm
deep in the positions Xshown.
X
2984, 2986
6
6
Knock out holes for expander bolts

14 Installation

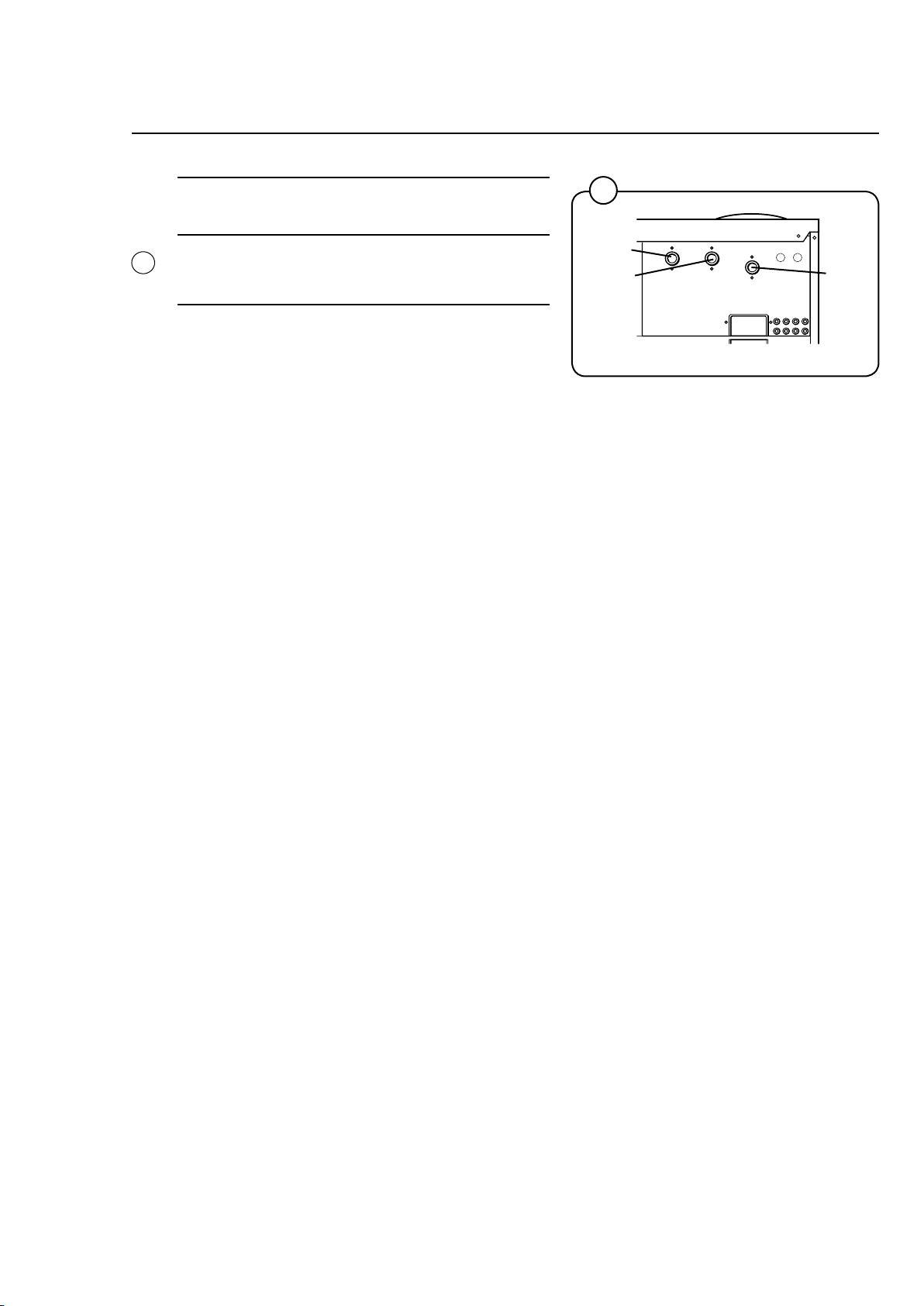

Water connections
All intake connections to the machine are to be fitted with manual shut-off
valves and filters, to facilitate installation and servicing.
Water pipes and hoses should be flushed clean before installation. After
installation hoses should hang in gentle arcs.
All connectors present on the machine must be connected up. The ta-
ble shows the possible connection options, which will depend on the water
types to be connected to the machine. Check the machine plates too.
All water connectors must be connected up, otherwise the wash pro-
gram will not function correctly.
Hoses are to be of an approved type and grade and comply with
IEC 61770.
Machines shall be connected with new water hoses. Re-used water hoses
must not be used.
The water pressure data is as follows:
• min: 50kPa(0,4kp/cm2)
• max: 1MPa(10kp/cm2)
• recommended: 200-600kPa(2-6kp/cm2)
If the water pressure is below the min. value, the wash result
can not be guaranteed for certain program.

15
Installation
7
5339 A
1
2
3
Water type Water connection
1 2 3
cold and
hot cold hot cold*/
hot
* For detergent container
7

16 Installation
5330
8
8

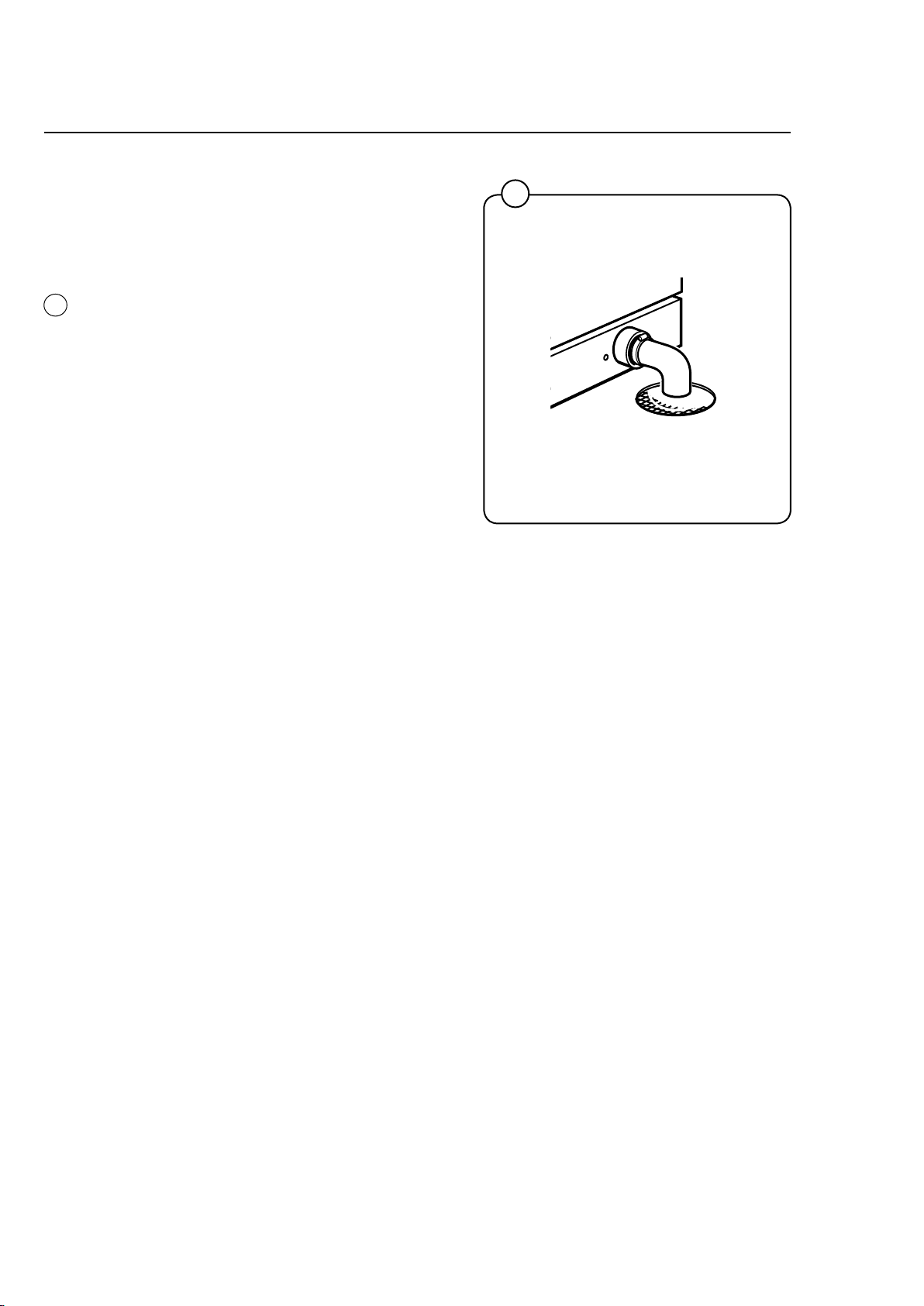

Drain connection
Connect a 75 mm (3") pipe or rubber hose to the
machine’s drain pipe, ensuring a downward flow
from the machine. Avoid sharp bends which
may prevent proper draining.
The drainage pipe should be located over a floor
drain, drainage channel or the like so that the
distance between the outlet and the drain is at
least 25 mm (1").

17
Installation
Evacuationsystem

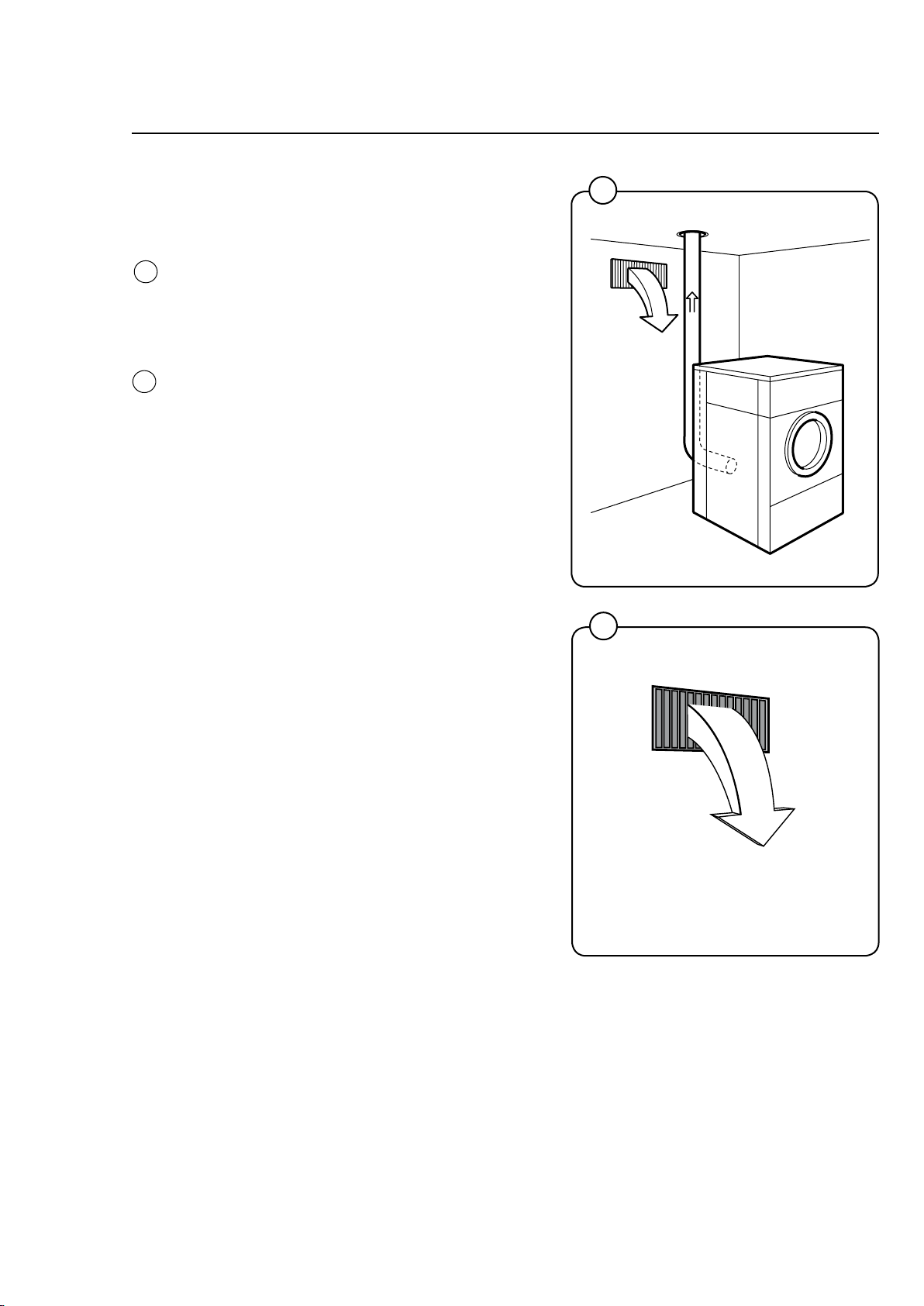

Fresh-air
For maximum efficiency and the shortest
possible drying time, it is important to ensure
that fresh air is able to enter the room from the
outside in the same volume as that blown out
of the room.
To avoid a draught in the room, it is advisable
to place the air inlet behind the machine.
The area* of the air inlet opening must be 5
times the size of the vent pipe area.
The resistance in the grating/slats on the air
inlet cover plate should not exceed 10 Pa
(0.1 mbar).
WD4130: The air consumption is max.
340 m3/h.
WD4240: The air consumption is max.
580 m3/h.
*The area of the inlet opening is the area
through which the air can flow without
resistance from grating/slatted cover.
Note that gratings/slatted covers often block
half of the total fresh air vent area. Remember
to take this into account.
9
10
W00048
10
6685
5 x A
9
 
 



18 Installation
Exhaustduct
• Theexhaustductmustbesmoothontheinside(lowairresistance).
• Theexhaustductmustleadtotheoutdoors.
• Theexhaustductmustleadclearofthebuildingascondensationmay
cause frost damage to the building.
• Theexhaustductmustbeprotectedagainstrainandforeignobjects.
• Theexhaustductmusthavegentlebends.
• Theexhaustductmustnotbeasharedductbetweenmachineesand
appliances using gas or other fuels as their energy source.
When several machines share an exhaust duct:
• Theexhaustductdiametermustincreaseaftereachmachine.
The table below shows the exhaust duct diameter and the necessary
fresh-air inlet area.
NOTE!
It is recommended that each machine is connected to a separate
exhaust duct.
The evacuation pipe diameter must not be reduced.
11
12

19
12
W00052
Installation
W00049
11
No. of machines 1 2 3 4 5 6 7 8 9 10
Air outlet pipe
diameter in mm 125 160 200 200 250 250 315 315 315 315
Required area of
fresh-air inlet m2 0.04 0.08 0.12 0.16 0.20 0.24 0.28 0.32 0.36 0.40
Each machine requires a 200 x 200 mm fresh-air inlet opening.
No. of machines 1 2 3 4 5 6 7 8 9 10
Air outlet pipe
diameter in mm 200 250 315 315 400 400 500 500 500 500
Required area of
fresh-air inlet m2 0.12 0.24 0.36 0.48 0.60 0.72 0.84 0.96 1.08 1.2
Each machine requires a 400 x 300 mm fresh-air inlet opening.
WD4130
WD4240

20
Exhaustdimensioning
It is important that the machine has the correct air volume compared to
each machines power.
If the air volume is smaller or larger this will result in a longer drying period.
Minimum air volume
If the outlet air volume gets too low the microprocessor will report an error
and error code E15 will be displayed.
Installation
Type Power Recommended air flow range
kW (cold machine) m3/h
WD4130 8 290-310
WD4130 10 310-340
WD4240 16 510-540
WD4240 19 540-580
