INTRODUCTION
POWER SUPPLY
Model XK-700 has five built-in power supplies which
will satisfy most design needs. This includes two
variable power supplies giving up to +20 volts and
–20 volts at .5 amp. Below 15V the current available
is over 1 amp. Three fixed power supplies give you
+12VDC, –12VDC or +5VDC at 1 amp each. These
fixed voltages are the most commonly used
voltages for design work. All supplies are regulated
to within 150mV. This means that you can increase
the current draw from no load to .5 amp and the
voltage will change less than 150 millivolts. All
supplies are also short circuit protected by using
integrated circuit regulator devices.
The analog trainer contain a complete function
generator capable of producing sine, square and
triangle waveform. The frequency of this generator
is continuously variable from one hertz to over
100,000 hertz in five steps. A fine tuning control
makes selection of any frequency easy. The output
voltage amplitude is variable between 0 to 15Vpp.
The output impedance is approximately 330 ohms.
DIGITAL TRAINER SECTION
The digital trainer has the necessary functions to do
your digital designs. They consist of a clock
generator, two no bounce logic switches, 8 LED
indicator lamps and 8 data switches. These
functions will make it easy to do your digital
experiments.
Congratulations on your purchase of the Elenco®
Model XK-700 Digital / Analog Trainer. This trainer
is designed to simplify designing of digital and
analog circuits. It contains most of the necessary
test equipment needed to build and test these
circuits.
Your XK-700 has four basic trainers in a single
package. They are, 5 independent power supplies,
an analog trainer, a digital and a bredblock
assembly trainer. We shall proceed in describing
each trainer in the following sections.
ANALOG TRAINER SECTION
FUNCTION GENERATOR

-2-

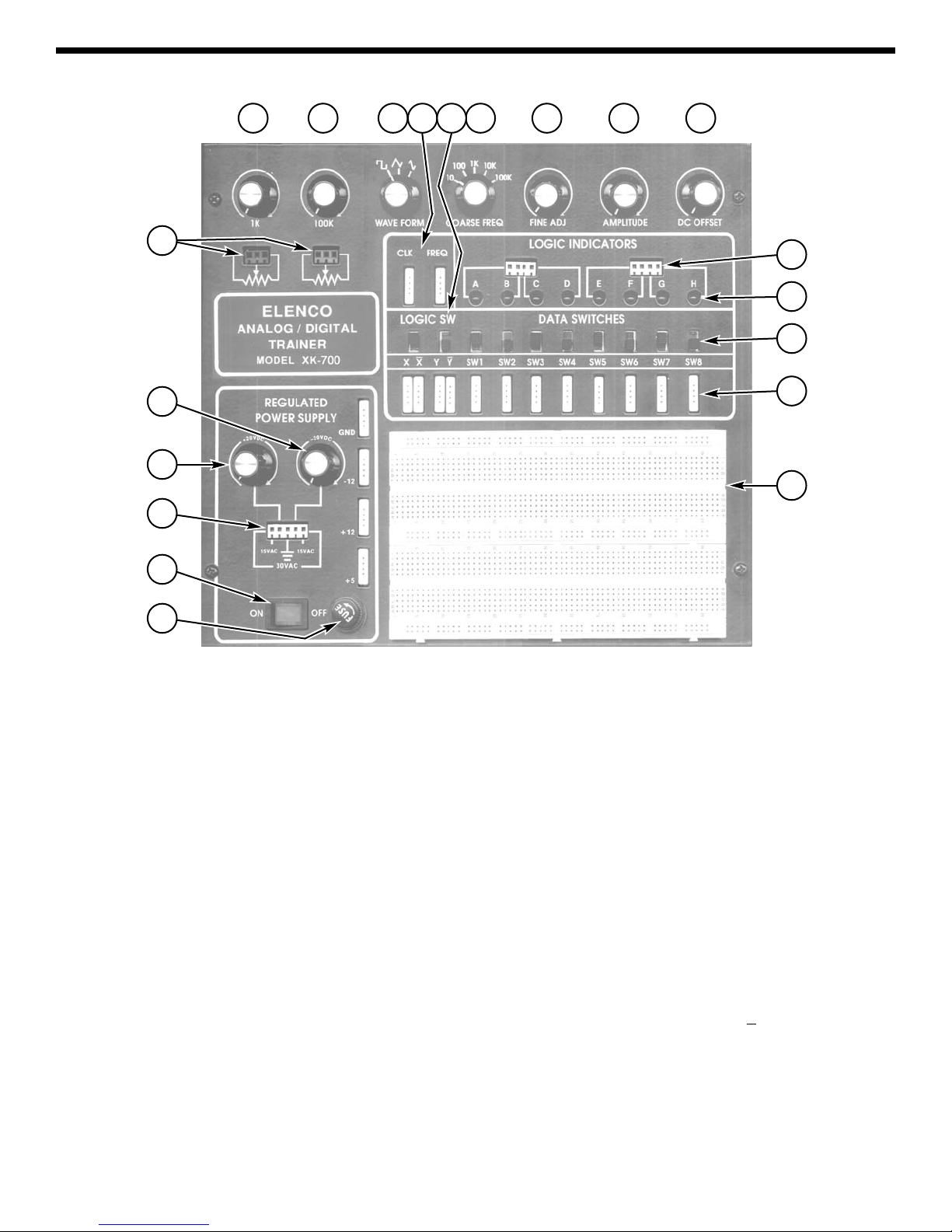

USERS DESCRIPTION OF FRONT PANEL CONTROL
1) Fuse holder - Easy access for replacement of 1.25A 250V fuse.
2) On-Off switch - Allows power to be applied to all outputs. Switch will light when on.
3) Power output terminals - This provides 30VAC center tapped at 15VAC - also provides output terminal
for positive and negative variable voltages.
4) Variable positive voltage control - Varies positive voltage from 0 to 20V at indicated output terminal.
5) Variable negative voltage control - Varies negative voltage from 0 to –20V at indicated output connector
pin.
6) Output terminals for 1kΩand 100kΩundedicated potentiometers.
7) 1kΩundedicated potentiometer.
8) 100kΩundedicated potentiometer.
9) Waveform selection control, square, triangle or sine generator waveforms.
10) Output terminals for all functions as stated, 4 pins per block.
11) Two logic switches - These are no bounce logic switches. Give one signal state change per move-
ment of switch.
12) Selects five ranges of frequencies from 10 to 100,000 hertz.
13) Fine frequency control - allows easy selection of desired function generator frequency.
14) Amplitude control - Controls the function generation output amplitude , 0-15Vpp.
15) DC offset control - controls the DC level of the generator output. DC may be varied +10 volts from zero
level.
16) Input points for logic indicator LEDs. “A” input corresponds with A lamp, etc.
17) Logic indicators LEDs, total eight.
18) Eight data switches - Lets output of 5V or 0V depending on position.
19) Output terminals for all functions as stated, 4 pins per block.
20) Two breadboards containing a total of 1,660 tie points including 6 independent bus lines.
1
2
3
4
5
6
7 8 13 14 15
16
17
18
19
20
1211109

-3-
GENERAL SPECIFICATIONS FOR MODEL XK-700
Power Supplies:
• 0V to 20VDC @ 0.5A (0V to 15V @ 1A)
• 0V to –20VDC @ 0.5A (0V to –15V @ 1A)
• +12V + 5% @ 1A
• –12V + 5% @ 1A
• +5V + 5% @ 1A
• 30VAC center-tapped at 15VAC @ 1A.
• Load regulation all DC supplies less than 0.2V no load to 0.5A
• Line regulation all DC supplies less than 0.2V 105 to 135V
• Hum and ripple all DC supplies less than .01V rms
• Short protection all DC supplies-Internal IC thermal cutoff
• Fuse - 1.25A 250V
Function Generator Analog Section:
• Waveforms sine, square, triangle, complimentary square
• Frequency - 1Hz to 100kHz in 5 steps continuously variable
• Fine frequency adjust - 10:1 approximate
• Amplitude variable 0-15Vpp
• Output impedance 330Ω: short protected
• DC offset change + 10V from zero crossing
Digital Section:
• Data switches, eight DPDT, Hi 5V, low 0V
• Logic switches, two no bounce with complimentary output
“On” voltage level 2.8V min., “Off” voltage level 1V max.
Input impedance 100kΩ.
• Eight LED readouts, 100kΩinput impedance
• Clock frequency, 1Hz to 100kHz in 5 steps continuously variable
• Clock amplitude, 5Vpp squarewave
• Clock rise time, better than 100nsec.
Bredboards Section:
• Two bredboards containing 830 tie points each (total 1,660 pins)
• 6 independent power bus lines for common connections
Variable Resistance (undedicated):
• 1kΩPotentiometer
• 100kΩPotentiometer

-4-
TESTING THE XK-700 DIGITAL ANALOG TRAINER
The following paragraphs give detailed instructions
on testing the digital / analog trainer.
Note that in the XK-700 trainer there are five major
functions, (1) Power Supply (2) Logic Indicators (3)
Function Generator (4) Logic Switches and (5) Data
Switches. We shall proceed in testing out each
section. If any test fails, refer to the schematic
diagram and check the wiring and soldering of the
section involved.
POWER SUPPLY TESTING
Plug the trainer into a 120VAC outlet and switch to
the “ON” position (the power switch should light).
With a digital voltmeter, measure the voltage
outputs at the power blocks. The +12V should
measure between 11.4 and 12.6 volts. The 5V
supply should read between 4.75 and 5.25 volts.
The –12V supply should read between –11.4 and
12.6 volts.
Do not short the 15VAC output to ground.
Short the +12V, –12V and +5V supply to ground.
They should turn off and recover when the short is
removed. If you have a 25Ω10 watt resistor, place
it across the output terminal (2 watt resistor will
work, but use it only for a few seconds). The output
of the 12V supply should not change more than 0.20
volts. Do the same on the 5V supply using a 10Ω5
watt resistor. Again, the output should not change
more than 0.20 volts. In making this test, the
voltmeter leads should be clipped to the terminal
directly and no to the load leads. This is to prevent
errors due to voltage drop from contact resistance of
the load.
Check the variable voltage supplies in the same
manner. Set the output voltage between 10-15
volts. Place the 25Ω10 watt resistor across the
output terminal. The voltage should stay within 0.20
volts of the no load voltage.
TESTING THE FUNCTION GENERATOR
To test the function generator, you will need an
oscilloscope. Connect the scope to the terminal
marked FREQ., and the ground clip to the terminal
marked GND. Adjust the waveform switch to sine,
the coarse frequency switch to 1k and the amplitude
control to maximum. Your scope should show a sine
wave with an output of about 15Vpp. If the sinewave
is clipped on top or bottom, adjust the DC offset
control for the most linear reading. Turn the FINE
ADJ control and the frequency should vary between
100 and 1,000 hertz. Check the other coarse
frequency positions.
Now, check the CLK output terminal. You should
see a square wave of about 5Vpp. If the scope is a
dual trace, connect one input to the CLK and the
other FREQ terminal. Set the waveform switch to
squarewave. You will note the two frequencies are
180Oout of phase. If no scope is available, connect
a wire to the CLK terminal and input to “A” of the
logic indicators. Connect another wire to the FREQ
terminal and input “B”. Set the coarse frequency
switch to 10 hertz and the fine freq control to
minimum position. The two LEDs should blink
alternately.
TESTING THE LOGIC INDICATOR FUNCTION
There are eight logic indicators which you will be
checking out. Place a wire to the 5V power supply
and touch the “A” logic indicator test pin. The “A”
LED should light up. Remove the wire and the LED
should go out. Do the same for the B, C, D, E, F, G
and H test pins.

-5-
Simplified diagram of positive power supply
120VAC
Input 17VAC 20VDC 0V - 20V
Regulated
Output
Transformer
120V to 17V
AC to DC
Converter
Voltage
Regulator
TESTING THE LOGIC SWITCHES
There are two logic switches and four conditions to
be checked out. Connect a wire from the “X” test
pin to the “A” logic indicator test pin. Connect
another from the “X” test pin to the “B” test pin.
Apply power and note that the “A” LED indicator
should be lit when the logic switch is in the “X”
positions and the “B” LED is not lit. Moving the logic
switch to “X” should reverse the indicator LEDs, that
is, the “B” LED should light and the “A” LED not light.
Check the Y logic switch in the same manner.
TESTING THE DATA SWITCHES
There are eight data switches to be checked. The
output of the switches are at 5V or ground
depending on position. Connect a wire to SW1
terminal and the “A” test pin, the “A” LED should
light when the switch is placed toward the top case.
Repeat the same test on SW2, SW3, SW4, SW5,
SW6, SW7 and SW8.
This completes the testing of the trainer.
The XK-700 power supply features two variable
output voltages and three fixed 12V, –12V and 5V,
variable output voltages are 0V to 20V and 0V to
–20V at up to 1 ampere maximum current. All
supplies are regulated to better than .2V when
going from no load to full load. Varying the input AC
voltage from 105 to 135V will have practically no
effect on the output voltages. This is because of the
specially designed IC circuits used in the XK-700
circuits. Severe overloading or even shorting the
output circuits will not damage the supplies. Special
turn-off circuits in the IC sense the overload and
turn off the output.
THE POSITIVE 0V TO 20V POWER SUPPLY

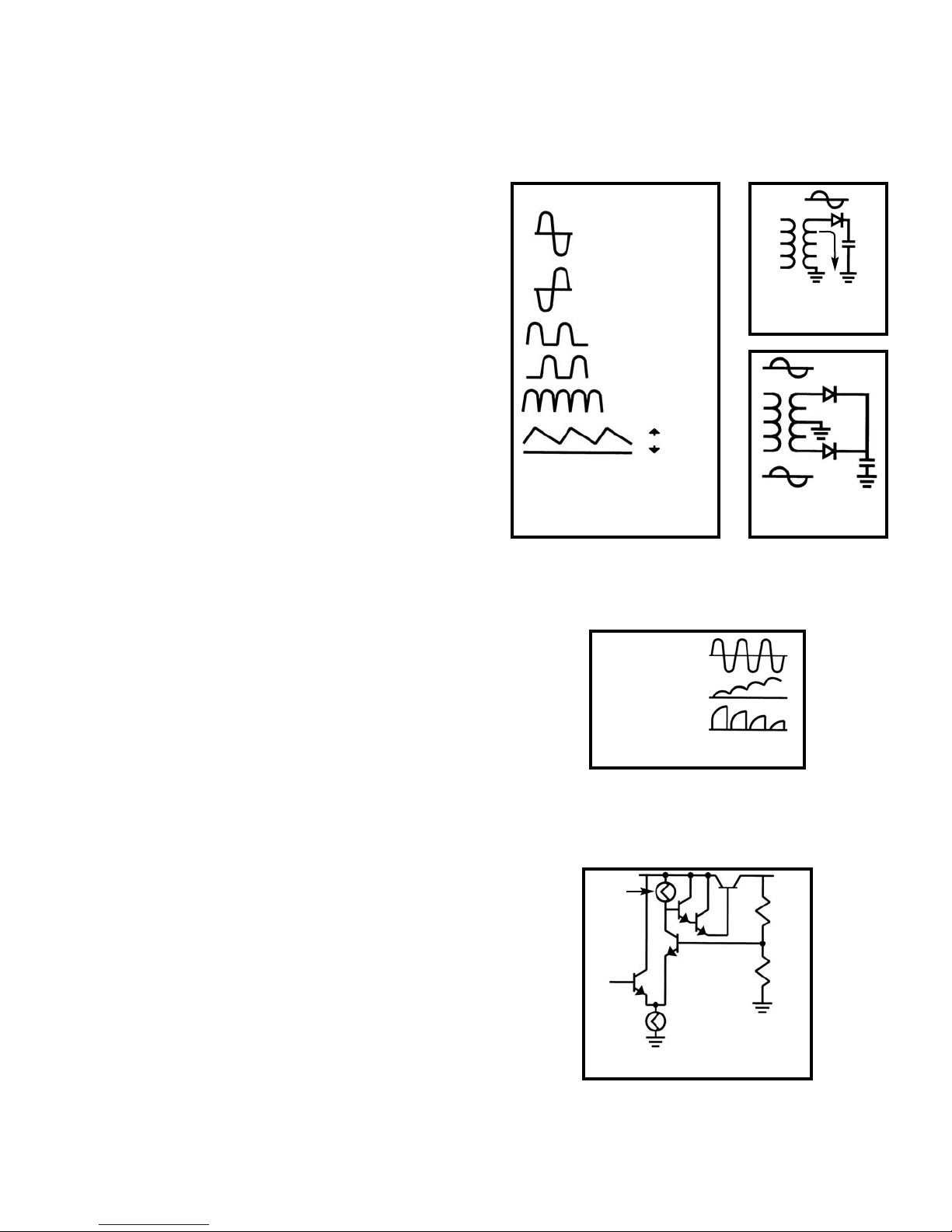

Figure 1 shows a simplified circuit diagram of the
positive supply. It consists of a power transformer, a
DC rectifier stage and the regulator stage.
TRANSFORMER
The transformer T1 serves two purposes. First, it
reduces the 120VAC input to 17VAC to allow the
proper voltage to enter the rectifier stages. Second,
it isolates the power supply output from the 120VAC
line. This prevents the user from dangerous voltage
shock should he or she be standing in a grounded
area.
AC TO DC CONVERTER
The AC to DC converter consists of diodes D1, D2
and capacitor C1. Transformer T1 has two
secondary windings which are 180Oout of phase.
The AC output at each winding is shown in Figure
2A and 2B.
Diodes are semiconductor devices that allow current
to flow in one direction. The arrow in Figure 3 points
to the direction current will flow. Only when the
transformer voltage is positive will current flow
through the diodes. Figure 3 shows the simplest
possible rectifier circuit. This circuit is known as a
half-wave rectifier. Here the diode conducts only half
of the time when the AC wave is positive as shown
in 2C. Use of this circuit is simple but inefficient. The
big gap between cycles require much more filtering
to obtain a smooth DC voltage.
CIRCUIT DESCRIPTION
Figure 1

-6-
By the addition of a second diode and transformer
winding we can fill in the gap between cycles as
shown in Figure 4. This circuit is called full-wave
rectification. Each diode conducts when the voltage
is positive. By adding the two outputs, the voltage
presented to capacitor C1 is more complete, thus
easier to filter, as shown in Figure 2E. When used
in 60 cycles AC input power, the output of a full
wave rectifier will be 120 cycles.
Capacitor C1 is used to store the current charges,
thus smoothing the DC voltage. The larger the
capacitor, the more current is stored. In this design
1000μF capacitors are used, which allows about 5
volts AC ripple when one amp is drawn.
In practice, the current through the diodes is not as
shown in Figure 2C. Because capacitor C1 has a
charge after the first cycle, the diode will not
conduct until the positive AC voltage exceeds the
positive charge in the capacitor. Figure 5 shows a
better picture of what the current flow looks like
assuming no loss in the diode.
It takes a few cycles for the voltage to build up on
the capacitor. This depends on the resistance of the
winding and diode. After the initial start-up, there
will be a charge and discharge on the capacitor
depending on the current drawn by the output load.
Remember, current only flows through the diodes
when the anode is more positive than the cathode.
Thus, current will flow in short bursts as shown in
Figure 5.
The DC load current may be one ampere but the
peak diode current may be three times that.
Therefore, the diode rating must be sufficient to
handle the peak current. The 1N4001 has peak
current rating of 10 amps.
REGULATOR CIRCUIT
The regulator circuit in the Model XK-700 power
supply consists of a LM-317 integrated circuit. This
IC is specially designed to perform the regulation
function. Figure 6 shows a simplified circuit of how
the LM-317 IC works.
Transistors Q1 and Q2 form a circuit known as a
differential amplifier. Transistor Q1 base is
connected to a stable 1.5V reference voltage. The
base of Q2 is connected to the regulator output
circuit through a voltage divider network. The
collector of transistor Q2 is connected to a current
source. This basically is a PNP transistor biased to
draw about 1mA current. Transistor Q2 sees the
current source as a very high resistor of about 1
meg ohms. Thus, the gain of transistor Q2 is
extremely high.
A) Transformer
Winding
B) Voltage C1
C) Current
through diodes
20V
Peak
20V
Figure 2
Figure 3
Figure 4
Voltage Waveform for Supply
A) Transformer
Winding AB
B) Transformer
Winding BC
C) Output of
diode D1.
D) Output of
diode D2.
E) Total of diodes
D1 & D2.
20V
F) Output of capacitor C1
Ripple depends on load
current (expanded).
Half Wave Rectifier
Full Wave Rectifier
2V
Output
R1
R2
Divider
Q1
Q2
1.5V
Q3
Q4
Q5
Current
Source
Equalized
to 1 Meg.
Figure 5
Figure 6
D1
D2
C1
C1
D1

-7-
SCHEMATIC DIAGRAM

-8-

-9-
Transistor Q5 is called the pass transistor. It
controls the current reaching the output. Transistor
Q3 and Q4 are emitter followers. Their function is to
raise the impedance of the pass transistor. Note that
transistor Q2, Q3, Q4, Q5 and resistor R1 form a
close loop. Also note that the feedback to the base
of Q2 is negative, that is, when the base of Q2 goes
positive, the output at emitter Q5 goes negative.
Now if the 2V output voltage goes down because of
current drain at the output, the base of Q2 will drop
forcing the the collector voltage of Q2 to go higher.
This will bring the output voltage back to 2V. This is
the basis of all negative feedback regulators.
Another feature of the LM-317 regulator is to protect
the IC against overload and output shorts. If the IC
is overloaded, the junction of an overload transistor
will overheat. A transistor will sense this
overheating and shut down transistor Q5.
The LM-317 IC basically is a 1.25 volt regulator. To
be able to vary the output from 0 to 20V, you stack
the IC on the negative 1.25VDC voltage as shown in
Figure 6A. When VR1 equals 0, the output voltage
is 0 volts.
THE NEGATIVE VOLTAGE REGULATOR
The theory of the voltage regulator is the same as
the previously discussed positive regulator. The
basic difference is that diodes D1 and D2 are
reversed producing a negative voltage across
capacitor C1. The LM-337 IC is designed to operate
from a negative supply.
THE DATA SWITCHES
There are eight data switches labeled SW1 to SW8.
The circuit is very simple. To perform the desired
functions there is a double throw-double pole
switch. One end is connected to the 5V, the other to
ground and the center lug is connected to the
output.
THE LOGIC SWITCHES
The logic switches perform the same function as the
data switch, that is, they produce high or low states.
But there is one big difference. When switching the
data switches, many pulses may be produced due
to bouncing of the contacts.
In the logic switches, only one pulse is produced, no
matter how many times the contacts bounce. This
is extremely important if you are producing pulses

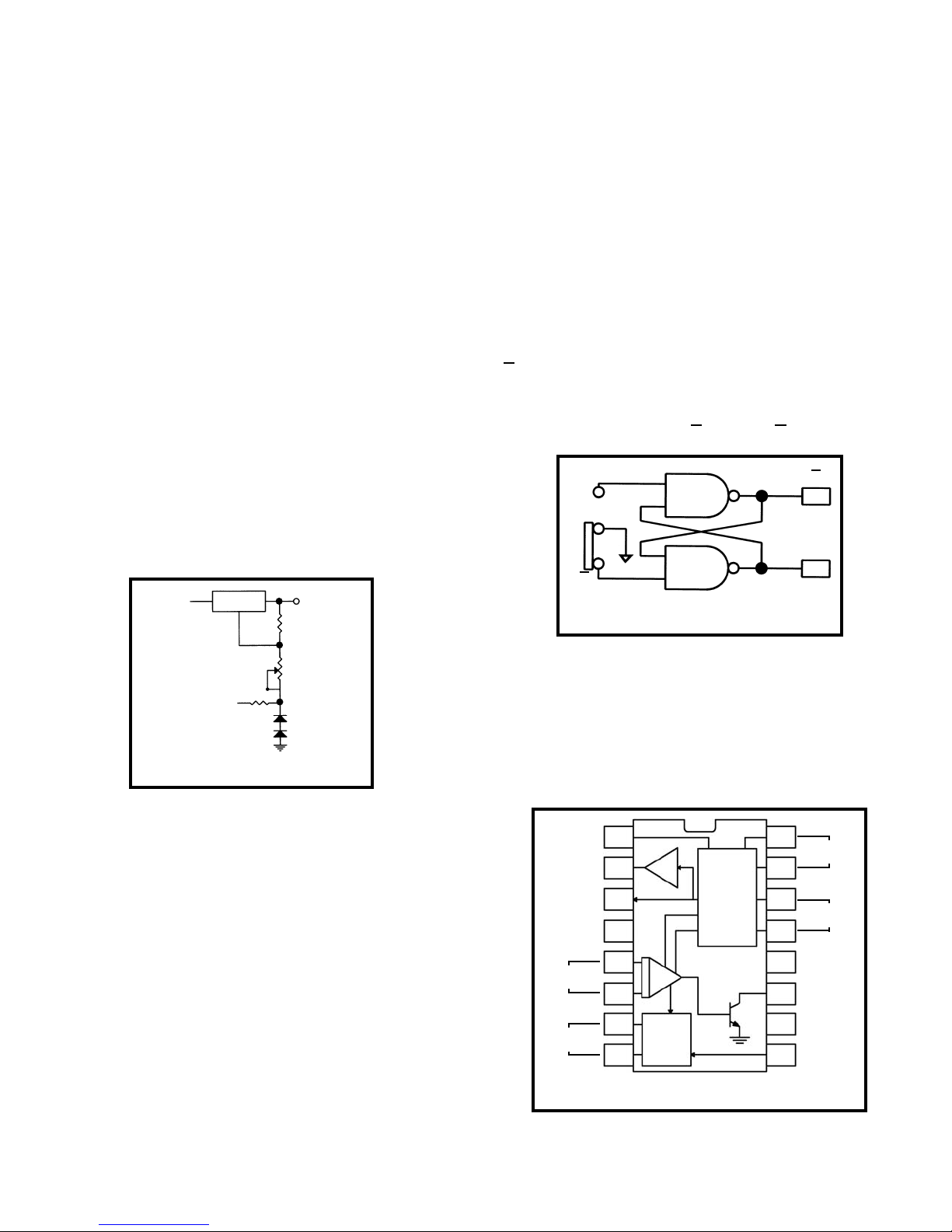

for counting circuits. Figure 7 shows the wiring of
the logic switch. The two NAND gates are
connected so that when X input is grounded the
output X goes high. Opening and closing the
ground at X will not change the output. Only when
X is grounded will the output change to low. Thus,
only one output change is produced with one
movement of the X switch. There are two outputs
from logic switch, X and X or Y and Y.
THE FUNCTION GENERATOR
The function generator frequencies are produced by
an XR-2206 integrated circuit. This IC is capable of
producing high quality sine, square, and triangle
waveform of high stability and accuracy. Figure 8
shows the block diagram of the XR-2206 IC.
0V - 20V
R1
VR1
LM-317
X
X
X
X
6
5
4
1
2
3
116
215
314
413
512
611
710
89
Symmetry
ADJ.
Waveform
ADJ.
Ground
Sync
Output
Bypass
FKS
Input
Timing
Resistor
Timing
Capacitor
V+
Mult. Out
Sine/Saw
Output
AM Input
+1 Multiplier
and
Sine
Shaper
VCO
Current
Switches
–DC
Figure 6A
Figure 7
Figure 8

-10-
FUSE REPLACEMENT
1. Turn the trainer off and unplug it from 120VAC power source.
2. Unscrew fuse holder cap and remove fuse.
3. Use only a 1.25A fuse. Larger fuses or other fuse bypass will void the
warranty of the trainer.
4. Place the new fuse into the fuse holder cap and screw it back into the holder.
5. Plug trainer into 120VAC power source and turn the unit on.
The XR-2206 is comprised of four functional blocks,
a voltage controlled oscillator (VCO), an analog
multiplier & sine shaper, a unity gain buffer amplifier
and a set of current switches.
The VCO actually produces an output frequency
proportional to an input current. Across pins 5 and
6, a timing capacitor, is switched on to give 5
different ranges of frequencies via COARSE FREQ.
switch. On pin 7, the FINE FREQ. ADJ. variable
resistor controls the actual frequency output. These
two components form the RC time constants for the
oscillator frequency.
The VCO produces a squarewave signal. This
squarewave is sent to a shaper and converted into
a sine wave.

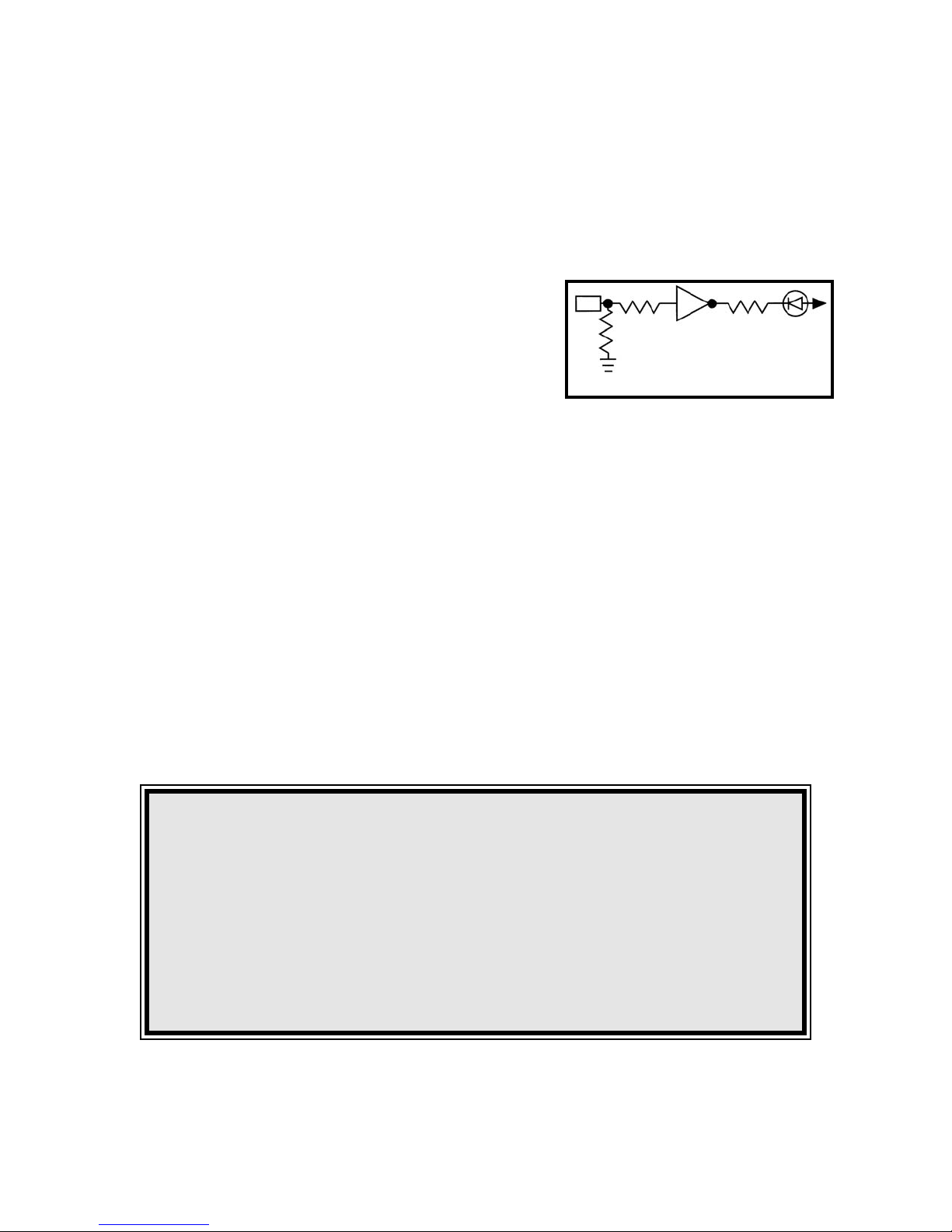

THE LOGIC INDICATORS
There are eight logic indicators. Figure 9 shows the
circuit. It consists of a 74HC04 IC. When the input
is over 2.8V, the output of the IC will be low, drawing
current through the LED indicator. The 120 ohm
resistor limits the current in the LED to about 30mA.
100kΩ
100kΩ120Ω
74HC04 LED 5V
Figure 9

-11-
ORGANIZER CARRYING CASE
The carrying case for the XK-700 Digital/Analog Trainer has been designed to hold a meter and many of the
most important tools. The layout below shows a suggestive layout for equipment and tools. For added storage
area, the tool palette has two sides; one with pockets and elastic as shown and the other with elastic.
When ordering a meter to be used with the XK-700 trainer, specify a PSV-50 kit which will provide you with
velcro to hold the meter in place. This is supplied FREE with meter order.
(TL-8) Precision screwdriver kit
(ET-10) IC puller
Calculator - see Elenco®catalog
(ST-75) 11 pc. driver set
(ST-1) Diagonal cutters
(ST-2) Long nose pliers
(SP-4) Desoldering pump
(LP-560) Logic probe
(ST-30) Deluxe wire stripper
(SE-1) Solder ease kit
(LF-99) Lead-free solder
(SW-3) Solder wick
(SR-2B) Deluxe soldering iron
(ST-20) Safety goggles
(SL-5) Deluxe soldering station
Meters - ANY of the
following will fit the
special slope cavity
Meters available:
...and others in catalog.
M-1700
M-1750
M-2795
M-2785
M-2666K
M-2625
M-3900
LCM-1950
LCR-1810
M-1000C

-12-
Qty. Description Part#
Resistors
2 100Ω5% 1/4W brn-blk-brn-gold 131000
10 120Ω5% 1/4W brn-red-brn-gold 131200
1 200Ω5% 1/4W red-blk-brn-gold 132000
1 220Ω5% 1/4W red-red-brn-gold 132200
2 330Ω5% 1/4W org-org-brn-gold 133300
51kΩ5% 1/4W brn-blk-red-gold 141000
21.2kΩ5% 1W brn-red-red-gold 141202
12kΩ5% 1/4W red-blk-red-gold 142000
24.7kΩ5% 1/4W yel-vio-red-gold 144700
16.8kΩ5% 1/4W blu-gry-red-gold 146800
18.2kΩ5% 1/4W gry-red-red-gold 148200
1 10kΩ5% 1/4W brn-blk-org-gold 151000
1 12kΩ5% 1/4W brn-red-org-gold 151200
3 22kΩ5% 1/4W red-red-org-gold 152200
1 47kΩ5% 1/4W yel-vio-org-gold 154700
1 51kΩ5% 1/4W grn-brn-org-gold 155100
16 100kΩ5% 1/4W brn-blk-yel-gold 161000
1 100kΩPot Trim 191610
11kΩPot PC Mount 192412
22kΩPot PC Mount 192421
1 10kΩPot PC Mount 192531
3 100kΩPot PC Mount 192612
Capacitors
1 5pF 10% 50V Disc 205010
1 22pF 10% 50V Disc 212210
1 100pF 10% 50V Disc 221017
1 .001μF 10% 100V Mylar 231017
1 .0022μF 10% 50V Disc 232216
1.01μF 10% 100V Mylar 241017
4.1μF 10% 100V Mylar 251017
11μF 50V Lytic Radial 261047
210μF 25V Lytic Radial 271045
5 100μF 25V Lytic Radial 281045
2 1000μF 25V Lytic Radial 291045
4 1000μF 35V Lytic Radial 291046
Semiconductors
19 1N4001 Diode 314001
2 1N4148 Diode 314148
2 2N3904 NPN Transistor 323904
1 2N3906 PNP Transistor 323906
1 LM317 Regulator 330317
1 LM318 Integrated Circuit 330318
1 LM337 Regulator 330337
1 XR2206 Integrated Circuit 332206
1 SN7403 Integrated Circuit 337403
1 LM7805 Regulator 337805
1 LM7812 Regulator 337812
1 LM7912 Regulator 337912
8 LED Red 350002
2 74HC04 Integrated Circuit 39HC04
Qty. Description Part#
Miscellaneous
1 Transformer 44K500
1 PC Board 514550
1 Fuse 1.25A 530125
10 Switch Slide PC Mount DPDT 541009
1 Switch Rocker Illuminated 541204
1 Switch Rotary 2P5POS 542206
1 Switch Rotary 4P3POS 542405
2 Connector 3-pin 591032
2 Connector 4-pin 591042
1 Connector 5-pin 591052
4 Bracket L 4-40 Tap 613008
1 Panel Top 614108
1 Frame 614501PB
9 Knob Push On 622009
1 Case 623051
1 Bushing Insulated 624003
1 Spacer Nylon 7/16” 4-40 Tap 624013
8 Spacer 1/4” #8 Plastic 624124
2 Screw #10-32 x 3/8” Hex 641158
1 Screw #4-40 x 1/4” Phil Flat 641431
9 Screw #4-40 x 1/4” Phil Truss 641438
6 Screw #6-32 x 3/8” 641640
4 Screw #4 x 1/4” Phil AB Blk 642430
4 Screw #6 x 3/8” Phil TC 642660
4 Screw #6 x 1/2” Phil AB Blk 642662
7 Nut Pot 7mm 644101
2 Nut Pot 9mm 644102
6 Nut #6-32 Hex 644601
2 Nut #10-32 Hex 644810
7 Washer Flat 8mm ID x 14mm OD 645101
2 Washer Flat 9mm ID x 15mm OD 645103
4 Washer Flat Black #6 645400
5 Washer Fiber #4 645404
2 Lockwasher #10 External 646910
1 Fuse Holder 663000
1 IC Socket 8-Pin 664008
3 IC Socket 14-Pin 664014
1 IC Socket 16-Pin 664016
18 Bredblox 4-Pin 665204
5 Insulator Mica 780002
5 Insulator Washer 780101
5” Wire 20GA Red Top Coat 813120
2.5’ Wire 22GA Jumper 845000
1 Line Cord 862105
2” Shrink Tubing 1/2” Dia 891101-2
2” Shrink Tubing 3/4” Dia 899110-2
1 9426 Bredboard 99426
1 9830 Bredboard 99830
PARTS LIST

POPULAR METERS THAT CAN BE USED WITH THE XK-700 TRAINER
-13-
Specifications
AC + DC volts 400mV, 4V, 40V, 400V, 600V
Accuracy +0.5% DC, +0.8% AC Resolution 100μV
AC + DC current 400μA, 4000μA, 40mA, 400mA, 10A
Accuracy +1.5% Resolution 0.1μA
Resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
Accuracy +1% Resolution 0.1Ω
Capacitance 1pF - 200μF autoranging
Accuracy +2% Resolution 1pF
Frequency 10Hz - 10MHz autoranging
Accuracy +0.5% Resolution 1Hz
Accessories Test leads, manual, holster, two “AA” batteries included
Dimensions 6” (H) x 2 3/4” (W) x 1 1/2” (D)
Weight 7.4 oz.
• 3 3/4 digit, 4,000 count display
• Frequency to 10MHz
• Capacitance to 200μF
• Diode and transistor test
• Audible continuity
• AC/DC current to 10A
• 3-Way overload protection
• Holster included
• Relative measurement
Features
Model M-1750
Available as a kit (M-1006K)
Compact Multimeter
Model M-1000C
Specifications
AC + DC volts 200mV, 2V, 20V, 200V, 1000V, 200VAC, 750VAC
Accuracy ±0.5% DC, ±1.2% AC Resolution 0.1mV
Input impedance 1MΩ
DC current 200μA, 2mA, 20mA, 200mA, 10A
Accuracy +1.2% rdg + 2 Digits Resolution 0.1μA
Resistance 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ
Accuracy +1.2% rdg + 2 Digits Resolution 0.1Ω
Accessories Test leads, manual, 9V battery included
Dimensions 5” (H) x 2 29/32” (W) x 1” (D)
Weight 4.5 oz.
• 3 1/2 digit, 2,000 count display
• Transistor test
• Audible continuity
• Diode test
• Signal injector
• Overload protection
• Pocket-size
• Low cost
Features
Specifications
AC volts 400mV, 4V, 40V, 400V, 750V
Accuracy 4V, 40V, 400V: +(0.8% + 3) 400mV, 750V: +(1.2% + 3)
DC volts 400mV, 4V, 40V, 400V, 1000V
Accuracy 400mV, 4V, 40V, 400V: +(0.5% + 3) 1000V: +(0.8% + 3)
AC current 40μA, 400μA, 4000μA, 40mA, 400mA, 10A
Accuracy 40μA, 400μA, 4000μA: +(1.5% + 5) 40mA, 400mA: +(2% + 5) 10A: +(2.5% + 5)
DC current 40μA, 400μA, 4000μA, 40mA, 400mA, 10A
Accuracy 40μA, 400μA, 4000μA: +(1.2% + 3) 40mA, 400mA: +(1.5% + 3) 10A: +(2% + 5)
Resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ, 400MΩ
Accuracy 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ: +(1%+3) 40MΩ: +(2%+3) 400MΩ: +(3%+10)
Capacitance 4nF, 40nF, 400nF, 4μF, 4 0 μF, 200μF
Accuracy 4nF: +(5%+10) 40nF: +(3%+10) 400nF, 4μF, 4 0 μF: +(2%+5) 200μF: +(4%+5)
Frequency 10Hz - 15MHz +(0.1% + 5)
Sensitivity Sine wave 0.6Vrms
Accessories Heavy-duty test leads, holster, manual, & 9V battery included
Dimensions / weight 7 1/2” (H) x 3 1/2” (W) x 1 3/4” (D) (without holster) / 10.56 oz. (without holster)
• 3 3/4 digit, 4,000 count display
• Audible continuity test
• Data hold / rel. value
• Frequency to 15MHz
• Capacitance to 200μF
• Transistor / diode / logic test
• AC/DC current to 10A
• Auto power off
• Holster included
Features
Model M-2795
Specifications
AC + DC volts 200mV, 2V, 20V, 200V, 600V
Accuracy +(0.5% rdg +1 dgt) DC, +(1% rdg +4 dgts) AC Resolution 100μV
AC + DC current 2mA, 20mA, 200mA, 10A
Accuracy +2.5% Resolution 100μA
Resistance 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
Accuracy +(0.8% rdg +3 dgts) 200Ω, +(3.0% +3 dgts) 20MΩResolution 0.1Ω
Capacitance 2nF, 20nF, 200nF, 2μF, 2 0 μF
Accuracy +5% Resolution 1pF
Frequency 10Hz - 20MHz autoranging
Accuracy +0.5% Resolution 1Hz
Accessories Test leads, manual, 9V battery included
Options C-90, C-17
Dimensions 6” (H) x 2 1/2” (W) x 1 1/4” (D)
Weight 7.4 oz.
• 3 1/2 digit, 2,000 count display
• Frequency to 20MHz
• Capacitance to 20μF
• Diode and transistor test
• Audible continuity
• AC/DC current to 10A
• 3-way overload protection
• Low cost
• Holster included
Features
Model M-1700

WARRANTY POLICY
Your XK-700 Digital / Analog Trainer has been tested and conforms to our rigid requirements on performance and durability. It is
guaranteed to be free of defects in workmanship, materials and construction for a period of 2 years. If this product should fail during
normal use within the first 3 months from the date of purchase, Elenco®will repair or replace the unit at no cost. For the remainder of the
warranty period, a nominal service charge is required to cover shipping and handling.
When returning merchandise for repair, please include proof of purchase, a brief letter of explanation of problem and sufficient packing
material. Before returning any merchandise, please call our service department at [phone] to obtain a return mechandise
authorization number (RMA).
Elenco®Electronics, Inc. • Service Department
150 Carpenter Avenue • Wheeling, IL 60090
-14-

Elenco®Electronics, Inc.
150 Carpenter Avenue
Wheeling, IL 60090
[phone]
Website: www.elenco.com
e-mail: [e-mail]
