ELETTROQUADRI MP3 User manual

INSTALLATION MANUAL
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
ENGLISH
2021
ELETTROQUADRI
SINCE 1983
MICROPROCESSOR SYSTEM
MP3
FOR MOVING WALKWAYS / ESCALATORS

ELETTROQUADRI S.r.l.
All rights reserved.
This document may not be reproduced or disclosed even in part in any way. Any violaon is punishable by law.
Subject to modicaon.
The brands and trademarks cited in this manual are the property of the respecve manufacturers.
REVISION
REASON FOR REVISION REVISION DATE
1.5
Graphical update 15/12/2021

 0
© ELETTROQUADRI S.r.l.
INSTALLATION MANUAL
3 / 32
 ..........................................................................................................3
 ...................................................................................5
1.1. Installaon Manual...................................................................................................................5
1.1.1. Reproducon limits and copyright ................................................................................................ 5
1.1.2. Updates ......................................................................................................................................... 5
1.1.3. Care of the instrucons................................................................................................................. 6
1.1.4. How to print the Instrucon Manual ............................................................................................ 6
1.2. How to use this manual............................................................................................................7
1.2.1. Page layout.................................................................................................................................... 7
1.2.2. Symbols ......................................................................................................................................... 8
1.2.3. General denions........................................................................................................................ 9
1.3. Manufacturer's data.................................................................................................................9
1.4. Aer-sales assistance .............................................................................................................10
1.5. Warranty ................................................................................................................................10
1.6. Tesng ....................................................................................................................................10
 ............................................................................................................11
2.1. Reference standards applied..................................................................................................11
2.2. Safety warnings ......................................................................................................................11
2.2.1. General warnings ........................................................................................................................ 11
2.2.2. Warnings for Installer safety ....................................................................................................... 11
2.3. Idencaon of operang personnel.....................................................................................12
2.3.1. Personal Protecve Equipment................................................................................................... 13
2.4. Correct use .............................................................................................................................13
2.5. Incorrect use...........................................................................................................................13
2.6. Residual risks ..........................................................................................................................13
................................................................................................15
3.1. Installaon..............................................................................................................................15
3.2. Board layout ...........................................................................................................................16
3.2.1. Composion of the MP3 board (on the control panel) ............................................................... 16
3.2.2. Composion of the INSER board (in the top and boom enclosures) ........................................ 16
3.3. Types and locaon of enclosures ...........................................................................................17
3.4. Complementary material .......................................................................................................17

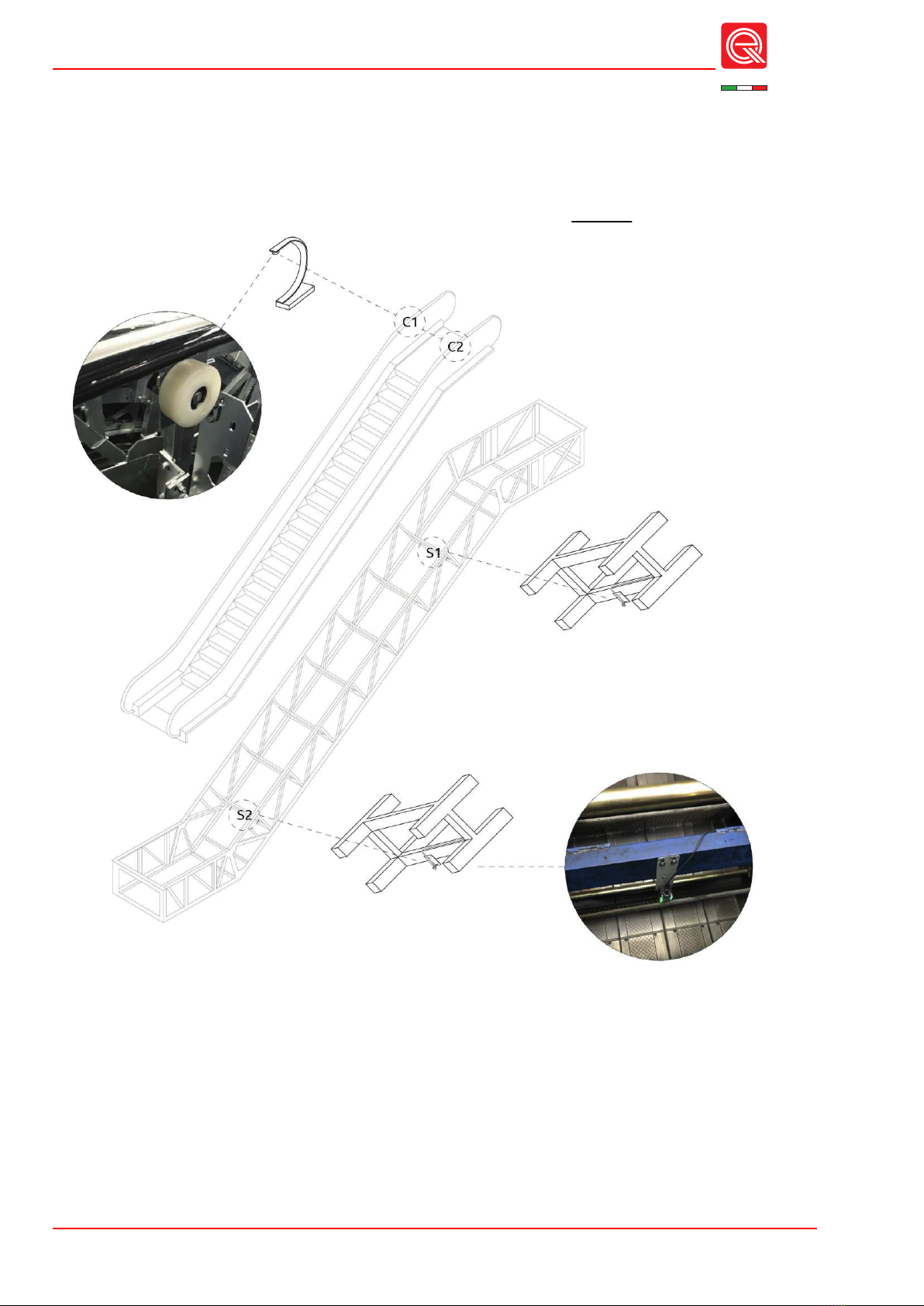

3.5. Sensor layout..........................................................................................................................18
..............................................................................................19
4.1. General warnings ...................................................................................................................19
4.2. Walkway/escalator operang mode ......................................................................................20
4.3. TSM remote terminal (programmer)......................................................................................20
4.4. Entering programming ...........................................................................................................20
4.5. Basic parameters....................................................................................................................21
4.5.1. Type of Motor ............................................................................................................................. 21
4.5.2. Type of manoeuvre ..................................................................................................................... 21
4.6. Miscellaneous mes...............................................................................................................22
4.7. Opons ...................................................................................................................................23
4.8. Automac conguraon of the safety chain with the INSER boards .....................................25
4.9. Set input name .......................................................................................................................25
4.10. Create input name................................................................................................................26
ELETTROQUADRI
SINCE 1983
MP3


0
INSTALLATION MANUAL
© ELETTROQUADRI S.r.l.4 / 32
 ............................................................................................27
5.1. Preparatory operaons ..........................................................................................................27
5.1.1. SM-SIL board calibraon ............................................................................................................. 27
5.2. Commissioning trials and periodic tests.................................................................................28
5.2.1. Uncontrolled movement test ...................................................................................................... 28
5.2.2. Uncontrolled movement test ...................................................................................................... 28
5.2.3. With variable speed drive: Over speed test ................................................................................ 28
 ..................................................................................................29
6.1. General warnings ...................................................................................................................29
6.2. Table of errors ........................................................................................................................29
ELETTROQUADRI
SINCE 1983
MP3

 1
© ELETTROQUADRI S.r.l. 5 / 32
INSTALLATION MANUAL
1 
1.1. 
The Installaon manual is an integral part of the board and must be kept with care and accompany the board
throughout its enre life cycle, right up to nal scrapping.
The manual has been drawn up by the Manufacturer to provide all the necessary informaon to those authorized
to interact with the machine during its expected service life: buyers, installers, expert operators and specialized
technicians.
ELETTROQUADRI S.r.l. declines all liability for improper use of the board and for damages caused as a result of
operaons not considered in this manual or in any case unreasonable.
1.1.1. 
Reproducon of the manual, even paral, and distribuon by any means, unless expressly authorized by the
Manufacturer, is prohibited.
Any unauthorized reproducon will be prosecuted in the manner and mes prescribed by the laws in force.
© ALL RIGHTS RESERVED: copyright on this manual belongs to ELETTROQUADRI S.r.l.
Reprinng, reproducon and translaon, even paral, are prohibited without the wrien authorizaon of
ELETTROQUADRI S.r.l.
The manual cannot be transferred to third pares for viewing without the wrien authorizaon of
ELETTROQUADRI S.r.l.
1.1.2. 
Illustraons of the board are provide for explanatory purposes only and are not binding for the Manufacturer.
The manufacturer reserves the right to make any changes to components, parts and/or supplies for the purpose
of making improvements or for any other reason, without having to update this manual unless said changes
alter machine operaon and/or safety.
IMPORTANT
The Manufacturer reserves the right to make changes without prior noce.
IMPORTANT
Any addions to the manual which the manufacturer deems appropriate to send to users must be
kept together with the manual, becoming an integral part thereof.
ELETTROQUADRI
SINCE 1983
MP3


1
© ELETTROQUADRI S.r.l.6 / 32
INSTALLATION MANUAL
1.1.3. 
The Installaon manual must be kept by a person responsible for said task, in a suitable place, so that it is always
available for consultaon in opmum condion.
It must always be easy to nd and consulted by the skilled operators and must always accompany the board in
the case of transfer or resale.
CAUTION
The manual must be kept with care and replaced if it deteriorates and/or becomes illegible.
1.1.4. 
CAUTION
ELETTROQUADRI S.r.l. shall not be held liable for any misinterpretaon of the informaon contained
herein if prinng has not been executed correctly.
ELETTROQUADRI
SINCE 1983
MP3

 1
© ELETTROQUADRI S.r.l. 7 / 32
INSTALLATION MANUAL
1.2. 
The encharged operators must, under their own responsibility, read this manual carefully before using and
programming the board.
IMPORTANT
Keep this manual for the board's whole life cycle in a known and easily accessible place, so that it is
always available when needed.
1.2.1. 
The logic applied to the page layout of these instrucons is presented and described below.
Key:
A. MANUAL HEADING
B. FOOTNOTES
1. CHAPTER of the Installaon Manual secon - NUMBER and NAME
2. Board model
3. Manufacturer's logo
4. Type of manual
5. Number corresponding to the current page and total number of pages in the whole manual
6. Manufacturer's name and copyright
ELETTROQUADRI
SINCE 1983
MP3


1
© ELETTROQUADRI S.r.l.8 / 32
INSTALLATION MANUAL
1. Title Chapter Title.
(1.“Chapter number”)
1.1. Title Heading.
(1.“Chap. No.” 1.“Heading Number“)
1.1.1. Title Sub-heading.
(1.“Chap No.” 1.“Heading no.” (1.“Sub-heading number”)
1. list Numbered list, for idenfying operaons in succession.
• list Bullet points, for general lists.
The references inside the gures may consist of leers (A, B, C ...) or sequenal numbers (1, 2, 3 ...).
Each gure with a reference may be followed by a Key describing the indicated elements.
1.2.2. 
For the purpose of highlighng important parts of the text or important specicaons, certain symbols have
been adopted, the meaning of which is described below.
GENERIC HAZARD
Indicates situaons of potenal danger that, if overlooked, can seriously endanger people's health
and safety.
GENERAL OBLIGATION
Indicates informaon or a precauon that must be observed to avoid operaons that may damage
the board, or in any case, a part of the text that deserves specic aenon.
IMPORTANT
Indicates technical informaon of parcular importance which should not to be overlooked.
ENVIRONMENTAL NOTE
Indicates the obligaon to dispose of waste materials in an ecological manner.
ELECTROCUTION HAZARD
Indicates situaons of potenal danger that can seriously endanger people's health and safety.
ELETTROQUADRI
SINCE 1983
MP3

 1
© ELETTROQUADRI S.r.l. 9 / 32
INSTALLATION MANUAL
1.2.3. 
Some recurring terms in the manual are described to ensure a more complete understanding of their meaning.
ELETTROQUADRI S.r.l., the manufacturer of the aforemenoned board, will be referred to as the Manufacturer.
Danger zone:
any area inside and/or near the electric cabinet containing the board in which the presence of a person
constutes a risk for the health and safety of said person.
Exposed person:
any person who is completely or parally inside a danger zone.
Installer:
Skilled technician for board installing/programming.

Person responsible for servicing and repairing the board.

safety board.
1.3. 
ELETTROQUADRI S.r.l.
Via Puccini, 1
21050 Bisuschio (VA) - Italy
Tel. [phone] - Fax. + 39 0332 474032
www.eleroquadri.net
ELETTROQUADRI
SINCE 1983
MP3


1
© ELETTROQUADRI S.r.l.10 / 32
INSTALLATION MANUAL
1.4. 
For any assistance, contact the Manufacturer's Assistance Service.
CAUTION
The Manufacturer declines all liability for accidents involving persons or things caused by a failure to
observe the instrucons and regulaons provided in this manual or the non-observance of the safety
and accident prevenon regulaons in force in the country of machine use.
1.5. 
The MP3 and INSER boards warranty is valid for 1 year.
ATTENTION
The Manufacturer declines all liability for accidents involving persons or things caused by a failure to
observe the instrucons and regulaons provided in this manual or the non-observance of the safety
and accident prevenon regulaons in force in the country of machine use.
1.6. 
The board was tested during the producon phases on the manufacturer's premises.
ELETTROQUADRI
SINCE 1983
MP3

 2
© ELETTROQUADRI S.r.l. 11 / 32
INSTALLATION MANUAL
2 
2.1. 
REFERENCE
EN 115-1:2017 for new installaons
UNI 10411-15 April 2015 for upgrades/rebuilds
2.2. 
2.2.1. 
ATTENTION
Consequently, any intervenon which alters board conguraon shall automacally exonerate the
manufacturer from all liability.
Consequently, any use other than those indicated in this manual shall exonerate ELETTROQUADRI S.r.l. from all
liability for any risks which may occur.
2.2.2. 
Before commencing work, the Installer must be fully knowledgeable of board funcon, conguraon, and
technical operang characteriscs.
ATTENTION
Any work to be performed on the board requires maximum cauon from the Installer.
IMPORTANT
Works on the board must be performed in strict observance of operaonal competences. The
Manufacturer declines all liability for any failure to observe said competences.
ATTENTION
During operaons the operator must wear all the necessary Personal Protecve Equipment (PPE).
ATTENTION
The Installer must NEVER perform operaons or manoeuvres on his own iniave which are not
within his sphere of competence and may jeopardize his own safety and that of others.
ELETTROQUADRI
SINCE 1983
MP3


2
© ELETTROQUADRI S.r.l.12 / 32
INSTALLATION MANUAL
2.3. 
Operang personnel are the operators employed to perform installaon, programming and maintenance
acvies depending on specic skills and qualicaons, who, in all cases:
• are fully familiar with the instrucons provided in this document on which they have been specically trained
and instructed;
• have gained sucient experience and knowledge in the specic eld of work.
When one of the following symbols is found at the start of a page or alongside a specic part of the text in this
document, it means the operaons described are the exclusive competence of a specic operator. The symbol
also indicates the level of qualicaon required for the specic operator in queson.
INSTALLER
Person with specic and cered technical qualicaons responsible for electrical work on the
machine who can, in complete autonomy:
• perform maintenance, disassembly, assistance, replacement and reassembly operaons on
electrical parts and equipment;
• pinpoint failures/electrical damage and determine the cause;
• perform calibraon operaons;
• envisage hazards deriving from these operaons.

Expert technician employed by the manufacturer who is suitable and qualied to perform the
same tasks as the Installer.
The Expert Technician is able to perform specic acvies (e.g. mechanical, electrical and
electronic) not covered by the user's sphere of competence and which therefore cannot be
executed autonomously (e.g. supervision of installaon, tesng, adjustments, opmizaon, etc.).
The Manufacturer, if spulated in the contract with the user, may in any case guarantee, if needed,
expert technical intervenon via the aer-sales assistance service.
ELETTROQUADRI
SINCE 1983
MP3

 2
© ELETTROQUADRI S.r.l. 13 / 32
INSTALLATION MANUAL
2.3.1. 
 
SAFETY FOOTWEAR MUST BE WORN
PROTECTIVE GLOVES MUST BE WORN
PROTECTIVE CLOTHING MUST BE WORN
2.4. 
The MP3 board may ONLY be used in walkway/escalator control enclosuresELETTROQUADRI S.r.l..
2.5. 
The board MUST NOT be used:
• for any uses other than those described in heading 2.4 "Correct use".
2.6. 
Even when the safety regulaons and rules of board use are observed as indicated in this manual, the following
residual risks need to be noted:
Residual risk of electrocuon
Risk of electrocuon relang to all parts which remain live when the cabinet is opened.
ELETTROQUADRI
SINCE 1983
MP3

PAGE LEFT INTENTIONALLY BLANK

2
INSTALLATION MANUAL
MP3
© ELETTROQUADRI S.r.l.14 / 32
ELETTROQUADRI
SINCE 1983

 3
© ELETTROQUADRI S.r.l. 15 / 32
INSTALLATION MANUAL
3 
3.1. 
IMPORTANT
To allow the walkway/escalator to be operated during installaon, the control enclosure is supplied
with the SM-SIL safety board controls DEACTIVATED (dipswitches set to ON).
Once installaon is completed, and before commissioning, the safety controls on the SM-SIL board
MUST BE REACTIVATED.
Set the dipswitches to OFF and run the SM-SIL board calibraon procedure (see par. 5.1 - Preparatory
operaons).
ELETTROQUADRI
SINCE 1983
MP3


3
© ELETTROQUADRI S.r.l.16 / 32
INSTALLATION MANUAL
3.2. 
3.2.1. 
3.2.2. 
ELETTROQUADRI
SINCE 1983
UM DM OVLD
M2A
M2B
OK
S1
S2
S3
S4
RX_SY
TXE_P
M1 M2 M3
TX
OK
IN0 IN1 IN2 IN3 IN4 IN5 IN6 IN7
MP3

 3
© ELETTROQUADRI S.r.l. 17 / 32
INSTALLATION MANUAL
3.3. 

    
Single Manoeuvre
Fire services, power contactors, MP3 and SM_
SIL boards, auxiliary contactors, transformer,
fuses, etc.
X
Separate
Manoeuvre MP3 and SM_SIL boards, auxiliary contactors,
transformer, fuses, etc. X
Fire services
panel Fire services, power contactors X
3.4. 
 
standard 
Boom enclosure (boom safety chain contact terminals) X
Top enclosure (top safety chain contact terminals) X
RH/LH handrail monitoring sensors + shielded cable X
Step/segment, speed, direcon sensors + shielded cables X
Miscellaneous equipment cables X
Drive force enclosure X
Error code display X
Photocells/radar for up/down travel start X
No access/permied direcon display X
Manoeuvre panel/re services panel connecon cables X
ELETTROQUADRI
SINCE 1983
MP3


3
© ELETTROQUADRI S.r.l.18 / 32
INSTALLATION MANUAL
3.5. 
ELETTROQUADRI
SINCE 1983
LEGEND:
C
1 LH handrail speed sensor
C
2 RH handrail speed sensor
S
1 Step HIGH presence sensor
S2 Step LOW presence sensor
N.B. Sensors S1, S2 must never be engaged:
-
at the same �me
-
at 50%
MP3

ELETTROQUADRI
SINCE 1983
 4
© ELETTROQUADRI S.r.l. 19 / 32
INSTALLATION MANUAL
4 
4.1. 
INSTALLER
ATTENTION
During operaons the operator must wear all the necessary Personal Protecve Equipment (PPE).
RESIDUAL RISK OF ELECTROCUTION
Risk of electrocuon relang to all parts which remain live when the cabinet is opened.
IMPORTANT
The Manufacturer declines all liability for operaons performed:
• by inadequate personnel;
• without observing the health and safety regulaons in force;
• without observing the procedures provided in these instrucons.
IMPORTANT
Before performing any procedure make sure you have read and understood all the various steps,
seen all the relave images and adopted the safety and protecon measures described.
MP3

ELETTROQUADRI
SINCE 1983

4
© ELETTROQUADRI S.r.l.20 / 32
INSTALLATION MANUAL
4.2. 
• : the walkway/escalator runs connuously in the selected direcon.
• : the walkway/escalator stops aer a set period of me if it does not
detect a passenger, and starts again when a passenger steps on the footplate.
• : the walkway/escalator slows down aer a set period of me if it does not detect a passenger,
and starts running at normal speed again when a passenger steps on the footplate.
4.3. 
The  remote terminal is an external programmer which connects to the  board (connector J4). It has
four buons, as follows:
ESC Returns to the previous menu
SET Enters programming and conrms a seng
▲Scrolls up
▼Scrolls down
4.4. 
To enter programming mode (on the ), hold down the ▲key and press the ▼ key 4 mes.
PROGRAMMING
Basic parameters
Scroll ▲and ▼ to view the following sequence of opons:
PROGRAMMING
Miscellaneous mes
PROGRAMMING
Opons
PROGRAMMING
Automac calibraon
PROGRAMMING
Automac conguraon
PROGRAMMING
Set input name (see par. 4.9)
PROGRAMMING
Create input name (see par. 4.10)
Press SET in the current posion to enter the funcon.
MP3
