ELETTROQUADRI MP3 User manual

INSTALLATION MANUAL
MICROPROCESSOR SYSTEM
MP3
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
ENGLISH
2018
ELETTROQUADRI
SINCE 1983

ELETTROQUADRI S.r.l.
All rights reserved.
Dissemination and/or reproduction, even partial, of this document, in any form, is strictly prohibited. Violators will be
prosecuted to the full extent of the law.
Subject to change.
All trademarks mentioned in this manual belong to the relative manufacturers.
REVISION
REASON FOR REVISION REVISION DATE
1
First Edion 05/12/2018

CONTENTS 0
© ELETTROQUADRI S.r.l.
INSTALLATION MANUAL
3 / 66
 ..........................................................................................................3
.......................................................................................5
1.1. Installaon Manual...................................................................................................................5
1.1.1. Reproducon limits and copyright ................................................................................................ 5
1.1.2. Updates......................................................................................................................................... 5
1.1.3. Care of the instrucons................................................................................................................. 6
1.1.4. How to print the Instrucon Manual ............................................................................................ 6
1.2. How to use this manual............................................................................................................7
1.2.1. Page layout.................................................................................................................................... 7
1.2.2. Symbols ......................................................................................................................................... 8
1.2.3. General denions........................................................................................................................ 9
1.3. Manufacturer's data.................................................................................................................9
1.4. Aer-sales assistance .............................................................................................................10
1.5. Warranty.................................................................................................................................10
1.6. Tesng ....................................................................................................................................10
 .............................................................................................................11
2.1. Reference standards applied ..................................................................................................11
2.2. Safety warnings ......................................................................................................................11
2.2.1. General warnings ........................................................................................................................ 11
2.2.2. Warnings for Installer safety ....................................................................................................... 11
2.3. Idencaon of operang personnel.....................................................................................12
2.3.1. Personal Protecve Equipment................................................................................................... 13
2.4. Correct use .............................................................................................................................13
2.5. Incorrect use...........................................................................................................................13
2.6. Residual risks ..........................................................................................................................13
....................................................................................................15
3.1. First connecon (tensioning the installaon) .........................................................................15
3.2. Inspecon control...................................................................................................................16
3.2.1. Composion of MP3 board ......................................................................................................... 16
3.3. Reset condions .....................................................................................................................17
 ................................................................................................19
4.1. General warnings....................................................................................................................19
4.2. Programming unit (REMP2 remote terminal).........................................................................20
4.2.1. REMP2 programmer display........................................................................................................ 21
4.3. Layout of components in the electrical cabinet .....................................................................22
4.4. Programming the MP3 board.................................................................................................23
4.5. Further REMP2 programmer funcons ..................................................................................32
4.5.1. AP selecon - DMG buon acquision procedure..................................................................... 32
4.5.2. LE selecon - manual car movement .......................................................................................... 32
4.5.3. Fo selecon - Omnibus procedure .............................................................................................. 33
4.5.4. Ec selecon - manual car movement (overtravel test)................................................................ 33
4.5.5. In selecon - uncontrolled movement test ................................................................................. 33
4.5.6. Total block safety protocol table (A3).......................................................................................... 34
4.5.7. Fireman manoeuvre protocols table ........................................................................................... 34
4.5.8. Chain jumper control protocol table ........................................................................................... 34
 ....................................................................................................35
5.1. General warnings....................................................................................................................35
5.2. Fault table and fault nding ...................................................................................................35

ELETTROQUADRI
SINCE 1983
MP3


0
INSTALLATION MANUAL
© ELETTROQUADRI S.r.l.4 / 66
 .........................................................................49
6.1. General warnings....................................................................................................................49
6.2. Necessary Condions for responding to a call .......................................................................49
6.3. Insulaon test.........................................................................................................................50
6.4. Safety chain status check points.............................................................................................50
6.5. Switch funcons .....................................................................................................................50
6.5.1. UM/DM reed contacts ................................................................................................................ 50
6.5.2. RZA / RZB reed switch contacts................................................................................................... 51
6.5.3. DMS / DMD reed switch contacts ............................................................................................... 51
6.5.4. Slowdown / phase plug control at the top and lowest oors (CRS / CRD) .................................. 51
6.6. Board technical specicaons ................................................................................................51
6.6.1. MP3 base board .......................................................................................................................... 51
6.6.2. MPCAB serial board..................................................................................................................... 51
6.6.3. Serial boards in the car and at the oor landings ....................................................................... 52
6.6.4. ACF board.................................................................................................................................... 52
6.7. MP3 board lay-out..................................................................................................................53
6.7.1. LED on MP3 board....................................................................................................................... 53
6.7.2. Inputs / outputs on MP3 basic board.......................................................................................... 54
6.8. MPCAB board lay-out .............................................................................................................56
6.8.1. LEDs on MPCAB board ................................................................................................................ 56
6.8.2. Inputs/outputs on the MPCAB car roof board ............................................................................ 57
6.9. FLSER board lay-out................................................................................................................59
6.9.1. Inputs/outputs on FLSER car and oors board............................................................................ 59
6.10. FLDISP board lay-out ............................................................................................................61
6.10.1. Inputs/outputs on FLDISP car and oors board ........................................................................ 61
6.11. REMP2 layout .......................................................................................................................64
6.11.1. LEDs on REMP2 ......................................................................................................................... 64
6.12. Manoeuvres..........................................................................................................................66
6.13. Connecons for Duplo/Duplex/Triplex/Quadruplex manoeuvres........................................66
ELETTROQUADRI
SINCE 1983
MP3

General information 1
© ELETTROQUADRI S.r.l. 5 / 66
INSTALLATION MANUAL
1 
1.1. 
The Installaon manual is an integral part of the board and must be kept with care and accompany the board
throughout its enre life cycle, right up to nal scrapping.
The manual has been drawn up by the Manufacturer to provide all the necessary informaon to those authorized
to interact with the machine during its expected service life: buyers, installers, expert operators and specialized
technicians.
ELETTROQUADRI S.r.l. declines all liability for improper use of the board and for damages caused as a result of
operaons not considered in this manual or in any case unreasonable.
1.1.1. 
Reproducon of the manual, even paral, and distribuon by any means, unless expressly authorized by the
Manufacturer, is prohibited.
Any unauthorized reproducon will be prosecuted in the manner and mes prescribed by the laws in force.
© ALL RIGHTS RESERVED: copyright on this manual belongs to ELETTROQUADRI S.r.l.
Reprinng, reproducon and translaon, even paral, are prohibited without the wrien authorizaon of
ELETTROQUADRI S.r.l.
The manual cannot be transferred to third pares for viewing without the wrien authorizaon of
ELETTROQUADRI S.r.l.
1.1.2. 
Illustraons of the board are provide for explanatory purposes only and are not binding for the Manufacturer.
The manufacturer reserves the right to make any changes to components, parts and/or supplies for the purpose
of making improvements or for any other reason, without having to update this manual unless said changes
alter machine operaon and/or safety.
IMPORTANT
The Manufacturer reserves the right to make changes without prior noce.
IMPORTANT
Any addions to the manual which the manufacturer deems appropriate to send to users must be
kept together with the manual, becoming an integral part thereof.
ELETTROQUADRI
SINCE 1983
MP3


1
© ELETTROQUADRI S.r.l.6 / 66
INSTALLATION MANUAL
1.1.3. 
The Installaon manual must be kept by a person responsible for said task, in a suitable place, so that it is always
available for consultaon in opmum condion.
It must always be easy to nd and consulted by the skilled operators and must always accompany the board in
the case of transfer or resale.
CAUTION
The manual must be kept with care and replaced if it deteriorates and/or becomes illegible.
1.1.4. 
CAUTION
ELETTROQUADRI S.r.l. shall not be held liable for any misinterpretaon of the informaon contained
herein if prinng has not been executed correctly.
ELETTROQUADRI
SINCE 1983
MP3

General information 1
© ELETTROQUADRI S.r.l. 7 / 66
INSTALLATION MANUAL
1.2. 
The encharged operators must, under their own responsibility, read this manual carefully before using and
programming the board.
IMPORTANT
Keep this manual for the board's whole life cycle in a known and easily accessible place, so that it is
always available when needed.
1.2.1. 
The logic applied to the page layout of these instrucons is presented and described below.
Key:
A. MANUAL HEADING
B. FOOTNOTES
1. CHAPTER of the Installaon Manual secon - NUMBER and NAME
2. Board model
3. Manufacturer's logo
4. Type of manual
5. Number corresponding to the current page and total number of pages in the whole manual
6. Manufacturer's name and copyright
ELETTROQUADRI
SINCE 1983
MP3


1
© ELETTROQUADRI S.r.l.8 / 66
INSTALLATION MANUAL
1. Title Chapter Title.
(1.“Chapter number”)
1.1. Title Heading.
(1.“Chap. No.” 1.“Heading Number“)
1.1.1. Title Sub-heading.
(1.“Chap No.” 1.“Heading no.” (1.“Sub-heading number”)
1. list Numbered list, for idenfying operaons in succession.
• list Bullet points, for general lists.
The references inside the gures may consist of leers (A, B, C ...) or sequenal numbers (1, 2, 3 ...).
Each gure with a reference may be followed by a Key describing the indicated elements.
1.2.2. 
For the purpose of highlighng important parts of the text or important specicaons, certain symbols have
been adopted, the meaning of which is described below.
GENERIC HAZARD
Indicates situaons of potenal danger that, if overlooked, can seriously endanger people's health
and safety.
GENERAL OBLIGATION
Indicates informaon or a precauon that must be observed to avoid operaons that may damage
the board, or in any case, a part of the text that deserves specic aenon.
IMPORTANT
Indicates technical informaon of parcular importance which should not to be overlooked.
ENVIRONMENTAL NOTE
Indicates the obligaon to dispose of waste materials in an ecological manner.
ELECTROCUTION HAZARD
Indicates situaons of potenal danger that can seriously endanger people's health and safety.
ELETTROQUADRI
SINCE 1983
MP3

General information 1
© ELETTROQUADRI S.r.l. 9 / 66
INSTALLATION MANUAL
1.2.3. 
Some recurring terms in the manual are described to ensure a more complete understanding of their meaning.
ELETTROQUADRI S.r.l., the manufacturer of the aforemenoned board, will be referred to as the Manufacturer.
Danger zone:
any area inside and/or near the electric cabinet containing the board in which the presence of a person
constutes a risk for the health and safety of said person.
Exposed person:
any person who is completely or parally inside a danger zone.
Installer:
Skilled technician for board installing/programming.

Person responsible for servicing and repairing the board.

External programming device which connects to the MP3 or MPCAB boards.
1.3. 
ELETTROQUADRI S.r.l.
Via Puccini, 1
21050 Bisuschio (VA) - Italy
Tel. [phone] - Fax. + 39 0332 474032
www.eleroquadri.net
ELETTROQUADRI
SINCE 1983
MP3


1
© ELETTROQUADRI S.r.l.10 / 66
INSTALLATION MANUAL
1.4. 
For any assistance, contact the Manufacturer's Assistance Service.
CAUTION
The Manufacturer declines all liability for accidents involving persons or things caused by a failure to
observe the instrucons and regulaons provided in this manual or the non-observance of the safety
and accident prevenon regulaons in force in the country of machine use.
1.5. 
The MP3 board warranty is valid for 1 year.
CAUTION
The Manufacturer declines all liability for accidents involving persons or things caused by a failure to
observe the instrucons and regulaons provided in this manual or the non-observance of the safety
and accident prevenon regulaons in force in the country of machine use.
1.6. 
The board was tested during the producon phases on the manufacturer's premises.
ELETTROQUADRI
SINCE 1983
MP3

Safety 2
© ELETTROQUADRI S.r.l. 11 / 66
INSTALLATION MANUAL
2 SAFETY
2.1. 
 TITLE
EN 81-20:2014
PAR. 5.11/5.11.2.1.2/ 5.11.2.3
Safety rules for the construcon and installaon of lis - Lis for
transporng persons and property - Part 20: Lis for persons and property
accompanied by persons
EN 81-50:2014 PAR. 5.15 Safety rules for the construcon and installaon of lis - Checks and
tesng - Part 50: Rules for the design, calculaon, checking and tesng of
li components
UNI 10411-1:2014 Modicaons to electric lis not conforming with Direcve 95/16/EC
UNI 10411-2:2014 Modicaons to hydraulic lis not conforming with Direcve 95/16/EC
UNI 10411-3:2016 Modicaons to electric lis installed in conformity with Direcve 95/16/
EC and UNI EN 81-1
UNI 10411-4:2016 Modicaons to hydraulic lis installed in conformity with Direcve 95/16/
EC and UNI EN 81-2
UNI 10411-5:2017 Modicaons to electric lis installed in conformity with Direcve 95/16/
EC or Direcve 2014/33/EU and not conforming with UNI EN 81-1
UNI 10411-6:2017 Modicaons to hydraulic lis installed in conformity with Direcve 95/16/
EC or Direcve 2014/33/EU and not conforming with UNI EN 81-2
2.2. 
2.2.1. 
ATTENTION
Consequently, any intervenon which alters board conguraon shall automacally exonerate the
manufacturer from all liability.
Consequently, any use other than those indicated in this manual shall exonerate ELETTROQUADRI S.r.l. from all
liability for any risks which may occur.
2.2.2. 
Before commencing work, the Installer must be fully knowledgeable of board funcon, conguraon, and
technical operang characteriscs.
ATTENTION
Any work to be performed on the board requires maximum cauon from the Installer.
IMPORTANT
Works on the board must be performed in strict observance of operaonal competences. The
Manufacturer declines all liability for any failure to observe said competences.
ELETTROQUADRI
SINCE 1983
MP3


2
© ELETTROQUADRI S.r.l.12 / 66
INSTALLATION MANUAL
ATTENTION
During operaons the operator must wear all the necessary Personal Protecve Equipment (PPE).
ATTENTION
The Installer must NEVER perform operaons or manoeuvres on his own iniave which are not
within his sphere of competence and may jeopardize his own safety and that of others.
2.3. 
Operang personnel are the operators employed to perform installaon, programming and maintenance
acvies depending on specic skills and qualicaons, who, in all cases:
• are fully familiar with the instrucons provided in this document on which they have been specically trained
and instructed;
• have gained sucient experience and knowledge in the specic eld of work.
When one of the following symbols is found at the start of a page or alongside a specic part of the text in this
document, it means the operaons described are the exclusive competence of a specic operator. The symbol
also indicates the level of qualicaon required for the specic operator in queson.
INSTALLER
Person with specic and cered technical qualicaons responsible for electrical work on the
machine who can, in complete autonomy:
• perform maintenance, disassembly, assistance, replacement and reassembly operaons on
electrical parts and equipment;
• pinpoint failures/electrical damage and determine the cause;
• perform calibraon operaons;
• envisage hazards deriving from these operaons.

Expert technician employed by the manufacturer who is suitable and qualied to perform the
same tasks as the Installer.
The Expert Technician is able to perform specic acvies (e.g. mechanical, electrical and
electronic) not covered by the user's sphere of competence and which therefore cannot be
executed autonomously (e.g. supervision of installaon, tesng, adjustments, opmizaon, etc.).
The Manufacturer, if spulated in the contract with the user, may in any case guarantee, if needed,
expert technical intervenon via the aer-sales assistance service.
ELETTROQUADRI
SINCE 1983
MP3

Safety 2
© ELETTROQUADRI S.r.l. 13 / 66
INSTALLATION MANUAL
2.3.1. 
 
SAFETY FOOTWEAR MUST BE WORN
PROTECTIVE GLOVES MUST BE WORN
PROTECTIVE CLOTHING MUST BE WORN
2.4. 
The MP3 board may ONLY be used in electrical li control cabinets ELETTROQUADRI S.r.l..
2.5. 
The board MUST NOT be used:
• for any uses other than those described in heading 2.4 "Correct use".
2.6. 
Even when the safety regulaons and rules of board use are observed as indicated in this manual, the following
residual risks need to be noted:
Residual risk of electrocuon
Risk of electrocuon relang to all parts which remain live when the cabinet is opened.
ELETTROQUADRI
SINCE 1983
MP3

PAGE LEFT INTENTIONALLY BLANK

2
INSTALLATION MANUAL
MP3
© ELETTROQUADRI S.r.l.14 / 66
ELETTROQUADRI
SINCE 1983

Installation 3
© ELETTROQUADRI S.r.l. 15 / 66
INSTALLATION MANUAL
3 INSTALLATION
3.1. 
To move the plaorm inside the sha, before the safety contacts are installed, make the following connecons:
• R, S, T, GND, neutral;
• motor and brake or solenoid valves (for a variable speed drive, connect the shielded cable between the
cabinet and the motor);
• motor thermistors between the TP and GND terminals;
• jumper terminals 1, 2 (RM minicontactor excitaon);
• starng from terminal 2, the series of the ALT buon with the UP and DOWN buons connected with
terminals 2S or BQS and 2D or BQD respecvely;
• jumper terminals 3, 8, 9, 11, 13, 14, CRS, CRD.
IMPORTANT
For the numbers of the terminals, refer to the system's wiring diagram.
CAUTION
Before pung into operaon remove all jumpers previously wired.
IMPORTANT
If using bistable phase plugs with AUXILIARY RELAYS, jumper +24, CRSB and CRDB (instead of CRS,
CRD).
The response to the UP or DOWN commands is described in heading 3.2 - Inspecon control.
ELETTROQUADRI
SINCE 1983
MP3


3
© ELETTROQUADRI S.r.l.16 / 66
INSTALLATION MANUAL
The inspecon control is acvated when the car top inspecon switch is switched from “NOR” to “” posion.
 relay is energized and sends the informaon that inspecon control has been acvated to terminal
 of the board; “HH” signal will appear on board display. 
which actuates the control signals received from the inspecon control panel as follows:
• Inputs J7/1 (▼) and J7/2 (▲) receives the control signals from the “down” and “up” buons (if both
signals are present, no control signal is output).
• The same buons, via their diodes, terminal 2A or BSQ/BQD and the RM contact, power the safety chain; the
board checks for voltage at input J7/8 (led D3 REMP2) and outputs the close doors signal.
• When full closure of the safety chain is conrmed via the pick-up point at input J7/10 (led D4 REMP2), the
slide and contactors are acvated.
• Depending on the signals at inputs J7/1 (▼) and J7/2 (▲) the board acvates the high speed+down
outputs (GV+D) or high speed+up outputs (GV+S) and monitors their excitaon and de-excitaon as in
normal operaon.
• To prevent repeated jog operaon in a single direcon of travel and immediate reversal of direcon, a delay
of 1 second has been introduced between the release of a buon and the response of the board to the next
operaon of the same or another direcon buon.
• The faults indicaon is also acve during the inspecon acvity.
• The run of the car is limited by CRS and CRD mechanical switches or by bistable CRSB / CRDB switches at the
top and boom oors.
• Once the inspecon is completed, the car, if it has been moved, resets to the lowest oor, or to its former
desnaon.
3.2. 
3.2.1. 
ELETTROQUADRI
SINCE 1983
UM DM OVLD
M2A
M2B
OK
S1
S2
S3
S4
RX_SY
TXE_P
MP3

Installation 3
© ELETTROQUADRI S.r.l. 17 / 66
INSTALLATION MANUAL
3.3. 
The board looses knowledge of the car posion under the following condions:
• Loss of power.
• Aer inspecon control (when the car has been moved).
• When reset buon on the board is acvated.
• Aer board programming sequence or mers adjustment.
• When CRS/CRD (or CRSB/CRDB) slowing down commands are acvated due to car out-of-step condion.
• Aer faults where reset to the lowest oor is needed.
The reset sequence will always bring the car to lowest oor; dierent condions are possible:
• Car already at the lowest oor (UM/DM led on and CRD or CRDB reset contact open): the reset happens
without moving the car.
• Car slightly higher than the lowest oor (CRD or CRDB reset contact open): the car moves down at low
speed, and stops when it encounters both magnec strips at the lowest oor level.
• Car in higher posion in the sha (CRD or CRDB reset contact closed): the car moves down at high speed, and
stops when it trips the lower CRD reset contact; it restarts down at low speed, and stops when it encounters
both magnec strips at the lowest oor level.
IMPORTANT
There is the possibility of “uninterrupted reset” sequence (i.e.without stop and restart); simply modify
parameter t0 (see heading 4.4 “MP2 board programming”) to the car speed (m/s) and replacing the
exisng DM slowdown magnec strip at lowest oor with a new one 30 cm long. If needed adjust
the P6 parameter to delay its acvaon.
• Car slightly lower than lowest oor level (UM led on and CRD or CRDB reset contact open):
▪ Hydraulic: the car relevels in the up direcon.
▪ Rope li: the car moves up direcon at low speed and stops when it encounters both the magnec
strips.
IMPORTANT
If the main oor is not the lowest oor, the reset described above will conclude with the car returning
to the main oor.
ELETTROQUADRI
SINCE 1983
MP3

PAGE LEFT INTENTIONALLY BLANK
3
INSTALLATION MANUAL
MP3
© ELETTROQUADRI S.r.l.18 / 66
ELETTROQUADRI
SINCE 1983

ELETTROQUADRI
SINCE 1983
Programming 4
© ELETTROQUADRI S.r.l. 19 / 66
INSTALLATION MANUAL
4 
4.1. 
INSTALLER
ATTENTION
During operaons the operator must wear all the necessary Personal Protecve Equipment (PPE).
RESIDUAL RISK OF ELECTROCUTION
Risk of electrocuon relang to all parts which remain live when the cabinet is opened.
IMPORTANT
The Manufacturer declines all liability for operaons performed:
• by inadequate personnel;
• without observing the health and safety regulaons in force;
• without observing the procedures provided in these instrucons.
IMPORTANT
Before performing any procedure make sure you have read and understood all the various steps,
seen all the relave images and adopted the safety and protecon measures described.
MP3

ELETTROQUADRI
SINCE 1983
REMP2
UP
DW
PROGR ENT/RST

4
© ELETTROQUADRI S.r.l.20 / 66
INSTALLATION MANUAL
4.2. 

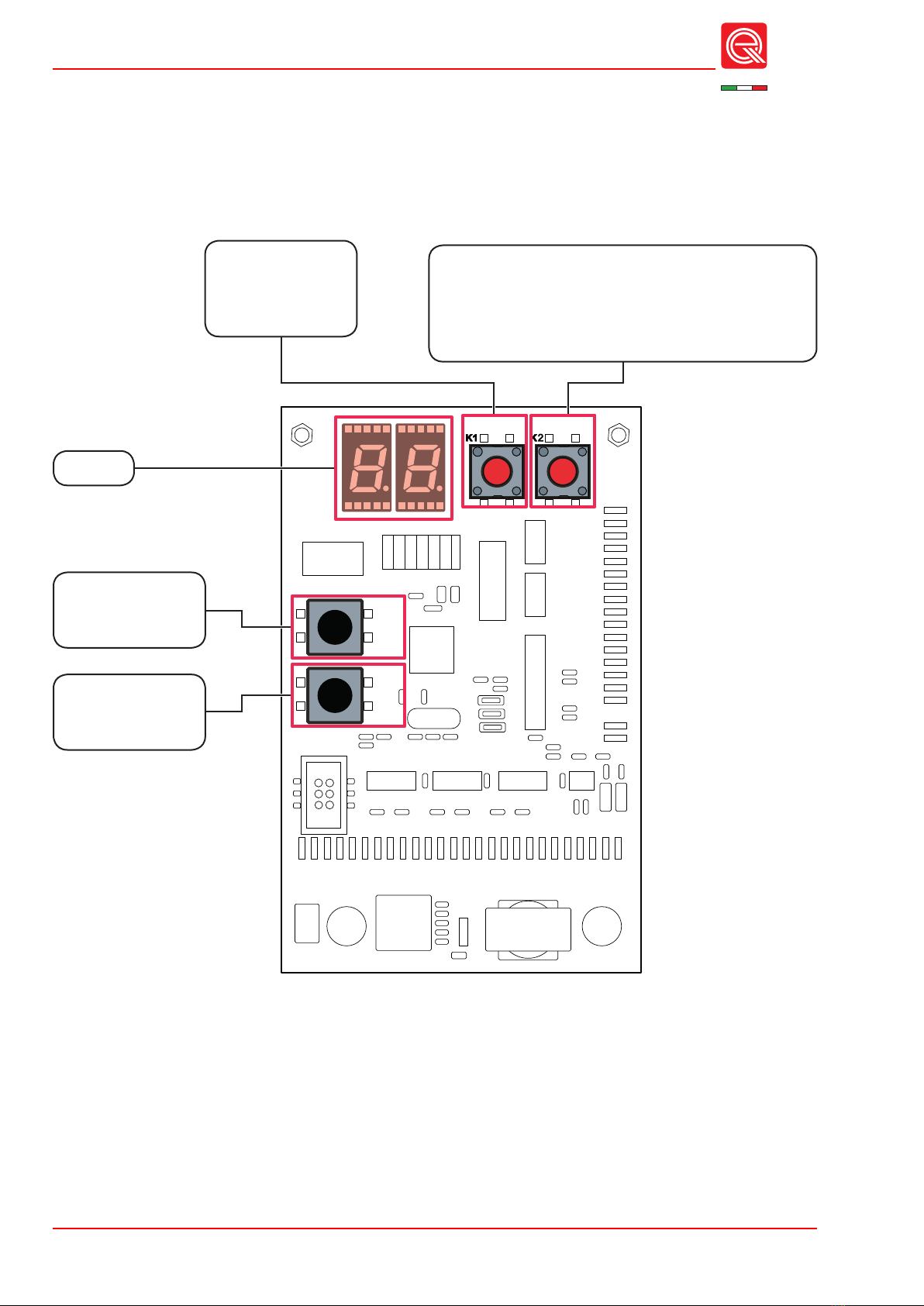

The REMP2 remote terminal is an external programmer which connects to the MP3 board (connector J4) or
MPCAB board (connector J4).

Select the opons
in the item.
ENT/RST
Select an item and conrm the selected opons by
moving to the next item.
The display will show the items and their selected
opons alternately.

Increases the
displayed value.
DW
Decreases the
