Elife AIR User manual
POWER ASSISTED BICYCLES
OWNERS MANUAL
POWER ASSISTED BICYCLES
Welcome to the World of e.bike cycling.
Simply explained this is how your e.life bike basically works.
1. Switch the battery to ON, with the switch on the side left-hand side of the
frame, to the front of the bike.
2. Switch the power on by pressing the top left button on your controller on
the handlebars.
2.
the wheels of your bike.
3. After one complete turn of the pedal the electric motor kicks in making
pedaling much easier.
4. There are 9 setting on your controller on the handlebar, allowing you to set
the level of assistance you require.
For example: Riding up a hill you’ll probably use‘High’, mode.
5. Change the level of assistance you need at any time and as often as you wish.
6. The motor works to assist pedalling, stop pedalling and the motor stops too.
7. Applying the brakes cuts the motor
8. You can also choose to switch the assist OFF and ON on the controller at any
point in your journey. This helps to save battery power when its not needed.
should be able to obtain around 20 miles, before you need to re-charge your battery.
We Recommendthat you get used to your new e.life bike and the level of assit you place on it,
you’ll soon be able to work out how long a journey you can make and safely return under assist.
You can of course ride as you would a normal bike if the charge runs out.
Firstly may we congratulate
you on purchasing your new
electric power assisted e.bike.
Please take time to read your
manual. We have tried to write
it in a way that is simple and
easy to follow, whilst
explaining how your bike
works and how it is
maintained.
At any point if you feel you
need help we have a tehnical
helpline for support.
2
Please call our
Technical help line:
01702208187
(weekdays 9am-5pm)
(standard call rate charge applies)
(Fig.14)
(Fig.18)
(Fig.15)
(Fig.15)
POWER ASSISTED BICYCLES
INDEX
Page 2 Welcome to E.Life
Page 3 Index & Check List
Page 4 Unpacking your new E.Life
Page 4-6 Unfolding your E.Life
Page 6 Fitting the saddle
Page 7 Pre-Ride checks
Page 7 Getting Started
Page 8 Understanding your controller
Page 9 Understanding your Battery
Page 10 Charging your Battery
Page 11 Maintenance of your E.Life

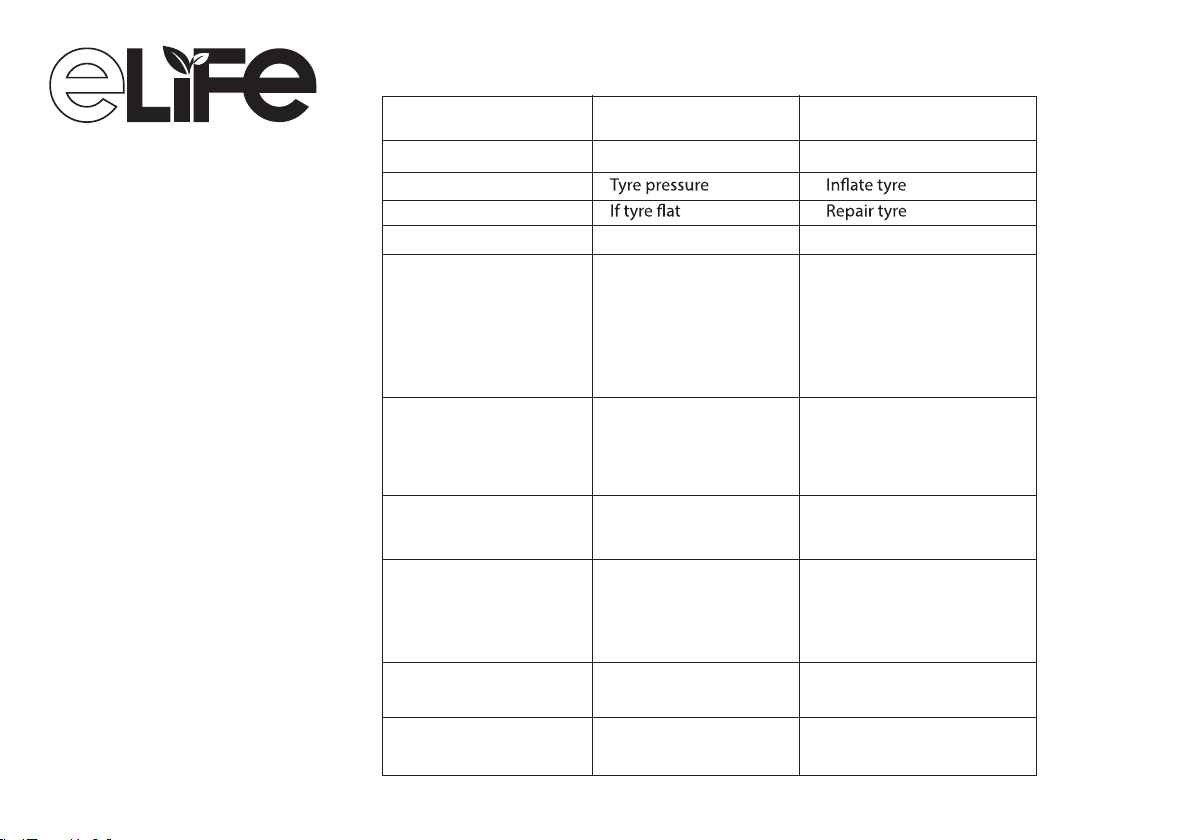

Page 12 Simple Troubleshooting
Page 13 Warranty
Page 14 Replacement Batteries & Chargers
Page 15 National Service Centre
IMPORTANT!
PLEASE REMEMBER THAT
IT IS IMPORTANT TO KEEP
THE CARTON YOUR BIKE
ARRIVED IN , COURIERS
CANNOT COLLECT YOUR
BIKE WITHOUT A CARTON
SHOULD YOU HAVE NEED
TO RETURN IT TO US.
Contents check list
1. Your E.Life
2. Saddle & Seatpost
2. Box containing:
a. Battery Charger
b. Battery Lead
3. Box containing:
a. Tool kit and bag
b. This Manual
Please call our
Technical help line:
01702208187
(weekdays 9am-5pm)
(standard call rate charge applies)
( attached to handlebar cables)
4. Set of Keys
3
There are video tutorials online or on Ideal World’s
website designed to assist you if you need help.
POWER ASSISTED BICYCLES Your bike comes 100% assembled in the Carton
1. Before you begin to unpack your e.bike we recommend you get another
person to assist you as it s much easier with 2 persons to lift out of the box.
2. Remove all the packing materials used to protect the bike and dispose of it
later in a responsible manner.
3. Once you have unpacked the bike it is a good idea to check to make sure
there has not been any damage in transit. ( If you nd anything missing or
damaged, contact Ideal World customer services)
idealworld.tv › gb/self-service

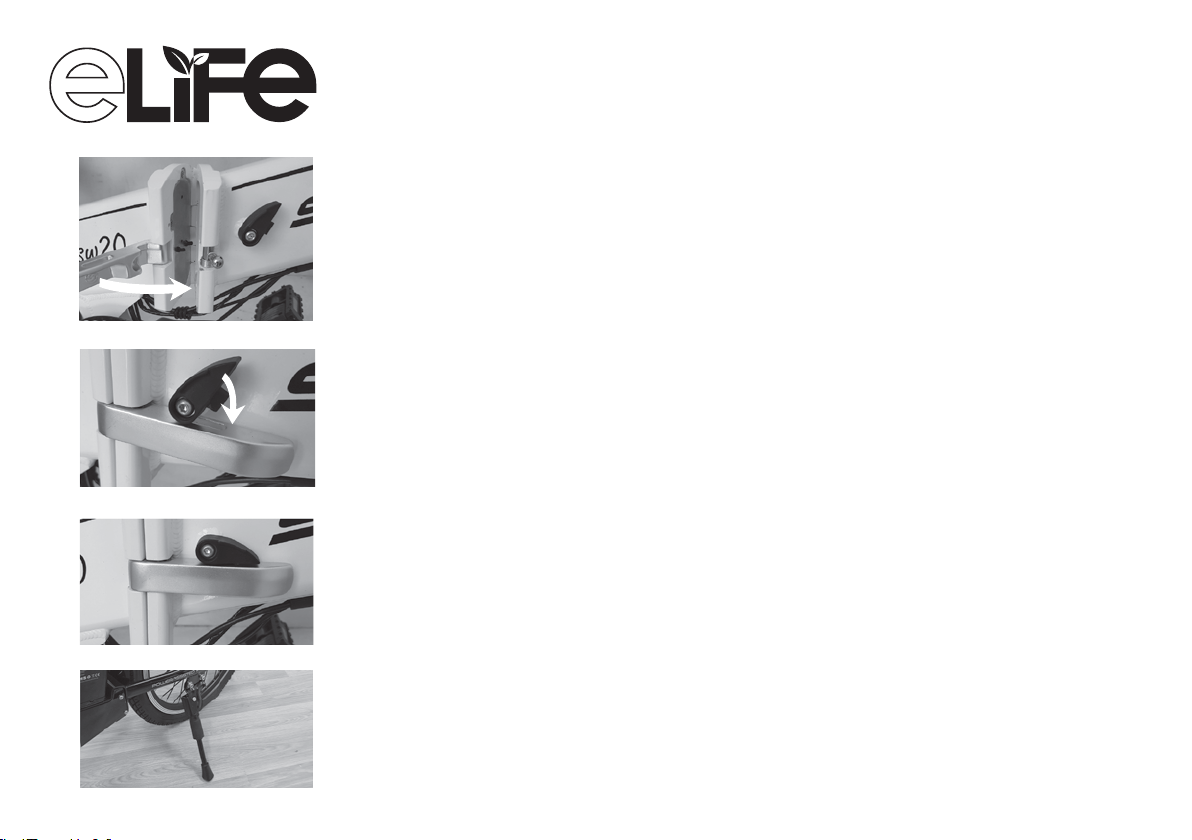

Step 1. Frame
1. Unfold the frame until the 2 sections are inline
2. Push the large lever towards the fame to lock together
3. Turn the Black security clip clockwise until covers the pin on the Lever,
this prevents the Lever from opening.
4. To fold your frame for transport of storage simply reverse steps 1-3.
PLEASE NOTE:
When you have unfolded your frame its a good idea to rest your bike on the bike
stand which is attached to the left rear chainstay, this makes it much easier to
complete the other steps.
Unpacking your new e.bike
Unfolding your e.bike
4
Fig.1
(Fig.1)
Fig.2
(Fig.2)
Fig.3
(Fig.3)
Fig.4
(Fig.4)
POWER ASSISTED BICYCLES

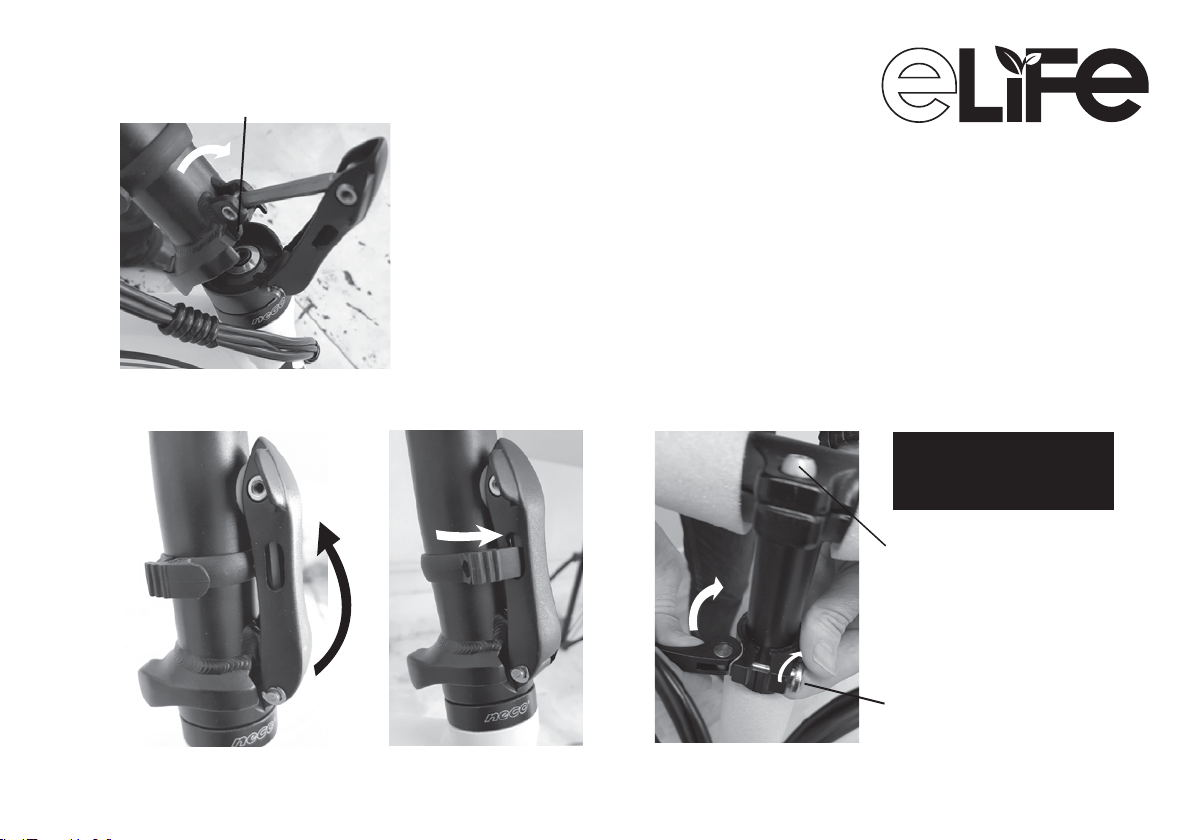

Step 2. Handlebars and Stem
1. Unfold by lifting the handlebars and Stem until it is sitting vertically.
2. Raise the clamp arm up towards the stem to lock inplace. ( can be a little
sti, so please push hard )
3. Rotate the security ring until the arm of the security ring slides into the slot
on the clamp arm.
4. Should you need to align the front wheel with the handlebars untighten the
central allen key bolt - align - and re-tighten.
5. To adjust the height of the handlebars simply release the quick release by
lifting the arm outwards as shown, if extra tightness is required turn the
knurled nut clockwise till required tightness is obtained.
Unfolding your e.Life
5
(Fig.5)
(Fig.5)
(Fig.8)
(Fig.6)
(Fig.7)
Fig.5
Fig.7
CENTRAL Allen key
bolt for adjustment
Fig.6 Fig.8
There are video tutorials online
or on Ideal World’s website
designed to assist you if you
need help.
Knurled adjustment nut a
quater of a turn until required
tightness is obtained.
Handlebar position can be adjusted
by simply slackening of the 2 allen
key bolts, retighten evenly.
POWER ASSISTED BICYCLES
Unfolding your e.bike

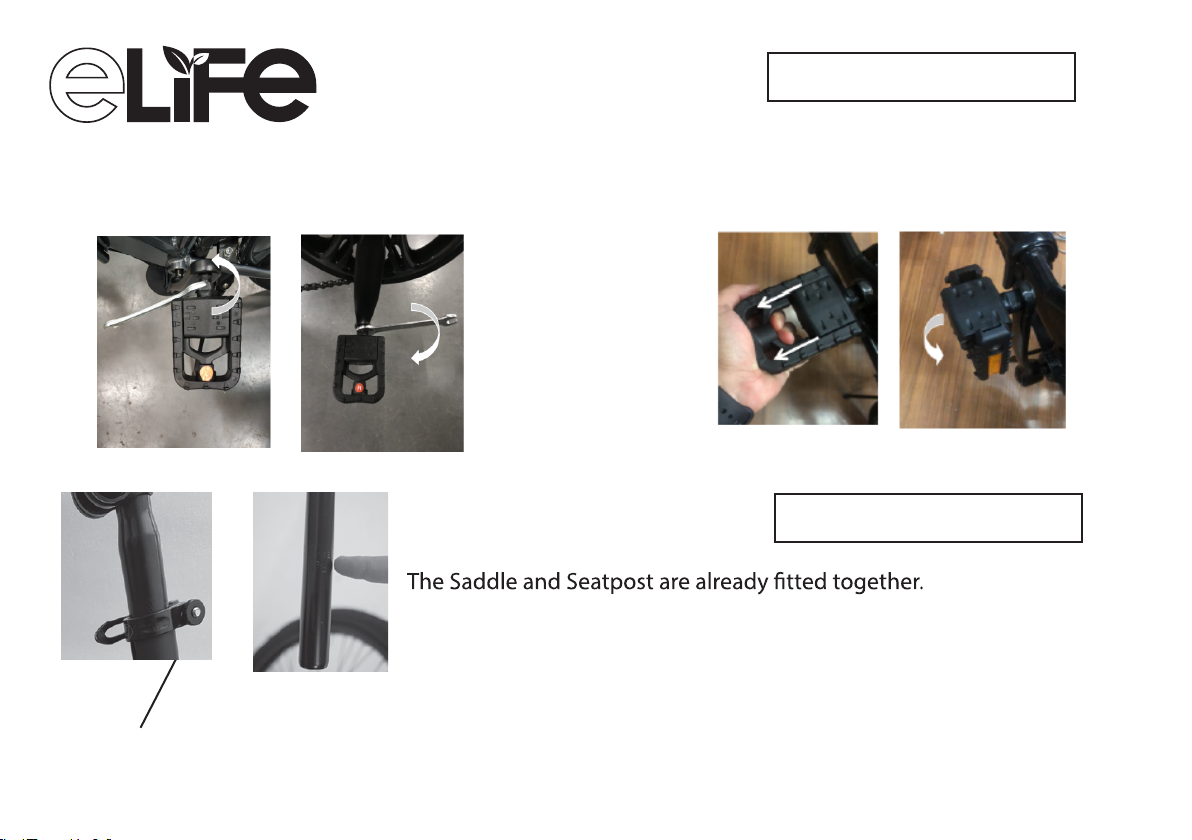

Step 3. Pedals
2. Slide the seatpost into the seatbube and close the tension lever
on the quick release clamp to lock your seat in place.
3. Adjust the saddle height to suit you by releasing the clamp and tightening
when at the correct height.
4. If the clamp does not tight enough to hold the saddle in position simply
release the tension lever and turn a quater of a turn on the wheel nut and
close the tension lever. Repeat as necessarry.
Fitting the Saddle NOTE: Be sure not raise the seatpost higher than
the minimum insertion mark clearly on the
seatpost.
NOTE: Should you ever need to replace the pedals
remember the right pedal tightens clockwise and
the left pedal anti-clockwise.
6
(Fig.11)
Fig.11 Fig.12
(Fig.12)
Knurled adjustment nut a
quater of a turn until required
tightness is obtained.
Fig.9
1.To install the pedal, the right hand pedal
should screw in CLOCKWISE and the left-
hand screw in ANTI-CLOCKWISE.(Fig 9)
Fig.10
2.To fold the pedals for storage or
transportation, pull the pedal outwards
and fold downwards. (Fig10)
7
Complete these checks before every ride
1. Check to make sure all nuts/fastenings are tight
2. Check that your tyres are inated suciently (see tyre wall )
3. Check that the brakes are working correctly. (These are set by the factory
and should not require adjusting).
4. Check your battery for charge.
(Note: Your new e.life battery is supplied with a partial charge)
Pre-Ride Checks
1. Switch the battery on with the switch on the front left-hand side of the
frame.
2. Press top button on the Controller on your handlebars
3. ‘MODE’ is set on ‘1’ - This is a default setting.
THAT‘S IT........You’re ready to go.
4. To start , simply begin to pedal. Once the crank is turning you will feel the
motor kick-in and the elctric system begin to assist you.
5. You have 9 levels of assist and its a good idea to try all levels to give you a
feel of the eect this has on your riding.
6. Remember, stopping pedalling or braking cuts the motor assist, so you can
always feel safely in total control.
Getting Started
POWER ASSISTED BICYCLES
Fig.14
(Fig.18)
(Fig.15)
(Fig.15)

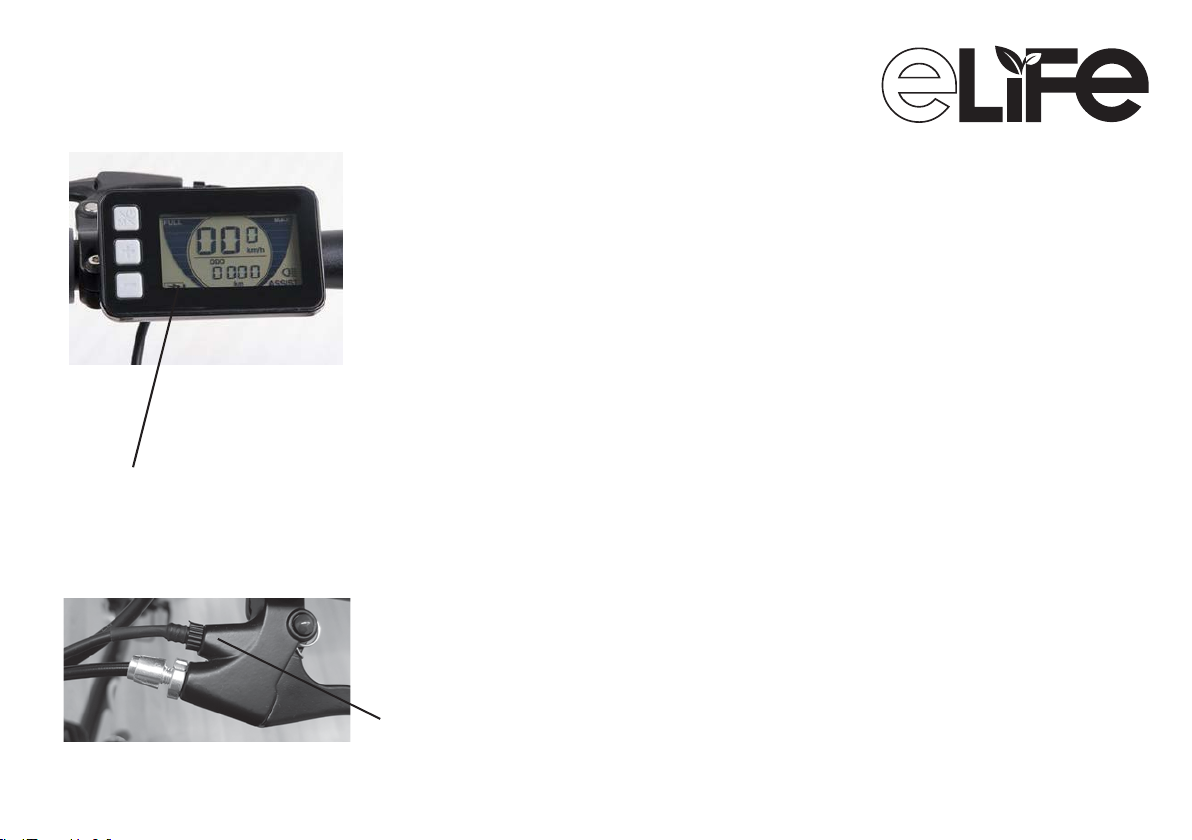

Applying the brakes activates the brake sensor which
cuts the power to the motor.
Fig.13
The Battery charge level is shown
on the Control module on your
handlebar.
8
Fig.15
POWER ASSISTED BICYCLES

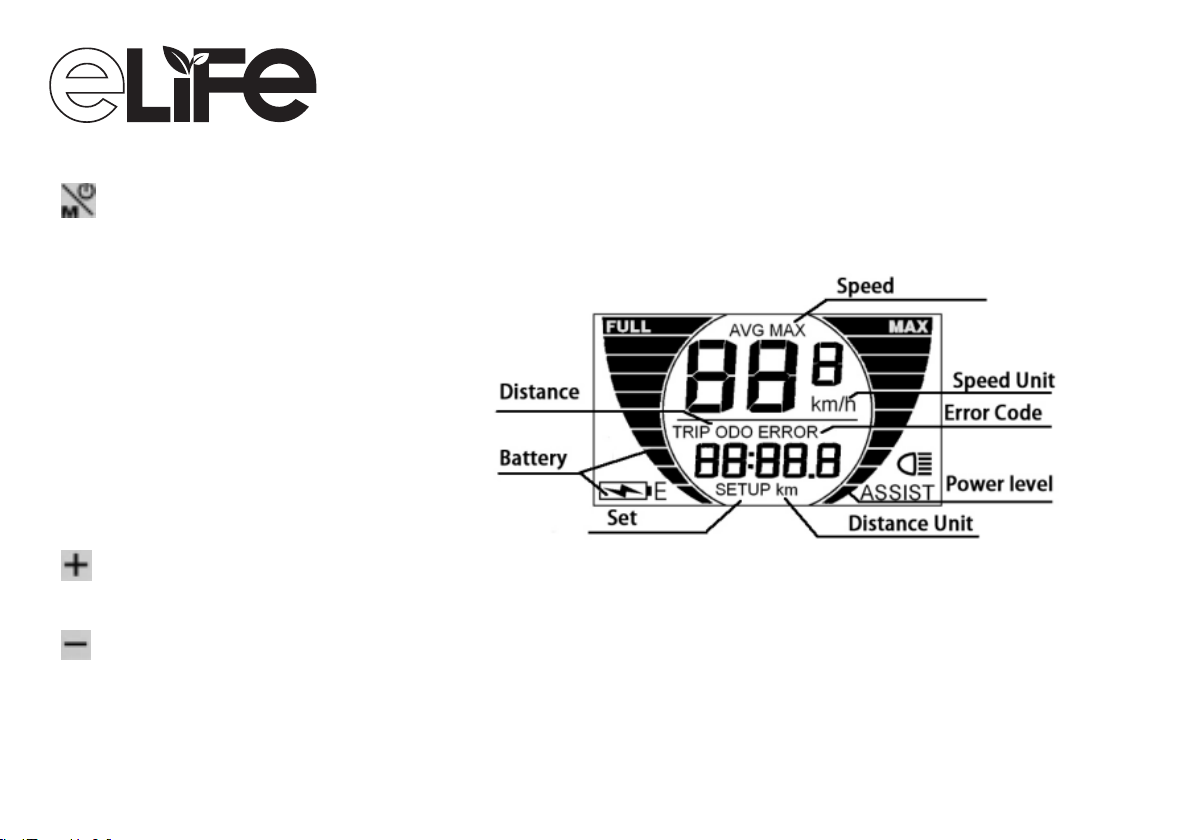

Understanding your controller
Your Module Controller has many functions and is relatively simple to use, to the left is
listed the the buttons and their various functions.
Press to switch ON/OFF
Light click press activates
these functions:
Press to increase assist
level 1-5.
Press to reduce assist
level 5-1.
Holding down this button activates the ‘WALK MODE’ which engages
the motor from a standing start up to 6KM which is a great way to set
of from traffic lights, or when walking with your bike.
◆Battery Voltage
◆Speed (Real-time speed, Average
speed and Max speed)
◆Trip distance and Total distance
◆PAS Level
◆Headlight Status
◆Error Code
◆Various parameters settings, such as
wheel size, speed-limit, backlight
brightness and so on.
POWER ASSISTED BICYCLES

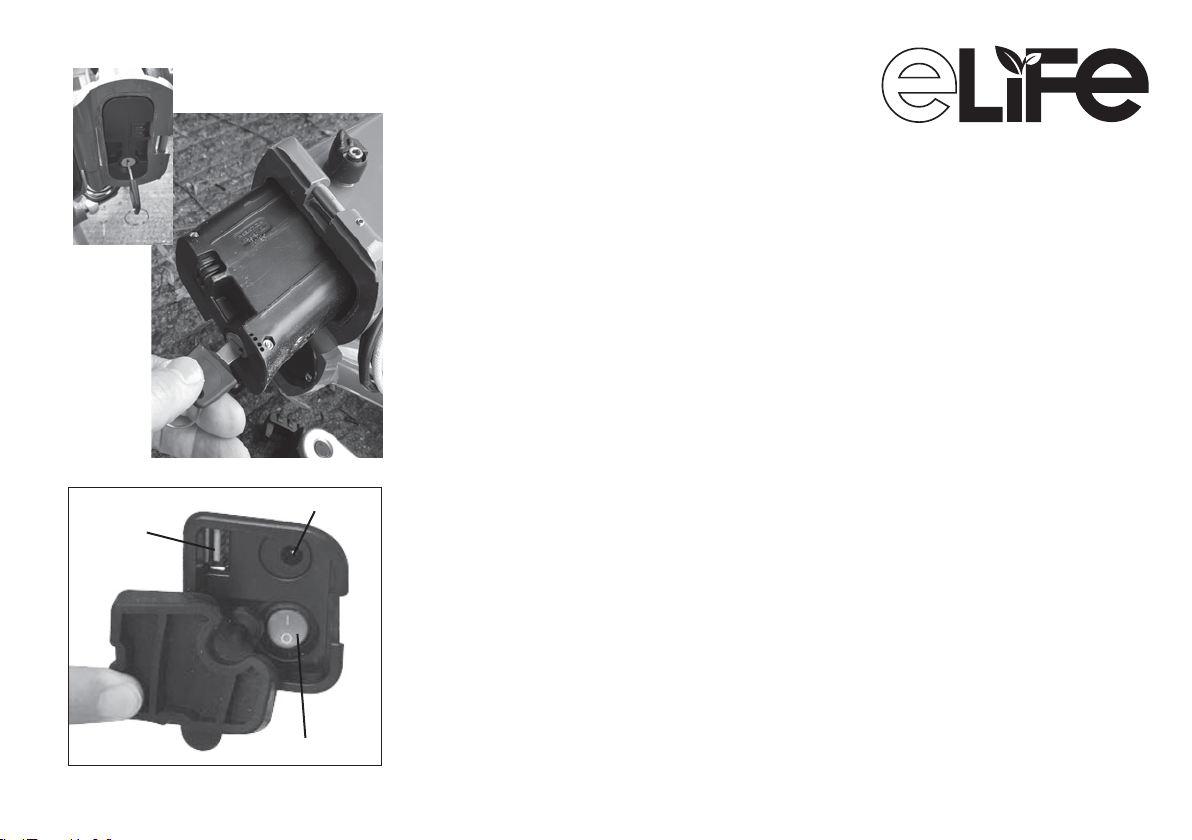

1. Security
1. You are supplied with 2 keys to secure your battery to your bike.
It is advisable to seperate the keys as they cannot be replaced if lost.
2. Release the Quick release mechanism and open the hinged frame, insert the
key and unlock the battery enabling you to remove for security
or to charge away from the bike.
3. Once unlocked the battery is withdrawn from the frame to replace simply
reverse the procedure.
2. Battery operation
1. Switching ON/OFF is by way of a switch on the front left-hand side, which
lies under a rubber cover
Remember to swith OFF when not in use as this may drain the battery
2. Pulling back the cover also reveals the battery charging port and USB
charging port which can be used for devices such as mobile phones.
3. Battery Charger
1. NOTE: Only charge your battery with the Charger supplied with your e.life
The charger is set to 220/240V. Never use 110v setting.
2. Avoid dropping the Charger as this may damage the sensitive electronics
within the casing.
3. You can leave the battery charging, it will stop charging by itself when it has
reached full charge, but it is not recommended to leave charging for any
considerable time over what is required.
Understanding your battery
9
Fig.18
(Fig.16 and 17)
(Fig.18 )
Fig.16
Fig.17
Charging port
ON/OFF switch
USB port

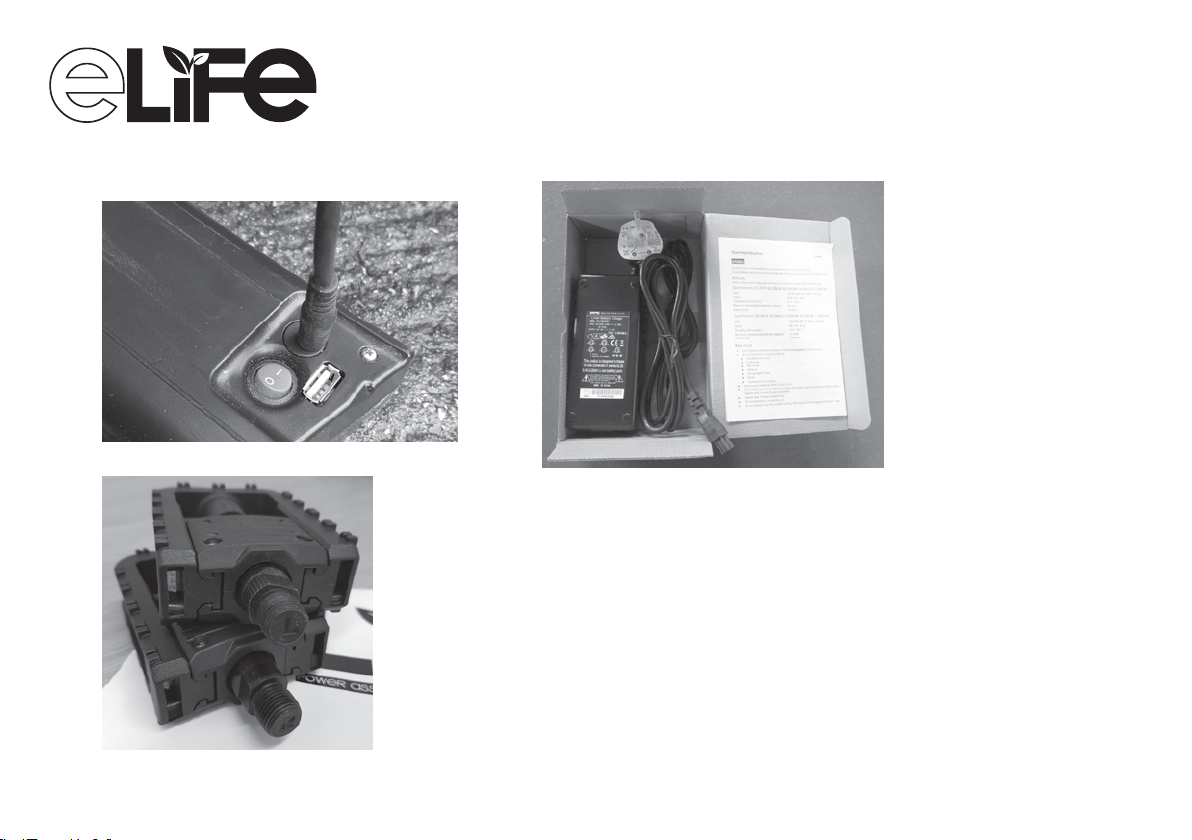

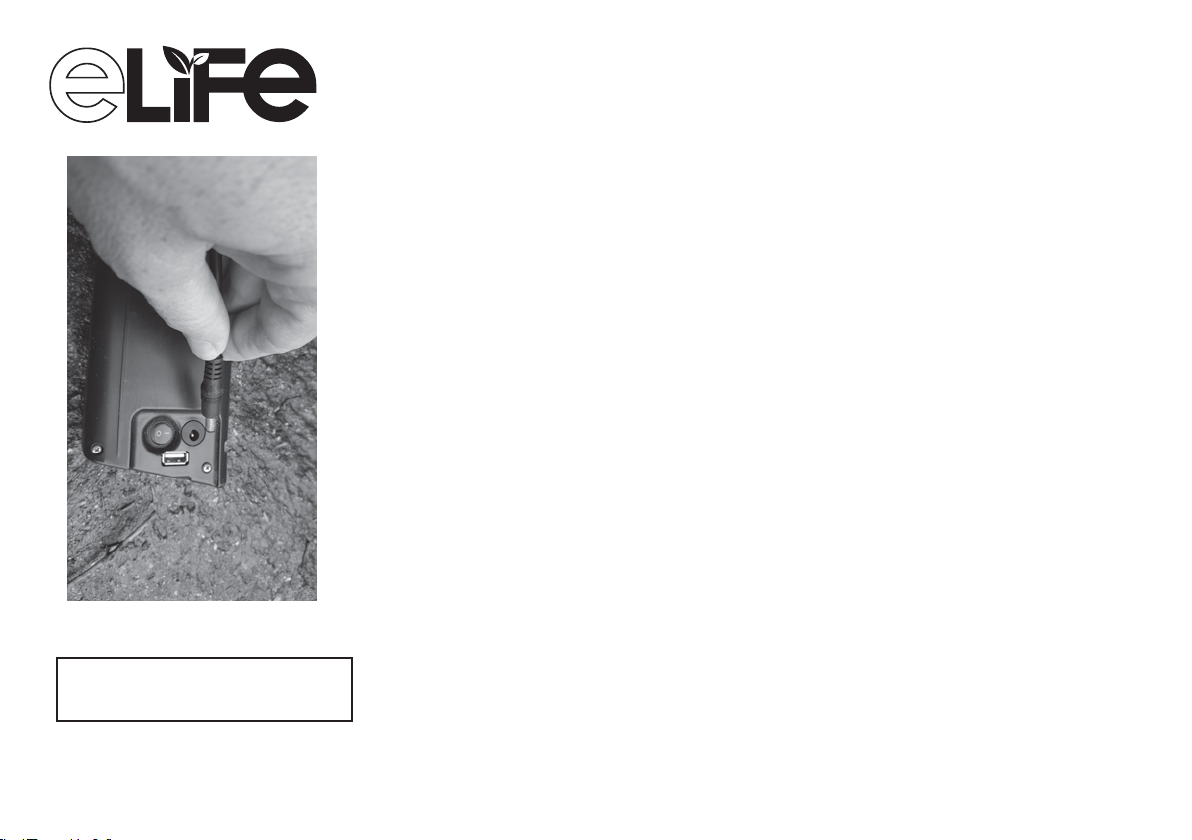

POWER ASSISTED BICYCLES Your Lithium Battery arrives partially charged.
Your Battery can be charged on or o your bike.
1. Plug your charger into the mains, the LED light will illuminate GREEN
2. Connect the charger to the battery using the lead provided, the LED light on
the charger will change to RED. This indicates it is charging.
3. Once Fully charged the LED light on the charger switches back to GREEN
indicting the battery is fully charged, and then goes o.
Basic rules to follow when charging your battery
1. Do not cover chrger with any material of substance that may restrict airow
to the charger. The charger needs to‘Breath’ to keep cool.
2. Charging your battery each time you use it no matter how far the trip, will
prolong the life of the battery.
3. DO NOT leave the battery discharged for long periods.
4. Never open the charger or change settings on charger.
Charging your Battery
To fully charge your battery
takes approx. 2-3 hours
10
Fig.21
Fig.19
General
1. Wipe your bike over with a dry cloth, or neutral detergent.
2. Use lubrication oil for metal parts. i.e. chain, axles.
3. Wipe down Plastics, paint coated parts with a quality cloth.
4. Increase the frequency of lubricating oil at wet or hummid areas
( Recommend 30SAE lubricating oil)
Weekly Inspection
It is recommended that after this period you should inspect your bike as
things will slacken o and need re-tightening.
3 Month Inspection
We recommend after 3 months you complete a full service on your
bike to keep it in excellent working order. The simplest way is to take into
your local bike shop.
When stored and not in use remove the battery and store in a cool, dry
place, charging periodically as the battery will discharge over time of non
use. Failure to do this will result in the battery falling into a dormant state
rendering the battery unrepairable.
PLEASE NOTE:
If you do not feel that you can complete the maintenance of your bike, please
take it to your local bicycle workshop where they will be able to asist you.
Maintenance of your e.bike
POWER ASSISTED BICYCLES

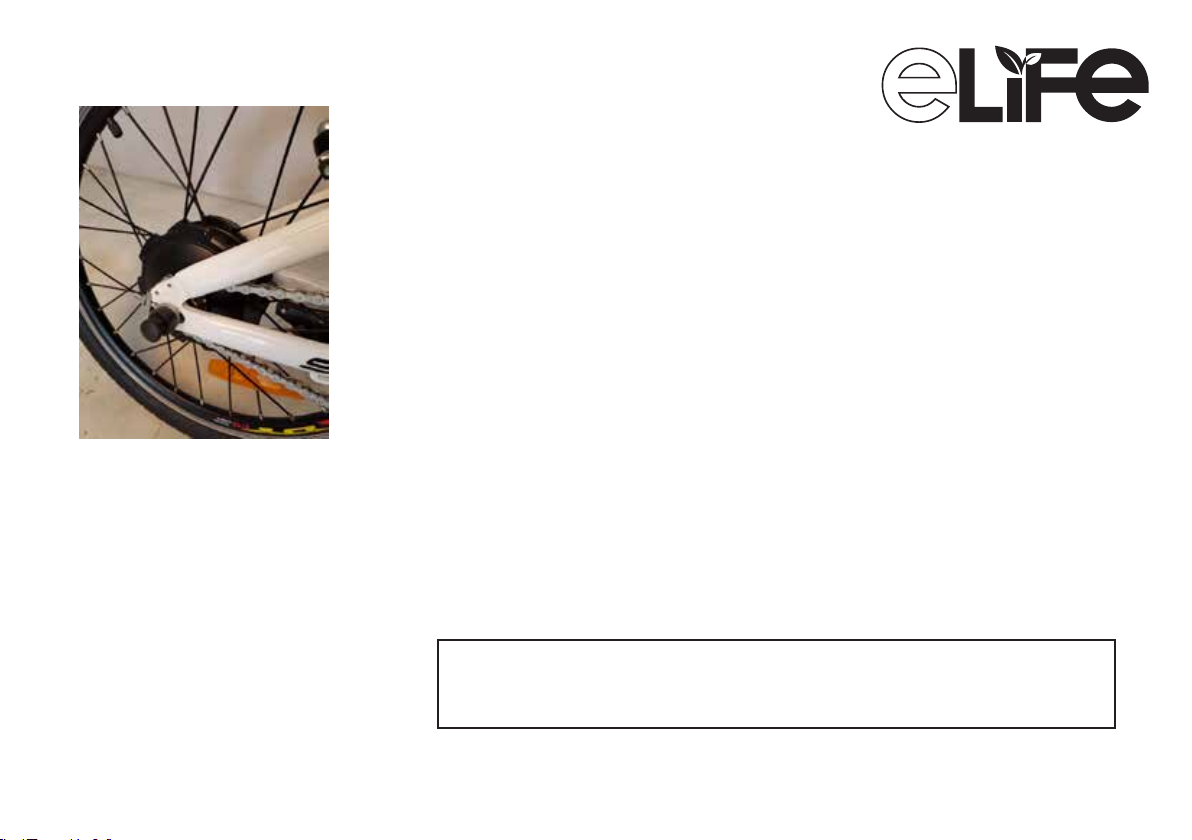

It is ok to oil the front and rear axles
and chain . The Motor should not be
lubricated.
11
Please call our
Technical help line:
01702208187
(weekdays 9am-5pm)
(standard call rate charge applies)
POWER ASSISTED BICYCLES
Simple Troubleshooting
Problem Check Action
Low Speed battery power Charge Battery
Load Do not overload
The Motor is not Every plug Ensure every plug is
working connected
Power indicator Check the sensor is
light does not still in place on the
come on on the bottom bracket
Contact Helpline
Power indicator on Loose wiring or Checkwiring and
battery is on,but connection. connections,
the bike doesn’t check Sensor as above
work. Contact Helpline.
Reduce battery Is the battery
performance. fully charged?
Charger not giving Check the light on
full charge. charge remains
RED during
charging period?
Low Battery power charger works Replace Battery.
correctly?
Brakes loose Cable tension Take to cycle shop
Worn blocks for service.
If NOT, charge fully.
If NOT, replace charger
If unsure on any of these
points, or you fail to correct
the problem, please call the
helpline who will be able to
advise you.
12
Subject to the following, Ideal World warrants that the goods
will correspond with their specication at the time of
purchase and will be free from defects in material and
workmanship.
Ideal World oers a 2 year warranty on the frame from any
problems relating to manufacturer workmanship or arising
from material defects including breakages or cracking caused
whilst riding ( other than rider misuse).
Ideal World oers 12 months warranty on the battery and
motor for any problems relating to manufacturers
workmanship or arising from material defects. The warranty
does not cover misuse or failure to follow the manufacturer’s
operational instructions correctly.
All other components are guaranteed for 1 year for problems
related to manufacturer workmanship or arising from
material defects with the exception of consumable
components for example brake blocks, pads, grips, tyres and
tubes.
Ideal World oers this warranty to the original purchaser of
the product. This warranty is not transferable to a third party.
POWER ASSISTED BICYCLES
Warranty
PLEASE NOTE:
Any gures quoted regarding battery performance or distances which can be
obtained per single charge are based on standrard test conditions. Diverse terrain and
rider weight will of course produce varying results from those stated.
13
POWER ASSISTED BICYCLES
Replacement Batteries & Chargers
14
Replacement batteries and chargers are available to t your bike and can
be purchased seperately from Ideal World.
Should you ever need to remove or replace your pedals it is important
to know that left-hand pedal screws in ANTI-CLOCKWISE and the
right-hand pedal screws in CLOCKWISE.
Pedals are normally stamped on the ends of the axle of the pedal
as in the photo, L and R.
Nation service Centre
Please call our
Technical help line:
01702208187
(weekdays 9am-5pm)
(standard call rate charge applies)
15
POWER ASSISTED BICYCLES
IMPORTANT!
PLEASE REMEMBER THAT
IT IS IMPORTANT TO KEEP
THE CARTON YOUR BIKE
ARRIVED IN , COURIERS
CANNOT COLLECT YOUR
BIKE WITHOUT A CARTON
SHOULD YOU HAVE NEED
TO RETURN IT TO US.
ELIFE have teamed up with
Nationwide Service for your e.bike.
If you live in Scotland or Cornwall or
anywhere in between and you want
the best electric bike service then
please contact us for more information.
Monday - Saturday 9am - 5pm.
Line 1. 02380 236 540
Line 2. 02380 224 344
POWER ASSISTED BICYCLES
Distributed in the UK by
Ideal World
Ideal Home House,
Newark Road,
Peterborough,
PE1 5WG
Please call our
Technical help line:
01702208187
(weekdays 9am-5pm)
(standard call rate charge applies)
There are video tutorials online or on Ideal World’s
website designed to assist you if you need help.
Table of contents
