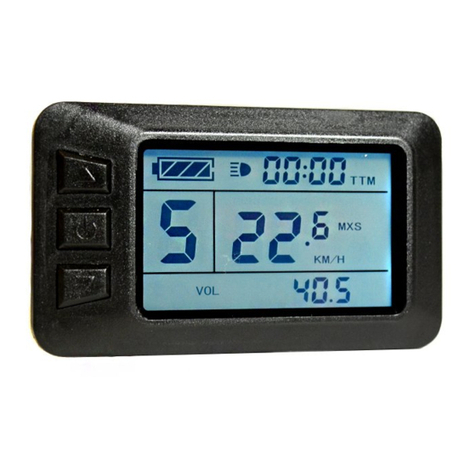

KT-LCD4 E-Bike Special Meter

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
2
WWW.SZKTDZ.COM

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 1 -
Contents
Preface……………………………………………………………………………..………. 4
Outlook and Size…………………………………………………………………………... 4
Meter Dimension …………………………………………………………………… 4
Main Material and Color………………………………………………….………...... 5
Wiring Schematic……………………………………………………………….……. 5
Installation Instruction……………………………………………………………….…….. 5
Φ 22.2 handlebar diameters install icon……………………………………….….…. 6
Physical installation icon............................................................................................. 6
Function Overview……………………………………………………………………..….. 6
Display Content…………………………………………………………………….….…... 8
Normal Operation………………………………………………………………………...... 8
On/Off…………………………………………………………………………........... 8
Display Interface………………………………………………………….….……..... 9
Display of Turned on Throttle……………………………………………………..... 10
Display of Pas …………………………………………………………………….... .10
PAS Ratio (or Throttle) Gear Switch……………………………….……………. 10
Push Function…………………………………………………………..…………… 10
Cruise Function…………………………………………………………………...…10
Turn On/Off Backlight…………………………………………………….………... 11
Brake Status Display…………………………………………..…………….……… 11
Battery Capacity Indicator……………………………………..………………..........12
Single Data Clearing……………………………………………………………….... 13
Automatic Prompt Interface……………………………………………………..….. 14
Error Code Display…………………………………………………….…........ 14
User Project Setting……………………………………………………………………..... 15
General Project Setting…………………………………………………………………… 15
Maximum Trip Speed………………………………………………………….......... 15
Wheel Diameter…………………………………………………………………..…. 16

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 2 -
Metric and Imperial Units…………………………………………………………... 16
Exit General Project Setting……………………………………………………….... 17
P Parameter Setting……………………………………………………………….…….... 18
P1 Motor Characteristic Parameter Setting ............................................................... 18
P2 Wheel Speed Pulse Signal Setting ....................................................................... 18
P3 Power Assist Control Mode Setting ...................................................................... 19
P4 Throttle Startup Setting ..................................................................................... 20
P5 Power Monitoring Setting ..................................................................................... 21
C Parameter Setting ............................................................................................................ 22
C1 Power-assist Sensor and Parameter Selection Setting ......................................... 22
C2 Motor Phase Classification Coding Setting .......................................................... 23
C3 Power-assist Ratio Gear Initialization Setting ..................................................... 24
C4 Throttle Function Setting .................................................................................. 25
C5 Controller Maximum Current Adjustment Setting ............................................... 26
C6 Backlight Brightness Adjustment Setting ............................................................. 27
C7 Cruise Function Setting ........................................................................................ 28
C8 Motor Operating Temperature Display Setting .................................................... 29
C9 Power-on Password Setting .................................................................................. 30
C10 Automatic Restore Default Setting ..................................................................... 32
C11 Attribute Selection Setting .................................................................................. 33
C12 Controller Minimum Voltage Adjustment Setting ............................................. 34
C13 ABS brakes of the controller and parameters of anti-charge control Setting ......35
C14 Power-assist Tuning Parameters Setting .............................................................37
C Parameter Setting ............................................................................................................ 22
L1 Parameters Setting .............................................................37
L2 Parameters Setting .............................................................37
L3 Parameters Setting .............................................................37
Exit Parameter Setting............................................................................................. 39
Parameter Copy .................................................................................................................. 40
User Setting Note ............................................................................................................... 41

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 3 -
Version Information……………………………………………………………………… 41
Preface
The illustrated manual will help you understand and be familiar with the meter
function, guiding you on how to operate the meter, how to set the project parameters, how
to achieve the best match of the three as motor, controller and meter to improve electronic
control performance of the electric motor. This manual covers installation, operation,

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 4 -
parameter setting of the meter and how to use it properly, which help you resolve the
problems appeared in practical use.
Outlook and Size
○Meter Dimension
Meter Dimension
○Main Material and Color
PC material is mainly used for KT-LCD4 meter, and the housing color is black.
○Wiring Schematic

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 5 -
Installation Instruction
The meter body is mounted on the handlebars of the electric vehicle, adjusting
perspective. In the case that the vehicle is power off, the meter connectors are in plug
connection to corresponding controller connectors. Turn on the power, electric vehicle and
meter will be under normal operation, the meter installation is finished. The protection film
on meter display panel should be torn.
○Φ 22.2 handlebar diameters install icon
○Physical installation icon

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 6 -
Function Overview
KT-LCD4 meter provide you with a variety of functions such as vehicle controls and
vehicle status digitized displays to meet the trip demands.
◇Trip speed display (with displays of real-time speed (KM/H or MPH) and a single
maximum speed (MXS);
◇Trip distance display (with displays of a single trip distance (DST) and total trip distance
(ODO));
◇Display of turned on throttle (THROTTLE);
◇Power assistant ratio (or throttle) gear (ASSIST) switch;
◇6KM/H power assistant push ( ) function;
◇Cruise function (CRUISE);
◇Battery capacity indicator ( );
◇Real-time battery voltage (VOL) display;
◇Brake status display ( );
◇Turn on backlighting and lights ( );
◇Data clearing;
◇Fault code display;
◇User parameter setting;
◇24V, 36V, 48V supply voltage can automatic identification and be compatible.
Display Content

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 7 -

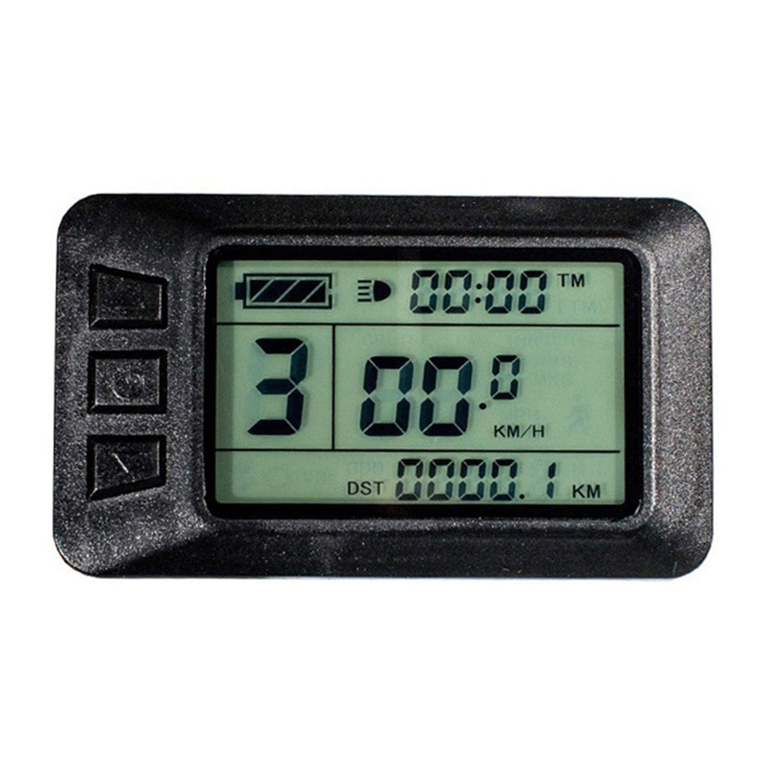

The display content is shown as follow.
Normal Operation
○On/Off
Hold button (SW) long, the meter is powered on and into normal operation, and
it provides the controller with power supply. Under normal operating status, hold
button (SW) long, the meter is powered off, meanwhile to shutdown the power supply of
controllers. When the vehicle is stopped and without any button operation on the
meter for five minutes, the meter will automatically shut down, and the power supply
of the electric vehicle will be powered off. In power off mode, the power consumption of
the meter and controller is zero.
○Display Interface
Hold button (SW) long, the meter is startup to enter display 1.

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 8 -
Display 1
In display 1, hold button (SW) shortly to enter display 2.
Display 2
In the riding mode after 5 seconds, display 2 automatically jump to display 1

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 9 -
In display 2 or display 3, hold button (SW) shortly again to enter display 3.
In each display interface, if you hold button (SW) long, the meter will be
powered-off together with that of the controller.
○Display of Turned on Throttle
Rotate the throttle control handle under normal operating of the meter, the display
interface shows the logo of turned-on throttle, see the Figure below.
○Display of Turned on Pass

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 10 -
The logo of pas will flash, under the normal riding mode, when the pas turned on
○PAS Ratio (or throttle) Gear Switch
Under normal operation, hold button (UP) or button (DOWN) to
switch the power assist ratio (or throttle) gear (ASSIST), changing motor output power.
Switching range is 0-5 gear (this can also be configured according to the customer
requirements), gear 1 is for the lowest power, and gear 5 is for the highest power.
At every startup, the meter will automatically restore gear (this can also be
configured as required by users) when it was at last shut down. When the power
assist ratio is gear 0 zero, there’s no power assist function.
○Power Assistant Push Function
Users can use 6KM/H power assist function when pushing vehicles. Hold
button (DOWN), the meter assist function logo ( ) flashes, the vehicle drives at the
speed of no more than 6km/h. Release button (DOWN), the assist function will be
revoked.

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 11 -
○Cruise Function
When C7 parameter setting is 1 (see C parameter setting), the meter turns on cruise
function, hold button (DOWN) long to enter the cruise status when the vehicle
speed is more than 7 km/h, and the cruise function logo (CRUISE) lights. Brake or hold
any button to revoke cruise function.
○ Startup Backlights and Headlights
Hold button (UP) long, the meter turns on the backlights as well as the vehicle
headlights (the Controller should have headlights driving and output functions), meter
backlighting and vehicle lights power logo ( ) light, hold button (UP) long again
to turn off backlights and vehicle headlights.

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 12 -
○Brake status display
Under normal operation, vehicle brake, brake status indicator display ( ), as
shown in the figure.
○Battery Capacity Indicator
The meter can automatically identify 24V, 36V, 48V battery capacities when it is
supporting use with the specified controller. When the battery capacity is over 70%, the
four power displays of the meter are lit, when the battery capacities drop, the four power

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 13 -
displays are off in order, when the power capacity is less than 15%, the four power
displays are totally turned off.
When the controller is power off due to voltage shortage, the power display frame
flashes, indicating the vehicle has been in voltage shortage and waiting for shutdown
currently.
Voltage shortage flashes
Battery capacity indicator
○Single Data Clearing
5 seconds after the meter is powered on, at display 1, hold both the button (UP)
and the button (DOWN) simultaneously for about 2 seconds, the single trip time
(TM) and single trip distance (DST) flicker, then hold button shortly (SW), the
record contents of both will be cleared.

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 14 -
Under the status of data flashing, if there were no operations on the data within 5
seconds, the meter will automatically return to display1 after 5 seconds, and the
original record content will be saved.
○Automatically Prompt Interface
Error Code Display：
When the electronic control system of the electric vehicle fails, and the meter will
automatically display (flicker) fault code. You can’t exit the fault code display only the
fault is removed.
Error Code & Definition Table：

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 15 -
Error Code
Definition
01＿info
Throttle Abnormality
03＿info
Motor Hall Signal Abnormality
04＿info
Torque sensor Signal Abnormality
05＿info
Axis speed sensor Abnormality(only applied to torque sensor )
User Setting Project
KT-LCD4 meter user setting project：
◇General project setting
◇P parameter setting
◇C parameter setting
◇L parameter setting
General Project Setting
○Maximum Trip Speed
Under power off status, hold button long (SW), the meter is turned on. Within
5 seconds after boot-up, hold button (UP) and button (DOWN)
simultaneously for about 2 seconds, the first is to enter the maximum riding speed setting
interface, press button shortly (SW) ,then the speed display column flashes. Press
button shortly (UP) or button (DOWN) in order to set the maximum riding
speed value. The default maximum riding speed value was set as user's requirement.
When the speed of the electric vehicle exceeds the set value, the motor will be stopped
driving.

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 16 -
Under the setting maximum riding speed interface, if there’s no button operation
on the meter for more than 1 minute, and then the meter will automatically return to
display 1, and the original set values will be saved.
After finishing the maximum riding speed setting, press button shortly (SW) ,
to save the current set values, and go to enter the next setting.
○Wheel Diameter
After finishing the maximum riding speed setting, the wheel diameter display column
flashes. Press button (UP) or button (DOWN) to choose the corresponding
wheel diameter specification to a selected vehicle. The selection range of wheel diameter
specifications are 15 species such as 5,6,8,10,12,14,16,18,20,22,24,26,700c, 28 and 29
inches.

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 17 -
Under the wheel diameter setting interface, if there’s no button operation on the
meter for more than 1 minute, and then the meter will automatically return to display
1, and the original set values will be saved.
After finishing the wheel diameter setting, press button (SW) shortly to save
the current set specification, and enter into the next setting.
○Metric and Imperial Units
After finishing the wheel diameter setting, the speed and mileage unit flash. Press
button (UP) or button (DOWN) shortly to make sync selection of three
metric/imperial units as speed, mileage.
Definition Table of Metric/Imperial Units：
Display
Metric
Imperial
speed
Km/h
Km
mileage
MPH
Mil
Under the metric/imperial units setting interface, if there’s no button operation

ELECTRIC BICYCLE METER KT—LCD4 Product User Manual
- 18 -
on the meter for more than 1 minute, and then the meter will automatically return to
display 1, and the original set units will be saved.
After finishing the metric/imperial units setting, press button shortly (SW) to
save the current set values, and then speed and mileage units stop flashing, or hold
button (SW) long for about 2 seconds to exit the general project setting environment and
return to display 1.
○Exit General Project Setting
Among the three general project settings, after each setting is completed, if hold
button (SW) long for about 2 seconds, all can exit the setting environment and return to
display 1, meanwhile, the current set parameters are saved.
Under each setting interface, if there’s no button operation on the meter for more than
1 minute, and then the meter will automatically return to display 1, and the original set
parameters will be saved.
P Parameter Setting
After finishing metric/imperial unit settings, the speed and mileage units stop flashing.
Press button (DOWN) to enter P Parameters Setting.
○ P1 Motor Characteristic Parameter Setting
P1 is motor characteristic parameter setting, P1 = motor gear reduction ratio×number
of motor magnet pieces, just rounding if there’s any decimal.
After entering P parameter setting environment, the first is to set P1parameter, P1
parameter column flashes. P1 setting ranges between1-255, press button (UP) or
button (DOWN) for selection.
