Elikon EVD2-10IN User manual

2-Wire Video 2-Wire
Video
Outdoor
Station
User Manual
2-
Wire Video
Interior Handset
User Manual
EVD2-10IN
English
Read this manual carefully before using the product, and keep it well for future use.

-2-
User Manual EVD2-
-2-
User Manual EVD2-
-2-
User Manual EVD2-10IN

-3-
User Manual EVD2-10IN
1. Parts and Functions
Handset
97
Unlock button
Call button/Unlock 2ndbutton
Speaker
handset curve
33
Side View
Key functions
Handset
Pick up to communicate with visitor.
Handset curve
Connect handset with monitor.
Unlock button
Press to release the door.
Call button/
Unlock 2nd button
In standby mode, pick up handset, then press Call
button to activate the inner call;
During calling/talking state, press Unlock 2nd button to
re- lease the second door.
Speaker Send out voice from the visitor.
187
150

-4-
User Manual EVD2-
-4-
User Manual EVD2-
-4-
User Manual EVD2-10IN

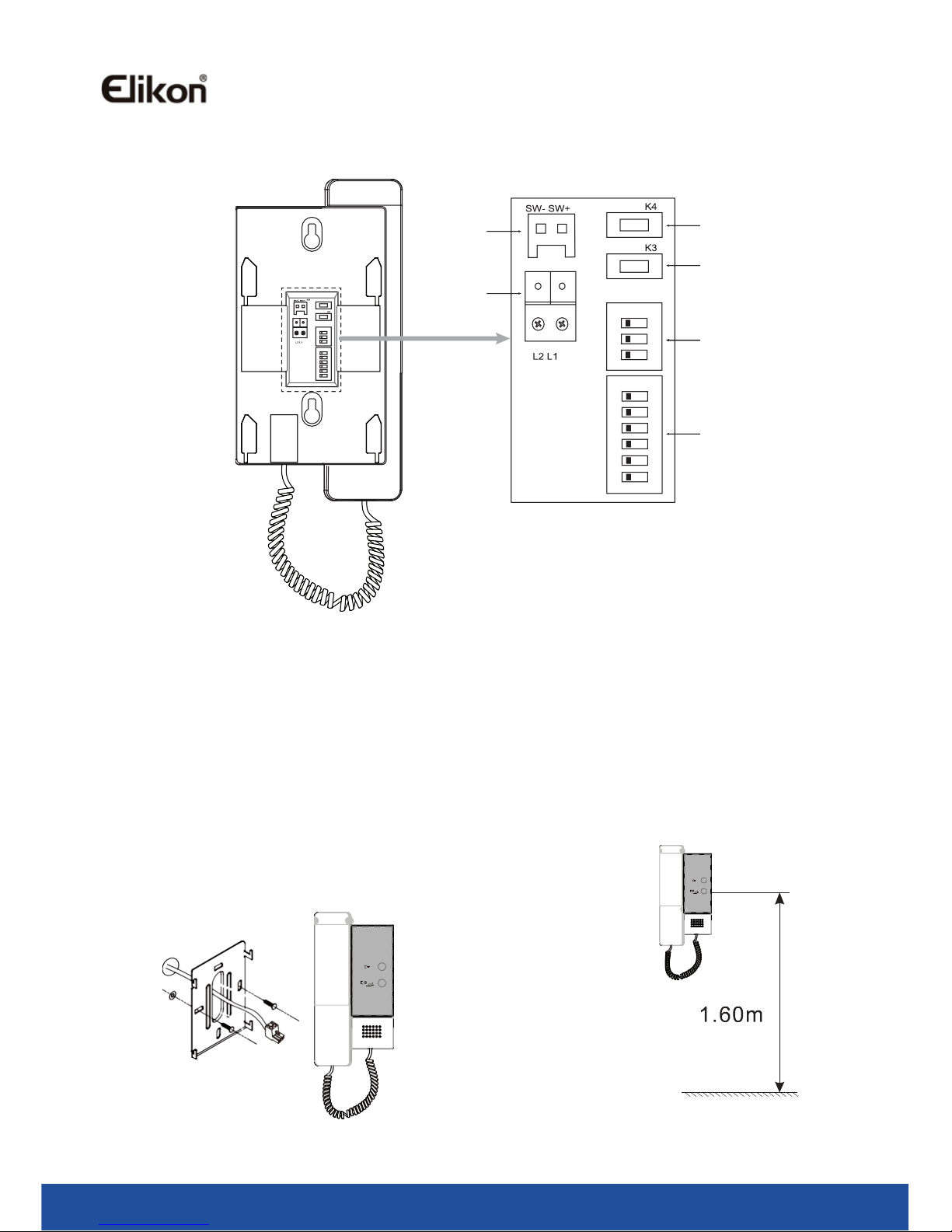

2. Terminal Descriptions
K4
K3
DIP2
DIP1
SW+, SW-: Doorbell call button connection port.
L1, L2: Bus terminal.
K4: Used to Ring Tone setting. K3:
Used to Ring Volume setting.
DIP1(Bit1~6): Used to User Code setting.
DIP2(Bit1~3): Used to Slave Monitor Address or Extended Address setting.
3. Unit Mounting
1). Fix 2 screws to the wall at an appropriate height.
2). Connect the system correctly.
3). Attach the audio phone to the bracket.
SW+ SW-
L1, L2
ON
DIP
ON
1 2 3
1 2 3 4 5 6
ON ON DIP
1 2 3 1 2 3 4 5 6

-5-
User Manual EVD2-10IN
4. Operation Instructions
1) Door release function: When visitor calls from outdoor station, the monitor
rings, pick up handset to talk with the visitor, then press the Unlock button to
open the door. If the system connects 2 locks, press Unlock 2nd button to open
the second door.
2) Inner call: Pick up handset, then press CALL button to activate the inner
call all monitors connected to the system will ring at the same time. Pick up any
monitor the others will stop ringing immediately (note that the user code must be
the same for all monitors to activate the inner call function).
3) Door Bell Call Button: Additional doorbell call button can be connected to
the Monitor, so that the visitors can ring the doorbell again in front of the user’s
apartment. When the call button is pressed, the Monitor will output ring tones.
5. Setup Instructions
5.1 User Code Setting (DIP1 to set it)
In the DT system, every apartment must have a unique identification called
User Code. The DIP1 switches are used to configure the User Code for each
Monitor.
•Bit-1~5 of DIP1 are used to User Code setting. The value is from 1 to 32,
which have 32 different codes for 32 apartments.
•Bit-6 of DIP1 is used to video match.

-6-
User Manual EVD2-
-6-
User Manual EVD2-
-6-
User Manual EVD2-10IN

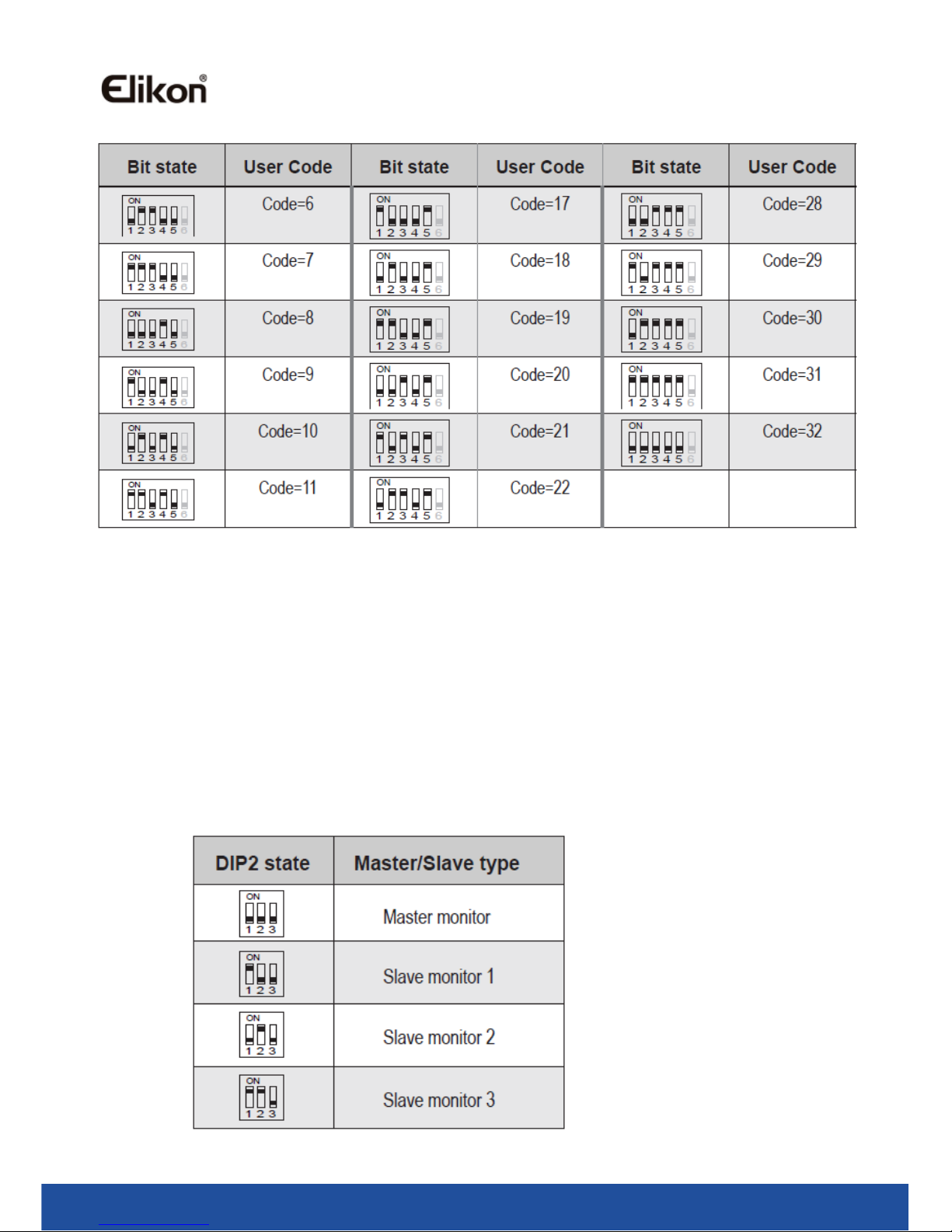

5.2 Slave Address or Extended Address Setting (DIP2 to setit)
When multi Monitors are installed in one apartment, these Monitors have to use
the same User Code setting, and the Master/Slave mode should be set on the
Monitor.
•Bit-1~2 of DIP2 are used to slave address or extended address setting.
•Bit-3 of DIP2 is used to monitor matched setting, When Bit-3 set to ON /
OFF, there are different usages.
5.2.1 When Bit-3 of DIP2 set to OFF, the Bit-1~2 of DIP2 are used to
master/slave address setting:

-7-
User Manual EVD2-10IN

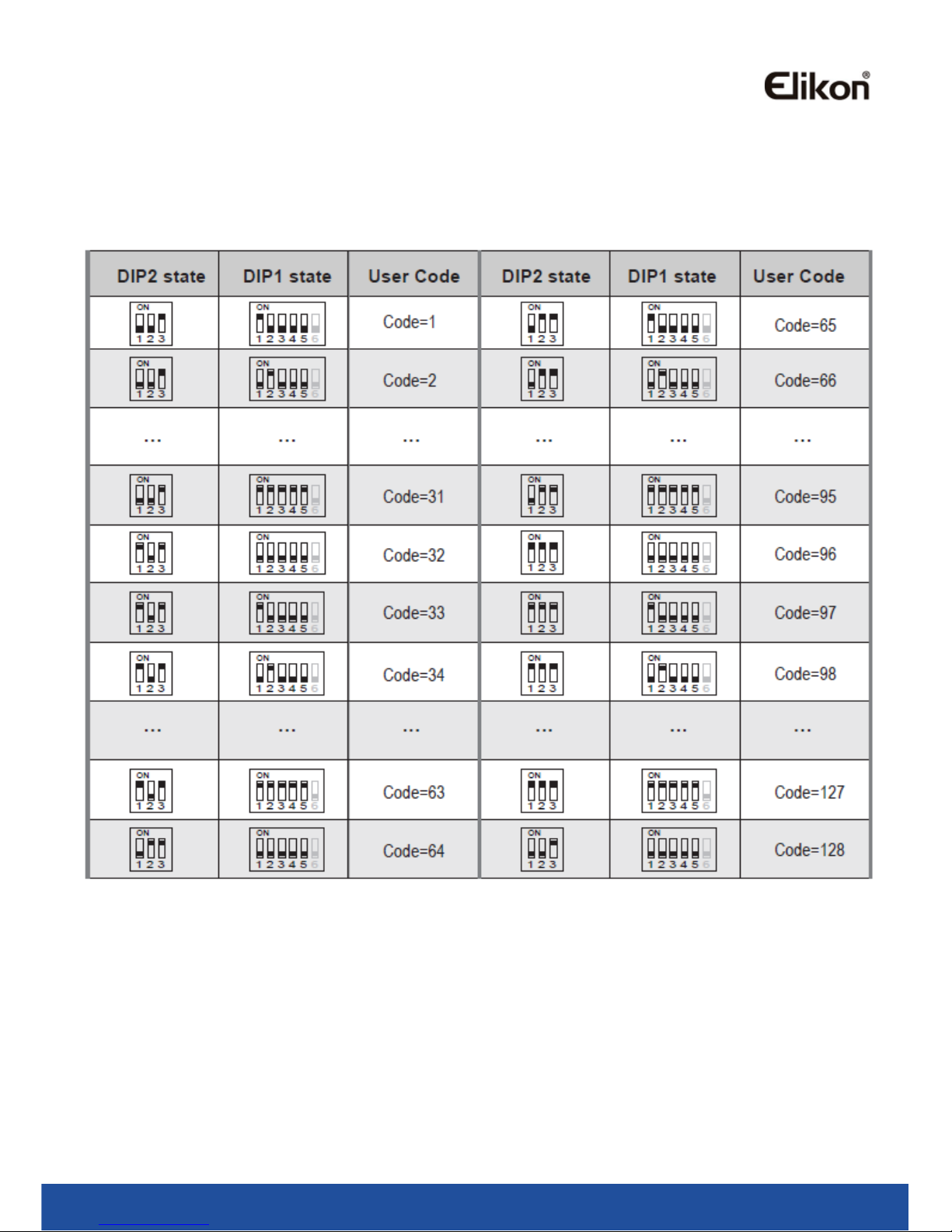

5.2.2 When Bit-3 of DIP2 set to ON, the Bit-1~2 of DIP2 and Bit-1~5 of
DIP1 are used to extended address setting:

-8-
User Manual EVD2-
-8-
User Manual EVD2-
-8-
User Manual EVD2-10IN

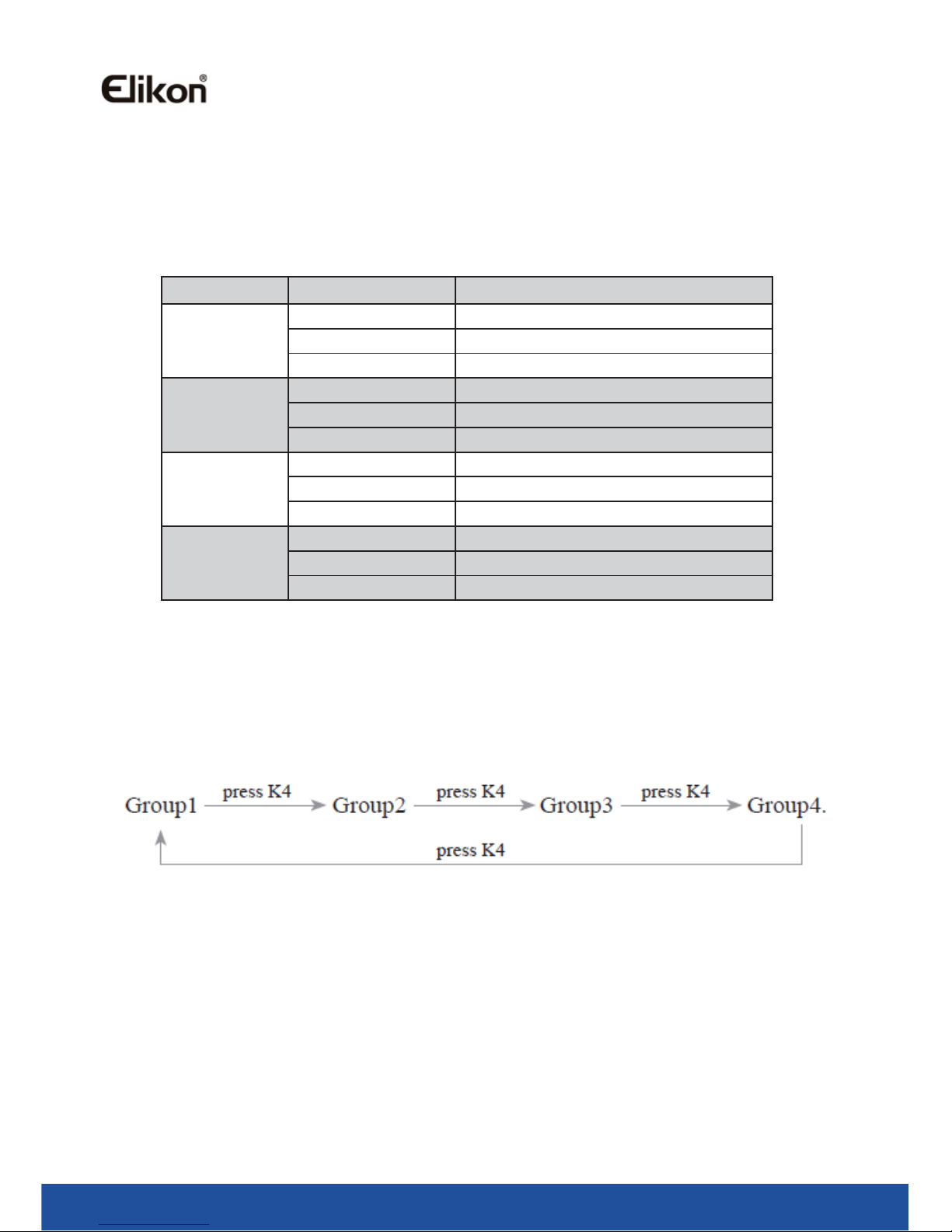

5.3 Ring Tone Setting
1). There are four groups ring tones to choose for you:
Group name
Items
Songs
Group1
Door Station
DINGDONG
Intercom Call
TELEPHONE_RING
Door Bell
DINGDONG
Group2
Door Station
JINGLE_DELL
Intercom Call
CARMAN
Door Bell
FOR_ALICE
Group3
Door Station
HAPPY_BIRTHDAY
Intercom Call
SONATINE
Door Bell
CONGRATULATE
Group4
Door Station
DOREME
Intercom Call
RHYTHM_OF_THE
Door Bell
EDELWEISS
2). Pick up handset in standby mode, each time you press K4 to replace a
group of ring tones. Four groups ring tones cycle:
3). Put down handset to exit the setting.

-9-
User Manual EVD2-10IN
5.4 Ring Volume Setting
1). There are three kinds of ring volume (low-range, mid-range and high-range) to
choose for you.
2). Pick up handset in standby mode, each time you press K3 to replace a kind of
ring volume. Three kinds of ring volume cycle:
Low-range press K3 Mid-range press K3 High-range
3). Put down handset to exit the setting.
6. Specification
●Power Supply: DC24V
●Power Consumption: standby 2.1mA, working 75.9mA
●Wiring: 2 wires, non-polarity
●Dimension: 187(H)X97(W)X33(D)mm
The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved.
