Eling OBD2 User manual

Car Head Up Display
Model:D5000
Introduction
HUD short for Head Up Display. It displays driving datas on the front windshield such
as speed, RPM, fuel consumption, water temperature, voltage etc on the car front
window glass; avoiding drivers unsafety because of watching the instrument while
driving. Drivers can read the driving information instantly, and can always keep the
best state on the way with HUD

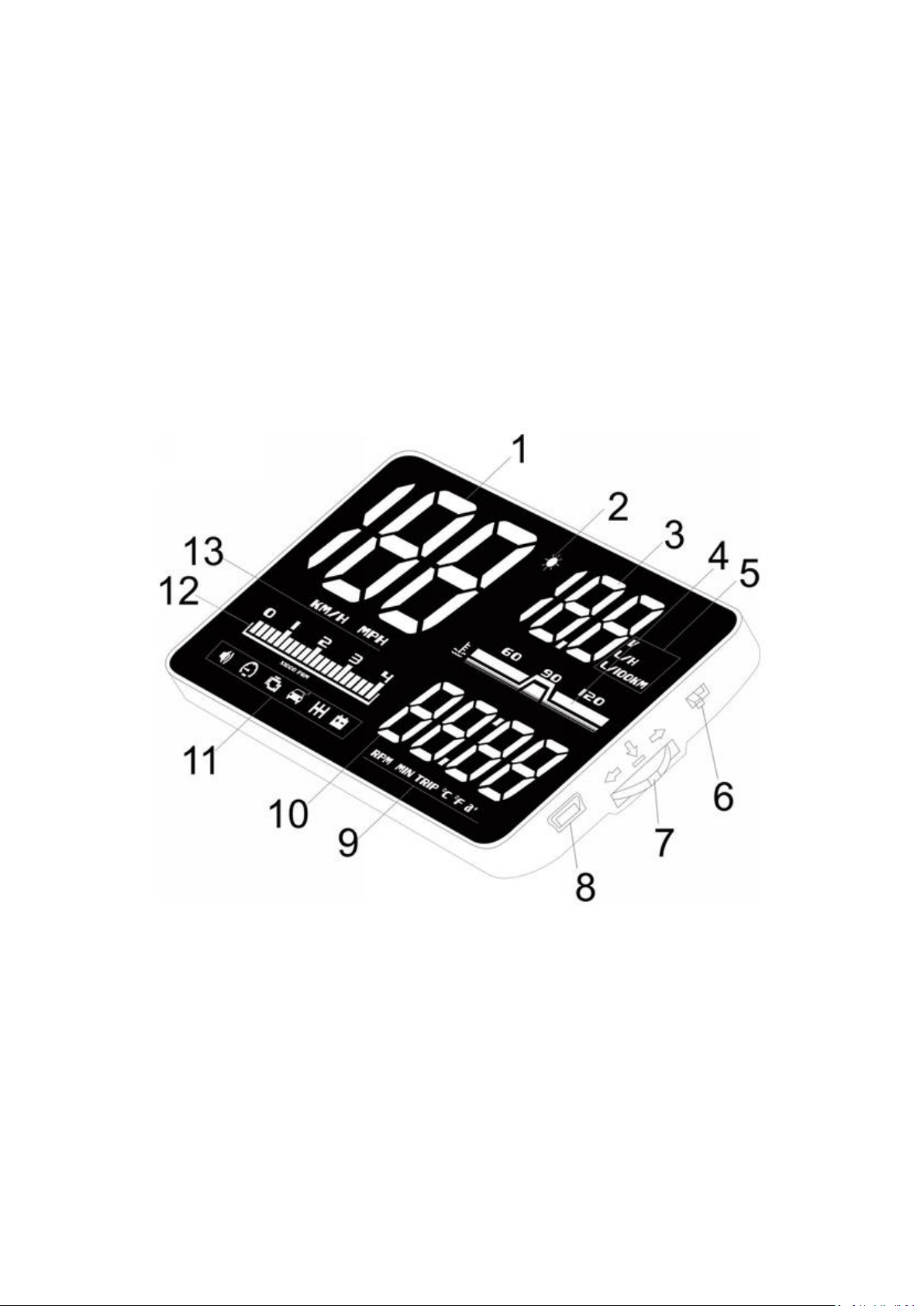

HUD Display functions
1 Driving Speed
2 Light sensor: Automatically adjust the brightness according to the environment
3 Multi-Functions area 1: battery voltage, Instantaneous fuel consumption,100 km
instantaneous fuel consumption
4 Water temperature icon
5 Unit icon: V=voltage, L/H=(Liter/Hour), L/100KM=100 km instantaneous fuel
consumption
6 Power button
7 Setting button
8 USB port

9 Unit icon: RPM=Engine speed, MIN=single driving time, TRIP=single driving
distance,℃=Celsius, °F=Fahrenheit, a+=100 km acceleration time
10 Multi-Functions area 2: Engine Speed, single driving time, single driving distance,
water temperature,100 km acceleration time
11 The icon shows: buzzer, over speed alarm, fault code, fatigue driving, shift
reminder, voltage
12 RPM icon
13 Speed unit: KM/H and MPH

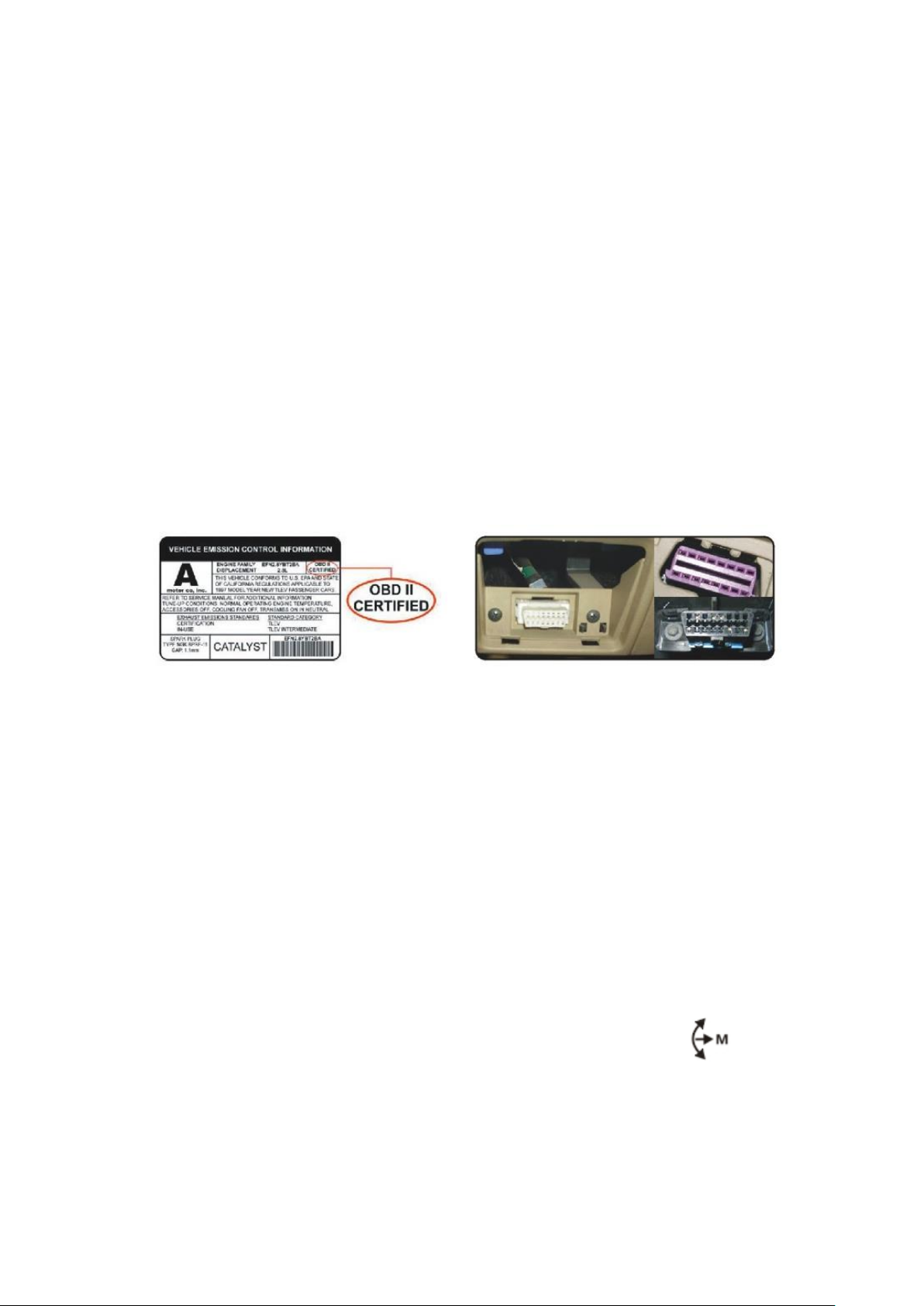

HUD installation
1.Know your vehicle brand, HUD work for cars with OBDII agreement or EU OBD
agreement. Open the engine hood and find the sticker below it (see the below
picture 1), if it has words like OBDII CERTIFIED, then it can be installed.
2. Find out the 16 pin diagnostic link (see the below picture 2) of the vehicle and
connect it well with OBDII connecting line.
Picture 1 Picture 2
Methods of pasting the film
1.Spray some water on the place that the film will be pasted on, and then use a dry
cloth to clean it;
2. Take off the back side（marked 1) of reflection film, then paste it to the window
glass.
3. After you have adjusted the location, you can use a scratch board or something
else flat to slick the film and squeeze the water inside out until there is no bubble or
water in it.
4. Take off the protection film (marked 2) of the reflection film. If the film cannot
display the whole information, please adjust the non-slip mat to move the position.
Setting button functions: When the setting button in the left
1 Short pull up
(1) switch the multi functions area 1: battery voltage/Instantaneous fuel
consumption/100 km instantaneous fuel consumption

(2) after entering into the setting menu, to add the default value
2 Short pull down
(1) switch the multi functions area 2: Engine Speed/single driving time/single driving
distance/water temperature/100 km acceleration time
(2) after entering into the setting menu, to decrease the default value
3 Short press in
(1) switch the display mode (normal model/high speed mode/simple mode)
(2) after entering into the setting menu, to add the menu
4 Long pull down : turn off/on the buzzer, long pull down 5s to turn off the buzzer,
do it again to turn on the buzzer.
5 Long pull up: all lights will be on, to eliminate the fault code, do it again to save
and exit
6 Long press in
(1) to enter into the setting menu
(2) when finish the adjustment, long press in the button to save and exit
Factory reset
When the HUD turns off, long press-in the wave button and at the same time turn on
the HUD, all the lights will be on, and then release the button, that’s factory reset.
Or find menu 15, adjust the default from 0 to 1, 1 means finish the factory reset, then
long press in 5s to save and exit.
HUD setting
vertical long press in the setting button for 5s to enter the menu setting, vertical
short press to increase the menu option, up and down the setting button to increase
or decrease the parameter default value. After adjustment, vertical long press 5
seconds to save and exit.

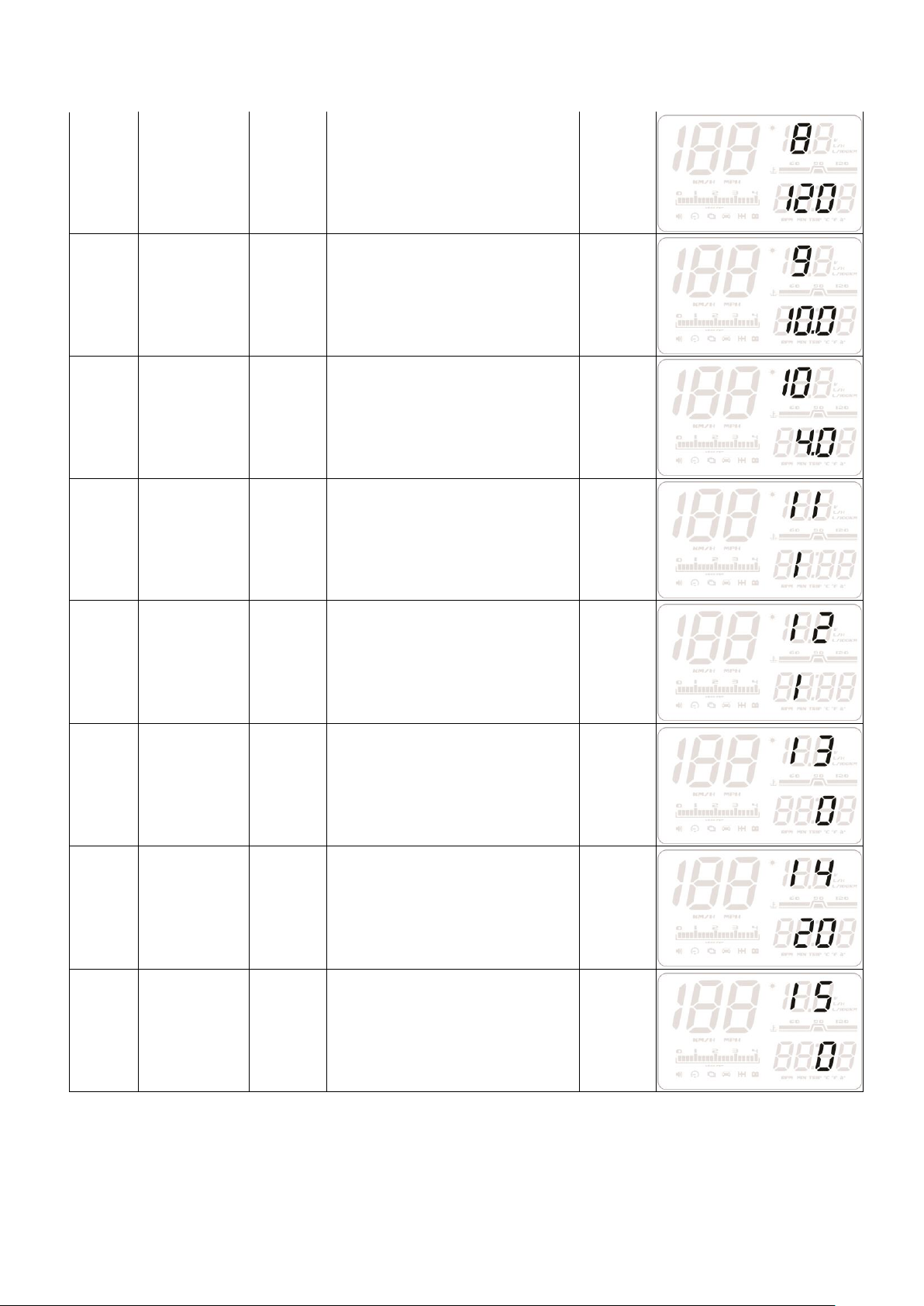

Enter into the setting menu
menu
Function
Adjust
range
Description
Default
value
Setting picture
1
Speed
50-150
If HUD speed is different with
dashboard, it can be adjusted
107
2
Fuel
Consumption
50-150
If HUD fuel is different with
dashboard, it can be adjusted
100
3
RPM alarm
10-75
RPM alarm will work when it
reaches 7500,75 means 7500r
75
4
Shift
reminder
10-75
Shift reminder will work when it
reaches 7500,75 means 7500r
75
5
4-stage alarm
0-1
0=alarm off
1=alarm on(HUD will give alarms
when speed at 60,80,100,120)
0
6
Single over
speed alarm
30-199
When the vehicle speed reaches
150,alarm will be available
150
7
Brightness
adjust
0-5
0 =automatic brightness,
1=darkest, 5=brightest
0

8
Water
temperature
alarm
50-150
Water temperature alarm will on
when it higher than 120° C
120
9
Voltage alarm
0-15.0
Voltage alarm turns on when it
lower than 10.0V
10.0
10
Fatigue
driving alarm
1.0-8.0
Fatigue driving alerts after four
hours driving
4.0
11
Speed unit
1-2
1=KM, 2=MPH
1
12
Water
temperature
unit
1-2
1=° C
2=° F
1
13
Power On/off
voltage
0-15.0
If HUD cannot auto turn off,
change the voltage at 13.2,HUD
will turns off in 3 minutes later
0
14
Power Off
delay
20-300
Please make the default value to
180 or above when your car is
stop-start or Electric hybrid, then
HUD will power off in 3 mins
20
15
Factory reset
0-1
Set to 1,vertically press the
setting button for 5s, then return
to the display interface
0
Troubleshooting
1.The screen without any display, and no power

Start the car engine; check if the OBD cable line is tight; please pull down the OBD
cables more times to ensure; check if HUD power switch turns on. If still no display,
please change another car to test, analyze whether the car OBD diagnostic interface
is good, if it is not good, please repair it and try again.
2.When HUD power on, HUD only shows the car voltage and be automatic power
off after 30 seconds driving.
HUD only available for cars with OBD2 and EU-OBD agreement(European region:
after 2003 years, Other region: after 2007 years）
HUD Products don’t support JOBD and OBDI protocol.
3.See not clearly when HUD under the sunlight.
Check whether the HUD protective film is torn, and please stick the reflection film
included in the gift box corresponding on the windscreen. Then vertical press in 5
seconds to enter into menu setting when HUD is power on, short press 7 times to
menu 7, adjust the parameter to 5, vertical press in 5 seconds to save.
4.Wrong operation leads to crashes
Do a factory reset
When HUD is power on, long press in the setting button for 5 seconds to enter into
the menu setting mode, short press in the button for 15 times to menu 15,the
default value is 0,short pull up or pull down to change it at 1,then long press in the
button for 5 seconds to save and exit
5.Inaccurate Speed
When HUD is power on, vertical press the setting button for 5 seconds to enter into
the menu 0 and the parameter shows 107, up or down the setting button to increase
or decrease the value according to the difference until it shows correct one. After
adjustment, vertical press in 5 seconds to save it.
6.Inaccurate fuel consumption
The unit for fuel consumption is L/100KM, HUD display is the single driving fuel
consumption, while car display is Integrated average driving fuel consumption, so it is
normal if there are difference.
3 kinds of fuel consumption
a. Idle mode: HUD display Instantaneous fuel consumption per hour (L/H), it means
HUD can figure out how much oil the car will consumed after start engine in one
hour
b. Driving mode: HUD display Instantaneous fuel consumption of 100KM
c. Finish driving: HUD display is average fuel consumption of 100KM, when turn off
the car, HUD will auto turn off in 10s

7 Stop-star cars
Vertical press in 5 seconds to enter into menu setting, short press 14 times to menu
14, the default parameter is 20, up or down change it to 180, then power off time
will be 3 minutes,then vertical press in 5 seconds to save and exit,HUD will power off
in 3 mins.
8 When HUD power off, it re-start again
Vertical press in 5 seconds to enter into menu setting, short press 13 times to menu
13, the default parameter is 0, up or down change it to 13.2V or higher, vertical press
in 5 seconds to save and exit.
