Eling D2000 User manual

Head Up Display
User manual
Model: D2000
Introduction
HUD short for Head Up Display. It displays driving datas on the front windshield such
as speed, RPM, fuel consumption, water temperature, voltage etc on the car front
window glass; avoiding drivers unsafety because of watching the instrument while
driving. Drivers can read the driving information instantly, and can always keep the
best state on the way with HUD

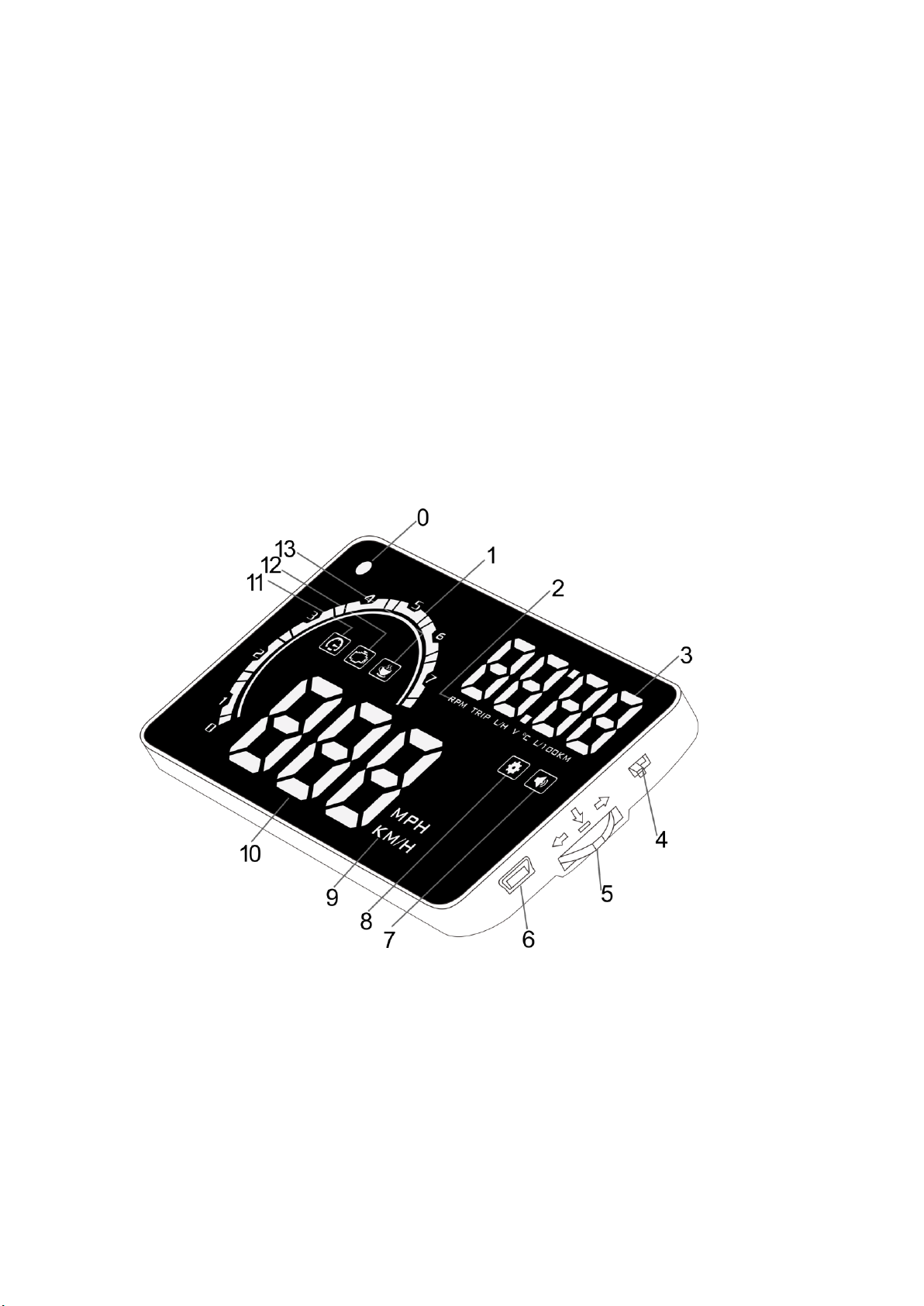

HUD Display functions
0. Light sensor: Automatically adjust the brightness according to the environment
1. RPM: the bright icon means the engine speed value
2.Multi functions area: RPM/Single driving distance/Voltage/Water temperature/Fuel
consumption/Single driving time
3. Unit for Multi function area
4. Power button
5. Setting button
6. USB port
7. Buzzer

8. Setting button
9. Speed Unit of KM/H or MPH
10. Vehicle speed
11. Over speed alarm
12. Engine fault icon
13. Fatigue driving icon
HUD installation

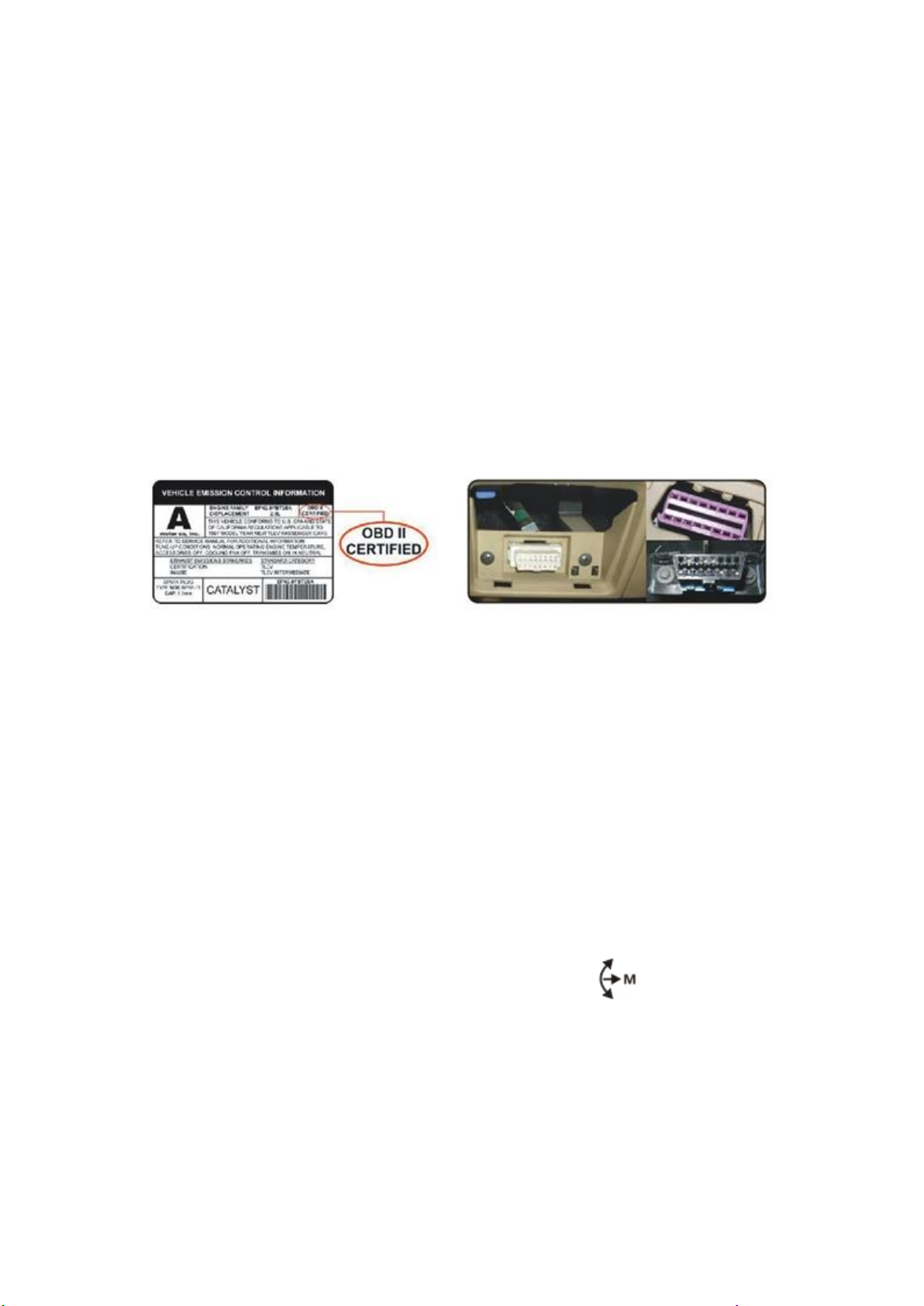

1.Know your vehicle brand, HUD work for cars with OBDII agreement or EU OBD
agreement. Open the engine hood and find the sticker below it (see the below
picture 1), if it has words like OBDII CERTIFIED, then it can be installed.
2. Find out the 16 pin diagnostic link (see the below picture 2) of the vehicle and
connect it well with OBDII connecting line.
Picture 1 Picture 2
Methods of pasting the film:
1.Spray some water on the place that the film will be pasted on, and then use a dry
cloth to clean it;
2. Take off the back side（marked 1) of reflection film, then paste it to the window
glass.
3. After you have adjusted the location, you can use a scratch board or something
else flat to slick the film and squeeze the water inside out until there is no bubble or
water in it.
4. Take off the protection film (marked 2) of the reflection film. If the film cannot
display the whole information, please adjust the non-slip mat to move the position.
Setting button functions:When the setting button in the left
1 . Short pull up
(1) to switch the display mode (normal model/high speed mode/simple mode)
(2) after entering into the setting menu, to add the default value
2 . Short pull down
(1) to switch the display mode (normal model/high speed mode/simple mode)

(2) after entering into the setting menu, to decrease the default value
3 . Short press in
(1) switch the multi functions: voltage/water temperature/RPM/single driving
distance/single driving time/fuel consumption
(2) after entering into the setting menu, to add the menu
4 . Long pull down : turn off/on the buzzer
5. Long pull up: all lights will be on, to eliminate the fault code, do it again to save
and exit
6. Long press in: (1) to enter into the setting menu,(2)when finish the adjustment,
long press in the button to save and exit
Turn off/on the buzzer
Pull down the setting button for 5 seconds, to turn off the buzzer, do it again to turn
on the buzzer
Factory reset
When the HUD turns off, long press-in the wave button and at the same time turn on
the HUD, all the lights will be on, and then release the button, the reset finished.
Clear the fault code
When HUD is power on, long pull up the button for 5 seconds, then all the lights will
be on, HUD will give a sound of “di”, it means finished, do it again to save and exit
HUD setting
vertical long press in the setting button for 5s to enter the menu setting, vertical
short press to increase the menu option, up and down the setting button to increase
or decrease the parameter value. After adjustment, vertical long press 5 seconds to
save and exit.

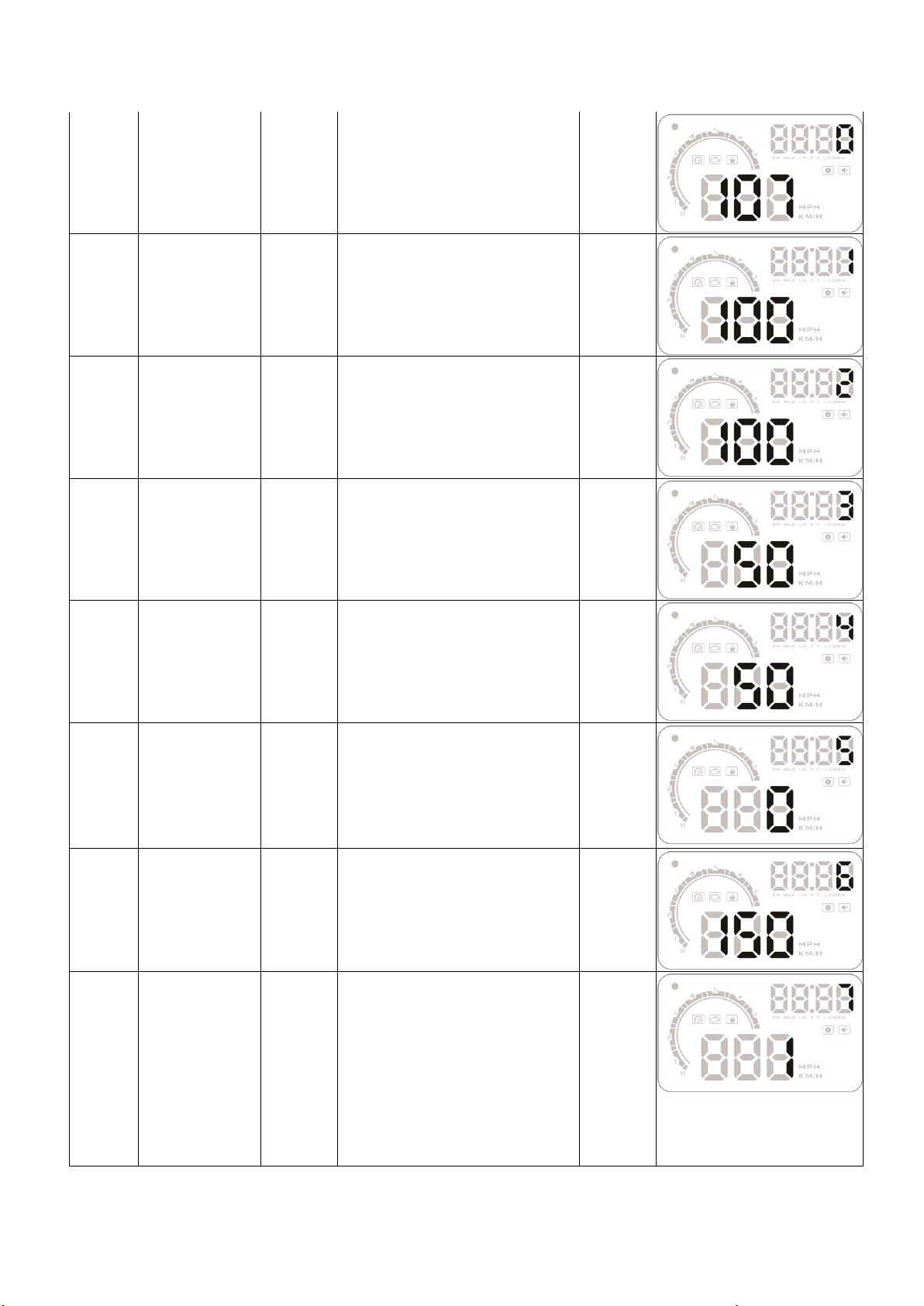

Enter into the setting menu
Menu
Parameters
Adjustme
nt range
Explanation
Default
value
Display Status

0
Speed
50-150
If the speed is different with
dashboard, it can be adjusted
107
1
RPM
50-150
If the RPM is different with
dashboard, it can be adjusted
100
2
Fuel
consumption
50-150
If it is different with dash
board, it is adjustable
100
3
RPM alarm
10-75
HUD will give the alarm when
the RPM reach to 5000 r,the
default alarm can be changed
50
4
Shit reminder
0-75
HUD will give the alarm when
the RPM reach to 5000 r,the
default alarm can be changed
50
5
Four stage
alarm
0-1
0=alarm off
1=open alarm(when speed at
60,80,100,120KM/H will give
alarm)
0
6
Single alarm
30-250
When the vehicle speed reach
to 150,HUD will give the alarm
150
7
Display mode
0-2
0 is automatic mode: when
speed below 80km/h, hud
show all information ;and
when speed over 80km/h,hud
is in high speed mode,1 is
display all information, 2 is high
speed mode(only display speed
and fuel consumption)
1

8
Brightness
adjust
0-6
0 =automatic brightness
adjustment, 1=darkest,
6=brightest
0
9
Speed unit
0-1
0=KM
1=MPH
0
10
Water
temperature
unit
0-1
0=°C
1=°F
0
11
Single Driving
distance unit
0-1
0=kilometer
1=mile
0
12
Start reference
voltage
0-150
If HUD cannot auto turn off, or
the car are with ASS(Automatic
start/stop system),change the
voltage at 132(means
13.2V),HUD will turns off in 3
minutes later
0
13
Factory reset
0-1
Set to 1,vertically press the
setting button for 5s, then
return to the display interface.
0
Troubleshooting
1.The screen without any display, and no power
Start the car engine; check if the OBD cable line is tight; please pull down the OBD
cables more times to ensure; check if HUD power switch turns on. If still no display,
please change another car to test, analyze whether the car OBD diagnostic interface
is good, if it is not good, please repair it and try again.

2.When HUD power on, HUD only shows the car voltage and be automatic power
off after 30 seconds driving.
HUD just available for cars with OBD2 agreement and EU-OBD agreement（European
region: after 03 years, Other region: after 07 years）
HUD Products donnot support JOBD and OBDI and recommended test for another
car.
3.See not clearly when HUD under the sunlight.
Check whether the HUD host surface protective film is torn, and please stick the
reflection film in the gift box corresponding on the windscreen. Then vertical press in
5 seconds to enter into menu setting when HUD is power on, short press 8 times to
menu 8, adjust the parameter to 6, vertical press in 5 seconds to save.
4.Wrong operation lead to crashes
Do a factory reset
When HUD is power on, long press in the setting button for 5 seconds to enter into
the menu setting mode, short press in the button for 13 times to menu 13,the
default value is 0,short pull up or pull down to change it at 1,then long press in the
button for 5 seconds to save and exit
5.Inaccurate Speed
a. First check the speed unit is correct or not, the speed unit including KM/H and
MPH, set it at the correct one(refer to menu 9)
b. When HUD is power on, vertical press the setting button for 5 seconds to enter
into the menu 0 and the parameter shows 107,up or down the setting button to
increase or decrease the value according to the difference until it shows correct one.
After adjustment, vertical press in 5 seconds to save it.
6.Inaccurate RPM
When HUD is power on, vertical press in the setting button for 5 seconds to enter
into the menu, then short press in 1 time to menu 1, the default value is 100,short
pull up or down the button to adjust same as dashboard. After finishing the
adjustment, vertical press in 5 seconds to save it

7.Inaccurate fuel consumption
The unit for fuel consumption is L/100KM, HUD display is the single driving fuel
consumption, while car display is Integrated average driving fuel consumption, so it is
normal if there are difference.
HUD display three kinds of fuel consumption
a. Idle mode: HUD display Instantaneous fuel consumption per hour (L/H), it means
HUD can figure out how much oil the car will consumed after start engine in one
hour
b. Driving mode: HUD display Instantaneous fuel consumption of 100KM
c. Finish driving: HUD display is average fuel consumption of 100KM, when turn off
the car, HUD will auto turn off in 10s
8. HUD cannot automatically turns off (RPM and Speed are not off set)or the car are
with Automatic start/stop system
Automatic start/stop system cars shut down,HUD will turns off,if not,Set the menu 12
value at 132V(when the car voltage is less than 13.2V,HUD will turns off)
9.When HUD power off, it re-start again
Vertical press in 5 seconds to enter into menu setting, short press 12 times to menu
12, the default parameter is 0, up or down change it to 136V or 138V, vertical press in
5 seconds to save and exit.
