Elk Products EZ8 ELK-M1EZ8 User manual

INSTALLATION
MANUAL
Cross Platform Control
Part # ELK-M1EZ8
A member of the M1 Family
Specifications, Installation and Programming
M1 includes the SIA CP-01 Standards for False Alarm Reduction †
TM
L523 Rev. I 08/06/08 Current with Firmware 4.5.4

M1EZ8InstallationandProgramming
Page2
Introduction
LIMITATION
This Control is designed to warn against unauthorized entry and other situations. However, it is not a guarantee of protection against the
occurrence of burglary, fire, or other emergency. Any alarm system is subject to compromise or failure to warn for various reasons. For
example:
- Unauthorizedaccesscanbegained through unprotectedpoints or bydisarming or bypassingprotected points.
- Sensingdevices are powerdriven and do not operate without electrical power. Battery-operateddevices will notwork without batteries,with
deadbatteries, or ifthe batteries arenot put inproperly. Devices powered solely byACwill not workif theirAC power supply is cut offfor any
reason, however briefly.
- Telephone linesover which alarmsignals are transmittedmay be outof service or rendered inoperable by an intruder.
- Even if the system respondsto the emergency as intended, occupants may haveinsufficient time to protect themselves from the emergency
situation.In thecase of a monitored alarmsystem, authoritiesmay not respond appropriately.
- Smokedetectors have limitationsand cannot detect all types of fires. Accordingto data publishedby the Federal Emergency Management
Agency,whilesmoke detectorshave playeda keyrole inreducing residentialfire deathsin theUnited States,they maynot activateor provide
early warning for a variety of reasons in as many as 35% of all fires, . Some of the reasons some detectors used in conjunction with this
System may not work areas follows. Smoke detectors may have been improperly installedand positioned. Smoke detectors may not sense
fires that start where smoke cannot reach the detectors, such as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke
detectorsalso maynot sensea fireon anotherlevel ofa residence or building.Asecond floordetector,for example,may not sense afirst floor
or basement fire. Finally, smoke detectors have sensing limitations. No smoke detector can sense every kind of fire every time. In general,
detectorsmay notalways warnabout firescaused bycarelessness andsafety hazardslike smokingin bed,violent explosions,escaping gas,
improperstorageof flammablematerials,overloaded electrical circuits,children playing withmatches,or arson.Dependingan thenatureof the
fire, and/or location of the smoke detectors, the detector, even if it operates as anticipated, may not provide sufficient warning to allow all
occupantsto escape in time to prevent injury or death..
- Signals sent by wireless transmitters may be blocked or reflected by metal before they reach the alarm receiver. Even if the signal path
has been recently checked during a weekly test, blockage can occur if a metal object is moved into the path.
- Wirelesstransmitters (used insome systems) aredesigned to providelong battery lifeunder normal operatingconditions. Longevity of
batteries may be as much as 4 to 7 years, depending on the environment, usage, and the specific wireless device being used. External
factors such as humidity, high or low temperatures, as well as large swings in temperature, may all reduce the actual battery life in a given
installation. This wireless system, however, can identify a true low battery situation, thus allowing time to arrange a change of battery to
maintainprotection for thatgiven point withinthe system.
- Installing an alarm system may make the owner eligible for a lower insurance rate, but an alarm system is not a substitute for insurance.
Homeowner, property owners and renters should continue to act prudently in protecting themselves and continue to insure their lives and
property.
- Auser may not be able to reach a panic or emergency button quickly enough.
- PassiveInfrared Motion Detectorscan only detectintrusion within thedesigned ranges asdiagrammed in their installation manual. Passive
InfraredDetectors donot providevolumetric areaprotection. Theydo create multiple beams of protection, and intrusion canonly bedetected
inunobstructed areas covered by thosebeams. They cannotdetect motion or intrusion thattakes place behind walls, ceilings,floors,closed
doors,glass partitions,glass doors, orwindows. Mechanicaltampering, masking,painting or spraying of anymaterial onthe mirrors,windows
orany partof the optical system can reduce their detection ability.Passive InfraredDetectors sensechanges intemperature; however,as the
ambient temperature of the protected area approaches the temperature range of 90 to 105F (32 to 40C), the detection performance can
decrease.
- Alarm warning devices such as sirens, bells or horns may not alert people or wake up sleepers if they are located on the other side of
closed or partly open doors. If warning devices are located on a different level of the residence from the bedrooms, they are less likely to
waken or alert people inside the bedrooms. Even persons who are awake may not hear the warning if the alarm is muffled by noise from a
stereo, radio, air conditioner or other appliance, or by passing traffic. Finally, alarm warning devices, however loud, may not warn hearing-
impairedpeople.
- This equipment, like other electrical devices, is subjectto component failure. Even though this equipment is designed to last as long as 20
years,the electronic componentscould fail at any time.
- The most common cause of an alarm system not functioning when an intrusion or fire occurs is inadequate maintenance. This alarm
system should be tested weekly to make sure all sensors and transmitters are working properly.
ALL RIGHTS RESERVED
Nopart of thispublication may be reproduced, storedin a retrieval system, or transmitted in anyform or by any means, electronic, mechanical,
photocopying,recording, orotherwise without the prior writtenpermission ofthe manufacturer.The material in this publicationis forinformation
purposesand subjectto change without notice. Themanufacturer assumesno responsibilityfor anyerrors which mayappear inthis publication.
PrintedinU.S.A.
Use of this control forfire detection and/or annunciation may not be permittedby certain states, counties, municipalities or local jurisdiction. Itis
the responsibility of theinstalling alarm company to check withthe localA.H.J. (Authority Having Jurisdiction) orState Fire Marshal’sofficeprior
to using this control for fire detection.

M1EZ8InstallationandProgramming Page3
Table of Contents
Specifications, Features, and Benefits ..................................................................................................... 4
Wiring & Hookup Diagram........................................................................................................................... 5
Section 1 - Installation and Wiring ............................................................................................................. 7
1.1PlanningtheInstallation ...................................................................................................................... 7
1.2 Parts Diagram & Descriptions ........................................................................................................... 7
1.3 Mounting and Wiring Preparation ....................................................................................................... 7
1.4 Control Wiring .................................................................................................................................... 8
Data Bus E.O.L. Termination - VERY IMPORTANT! ...............................................................................11
Section 2 - Operating the System ............................................................................................................ 13
2.1 Introduction ....................................................................................................................................... 13
2.2 Powering Up (One Keypad)............................................................................................................. 13
2.3 User Codes andAuthorities.............................................................................................................. 13
2.4 Installer Program Code andAuthorities ............................................................................................ 13
2.5 Keypad Overview ............................................................................................................................. 14

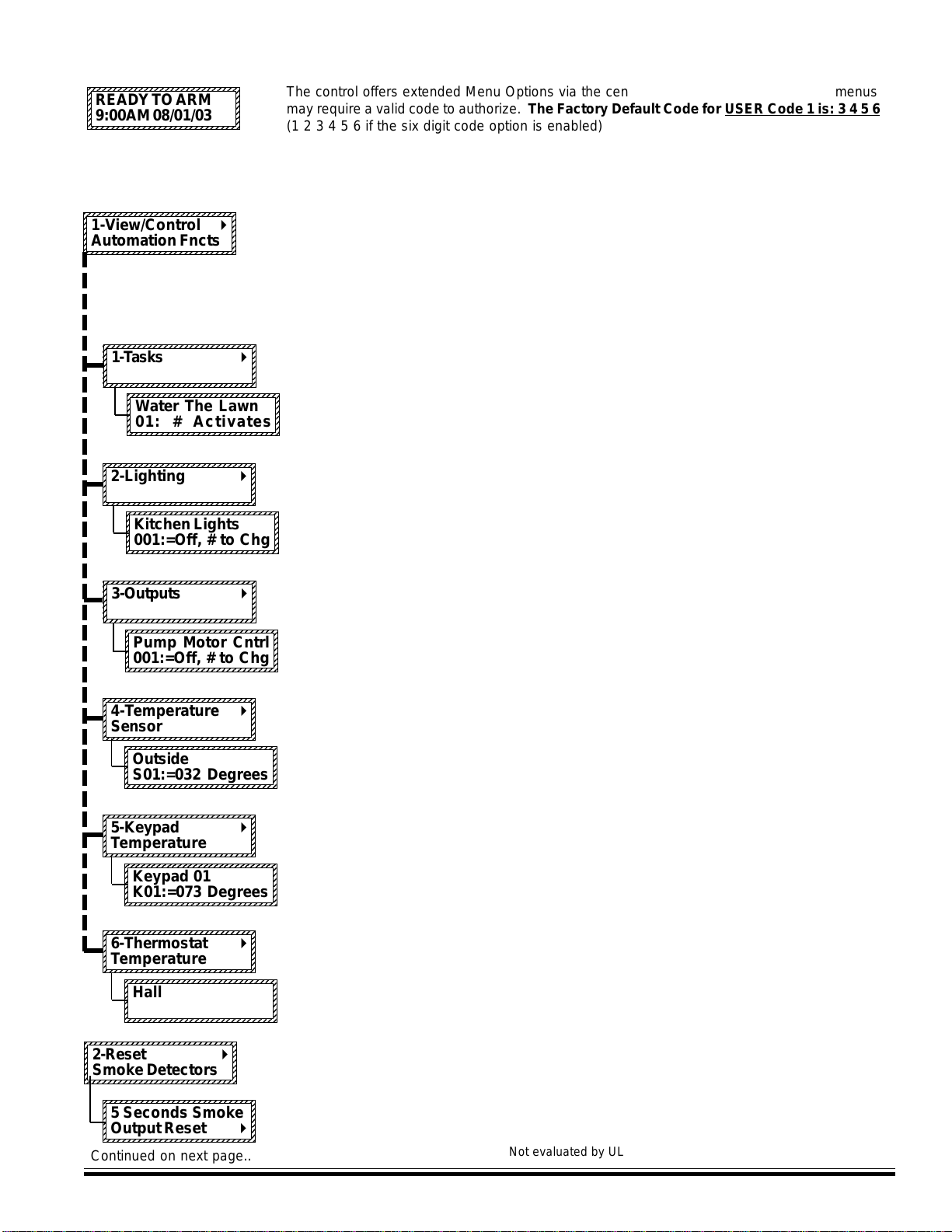

KeypadMenus........................................................................................................................................ 15
Menu 0 - Select KeypadAlternateArea - Multi-area (Partition) Operation.............................................. 18
Section 3 - Programming The Control..................................................................................................... 19
3.1 Introduction ....................................................................................................................................... 19
3.2 Local Keypad Programming............................................................................................................. 19
3.3 Local or Remote Computer Programming (ELK-RP) and Anti-Takeover ......................................... 19
3.4Area Partitioning................................................................................................................................ 19
3.5 Communicator Setup Checklist ....................................................................................................... 20
3.6 Entering Installer Level Programming............................................................................................... 20
Menu 01 - Bus Module Enrollment.......................................................................................................... 22
Menu 02 - User Code Options................................................................................................................ 23
Menu 03 -Area Definitions...................................................................................................................... 24
Menu 04 - Keypad Definitions................................................................................................................. 26
Menu 05 - Zone Definitions ..................................................................................................................... 28
Menu 06 -Alarm Duration Timers........................................................................................................... 31
Menu 07 - Global System Definitions ..................................................................................................... 32
Menu 08 - TelephoneAccount Setup ...................................................................................................... 36
Menu 09 -Area Reporting Codes ........................................................................................................... 38
Menu 10 - Zone Reporting Codes........................................................................................................... 40
Menu 11 - Keypad F-Key Reporting Codes ............................................................................................ 41
Menu 12 - Sys Report Code Options & Codes ...................................................................................... 42
Menu 13 - User Report Codes................................................................................................................ 44
Menu 14 - Wireless Definitions............................................................................................................... 45
Section 4 - PC Programming and Automation Capabilities.................................................................... 47
4.1 ELK-RP Software............................................................................................................................ 47
4.2 Update/Verify Firmware in the Control and Peripherals ................................................................... 48
4.3 Automation Rules andAttributes...................................................................................................... 49
Appendix A - Event Codes ........................................................................................................................ 56
Appendix B & C - Unused ......................................................................................................................... 58
Appendix D - Two Way “Listen-in/Talk” Interface................................................................................... 60
Appendix E - SIA CP-01 Compliance ........................................................................................................ 61
Appendix G - Additional ELK-M1KP Keypad Information ...................................................................... 65
Index............................................................................................................................. 67

M1EZ8InstallationandProgramming
Page4
† Not evaluated by UL †† Not for use in UL Listed Systems
General:
• Large zone capacity: 8 on-board zones expandable to 200
• Wireless capability: †Up to 48 zones
• Two Way Listen-in interface †
• Flash Memory - Allows field updates to firmware electronically
• Time/Date stamped 512 event history log
• Menu driven, text keypad programming
• 12 On-Board Outputs: 1 siren driver/voltage, 1 form “C” Relay,
and 10 low current (10 mA) voltage outputs
• TotalNumberofOutputsSupported:204
• Supports 4 wire (any zone) and 2 wire (zone 8) smoke
detectors
• Includes Fire alarm verification routine
• Can be partitioned into 8 areas and account numbers
• User Codes: 199 (4 or 6 digit) with assignable authority
levels
• Arm levels:Away, Stay, Stay Instant, Nite, Nite Instant, Vacation
• Hardware "watchdog" and nonvolatile EEPROM memory
• Supervised phone line and alarm output
• Connection for optional ELK-MSI RS-232 serial port 0 to
interface PCs and peripheral devices
• Total serial ports with expansion: 8
Communications
• True V.22 bis Modem for fast reliable upload/download
• Phone Number Capacity: 8
• Optional Ethernet †int. for reporting, operation, programming
• Communicator formats: SIA, Contact ID, 4 + 2, and Pager
• Elk-RP PC programming software with conflict resolution to
easily highlight differences between control and PC
- Connect via Dial-up, Optional RS232 port, or Opt. Ethernet
- Automatic answering machine bypass
Keypad
• Backlit, Large Character LCD Display, 16 x 2 lines
• Built-in Temperature Sensor
• Optional Plug-in Prox Access reader (26 bit Weigand format)
• Menu navigation keys and 6 programmable function keys
• Plug-in connector, only 4 wires to the control
• 1 Zone input and 1 Output Programmable per Keypad
• Programmable display of time, date, & temperature
• Displays system diagnostics and settings.
• Maximum Keypads allowed: 16
Automation& Integration
• Create lifestyle enhancing comfort, convenience, and security
• Powerful “Whenever/And/Then” RULES Programming allows
almost any imaginable operation. No need to chain rules
together. Any single “Whenever” event can have one or more
ANDs and THENs (conditions and commands).
• Total number of Rules Supported: 528
• Rules utilize easy to understand text based references
• Control lighting using RS-232 serial or 2-way Power Line
Control (PLC) ports including On, Off, Dim,All On, All Off com-
mands †
• Transmit and receive custom serial ASCII strings
• Read Temperature Sensors - Communicate with Thermostats
• Total thermostats supported: 16
•Sunset/Sunrise calculation and activation built-in
• AdvancedLightingOptions(Pre-setDim,Extended,Levels,
Scenes)
PowerSupply
• Heavy duty - 2.5Amp power supply
• Dynamic battery test
• PTC (fuseless) resettable overload protection
Part Numbers and Accessories:
ELK-M1EZ8CB Control “Board only” †
ELK-M1EZ8 Control in 12 x 12” metal can (Base Unit) †
ELK-M1EZ8KB Control KIT: Board, 12 x 12” can, Xfmr, M1KP
Keypad, 5Ah Battery, SP35 Speaker, & RJSET †
ELK-M1EZ8K Control KIT - NO METAL CAN (for structured
wiring systems) Includes Board,XFMR,M1KP
Keypad, 5Ah Battery, SP35 Spkr, & RJSET †
Utilizes most ELK-M1 Accessories
ELK-M1KP Lg. Keypad, LCD (Green),16 character x 2 lines
ELK-M1KPB Lg. Keypad, LCD (Blue),16 character x 2 lines
ELK-M1KP2 Small Keypad LCD (Blue), 16 char. x 2 lines †
(no internal temp sensor and 2 less “F” keys)
ELK-M1KP3 * same as M1KP2 but with flip down door †
ELK-M1XIN 16 Zone (input) expander
ELK-M1XOVR 16 Output expander, 8 Voltage/8 Relays
ELK-M1XOV 16 Output expander, Voltage only
ELK-M1RB Relay board, 8 form ”C” relays
ELK-M1DBH Data bus wiring hub †
ELK-M1DBHR Data bus wiring hub “Active” for Retrofit †
ELK-M1XEP Ethernet Port Exp/Interface (Qtr 2 of 05) †
ELK-M1XRF2G Wireless Receiver for GE Crystal Xmtrs †
ELK-M1XSP Lighting, Thermostat Interface & Serial exp. †
ELK-M1PR Mini prox reader for keypad †
ELK-M1EZ8TWI Two Way Listen-in Int. w/3 mic inputs †
ELK-M1EZ8MSI Main Serial Interface, supplies RS232 Port 0 †
ELK-M1TWS Speaker & Mic for Two Way Listen-in †
ELK-M1ZTS Zone Temperature Sensor -50 to 140 F †
ELK-RP PC software - Free upon request with
Control Panel purchase
ELK-RM Remote “User” Management software
ELK-TS07 7.25” Color Touchscreen †
Specifications, Features, and Benefits
NOTE: Use of Two Way Listen-in may be regulated by local or
state laws and/or ordinance. It is the responsibility of the
Installer to check before using this feature.

M1EZ8InstallationandProgramming Page5
Wiring & Hookup Diagram
-
STATUS
LINE SEIZE
N.C.
N.O.
2200
Ohm
EOL
N.C.
N.O.
Zone
8
2200
Ohm
EOL
POWER
Data Bus-See Note in Manual
RED
BLACK
WHITE
GREEN
Keypad
+
See Manual
Do Not Connect
to a Phone Line!
JP1
2WIRE
SMOKE NORMAL
ZONE 8
JP3
Lighting Interface
or M1EZ8MSI Main
Serial Port Interface ††
Aux Data Bus (J3) ††
For wireless receiver. Presently
works with GE-Caddx NX408E,
NX416E, or NX448E
Two-Way
Listen-In (J7) ††
Connects to
(M1EZ8TWI)
TELCO
Line
House
Phones
TR
T1 R1
RJ31X Jack
(ELK-RJSET)
54
8 1
Demark
Block
splices
Yellow
BlackRedGreen
Green Red Brown
PHONE LINE HOUSE LINE
TIP RING T1 R1
Z7NEGZ8
Compiles with FCC Part 68
Reg. Number: US:5K6AL03BELK-M1
Ringer Equivalence REN: 0.3B
Use USOC RJ-31X connector.
Complies with the limits for class B computer
devices in accordance with the specifications
of subpart J of part 15 of FCC rules.
Out 3 - Relay Programmable
General Purpose Dry Contacts
rated: 4 Amps @ 12 - 24VDC
Select PLC Mode (JP2)
Selects single or bi-directional
PLC Transmissions
Terminating Jumper (JP3)
See manual for important
information about Data Bus
Termination.
12Volt - 5Ah min.
See UL requirements
for sizes and standby
times. Test regularly
with ELK-BLT Battery
Life Tester. Replace
every 3-5 years
16V XFMR
AC AC A B
+12V
KP NEG OUTPUT 3
N/O N/CCOM
Line Seize LED is ON if Dialer
is in use (communicating)
Status LED:1 blink = Normal Operation.
2 fast blinks = Bootloader mode.
4 fast blinks = Initializing EEPROM memory.
5 fast blinks = Memory/Operation overflow.
Power LED is ON when AC is present.
Auxiliary +12VDC
Power Output
Protected by 1.25A PTC.
2200 Ohm EOL Resistors are part # ELK-ER2200
ELK-M1EZ8
J3
-
C
+
B
A
1
J7
1
2 WAY
1 WAY
-X10-
JP2
J5
18
+12VDC Switched
Smoke Power
1.1 Amp PTC protected
4-Wire Smoke Detector
2200
Ohm
EOL
To Zone Input
U.L. Listed EOL Supervision Relay
(ESL #204 or Equivalent).
(shown energized, contacts closed)
N.O. Alarm
Contacts
To Zone NEG
+VAUX +VSMK
Grey
Ring Tip
T1 R1
Programmable Outputs (J16)
OUT 7 thru 16 are +12V switched positive voltage
outputs rated at 10mA max. Connect optional ELK-
M1RB Relay Board for 8 general purpose relays.
J16
OUT 16
OUT 15
OUT 14
OUT 13
OUT 12
OUT 11
OUT 10
OUT 9
OUT 8
OUT 7
+12V
NEG Red
Black
White
Green
Brown
Blue
Yellow
Violet
Pink
Tan
Orange
Grey
+ALARM -
OUTPUT 2
NEG
-
+
Connector J5 acceptseither a 4conductor modular cablefor a PSC05PLC
Lighting Interface OR an8 conductor modular cablefor a EZ8MSI Main Serial Port
Interface w/PSC05passthroughconnector. (ThisconnectionnotevaluatedbyUL)
PSC05 ††
or equiv.
PSC05 or
Equivalent
PC
Computer, OEM
component, etc.
RS-232
ELK-M1EZ8MSI
Main Serial Port Interface
J3
RS232
Serial
Cable
4 Conductor
Modular Cable
8Conductor
ModularCable
11
J1
From
EZ8
J2
Powerline
Interface
To J5
Connector
4Conductor
ModularCable
OR
1
BATTERY
RED BLK
Zone
7
-
+
+
-
(Sold separately)
12V
Battery
Yellow
Green
Red
Black
4conductormodular(standard)phone
cordforPLCLighting(not supplied).
End view
Yellow
Green
Red
Black
1
1
8 Conductor Cat5 cable from EZ8MSI Main SerialPort Interface.
End view
Brn/Wht
Wht/Brn
Grn/Wht
Wht/Blue
Blue/Wht
Wht/Grn
Org/Wht
Wht/Org
1
Wht/Org
Org/Wht
Wht/Grn
Blue/Wht
Wht/Blue
Grn/Wht
Wht/Brn
Brn/Wht
1
110806
ELK
PRODUCTS, INC.
HILDEBRAN, N.C., 28637, USA
NOTE: Refer to Appendix F in the Installation Manual
#L523 Rev. I05/07 for the UL limitations on total
continuous 'standby' current drain from terminals
+VAUX, +12VKP, +VSMK, and J16. N.C.
N.O.
2200
Ohm
EOL
N.C.
N.O.
Zone
6
2200
Ohm
EOL
Z5NEG
Zone
5
Z6
N.C.
N.O.
2200
Ohm
EOL
N.C.
N.O.
Zone
4
2200
Ohm
EOL
Z3NEGZ4
Zone
3
N.C.
N.O.
2200
Ohm
EOL
N.C.
N.O.
Zone
2
2200
Ohm
EOL
Z1NEG
Zone
1
Z2
11
RS232 Serial Port Cable (9 pinmale
to 9 pin female) Max. length = 50 ft.
Pin 2 < to > 2
Pin 3 < to > 3
Pin 5 < to > 5
Sealed Lead Acid Battery (ELK-1250)
Note: Secondary phone line surge
suppression devices (ELK-950) are
recommended for areas prone to transient
or lightning strikes.
+
2-Wire Smoke Detector
820
Ohm
EOL
+
-
NEG
Z8
Compatibility Identifier: M10001
Maximum Operating Voltage: 13.8 VDC
Max. wire resistance should not exceed 13 Ohms.
Use 18AWG Fire approved wire. Max. wire length = 1000 feet.
Do not mixdifferent models on same circuit as proper operation may be impaired.
Name
System Sensor
Sentrol (GE)
Model
2W-B, 2WT-B, 1151, 2100, 2100T, 2151
429AT, 521BXT, 521B
Compatibility ID
A
S09A
Max #
20
20
Base
None
None
To configure Zone 16 as a 2-wire smoke zone, set Jumper JP1 to "2 WIRE
SMOKE" and use 820 Ohm EOL resistor, part # ELK-ER820.
2-Wire Smoke Detector Compatibility
† †
16.5VAC, 45VA
ELK-TRG1640)
Do not connect to
switched outlet.
UL Listed Class 2 Transformer
For Canada use cUL Listed
Transformer - ATC Frost #FPS-4016
This unit provides Residential fire alarm service when installed according to
ANSI/NFPA 72. Transmission of the fire alarm signal to a fire alarm
headquarters or central station shall be permitted only with the approval of the
authority having jurisdiction. The burglar alarm signal shall not be transmitted
to a police emergency number, equipment is to be installed in accordance with
NFPA (985,55.1.P). Reference NFPA70 (NEC) & Canadian Electrical Code.
All circuits are current limited except for Battery leads. Refer to Appendix F.
Testing of system should be performed regularly with the primary AC power
de-energized. Control specifications are subject to change without notice.
For Installation of Residential Fire Warning Systems reference CAN/ULC-S540
Standard.
Smoke Detector covers should be kept free from dust and dirt by use of a dry
or damp (water) cloth as needed. When necessary, clean the detector interior
and/or replace the optical chamber according to instructions provided bythe
Smoke Detector Manufacturer.
M1EZ8 "Board only" non-alarm current draw = 140mA ( .14 Amp )
Out 2 - Alarm Connect ONLY 1
UL Listed Bell or Siren (self-
contained). For residential Fire
the indication device shall be
Wheelock 34T-12 or equiv.
Current limited to 1 Amp.
Program Global Option 26 to
Voltage. Speakers are only
permitted for non-UL installations
and must be series parallel wired
to avoid dropping below a 4 ohm
total load.
† Not evaluated by UL †† Not for use in UL Listed Systems
††
††
††
Use 26AWG
Telco wire

M1EZ8InstallationandProgramming
Page6
IntentionallyLeftBlank

M1EZ8InstallationandProgramming Page7
1.1 Planning the Installation
The first step in any multi-zone security system installation is planning the job.
1. Read this entire manual to familiarize yourself with all system features and procedures before actually beginning the
installation. Read all the information regarding Underwriters Laboratories (UL) and NFPA requirements.
2. Perform a physical survey of the installation site. Use the diagrams below as a guide in planning the installation.
3. Discuss the installation requirements and applications with the customer.
4. Compare the installation requirements and applications with the factory default settings to determine what customized
programming is needed to meet the specific installation requirements.
5. Bench test the system prior to installation.
1.2 Parts Diagram & Descriptions
See Wiring & Hookup Diagram on pages 6 & 7.
1.3 Mounting and Wiring Preparation
Control Mounting
DO NOT MOUNTTHE CONTROLOUTDOORS OR INADAMP LOCATION OR WHERE THE ENVIRONMENTAL CONDITIONS
ARE UNSUITABLE FOR ELECTRONIC BASED EQUIPMENT. DO NOT MOUNTINAN UNCONDITIONEDATTIC. USE
COMMON SENSE AND GOOD INSTALLATION PRACTICES. A suitable location would be inside a secure dry location where
the ambient temperature inside the control box can remain at 32‘ to 120°Fahrenheit (0’ to +49' Celsius). Choose a location
that allows easy wiring to an unswitched power outlet and to a grounding conductor for the control. A central location makes
running system wiring easier. Remove control box knockouts that best suit your wiring needs.
After removing all packing materials, compare the system components with those in the figure above to familiarize yourself
with the part names. Mount the control using the upper center slotted hole to level. Install and connect all necessary wiring for
the power transformer, detection loops, keypads and siren outputs.
Keypad Mounting and Wiring
Ideal keypad height is 50-58 inches above the floor. Select a location with an ambient temperature range between 32°and
120°F (0° to +49°C). Avoid direct sunlight if possible. Fasten mounting plate to electrical box (or directly to wall) using flat
head screws to prevent shorts to the back of the circuit board. Keypads have a removable wiring plug for connecting to the M1
4-wire data bus. CAT5 or CAT6 eight (8) conductor cable is recommended for all Data Bus cables. The extra wires provide
data return paths. Splice the Black, Red, White, and Green wires from the removable wiring plug to the Data Bus cable. Plug
the connector into the back of the keypad. Tuck wires neatly into back plate and install Keypad on mounting plate. Each
keypad has connections for an optional programmable output and a programmable zone input.
Section 1 - Installation and Wiring
Legend
- Main Control
- Audible Alarm
- Smoke Detector
- Contact
- Keypad
M
A
S
C
K
Bedroom 1Bedroom 2
Bedroom 3 Living Room
Kitchen / Dining
TYPICAL BURGLARY INSTALLATION LAYOUT
M
A
K
Bedroom 1Bedroom 2
Bedroom 3 Living Room
Kitchen / Dining
TYPICAL FIRE INSTALLATION LAYOUT
M
A
K
C
CCCCC
S
SS
S
Basement
First Floor
All perimeter openings below 18" should be provided with protection.
A Smoke Detector shall be located in each sleeping area and between
the sleeping areas and the main living area.
Early warning fire detection is best achieved by the installation of fire
detection equipment in the location shown above.
In homes basements or multiple levels at least one smoke detector
shall be on each level.

M1EZ8InstallationandProgramming
Page8
1.4 Control Wiring
Zone Inputs (1 thru 8 on main board, 17 thru 208 via expanders)
Zones Z1 thru Z8 are on the main board, others are in groups of 16, starting with Z17. Each 2 zones share a common
negative terminal. A zone may be programming for EOL resistor supervision (Default), or normally closed/normally open
without a resistor. In addition, Burglar and Keyswitch zones may be programmed for EOL with Security Alert on Short, or EOL
with Security Alert on Open/Short, also referred to as a Four (4) State Zone (firmware 4.3.5 or later). If EOL resistors are used,
they should be placed at the furthest most remote end of the detection device wiring. EOL zones permit a combination of
N.C. (normally closed) or N.O. (normally open) devices. Using voltage meter probes across the zone and com terminals, a
non-violated EOL zone will measures approx. 7.0 VDC. An open circuit will be approx. 13.8 VDC. A shorted circuit will be
0 VDC. The Keypad also provides the ability “Menu 8 “System Diagnostics” to view zone voltage.
ELK-M1KP
1
See Note about
DataBus
Termination
6
BLACK
WHITE
GREEN
RED
Keypad
Wiring
Assembly
DataBus Cable
CAT5 or CAT6 Recommended
Optional programmable Zone Inputfrom Keypad
Hookup Diagram for Keypad
Splice 6 Pin Keypad Wiring Assembly to the Data Bus cable using ELK-900-2 "B" Connectors.
BROWN
Optional programmable Output from Keypad
Keypad 1
The optional Zone Input # or Output# is
determined bythe Keypad Address.
Load (50mA max)
I.E. LED, Relay
-
+
To BLACK (Neg) Wire
To BROWN Wire
N.C. N.O. 2200
Ohm
EOL
To BLACK (Neg) Wire
BLUE
To BLUE Wire
NOTE: The first batchof M1KP Keypads provided aswitched
negative (pull to ground) output. Connect per diagram above.
These units have the letter"E" at the end of the ID number onthe
lower back side of the board. EG:PC096EBoards with a letter
"F" or later provide the output as a switched positive.
Load (50mA max)
i.e. Relay, LED
-
+
To Red (Pos) Wire
To Brown Wire
KP Zone Output
Address # #
1 193 193
2 194 194
3 195 195
4 196 196
5 197 197
6 198 198
7 199 199
8 200 200
KP Zone Output
Address # #
9 201 201
10 202 202
11 203 203
12 204 204
13 205 205
14 206 206
15 207 207
16 208 208
Optional Four (4) State Zone Wiring (2 series resistors w/ N.C. contacts)
Zone
Input
Neg.
N.C. Alarm
Contacts 2200 Ohm
Resistor
2200 Ohm
EOL Resistor
N.C. Tamper
Contacts
Pos.
Neg.
Fig 2: Powered PIR, Glassbreak, etc. with Tamper
N.C. N.O.
Contact
2200
Ohm
EOL
Zone Input
Neg.
Tamper Contact
N.C.
Alarm
Contact
Diagnostic Table
Short ~
2.2k Ohms
4.4k Ohms
Open ~
0 - 3.9 Volts
4.0 - 7.3 Volts
7.4 - 11 Volts
11.1 - 13.8 Volts
Zone
Resistance Approx. Zone
Voltage Reading Alarm
-
Alarm
Alarm
Armed
Sec. Alert/Tamper
Ready
Not Ready
Sec. Alert/Tamper
Disarmed
Condition When:
0 - 72
73 - 159
160 - 220
221 - 255
A to D
Value
Fig 1: N.C. Alarm Contact
(Unpowered) with N.C. Tamper
Program Zone for EOL Wiring
Type 4 - Supervisory on Open
This feature
requires Firmware
2.3.5 or later.
2200 Ohm
Resistor
Traditional Three (3) State Zone Wiring (1 series resistor)
Wire in Series with zone
input or use another zone.
Neg.
N.C. Alarm
Contacts 2200 Ohm
EOL Resistor
N.C. Tamper
Contacts
Pos.
Neg.
Powered Motion, PIR, Glassbreak, etc.
N.O.
Contact
2200
Ohm
EOL
Zone Input
Neg.
N.C.
Alarm
Contact
Diagostic Table
Short ~
2.2k Ohms
Open ~
0 - 3.9 Volts
4.0 - 8.8 Volts
8.9 - 13.8 Volts
Zone
Resistance Approx. Range
of Zone Voltage Alarm
-
Alarm
Armed
Not Ready
Ready
Not Ready
Disarmed
Condition When:
0 - 72
73 - 170
171 - 255
A to D
Value
Zone
Input
Alarm Contact
NOTE: Refer to the section ‘Data Bus E.O.L. Termination’ for information on multiple homerun cables. NEVER SPLICE OR
CONNECT WIRE WITH CONTROL POWER ON. Minimum cabling should be four conductor 22 or 24 gauge. Maximum resistance per wire
is 25 Ohms. Device placement beyond 1000' is not recommended.

M1EZ8InstallationandProgramming Page9
Two-Wire Smoke Zone (Zone 8)
To enable use of two-wire smoke detectors position Jumper JP1 to the 2 wire smoke position. Go to Installer programming
mode, Menu 05 - Zone Definitions, and program Zone 8 as a Fire zone (Def=10). Step to next location and program Wire
Type=6. NOTE Use only compatible two-wire detectors listed on the front label of the control. Do not mix brands. The
maximum number of detectors is also listed on the front label. For two-wire operation, a 820 Ohm EOL resistor part #
ER820 must be used instead of the 2,200 Ohm resistor part # ER2200. Use 18AWG Fire approved wire. Max. wire length =
1000 feet. Max. wire resistance should not exceed 13 Ohms.
Switched Power Connection (+VSMK)
Four-wire smoke detector and other devices that require a temporary power disruption in order to reset or unlatch from the
alarm state (i.e. smoke detectors, etc.) should be connected to the +VSMK 12 Volt DC switched power terminal. When a
smoke reset is performed, the operating voltage to these devices is momentarily interrupted.
Auxiliary Power Connections (+VAUX)
Motion detectors, glass breaks, etc. and other devices requiring unswitched 24-hour power should be connected to one of the
auxiliary terminals, +VAUX. All negative terminals on the terminal strip are at the same reference and may be used whenever
a common (circuit ground) negative is required. Use caution when wiring the control to distribute the load devices among the
supply and the negative terminals evenly. NOTE: Circuit ground refers to any negative terminal connection on this control.
This does not refer to the earth ground terminal or to the common terminals of Relay Output 3. These terminals are not at
the same voltage potential and should not be wired so that they are electrically connected to a negative.
PTC (Positive Temperature Coefficient) Circuit Breakers
The +VAUX Auxiliary power and J16 power output terminals are protected against shorts and overloads by a 1.25A PTC. A PTC
is a solid state, auto-restoring type of circuit breaker. The +VSMK Switched (Smoke) power output is protected by a 1.1A PTC.
The +12VKP Keypad power output is protected by a 1.25A PTC. The alarm output is protected by a 1.25A PTC. NOTE:
Sometimes it may be necessary to remove power (unplug the outputs) for approx. 20 seconds after a short, to allow the
PTC to reset. Even if the short is no longer present, the remaining residual current draw may be so high that the PTC
cannot determine that the short is gone. If the PTC re-trips, check the field wiring and repair.
Transformer Primary Power Input (AC)
The control is powered by a 16.5 VAC, 45 min. VA, UL Listed Class 2 transformer (ELK-TRG1640). The specified sized and
rated transformer must be used to operate this control. The transformer must be connected to a 120 VAC, 24-hour outlet not
controlled by a switch other than an approved overcurrent protection device.
Connect the transformer to the AC Terminals using 16 to 18 gauge minimun wire. Do not exceed 50 feet between the
transformer and the control or run the AC power in a multiconductor with other system circuits. Leave the transformer
unplugged as well as the standby battery until all other connections have been made.
Standby Battery Connection
Connect the BLACK wire to the Neg (-) terminal on the battery, the connect the RED wire to the Pos (+) terminal on the battery.
The control is designed to operate with and recharge a 12 volt, sealed lead acid battery from 7Ah up to 18 Ah for backup of the
primary power supply. The control maintains a float charge for the battery of 13.8 VDC at 100 mA. This is in addition to the
continuous output of 1.5 Amps that the power supply maintains (see maximum current drains for UL Listed Systems).
CAUTION: Do not reverse the battery leads! The control has special circuitry which helps protect it from battery reversal
damage for short durations. However, prolonged reversal of the battery leads may cause permanent damage. A reverse
battery warning LED is located to the left of the power On/Off switch. If this light is ON, turn the power off immediately
and correct the battery lead connections.
STATUS
UL Listed Transformer,
Class II, 16.5VAC, 45VA.
i.e ELK-TRG1640
Do not connect to a
switched outlet.
POWER
Sealed Lead Acid Battery
12Volt - 5Ah min. (ELK-1250)
NOTE: See UL requirements for
standby times and battery sizes.
The control is capable of
charging up to an 18Ah battery.
Test battery regularly with
ELK-BLT Battery Life Tester.
Replace every 3-5 years
BATTERY
RED BLK 16V XFMR
AC AC
Status LED:1 blink = Normal Operation.
2 fast blinks = Bootloader mode.
4 fast blinks = Initializing EEPROM memory.
5 fast blinks = Memory/Operation overflow.
Power LED is ON when AC Voltage is present.
12V Battery

M1EZ8InstallationandProgramming
Page10
AC Failure, Low Battery, and Automatic Low Voltage Shutdown
During an AC power failure the battery automatically takes over and AC Fail trouble annunciates at the keypad. The
communicator can be programmed to report AC Fail to the Central Station after a time delay (see Menu 12, System Option 01).
If the battery voltage falls below 11.2 VDC a Low Battery Trouble condition will occur. The communicator can be programmed
to report Low Battery to the Central Station. The battery will continue to run the control until its voltage drops below 10.2 VDC,
at which time the control will disconnect and shut down to prevent a false alarm and damage to the battery. The AC Fail
trouble display will clear if the AC restores. However, the Low Battery Trouble requires a manual or automatic battery load test
before it will clear. An automatic battery load test is performed every 24 hours. See Section 2.2 for powering up the control.
Telephone Line Connection (R1,T1,T,R)
The telephone interface is connected by the use of an approved RJ-31X interconnect jack. This device allows the subscriber
to disconnect the control/communicator from the public switched telephone network in the event of a malfunction. The control
is equipped with line seizure so that the premises telephone service is interrupted during communication to the central
station. Connection to the approved jack is done with a RJSET cord which connects the control terminals to the RJ31X jack.
NOTE: The Telco cord can be supervised to the RJ31X or demarc block by installing an EOL resistor across the Orange and
Blue wires (RJ31X terminals 2 and 7). In the control, connect the Orange and Blue leads to any 24hr Burglar zone input.
Outputs
There are 12 outputs on the main board. In programming these are numbered Out2, Out3, and Out 7 thru 16. The total
outputs may be expanded utilizing output expander boards connected to the RS-485 4-wire Keypad data bus. The Alarm
Output (Out 2) trips when any alarm is activated. All others must be enabled through the RP Rules Programming and can be
triggered by multiple conditions “events”. Do not exceed the current limits on voltage only outputs.
Output 2 - Connect a UL Listed Bell or Siren (self-contained). Current limited to 1 Amp. Program Global Option 26 to Voltage.
This output is supervised. Speaker(s) are only permitted for non-UL installations. Series/parallel wire to avoid dropping
below a 4 ohm total load.
Output 3 is a Single Pole Double Throw Relay with form “C” contacts (Com, N/O, and N/C).
Outputs 7, 8, 9, 10, 11, 12, 13, 14, 15, and 16 are low current, positive (+) voltage only, for driving LEDs, relays, etc. Outputs 4,
5, and 6 ARE NOT available from the main board. They can only be accessed with a data bus Output expander set to
address 1. This expander will replicate main board outputs 7 thru 16, while also including outputs 4, 5, and 6.
Earth Grounding
Tests have determined that the best results against lightning and transients are obtained by isolating the control from ground.
Do NOT connect any of the terminals, especially the Neg. terminals to earth ground. Early production boards had an earth
ground terminal. This terminal is no longer used on circuit board revision I or later. However, ancilliary devices such as the
ELK-950 Surge Protector on the incoming Telephone circuit are still recommended.
Keypad & Expanders on the RS-485 Data Bus (+VKP, Data A, Data B, Neg)
Keypads and data bus expander devices connect to the four terminals marked +VKP, Data A, Data B, and Neg. The keypad
plug-in wire harness color code is: Red +VKP, Green Data A, White Data B, and Black (-) Neg. The +VKP power terminal is
protected by an auto reset PTC device. In the event of a short circuit or malfunction, power will be removed from all devices
until the problem is resolved.
Using Output 7 (low current) with a sensitive relay to switch 24V AC to a Door Strike †
24V AC
Transformer
+-
Door
Strike †
ELK-924 †
POS
NEG
-T+T
N/OCOMN/C
D3
24V OPEN
N/OCOMN/C
+12V
NEG
16
15
14
13
12
11
10
9
8
7
J16
OUTPUTS
Programmable Outputs (J16) OUT 7 - 16 are +12V switched
positive general purpose outputs rated at 10mA. maximum.
+12V Red
Black
White
Green
Brown
Blue
Yellow
Violet
Pink
Tan
Orange
Grey
+VAUX
NEG
OUT 16
OUT 15
OUT 14
OUT 13
OUT 12
OUT 11
OUT 10
OUT 9
OUT 8
OUT 7
† Not evaluated by UL †† Not for use in UL Listed Systems

M1EZ8InstallationandProgramming Page11
Data Bus E.O.L. Termination - VERY IMPORTANT!
The control features a true RS-485 “differential” data bus operating at 38,400 bits per second. This is relatively high speed by
industry standards and ensures fast, accurate communications. With this speed, EOL data bus terminating resistors are
required to eliminate the possibility of reflection errors caused by varying cable lengths. Every data bus device; keypad, zone
expander, etc. and the control board has a built-in bus terminating resistor (120 Ohm) which is installed (activated) via a 2 pin
header/jumper (2 Gold Pins). The hardware pack includes two black shorting caps. When one of the shorting caps is placed
on the two gold pins, it installs (activates) the 120 Ohm terminating resistor across Data Lines A & B. Terminating resistors
are marked JP2 on the keypads and JP1 on the expanders. From the factory, no terminating resistors are installed (activated).
WARNING! The RS-485 Data Bus must NEVER have more than 2 terminating resistors header/jumpers installed.
Ideally, there should be no more than 2 home run cables (4 wire) with daisy chained devices along each. The last device on each cable
MUST have a terminating resistor installed (activated) via the gold 2 pin header/jumpers marked JP2 on keypads, JP1 on expanders. Place a
black shorting cap (see hardware pack) onto the 2 gold pins to install a 120 Ohm resistor across data lines A & B. If there is only 1 data bus
cable place a shorting cap on JP3 of Main Board. See alternate hookups below.
For those that prefer to home run wires, use 6 or 8 conductor (CAT5 is ideal) cable. At each device, make a three way splice of the data A, the
device A wire (terminal), and a return data A1 wire (using one of the extra wires). At the control, make a two way splice of the data A1 return
wire (series connection) to the outgoing data A wire of the next cable. Repeat for the data B wire. Remember to install a terminating jumper on
the last wired device and the control JP3 ONLY! Electrically the data wires are now in series. Connect the POS (+) and Neg (-) power wires of
each device directly to the M1’s +VKP and Neg terminals. DO NOT SERIES THE POWER WIRES as this will cause unnecessary voltage loss.
The ELK-M1DBH † Data Bus Hub accepts CAT5 or CAT6 cable with RJ45 plugs on the ends and does all the work of series connecting the
DATA lines A & B. Terminate at the hub using the included RJ45 Terminating Plug in the first unused jack.
+VKP
DATA B
DATA A
NEG
EGND
ELK-M1KP
BLACK
WHITE
GREEN
RS-485 Data Bus (Max. length is 4000 ft.
Max. bus devices vary by control.)
RS-485 DATA BUS
RED
ELK-M1XIN
ELK-M1XOV
Jumper
Terminate
these two
devices.
DO NOT Jumper
Terminate these devices.
Keypad 1
ELK-M1KP Keypad 2
ELK-M1KP
Keypad 3
Daisy Chain Connection of Data Bus Devices Using Two (2) Home Run Cables
Install Teminating Jumper
Cap on this last device
AND on the control JP3.
6conductorcables
+VKP
DATA A
DATA B
NEG DATA
A1 A
B1 B
DATA
A1 A
B1 B
WHITE
GREEN
BLACK
RED
A
-
+
B
SPARE
PAIR
See Keypad Diagram for connection
of Optional Output and Zone Input
WHITE
GREEN
BLACK (-)
RED +12
BLUE
BROWN
6
Conductor
Cable
Keypad
DATA
A1
B1
For future
devices
A1
B1
Connect each device to the 6
conductor cable as shown.
Diagram for Daisy Chain Connection of Data Bus Devices Using 3 or More Home Run Cables.
NOTE: The powerwires are parallel
connected to the+VKP & Neg terminals.
RS-485 DATA BUS
Keypad
Keypad
Keypad
ELK-M1DBH Data Bus Hub †
Mount M1DBH inside control. Connect it to the M1
DataBusterminalsusing a4 conductorcable.
J2 J4 J6 J8
J1 J3 J5 J7 J9
RJ45 Terminating Plug Insert in first unused jack and terminate the
control at JP3. DO NOT TERMINATE AT ANY OF THE DEVICES!
CAT5 Cables
Daisy Chain Connection using the ELK-M1DBH and CAT5 Cables.
RS-485 DATA BUS
8 - Brn/Wht
7 - Wht/Brn
6 - Org/Wht
5 - Wht/Blue
4 - Blue/Wht
3 - Wht/Org
2 - Grn/Wht
1 - Wht/Grn
RED +12V
BLACK (-)
GREEN (A)
WHITE (B)
BROWN
Pin1
RJ45 Plug
A1Grn/Wht
AOrg/Wht
-Wht/Brn
+Brn/Wht
BWht/Org
B1Wht/Grn
Spare
Spare
COLOR CODE for CAT5 or CAT6 Data Bus Cable
to RJ45 Plugs for ELK-M1DBH Data Bus Hub.
Pin1
Front
view
Optional programmable Zone Input from Keypad
Optional programmable Output from Keypad
Load (50mA max)
I.E. LED, Relay
-
+
To BLACK (Neg) Wire
To BROWN Wire
N.C
.N.O
.
2200
Ohm
EOL
To BLACK (Neg) Wire
To BLUE Wire
BLUE
Keypad
Keypad
CAT5
or
CAT6
Cable
† Not evaluated by UL †† Not for use in UL Listed Systems

M1EZ8InstallationandProgramming
Page12
Setting the Data Bus Address and Enrolling Device(s) into the System
Keypads and expander devices communicate over the RS-485 4-wire data bus. Each device must have a unique address
setting (from 1 to 16) within it's device type. Keypads are TYPE 1, input (zone) expanders TYPE 2, output expanders TYPE 3, etc.
The purpose of device types is so that the address numbers can be re-used in each different device type. It’s OK to have a
Keypad, Zone Expander, and Output Expander all set to address 2 and on the same data bus since each device is a different
device type. It is NOT OK to have duplications of addresses within the same device type. I.E. Multiple keypads on the same
control cannot be set to 'like' addresses.
ADDRESS: From the factory all keypads are set to address 1. Valid addresses are 1 to 16. The first keypad on the system
(Keypad 1) is automatically enrolled upon power up. Each additional keypad must be assigned a unique address and then
manually enrolled from “Menu 1 - Bus Module Enrollment”. (See Menu 01, for complete instructions on Bus Module Enrollment)
1. Press and hold the " * " key, followed by the F5 key . HOLD BOTH keys pressed for 5-10 seconds or until the LCD displays:
Exit when done. F1 Set Addr. (This is Keypad setup mode)
NOTE: An alternate method is to remove power from the keypad and then power up while holding any key pressed.
2. Press the F1 key to display the current address setting.
3. Set the desired address (from 1 to 16) by using the Up or Down arrow keys.
4. Press the Exit key twice when done.
12345678901234567890123456
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
12345678901234567890123456
Auth.Required
EnterValidPin
12345678901234567890123456
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
12345678901234567890123456
01-BusModule
Enrollment
ENROLLING:
1. Press the ELK key, then 9 (or scroll up) to display 9 - Installation Programming. Press the RIGHT
arrow key to select this menu. The Installer Program Code must be entered to access this menu.
2. Enter the Installer Program Code. (The default code is 172839)
3. The first Installer Programming menu display will be “Bus Module Enrollment”
4. Press the RIGHT arrow key to select this menu. “Enrolling Bus Modules” will display.
5. After a few seconds the display will show the total Bus Modules that are enrolled. To view the
enrolled devices and /or remove a device press the RIGHT arrow key next to the word Edit.
6. Press the * or Exit keys to exit Installer Programming.
12345678901234567890123456
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
1
234567890123456789012345
6
12345678901234567890123456
XXBus Modules
Enrolled,Editrr
rr
r
The ELK-M1DBHR † "Active" Data Bus Hub Retrofit splits the Controls' main RS-485 Data Bus into 4 managed RS-485 branches. Each branch
can have 2 parallel home run cables for a total of 8 home runs. The last (end of line) device on each home run should be jumper terminated to
insure proper operation and supervision.
JP1
Terminating Jumpers (JP1 - JP5)
JP1 = Terminates Input from Control
JP2 = Terminates Branch 1
JP3 = Terminates Branch 2
JP4 = Terminates Branch 3
JP5 = Terminates Branch 4
See details about Data Bus Termination.
ELK-M1DBHR †
DATA BUS HUB FOR RETROFIT
ELK PRODUCTS, INC. HILDEBRAN, N.C., 28637, USA
JP2 JP3 JP4 JP5
+VKP
DATA B
DATA A
NEG
RS-485 DATA BUS
BLACK
RED
GREEN
WHITE
AB-
+
INPUT
FROM CONTROL
The Maximum length of the
RS-485 Data Bus or any single
Branch is 4000 ft.
Max. devices varies by product.
+VKP protected with 1.25A PTC
Mount M1DBHR inside control.
Connect it to the Data Bus terminals
using a 4 conductor cable.
RED
GREEN
WHITE
BLACK
A
+B-
DATA BUS
BRANCH 1
RED
GREEN
WHITE
BLACK
Keypad
A
+B-
DATA BUS
BRANCH 2
Keypad
RED
GREEN
WHITE
BLACK
Keypad
Single Keypad /Bus Device:
If only one (1) Keypad or Bus Device
is connected to a branch (# 1 in this
example), place terminating jumper
on the Keypad/Bus Device AND on
JP2 of the M1DBHR.
Two Keypad /Bus Devices:
If two (2) Keypad/Bus Devices are connected to
a branch (#2 in this example), place terminating
jumper on both Keypads/Device and REMOVE
jumper JP3 on the M1DBHR.
Multiple Keypads/Bus Devices
(Series Connected):
If more than two (2) Keypad/Bus
Devices are connected to a
branch (#3 in this example), they
MUST be series connected on no
more than 2 homerun wires.
Place terminating jumpers on
LAST device connected to each
homerun. REMOVE jumper JP4
on the M1DBHR.
ELK-M1XIN
ELK-M1XOV
Jumper
Terminate
these two
devices.
DO NOT Jumper Terminate
these devices.
ELK-M1KP
Keypad
KeypadKeypad
RED
GREEN
WHITE
BLACK
A
+B-
DATA BUS
BRANCH 3
A
+B-
DATA BUS
BRANCH 4
ELK-M1XIN
Jumper
Terminate
these two
devices.
One Keypad and one
Zone Expander:
When two (2) Bus
Devices are connected
to a branch (#4 in this
example), place
terminating jumper on
both Bus Devices and
REMOVE jumper JP5
on the M1DBHR.
Jumper
Terminate
these two
devices.
Keypad
JumperTerminate
this deviceANDJP2
onthe M1DBHR.
DONOTJumperJP3. DO NOT
Jumper JP5
DO NOT Jumper JP4.
This diagram illustrates the M1DBHR Hub as a single
branch on a Control. Terminate JP3 on Control and JP1
on the M1DBHR. If a second hub is wired to the Control
terminate JP1 on the hubs but DO NOT terminate JP3 on
Control. NEVER place more than two (2) terminating
jumpers on any branch of the RS-485 Data Bus!
Diagram for Home run wiring using M1DBHR Active Data Bus Hub
† Not evaluated by UL †† Not for use in UL Listed Systems

M1EZ8InstallationandProgramming Page13
2.1 Introduction
The control has factory default programming which make it easy to bench test prior to installation. Terminate all zones with
EOL resistors, then connect a keypad, transformer, and battery. The factory (Master) user code is 3456. This code can
operate all user related features of the system. This section gives an overview of powering up and basic keypad functioning.
2.2 Powering Up (One Keypad)
After all other connections have been made and checked thoroughly, the controls AC transformer and battery may be
connected. Upon power up the control will perform self-diagnostics and auto-enroll the first keypad (Keypad Address #1). Any
additional keypads or expanders must be manually enrolled using Installer Level Programming. See “Menu 01 - Bus Module
Enrollment”.
NOTE: It is very important to make certain that every keypad, input expander, output expander, or any other data bus
device be assigned a unique data bus address within its type. See “MENU 01 - Bus Module Enrollment” for instructions
on setting keypad and expander addresses.
2.3 User Codes and Authorities
Each user code may be assigned specific authorities as to what it is allowed to do. The authorities are assigned from the
Installer level programming, however the code digits and user names are assigned from the keypad user menu 6 - Change
User Codes. Only a Master authority level code or the Installer code is allowed to access keypad user menu 6. The User’s
Guide contains a description of operations accessible to the user codes. Control operations accessed by the installer
passcode are slightly different.
Factory Default for User Code 1 is: 3 4 5 6 (Master Code) (1 2 3 4 5 6 if the six digit code option is enabled)
User code may be used for functions in a specific area or system-wide. Some options may be performed at any time, even
while the control is fully or partially armed. The menu system is designed to be next-step-oriented. After a brief explanation of
the options, the user should be able to begin operating the system immediately. For purposes of discussion, the installer and
the end consumer are both considered users, but have different capabilities.
2.4 Installer Program Code and Authorities
The installer code can access all the keypad user menus and has limited arm/disarm privileges. It may be used to arm any
area and disarm any area as long as the area WAS NOT armed by a user code. The Installer code can silence 24hr alarms
or a Burglary alarms in an area that was armed by the installer or in an area that is not armed. The installer code can silence
a trouble condition in a disarmed area. See User’s Guide for a full description of arming and disarming procedures.
Factory Default for the Installer Program Code is: 1 7 2 8 3 9
CAUTION: If a 4 digit User Code matches the last 4 digits of the Installer Code (or the whole code if 6 digit User
Code option is enabled), the control will deny access to installer program mode. If this occurs, use the Master
User Code to access menu 6 and locate the “offending” User Code, then change its digits to something new.
Section 2 - Operating the System

M1EZ8InstallationandProgramming
Page14
2.5 Keypad Overview
Ready Light - ON when all burglar zones are secure and the system is OK to arm. If OFF, one or more zones are violated (not secure). For
maximum security, secure all zones before arming the system. If FLASHING, one or more force-armable zones are violated. Force arming
temporarily excludes violated zone(s) from the system. If a force armed zone becomes secure while system is armed, it will automatically
restore to service. This is handy for a garage door as system may be armed with the door up, but will secure when door closes.
Armed Light- ON when the system is armed. The mode of arm will be indicated by the LCD display and the Exit or Stay lighted pushbuttons.
This light will be OFF when the system is disarmed.
Exit Key - May be programmed for single or double press arming to the AWAY (not occupied) mode. If ON the system is armed and all
perimeter sensors and interior motions are active. The Away key may be pressed during the exit delay time t to convert from Away to Away
Vacation mode. Vacation mode is primarily for use with the Whenever/And/Then Rules programming of Elk-RP for long term energy savings.
Stay Key - May be programmed for single or double press arming to the STAY (occupied) mode. If ON the system is armed and all interior
zones are excluded (bypassed). Only perimeter doors and windows are active in the Stay mode. This key may also be programmed to
change to other Stay modes such as: Stay Instant, Stay Night, and Stay Night Instant. Since interior zones are automatically excluded once
the Stay mode is activated, the M1 allows this key to Stay arm even while one or more interior zones are violated, provided they are pro-
grammed for “force arming”. The Stay Night mode re-activates any interior night zones. To prevent a false alarm the control will not allow
change to the Stay Night mode when a interior night zone is violated unless it is programmed for “Force arm”.
Keypad Models and Feature Comparison
PART
NUMBER
ELKM1KP
ELKM1KP2
ELKM1KPAS
PHYSICAL
DIMENSIONS
6.87" W x 5.25" H x 1.32" D
4.65" W x 5.5" H x .95" D
1.3" W x 2.62" H x .3" D (actual
keypad area not incl. electrical plate)
FUNCTION
KEYS
(6) F1 thru F6
(4) F1 thru F4
(6) F then 1- 6
DOOR
COVER
Yes
No
No
BACKLIGHTING
LCD KEYS
Green Amber
Blue Blue
N/A Blue
TEMP
SENSOR
Yes
No
No
ZONE
INPUT
Yes (1)
Yes (1)
No
PROG.
OUTPUT
Yes (1)
Yes (1)
No
OPT. 26 BIT
PROX READER
Yes - Int. or Ext.
Yes - Ext. Only
No
ELK-M1KPLCD Keypad
ELK-M1KP2LCD Keypad
Available Keypads Styles
ELK-M1KPASArming Station
Featuresand/or operational characteristicswill varyby keypad style.
Chime Key - Will be lighted when the Chime mose is On. A tone or announcement will be heard when certain zone(s) are opened. If OFF
the chime mode is off. There are four different selections: Tone only, Voice, Tone/Voice, and Off. In the programming mode this key also
functions as an insert character key for text programming. The key will be lighted when Chime is On.
Bypass Key - Pressing this key followed by a zone number and the bypass key again will exclude or bypass the selected zone. This
key may also be used to delete a character during text programming. When the Bypass key is lit, one or more zones are bypassed.
* Key - Serves as a clear or reset key. If an error is made while entering digits, press this key to clear the error. Master clear is 3 presses.
# Key - This key is currently a duplicate of the Bypass key.
Numerical Keys - Used for entry of passcodes, programming, etc. Keys 2 - 9 also have an assigned alpha character for entering text.
ELK and Arrow Keys - The ELK and arrow keys have powerful functionality for both normal operation and programming. Pressing the
ELK key displays relative information according to each application. The arrow keys allow scrolling through all available options. The user
can activate or select the displayed option by pressing the right arrow key. Once an option has been selected, the user may be prompted
for a passcode. Additional sub-menu options may appear to assist. The user may return to the status screen by pressing the * key.

M1EZ8InstallationandProgramming Page15
Access to menus 1 to 5 can be restricted via programming to only Users that have “User Code Option 8” set. Menus 6 & 8
required a Master or Installer Code. Menu 9 requires the Installer Code. Press ELK to begin, then press the UP or DOWN
arrow key to select a menu. Enter a code if prompted. To select a menu press the RIGHT arrow key.
Keypad Menus
Allows viewing or controlling of the automation functions such as Tasks, Lighting, Outputs,
Temperature Sensor, Keypad Temperature, and Thermostats. Press the RIGHT arrow key to
select, then choose the desired function using the UP or DOWN arrow keys.
NOTE: The automation functions must be assigned and named using the ELK-RP software.
In most cases they cannot do anything unless they have been written into one of the
“Whenever/And/Then” automation rules.
† Tasks are like 1 button macros, performing multiple jobs with one push. To activate a task
press the RIGHT arrow key and press UP or DOWN to scroll through the list of available tasks.
To jump directly to a particular task, enter it’s two digit number. Once the task is displayed, all
it takes to activate it is to press the # key. A rule to use the “Water the Lawn” task might be:
WHENEVER “Water the Lawn” ISACTIVATED THENTURN ON Valve 19 FOR 5 MINUTES, etc.
† Lighting allows the individual control of lights and/or appliances which have been assigned
through the ELK-RP software. Press the RIGHT arrow key to select Lighting, then press the
UP or DOWN arrow keys to scroll through the list. If you know the three digit number, you may
enter it to jump directly to that Lighting/Appliance. The current state of the unit will be
displayed. Press the # key to toggle (change) the unit from on > off or from off > on.
Outputs might be relays or voltages used to actuate something like a motor, fan, pump, etc.
Outputs can be turned on or turned off from this menu. Press the RIGHT arrow key to select
Outputs, then press the UP or DOWN arrow keys to scroll through the list. If you know the
three digit number, you may enter it to jump directly to that Output. The current state of the
output will display. Press the # key to toggle (change) the output from on > off or from off > on.
Remote “Zone” Temperature Sensors can be read from this menu. Press the RIGHT arrow
key to select this menu, then press the UP or DOWN arrow keys to scroll through the list of
available sensors. To jump directly to a particular sensor enter it’s two digit number. The
current temperature will be displayed. Press the * key to exit.
Keypad Temperature Sensors (ONLY available with the original M1KP Keypad) can be read
from this menu. NOTE: The M1KP2 Keypads do not provide an internal temp sensor. Press
the RIGHT arrow key to select this menu, then press the UP or DOWN arrow keys to scroll
through the list of available keypads. To jump directly to a particular keypad enter it’s two digit
number. The current temperature at the keypad will be displayed. Press the * key to exit.
† Thermostats can be read from this menu. Press the RIGHT arrow key to select this menu,
then press the UP or DOWN arrow keys to scroll through the list of available thermostats. To
jump directly to a particular thermostat enter it’s two digit number. The current temperature at
the thermostat will be displayed. Press the * key to exit.
Used for resetting latched smoke detectors after a fire alarm activation..
Press the RIGHT arrow key to actuate the Reset Smoke Detector feature. This causes the
power to smoke detectors to be removed for 5 seconds. During this time all fire zones will be
ignored to keep an accidental alarm from occurring.
1234567890123456789012345678901
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1234567890123456789012345678901
1-View/Control r
Automation Fncts
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
2-Reset r
Smoke Detectors
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
READYTO ARM
9:00AM08/01/03
Continued on next page..
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
3-Outputs r
1234567890123456789012345678901
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1234567890123456789012345678901
Pump Motor Cntrl
001:=Off, # to Chg
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
2-Lighting r
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
1-Tasks r
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
Water The Lawn
01: # Activates
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
Kitchen Lights
001:=Off, # to Chg
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
5 Seconds Smoke
Output Reset r
The control offers extended Menu Options via the center navigation “ELK” key. Some menus
may require a valid code to authorize. The Factory Default Code for USER Code 1 is: 3 4 5 6
(1 2 3 4 5 6 if the six digit code option is enabled)
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
4-Temperature r
Sensor
1234567890123456789012345678901
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1234567890123456789012345678901
Outside
S01:=032 Degrees
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
5-Keypad r
Temperature
1234567890123456789012345678901
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1234567890123456789012345678901
Keypad 01
K01:=073 Degrees
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
6-Thermostat r
Temperature
1234567890123456789012345678901
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1234567890123456789012345678901
Hallway
T01:=072 Degrees
† Not evaluated by UL

M1EZ8InstallationandProgramming
Page16
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
3-Walk Test Area r
< Area? Name >
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
4-View History r
Log
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
6-Change r
UserCodes
Requires Master or
Installer Code
Menu 3 permits a local walk test of all zones assigned to this keypad’s area. The siren(s) and
communicator are disabled during a walk test. Press the RIGHT arrow key to begin a Walk
Test. The keypad displays the total tested zones adjacent to the total number of zones involved.
When a zone is activated, it’s name is displayed across the bottom and can be audible if the
Chime mode is on.
Allows viewing of the past 512 activities stored in the history log. Press the RIGHT arrow key to
view. History activities include: Arm, Disarm, Alarm, Trouble, etc. The top line displays the Log
number, Mth/Day, Time, and event description. The log can ONLY be cleared from ElkRP.
L001 is always the most recent event. Press the UP or DOWN arrow keys to move forward and
back. Event 512 will be the oldest event. The bottom line displays the event description, the
extended data (zone, user, etc.) and the area number (A1-A8).
Allows viewing of the current status of all zones. Press the RIGHT arrow key to select. Press
UP or DOWN to scroll through the zones or enter a three digit number to jump directly to a
particular zone. I.E. for zone 16 enter 016. Press the * key to exit.
For changing a user code and/or name for codes which have been previously enabled by the
Installer. There are a total of 99 user codes. Only a Master code OR the installer code can
access this menu. Press the RIGHT arrow key to begin. Press UP or DOWN keys to locate a
user, or enter 3 digits to jump. Press RIGHT arrow key to view the existing code. To change,
enter the new code digits and listen for 3 beeps to confirm. To edit the name, press the RIGHT
arrow key once, then press the DOWN arrow key. Enter the text using the letters on the keys.
I.E. For “K” press the 5 key twice. Move RIGHT or LEFT with the arrow keys. Press Chime to
insert a space. Press Bypass to erases a letter. The UP and DOWN arrow keys shift from
upper to lower case letters. Press the ELK key to save and exit.
.
Allows an end user to change up to 20 settings incorporated into an automation rule. These
settings can be: time of day, time duration (seconds), or a numeric value. Each custom setting
has a reference number (CS) and a text description: I.E. CS01: Sprkl On 00:00 [Time] implying
a time of day setting. Press the RIGHT arrow key to begin.
Press the UP or DOWN arrow keys to locate a setting, then press the RIGHT arrow key to
select. Enter the new value and press the ELK key to save and exit.
Menu 8 consists of 8 sub-menus used for advanced system settings. Press the right arrow key
and enter a valid user code. Press the UP or DOWN arrow keys to select a sub-menu or enter
the one digit number to jump directly to any sub-menu. I.E. enter 6 to jump to 86.
To set the system clock press the RIGHT arrow key, then press the UP or DOWN arrow key to
select the day. Next, press the RIGHT arrow key to move to Date/Time setting. Enter two digits
for month, date, year, hour, and min. To exit press the * key.
To set the volume for output 1 voice messages (non-alarm) press the RIGHT arrow key and set
desired volume with the UP or DOWN keys. There are 8 settings (0-7). WARNING: PROTECT
EARS! Each adjustment broadcasts a test message through Output 1. To exit press the * key.
To set keypad adjustments press the RIGHT arrow key. Then press the UP or DOWN keys to select
one of the three options.
1234567890123456789012345678901
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1234567890123456789012345678901
8-System r
Settings
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
83-Keypad r
Adjustments
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
1:Set Keypad r
Beep Tone
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
2:Set Keypress r
Beep Volume
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
3:Set Backlight r
Dim Level
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
82-Out1 Voice
Adjust Volume r
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
81-Set Sys Clock r
24hr format
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
000of016Tested r
A?-Violate Zones
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
L001:01/01bb
bb
b08:00
AreaArmed 103A1
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
001:Selbb
bb
b Prgr
< User Name >
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
7--Automation r
CustomSettings
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
CS01:bb
bb
b00:00Timer
Sprklr On
Requires Master or
Installer Code
Requires Master or
Installer Code
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
5-View Status r
of all zones
To set keypad beep tones press the RIGHT arrow key, then select the desired tone using the UP or
DOWN keys. There are 9 settings (0-8). When done, exit by pressing the * key.
To set key-press beep volume press the RIGHT arrow key, then select the desired volume using
the UP or DOWN keys. There are 7 volume levels (1-7) plus Off (0). To exit press the * key.
To set backlight dim level press the RIGHT arrow key, then select the desired level using the UP or
DOWN keys. There are 9 backlight levels (1-9) plus Off (0). The keypad automatically dims to this
setting after 30 seconds of no activity in order to save energy. To exit press the * key.

M1EZ8InstallationandProgramming Page17
To perform system tests press the right arrow key. Then press the up or down arrow keys to
select one of the three tests.
The control’s standby battery is load tested automatically every 24hrs. However, it can also be
manually load tested anytime using this option. Press the right arrow key to start the test. The
battery is placed under load for 30 seconds and the battery voltage and system current is
displayed. If the battery falls below a set level, a Low Battery trouble will occur. If it’s necessary
to replace the battery, this test should be used to test and clear a Low Battery Trouble condition.
To test the keypad’s LCD screen press the RIGHT arrow key. The entire screen should appear
black indicating all pixels are working. To exit press the * key.
To manually test the communicator (dialer) press the RIGHT arrow key. Testing is done using
the first phone number that is programmed to send a test code. If there is no phone number
programmed to send a test code, the test will end. To exit this menu press the * key.
To silently send a test press the right arrow key from this display.
This special option allows any pending (not reported) dialer communications to be cleared
or cancelled. Typically this will be used only for initial installation and testing.
NOTE: ALWAYSNOTIFYTHE MONITORINGSTATIONBEFORETESTINGTHEDIALER! Ifthe test
should fail, a Comm Fail trouble will occur. To clear a Comm Fail the dialer must be able to
complete a good communication.
To connect ELK’s Remote Program PC software (RP) via the user assisted method, press the
RIGHT arrow key and then select the connection mode with the UP or DOWN arrow keys.
1:Seize Line Attended Mode - 1) Allows RP connection to begin on an already established voice
connection between the control phone line and the RP Computer. 2) Also useful for manually
answering an incoming call from the RP Computer with programming Rings to Auto Answer.
2:Seize Line Unattended Mode - Pressing the RIGHT arrow key causes the control to dial the
programmed RP telephone number. The RP Computer must be in the “wait for call” mode.
NOTE: UL requires that a Technician be On-Site when doing Remote Programming.
This is a collection of tools for diagnosing system problems. Press the RIGHT arrow key and
enter a valid user code to begin. Press the UP or DOWN keys to select one of the four tools:
This tool is for use in conjunction with Tech Support to diagnose data bus retries and errors. It
displays the device type and number of retries accumulated since the last power-up. T=Device
type, A=The Address within the device type
This tool displays the control’s voltage from the power supply.
This tool allows the voltage on each zone to be displayed in real time. It changes as contacts
or devices are violated. Press the RIGHT arrow key to begin.
Use the UP or DOWN keys to scroll through each zone. The displayed information consists of:
the present zone voltage, the L low and H high alarm thresholds, and the analog (A to D)
equivalent of the zone voltage..
This is a read only screen displaying the telephone line voltage during the last on-hook
condition. It is an approximate measurement accurate to only +-20%.
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
85-Connect ‘RP’ r
Remote Program
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
2:LCDTest r
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
3:Communicator r
Manual Test
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
1:Seize Line r
Attended Mode
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
2:Seize Line r
UnAttended Mode
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
86-System r
Diagnostics
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
1:DataBusErrors b
T2A1 Retry 00000
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
2:Sys Volt b
13.8V
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
3:Zone=001 Volts
Display Level r
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
4:LastOnHookTele
Line V=57,+-20%
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
Zn=001 Volt=07.2
L04.6 H09.0 A132
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
1:Battery Test r
for 30 Seconds
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
84-System r
Tests
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
Send Test r
Silently
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
Clear Pending r
Dialer Reports

M1EZ8InstallationandProgramming
Page18
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
9-Installation r
Programming (0) Requires
Installer
Code
From this menu you may press the RIGHT arrow to enter Installation Level Programming. If
the Installer Programming Code has not already been entered it will be required at this
time. REFERTOPAGE20 FOR PROGRAMMINGINSTRUCTIONS
Menu 0 - Select Keypad Alternate Area - Multi-area (Partition) Operation
Press the RIGHT arrow key to select this menu and display the following:
Enter a valid user code. The control does not allow (restricts) mapping or viewing of
areasthat are notauthorized for the user code.
MAPPING TO AN INDIVIDUAL AREA
Enter an area number from 1 to 8 OR scroll UP and DOWN with the arrow keys.
Press the Right Arrow key to map the Keypad to the area shown. The LCD display and
the Ready /Armed LEDs will show the status for the mapped area for 1 minute. During
this minute, it is possible to arm, disarm, bypass, etc. the mapped area from this
keypad. Each time a key is pressed the 1 minute is restarted. However, after 1 minute
of no keypress activity, the keypad will return to its original primary assigned area.
ACCESSINGACONSOLIDATED DISPLAYOFALLVALIDAREAS
Entering “0” for the area number immediately maps the Keypad to a consolidated
‘snapshot’of all authorized areas. This permits quick arming and disarming only. If an
area is not ready to arm it will be necessary to map individually to that area to view the
violatedzone(s) andeither secureor bypassthem priorto arming.
This example shows all 8 areas, meaning that the User Code was valid for all 8.
The display only shows the areas for which the user code is authorized.
Notethe letterbeneath each areanumber.
Thismenu allows thekeypad tobe mapped temporarilyto anyother area, allowing multi-area (partitioned)opera-
tion. An individually mapped area can be armed, disarmed, and controlled just as if the keypad were permanently
assigned to that area. It may also be used to access a consolidated display of all areas at once, showing the
status of each area.
To reach the keypad menus press the center navigation key labeled “ELK”. Auser code may be required depend-
ing on how the control is programmed. The four arrow keys around the Elk key are used to scroll, backup, etc.
Pressing the RIGHT arrow key will select the displayed menu.
1. Press the ELK key. Enter a user code if prompted.
2. Use the UPor DOWN arrow keys to find menu “0-Select KeypadAlternateArea”.
1234567890123456789012345678
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1234567890123456789012345678
0-Select Keypad
Alternate Area r
1234567890123456789012345678
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1
23456789012345678901234567
8
1234567890123456789012345678
Auth. Required
Enter Valid PIN
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
ChangeKPArea-1
r
[Area Name] A1
The single upper case “X” indicates the primary area. This area is controlled exclusively from
theregular operationscreens.
Alower case “r” below an area indicates the area is Ready toArm.
Alower case “n” below an area indicates the area is Not Ready.
Aupper case “A” below an area indicates the area isArmed.
This example shows the user code was only authorized for areas 1, 2, and 3. The
unauthorizedarea(s)have a“-”belowthem.
To change or ‘toggle’ the arm status of an area, press the number key representing
the area number. IMPORTANT: The area status is not “real time”. It is a snapshot
taken when the RIGHT arrow key was pressed. If a zone has since become violated
the area will still be displaying “r”, however the letter will immediately change to “n”
and the keypad will emit an error tone when an attempt is made to arm by pressing
the area number. When finished, press the “*” key to exit.
123456789012345678901234567890
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
1
2345678901234567890123456789
0
123456789012345678901234567890
ChangeKPArea-0 r
0=All Areas
12345678901234567890123456789
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
12345678901234567890123456789
Area# 12345678
Status X r r r r r r r
12345678901234567890123456789012
1
234567890123456789012345678901
2
1
234567890123456789012345678901
2
1
234567890123456789012345678901
2
1
234567890123456789012345678901
2
1
234567890123456789012345678901
2
1
234567890123456789012345678901
2
1
234567890123456789012345678901
2
1
234567890123456789012345678901
2
12345678901234567890123456789012
Area# 12345678
Status X r r - - - - - r
NOTE: The ElkRP software can be used to lockout certain local program capabilities for “anti-takeover” purposes. The
number in the lower right corner of this menu will indicate the level of lockout as follows: (0) = No lockout, (1)=Lockout
Telephone number programming - view everything, (2)=Lockout ALL programming - view everything, (3)=Lockout ALL
Programming and Viewing. This can only be set or removed from the ELK-RP Remote Programming Software.

M1EZ8InstallationandProgramming Page19
3.1 Introduction
The Security functionality of the Control can be programmed either from an ELK-M1KP LCD Keypad, ELK-M1KP2 LCD Keypad,
OR from the ELK-RP PC Software. The keypad features a menu-driven “Text” based interface with simple Yes/No answers for
most options. After just a short amount of experience the average installer will not even require an instruction manual to
keypad program the control.
For the Automation functionality the ELK-RP PC Software is a requirement. The options and capabilities available for
automation are so unique and powerful that it takes a PC to make use of all the benefits. The M1 features a powerful
“Whenever/And/Then” RULES based programming that allows almost any imaginable operation.
3.2 Local Keypad Programming
There are two levels of operation for programming the control locally, user level and installer level.
- User level programming provides the ability to add, change, or delete user passcodes and names. It also allows custom
automation settings to be viewed and changed. A master user code is required to access the user code and custom settings
screens. User programming is explained in the User’s Guide.
- Installer level programming allows total customizing of the Security operating features. Only the installer code may access
this level. If the installer code is lost or forgotten, it is impossible to program the control locally. Anyone attempting installer
level programming should be familiar with the contents of this publication prior to programming the control panel. If remote
programming is used, it is possible to “lock out” or prevent takeover of a control by another installation company by selecting
“Lockout Local Prog.” This prevents the installer passcode from gaining access to programming via an LCD keypad. The
installer passcode may still be used for the non-programming functions described in Chapter 2. Lockout Local Prog does not
affect remote programming.
3.3 Local or Remote Computer Programming (ELK-RP) and Anti-Takeover
ELK-RP programming utilizes extensive error checking and security safeguards, including data encryption, password log-on,
serial number, and dealer assigned RP access code. The serial # identifies the control to RP while the RP access code
identifies the computer to the control prior to a programming session. RP loads the access code during the first connection. It
cannot be viewed or changed from local keypad programming. In addition to these safeguards, you can set an anti-takeover
option from RP which prevents certain keypad programming. Even a total default of the panel programming cannot reset the
anti-takeover option once it is set..
The Factory Default Elk-RP Access Code is: 2 4 6 8 0 1
NOTE: UL requires that a Technician be On-Site when doing Remote Programming.
3.4 Area Partitioning
The control may be divided into 1 to 8 independent areas (partitions). Each area appears as a full-featured system, allowing
one control to be shared by multiple, independent departments within a common structure. Zones, User Codes, and
Keypads may be assigned to any 1 area up to the maximum number available. An example is a single building divided into
room(s) to be armed/disarmed separately. Mount the control in a secure area (common utility closet) with dedicated and
uninterrupted AC power and telephone service. Then assign zones, codes, and keypads to each department.
Output 1 siren/voice activates on all alarms, regardless of the area. The RP Software Rules can be used create additional
(separate) outputs. When reporting to the central station events like AC Power Failure, Automatic tests, Low Battery, etc., are
considered system reports and are transmitted using the Area 1 account number. If area partitioning is not desired, simply
designate all zones to a single area (Area 1) which is the factory default setting for zones 1-16.
COMMON AREA - Another popular feature is the ability to have one or more areas made “common” to Area 1. This is often
referred to as a “Vestibule Feature”. Any of the Areas 2 thru 8 may be made common to Area 1. The result is: Area 1 cannot be
armed until all its common areas are armed. Once armed, Area 1 will disarm if any common area becomes disarmed. This
is good for lobbies or vestibules shared by two or more people. Each area must have its own keypad. NOTE: If you want
Area 1 to automatically arm when all its common areas become armed, use a Whenever/And/Then rule from the RP
software to do this.
Section 3 - Programming The Control

M1EZ8InstallationandProgramming
Page20
3.5 Communicator Setup Checklist
The Communicator (Dialer) can dial up to 8 phone numbers plus RP. Digital reporting formats include: Pulse 4+2, SIA,
Contact ID, and Pager. Use the following checklist for each required telephone number.
1. Under Menu 08 - Telephone Account Setup, select one of the telephone numbers and program the following:
Option 01: Select the desired reporting format - 0=Disable, 1=Contact ID, 2=SIA, 3=Pulse 4+2, 4=Pager
Option 02: Set the priority for the first (primary number) to 0 = Always Report.
Option 03: Program the telephone number digits to be dialed. No special start or ending characters are required.
Option 04: Set the dial attempts to greater than 0. For Digital reports 8 is suggested. For Voice the max. is 2.
Option 05 Program the digits for the account number to report. Each area (partition) has its own Acct. Number.
Option 13: Select Yes to have Area info, Zone Alarms, Zone Restores, and Zone Unbypasses reported to this Tel #.
Option 14: Select Yes if you wish to have Zone Bypasses reported to this Tel #.
Option 15: Select Yes if you wish to have Zone Troubles reported to this Tel #.
Option 16: Select Yes if you wish to have User (Open/Close) Reports reported to this Tel #.
Option 17: Select Yes if you wish to have Global System Events (AC Fail, Low Battery, etc.) reported to this Tel #.
Option 18: Although not required, you may program a text name for each telephone number.
2. Under Menu 09 - Area Reporting Codes, select the area (partition) and program the desired options such as: Dialer
Delay, Alarm Abort,Auto Open/Closings, etc. then .
3. Under Menu 10 - Zone Reporting Codes, select the zone number and program the desired options such as: Zone Alarms,
Restores, Bypasses, or Trouble.
Option A: For Zone Alarm program a two digit code. To have the automatic SIA or Contact ID report codes transmitted
simply program a nonzero value. I.E. Program a 1 (01).
Option R: For Zone Restore program a two digit code. For automatic SIA or Contact ID codes program a 1 (01).
Option B: For Zone Bypass program a two digit code. For automatic SIA or Contact ID codes program a 1 (01).
Option T: For Zone Trouble program a two digit code. For automatic SIA or Contact ID codes program a 1 (01).
4. Under Menu 11 - F Key Reporting Codes, select and program the alarm code for each desired Keypad Panic Key. NOTE:
Keypad Panics only have Alarm report codes, they do not have restore codes. For automatic SIA or Contact ID codes
program a 1 (01).
5. Under Menu 12 - Sys Report Code Options & Codes, select and program each desired option such as: AC Fail, Low
Battery, Automatic Test, and other system wide options, including the time values for certain options. For automatic SIA or
Contact ID report codes program a 1 (01).
6. Under Menu 13 - User Report Codes, select and and program an Open or Close report code for any User(s) that you
wish to track arm/disarm events, including arm/disarm by the Installer Code or Elk-RP computer.
3.6 Entering Installer Level Programming
1. Press the center ‘ELK’ key once followed by the DOWN arrow key until display reads “9-Installation Programming”. NOTE:
The keypad may beep and display the following:
2. Enterthe Installer ProgramCode when required.
Press the right arrow key to select the “Installation Programming” option.
The Factory Default Installer Program Code is: 1 7 2 8 3 9
For security against unauthorized programming changes, the installer code should be changed from its factory default
setting. This can be done from Menu 07 - Globals System Definitions, Option 42.
CAUTION: If a 4 digit User Code matches the last 4 digits of the Installer Code (or the whole code if 6 digit User
Code option is enabled), the control will deny access to installer program mode. If this occurs, use the Master
User Code to access menu 6 and locate the “offending” User Code, then change its digits to something new.
Once the Installer Code has been entered, the first programming menu will display and a 4 minute timer will be started.
If there is no key-press activity during this time period the control will automatically exit from the programming mode. It
iseasy tonavigate aroundand betweenthe programming menus and optionsusing theup anddown arrowkeys. When
the correct menu or option is located, press the right arrow key to proceed into that menu.
Refer to the Quick Reference Guide on the following page to locate a particular menu or to see what options
appear under each menu. Refer to the individual menus and their option descriptions for details about each of the
programmable items.
123456789012345678901234567890121234
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
1
2345678901234567890123456789012123
4
123456789012345678901234567890121234
Auth. Required
Enter Valid Pin
Table of contents
Other Elk Products Control Panel manuals
Popular Control Panel manuals by other brands

Extron electronics
Extron electronics TLP Pro x25M Series Setup guide

Rosslare
Rosslare HLX-40 Installation and programming manual

DIGITAL DELAY
DIGITAL DELAY ELITE 500 manual

NAPCO
NAPCO Gemini GEM-P9600 installation instructions

Satel
Satel Integra 24 Programming manual

Notifier
Notifier NFS2-640/E installation manual
