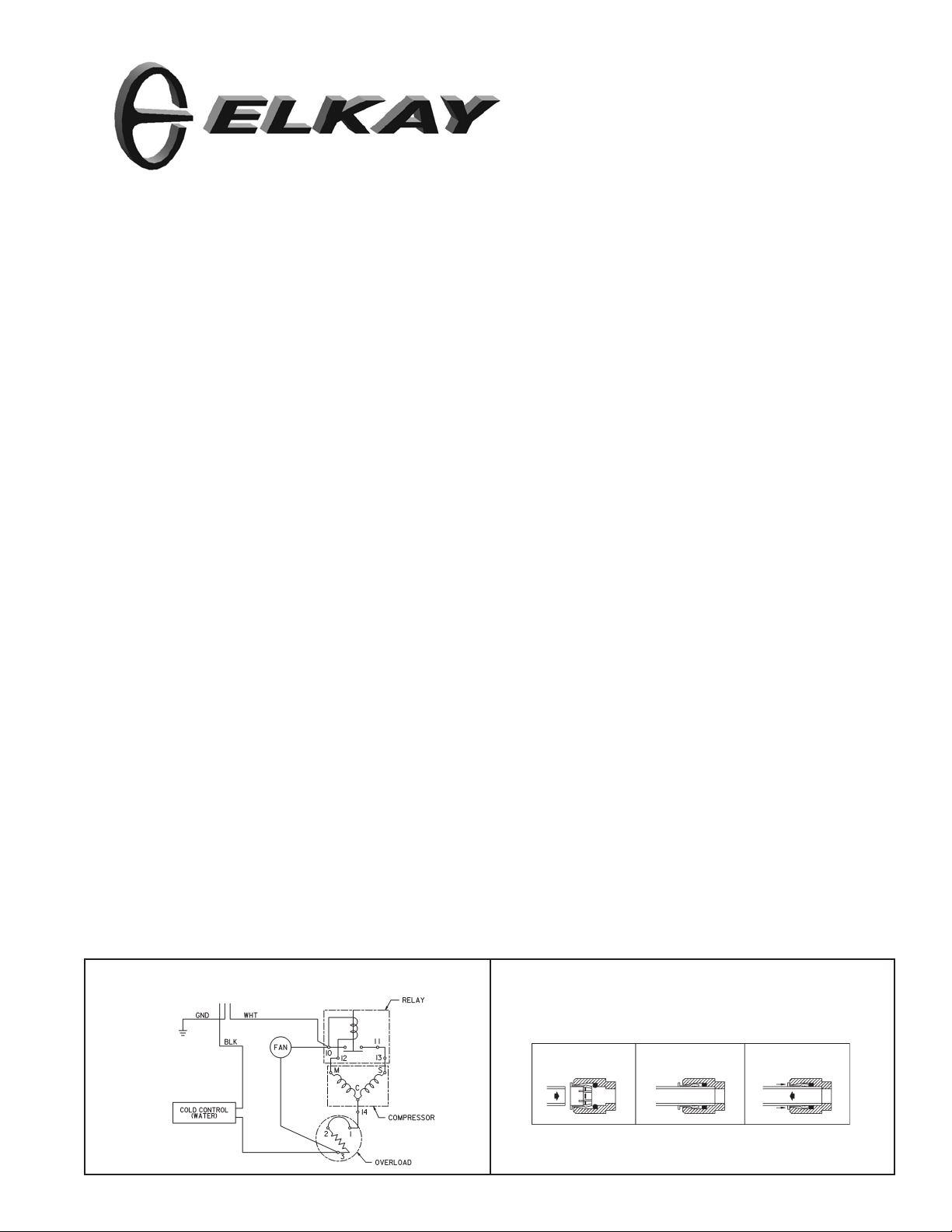

ECP8*1E ECP8*2E ECP8*3E
98594C (Rev. B - 9/10)
TUBE IS SECURED
IN POSITION
SIMPLY PUSH IN
TUBE TO ATTACH PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATIONOFQUICK CONNECTFITTINGS
1. Insure proper ventilation. In fully recessed drinking fountains be sure condenser faces louver panel and is
within 1/2" (13 mm) of louver panel when panel is in place.
2. Water inlet is 3/8" (10 mm) O.D. unplated tube . Contractor to supply connections as required.
3. Connecting lines to be made of unplated copper. Thoroughly flush all lines to remove all foreign matter before
connecting to cooler.
4. Connect cooler to building supply with a shut-off valve and install a 3/8" (10 mm) unplated water line between
the valve and cooler. Remove burrs from outside of water line. Insert water line into bulkhead union until it reaches
a positive stop, approximately 3/4" (19 mm).
NOTE: DO NOT SOLDER TUBES INSERTED INTO THE STRAINERAS DAMAGE TO THE O-RINGS MAY RESULT.
5. Electrical: Make sure power supply is identical in voltage, cycle, and phase to that specified on cooler serial
plate. Never wire the compressor directly to the power supply.
The grounding of electrical equipment such as telephone, computers, etc., to water lines is a common procedure.
This grounding may be in the building, or may occur away from the building. This grounding can cause electrical
feedback into a water chiller, creating an electrolysis which causes a metallic taste or an increase in the metal
contentofthewater.This condition is avoidable by using the proper materials indicated below. Drain fittings which
are provided by the installer should be plastic to electrically isolate the chiller from the building plumbing system.
Temperature Control: Factory-set for 50°F water (± 5°) under normal conditions. For colder water, adjust screw
on item no. 5.
Ventilation: Cabinetlouversandcondenserfinsshouldbeperiodicallycleanedwithabrush,airhose,orvacuum
cleaner. Excess dirt or poor ventilation can cause no cold water and compressor cycling on the overload protector.
Lubrication: Motorsare lifetime lubricated.
Actuation of Quick Connect Water Fittings: Coolerisprovidedwithlead-freeconnectorswhichutilize an o-ring
seal. To remove tubing from the fittings, relieve water pressure, push in on gray collar while pulling on the tubing.
To insert tubing, push tube straight into fitting until it reaches a positive stop, approximately 3/4”.
INSTALLATION
IMPORTANT! INSTALLER PLEASE NOTE:
TROUBLE SHOOTING & MAINTENANCE
START-UP
1. Open supply line valve.
2. Purge all air from all water lines by operating bubbler valve of fountain to which cooler is connected. A steady
stream flow assures that all air is removed.
3. Rotate fan blade to assure proper clearance and free action.
4. Connect to proper electrical power.
WIRINGDIAGRAM
INSTALLATION, CARE & USE MANUAL
Refrigeration Package
ECP8*1E ECP8*2E ECP8*3E
98594C (Rev. B - 9/10)
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
DESCRIPTION
66810C
56237C
66576C
55996C
35839C
36094C
36158C
35768C
35959C
19037000
101516143550
100806740570
20282C
31490C
70018C
30664C
66703C
66743C
36208C
1
2
3
4
5
6*
7
8
9
10
11
12
13
14
15
16
17
18
19
PARTNO. EVAPORATORASSY
SHROUD-FAN
HEATEXCHANGER
STRAINER
COLDCONTROL
COMPRESSORSERV.PAK
OVERLOAD
COVERRELAY
RELAY
CLIP-COMPMTG
STUD-COMPMTG
GROMMET-COMPMTG
BRACKET-FANMTG
FAN MOTOR
NUT
FANBLADE
DRIER
CONDENSER
POWERCORD
ITEMNO.
115V PARTS LIST
1
2
17
19
4
5
7, 8, 9
13
14,15
6
18
*INCLUDES RELAY & OVERLOAD. IF UNDER WARRANTY
REPLACE WITH SAME COMPRESSOR USED IN ORIGINAL
ASSEMBLY.
NOTE: ALL CORRESPONDENCE PERTAINING TO ANY OF
THE ABOVE WATER COOLERS OR ORDERS FOR REPAIR
PARTS MUST INCLUDE MODEL NO. AND SERIAL NO. OF
COOLER, NAME AND PART NO. OF REPLACEMENT PART.
3
10, 11, 12
16
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
DESCRIPTION
36092C
36085C
36174C
36195C
36050C
31431C
31430C
31506C
6*
7
9
14
19
PARTNO. COMPSERV.PAK (60 HZ)
COMP. SERV. PAK (50 HZ)
OVERLOAD (60 HZ)
OVERLOAD (50 HZ)
RELAY (50/60 HZ)
FAN MOTOR(60 HZ)
FAN MOTOR(50 HZ)
POWERCORD(50/60 HZ)
ITEMNO.
220V 50/60HZ PARTS LIST
