Elkay EHW214FP Series User manual
PAGE 1 98420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW214FP EHWM214FP EHW217FP EHWM217FP
EHW217FPRA EHWM217FPRA
Freeze Resistant Fountain
Installation Manual
EHW214FP EHW217FP EHW217FPRA
Elkay Fountains are among the easiest to install Fountains on the market today. To assure you install these
models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE
INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL,
AND OTHER APPLICABLE CODES. After installation, leave these instructions with the Fountain for future
reference. This Freeze Resistant Fountain is shipped in two separate cartons. The second carton(s) contains
the Freeze Resistant Package(s) LKFRB1 that are installed on an interior heated wall. The interior space must
maintain a minimium temperature of 50° F (10° C). Refer to the Freeze Resistant Package for the rough-in
dimensions for installation.
INSTALLER
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON.
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM
THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN
ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE
WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN
FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE
FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.
PAGE 298420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
FIG. 1 EHWM214FP WITH WALL PLATE ASSEMBLY
MOUNTING BOLT AND ACCESS HOLE LAYOUT
7 1/4"
184mm
26 13/16"
681mm
28 9/16"
725mm
43 5/8"
1108mm
24 9/16"
625mm
16"
406mm
8"
203mm
8"
203mm
1 1/2"
38mm
5 1/4"
133mm
5 1/4"
133mm
"A"
"C"
FINISHED FLOOR
WALL PLATE ASSEMBLY
"D"
"E"
7 1/4"
185mm
12 1/8"
308mm
12"
305mm
MAX. WALL
THICKNESS
30 1/4"
768mm
"B"
LEGEND
A = 1-3/4" DIA. (44 mm) HOLE FOR WASTE LINE
B = 7/8" DIA. (22 mm) HOLE FOR WATER SUPPLY
C = 7/8" DIA. (22 mm) HOLE FOR OPERATING CABLE
D = 1/4" DIA. (6 mm) HOLE FOR MOUNTING PLATE TO WALL
E = 3/8" DIA. (10 mm) HOLE FOR MOUNTING PLATE TO WALL
PAGE 3 98420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
FIG. 2
EHWM214FP WITH WALL PLATE ASSEMBLY
ROUGH-IN DRAWINGS
1. Wall should already be framed for the fountain using dimensions shown in Fig. 1. Shown dimensions pertain to installation location.
These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only).
2. Remove bottom cover from fountain and save the screws.
3. Install the fountain using bolts and washers (provided). Tighten securely.
4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide.
5. Install freeze-resistant box - see box instructions.
6. Replace bottom cover.
FINISHED FLOOR
12 1/8"
309mm
19 3/4"
502mm
20 3/8"
518mm
6 1/2"
167mm
27"
686mm
ADA
REQUIREMENT
18"
457mm 5/8"
16mm
12"
305mm
MAX. WALL
THICKNESS
3 5/8"
91mm
2 5/8"
66mm
14 7/16"
366mm
17 15/16"
455mm
13 3/8"
339mm
28 13/16"
732mm
PAGE 498420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW214FP WITH MPW101 MOUNTING PLATE
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 3
7 1/4"
184mm
12 1/8"
307mm
12"
305mm
MAX. WALL
THICKNESS
43 1/2"
1105mm
28 9/16"
725mm
30 1/4"
768mm
1 7/8"
48mm
8"
203mm
16"
406mm
8"
203mm
A
B
C
D
HANGER BRACKET
BACK PANEL
MPW101
MTG. PLT.
FINISHED FLOOR
1/2"
13mm
1/2"
13mm
LEGEND
A = 1-3/4" DIA. (44 mm) HOLE FOR WASTE LINE
B = 7/8" DIA. (22 mm) HOLE FOR WATER SUPPLY
C = 7/8" DIA. (22 mm) HOLE FOR OPERATING CABLE
D = 1/4" DIA. (6 mm) HOLE FOR MOUNTING PLATE TO WALL
PAGE 5 98420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW214FP WITH MPW101 MOUNTING PLATE
ROUGH-IN DRAWINGS
FIG. 4
1. Wall should already be framed for the fountain using dimensions shown in Fig. 1. Shown dimensions pertain to installation location.
These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only).
2. Remove bottom cover from fountain and save the screws.
3. Install the fountain using bolts and washers (provided). Tighten securely.
4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide.
5. Install freeze-resistant box - see box instructions.
6. Replace bottom cover.
13"
330mm
28 9/16"
725mm
27"
686mm
ADA
REQUIREMENT
6 1/2"
165mm
3 13/16"
97mm
12 1/8"
308mm
19 3/4"
502mm
20 3/8"
518mm
5/8"
16mm
18"
457mm
14"
355mm
17 1/2"
444mm
2 5/8"
66mm 3 5/8"
91mm
12"
305mm
MAX. WALL
THICKNESS
FINISHED FLOOR
FINISHED WALL
MPW101 MTG. PLT.
REF. SEPARATE
INSTALLATION
INSTRUCTIONS
FOR DETAILS
PAGE 698420C (Rev. E - 08/18)

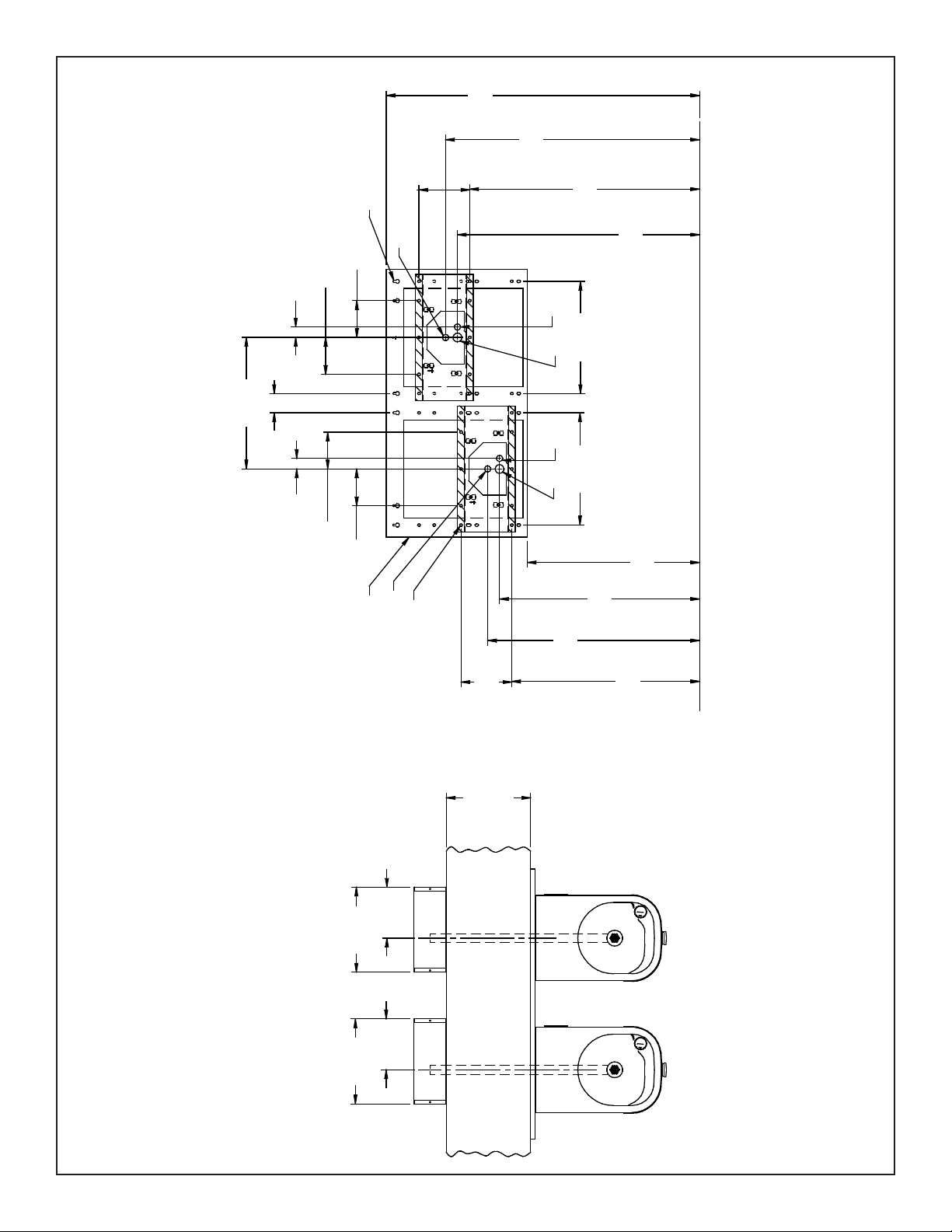

EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A

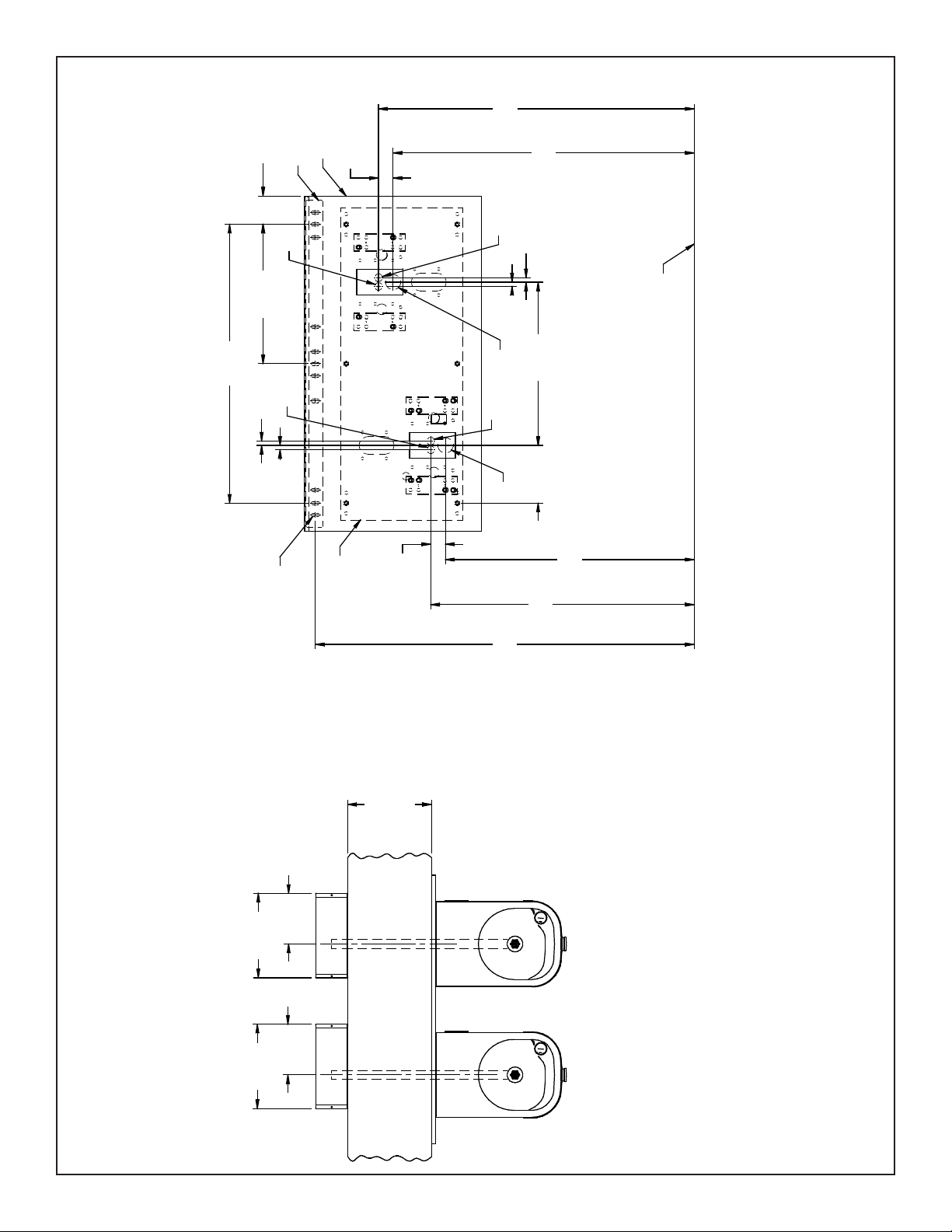

EHWM217FP WITH WALL PLATE ASSEMBLY
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 5
16"
406mm 16"
406mm
32 13/16"
833mm
7 1/4"
184mm
34 9/16"
878mm
24 9/16"
625mm 26 13/16"
681mm
28 9/16"
725mm
7 1/4"
184mm
44 3/4"
1136mm
"A" "A"
"C" "C"
WALL PLATE ASSEMBLY
E
D
FINISHED FLOOR
5 1/4"
133mm
5 1/4"
133mm
1 1/2"
38mm
5 1/4"
133mm
5 1/4"
133mm
1 1/2"
38mm
12 1/8"
308mm
7 1/4"
185mm
12 1/8"
308mm
7 1/4"
185mm
12"
305mm
MAX. WALL
THICKNESS
30 1/4"
768mm
36 1/4"
921mm
"B"
"B"
LEGEND
A = 1-3/4" DIA. (44 mm) HOLE FOR WASTE LINE
B = 7/8" DIA. (22 mm) HOLE FOR WATER SUPPLY
C = 7/8" DIA. (22 mm) HOLE FOR OPERATING CABLE
D = 1/4" DIA. (6 mm) HOLE FOR MOUNTING PLATE TO WALL
E = 3/8" DIA. (10 mm) HOLE FOR MOUNTING PLATE TO WALL
PAGE 7 98420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHWM217FP WITH WALL PLATE ASSEMBLY
ROUGH-IN DRAWINGS
FIG. 6
1. Wall should already be framed for the fountain using dimensions shown in Fig. 3. Shown dimensions pertain to installation location.
These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only).
2. Remove bottom cover from fountain and save the screws.
3. Install the fountain using bolts and washers (not provided). Tighten securely.
4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide.
5. Install freeze-resistant box - see box instructions.
6. Replace bottom cover.
FINISHED FLOOR
33"
836mm
ADA
REQUIREMENT
20 3/8"
518mm
38 1/2"
978mm
6 11/16"
170mm 12 1/8"
309mm 3 11/16"
94mm
18"
457mm 5/8"
16mm
12"
305mm
MAX. WALL
THICKNESS
34 9/16"
878mm
28 9/16"
726mm
23 11/16"
601mm
20 3/16"
512mm
17 11/16"
449mm
14 3/16"
360mm
2 5/8"
66mm
3 5/8"
91mm
6 1/2"
165mm
27"
686mm
ADA
REQUIREMENT
PAGE 898420C (Rev. E - 08/18)

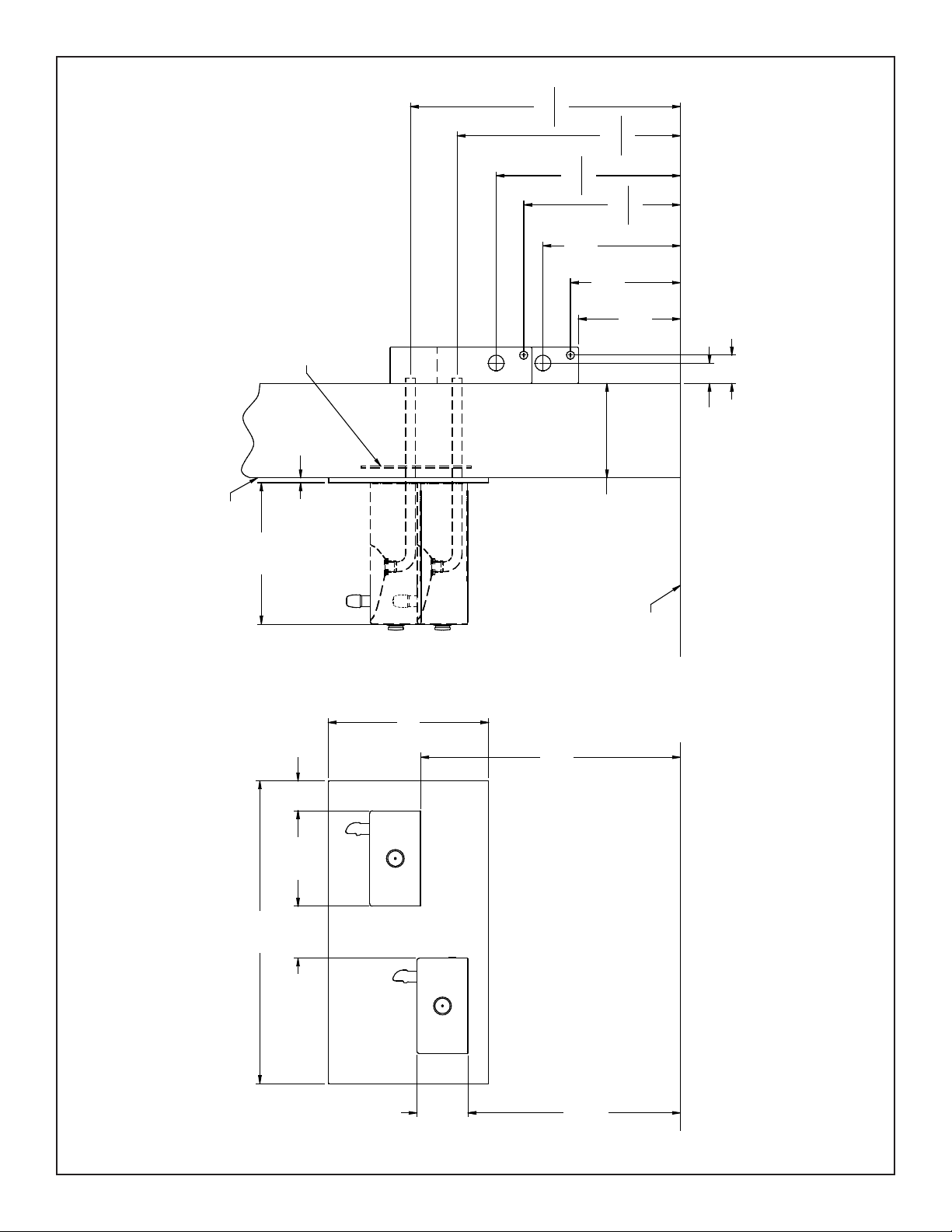

EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A

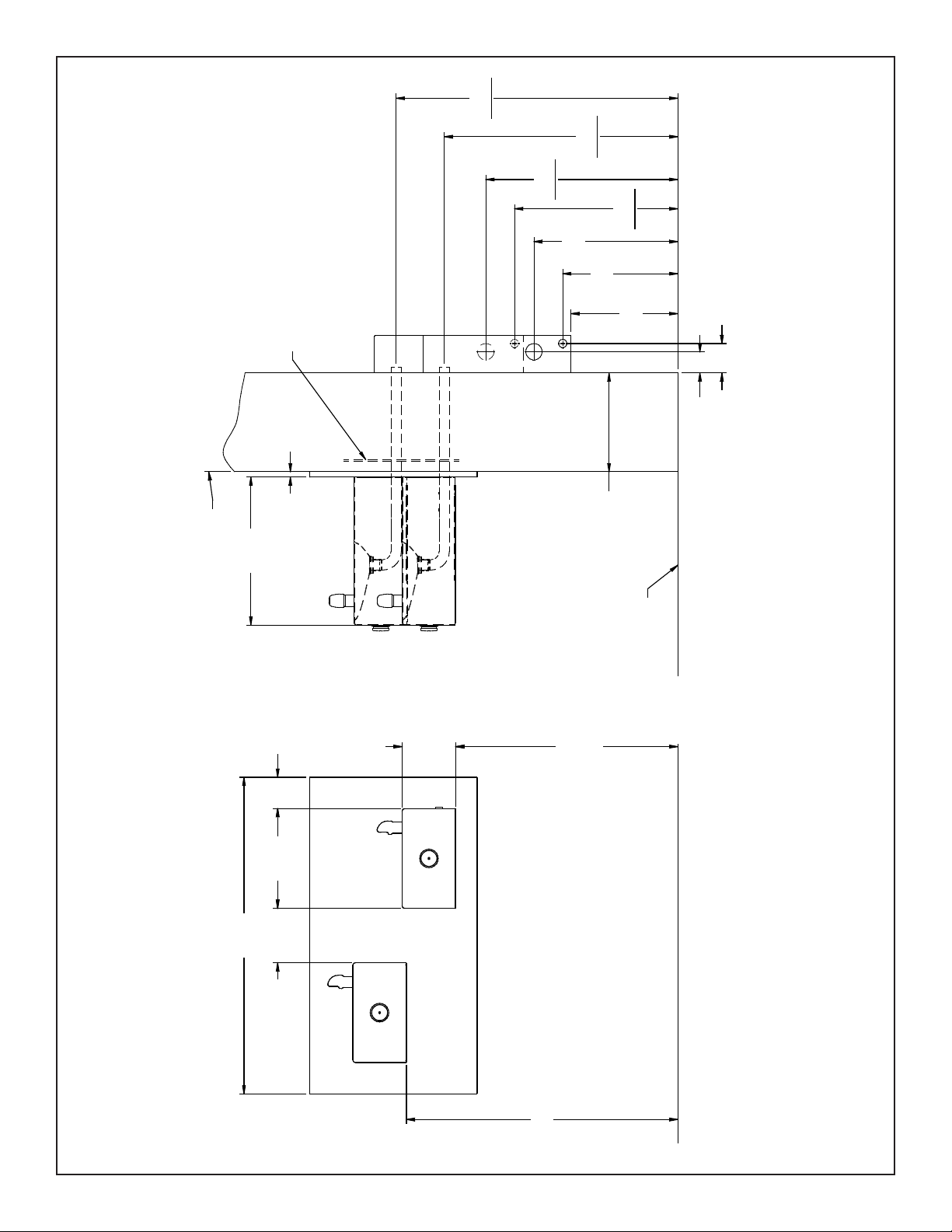

EHW217FP WITH MPW200 MOUNTING PLATE
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 7
12"
305mm
MAX. WALL
THICKNESS
7 1/4"
184mm 7 1/4"
184mm
12 1/8"
307mm
12 1/8"
307mm
34 9/16"
878mm
43 1/2"
1105mm
36 1/4"
921mm
28 9/16"
725mm
30 1/4"
768mm
3 1/4"
82mm
16"
406mm
32"
813mm
6 5/8"
168mm 18 3/4"
476mm
MPW200
MTG. PLT.
BACK PANEL HANGER BRACKE
T
A
A
B
B
CC
D
FINISHED FLOOR
1/2"
13mm
1/2"
13mm
1/2"
13mm 1/2"
13mm
LEGEND
A = 1-3/4" DIA. (44 mm) HOLE FOR WASTE LINE
B = 7/8" DIA. (22 mm) HOLE FOR WATER SUPPLY
C = 7/8" DIA. (22 mm) HOLE FOR OPERATING CABLE
D = 1/4" DIA. (6 mm) HOLE FOR MOUNTING PLATE TO WALL
PAGE 9 98420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW217FP WITH MPW200 MOUNTING PLATE
ROUGH-IN DRAWINGS
FIG. 8
1. Wall should already be framed for the fountain using dimensions shown in Fig. 3. Shown dimensions pertain to installation location.
These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only).
2. Remove bottom cover from fountain and save the screws.
3. Install the fountain using bolts and washers (not provided). Tighten securely.
4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide.
5. Install freeze-resistant box - see box instructions.
6. Replace bottom cover.
3 13/16"
97mm
12 1/8"
308mm
6 5/8"
168mm
38 1/2"
978mm
12"
305mm
MAX. WALL
THICKNESS
2 5/8"
66mm
3 5/8"
91mm
28 9/16"
725mm
34 9/16"
878mm
27"
686mm
ADA
REQUIREMENT
6 1/2"
165mm
33"
838mm
13"
330mm
14"
355mm
17 1/2"
444mm
20"
508mm
23 1/2"
597mm
FINISHED WALL
5/8"
16mm
18"
457mm
FINISHED FLOOR
MPW200 MTG. PLT.
REF. SEPARATE
INSTALLATION
INSTRUCTIONS
FOR DETAILS
PAGE 1098420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHWM217FPRA WITH WALL PLATE ASSEMBLY
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 9
16"
406mm 16"
406mm
FINISHED FLOOR
26 13/16"
681mm 24 9/16"
625mm
7 1/4"
184mm
28 9/16"
725mm
32 13/16"
833mm
7 1/4"
184mm
34 9/16"
878mm
18 3/4"
476mm
2 3/4"
70mm
1 1/2"
38mm 1 1/2"
38mm
5 1/4"
133mm 5 1/4"
133mm
5 1/4"
133mm
51/4"
133mm
"A" "A"
"C" "C"
WALL PLATE ASSEMBLY
"E"
"D"
44 11/16"
1136mm
12 1/8"
308mm
7 1/4"
185mm
12 1/8"
308mm
7 1/4"
185mm
12"
305mm
MAX. WALL
THICKNESS
30 1/4"
768mm
36 1/4"
921mm
"B" "B"
LEGEND
A = 1-3/4" DIA. (44 mm) HOLE FOR WASTE LINE
B = 7/8" DIA. (22 mm) HOLE FOR WATER SUPPLY
C = 7/8" DIA. (22 mm) HOLE FOR OPERATING CABLE
D = 1/4" DIA. (6 mm) HOLE FOR MOUNTING PLATE TO WALL
E = 3/8" DIA. (10 mm) HOLE FOR MOUNTING PLATE TO WALL
PAGE 11 98420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHWM217FPRA WITH WALL PLATE ASSEMBLY
ROUGH-IN DRAWINGS
FIG. 10
1. Wall should already be framed for the fountain using dimensions shown in Fig. 3. Shown dimensions pertain to installation location.
These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only).
2. Remove bottom cover from fountain and save the screws.
3. Install the fountain using bolts and washers (not provided). Tighten securely.
4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide.
5. Install freeze-resistant box - see box instructions.
6. Replace bottom cover.
FINISHED FLOOR
27"
684mm
ADA
REQUIREMENT
20 3/8"
518mm
38 1/2"
978mm
6 5/8"
168mm 12 1/8"
309mm 3 13/16"
96mm
6 1/2"
167mm
33"
836mm
18"
457mm 5/8"
16mm
12"
305mm
MAX. WALL
THICKNESS
34 9/16"
878mm
28 9/16"
726mm
23 11/16"
601mm
20 3/16"
512mm
17 11/16"
449mm
14 3/16"
360mm
2 5/8"
66mm
3 5/8"
91mm
PAGE 1298420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW217FPRA WITH MPW200 MOUNTING PLATE
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 11
28 9/16"
725mm
30 1/4"
768mm
43 1/2"
1105mm
3 1/4"
82mm
16"
406mm
32"
813mm
6 5/8"
168mm 18 3/4"
476mm
1 11/16"
43mm
1 11/16"
43mm
34 9/16"
878mm
36 1/4"
921mm
FINISHED FLOOR
HANGER BRACKET
BACK PANEL
MPW200
MTG. PLT.
AA
B
B
C
C
D
12 1/8"
308mm
7 1/4"
185mm
12 1/8"
308mm
7 1/4"
185mm
12"
305mm
MAX. WALL
THICKNESS
1/2"
13mm
1/2"
13mm
1/2"
13mm 1/2"
13mm
LEGEND
A = 1-3/4" DIA. (44 mm) HOLE FOR WASTE LINE
B = 7/8" DIA. (22 mm) HOLE FOR WATER SUPPLY
C = 7/8" DIA. (22 mm) HOLE FOR OPERATING CABLE
D = 1/4" DIA. (6 mm) HOLE FOR MOUNTING PLATE TO WALL
PAGE 13 98420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW217FPRA WITH MPW200 MOUNTING PLATE
ROUGH-IN DRAWINGS
FIG. 12
13"
330mm
HRFEFR
14"
355mm
HRFEFR
17 1/2"
444mm
HRFEFR
20"
508mm
HRFSFR
23 1/2"
597mm
HRFSFR
28 9/16"
725mm
HRFEFR
34 9/16"
878mm
HRFSFR
FINISHED FLOOR
FINISHED WALL
33"
838mm
HRFSFR
27"
686mm
ADA
REQUIREMENT
6 1/2"
165mm
3 13/16"
97mm
12 1/8"
308mm
6 5/8"
168mm
38 1/2"
978mm
20 3/8"
518mm
12"
305mm
MAX. WALL
THICKNESS
5/8"
16mm
18"
457mm
HRFEFR
2 5/8"
66mm
3 5/8"
91mm
MPW200 MTG. PLT.
REF. SEPARATE
INSTALLATION
INSTRUCTIONS
FOR DETAILS
1. Wall should already be framed for the fountain using dimensions shown in Fig. 3. Shown dimensions pertain to installation location.
These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only).
2. Remove bottom cover from fountain and save the screws.
3. Install the fountain using bolts and washers (not provided). Tighten securely.
4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide.
5. Install freeze-resistant box - see box instructions.
6. Replace bottom cover.
PAGE 1498420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
FIG. 16
FIG.
13
FIG.
14
See Fig. 16
See Fig. 13
FIG.
15
CABLE SHEATH ADJUSTMENT
To Increase Free Play
To Reduce Free Play
FIG. 17
See Fig. 21
6,7
15
See Fig. 22
17 210
PAGE 15 98420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
The freeze resistant package must be mounted on an interior wall in a heated area. The room temperature of the
interior heated area must be 50° F (10° C) or higher. The freeze resistant package may be surface or recessed
mounted. If recess mounted the surface of the cover must be ush with the interior wall surface. The package is
furnished with screws for mounting the cover to the box. If the box is recess mounted, do not fasten the top and bottom
of the cover to the box. Use the holes on the front only.
1. Assemble the operating cable to the fountain bracket. (Fountain should be mounted to exterior wall). The
adjustment nuts should be in the middle of threaded area on the operating cable. See Figure 13. Create a loop in
the cable and thread the free end of the cable through the wall into the freeze resistant box.
2. Connect free end of operating cable to the valve-operating bracket in the freeze resistant box.
3. Remove cable free play by adjusting the jam nuts on the ends of the operating cable. See Figure 14.
4. Connect water line from fountain bubbler into freeze resistant box. The connection to the box uses a quick
connect water tting. Position the water line, in the fountain, to drain back into interior mounted box. Any water left
standing, in the exterior line, can freeze.
To insert tubing, push tube straight into tting until it reaches a positive stop. To remove tubing from the ttings,
relieve water pressure, push in on dark gray collar while pulling out on the tubing. See Figure 19.
5. Connect drain and water supply lines to the freeze resistant fountain. Refer to Figures 1, 3, 5, 7, 9, or 11 for
component positions. In-line strainer must be used on the inlet water line. See Figure 18.
Start-up
1. Turn on building water supply and check all connections for leaks. Repair as required.
2. Stream height is factory set at 35 PSI. If stream height needs to be changed adjust the regulator in the freeze
resistant package. Clockwise adjustment raises stream height, counter clockwise adjustment will lower stream.
3. Adjust operating cable as required. Cable system should have a minimal amount of free play to allow for proper
valve operation. If the system is too tight the valve will stay in the on position creating constant water ow. Too
much free play will result in non-operation of the valve with the push-buttons.
4. Note: Water from the drain back tube in the freeze resistant package, will continue to run while the valve is
actuated.
5. After cable system is adjusted properly stuff exible insulation into any openings between the outside wall and the
interior box.
6. Recheck all connections. If all connections are leak free replace cover(s) on the freeze resistant box(es) and
fountain(s).
FIG. 18
NOTE: WATER FLOW DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
1/4" O.D. TUBE
WATER INLET
3/8" O.D. UNPLATED COP-
PER TUBE CONNECT
COLD WATER SUPPLY
TUBE IS SECURED
IN POSITION
SIMPLY PUSH IN
TUBE TO ATTACH
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
FIG. 19
OPERATION OF QUICK CONNECT FITTINGS
PAGE 1698420C (Rev. E - 08/18)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
45678C
0000000930
27945C
98872C
28630C
28170C
28159C
28171C
28625C
28626C
28659C
28824C
40045C
28627C
97446C
45662C
45737C
28840C
28841C
28842C
56092C
56163C
56369C
75672C
75570C
111577243890
75520C
75541C
PART NO.
ITEM
NO.
PARTS LIST
DRAIN PLUG 1-1/2"
DRAIN/TAILPIPE ASSEMBLY
BRACKET-BASIN
KIT - PIVOT BRACKET
BOTTOM COVER PLATE
WALL MTG. PLATE ASSY. (EHWM214FP)
WALL MTG. PLATE ASSY. (EHWM217FP)
WALL MTG. PLATE ASSY. (EHWM217FPRA)
BACK PANEL (EHWM214FP)
BACK PANEL (EHWM217FP)
BACK PANEL (EHWM217FPRA)
BRACKET-REGULATOR MOUNTING
HEX NUT 1-5/16
BASIN ASSEMBLY-SERVICE
BUBBLER ASSEMBLY
PUSH BUTTON
SLEEVE-PUSH BUTTON GUIDE
BACK PANEL ASY (EHW214FP)
BACK PANEL ASY (EHW217FP)
BACK PANEL ASY (EHW217FPRA)
POLY TUBING (CUT TO LENGTH)
DRAIN GASKET
EDGE TRIM - 2FT. (SERV)
CAP SCREW-#6-32
SCREW-#10 x .50 PINNED TORX
SCREW-MACH. 5/16-18 x 3/4
PINNED TORX BIT T-25
FLAT WASHER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
NS
NS
NS
DESCRIPTION
4
4
13
12
8
4
4
9
4
4
4
1
FIG. 22
4
10
18
16
19 (QTY 7)
5
2
FIG. 21
11
15
11
17
Installing Back Panel: When installing back panel
assy. (Item 14) with MPW (Mounting Plate), attach
channel braces as shown above. Remove the protective
backing from the tape installed on the braces. Line up
the corresponding holes in the braces and back panel
and press rmly in place.
FIG. 20 14
BASIN
11
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 • www.elkay.com
PRINTED IN U.S.A.
NS = NOT SHOWN
Other manuals for EHW214FP Series
1
This manual suits for next models
5
Table of contents
Other Elkay Plumbing Product manuals
Elkay
Elkay EZOTL Series Guide
Elkay
Elkay LKB722C User manual
Elkay
Elkay Victoria LK2544RB User manual
Elkay
Elkay STLR User manual
Elkay
Elkay LK1500 Operating instructions
Elkay
Elkay EWS2520 User manual
Elkay
Elkay DRKR14C Installation manual
Elkay
Elkay Signature PLUS HD322425 User manual
Elkay
Elkay LKAV3032 Operating instructions
Elkay
Elkay Celebrity CMR3322 User manual
Elkay
Elkay ILGR6022 Series User manual
Elkay
Elkay Hi-Arc LKE413945RS User manual
Elkay
Elkay Lustertone ELUH4020 User manual
Elkay
Elkay LK76 User manual
Elkay
Elkay Hi-Arc LKD2432 User manual
Elkay
Elkay Mystic LKMY1042CR Operating instructions
Elkay
Elkay Moda LK7524 User manual
Elkay
Elkay Elite Gourmet 3626EGSB User manual
Elkay
Elkay Arezzo LK7226 User manual
Elkay
Elkay Celebrity GECR3321 User manual
Popular Plumbing Product manuals by other brands
Toto
Toto WH173BT Series Installation instruction
Teka
Teka Intra VK60LB quick start guide
Guardian
Guardian G5022 Installation, operation and maintenance guide
Hans Grohe
Hans Grohe Starck X 10071001 Specification sheet
Geberit
Geberit Bambini Maintenance manual
Hans Grohe
Hans Grohe AXOR Citterio E 36416001 Installation/User Instructions/Warranty
Taco
Taco 005-0012 instruction sheet
Hans Grohe
Hans Grohe Metris Classic 15752000 Instructions for use/assembly instructions
Bristan
Bristan CRAZE CRZ2 SHXDIVCTFF C Installation instructions & user guide
iB
iB HERMES 306 Fitting instructions
Gaboli Fratelli
Gaboli Fratelli Jolie quick start guide
DOCOL
DOCOL 00469506 installation guide
Heritage Bathrooms
Heritage Bathrooms Dawlish TDCC04 Installation instructions and user guide
Kebo
Kebo F98-9616 quick start guide
Hans Grohe
Hans Grohe 10452180 Instructions for use/assembly instructions
Fala
Fala 75808 Installation and operation instruction
Hans Grohe
Hans Grohe AXOR Uno 41537 Series Assembly instructions
newform
newform LINFA 67082C Instructions and guarantee
