Elko iMM Audio Zone-R User manual
iMM Audio Zone-R
- 2 -
iMM Client
/ Server
LAN
Audio
optical
iMM Audio
Zone (AZ-R)
iMM Audio
Zone-R
3,5 mm jack
HDMI
RS 232
Internet
3,5 mm jack
- 3 -
iMM Audio Zone-R
Video zone
Amplier
Video zone for the living room
Amplier
Speakers
Active speakers
Audio zone kitchenAudio zone bedroom
Speakers
Smart phone
Tablet
- 2 -
- 3 -
Warning!
It is always necessary to uphold the described procedure. In case of not upholding and disconnecting equipment
from the power when the device is not switched o, the threat exists of damaging the image le stored on the SD
card and resulting malfunction of the iMM Audio Zone-R.
подключение микро-USB
- 5 -
Device description
Ethernet connector for
connecting to a PC or to the
power network
USB 2.0 for connecting a
keyboard
Composite video output CINCH
Audio output Jack 3.5mm
Digital video output HDMI
Slot for inserting the SD card
- 4 -
- 5 -
SD card slot
An SD card is needed to run the device. It contains the pre-installed Linux operation system and other needed
software. The SD card is included in the packaging iMM Audio Zone-R.
- 6 -
- 7 -
Web interface iMM Audio Zone-R
All player settings are performed in the web interface of the audio zone.
1) Insert the SD card into its slot.
2) Connect the iMM Audio Zone-R to the PC using an Ethernet cable.
3) Connect the iMM Audio Zone-R to the power by inserting the micro-USB connector into the power source.
4) Prior to rst conguring the player, you must set the IP address of your network card in the same subnet range as
the default IP address.
5) Default IP address: 192.168.1.220
6) Enter the IP address of your network card in the same subnet range (e.g. 192.168.1.221).
- 7 -
Web interface iMM Audio Zone-R
7) Enter the default IP address„192.168.1.220“ in the browser.
- 8 -
- 9 -
Setting the iMM Audio Zone-R
After entering the default IP address, choose on the web interface:
After entering the correct data, conrm by pressing the„Save“ button.
The name of the audio zone
IP address of the audio zone
Subnetwork mask
Default gateway IP address
IP address of the Logitech media
server
- 9 -

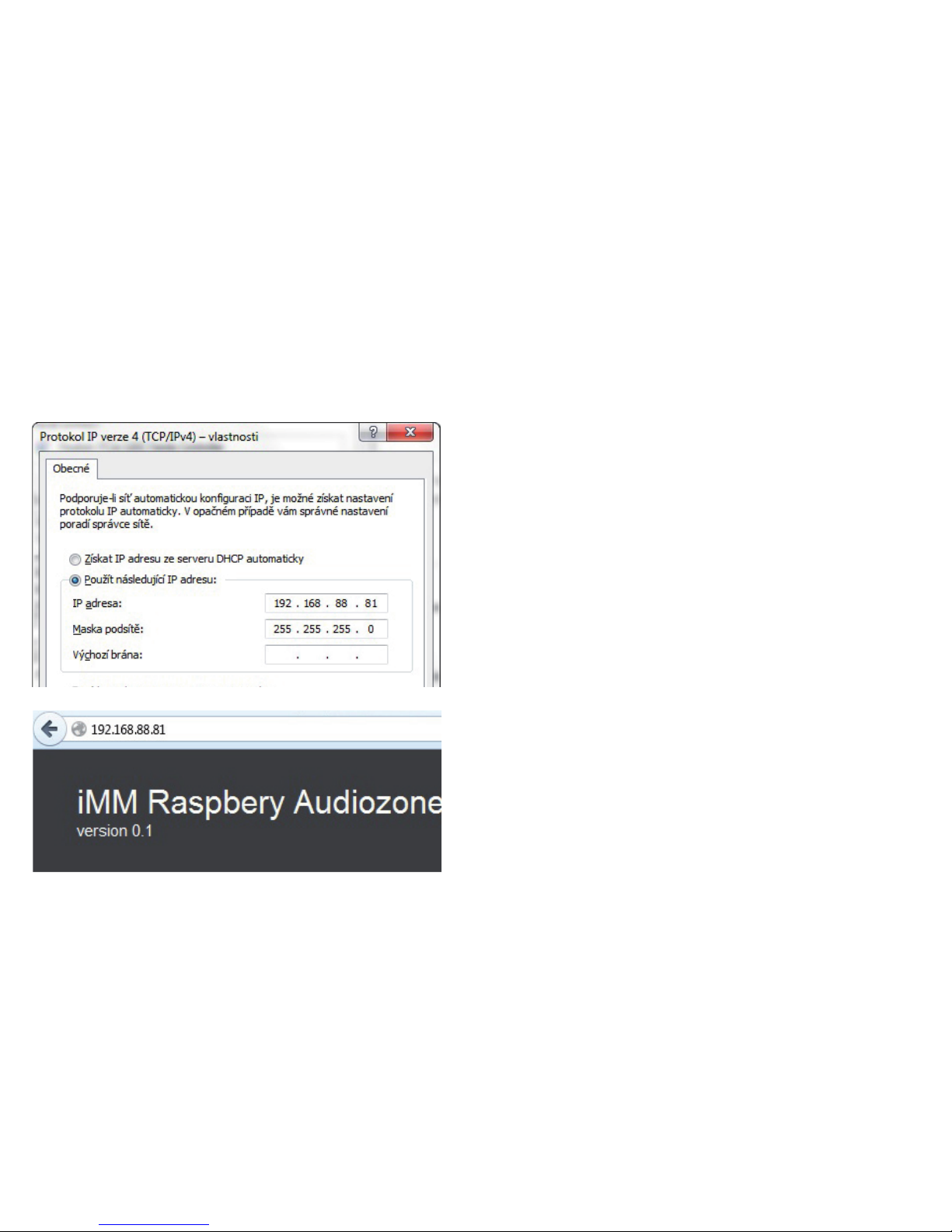

1) After storing the settings of the audio zone, set the
same scope of the subnetwork network card in the PC
(According to what IP address was chosen), in the chosen
example - 192.168.88.81.
Setting the iMM Audio Zone-R
2) Connect to the web interface of the audio zone (using
your newly set IP address).
- 10 -
- 11 -
3) Click on the button Shutdown.
4) Now you can connect the audio zone to the local network, connect active speakers or amplier using the 3.5mm
audio output jack and connect to the power.
5) After several seconds, the audio zone appears on the Logitech media server. On the iMM server, you add the other
audio zones the same way (squeezebox, LARA iNELS).
Setting the iMM Audio Zone-R
Arch Linux 3.6.11-6-ach+ (y1)
alarmpi login: root
password : imm123 (nezobrazí se)
eth0: ags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.88.81 netmask 255.255.255.0 broadcast 0.0.0.0
inet6 fe80::ba27:eb:feb3:6dad prexlen 64 scopeid 0x20<link>
ether b8:27:eb:b3:6d:ad txqueuelen 1000 (Ethernet)
RX packets 647227 bytes 52244971 (49.8 MiB)
RX errors 0 dropped 111 overruns 0 frame 0
TX packets 127242 bytes 17559508 (16.7 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: ags=73<UP,LOOPBACK,RUNNING> mtu 16436
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prexlen 128 scopeid 0x10<host>
loop txqueuelen 0 (Local Loopback)
RX packets 8344 bytes 610606 (596.2 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 8344 bytes 610606 (596.2 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
- 11 -
Note: If you are not sure of the current IP
address, it is necessary to connect a USB
keyboard to the iMM Audio Zone-R, and to
connect the device to the Ethernet network.
Using the HDMI cable, you must then
connect a monitor or television, and then
connect the micro-USB power.
After 60 seconds, click the Enter key. Log in
by writing the login ID „root“ and password
„imm123“, which is not displayed for security
reasons. After logging in, write the command
„incong“, and conrm by pressing Enter.
In the second line after the text „inet“, you
will nd the current IP address.
Then shut down the iMM Audio Zone-R
using the„shutdown -h now“ command.
Service check of IP address
02-011/2013 Rev.: 041013
ELKO EP, s.r.o.
Palackého 493 | 769 01 Holešov |
Všetuly,CZ, tel.: +420 573 514 211 |
fax: +420 573 514 227
