Elmo HS520 Owner's manual

Microprocessor-based control units with
remote control function
HS520 - HS515 - HS510
USER and PROGRAMMING MANUAL

2 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL
FOREWORD
FOR THE INSTALLER:
Please follow carefully the specifications relative to electric and security systems realization further to the manufac-
turer’s prescriptions indicated in the manual provided.
Provide the user the necessary indication for use and system’s limitations, specifying that there exist precise
specifications and different safety performances levels that should be proportioned to the user needs. Have the user
view the directions indicated in this document.
FOR THE USER:
Periodically check carefully the system functionality making sure all enabling and disabling operations were made cor-
rectly.
Have skilled personnel make the periodic system’s maintenance. Contact the installer to verify correct system oper-
ation in case its conditions have changed (e.g.: variations in the areas to protect due to extension, change of the ac-
cess modes, etc…) ......................................................
This device has been projected, assembled and tested with the maximum care, adopting control procedures in
accordance with the laws in force. The full correspondence to the functional characteristics is given exclusively when
it is used for the purpose it was projected for, which is as follows:
Microprocessor-based control units with remote control function
Any use other than the one mentioned above has not been forecasted and therefore it is not possible to guarantee
its correct operativeness.
The manufacturing process is carefully controlled in order to prevent defaults and bad functioning. Nevertheless, an
extremely low percentage of the components used is subjected to faults just as any other electronic or mechanic prod-
uct. As this item is meant to protect both property and people, we invite the user to proportion the level of protection
that the system offers to the actual risk (also taking into account the possibility that the system was operated in a de-
graded manner because of faults and the like), as well reminding that there are precise laws for the design and as-
semblage of the systems destinated to these kind of applications.
The system’s operator is hereby advised to see regularly to the periodic maintenance of the system, at least
in accordance with the provisions of current legislation, as well as to carry out checks on the correct running
of said system on as regular a basis as the risk involved requires, with particular reference to the control unit,
sensors, sounders, dialler(s) and any other device connected. The user must let the installer know how well
the system seems to be operating, based on the results of periodic checks, without delay.
Design, installation and servicing of systems which include this product, should be made by skilled staff with the nec-
essary knowledge to operate in safe conditions in order to prevent accidents. These systems’ installation must be
made in accordance with the laws in force. Some equipment’s inner parts are connected to electric main and therefore
electrocution may occur if servicing was made before switching off the main and emergency power. Some products
incorporate rechargeable or non rechargeable batteries as emergency power supply. Their wrong connection may
damage the product, properties and the operator’s safety (burst and fire).
Your dealer:

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 3
1. GENERALS
HS520 control unit has been designed to manage a single residential unit system, with the possibility to ena-
ble the 4 partitions/sectors separately and assign them up to 15 users. Each user can also be assigned a per-
sonal 6-figure code, an M4 key, and a TAURUS remote control device.
User interface includes a 20-rubber key backlit keypad and 4 keys for partitions/sectors activation. Control
and signalling messages will be displayed on a backlit LCD display and indicated by 4 front led indicators.
Different features of the three control units are listed in the common technical manual.
This User and Programming Manual will take under examination HS520 unit and signal the different featu-
res of HS515 and HS510 units where necessary; this manual will illustrate setup procedure available for users
who will then be able to program the unit completely. The full setup can also be performed by installers by en-
tering the unit with their code; if this is the case, users will be authorized for normal system maintenance pro-
cedure.
2. BLOCK DIAGRAMS

4 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 5

6 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL
3. USER INTERFACE
3.1 Front panel description
12-rubber key keypad used to digit user code, figures, and sensors and remote control devices names du-
ring unit setup, and for other operations.
STOP key: normally ON to spot the keypad also in case of low light conditions of the place where unit has
been installed. When unit protection door is left open and this key is pressed, both display and keypad will be
backlit.
Arrow keys ÐÏ: used to browse data displayed, menus items, and available options.
OK key: to confirm selections displayed.
Partition (Sector) keys: keys to select partitions to arm / disarm after having digited the relevant code and set
the arm / disarm function from keypad.
In case of installation of I6 or I7 readers next to unit housing, it is possible to select partitions to arm 3sec
after the acknowledgement of M4 key code.
S1 and S3 keys allow the display (backward / forward) of the zones information pages (1 to 10, 11 to 20).
Control unit keys are not backlit according to armed partitions since operating status is indicated on display.
Keypads and key points corresponding keys are backlit for a detailed information.
Control unit display permanently indicates unit activities status by means of messages di-
splayed along two 16-character rows. Backlit keys will be easy to read to digit commands. Di-
splay and keypad will be backlit together by pressing STOP (or other) key and illumination
remains on for 6sec after last key has been pressed.
Control unit armed / disarmed status:
ON = No alarmed or tampered zones
OFF = Alarmed zone(s) not assigned to exit path.
Fast blinking = Unit under Control mode or Event Log display mode.
Slow blinking = Control unit disarmed, exit path zones in anomaly status.
Control unit operating status:
ON = Normal operating status.
Slow blinking= System anomalies (Power Failure, Low Battery, Tamper alarms
or anomalies stored, System Control Request, and so on), zones anomalies, and
the presence of a telephone number on to Answering Machine function memory
(for HS515 and HS510 units only).
Fast blinking = System memories display.
Tamper memory:
OFF = No tampered zones.
ON = Tamper alarm cycle in progress (Relay enabled).
Slow blinking = One (or more) tamper alarm is being stored.
Fast blinking = Tamper memories display.
Genaral Alarm memory:
OFF = No alarms in progress.
ON = Tamper alarm cycle (Relay enabled).
Slow blinking = Presence of events on tamper memory.
Fast blinking = Intrusion alarms memories display.

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 7
3.2 System anomaly status display
To display system anomalies, press Ïkey. To browse multiple system messages, use Ïand Ðkeys.
Press OK key to confirm event displayed or press STOP to exit displayed window.
Display examples:
If there are no anomalies, the message No Anomalies will be displayed.
3.3 Display of zones status
To display zones status press Ð, to display next zones anomaly(-ies), press Ðkey repeatedly, to display
previous zones anomaly(-ies), press Ïkey.
Displayed information indicates alarmed zones details with zone ID (if assigned during setup procedure,
e.g. Kitchen window, Corridor IR, etc.).
Examples:
3.4 Display of intrusion alarms memory
In normal display mode, press key to display current alarm memories, press Ïkey to browse
items, operating status will be indicated by led.
Press STOP key to go back to normal display mode. If operator/user does not press STOP key, normal di-
splay mode will be resumed automatically 60 seconds after the last key has been pressed.
3.5 Display of tamper alarms memory
In normal display mode, press key to display current alarm memories, press Ïkey to browse
items, operating status will be indicated by Led.
Press STOP key to go back to normal display mode. If operator/user does not press STOP key, normal di-
splay mode will be resumed automatically 60 seconds after the last key has been pressed.
System control request Display of a specific option
Special display for HS515 and HS510 units
This message indicates that there have been
some incoming calls (e.g.: friends, relatives, etc.)
while the control unit was partially / totally armed.
General display without anomalies. Zone anomaly display.
Tampered zone details
Warning:
Messages will be displayed for 4 minutes (max.)
If operator/user wants to exit before, he/she has to
press OK or STOP key.

8 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL
3.6 Answering Machine function
Answering machine function enables to store phone numbers of calls received while absent and with par-
tially/totally armed system. The numbers are stored on the basis of CALLER ID function, which is provided by
the landline provider with whom the system’s owner has entered into a contract for the number called.
IMPORTANT: verify availability of this service in your area.
To store a phone number:
- Enable this function from Dialer - Line Prop. menu.
- Arm the alarm system totally or partially.
- The incoming call has to be at least two rings in length.
Total storage capacity is 18 numbers (the last 18 incoming numbers). Each number is stored with day/mon-
th/year and day/time details, though previously stored numbers will not be overwritten in chronological order.
Phone numbers are not stored on to non-volatile memory and are kept until control unit is properly powe-
red or until total reset procedure is performed.
If led blinks slowly, it indicates that at least one number has been stored on to answering machine
memory.
To display Answering Machine information follow illustrated procedure:
The presence of one (or more) phone number stored on to Answering machine memory is normally di-
splayed during a remote assistance session with Winassist application directly or remotely connected, perfor-
med by the system installer. The creation of an Installer code will enable browsing Answering machine
numbers list during maintenance session. For Privacy reasons, installers will not be enabled to seestored num-
bers from remote locations.
3.7 Display when unit is directly connected to a PC
When control unit is directly connected to a PC for operating parameters setup, the system dialer is disa-
bled, but alarm events (if present) will be kept on to a temporary memory and will be used at the end of the
connection for calls, according to Dialer menu settings.
NOTE: CP8/SER2 cable, required for connection, must be disconnected from Minidin connector.
During a phone remote assistance session with installation company, CP8/SER2 cable must not be con-
nected to Minidin connector.
3.8 Event log display
Events are logged with data&time info and event log can be displayed on NADIR remote keypad too.
HS series control unit feature a FIFO memory: last 100 events will be kept but only HS520 and HS515 units
will keep these data in case of total power cut.
Alternatively, it is possible to download and print units event log using direct connection to PC and units
special browser; also installers can download and print logs during a phone remote assistance session with
WINASSIST application.

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 9
4. CONTROL UNIT CONTROLS
4.1 Unit disarming with user code
4.2 Unit arming with user code
4.3 Special functions with user code
IMPORTANT: Duress alarm will be triggered when user code is digited with the last figure modified,
either raised or diminished, by one unit (in case of number 9, digit 8 or 0). This will disarm control unit
and trigger DURESS alarm code. The event is controlled by the phone dialer function.

10 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL

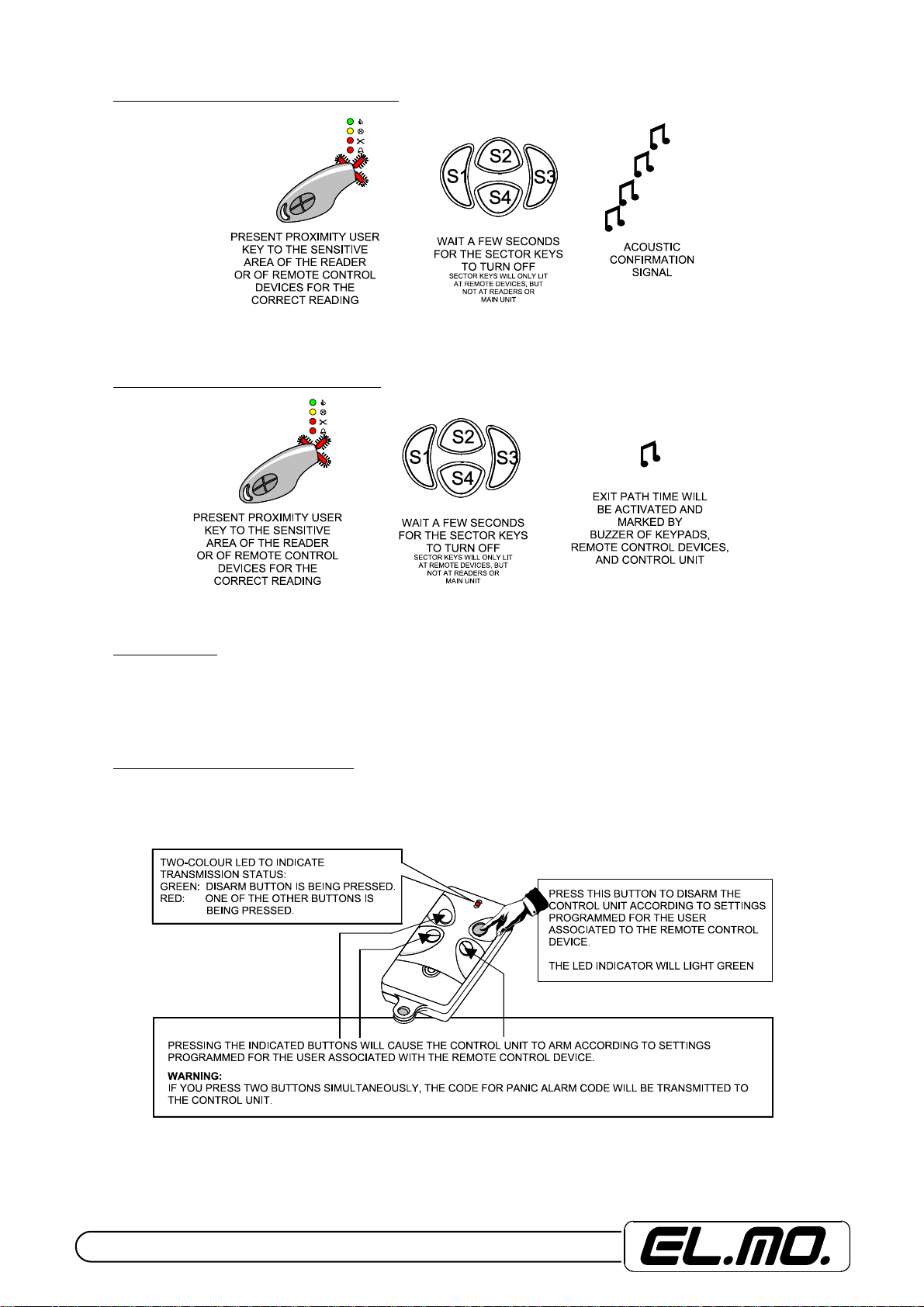

4.4 Unit disarming with proximity user key
4.5 Unit arming with proximity user key
4.6 Partial arming
Alarm system can be armed partially by one (or more) user. Digit the code on keypad, or present electronic
key, then modify partitions arming options by pressing the relevant keys within 5 seconds from code digit or
key presentation (3 seconds in case of control unit armed from the reader installed next to it).
4.7 Remote control device functions
HS520 unit can be armed/disarmed (according to settings) using TAURUS remote control when in connec-
tion with HALLEY radio module. Below image illustrates additional functions of TAURUS remote control com-
patible with HS520 unit.

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 11

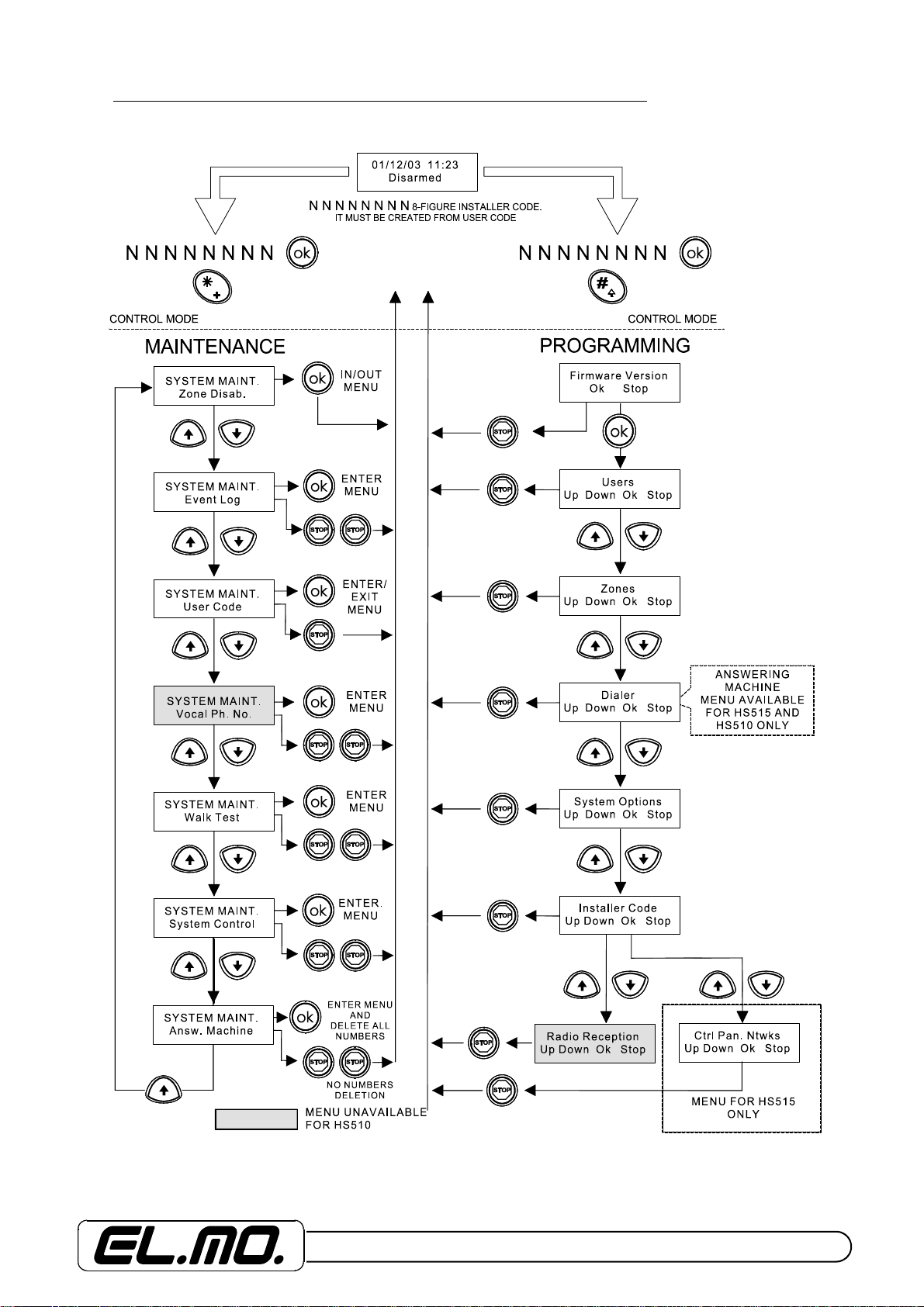

5. CONTROL UNITS SETUP

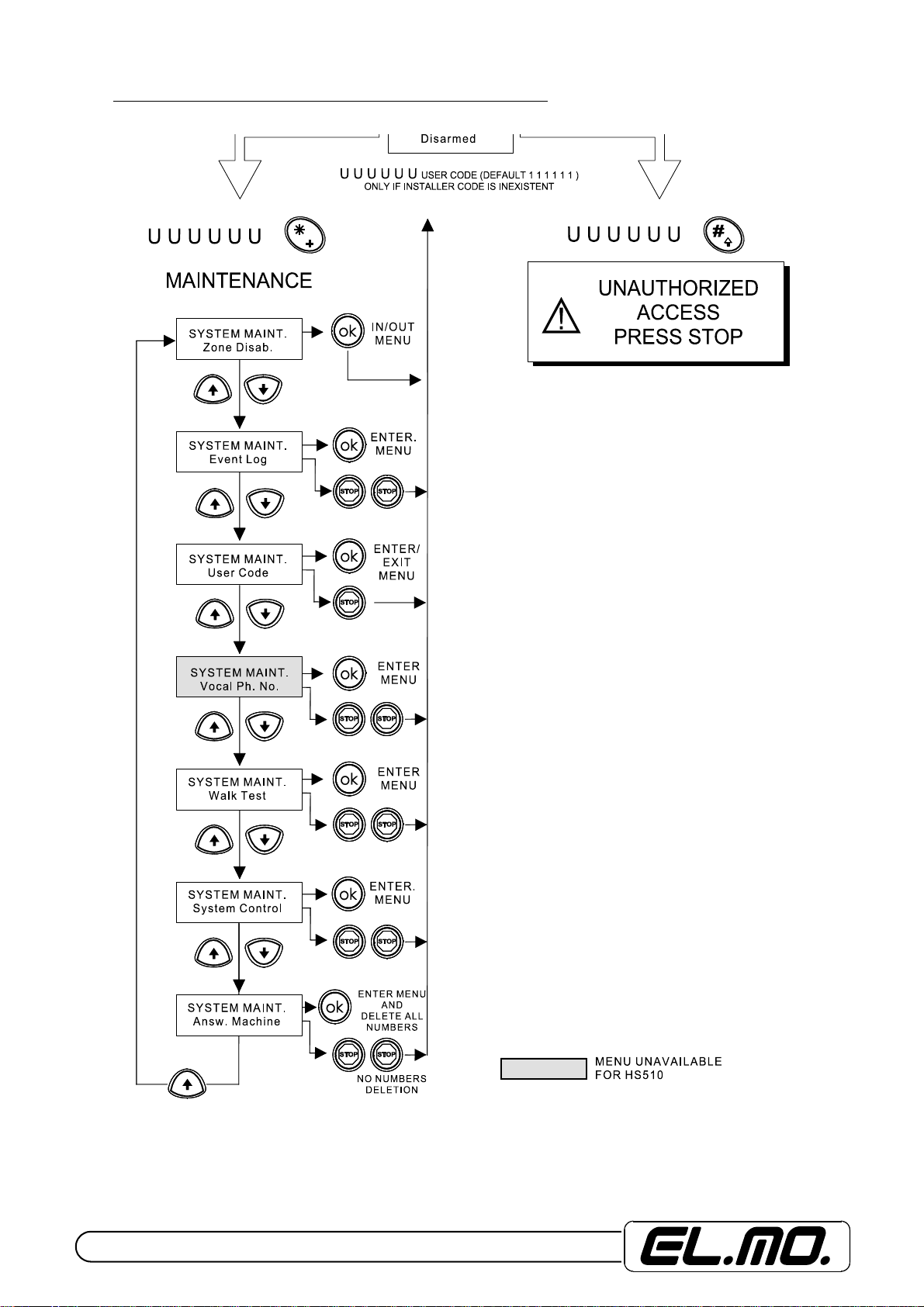

5.1 Setup menu with user code when installer code is unavailable.

12 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL
5.2 Menu available for users after the creation of installer code

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 13
5.3 Menu available for installers after having setup the relevant access code

14 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL
5.4 Control mode SYSTEM MAINTENANCE
Table 0

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 15
Table 1

16 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL

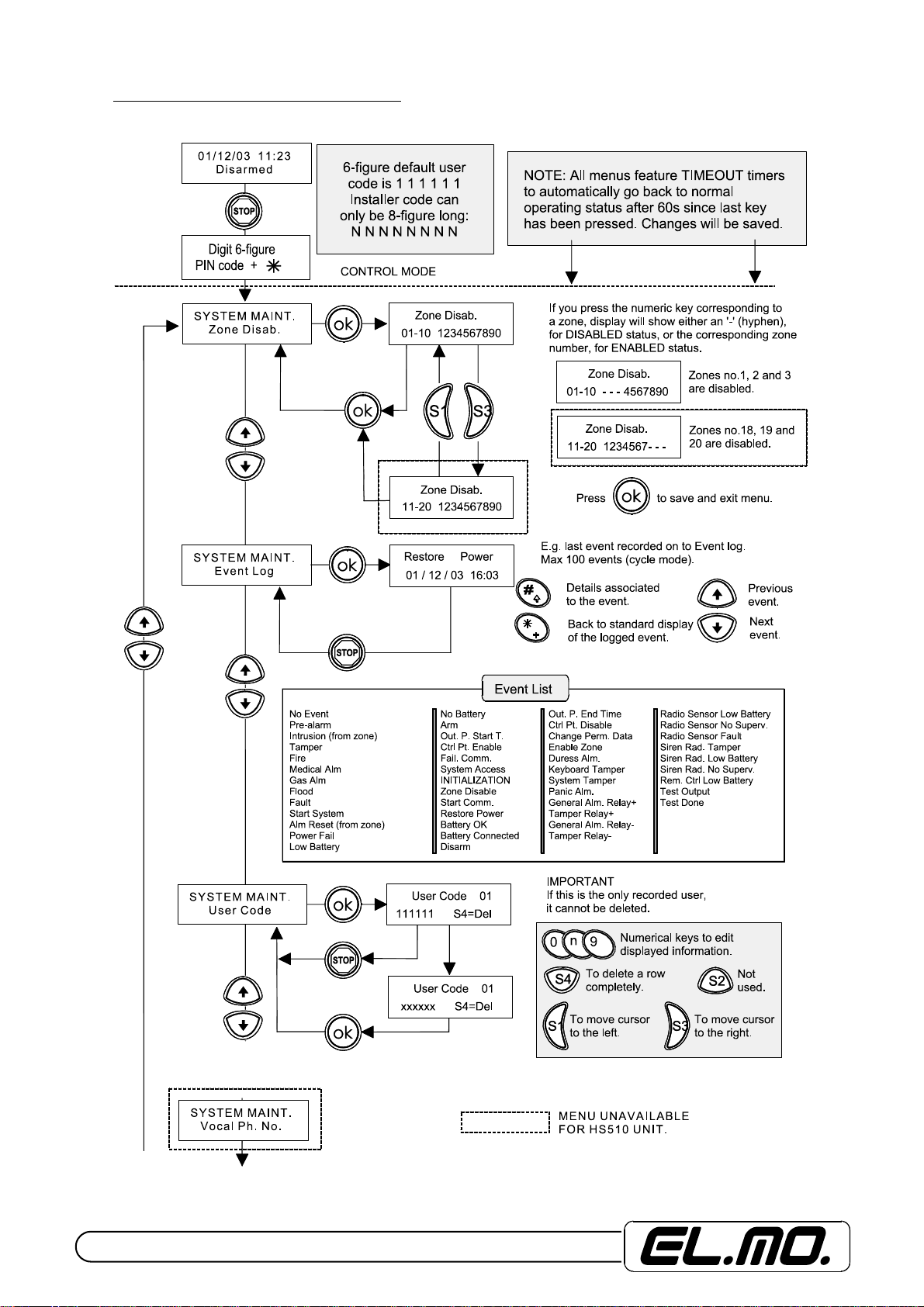

5.5 Control mode SYSTEM SETUP
Table 2

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 17
Table 3

18 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL
Table 4

HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL - 19
Table 5

20 - HS520 - HS515 - HS510 USER and PROGRAMMING MANUAL
Table 6
