ELORA LP Performance Series User manual

User Guide
Part No. 7595-0459
www.elorapower.com
EN
LP Performance Series
Battery Charger
LP Performance Series Battery Charger

Copyright © 2015
All rights reserved
Original Instructions: English
All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied
or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior
agreement and permission in writing of Elora International.
Disclaimer
The information contained in this manual is believed to be correct at the time of printing. Elora International reserves the
right to make the changes to the information or specifications without obligation to notify any person of such revisions or
changes. Changes will be incorporated in new versions of the publication.
We are making every effort to ensure that our manuals are updated on a regular basis to reflect changes to the product
specifications and features. Should this manual not contain information on the core functionality of your product, please let
us know. You may be able to access the latest revision of this manual from our website.
Elora International reserves the right to make changes to product design and functionality without notification.
Trademarks
All product trademarks and registered trademarks are the property of Elora International.
All other trademarks and registered trademarks are the property of the respective companies.
Published by:
Elora International
www.elorapower.com
www.elorapower.com

Contents
Contents
Safety.................................................................................................. 2
Warning Symbols Used in these Instructions................................. 2
Intended Use .................................................................................. 2
About this user guide........................................................................ 4
Introduction..................................................................................... 4
Important ........................................................................................ 4
Elora Battery Compatibility ................................................. 4
Third Party Compatibility ................................................................ 4
Components and Connections ........................................................ 5
Wi-Fi Capability .............................................................................. 5
Mini USB Port................................................................................. 5
AC Mains Power............................................................................. 5
Attaching a Battery to the Charger ................................................. 6
To Release the Battery ................................................................... 6
Operation............................................................................................ 7
Self-Test ......................................................................................... 7
Three Stage Charging Methodology ............................................. 7
Removal of AC Mains Power.......................................................... 8

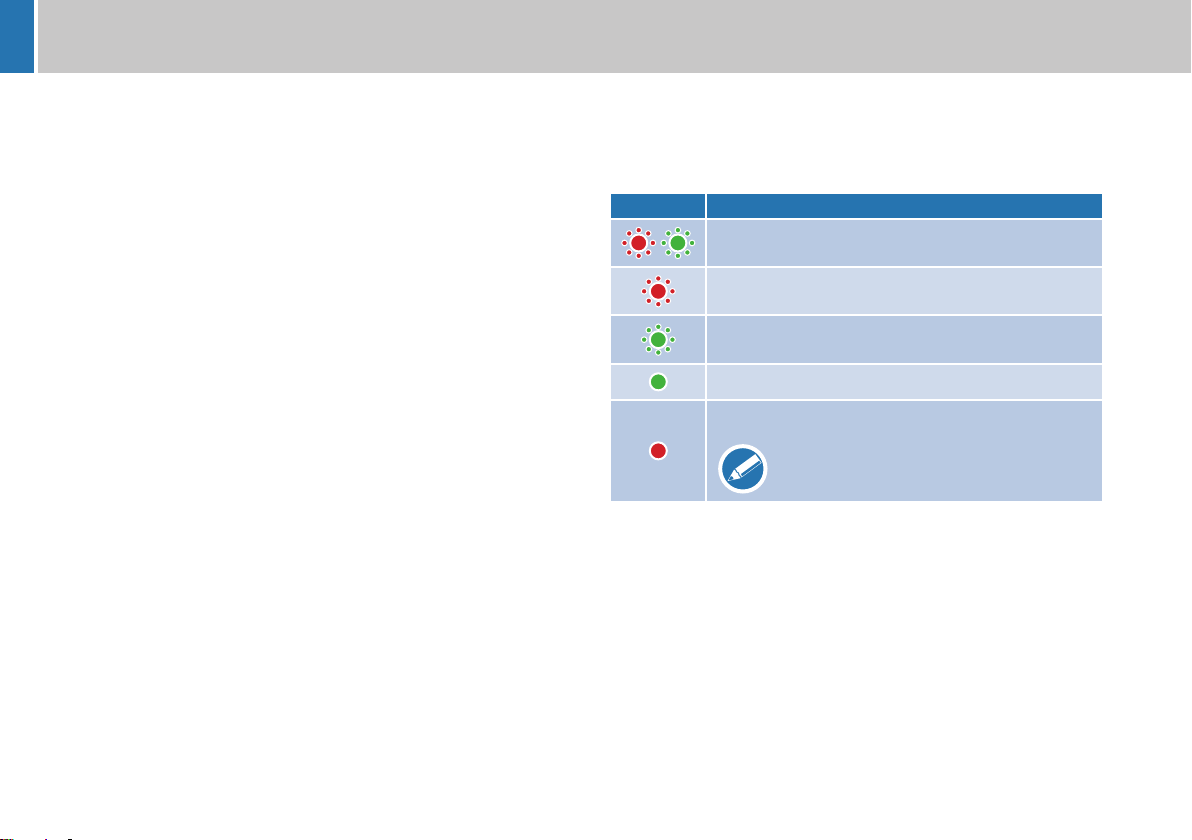

LED Indicators................................................................................ 8
................................................................... 9
After Sales Support......................................................................... 10
General Notices ............................................................................... 11
Warranty ........................................................................................... 12
www.elorapower.com

2
Safety
Important information on the safe installation and operation of this
product. Read this information before operating the product. For
your personal safety, read these instructions. Do not operate the
product if you do not understand how to use it safely. Save these
instructions for future reference.
Warning Symbols Used in these Instructions
Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury
and avoid possible damage to the product.
WARNING! Where there is a risk of personal injury
or injury to others, comments appear supported by
the warning triangle symbol. Where there is a risk
of damage to the product, associated equipment,
process or surroundings, comments appear
supported by the word ‘Caution’.
ELECTRIC SHOCK Where there is a risk of electric
shock, comments appear supported by the hazardous
voltage warning triangle.
Intended Use
The Elora® Performance Series Chargers deliver all of the
proven reliability of previous Elora chargers in a portable
power system. The technology advancements of this charger
deliver the features and performance of several essential power
products in one economic and portable package while reducing
power consumption.
Electrical Connection
WARNING! Risk of electric shock. Do not remove
cover, no user servicable parts inside the product.
WARNING! Risk of electric shock. Always check
cables for signs of damage. Damaged cables can
cause personal injury and/or damage the equipment.
WARNING! It is the responsibility of the local
organisation to ensure that the product is periodically
checked for electrical safety in accordance with local
regulations.
CAUTION! This product must be connected to a
power supply of the same voltage (V) and current (A)
as indicated on the product. Refer to the technical
specifications for the product.
CAUTION! AC Mains plug or appliance coupler is to
be used as a power disconnect device; make sure it is
readily accessible.
CAUTION! All data connections to other devices
must be made using shielded cables.
www.elorapower.com
Safety

Safety
3
Safety
CAUTION! Using alternative power sources will
invalidate the system EMC liability.
CAUTION! Do not exceed the current output limit of
the product when powering auxiliary devices.
CAUTION! When powering the charger using a
generator, the generator must produce a sine wave
or modified sine wave output, otherwise, the charger
may be damaged.
WARNING! RISK OF ELECTRICAL SHOCK: Refer
servicing to qualified service personnel.
Basic Electrical Insulation (Class 1 Equipment)
WARNING! This product is Class 1 equipment. For
safe operation this equipment must be connected to
a power supply that has a protective earth connection
(US: ground).
Operation
WARNING! Special precautions and handling
instructions are contained in this user guide and
should be strictly adhered to for safe and reliable
operation.
WARNING! Never use flammable or combustible
materials and solvents around batteries or chargers.
CAUTION! The product should not be used outside
the operating temperature limits. Refer to the product
technical specifications for the operating limits for the
product.
CAUTION! Slots and openings are intended for
ventilation purposes to ensure reliable operation of
the product andprotect it from overheating. Do not
block or cover any slots and openings.
WARNING! Protect the product from water, moisture
and dust. The presence of electricity near water can
be dangerous.
WARNING! The product must not to be exposed to
dripping or splashing and not to be used near objects
filled with liquids.
WARNING! When cleaning the product, use a soft
damp cloth only. Do not wet the exposed metal parts
of the charging unit. Do not use solvents, detergents
or scouring agents.
Maintenance
WARNING! The fitting of non-approved parts or
accessories, or the carrying out of non-approved
alterations or servicing can be dangerous and could
affect the safety of the product. It may also invalidate
the terms and conditions of the product warranty.
RISK OF ELECTRICAL SHOCK: Refer servicing to
qualified service personnel.
www.elorapower.com

4
About this user guide
Introduction
The Elora® LP Performance Series Chargers deliver all of
the proven reliability of previous Elora chargers in a portable
power system. The technology advancements of this charger deliver
the features and performance of several essential power products
in one economic and portable package while reducing power
consumption. This design makes it ideally suited to fit on shelves,
table tops or other tight spaces.
This user guide covers the safe and reliable operation of the LP
Performance Series chargers.
Important
Special precautions and handling instructions are contained in this
user guide and should be strictly adhered to for safe and reliable
operation. Contact Elora Customer Support Group with any
questions regarding this product.
Elora Battery Compatibility
Elora LP Performance Series Chargers are compatible with
all Digital Series and most Logic Series®Elora batteries. For
questions on product compatibility please contact ELORA
Customer Support Group at 1-888-77ELORA or
[email protected].
LP Performance
Series Charger ELORA 240
LP3
84750129
www.elorapower.com
About this user guide

5
Wi-Fi Capability
The LP Performance Series Chargers come standard with an
integrated Wi-Fi module to be utilized with a variety of features and
functions released in upcoming software revisions. The integrated
Wi-Fi module will also be used for future battery compatibility, so
new batteries may be used on the LP Performance Series Chargers
as they are released.
Mini USB Port
Located at the back, this port is used to upgrade the firmware of the
LP Performance Series Chargers. For information, please contact
the Elora Customer Support Group.
AC Mains Power
The AC Mains power connector is located on the rear of the charger.
Components and Connections
www.elorapower.com

6

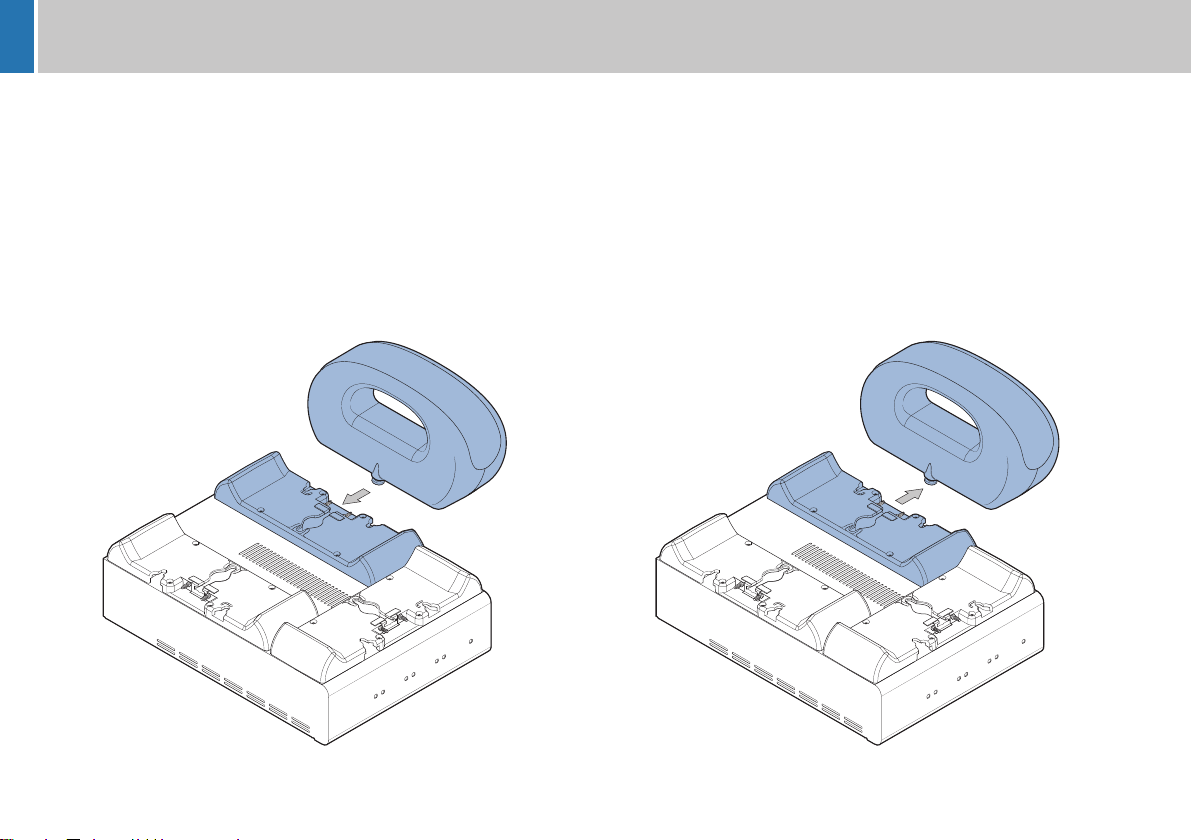

Attaching a Battery to the Charger
To attach a battery to the Gold Mount adaptor on the charger:
1. Slide the battery onto the adaptor, ensuring the battery’s T-studs
are aligned in the corresponding slots.
2. Push the battery forward until the connector is fully engaged.
Components and Connections
To Release the Battery
1. Slide the battery straight off the connector.
www.elorapower.com

7
Self-Test
Upon applying AC mains power, the charger will initiate a brief
self-test mode. Self-test mode is complete when the charger LED
indicates battery information on the position being used.
Charging
As with all Elora chargers, charging with a LP Performance
Series Charger is fully automatic. Mount any applicable battery to
any open position on the charger and the LP Performance Series
Charger will automatically determine the appropriate charge routine
and execute it. The LP Performance Charger automatically detects
which battery has the strongest charge and prioritizes it, ensuring
that a fully charged battery is always available in the shortest
amount of time possible. Software constantly monitors the charging
process and discharge curves to ensure that each battery is charged
to its peak performance
In some cases a battery may be discharged to a very low
voltage level causing the battery to be unrecognizable to the
charger when first attached.
1 2 3

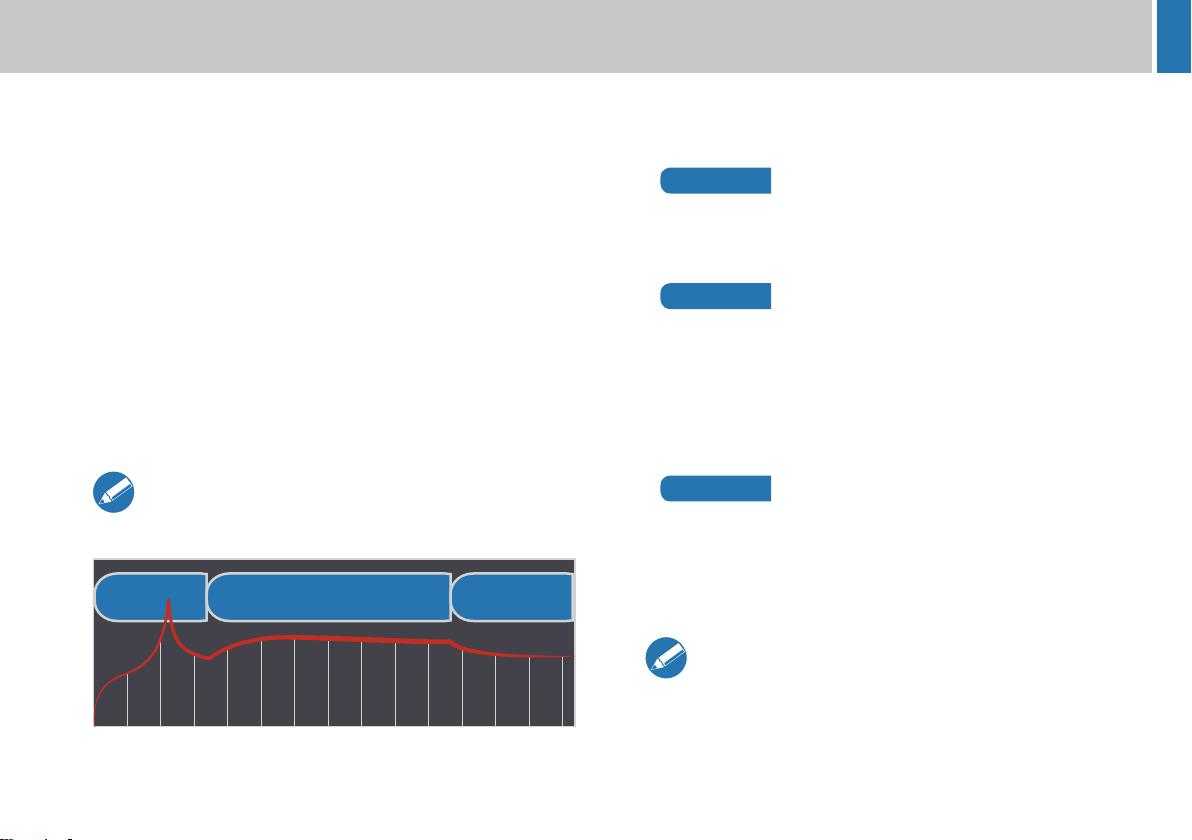

Three Stage Charging Methodology
In general, the LP Performance Series Chargers (Gold Mount and
V-Mount) will deliver a three stage charge routine to each battery.
Stage One will deliver a high rate charge matched to the
capabilities of the battery (typically a one or two hour rate,
depending on battery type). During this stage, six separate cutoff
methods are in operation, simultaneously, ensuring the fastest,
safest charge for that battery.
Stage Two charging is a BALANCING or “stabilizing” mode
which calculates each battery pack type to offset any imbalance
of the battery’s cells, created by unequal self-discharge or any
capacity mismatch of the individual cells in the pack. This stage
can vary in duration from zero to as much as 16 hours, depending
on the condition of the battery. The Stage Two charge reduces
current automatically as the battery charges maintaining the cells
at a safe voltage level. A battery will typically leave Stage Two in
2-4 hours under average operating conditions.
Stage Three charging is the Elora exclusive Lifesaver®
maintenance mode. This patented pulse routine keeps batteries
fully charged, free from self-discharge - indefinitely - without
damaging heat associated with a so-called “trickle charge”. The
Stage Three programming monitors the self-discharge of the
battery, providing charge only when the battery self-discharges to
about 95% of its capacity.
Elora recommends that batteries remain on the
charger and plugged into AC mains power for best results.
The Lifesaver mode will keep them 100% charged.
Operation
www.elorapower.com

8
Operation
LED Indicators
All LP Performance Series Chargers come standard with LED
indicators. The LED indicators are used to convey information about
the current charge status of the battery.
LED Description
Alternating Red and Green: Evaluate
Flashing Red: Stage One
Flashing Green: Stage Two
Solid Green: Stage Three (Liversaver Mode)
Solid Red: Hold
If persistent, please contact the Elora
Customer Support Group.
Removal of AC Mains Power
If AC mains power is removed, it is highly recommended that the
batteries are removed from the charger, thus avoiding any additional
self-discharge of the battery.
www.elorapower.com

9
Physical Data
LP Performance 3 Position
Height
4.20 inches (10.67 cm)
Length
13.30 inches (33.75 cm)
Width
9.10 inches (23.1 cm)
Weight
4.6 lbs (2.09 kg)
Environmental Data
Operating temperature range
-0°C to +40°C (-32°F to +104°F)
Electrical Data
Supply Voltage
AC Input: 100-240 VAC, 50/60 Hz. Wide Range Input
Power Output
170W shared between 3 battery charge channels at 16.8V
each
Nominal Battery Charge Times
Battery Charge Time
ELORA 240 4.5 Hrs.
(Single battery)
6 Hrs.
(3 fully discharged batteries)
In some cases a battery may be discharged to a very low
voltage level causing the battery to be unrecognizable to the
charger when first attached.
www.elorapower.com

10
After Sales Support
At Elora we take great pride in the quality of our
products and we also recognize that your experience with
our products will be even more positive and productive with
strong, effective support to back them up.
Elora's Service Centers are there to provide technical
support for customers and partners, via telephone or email. For
more information, including complete contact details,please go
to: www.elorapower.com
www.elorapower.com

11
FCC Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at their own expense.
This equipment has been approved by one or more agencies. All
changes and/or modifications not expressly approved by
Elora. could void the users’ warranty and authority to operate this
equipment. There are no serviceable parts in this equipment.
C
General Notices
www.elorapower.com

12
This warranty for the product specified in this document (“Product”)
is given by Elora International. If you (the purchaser of the
Product from Elora, or the person for whom the Product was
purchased, if it was a gift) have any questions regarding Product
applications, Product specification, or to obtain warranty service
on this or any Elora product, contact the company at the
address above.
THIS PRODUCT MUST BE REGISTERED WITH ELORA
WITHIN 30 DAYS OF PURCHASE TO ASSURE WARRANTY
COVERAGE. REGISTER ONLINE AT:
www.elorapower.com
Warranty registration, including the serial numbers of Elora
chargers used with this battery, must be supplied to Elora.
Elora will warranty the Product only against defects in
material and workmanship for the period as follows from the date of
purchase, in accordance with the terms set forth below, and then,
only if the Product is used exclusively in conjunction with compatible
Elora chargers. If this charger is returned to Elora for
warranty service it will be required that you provide model names
and serial numbers of compatible Elora chargers with which
this product was used.
MAXX II Warranty 24 months: Elora will repair or replace the
Product at Elora’s option and cost.
This warranty shall be effective only if Elora receives notice
of such defects in materials or workmanship during the period of the
warranty. The liability of Elora hereunder is expressly limited
to a claim for repair or replacement of the Product or as otherwise
stated herein at Elora’s sole discretion. Notice of any claim
under this warranty shall be delivered to Elora during the
period of the warranty and the Product shall be returned with its
packaging promptly, at your expense, to an Elora Customer
Support Center or to the address above. Upon receipt of the Product
and a record of your compliance with the conditions of this warranty,
Elora will repair or replace the Product and return it to you, or
issue a credit, as applicable. You are responsible for all shipping and
handling charges to and from authorized facility.
THIS WARRANTY DOES NOT APPLY TO AND IS VOID IN
THE CASE OF DEFECTS OR DAMAGE RESULTING FROM
ACCIDENTS, DISASTER, NEGLECT, MISUSE, IMPROPER
INSTALLATION, IMPROPER OR UNAUTHORIZED SERVICE OR
MAINTENANCE, UNAUTHORIZED REPLACEMENT PARTS OR
ATTACHMENTS; OR DYSFUNCTION OR MALFUNCTION OF, OR
CAUSED BY, ANY OTHER PRODUCT OR DEVICE.
Misuse includes any use of the Product in other than its intended
application, including the use of this Product with any charging
device or accessory not manufactured by and/or specified by Elora.
This warranty does not cover, and Elora assumes no responsibility
for, any equipment or devices used in conjunction with the Product.
ELORA DISCLAIMS ANY LIABILITY FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY
WRITTEN OR IMPLIED WARRANTY OF THE PRODUCT. UNDER
NO CIRCUMSTANCES WILL ELORA BE RESPONSIBLE
FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
This Warranty is to be construed and enforced in accordance with
the law of the State of Ohio, including the provisions of
the Uniform Commercial Code as adopted and from time to time
amended in the State of Ohio, and not the Convention for
the International Sale of Goods. This choice of Ohio law is
exclusive of any Ohio law that would require reliance on any
law foreign to Ohio.
Warranty
www.elorapower.com

13
Should any action of law or in equity be brought by any person under
this Warranty, such action shall be brought only in the United States
District Court for the District of Ohio, or in any Superior
Court in Delaware County, Ohio, USA. Some states do not
allow limitations on how long a warranty lasts, so the time period
limitation herein may not apply to you. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This warranty
gives you specific legal rights and you may have other legal rights
which may vary from state to state. Use of unauthorized equipment
in conjunction with Elora products constitutes misuse under
our warranties and may limit or void those warranties. Elora
does not authorize, condone, recommend, or otherwise assume
any liability or responsibility resulting from the use of any battery,
charger, or accessory made by Elora with any battery,
charger or accessory not manufactured, produced or sold by Elora
Elora International only authorizes the use of original Elora products
with this Product. Use only original Elora equipment with this Product.
Warranty
www.elorapower.com

Call1-888-77ELORA or emailus at customers[email protected]
Visit our website at www.elorapower.com
Copyright 2019 Elora Power Inc. All rights reserved.
