8 universal inputs
•
••
•2 independent double outputs, VGA and DVI
•
••
•In/Out resolution up to UXGA and 1080p
•
••
•Seamless switching in Fading, Mixer or Cut
•
••
•Preview, PIP, Titling and Overlay functions
•
••
•Image parameter control
•
••
•Audio associated with video with volume
adjustment
•
••
•IR, RS232 and Ethernet control

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
2
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
2
INSTALLATION AND USE OF THE DVIPRO1000
CONTENTS:
1.0 Overview 3
2.0 Power supply 5
3.0 Connections 7
4.0 Basic functions 8
5.0 Remote control functions 15
6.0 Detailed Functions 18
7.0 Programming menu 24
8.0 RS 232 and Ethernet commands 31
9.0 Firmware upgrade 41
10.0 Technical data 42
11.0 Notes 44
Please read this handbook carefully when installing the DVIPRO1000 unit.
The manufacture shall not be held responsible for any damages caused by
use, even correct, of its products.
Product data and characteristics may be modified without prior notice.

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
3
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
3
1.0 OVERVIEW
Thank you for buying this product. Check the contents of the packaging
carefully. It contains:
The DVIPRO1000 unit permits switching, on two independent, programmable
outputs, of video and audio signals from eight different sources. In particular,
for the video part:
-IN1 and IN2: 2 inputs on connector VGA HDD15p. that can accept
RGBHV, Component, YC and CVBS signals
-IN3, IN4, IN5, IN6: 4 inputs on connector VGA HDD15p. or on triple
BNC, that can accept RGBHV, Component, YC and CVBS signals
-IN7: 1 input on connector DVI-I or on triple BNC, that can accept
DVI, RGBHV (via adapter VGA-DVI), Component, YC and CVBS
signals
-IN8: 1 input on connector HDMI or on triple BNC that can accept
HDMI, DVI (via DVI-HDMI adapter), Component, YC and CVBS
signals.

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
4
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
4
The 2 outputs are completely independent. Each output is scalable in a wide
set of formats and available both in DVI digital format and RGBHV analogue
format on connector HDD15p.
Each output channel permits concurrent display of 2 inputs, creating 2
independent windows, MAIN and PIP whose size and position can be set
freely.
The unit performs switching through the Fading, Mixer or Cut effect. Fade and
Mixer time is programmable. These modes are available both in automatic
and in mauial mode. A Preview function is also available to switch the image
of OUT1 on OUT2.
An Overlay function is also available which permits subtitling or overlay
effects between images.
The DVIPRO1000 features 8 different global preset memories that can be
saved and recalled by the user.
The basic commands for control of the machine are available from the
machine keyboard with lighting keys, where an LCD display shows its
complete status.
Using the remote control, it is possible to access all the functions, including
the programming menu.
All functions can also be accessed via a RS232 serial interface and LAN
connection.
The related balanced stereo audio channel is associated to each input.
Output volume can be regulated in digital mode for each single input and for
each single output.
The HDMI channel is fitted with a specific SPDIF internal decoder which is
activated when the audio is contained in the HDMI stream.

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
5
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
5
2.0 POWER SUPPLY
The DVIPRO1000 unit must be powered at 90÷240 Vac 50/60Hz using the
cable provided. The socket of the cable must be inserted in the related panel
plug to the left on the back of the unit.
The panel plug is equipped with a fuse holder for 5X20 fuses. If the fuse
blows, replace it with one of the same rating as specified on the back of the
unit.
All operations must be carried out by qualified personnel who
must be informed of the risk of electric shock
In some countries, the plug of the cable must be adapted to local standards.
The wires are identified according to the following coding:
- Brown PHASE (Identified with the letter L, may be red)
- Blue NEUTRAL (Identified with the letter N, may be black)
- Yellow/Green GROUND (Identified with the letter E, may be green)
WARNING
A ground connection is compulsory

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
6
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
6
EXAMPLE OF CONNECTION
DVI

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
7
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
7
3.0 CONNECTIONS
Connect the single inputs to the respective connector on the back of the
DVIPRO1000.
For inputs 1 and 2, available only on connector HDD15p, in the case of
connection of Component, YC or CVBS signals, the specific VGA-5BNC type
ADC201 adapter cable must be used on which correspondence is as follows:
GREEN = CVBS, or Y of YC or Y of the component
BLUE = C of the YC or Pb of the component
RED = Pr of the component
For inputs 3, 4, 5 and 6 available on connector HDD15p. and on 3 separate
BNC, connect only one source for each input
For inputs 7 and 8, available on connectors DVI-I, HDMI and 3 separate BNC,
connect only one source for each input
WARNING
Never connect more than 1 source at a time to the universal inputs
in order to prevent damage to the sources or to the DVIPRO1000
Connect the destinations to the related output connectors of the
DVIPRO1000. Resolution can be set for each output . : the DVI and VGA
channels of each output will have the same resolution and setting of the
image.
Connect the inputs and balanced audio outputs on the dedicated terminals.
As regards the HDMI input, as the digital audio signal is already contained in
the HDMI signal, it is not necessary to connect a separate audio signal on IN8
as the DVIPRO1000 is able to decode the audio present in the HDMI signal
and convert this into a traditional analogue signal on the selected output.
If a separate audio is to be associated with the 8 HDMI input, it is necessary
to program the format of input IN8 as DVI instead of HDMI.

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
8
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
8
4.0 BASIC FUNCTIONS
Power on the DVIPRO1000 using the switch on the rear panel. The unit will
perform a StartUp phase lasting around 20 seconds,
(during this phase the whole keyboard blinks red/green) at the end of which it
will switch to the Default condition. The default setting, activated at initial
power-on, is as follows:
Input formats:
In1 - input VGA
In2 - input VGA
In3 - input CVBS
In4 - input CVBS
In5 - input Component
In6 - input Component
In7 - input DVI
In8 - input HDMI (embedded audio)
Output resolutions
Out1- resolution XGA 1024x768 @60Hz
PIP de-activated
Out2 - resolution XGA 1024x768 @60Hz
PIP de-activated
Channel selection
MAIN channel - In1 (VGA) on OUT1 and OUT2
PIP channel - In3 (CVBS) on OUT1 and OUT2
Switching mode
Fading
PIP and Overlay
Disabled

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
9
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
9
The main commands for functioning of the DVIPRO1000 can be carried out
from the local keyboard.

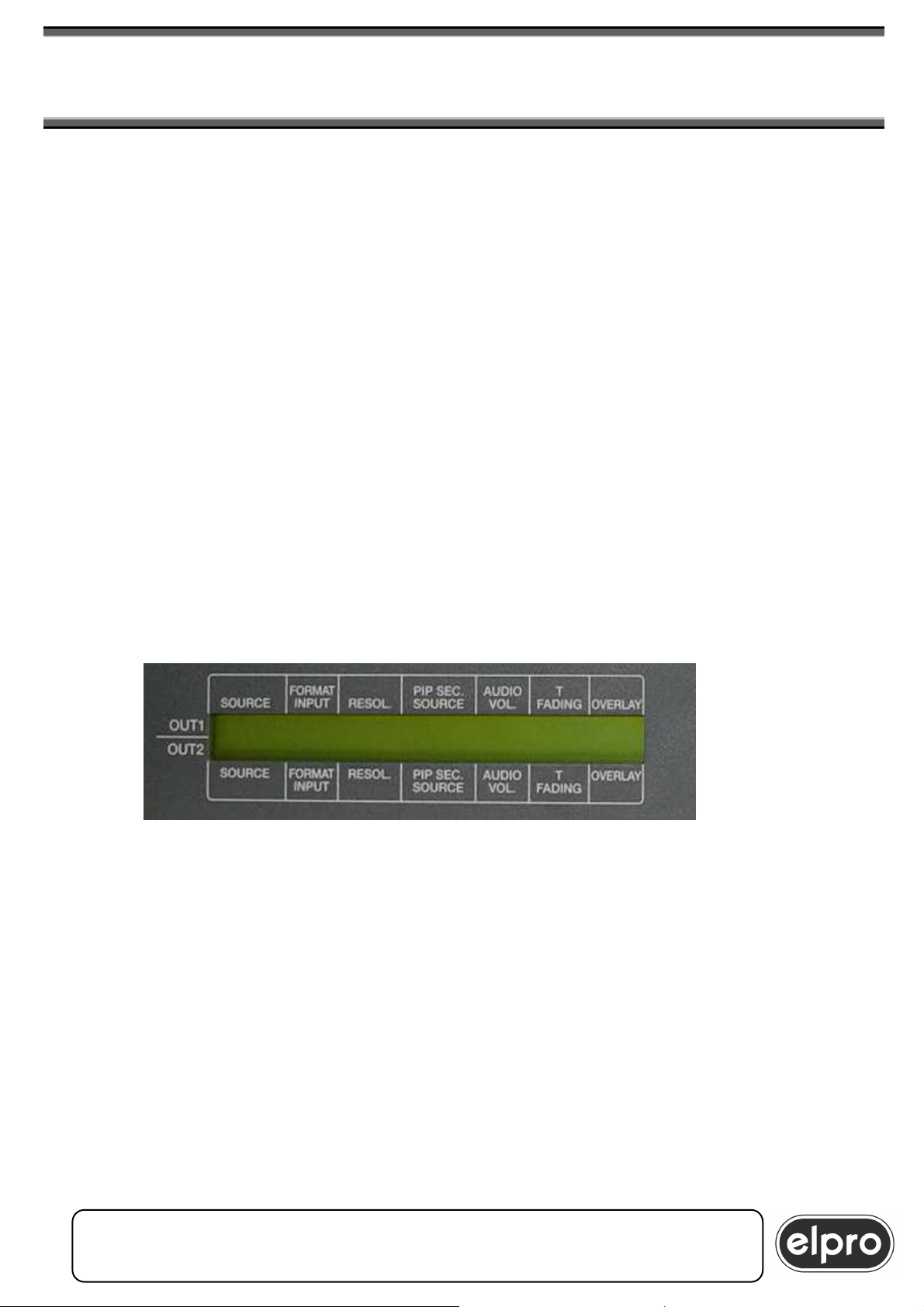

Machine keyboard
4.0.1 lighting keys
In order to give a better and quicker intellegibility of the system , each key has
An internal red/green/yellow light , with the following scheme;
-Keys from 1 to 8 for both the Out channels : in each row , the
green light is for the Main input , while the red light is for the Pip
input . During the switching phase , the new channel will blink. If both
Main and Pip inputs are the same , then the light will be yellow
(red+green). If Pip is disabled , the red light brightness is lower. In
Mixer and cut modes , the channel Key will blink yellow during the
preparing phase , then it will become green when it is ready to
switch,
-Format key : it will blink during the format selection , together with
the channel key (1 to 8) in programmino.
-Overlay key : red or green or yellow upon the state of the overlay on
the channels (yellow = both channels)
-Save/Recall key: yellow light during these modes
-Preview key 1

2: it blinks yellow during the transfer of the
configuration from OUT1 to OUT2 : also the interested channel keys
of the second row will blink
-Resolution key: green or red upon the channel which is interested
in the resolution changing. (green OUT1 , red OUT2)

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
10
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
10
10
4.1 Selection of output resolution
-Volume keys: they flashes yellow for each volume variation. In the
case of a mute condition , both the + and – keys will be on (green
for OUT1 , red for OUT2 , yellow for both channels)
-Out channel key : the green light stands for the OUT1 channel , the
red light for the OUT2 channel . The volume , resolution and overlay
keys will be active for the selected output channel
To define output resolution, proceed as follows:
With the “MODE” key, select the output channel on which the new resolution
is to be set according to the indications screen-printed beside the key.
Then, press the “RES” key: an OSD menu is displayed in the output screen
page with the list of the selectable resolutions, while the currently selected
resolution will be shown on the LCD display.
Continue to press the “RES” key until the resolution desired is highlighted on
the LCD and on the video.
After a brief pressure on the “MODE” key, the programming becomes
effective and the machine will perform a restart cycle of around 10 seconds,
at the end of which the new resolution will be activated.
N.B. the VGA analogue output and the DVI digital output of the single
output channel always have the same resolution.

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
11
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
11
4.2 Definition of input format
To define the format of the inputs, proceed as follows:
Press the “FORMAT” key on the front panel of the machine and, at the same
time, press the key relating to the input to be defined, using either the buttons
relating to OUT1 or OUT2: each time the key of the input is pressed, the
current assignment of the input will be shown on the LCD and on the video. In
this way, it is possible to scroll all the possible formats that can be assigned.
On releasing the “FORMAT” key, the DVIPRO1000 will make the
programming operative and if, at that moment, the channel reprogrammed
was displayed, will refresh the display.
With regard to input 8, if this is used in HDMI format, the related digital audio
stream inserted in the HDMI signal will be automatically decoded by the
DVIPRO1000. If the audio is to be provided separately in analogue format on
input 8 audio, input 8 must be programmed as DVI format.
WARNING
Format changing is possibile only in Fading Mode.
In Mixer and Cut Mode the operation is not permitted
4.3 Source selection
To select the inputs, use buttons 1 to 8 relating to outputs OUT1 and OUT2
on the front keyboard. Switching is performed in a programmable time of 0 to
3 seconds according to Fading, Mixer or Cut mode.
If the input selected is VGA analogue format, at initial power-on of the
machine, an automatic “AUTOADJUST” procedure will be performed for
improved centering of the image on the screen: subsequent switching
operations will not require this phase except in the case in which the format of
the source in input is modified or if it is connected to a new VGA source.
During this phase , the key of the interested channel will blink fast.
4.4 Activation of the PIP and selection of its source
To activate the PIP on an output channel, proceed as follows:
Press the key relating to the channel currently present on the MAIN; holding
down the key, also press at the same time the key relating to the input that is
to be displayed in PIP: the window will be activated to the bottom right.
Subsequently, from the remote control or using serial commands, it will be
possible to modify the size and position of the MAIN and PIP windows (see
paragraph 6.1.2 and paragraph 7.4).
If repeated, the same operation to activate the PIP will cause de-activation of
this.

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
12
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
12
12
Example 1 : input 1 is on the MAIN. To activate input 3 in PIP, I press key “1”
and then and at the same time key “3”.
Example 2 : on the MAIN I have input 1 and input 3 on the PIP.
To switch the PIP input on 4, I press key “1” and then at the same time key
“4”.
WARNING
1) Input 7 cannot be activated in the PIP window when this is
programmed as DVI format
2) An input programmed as VGA cannot be activated in PIP if an input
programmed as VGA is already present in the MAIN.
In both cases, the DVIPRO1000 will display the
“NOT ALLOWED” message
3) It is not possible to enable the PIP window when operating in MIXER
or CUT mode.
In this case, the DVIPRO1000 will display the
“ALREADY IN MIXER” message

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
13
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
13
4.5 Other keyboard commands
4.5.1. Volume adjustment
For each single input, it is possible adjust volume in a scale from 0 to 33
steps corresponding to a change from MUTE to 0dB: to do this, using the
“MODE” key, select the output channel desired, then use the “VOL+” and
“VOL-“ keys for adjustment.
The adjustment will be saved permanently and each input will have its
associated output volume.
4.5.2. Overlay
The “OVR” key can be used to activate machine Overlay mode, scrolling the
various possible modes (see paragraph 6.1.5 and paragraph 7.5).
4.5.3. Saving and recall of presets
Up 8 complete configurations can be saved as presets that can be recalled
subsequently. To do this, press the ”SAVE/RECALL” key and at the same
time press a key from “1” to “8”. The machine will confirm saving with a
message on the OSD.
To recall a preset, press again the “SAVE/RECALL” key and, at the same
time, a key from “1” to “8” relating to the preset to be reloaded: the data of
the preset saved will be loaded in the memory and the machine will switch to
the new conditions after a StartUp cycle of around 20 seconds.
The DVIPRO1000 maintains, as default memory, the last state that was
active at the time of power-off.
4.5.4 preview 1

2 function: see chapter 6.1.2.1

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
14
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
14
14
4.6 LCD display
The front panel of the machine includes an LCD display on which information
regarding the current status of the system is displayed.
In particular, the following are displayed for each output channel:
SOURCE - the input selected on the MAIN channel
FORMAT INPUT - the format of the input selected
RESOL - the output resolution
PIP SEC. SOURCE - the input selected as PIP channel
AUDIO VOL - the audio volume of the channel
(from 000 to 033)
T FADING - switching mode (FADE, MIX or CUT, manual
MIX or manual CUT))
followed by the timing value (from 1 to 6 for
FADE and MIX)
OVERLAY - enable of Overlay and type of OVERLAY set
(from 1 to 5 or OFF)

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
15
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
15
5.0 REMOTE CONTROL FUNCTIONS
An entire set of advanced functions and programming possibilities can be
accessed via the IR remote control (or external interface).
The remote control provides a certain number of functions available directly
using the keys, plus a direct programming menu of the output format, a
save/memorize menu and an advanced programming menu.
WARNING
The remote control is of the self-learning type. After inserting the
batteries and each time these are changed, press the “Set” key for a few
seconds followed by the key with the white border (Enter key)

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
16
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
16
16
5.1 Commands
KEY FUNCTION COMMENT REFERENCE
1….8
OUT 1
SELECT INPUT FOR THE CHANNEL
OF OUT 1 6.1.1
1….8
OUT 2
SELECT INPUT FOR THE CHANNEL
OF OUT 2
6.1.1
PIP
OUT 1
ACTIVATE OR DE-
ACTIVATE PIP FOR THE CHANNEL OF OUT 1
6.1.2
PIP
OUT 2
ACTIVATE OR DE-
ACTIVATE PIP FOR THE CHANNEL OF OUT 2
6.1.2
PIP CH
OUT 1
ACTIVATE OR DE-
ACTIVATE CHANNEL
SELECTION ON THE
PIP (BLUE OUTLINE
ON THE PIP)
FOR THE CHANNEL
OF OUT 1
6.1.2
PIP CH
OUT 2
ACTIVATE OR DE-
ACTIVATE CHANNEL
SELECTION ON THE
PIP (BLUE OUTLINE
ON THE PIP)
FOR THE CHANNEL
OF OUT 2
6.1.2
MUTE A
OUT 1
ACTIVATE/DE-
ACTIVATE MUTE
AUDIO
FOR THE CHANNEL
OF OUT 1 6.1.3
MUTE A
OUT 2
ACTIVATE/DE-
ACTIVATE MUTE
AUDIO
FOR THE CHANNEL
OF OUT 2 6.1.3
MUTE V
OUT 1
ACTIVATE/DE-
ACTIVATE MUTE
VIDEO
FOR THE CHANNEL
OF OUT 1 6.1.3
MUTE V
OUT 2
ACTIVATE/DE-
ACTIVATE MUTE
VIDEO
FOR THE CHANNEL
OF OUT 2 6.1.3
FREEZE
OUT 1
FREEZE/UNFREEZE
IMAGE FOR THE CHANNEL OF OUT 1 6.1.3
FREEZE
OUT 2
FREEZE/UNFREEZE
IMAGE FOR THE CHANNEL OF OUT 2 6.1.3
VOL1 +/-
OUT 1
AUDIO VOLUME
ADJUSTMENT FOR THE INPUT SELECTED ON OUT1
6.1.6
VOL2 +/-
OUT 2
AUDIO VOLUME
ADJUSTMENT FOR THE INPUT SELECTED ON OUT2
6.1.6
ENTER KEY
STATUS OF THE
SYSTEM ON BOTH CHANNELS 6.1.11

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
17
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
17
KEY FUNCTION COMMENT REFERENCE
LEFT
ARROW
CYCLES BETWEEN
THE DIFFERENT PIP
MODES
FOR OUT CHANNEL
1 6.1.2
RIGHT
ARROW
CYCLES BETWEEN
THE DIFFERENT PIP
MODES
FOR OUT CHANNEL
2 6.1.2
UP
ARROW
PREVIEW COPIES THE OUT1
ON OUT2 6.1.2.1
EFFECT
OUT 1
SELECT FADING,
MIXER OR CUT
SWITCHING
FOR OUT CHANNEL
1 6.1.4
EFFECT
OUT 2
SELECT FADING,
MIXER OR CUT
SWITCHING
FOR OUT CHANNEL
2 6.1.4
OVR
OUT 1
ACTIVATE/DE-
ACTIVATE
OVERLAY
FOR OUT CHANNEL
1 6.1.5
OVR
OUT 2
ACTIVATE/DE-
ACTIVATE
OVERLAY
FOR OUT CHANNEL
2 6.1.5
RES1
OUT 1
ACTIVATE THE
RESOLUTION
SETTING MENU
FOR OUT CHANNEL
1 6.1.7
RES2
OUT 2
ACTIVATE THE
RESOLUTION
SETTING MENU
FOR OUT CHANNEL
2 6.1.7
MENU1
OUT 1
ENTER/EXIT THE
PROGRAMMING
MENU
DISPLAYS OSD ON
THE OUT CHANNEL
1
7.0
MENU2
OUT 2
ENTER/EXIT THE
PROGRAMMING
MENU
DISPLAYS OSD ON
THE OUT CHANNEL
2
7.0
DIRECTION
KEYS AND
ENTER KEY
NAVIGATION
INSIDE THE MENU
AND
CONFIRMATION OF
SELECTION
OUT 1
AND
OUT 2
7.0
LOCK
BLOCK/UNBLOCK
LOCAL KEYBOARD ON BOTH CHANNELS 6.1.8
RECALL
RECALL A PRESET ON BOTH
CHANNELS 6.1.9
SAVE
SAVE A PRESET ON BOTH
CHANNELS 6.1.9
DEFAULT
RESTORE MACHINE
TO INITIAL
CONFIGURATION
ON BOTH
CHANNELS 6.1.10

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
18
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
18
18
6.0 DETAILED FUNCTIONS
6.1.1 Selection of MAIN channel
Using the two sets of 8 keys, one set for each output, it is possible to select
the input to be sent to the output .
6.1.2 Selection PIP channel, PIP activation and PIP mode
To activate or de-activate the PIP on the video, continue to press the “PIP”
key of each output channel. When the PIP is visible, using the “PIP CH” key,
it is possible to enable/disable selection of the channel to be sent in PIP:
when the PIP is highlighted by the blue frame, the set of 8 “input” keys will
operate on selection of the PIP and not of the MAIN.
In the initial phase, the PIP window is positioned to the bottom right of the
video with a size of around 1/16th of the screen. Using the “LEFT ARROW”
key (for output channel 1) or the “RIGHT ARROW” key (for output channel
2), it is possible to scroll the different PIP modes, in particular:
-1 PIP over MAIN 1 small: PIP size 1/64 of the screen
-2 PIP over MAIN 2 average: PIP size 1/16 of the screen
-3 MAIN and PIP side by side full screen
-4 MAIN and PIP side by side proportionally
-5 SUPERIMPOSED: The PIP covers the MAIN
-6 USER MODE: MAIN and PIP dimensions and positions selected by the
user
-7 MAIN over PIP: The windows are exchanged in relation to PIP over
MAIN status
Continuing to press the key, the machine cycles through the different
PIP/MAIN combinations.
The “SUPERIMPOSED” setting is useful in particular when the Overlay/Titling
function is activated and when quick mixing of only two channels is required:
in this particular case, mixed switching is obtained pressing the “PIP” key.
The “MAIN over PIP” setting makes it possible to reverse PIP/MAIN display;
this is useful for also displaying input 7 in PIP when this is programmed as
DVI, a function that the DVIPRO1000 would not permit (see paragraph 4.4).
However, it should be noted that channel switching in this condition generates
an incorrect fade sequence: however, switching is performed normally.
The USER MODE setting permits definition of an arbitrary size and position
for the MAIN and PIP: i.e. accessing the programming menu (see paragraph
7.4).

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
19
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
19
6.1.2.1 Preview function 1

2
The “UP ARROW” key , pressed out of menu, activates the Preview
function: the whole state of the Output 1 (preview output) is transferred to the
Output 2 (Main output) through a fading transition.
The parameters which are transferred are:
-the Main channel and the Pip channel
-the Pip Mode
-the image parameters
-the volume
This function is always available with the following restrictions:
-at least an output channel in “Mixer” or “Cut” mode
-at least an output channel in’ “Main over Pip” mode
-the preview channel (Out 1) is in “User size” mode, and the two out
channels don’t have the same resolution
N.B. this function is also available from the Keyboard with the “1

2” key
6.1.3 Mute and Freeze conditions
The “MUTE AUDIO”, “MUTE VIDEO” and “FREEZE” keys are used
respectively to disable the audio output, disable the video output and to
freeze the image currently displayed. Each output channel has its own set of
keys which, alternatively, enable and disable the functions. To activate the
FREEZE function on the PIP instead of on the MAIN, it is sufficient that the
PIP window be outlined in blue (“PIP” and “PIP CH” keys as explained in
6.1.2) and to press the “FREEZE” key.
6.1.4 Switching effects (Fading, Mixer, Cut)
The DVIPRO1000 performs “seamless switching” between the channels in
three different ways: Fading, Mixer, Cut. To select the switching method,
continue to press the “EFFECT” button of the output to be worked on: the
mode selected will be shown on the LCD display and video.
-FADE mode: is the default mode. The machine switches through
fading through black with a programmable time of from 0 to 3 sec
-Automatic MIXER mode: in this mode, the effect of Mixing the two
inputs in switching is obtained, with a programmable Mixing time of
from 0 to 3 sec (0 setting corresponds to selection of CUT mode)
-Automatic CUT mode: in this mode, the system switches from the
previous input to the new input with a sharp, seamless cut .

DVIPRO1000 8x2 UNIVERSAL SCALER MATRIX SWITCHER
& EFFECT CONTROL
20
ELPRO Video Labs s.r.l.
St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
20
20
-Manual MIXER and CUT modes : these modes are identical as the
automatic modes , except for ths: when the system is ready to
perform the transistion to the new channel , you have to press again
the channel key : at this point the transistion is performed
immediatly. If you press a channel key which is different from the
previous , the transistion is aborted , and the new channel is
prepared. Thr channel key light blinks yellow during the preparation
phase , then blinks green when it is ready for the transition.
Each time the user returns to default status (Fading), the conditions prior to
entry to Mixer or Cut mode will be restored. Therefore, if the PIP was present,
it will be re-enabled; however, if the input to be displayed had been changed,
the previous input must be reselected.
WARNING
The PIP function is not available in MIXER and CUT modes.
If “PIP” is pressed in these modes,
the following message is displayed: ALREADY IN MIXER
6.1.5 Overlay effects (Overlay or titling)
The DVIPRO1000 can also be used in image overlay mode with masks of
different color that can be defined by the user to obtain various Overlay or
Titling effects: for example “keyhole” on the image or scrolling of titles on a
strip of the screen, etc.
Activating the Overlay function with the related “OVR” key, the image in the
PIP window will assume various levels of transparency in relation to the
MAIN, according to 4 different combinations of color mask already defined or
using a 5th mask that can be defined by the user in the programming menu
(see paragraph 7.5). The “OVR” key can be used to cycle between the 5
overlay modes until return to the “Overlay Off” condition.
