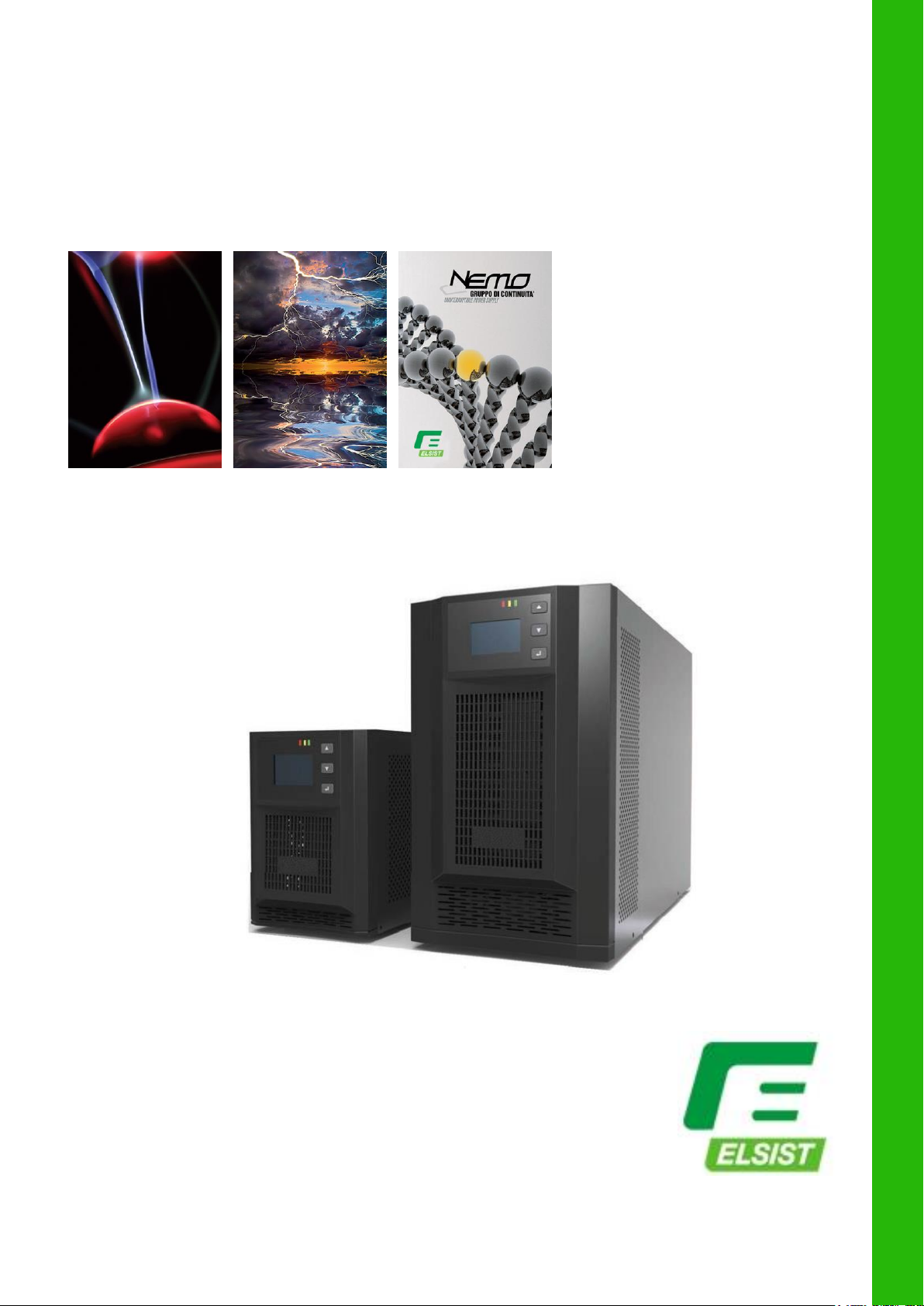

Elsist Pure 1000 User manual

Pure 1K-2K-3K
Single Phase Line Interactive sinewave Ups
INSTRUCTION MANUL
Uninterruptible Power System

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 2
INDEX
1. Important Safety Warning..................................................................................................... 3
1.1 Transportation........................................................................................................................................3
1.2 Preparation ............................................................................................................................................3
1.3 Installation..............................................................................................................................................3
1.4 Operation...............................................................................................................................................3
1.5 Maintenance, Service and Faults ..........................................................................................................3
2. Installation and setup...........................................................................................................4
2.1 Rear panel view.....................................................................................................................................4
2.2 Ups installation.......................................................................................................................................4
2.3 Ups configuration...................................................................................................................................5
2.4 Battery replacement...............................................................................................................................6
2.5 Battery Kit assembly (optional)..............................................................................................................7
3. Operation............................................................................................................................... 9
3.1 Button operation.....................................................................................................................................9
3.2 LED indicator .........................................................................................................................................9
3.3 LCD Panel..............................................................................................................................................9
3.4 Parameters inquiring............................................................................................................................10
3.5 Operating modes .................................................................................................................................11
3.6 Setting parameters...............................................................................................................................13
3.7 Falult reference code...........................................................................................................................14
4. Troubleshooting.................................................................................................................. 14
5. Storage and maintenance .................................................................................................. 14
6. Technical specification....................................................................................................... 15
6.1. Accessories ........................................................................................................................................16
6.2. RS232 port...........................................................................................................................................16
6.3. Optional interface communication .......................................................................................................16
Manual instruction
Thanks for purchasing our UPS, it is safe and reliable, so few maintenance is required.
Read this manual carefully and completely. It includes instructions of safety installation and operation. They will help your UPS obtain
the longest life and service. This manual accounts the internal working principle and the relative protection functions. This manual also
contains information about the usage of the equipment.
Please obey the instructions and all the warning stated in the manual or on the machine. Don’t operate the machine before finishing
reading the safety and operation instructions.
Note: Because of the continuous improvements, our products may differ somewhat from the contents included in this manual.
You can contact local office to get the information when necessary.

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 3
1. Important Safety Warning
Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly
and read carefully the following instructions before installing the unit. Do not operate this unit before reading
through all safety information and operating instructions carefully.
1.1 Transportation
Please transport the UPS system only in the original package to protect against shock and impact.
1.2 Preparation
Condensation may occur if the UPS system is moved directly from cold to warm environment. The UPS system
must be absolutely dry before being installed. Please allow at least two hours for the UPS system to acclimate
the environment.
Do not install the UPS system near water or in moist environments.
Do not install the UPS system where it would be exposed to direct sunlight or near heater.
Do not block ventilation holes in the UPS housing
1.3 Installation
Do not connect appliances or devices which would overload the UPS system (es. laser printers) to the UPS
output sockets.
Place cables in such a way that no one can step on or trip over them.
Do not connect domestic appliances such as hair dryers to UPS output sockets.
The UPS can be operated by any individuals with no previous experience.
Connect the UPS system only to an earthed shockproof outlet which must be easily accessible and close to the
UPS system.
Please use only VDE-tested, CE-marked mains cable (es. the mains cable of your computer) to connect the
UPS system to the building wiring outlet (shockproof outlet).
Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system
1.4 Operation
Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof socket outlet)
during operations since this would cancel the protective earthing of the UPS system and of all connected loads.
The UPS system features its own, internal current source (batteries). The UPS output sockets or output
terminals block may be electrically live even if the UPS system is not connected to the building wiring outlet.
In order to fully disconnect the UPS system, first press the OFF button to disconnect the mains.
Prevent no fluids or other foreign objects from inside of the UPS system
1.5 Maintenance, Service and Faults
The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance
personnel.
Caution - risk of electric shock. Even after the unit is disconnected from the mains (building wiring outlet),
components inside the UPS system are still connected to the battery and electrically live and dangerous.
Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify that no current
is present and no hazardous voltage exists in the terminals of high capability capacitor such as BUS-capacitors.
Only persons are adequately familiar with batteries and with the required precautionary measures may replace
batteries and supervise operations. Unauthorized persons must be kept well away from the batteries.
Caution - risk of electric shock. The battery circuit is not isolated from the input voltage.
Hazardous voltages may occur between the battery terminals and the ground. Before touching, please verify
that no voltage is present!
Batteries may cause electric shock and have a high short-circuit current. Please take the precautionary
measures specified below and any other measures necessary when working with batteries:
- remove watches, rings and other metal objects.
- use only tools with insulated grips and handles.
When changing batteries, install the same number and same type of batteries.
Do not attempt to dispose of batteries by burning them. This could cause battery explosion.
Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin andeyes. It may be toxic.
Please replace the fuse only with the same type and amperage in order to avoid fire hazards.
Do not dismantle the UPS system.

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 4
2. Installation and setup
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
Please keep the original package in a safe place for future use.
2.1 Rear panel view

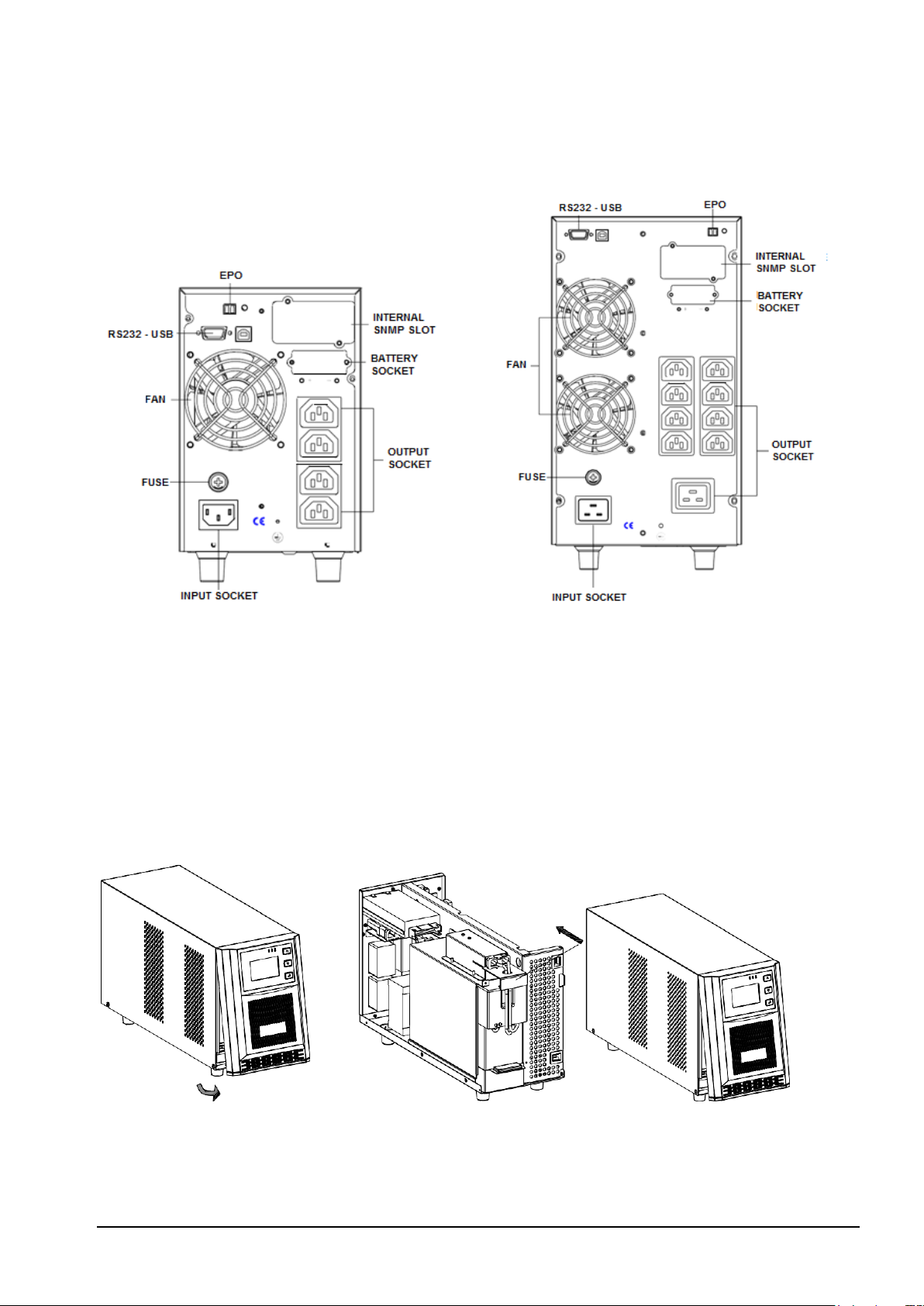

PURE 1000 PURE 2000-3000
Segment 1 outlets: connect to non-critical loads. Will cut off the load when battery voltage reach to 11.0V/pcs.
The Segment 1 cut off battery voltage can be set (ref. chapter 3.6 setting parameters).
Segment 2 outlets: connect to critical loads
2.2 Ups installation
For safety consideration, sometimes the UPS is shipped out from factory without connecting battery wires.
Before install the UPS, please follow below steps to re-connect battery wires if it is necessary.
PURE 1000

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 5
PURE 2000-3000

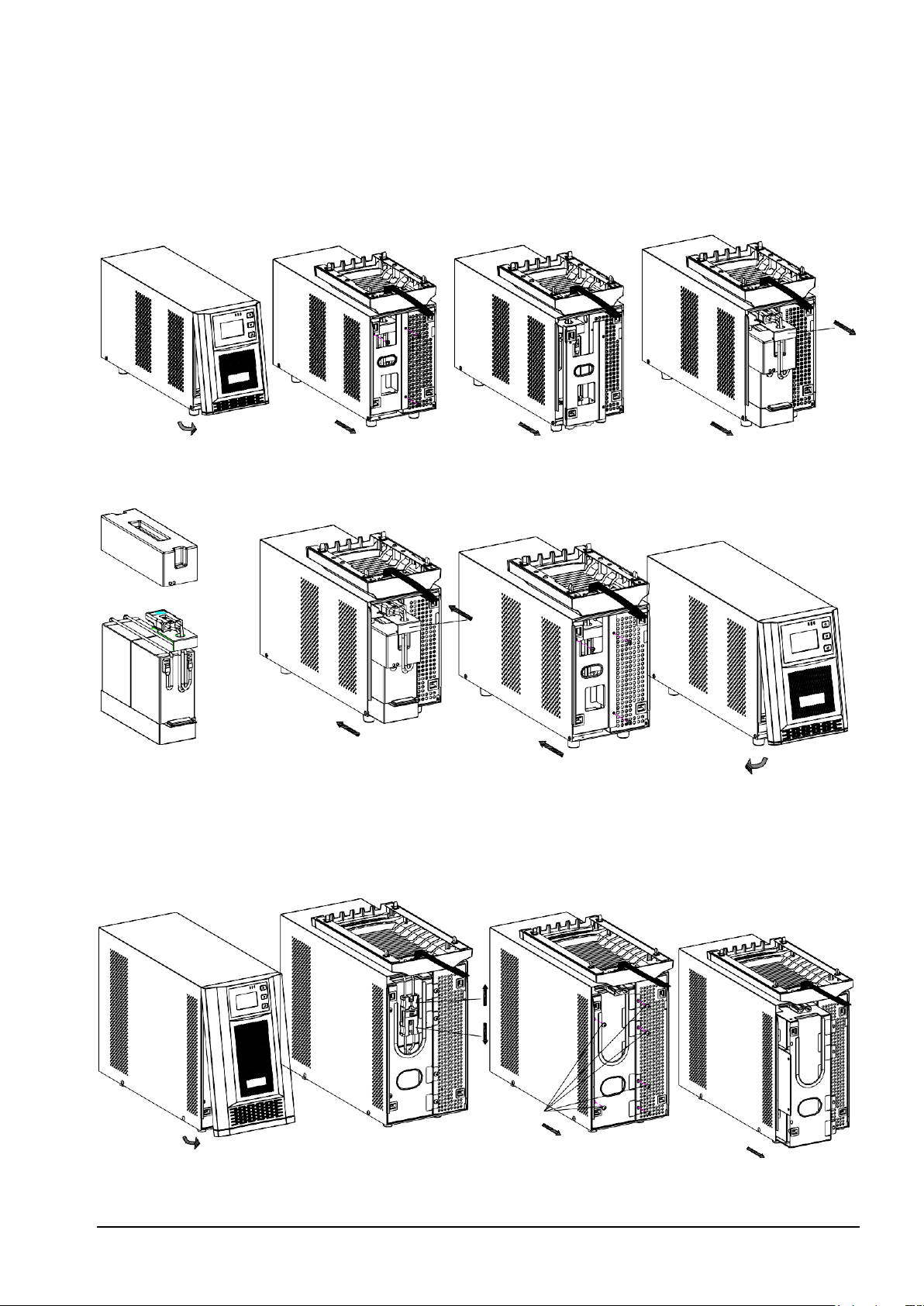

STEP 1 STEP 2 STEP 3
Remove front Re-connet battery Fix front panel
panel wires
2.3 Ups configuration
STEP 1: UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only.
STEP 2: UPS output connection
There two segments of outputs: segment 1 outlets and segment 2 outlets. Please connect non-critical devices
to the segment 1 outlets and critical devices to segment 2 outlets. During power failure, you may extend the
backup time to critical devices by setting shorter backup time for non-critical devices
STEP 3: UPS connections comunication
Communication port:
USB Port RS232 Port Intelligent SLOT
With the monitoring software installed, you can schedule UPS shutdown/start-up and monitor UPS status
through PC.
The UPS is equipped with intelligent slot perfect for either SNMP or AS400 card. When installing either SNMP
or AS400 card in the UPS it will provide advanced communication and monitoring options.
STEP 4: EPO connection
Keep the pin 1 and pin 2 closed for UPS normal operation. To activate EPO function, cut the wire between pin 1
and pin 2.
STEP 5: Turn On the UPS
Press the ON button on the front panel for two seconds to power on the UPS.
Note: The battery charges fully during the first five hours of normal operation. Do not expect full battery run
capability during this initial charge period.
STEP 6: Software installation
For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown.
Please use software CD or go to website http://www.megatec.com.tw/Download.htm.

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 6
2.4 Battery replacement
NOTICE: This UPS is equipped with internal batteries and user can replace the batteries without shutting down
the UPS or connected loads.(hot-swappable battery design) Replacement is a safe procedure, isolated from
electrical hazards.
CAUTION!! Consider all warnings, cautions, and notes before replacing batteries.
Note: Upon battery disconnection, equipment is not protected from power outages.
PURE 1000
Remove front Unscrew the battery Pull out the battery box Disconnect battery wires
panel box front panel pulling the connector
Remove the battery After batteries replacement, insert the Fix frontal panel
box top cover and battery box in its original position.
replace the internal Re-connect batteries cable and tighten
batteries the frontal panel firmly

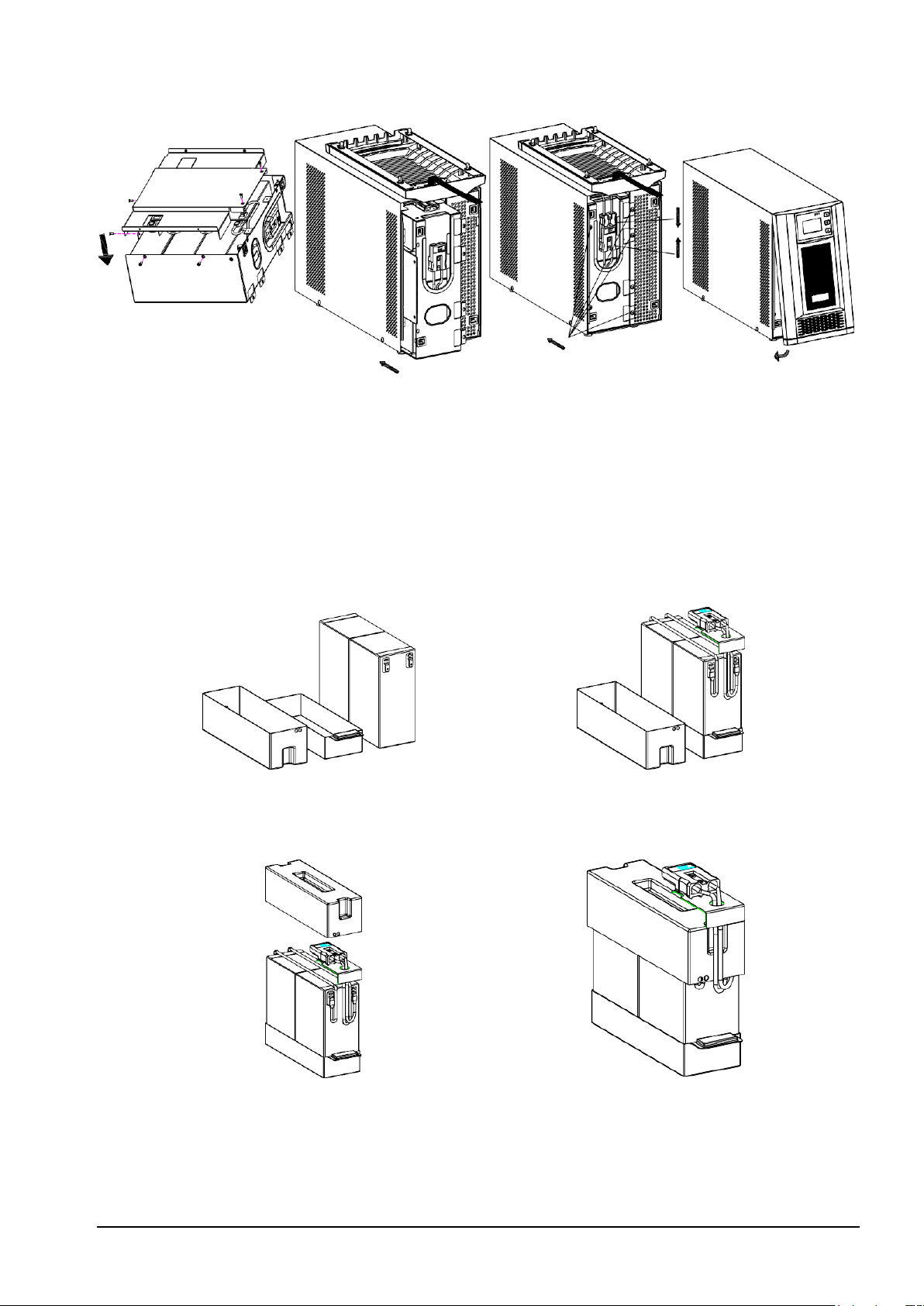

PURE 2000-3000
Remove front Disconnect battery wires pulling the connector Pull out the battery box
panel Unscrew the battery box front panel

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 7
Remove the battery After batteries replacement, insert the Fix frontal panel
box top cover and battery box in its original position.
replace the internal Re-connect batteries cable and screw
batteries the frontal panel firmly
2.5 Battery Kit assembly (optional)
NOTICE: Please assemble battery kit first before installing it inside of UPS. Please select correct battery kit
procedure below to assemble it.
2 BATTERY KIT:
Remove adhesive tapes Connect all battery terminals by following above chart.
Put assembled battery packs on one side of plastic shells
Put top plastic shells The battery kit is ready
on assembled battery packs

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 8

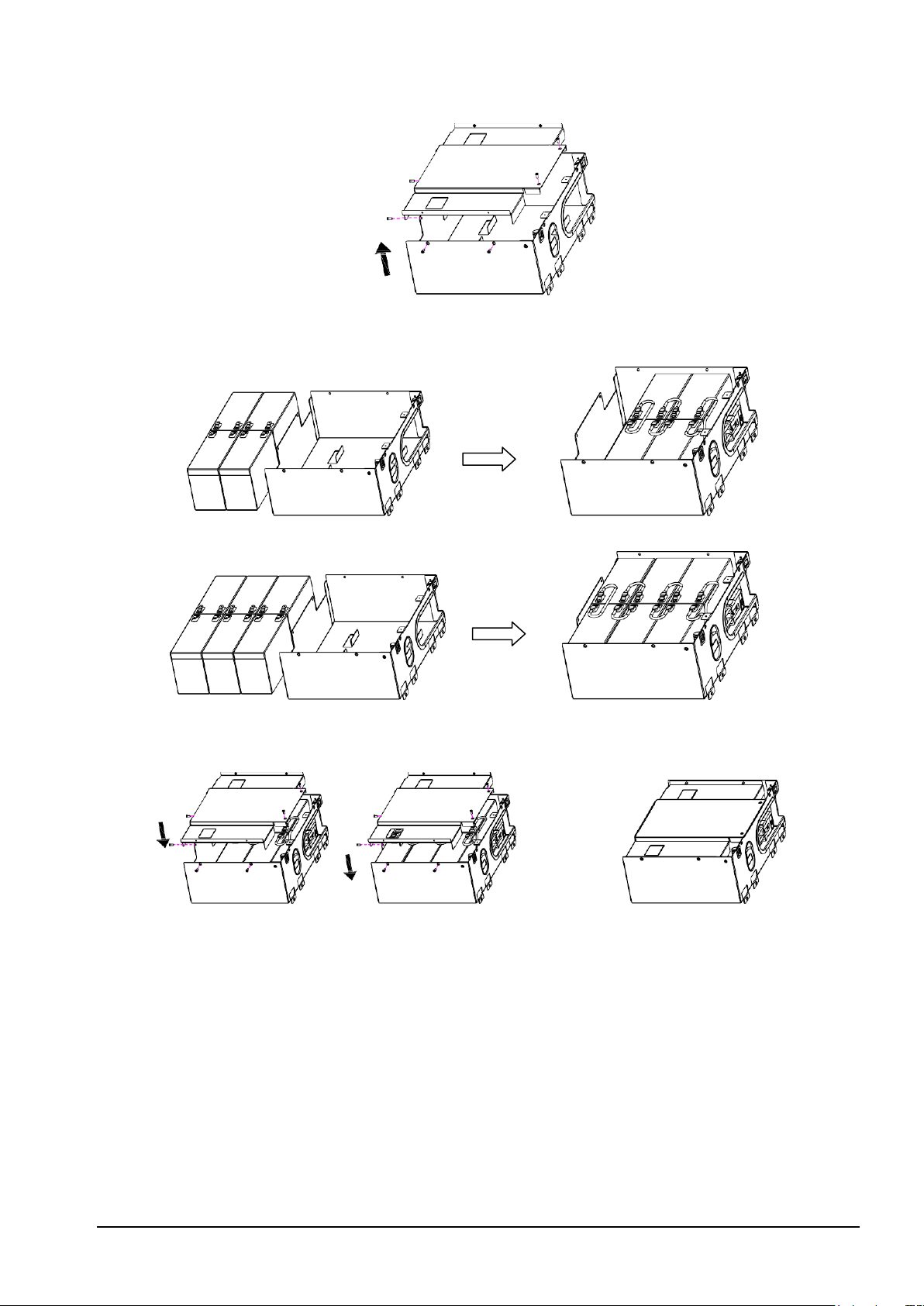

4/6 BATTERY KIT:
Unscrew the battery bracket and prepare new batteries
Connect all battery terminals (above picture)and put batteries into the bracket by following above picture.
Screw the battery bracket cover The battery kit is ready

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 9
3. Operation
3.1 Button operation
TASTO
DESCRIZIONE DELLA FUNZIONE
Tasto UP/MENU
Short press (within one second) to show preview parameter item. Long
press (last for two seconds) for enter or exit setting menu.
Tasto DOWN/TEST
Short press (within one second) to show next parameter item. Long
press (last for two seconds) to start manual battery test.
Tasto ON/OFF
Press and hold this key for more than 2 seconds to turn ON / OFF the
UPS.
3.2 LED indicator

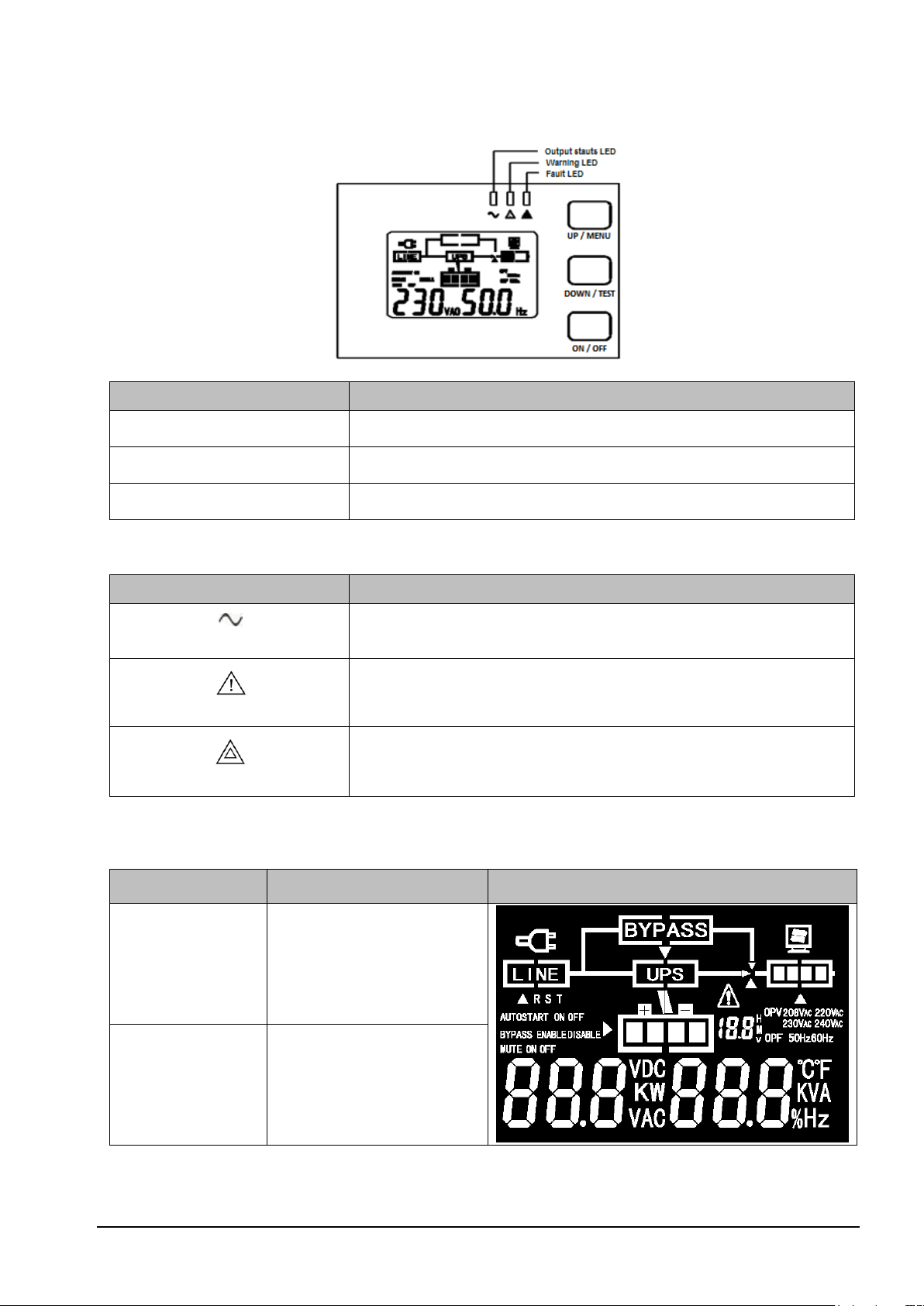

LED
DESCRIPTION
Green
UPS is normally powered by utility or battery inverter mode
Yellow
UPS in alarm mode. These situations appear when the UPS is under:
standby mode, bypass mode, battery mode, batteries over charged,
charger fault, fan stop working, batteries low, etc
Red
UPS in fault mode. These situations appear when the UPS is under:
Overload over time, inverter fault, overtemperature fault, etc.
NOTE: when the UPS is switched ON or OFF, these indicators will turn ON and OFF sequentially.
3.3 LCD panel
SECTION
DESCRIPTION
GRAPHIC
Numerical value
Shows the corresponding
numeric value of the
displayed parameters (output,
load, inverter temperature,
input, battery)
Mini diagram
Display the operation status
of the UPS and shows the
capacity of the battery and
load.

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 10
3.4 Parameters inquiring
Press UP / DOWN keys to show preview/next parameters item. The inquired items include input, battery, output,
load, inverter temperature.
ITEM
DESCRIPTION
GRAPHIC
Output
Display the output voltage and
output frequency of the UPS. As
the graphic shown, the output
voltage is 230V, the output
frequency is 50Hz.
Load
Display the numerical value of the
active power (W) and apparent
power (VA) of the load. For
example, as the following graphics
shown: the WATT of the load is
1.1KW, VA is 1.9KVA. When
disconnect load, it is a normal
phenomenon to show a small
numerical value of WandVA.
Temperature
Display the temperature of the
inverter in the UPS. As the
following graphics shown: the
temperature of the inverter is
40°C.
Input
Display the voltage and frequency
of the input. As the following
graphics shown: the input voltage
is 236V, input frequency is
50.1Hz.
Battery
Displaythevoltageandcapacity of
the battery. As the following
graphics shown: the battery
voltage is 80.2V, the capacity of
battery is 100% (the capacity of
battery is approximately reckoned
according to the battery voltage).

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 11
3.5 Operating modes
MODE
DESCRIPTION
INDICATOR

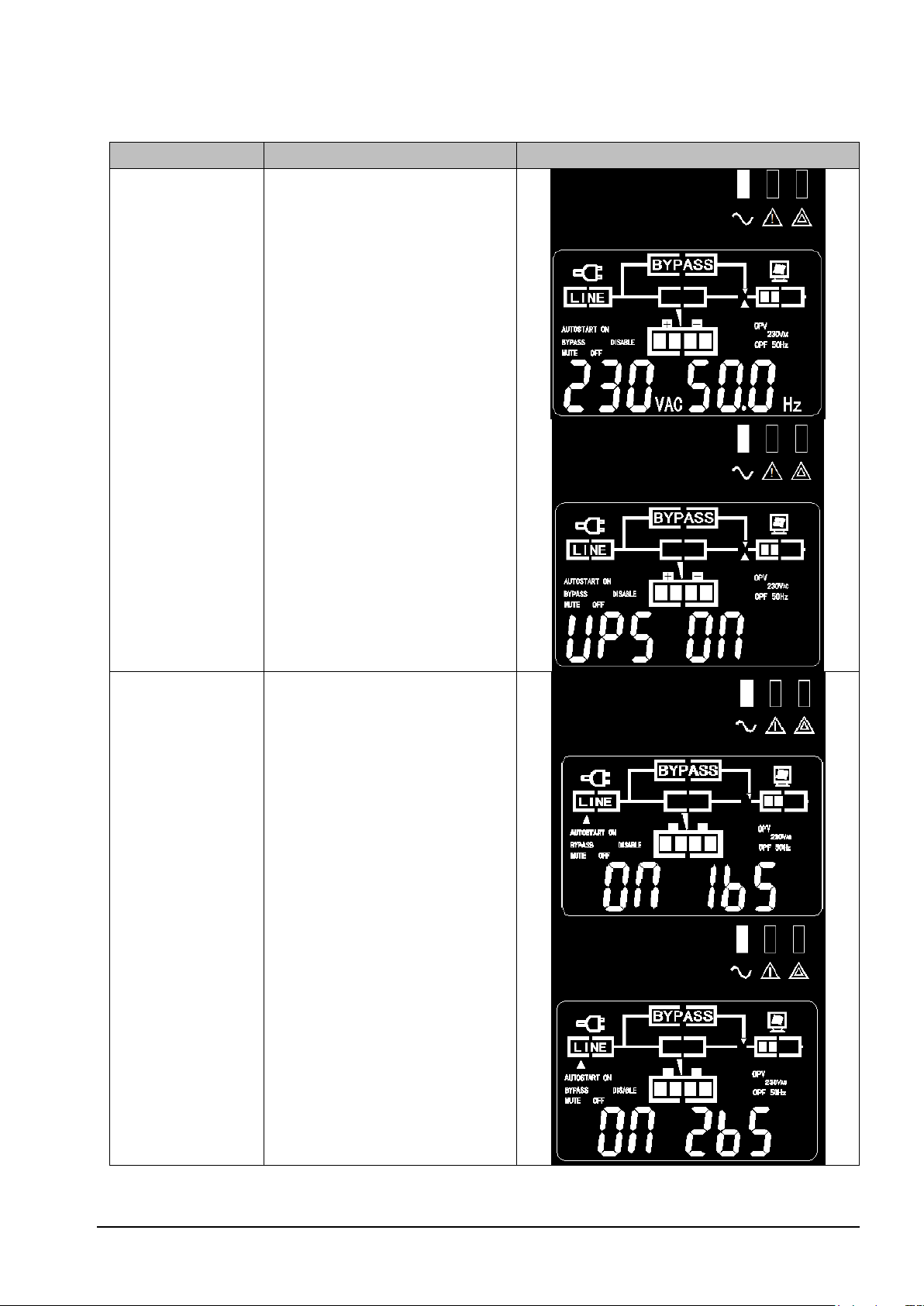

Line Normal Mode
When input AC mains is within
input range, UPS will work in
line mode, charge the battery
and protect the load.
Line Boost Mode
When AC is low, the UPS works in
line boost mode, charge the
battery and protect the load. There
are two boost stages.

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 12
Line buck Mode
When input AC mains is high, the
UPS works in line buck mode,
charge the battery and protect the
load.
Battery Mode
When input AC mains is output of
line range, the UPS works on
battery mode. The green LED is
on the yellow warning LED blink
once 4 seconds and buzzer beep
and if the battery voltage is low,
blink once 1 second and buzzer
beep.
Fault Mode
When the UPS has fault. The red
LEDs is ON and the buzzer
beeps. The UPS will turn to fault
mode. The UPS cuts off the
output and the LCD display fault
codes.
NOTE: As for corresponding
information of the fault code,
please refer to 3.7 Faults
Reference Code.
Standby Mode
When UPS is plugged into line
and not turn ON, the UPS will
work in standby mode to charge
the battery. No indicator displays
on this mode.

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 13
3.6 Setting parameters
In normal mode, press the UP / MENU key for at least two seconds to enter the settings menu. Press the UP -
DOWN keys to scroll through the available menus (blinking written). Press for two seconds to enter the options
of the chosen parameter, scroll through the available parameters using the UP - DOWN keys. Confirm the
parameter by pressing the UP / MENU key for two seconds and press for another two seconds to exit. Repeat
the sequence to make other changes.
If no command is made within 50 seconds, the display returns to the initial screen.
ITEM
DESCRIPTION
GRAPHIC
OPU
(Output Voltage)
Selectable Output Voltage.
Available selections:
208V - 220V - 230V - 240V.
Abt
(Automatic Battery
Test)
Available selections: ON or OFF.
When ON is selected, the UPS
performs a battery test every 30
days for about 10 seconds.
Selecting OFF deactivates the
function.
bPS
(ByPass)
Available selections: ON or OFF.
When ON is selected, the Bypass
function is enabled, When OFF is
selected it is disabled.
ISt
Available selections: 10.5 - 11.0 -
11.5. The UPS is equipped with
two series of output sockets,
SEGMENT1 and 2 as described in
chapter 2.1 and 2.3. When the
battery voltage reaches this value
the UPS will cut off voltage at the
SEGMENT1 output sockets
(non-critical loads).
Eod
(End of Discharge)
Available selections: 9.5 - 10.0 -
10.5 - 11.0.
When the battery voltage reaches
this value the UPS does not
supply more output voltage.

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 14
3.7 Falult reference code
Fault events
Fault occurring mode
Line mode
Fault occurring mode
Battery mode
Bus fail
08
Inverter high
00
01
Inverter low
02
03
Output short
11
Overload
06
07
Battery over
14
15
Temperature high
08
09
4. Troubleshooting
If the UPS system does not operate correctly, please solve the problem by using the table below:
SYMPTOM
POSSIBLE CAUSE
REMEDY
No indication and alarm even
though the mains is normal.
The AC input power is not
connected well.
Check if input power cord firmly
connected to the mains.
The AC input is connected to the
UPS output.
Plug AC input power cord toAC
input correctly.
EPO displayed on LCD and
alarm is sounding.
EPO function is activated.
Set the circuit in close position to
disable EPO function.
Load icon flashes on LCD display
and alarm is sounding every
second.
The external or internal battery is
incorrectly connected.
Check if all batteries are
connected well.
Overload codes displayed on
LCD display and alarm is
sounding every second.
UPS is overload
Remove excess loads from UPS
output.
Fault code is shown as 14 and
alarm is continuously sounding.
The UPS shut down automatically
because short circuit occurs on the
UPS output.
Check output wiring and if
connected devices are in short
circuit status.
Fault code is shown as 01, 03, 08,
09 on LCD display and alarm is
continuously sounding.
A UPS internal fault has occurred.
Contact your dealer
Battery backup time is shorter
than nominal value
Batteries are not fully charged
Charge the batteries for at least 5
hours and then check capacity. If
the problem still persists, consult
your dealer.
Batteries defect
Replace the battery.
5. Storage and maintenance
The UPS system contains no user-serviceable parts. If the battery service life (2/3 years) has been exceeded,
the batteries must be replaced. In this case, please contact your dealer.
Be sure to deliver the spent battery to a recycling facility.
Before storing, charge the UPS 5 hours. Store the UPS covered and upright in a cool, dry location. During
storage, recharge the battery in accordance with the following table:
Storage Temperature
Recharge Frequency
Charging Duration
-25°C - 40°C
Every 3 months
1-2 hours
40°C - 45°C
Every 2 months
1-2 hours

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 15
6. Technical specification
MODEL
PURE1000 PURE2000 PURE3000
CAPACITY
1000VA/800W 2000VA/1600W
3000VA/2400W
INPUT
Voltage
208/220/230/240VAC
Acceptable Voltage Range
160-290VAC
Frequency Range
50/60Hz (Auto sensing)
OUTPUT
Output Voltage
208/220/230/240VAC
Voltage Regulation(Batt.Mode)
+/- 3% (Before battery alarm)
Frequency Range (Batt.Mode)
50Hz or 60Hz +/- 4.0Hz
Current Crest Ratio
3:1
Harmonic Distortion
3% @ 100% linear laod , 5% @ 100% non-linear load
Transfer Time
Typical 6ms, 10ms max
Waveform (Battery Mode)
Pure sinewave
EFFICIENCY
Normal Mode
97%
Buck & Boost Mode
95%
Battery Mode
8 5%
BATTERY
Standard Model
Type & Number
12V /9Ah*2
12V/9 Ah*4
12V/9 Ah*6
Charging Current(max.)
1.0A
Charging Voltage
27.4VDC+/-1%
54.8VDC+/-1%
82.1VDC+/-1%
Typical Recharge Time
5 hours recover to 90% capacity
PROTECTION
Full Protection
Overload,output short,discharge,and overcharge protection
INDICATORS
LED Display
ACmode,batterymode,buckboostmode,batterylevel,loadlevel,overload,faultandlowbattery
LCD Display(Optional)
AC mode , battery mode , buck boost mode,battery level,load level, input voltage and frequency, output
voltage and frequency, overload , fault and low battery
ALARM
Battery Mode
sounding every 10 seconds
Low Battery
sounding every second
Overload
sounding every 0.5 second
Fault
continuously sounding
PHYSICAL
Standard Model
Dimension
D*W*H(mm)
400*144*215
468*191*345
Net Weight(kg)
10
21
24
ENVIRONMENT
Humidity
0-90% RH @ 0-40℃ (Non-condensing)
Noise Level
Less than 45dB
MANAGEMENT
Smart RS-232/USB
Support Windows® 2000/2003/XP/Vista/2008,Windows® 7/8,Linux,Unix and MAC
Optional card
SNMP
STANDARDS
IEC/EN62040-1 IEC/EN62040-2 IEC/EN62040-3 IEC/EN60950-1

PURE 1000●2000●3000
LINE INTERACTIVE SINGLE-PHASE
SINEWAVE
Ver.00 09 March 2018 16
6.1 Accessories
MODEL
PURE 1000
PURE 2000
PURE 3000
Instruction manual
●
Software
●
RS232 cable
1
USB cable
1
Input cable (IEC)
1
Output cable
2 (IEC)
2 (IEC)
1 Adapter High Current plug

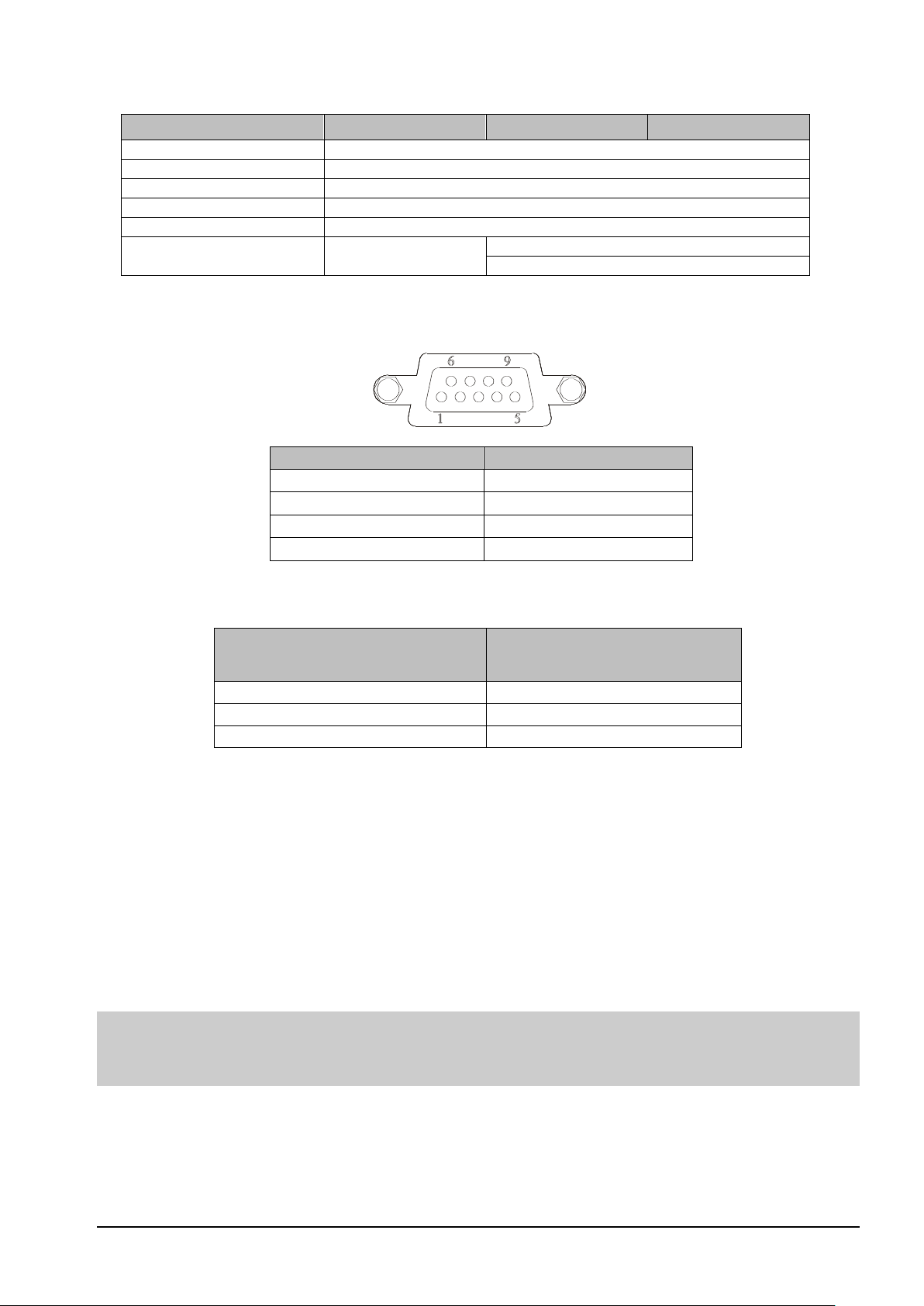

6.2 RS232 port
The present UPS provides a standard DB9 communication interface on the rear panel, the definition of the pins
is as follows:
PIN
DEFINITION
1-4-6-7-8-9
Not used
2
TX
3
RX
5
GND
When connecting the UPS to the PC via RS232 cable, it is necessary to use the standard RS232 cable, the
exact connections of the cable are as follows:
CONNETTORE 1 (female)
serial port PC side
CONNETTORE 2 (male)
serial port UPS side
2
2
3
3
5
5
6.3 Optional interface communication
1. USB communication interface
Install UPSilon2000 monitoring software supplied with the UPS. You can check directly the UPS
parameters from the PC. If both the RS232 cable and the USB cable are supplied, as only one is
possible to use, the USB cable is recommended.
2. Intelligent slot
The following boards can be installed in the UPS intelligent slot: SNMP board. The card can be
removed or inserted with the UPS ON. Depending on the needs of users you can use any of the listed
tabs.
2.1 SNMP card: When you connect to the internet with the SNMP card, you communicate with the
computer to monitor the power network and the status of the UPS remotely.
NOTE:
Remove the metal cover (Intelligent Slot) before installing the optional board.
The optional card slot can be used simultaneously with the RS232 port.
For the operating instructions of the SNMP card, refer to the instructions supplied with the card

Naicon srl Via il Caravaggio, 25 Trecella
I-20060 Pozzuolo Martesana - Milano (Italy)
Tel. [phone] Fax [phone]
www.naicon.com e-mail: [email protected]
